Clarke Devil IRD20B Mode d’emploi

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0518 iSS.3

INFRARED DIESEL HEATER

MODEL NO: DEVIL IRD20B

PART NO: 6925500

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for choosing this Clarke Infrared Heater which is ideal for the

heating of work areas in large, well ventilated rooms or outbuildings. It is not

intended to be used to reach and maintain a certain level of human thermal

comfort within an enclosed space in which the product is situated.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your heater giving

you long and satisfactory service.

Keep these instructions in a safe place for future reference.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

If disposing of this product or any damaged components, do not dispose of

with general waste. This product contains valuable raw materials. Metal

products should be taken to your local civic amenity site for recycling of metal

products.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

TECHNICAL SPECIFICATION

SAFETY SYMBOLS

The following symbols appear on the unit.

Dimensions (L x W x H) 580 x 340 x 625 mm

Weight (empty) 18.5 kg

Fuel Diesel/paraffin

Fuel consumption 1.9 L per hour

Fuel Tank capacity 10.5 litres

Ignition type Direct spark

Air displacement 400 m3/hr

Continuous working time 6 hr (before re-fueling)

Over heating protection 120oC

Max output 20 kW (68242 Btu/h)

Selectable operating temperature +5oC to +45oC

Duty cycle S1 (continuous)

Fuel pump pressure 15 bar

Electrical supply 230V 50 Hz 1 ph

Protection degree IPX4

Sound pressure level 65 dB LpA

Hot Surface, do not

touch

Read these

instructions before use

Do not cover

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY PRECAUTIONS

GENERAL

1. Always read and ensure you fully understand the following precautions and

the hazards associated with this heater. Do not allow anyone who has not

read these instructions to operate it.

2. Always check for damage before using the heater. Any damage should be

properly repaired. If in doubt, do not use the heater and consult your local

Clarke dealer.

3. Never carry out any modifications to this heater. If experiencing difficulty of

any kind consult your local Clarke dealer.

4. Use the heater in accordance with any applicable fire regulations.

OPERATING ENVIRONMENT

1. This heater is intended for drying & warming of commercial/industrial

buildings where adequate ventilation is provided. It is not for domestic use

or for heating habitable areas.

2. Do not expose the heater or power cable to rain or wet conditions. Any

water entering the heater will increase the risk of electric shock.

3. Never use the heater where petrol, paint thinners or other highly flammable

vapour or where high levels of airborne dust may be present.

4. Never locate the heater facing combustible materials.

5. Do not locate the heater close to an adjacent wall or ceiling. Avoid

placing the heater directly below power socket outlets.

6. Always locate the heater on a level, flat, fireproof floor. Ensure that the

heater is correctly and safely positioned as described on page11.

7. Disconnect the heater from the power supply when not in use.

8. Never place anything on top of the heater.

9. Always keep combustibles at least 2.5 m from the front of the heater.

10. Operate only on a stable, level surface.

11. Use only in accordance with local building regulations.

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN

PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

CAUTION: DUE TO THE HIGH SURFACE AND EXHAUST TEMPERATURES,

ADULTS AND CHILDREN MUST KEEP CLEAR OF THE UNIT TO AVOID BURNS

OR CLOTHING IGNITION.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

VENTILATION

Even though this heater operates very close to 100 percent combustion

efficiency, it still produces small amounts of carbon monoxide.

Carbon monoxide (CO) is toxic.

CO can build up in a confined spaces and failure to provide adequate

ventilation can be fatal.

The early symptoms of asphyxiation caused by inadequate ventilation are:

1. Only use in well ventilated areas and make sure that ample ventilation is

present if the heater is being started following a long period without use.

2. Never attach any duct work to the front of the heater.

3. Never cover or impede airflow into or out of the heater.

PERSONAL SAFETY

1. When the heater is used in the presence of other people the user is

responsible for informing those present of the safety precautions and of the

hazards involved.

2. The heater is not to be used by children or people with reduced physical,

sensory or mental capabilities, or lack of knowledge.

3. Always ensure that people and animals are at least 2.5 m away from the

front of the heater when in operation.

4. Never leave a heater unsupervised while in use - someone should always

be made responsible for monitoring it.

5. Do not move or service the heater while hot or in use.

6. This heater will be hot when in use and should not be touched until it has

fully cooled down after shutting down.

REFUELLING

1. Always refuel in a well ventilated area.

2. Always allow the heater to cool down before re-fuelling.

3. Always refuel away from any source of heat.

4. Never overfill the tank, only fill to the level specified.

5. Use only clean diesel or paraffin. NEVER use gasoline, paint thinners,

alcohol or other highly flammable fuels.

• headache • nausea

• dizziness • dry mouth or sore throat

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

6. Take care not to spill diesel or paraffin onto the power cable as this could

damage the insulation.

7. Never move, replenish the fuel supply or handle the heater when it is hot, or

in use. Turn it off and wait for it to cool down first.

ELECTRICAL SAFETY

1. Electrical appliances must match the power outlet. Never modify the plug

in any way. Do not use adaptor plugs with earthed (grounded) appliances.

Correct plugs and outlets will reduce the risk of electric shock.

2. Do not abuse the electrical cable. Never use the cable for pulling or

unplugging the heater. Keep the cable away from sources of heat, oil,

sharp edges or moving parts. Damaged or tangled cables increase the risk

of electric shock.

3. Keep the mains cable well away from machines and ensure an adequate

electrical supply is close at hand so that the operation is not restricted by

the length of the cable.

4. Always disconnect from the mains supply before moving the heater or

performing any maintenance tasks.

5. Inspect the mains cable regularly for signs of damage. DO NOT use if it is

damaged and always keep it away from the source of heat.

6. If the power cable is damaged, it must be replaced by the manufacturer,

its service agent, or similarly qualified persons in order to avoid a hazard.

SERVICE & REPAIRS

1. Check the heater for damage before use. DO NOT use if the heater is

damaged. Any damage should be properly repaired or the part replaced.

If in doubt, DO NOT use the heater. Consult your local dealer.

2. When necessary, have your heater serviced or repaired by a qualified

person using identical replacement parts. This will ensure that the safety of

the heater is maintained.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

Before switching the product on, make sure that the voltage of your electricity supply is

the same as that indicated on the rating plate. This product is designed to operate on

230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the

fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or

damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to

damage, it should be cut off and a replacement fitted, following the wiring instructions

shown below. The old plug must be disposed of safely, as insertion into a mains socket

could cause an electrical hazard.

If the colours of the wires in the power cable of this product do not correspond with the

markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal which is

marked Nor coloured Black.

• The wire which is coloured Brown must be connected to the terminal which

is marked Lor coloured Red.

• The wire which is coloured Yellow and Green must be connected to the

terminal which is marked E or or coloured Green.

We strongly recommend that this machine is connected to the mains supply

via a Residual Current Device (RCD). If in any doubt, consult a qualified

electrician. DO NOT attempt any repairs yourself.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS

SUPPLY.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE

COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

DEVIL IRD20B HEATER OVERVIEW

The heater is supplied with a spare fuel filter, tank drain bolt and sealing

washer. Fixings are supplied to connect the stand, heatshield and handle

which are supplied loose.

SAFETY SYSTEMS

The unit is fitted with a temperature limit sensor, which is designed to turn the

heater off if the temperature should rise to an unsafe level. If the sensor is

tripped and the heater is turned off it may require a service. Once the

temperature falls back below the reset temperature, the heater should re-

start.

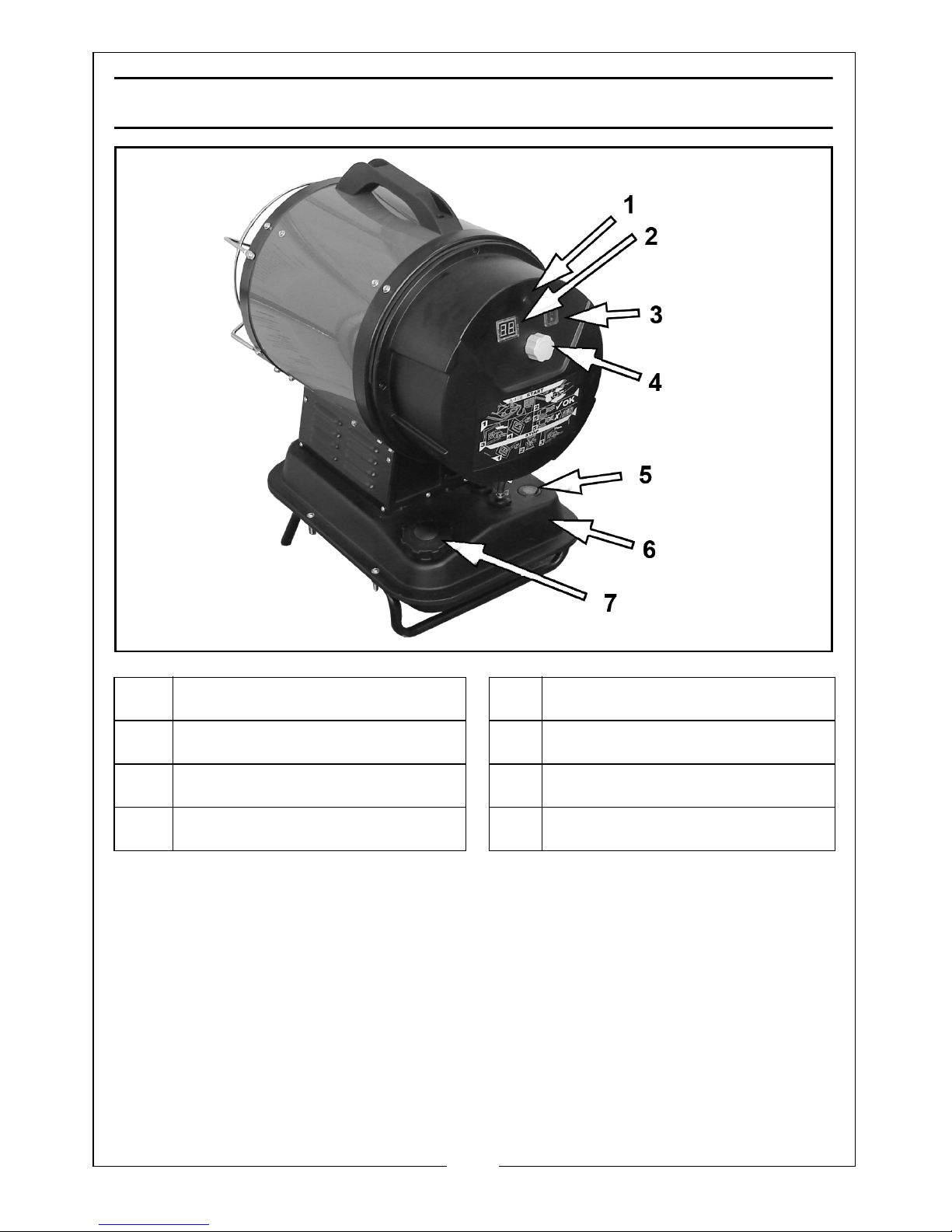

1 Power-on LED 5 Fuel gauge

2 Digital temperature display 6 Fuel tank

3 Power switch 7 Fuel filler cap

4 Temperature control knob

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

The heater is fitted with an electrical circuit breaker to protect the internal

components from damage. If the heater should fail to work, this fuse may

require checking by your dealer.

The heater is fitted with a tilt switch designed to turn the unit off immediately if

it should tip over beyond a pre-determined angle.

PREPARATION

UNPACKING

1. Remove heater from carton. and remove all protective material used for

shipment.

2. Check the heater for any damage and notify your Clarke dealer

immediately should any be apparent.

NOTE: THERE MAY BE SOME DISCOLOURATION TO THE HEATING ELEMENT,

THIS IS DUE TO THE HEATER BEING TESTED DURING THE

MANUFACTURING PROCESS. THIS DOES NOT INDICATE A FAULT.

3. Fit the carrying handle to the top

of the heater using the screws

supplied.

4. Fit the heatshield to the heater

body using the screws supplied.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

5. Fit the stand to the fuel tank using

the fixings supplied. Note the

correct orientation.

SUITABLE FUELS

Diesel or paraffin are the only fuels

that should be used in this heater.

FILLING THE FUEL TANK

IMPORTANT: In cold weather,

condensation may develop in the tank if the tank is empty. Before filling the

fuel tank for the first time or after extended storage periods, vent the fuel

tank of any moisture or condensation.

1. Follow all of the “Safety Precautions”.

2. Remove the fuel cap.

NOTE: If you lose the fuel cap a

replacement must be

obtained before use, this is

available from the Clarke

service department.

3. Fill the fuel tank with clean diesel

or paraffin.

4. When refilling, inspect the mesh

filter inside the filler neck for any

trapped contamination and clean out if necessary.

• When filling the heater, make sure that the heater is level and do not

overfill. Use a funnel or can with a long filling spout.

• Fill with a minimum of 4 litres of fuel.

POSITIONING THE HEATER

The heater should not be used in habitable areas. It must be located on a

hard, level surface to minimise the risk of accidentally tipping over. The heater

is not suitable for use on wood floors or other combustible materials. It should

be stood on suitable insulating material at least 26 mm thick and extending

1m or more in all directions.

When the heater is in use, periodically monitor any buildup of heat on nearby

surfaces.

It is important that the heater is positioned with at least 2.5 m clearance at the

front between the heater and any objects or surfaces. Always position the

heater facing the centre of the room, not pointing directly at any nearby

surfaces. Never place any objects on, or against the heater.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Clarke Chauffage

Clarke

Clarke Devil 370P Manuel d'installation et d'exploitation

Clarke

Clarke DEVIL 370PD Manuel d'installation et d'exploitation

Clarke

Clarke BR13/250 Mode d’emploi

Clarke

Clarke DEVIL 2000PTC Mode d’emploi

Clarke

Clarke DEVIL 350B 230V Manuel d'installation et d'exploitation

Clarke

Clarke OFR 9 Mode d’emploi

Clarke

Clarke XR60B Mode d’emploi

Clarke

Clarke XR60 Manuel d'installation et d'exploitation

Clarke

Clarke IQ2000S Manuel de la liste des pièces

Clarke

Clarke DEVIL 7030 Mode d’emploi

Clarke

Clarke 6933980 Mode d’emploi

Clarke

Clarke 6933990 Mode d’emploi

Clarke

Clarke CONTRACTOR DEVIL371PD Manuel d'installation et d'exploitation

Clarke

Clarke CFI 1800 Mode d’emploi

Clarke

Clarke DEVIL 370PC Manuel d'installation et d'exploitation

Clarke

Clarke DEVIL 4040 Mode d’emploi

Clarke

Clarke DEVIL 350C Manuel d'installation et d'exploitation

Clarke

Clarke OFR 9 Mode d’emploi

Clarke

Clarke DEVIL 2800PTC-B Mode d’emploi

Clarke

Clarke DEVIL 371SPD Manuel d'installation et d'exploitation

Clarke

Clarke CONTRACTOR DEVIL 351C Manuel d'installation et d'exploitation

Clarke

Clarke XR75 Manuel d'installation et d'exploitation

Clarke

Clarke XR60DV Mode d’emploi

Clarke

Clarke DEVIL 5000PTC Mode d’emploi

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur

iLO

iLO IHP2424 Manuel d'utilisation
