Operator’s Manual - SW 26 1

TABLE OF CONTENTS

INTRODUCTION......................................................................................................................................................... 2

HOW TO KEEP THIS MANUAL..................................................................................................................................................2

IDENTIFICATION DATA..............................................................................................................................................................2

OTHER REFERENCE MANUALS..............................................................................................................................................2

SPARE PARTS AND MAINTENANCE........................................................................................................................................2

CHANGES AND IMPROVEMENTS ...........................................................................................................................................2

UNPACKING/DELIVERY ............................................................................................................................................ 2

IMPORTANT SAFETY INSTRUCTIONS .................................................................................................................... 2

SYMBOLS ..................................................................................................................................................................................3

GENERAL INSTRUCTIONS.......................................................................................................................................................3

MACHINE DESCRIPTION .......................................................................................................................................... 3

TECHNICAL DATA......................................................................................................................................................................3

MACHINE STRUCTURE AND CONTROLS...............................................................................................................................4

USE ............................................................................................................................................................................. 4

SWEEPER OPERATION............................................................................................................................................................5

HOPPER EMPTYING.................................................................................................................................................................5

AFTER USING THE MACHINE..................................................................................................................................................5

MAINTENANCE.......................................................................................................................................................... 5

SCHEDULED MAINTENANCE TABLE ......................................................................................................................................5

SWEEPER MAINTENANCE.......................................................................................................................................................5

MACHINE CLEANING................................................................................................................................................................6

BROOM ADJUSTMENT .............................................................................................................................................................6

MAIN BROOM DISASSEMBLY/ASSEMBLY ..............................................................................................................................6

SIDE BROOM DISASSEMBLY/ASSEMBLY...............................................................................................................................7

TROUBLESHOOTING................................................................................................................................................ 8

SCRAPPING ............................................................................................................................................................... 8

PARTS LIST.............................................................................................................................................................. 25

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

ENGLISH

2 Operator’s Manual - SW 26

INTRODUCTION

NOTE

The numbers in brackets refer to the components shown in Machine Description chapter.

The purpose of this Manual is to provide the operator with all the information to get the best performances from Clarke SW 26.

Before operating the machine, read carefully the following information.

The machine here described is intended for commercial use only.

HOW TO KEEP THIS MANUAL

The Operator's Manual must be kept near the machine, inside an adequate case, away from liquids and other substances that

can cause damage to it.

IDENTIFICATION DATA

The machine Model and Serial Number are shown on the plate on the machine itself.





data.

MACHINE model ...............................................................................

MACHINE serial number ...................................................................

OTHER REFERENCE MANUALS

Spare Parts List (supplied with the machine)–

SPARE PARTS AND MAINTENANCE



and accessories. Contact your Clarke Dealer for any repair or service, and specify your machine model and serial number.

CHANGES AND IMPROVEMENTS

Clarke constantly improves its products and reserves the right to make changes and improvements at its discretion without



Any change and/or addition of accessory must be approved and performed by Clarke.

UNPACKING/DELIVERY

Upon delivery check that the packing and the machine were not damaged during transportation. In case of visible damages,



Remove the sweeper from the packing, loosen the knobs (2) and unfold the handlebar (1). Tighten the knobs to fasten the

handlebar.

IMPORTANT SAFETY INSTRUCTIONS



intended for domestic use.

Read all the instructions before use.

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

ENGLISH

Operator’s Manual - SW 26 3

SYMBOLS

DANGER!

It indicates a dangerous situation with risk of death for the operator.

WARNING!

It indicates a potential risk of injury for people.

CAUTION!

It indicates a caution or a remark related to important or useful functions.

Pay particular attention to the paragraphs marked by this symbol.

NOTE

It indicates a remark related to important or useful functions.

CONSULTATION

It indicates the necessity to refer to the Operator's Manual before performing any procedure.

GENERAL INSTRUCTIONS



WARNING!



This sweeper is not suitable for collecting dangerous powders.–

Do not collect toxic, carcinogen, combustible materials or other dangerous materials such as asbestos,–

arsenic, barium, beryllium, lead, pesticide or other harmful materials.

Do not collect burning cigarette butts or other burning objects, ash, matches or similar.–

To remove glass, metals or sharp objects from the hopper, wear thick gloves to prevent personal injuries.–

Empty the hopper after each use.–

This walk-behind sweeper is not suitable to collect liquids.–

This sweeper must be used in dry conditions, it must not be used or kept outdoors in wet conditions.–

Do not use the sweeper on uneven surfaces.–

Do not allow to be used as a toy. Pay careful attention when using the machine near children.–

–

brooms could reduce safety.

–

During the sweeping operation, foreign materials may get into the eyes of the operator. Thus, it is–

advisable to wear protective glasses.

Please be watchful. Pay careful attention to the machine operation and use common sense. Do not use–

the machine when tired, absent-minded, under the effect of drugs, alcoholics or medicines which can

compromise the control over the machine.

MACHINE DESCRIPTION

TECHNICAL DATA

General Values

Cleaning width with side brooms 32.3 in (820 mm)

Main cylindrical broom cleaning width 17.7 in (450 mm)

Machine size with folded handlebar (length x width x height) 35 x 32.3 x 13.6 in (890 x 820 x 345 mm)

Machine size with unfolded handlebar (length x width x height) 51.2 x 32.3 x 40.5 in (1,300 x 820 x 1,030 mm)

Main broom size (diameter x length) 5.9 x 17.7 in (150 x 450 mm)

Side broom diameter 10.2 in (260 mm)

Hopper capacity 9 USgal (theoretical) 5 USgal (actual)

[34 L (theoretical) - 19 L (actual)]

Total machine weight 35.3 lb (16 kg)

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

ENGLISH

4 Operator’s Manual - SW 26

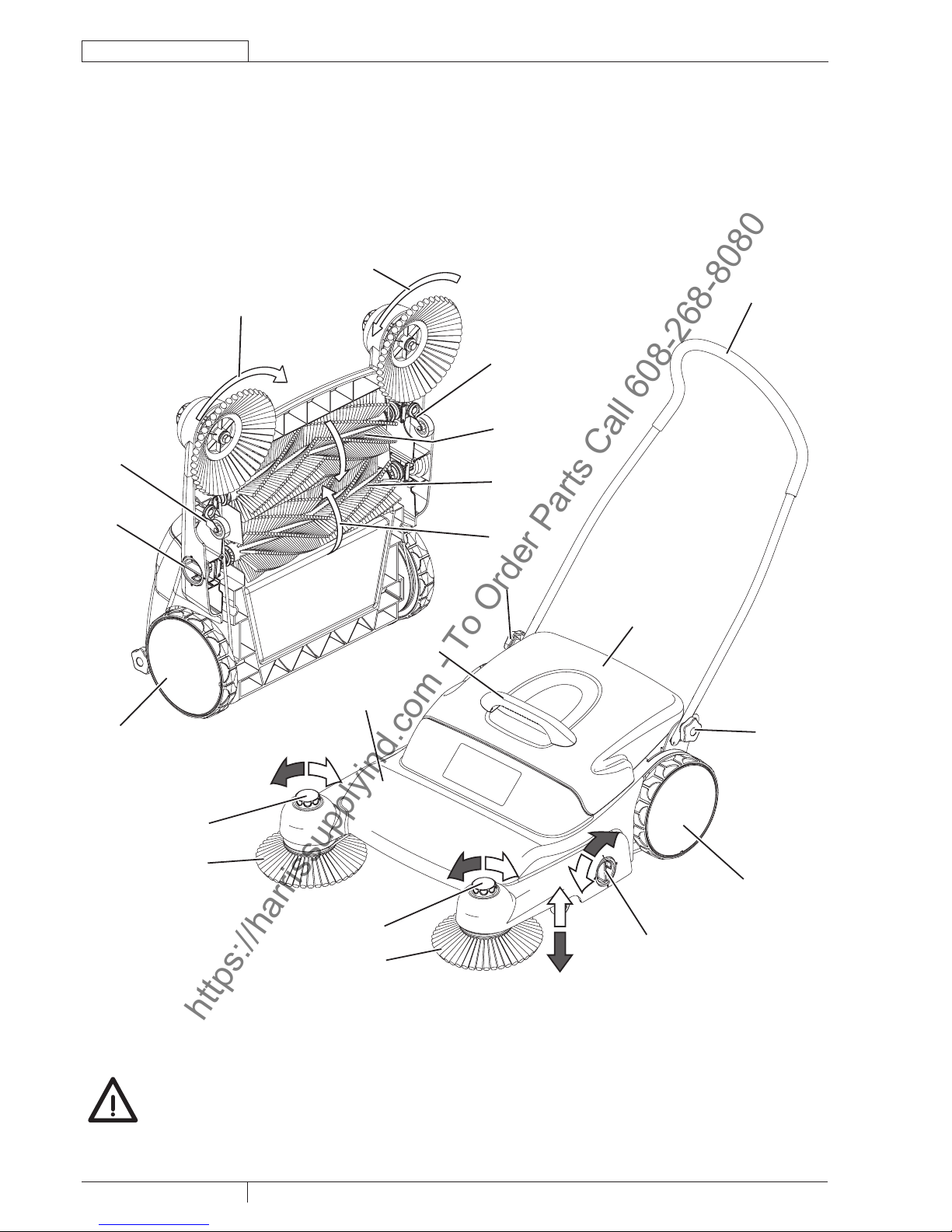

MACHINE STRUCTURE AND CONTROLS

Adjustable handlebar1.

Handlebar adjusting knobs2.

Hopper3.

Hopper handle4.

Side broom height adjusting knob5.

Side broom6.

Main broom height adjusting knob7.

Fixed front main broom8.

Adjustable rear main broom9.

Rear wheel10.

Front pivoting wheel11.

Sweeper frame12.

Main broom rotation direction13.

Side broom rotation direction14.

USE



from failure to follow these instructions.



WARNING!



or materials.

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

ENGLISH

Operator’s Manual - SW 26 5

SWEEPER OPERATION

If necessary, adjust the handlebar (1) to one of the 3 positions, by using the knobs (2).1.

Grab the handlebar and push the machine forward no faster than a normal walking pace. The machine does not work if2.

dragged backwards.

CAUTION!



The hopper (3) should be emptied after each working cycle and whenever it is full.3.

NOTE

When the hopper is full, the machine cannot collect dust and debris anymore.

HOPPER EMPTYING

Lift the hopper with the handle (4) in the front side and empty it into a proper container.1.

Install the hopper on the machine by inserting the lower end into the machine frame (12).2.

Slightly press downwards until the hopper is in the proper position.

It is advisable to empty the hopper after each use and whenever it is necessary.3.

AFTER USING THE MACHINE

After working, before leaving the machine: empty the hopper (4) and check the main brooms (8 and 9) to remove foreign

materials (lace, wire, strings or similar) which can compromise the proper operation.

To store the machine in a narrow place, fold the handlebar (1).

Loosen the knobs (2) and pull the handlebar upwards.–

Fold down the handlebar and lock it.–

Then place the machine in a vertical position to preserve the broom bristles.

MAINTENANCE

CAUTION!



For other procedures, contact the Service Center.

Use only Clarke original spare parts and accessories.

The lifespan of the machine and its maximum operating safety are ensured by correct and regular maintenance.

SCHEDULED MAINTENANCE TABLE

Procedure After working Monthly When necessary

Place the machine in a vertical position

Empty the hopper (3)

Clean the main (8 and 9) and side brooms (6)

Clean the machine

Replace the main broom (9) when worn

Replace the side brooms (6) when worn

Replace the driving belt (*)

Contact an authorised Service Center or Retailer.(*)

SWEEPER MAINTENANCE

After each use, perform the following procedures:

Empty the hopper (3).–

Check if there are foreign objects caught in the brooms or wheels and remove them immediately.–

–

damages due to the drive system sticking.

Periodically check the main and side brooms for wear ; adjust their height or replace them when the sweeping capacity is–

reduced.

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

ENGLISH

6 Operator’s Manual - SW 26

MACHINE CLEANING

Regularly clean the machine with a wet cloth.

CAUTION!

Do not clean the machine with pressure washer!

All bearings are protected against dust and do not require lubrication or maintenance.

BROOM ADJUSTMENT



Adjust the height of the main broom (9) with the two knobs (7). When turning them, each step on the marked numbers1.

amounts to a broom lowering.

Check that the two knobs (7) are on the same marked number. Otherwise there will be a difference in the longitudinal

pressure of the broom.

Adjust the height of the side brooms (6) with the knobs (5). When turning them counter-clockwise, each step amounts to a2.

broom lowering.



broom adjustment procedure.

If the brooms are too worn, replace them.

MAIN BROOM DISASSEMBLY/ASSEMBLY

CAUTION!

It is advisable to wear protective gloves when

replacing the brooms because there can be

sharp debris between the bristles.

NOTE



wears.

Disassembly

Place the machine in a suitable place, with the bottom1.

side up.

Remove the screws (A, Fig. 1), then remove the supports2.

(B) with the main broom (C).

Pay attention to the driving belt (D) of the front main

broom.

Remove the driving belt (E, Fig. 2) from its housing on3.

the main broom (F).

Remove the main broom (F) and keep screws, supports4.

and bearings (G) for reassembly.

Assembly

Assemble the main broom in the reverse order of5.

disassembly, and note the following:

Install the main broom with the bristles as shown in

(H, Fig. 1).

Install the short driving belt by crossing it as shown (I,

Fig. 2).

Pay attention to the proper position of the long driving

belt (D, Fig. 1).

Turn the 2 knobs (7) on the position 1.

After installation, check the sweeper operation by testing the

rotation direction of the brooms (13).

Figure 1

Figure 2

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

ENGLISH

Operator’s Manual - SW 26 7

SIDE BROOM DISASSEMBLY/ASSEMBLY

CAUTION!

It is advisable to wear protective gloves when

replacing the brooms because there can be

sharp debris between the bristles.

Disassembly

Place the machine in a suitable place, with the bottom1.

side up.

Remove the screw (A, Fig. 3), and keep the washer (B)2.

and the bearings (C) for reassembly.

Remove the driving belt (D) and the side broom (E).3.

Replace the side broom.4.

Assembly

Assemble the side broom in the reverse order of5.

disassembly, and note the following:

Install the driving belt (F, Fig. 4) as shown.

Turn the knobs fully clockwise.

After installation, check the sweeper operation by testing the

rotation direction of the brooms (14).

Figure 3

Figure 4

https://harrissupplyind.com-ToOrderPartsCall608-268-8080

ENGLISH

8 Operator’s Manual - SW 26

TROUBLESHOOTING

WARNING!



on the machine.

Repair and services must be performed by Clarke authorized technicians.

The following instructions should be useful to solve some machine problems. If the suggested remedies are not effective, it is

necessary to contact the Service Center.

Trouble Possible Cause Remedy

The machine does not move smoothly. The side or main brooms are too low. Adjust the brooms.

There is a big foreign object caught into the

brooms.

Remove the object.

 There is a rope or other foreign object caught

by the main brooms.

Remove the rope or the object.

The hopper is full. Empty the hopper.

The side or main brooms are too high. Adjust the brooms.

The brooms are too worn. Replace the brooms.

The machine produces excessive dust during

operation.

The hopper is full. Empty the hopper.

The machine speed is too high. Reduce the working speed.

The machine leaves dust marks. Some dust may collect inside the housing

behind the brooms.

Remove the dust from the housing.

SCRAPPING



https://harrissupplyind.com-ToOrderPartsCall608-268-8080

Table des matières

Langues :

Autres manuels Clarke Machine de plancher

Clarke

Clarke Vantage 14 Instructions de fonctionnement

Clarke

Clarke Vantage 14 Manuel utilisateur

Clarke

Clarke FOCUS II MICRO RIDER 26D Manuel utilisateur

Clarke

Clarke Encore L26 Cylindrical Manuel utilisateur

Clarke

Clarke Clean Track L24 56317170 Manuel utilisateur

Clarke

Clarke Clean Track L24 56317170 Manuel utilisateur

Clarke

Clarke Ultra Speed Burnisher Manuel utilisateur

Clarke

Clarke CR 28 Boost Manuel utilisateur

Clarke

Clarke 56381408 (21KBCATCLDC) Manuel utilisateur

Clarke

Clarke Ultra Speed Pro 1500 Manuel utilisateur

Clarke

Clarke EXT 311 Manuel utilisateur

Clarke

Clarke C2K 13 Manuel utilisateur

Clarke

Clarke MA50 15B CLARKE380B Manuel utilisateur

Clarke

Clarke BOS-18 Manuel utilisateur

Clarke

Clarke Encore S20 Manuel utilisateur

Clarke

Clarke Vantage 17 cable Manuel utilisateur

Clarke

Clarke FM40 ST 56105618 Manuel utilisateur

Clarke

Clarke Image 26B Manuel utilisateur

Clarke

Clarke FA-8 Manuel utilisateur

Clarke

Clarke IMAGE 16 I Manuel utilisateur

Clarke

Clarke ENCORE S2426 Manuel utilisateur

Clarke

Clarke Focus II Rider Manuel utilisateur

Clarke

Clarke Ultra Speed Burnisher Manuel utilisateur

Clarke

Clarke Fusion 201 Manuel utilisateur

Manuels Machine de plancher populaires d'autres marques

Nilfisk-Advance

Nilfisk-Advance Advance SC370 17B Manuel utilisateur

Numatic

Numatic ET 4045 Manuel utilisateur

HAWK ENTERPRISES

HAWK ENTERPRISES HP1513-180BRUTE Manuel utilisateur

Mytee

Mytee 8070 Mytee-Lite Manuel utilisateur

Kärcher

Kärcher B 140 R Manuel utilisateur

Triple S

Triple S Ace 26T1 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance SW 750 Manuel utilisateur

Tornado

Tornado Marathon 2000 98190 Manuel

Windsor

Windsor ADMIRAL Admiral 8 Manuel utilisateur

Numatic

Numatic TTB 1117/100 Manuel utilisateur

Tennant

Tennant 8210D Manuel utilisateur

Nobles

Nobles Frontier Manuel du produit

lavina

lavina 21-X Manuel utilisateur

KENT

KENT Edge 28B Manuel utilisateur

Tennant

Tennant 215 Manuel du produit

Windsor

Windsor BDP 51/2000C Manuel utilisateur

CleanFreak

CleanFreak DURA-18HD Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance Warrior 34RST Guide de l'administrateur
