Clarke CAT123 Mode d’emploi

OPERATION & MAINTENANCE

INSTRUCTIONS

GC1110

1/2” REVERSIBLE AIR DRILL

MODEL NO: CAT123

PART NO: 3110879

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE product.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Recycle unwanted materials instead of disposing of them as

waste. All tools, accessories and packaging should be sorted,

taken to a recycling centre and disposed of in a manner which is

compatible with the environment.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair

out of the way.

3. Keep children and visitors away - Do not let children handle the air drill.

Make sure that any other persons in the work area are dressed suitably and

are wearing eye and ear protection.

4. Do not operate the drill where there are flammable vapours.

5. Keep the air supply hose away from heat, oil and sharp edges.

6. Do not fit the drill to any stand or clamping device that may damage it.

USE

1. Stay alert and use common sense - Do not operate the drill when you are

tired or under the influence of alcohol, drugs or medication.

2. Always wear eye protection when using the drill - Eye protectors must

provide protection from flying particles from the front and the side.

3. Always wear ear protection when using the drill.

4. Do not over reach - Keep proper footing and balance at all times.

5. Never use any type of bottled gas as a source of power for the drill.

6. Do not connect the air supply hose with your finger on the trigger.

7. Do not exceed the maximum pressure for the drill: 90 psi / 6.2 bar.

8. Check hoses for leaks or worn condition before use, and ensure that all

connections are secure.

9. Do not use the drill for any other purpose than that described in this book.

10. Do not carry out any alterations or modifications to the drill.

11. Always disconnect from the air supply when:

• Performing any maintenance

• The drill is not in use.

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN

PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• The drill will be left unattended.

• Moving to another work area.

• Passing the drill to another person.

12. Never use the drill if it is defective or operating abnormally.

13. The drill should be serviced at regular intervals by qualified service

personnel.

14. Avoid damaging the drill for example by applying excessive force of any

kind.

15. Always maintain the drill with care. Keep it clean for best and safest

performance.

16. Quick change couplings should not be located at the drill. They add

weight and could fail due to vibration.

17. Do not force or misuse the drill. It will do a better and safer job at the rate

for which it was designed.

18. Do not remove any labels. Damaged labels should be replaced.

19. This tool vibrates with use. Vibration may be harmful to your hands or arms.

Stop using the tool if discomfort, a tingling feeling or pain occurs. Seek

medical advice before resuming use.

TRANSPORTATION

1. Never carry the drill by the air supply hose.

2. Never carry the drill with your finger on the trigger.

STORAGE

1. When not in use the drill should be disconnected from the air supply and

stored in a dry place out of the reach of children (preferably in a locked

cabinet).

2. Avoid storing the drill in environments where the temperature is below 0oC.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OVERVIEW

Unpack and lay out the components, checking against the following list. Any

damage or deficiency should be reported to your CLARKE dealer

immediately.

• 1/2” Reversible Air Drill

• Male Snap Connector

• Bottle of Airline Oil

•ChuckKey

NO DESCRIPTION NO DESCRIPTION

1Chuck 4Handle

2 Trigger 5 Air hose connector

3 Forward/Reverse Switch

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• Side Handle

• Side Handle Clamping Ring

• Operators Manual (this document)

ACCESSORIES

A wide range of accessories are available, including Filter/Regulators, Airline

Lubricators, High Pressure Hoses (5 to 50 Metres), adaptors and connectors

etc.

Contact your CLARKE dealer for further information, or CLARKE International

Sales Department on 01992 565 333.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

COMPRESSED AIR LINES

AIR SUPPLY REQUIREMENTS

• Use only clean, dry, regulated compressed air as a power source.

• Air compressors used with the air drill must comply with the

appropriate European Community safety directives.

• A build-up of moisture or oil in the air compressor will accelerate

wear and corrosion in the air drill. Ensure any moisture is drained from

the compressor daily and the inlet filter is kept clean.

• If an unusually long air hose is required, (over 8 metres), line pressure

may need to be increased.

• Never exceed the maximum operating pressure for the air drill.

• The air hose must be rated at least 150% of the maximum operating

pressure of the tool.

A typical airline layout is shown below. If an automatic in-line filter/regulator/

lubricator unit is used it will keep the tool in good condition, but should be

regularly checked and topped up with oil.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF

COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

IMPORTANT: If a filter/lubricator unit is not used, the air tool should be

lubricated with 2 to 6 drops of oil, at least once a day or after 2 hours work,

depending upon the working environment. The oil can be inserted through

the airline connection point.

AIRLINE SAFETY

• Never exceed the maximum operating pressure for the tool. A

pressure of 90 psi with a flow of 16 cfm is required. Too high an air

pressure will shorten the life of the tool due to excessive wear.

• The air hose must be rated at least 150% of the maximum operating

pressure of the tool.

BEFORE USE

NOTE: Ensure the compressor is turned off.

1. Remove the travel plug from the

airline socket.

2. Pour 2-3 drops of CLARKE airline oil

into the air inlet. This should be

done regardless of whether or not

a lubricated air supply is to be

used.

3. Connect a suitable hose to the air

drill as shown, using the adapter

supplied if required.

4. Connect the other end of the hose to the compressor.

5. Turn on the air supply and check for air leaks. Rectify any found before

proceeding

You can fit a whip hose with a quick fit coupling if required (available from

your Clarke dealer.)

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF

COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

FITTING THE HANDLE

The CAT123 is supplied with a

removable side handle. To install it

proceed as follows.

1. Slide the clamping ring over the

body of the drill.

2. Screw the handle onto the

threaded part of the clamping ring

until the handle assembly is tight.

The handle can be located at any

position around the drill by loosening

the handle grip and re-tightening to secure in position.

INSERTING/REMOVING THE DRILL BIT

1. Open the chuck jaws by inserting

the chuck key in one of the holes

in the chuck and turning it as

shown.

2. Make sure that the head of the

chuck key is located on the barrel

of the chuck.

3. Turn the chuck key until the chuck

jaws are open sufficiently to take

the drill bit.

4. Place the drill bit in the jaws of the

chuck as far as it will go.

5. Close the chuck jaws and tighten

to grip the drill bit by turning the

chuck key as shown.

6. Make sure that the chuck jaws are

fully closed and that the drill bit is

held firmly.

7. Your air drill is now ready for use.

Drill bit

Chuck jaws Close

Open

Chuck

key

jaws

Barrel

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OPERATION

OPERATING THE AIR DRILL

1. Squeeze the trigger switch to start

the drill.

2. Wait until the drill is running at its

maximum speed before applying

it carefully to the workpiece.

3. Release the trigger switch to stop

the drill.

4. To change the direction of rotation

move the lever on the left side of

the drill body from F to R.

5. Always ensure the drill has stopped before putting it down.

DISCONNECTING THE AIR SUPPLY

Do not disconnect the air supply hose until the compressor has been shut

down and the compressed air pressure released.

1. Refer to the compressor instruction book for the procedures to shut down

and release the compressed air.

2. Once the pressure has been released, disconnect the air supply hose from

the air drill.

STORAGE

1. Store the air drill safely in a dry, secure environment.

2. If the tool is not to be used for longer than 24 hours, run a few drops of

CLARKE airline oil into the air inlet and run the tool for a few seconds to

ensure that the oil has been well distributed throughout the tool.

3. When storing, ensure the blanking plug is replaced on the airline inlet

connector once the airline has been disconnected.

WARNING: MAKE SURE THAT THE CHUCK KEY HAS BEEN REMOVED

BEFORE USING THE DRILL.

Table des matières

Autres manuels Clarke Percer

Clarke

Clarke CMD300 Manuel

Clarke

Clarke CON1500RHD Mode d’emploi

Clarke

Clarke air CAT137 Manuel d'installation et d'exploitation

Clarke

Clarke SCD28 Manuel utilisateur

Clarke

Clarke Contractor CON24 Manuel d'installation et d'exploitation

Clarke

Clarke Contactor CON1200 Manuel d'installation et d'exploitation

Clarke

Clarke X-Pro CAT207 Manuel d'installation et d'exploitation

Clarke

Clarke CHT599 Manuel utilisateur

Clarke

Clarke Metalworker CMD10 Manuel

Clarke

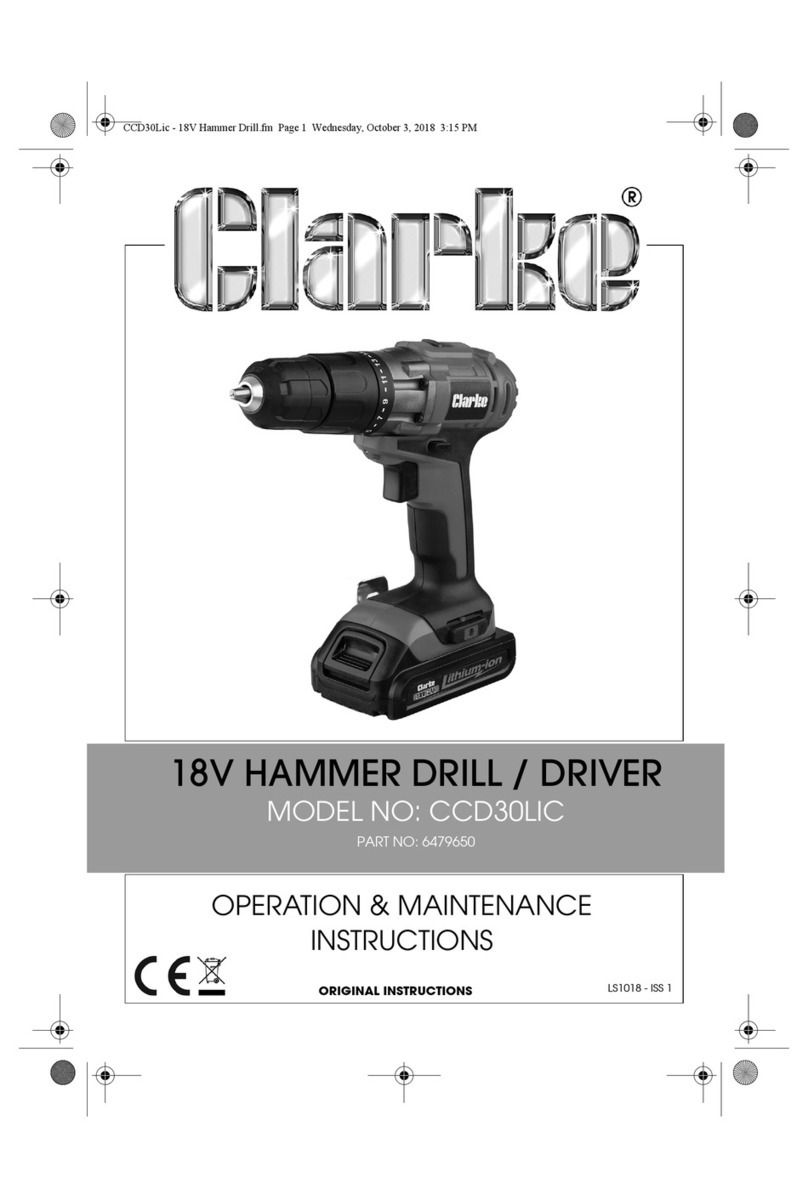

Clarke CCD30LIC Mode d’emploi

Clarke

Clarke CONTRACTOR CHD1050 Manuel utilisateur

Clarke

Clarke Contractor CON18NI Mode d’emploi

Clarke

Clarke CONTRACTOR CON720RHD Mode d’emploi

Clarke

Clarke CAT137 Manuel d'installation et d'exploitation

Clarke

Clarke Metalworker CMD1225C Manuel d'installation et d'exploitation

Clarke

Clarke CDS1 Manuel utilisateur

Clarke

Clarke CHD850 Mode d’emploi

Clarke

Clarke CHD500 Manuel d'installation et d'exploitation

Clarke

Clarke CAT87 Manuel d'installation et d'exploitation

Clarke

Clarke CHD900 Mode d’emploi

Clarke

Clarke CAT60 Manuel d'installation et d'exploitation

Clarke

Clarke 6479500 Manuel d'installation et d'exploitation

Clarke

Clarke CAT100 Manuel d'installation et d'exploitation

Clarke

Clarke CHD820 Mode d’emploi

Manuels Percer populaires d'autres marques

Makita

Makita BDF456 Manuel utilisateur

Black & Decker

Black & Decker LDX220 Manuel utilisateur

Hitachi

Hitachi DH 40MA Manuel utilisateur

Challenge

Challenge JO Manuel de référence technique

Makita

Makita LXFD01 Manuel utilisateur

Festool

Festool T18+3 Manuel utilisateur

Milwaukee

Milwaukee M12 FPDX-202X Manuel utilisateur

EINHELL

EINHELL TE-RH 32 E Manuel utilisateur

Makita

Makita DHP484 Manuel utilisateur

Makita

Makita FD05 Manuel utilisateur

Bosch

Bosch PSB 530 RA Manuel utilisateur

Maximum

Maximum 054-1359-4 Manuel utilisateur

Makita

Makita HP332D Manuel utilisateur

Raider

Raider RDP-HD31H Manuel utilisateur

Bort

Bort BPM-1400x2 Manuel utilisateur

Black & Decker

Black & Decker 7266 Manuel utilisateur

KENT USA

KENT USA TRD1230 Manuel utilisateur

Bosch

Bosch GSB 19-2 RE Manuel utilisateur
