Cisco UNIFIED COMMUNICATIONS UC320W Manuel utilisateur

Quick Start Guide

Cisco Small Business

Unified Communications UC320W with FXO

Package Contents

•Unified Communications System

•Ethernet Network Cable

•Phone Cable

•Power Adapter

•Power Cord Retention Kit

•Quick Start Guide

•Phone Quick Reference Card

•Product CD-ROM

CAUTION Be sure to read Section 1 before installation.

VoIPon www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

2 Cisco UC320W Quick Start Guide

Welcome

Thank you for choosing the Cisco Small Business Unified Communications

Model UC320W. This guide describes how to install the equipment and

get started configuring the system.

Before You Begin

Minimum Requirements

•PC with web browser and Adobe Flash Player version 10.1 or later.

•Cisco SPA300 Series or Cisco SPA500 Series IP phones.

•Power adapters for the phones, as needed. Cisco SPA300 Series

phones always require power adapters. Cisco SPA500 Series phones

can receive power from a Power over Ethernet switch.

•Ethernet cables to connect IP phones and computers.

•Internet service.

•Voice over IP service or analog phone service.

Default Settings

NOTE Be sure to update to the latest firmware when asked at the

beginning of the installation.

CAUTION Before installing the Cisco UC320W into an existing network

with another DHCP server, refer to the Smart Designs (see links on

page 7). Carefully follow the instructions in this guide and in the UC320W

Simple Configuration Utility. IP address conflicts will result if two DHCP

servers are installed on your network.

Parameter Default Value

Username cisco

Password cisco

LAN IP

(Also the address for the web-

based configuration utility.)

192.168.10.1

DHCP Range

(DHCP server is enabled by default.)

192.168.10.100 to 149

Netmask 255.255.255.0

Voice VLAN 100

Default Voice VLAN Subnet 10.1.1.1

VoIPon www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Cisco UC320W Quick Start Guide 3

Optional Equipment and Services

• Secure router for Internet access: Cisco recommends using a secure

router, such as a Cisco SRP500 Series Services Ready Platform or a

Cisco SA500 Series Security Appliance.

• Additional ports for IP phones and network devices: Connect a Cisco

ESW500 Series Power over Ethernet Switch to a LAN port. Other

switches may be used but may require configuration of VLAN and QoS

settings. Refer to the VLAN information in Default Settings, page 2. For

application notes, see the documentation links in Where to Go From

Here, page 7.

• Additional ports for analog devices and analog phone lines: Add up

to two Cisco SPA8800 IP Telephone Gateways with 4 FXO ports and 4

FXS ports. All added FXS ports count toward the 24 user maximum. A

device connected to the Cisco UC320W built-in FXS port (shown

below) is not counted.

•ISDNBRIservice:Install a Mediatrix™ 4400 Digital Gateway, Connect

both the Cisco UC320W and the BRI gateway to a secure router such as

Cisco SA500. For application notes, see the documentation links in

Where to Go From Here, page 7.

• Power cord retention kit: To prevent accidental removal of the power

cord, you can install the supplied power cord retention kit (not

illustrated). Remove the screw next to the power port. Connect the

clamp to the power cord. Insert the screw and install it onto the Cisco

UC320W. For detailed instructions, see the Cisco UC320W

administration guide.

NOTE For best results, install the latest firmware for any network devices,

such as routers and Ethernet switches, before proceeding.

Installing the Equipment and Configuring the

System

STEP 1Before you begin, gather the following information:

•Account information from your Internet Service Provider

•Phone numbers and account information for all phone services

•Names and phone settings for your users and groups

•Details for telephony features such as internal dialing, call

routing, and Auto Attendant

STEP 2Connect a network cable from the WAN port of the Cisco

UC320W to your Internet Service or Internet access device.

VoIPon www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

4 Cisco UC320W Quick Start Guide

STEP 3Connect the supplied power cord to the POWER port and to a

power outlet.

When the device is fully booted, the POWER/SYS light is steady

green.

STEP 4Connect your PC to a LAN port on the Cisco UC320W. Do not

connect any devices to the LAN ports at this point. You r P C

will receive an IP address in the 192.168.10.x range.

NOTE:

•You may need to adjust your PC’s connecting settings to

receive an IP address dynamically.

•For best results, set the screen resolution to 1024x768 or

higher.

STEP 5Start a web browser. In the Address bar, enter the IP address of the

Cisco UC320W (default 192.168.10.1).

STEP 6To log in, enter the username cisco and the password cisco.

Both the username and the password are case sensitive.

STEP 7When prompted, enter a new username and password. Neither

cisco nor admin is valid.

STEP 8Follow the instructions in the configuration utility to connect the

equipment and configure the system.

Notes:

•If you are installing the Cisco UC320W in a network with

another DHCP server, be sure to complete the Network

Topology step in the Getting Started menu.

•For best results, enable access to Cloud Services and accept

all available firmware updates.

Power

12VDC

LAN (10/100/1000)

WAN

(10/100/1000)

2341 1234

LINE (FXO) PHONE

(FXS) LINE

OUT LINE

194793

UC 320W 192.168.10.x

VoIPon www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Cisco UC320W Quick Start Guide 5

Getting to Know the Cisco UC320W

Installation Guidelines

•Ensure adequate air flow.

•Do not stack or place anything on top of the Cisco UC320W, or install it

on a hot surface.

•Ensure that the Cisco UC320W is secure and stable.

NOTE For mounting options, see the Cisco UC320W administration

guide.

Environmental Considerations

•Storage Temperature (sea level): -22° F to 140° F (-30° C to +60° C)

•Operating Temperature (sea level): 32°F to 104°F (0°C to 40°C)

•Relative Humidity (sea level): 5 to 95% RH (non-condensing)

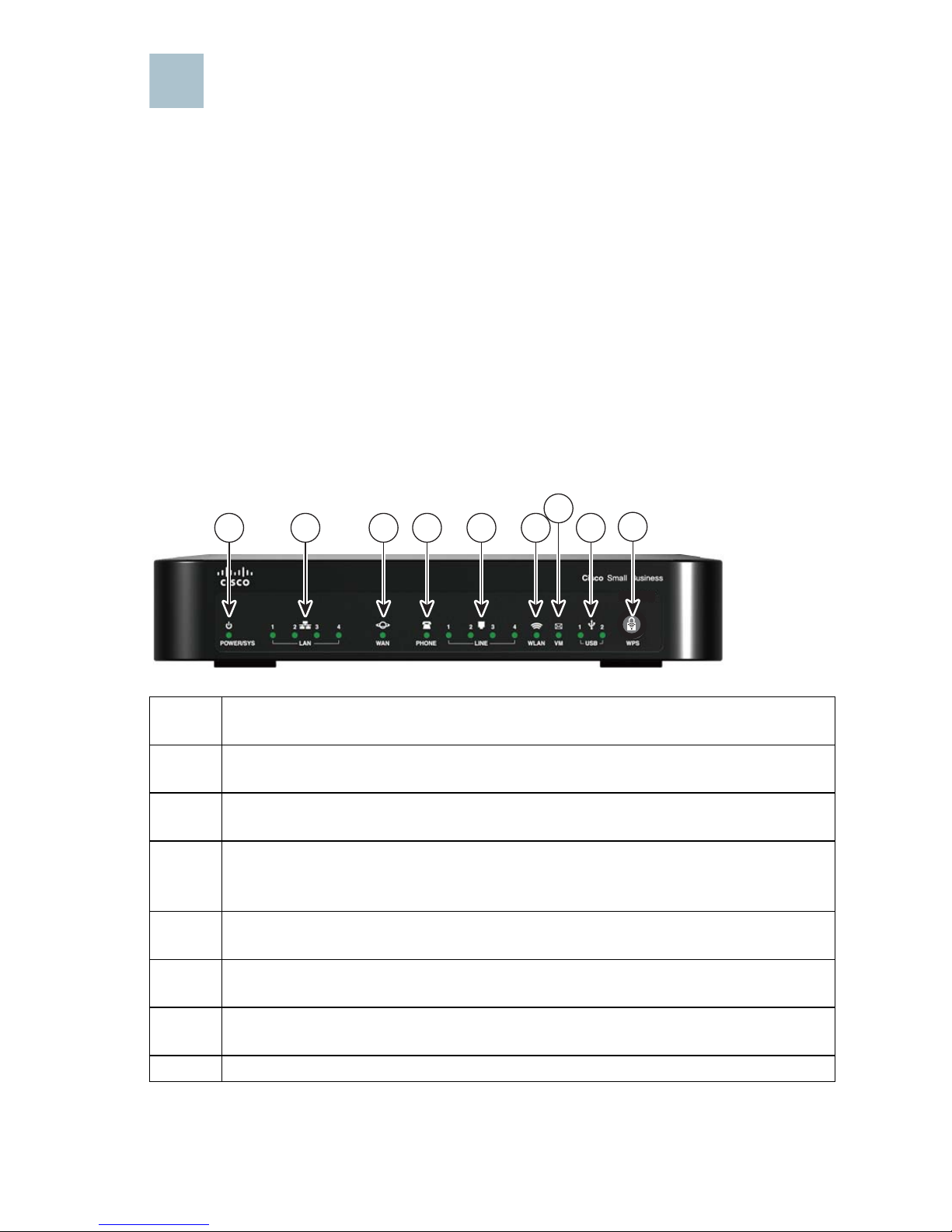

Front Panel

1POWER/SYS On - Normal operation. Slow flashing - Booting up. Fast

flashing - Upgrading firmware. Off - No power.

2LAN On - Connected to a device. Flashing - Sending or receiving data.

Off- Not connected.

3WAN On - Connected to WAN. Flashing - Sending or receiving data. Off-

Not connected.

4PHONE (FXS) On - Service is available on the port, and the port is not in

use. Slow Flashing - Service is available and the attached phone is off

hook (in use). Off - The port is disabled.

5LINE (FXO) On - PSTN line loop detected. Slow Flashing - FXO port is in

use. Off - Not connected.

6WLAN On - Wireless radio is on. Flashing - Sending or receiving data.

Off - Disabled.

7VM On - Voice mail is enabled. Fast Flashing - System is full. Slow

flashing - Retrieving or recording voice mail. Off - Disabled.

8USB For future use.

195715

1 2 3 4 5 6 78

UC 320W

VoIPon www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

6 Cisco UC320W Quick Start Guide

Back Panel

Side Panel

9WPS On - WiFi Protected Setup succeeded. Slow flashing - Setup is in

progress. Fast flashing - Setup error. Off - Not in use. To configure a WiFi

connection by using WPS, make sure the wireless device is located near

the Cisco UC320W, and then press and hold this button until the WPS

light flashes.

1LINE (FXO) Connect phone lines for traditional phone service.

2PHONE (FXS) Connect an analog phone or fax machine.

3WAN Connect to the broadband network access device or to an uplink

port on an Ethernet switch that is connected to the Internet.

4LAN Connect IP phones and other network devices.

5LINE OUT Connect to an external speaker system.

6LINE IN Connect to an external music source for Music On Hold service

(optional).

7POWER Connect to a power source. Use only the provided power

adapter. Optionally, you can use the power cord retention clamp to

prevent accidental removal of the power cord. See instructions in the

Cisco UC320W administration guide.

1, 3 For future use.

2RESET - Using a paperclip or similar object, press this button briefly to

restart the unit. Press and hold for 10 seconds to restore the factory

default settings.

Power

12VDC

LAN (10/100/1000)

WAN

(10/100/1000)

2341 1234

LINE (FXO) PHONE

(FXS) LINE

OUT LINE

1 2 3 4 5 6 7

195714

132

195716

VoIPon www.voipon.co.uk [email protected] Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
