Quick Start Guide

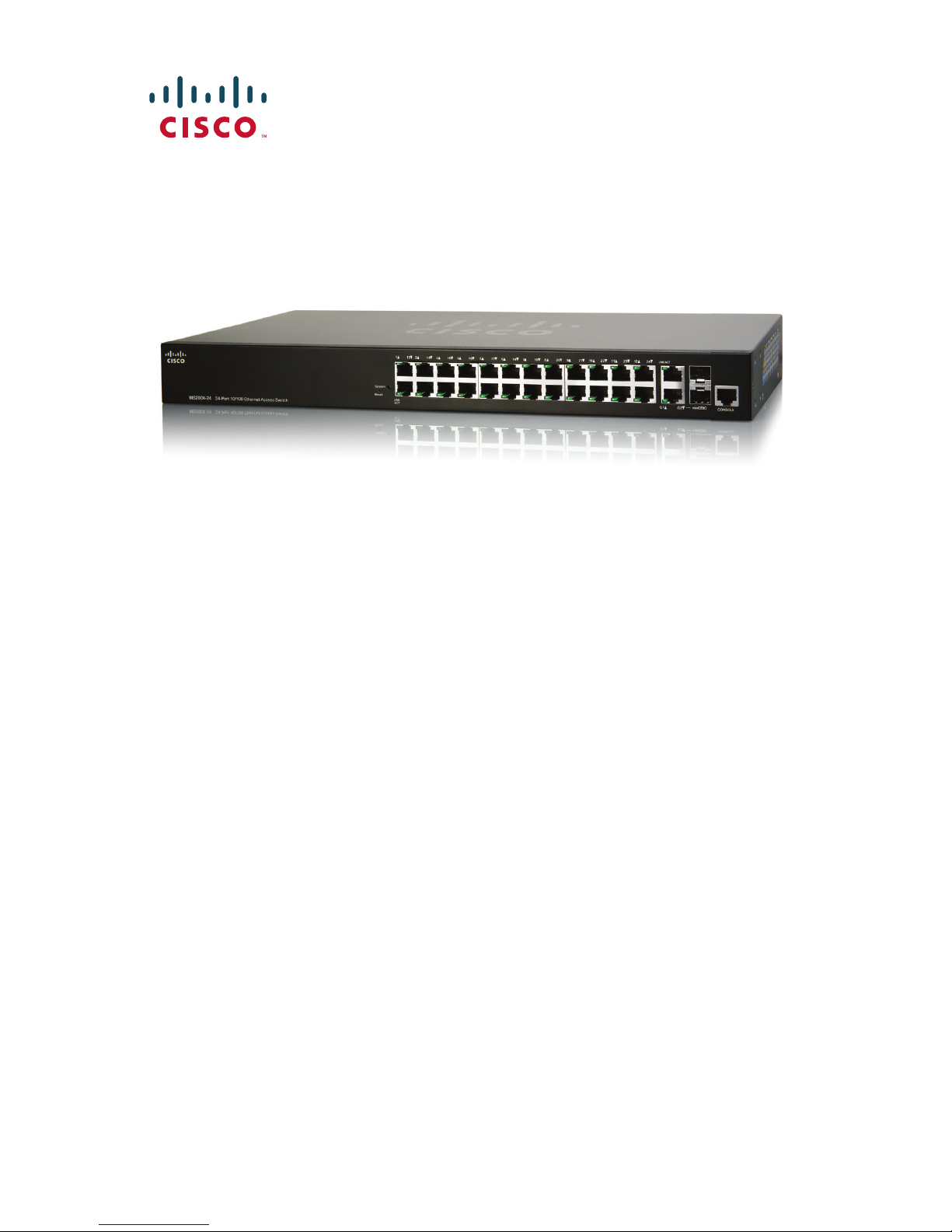

Cisco MS200X Series 24-Port 10/100 Ethernet

Access Switches

Package Contents

•MS200X-24, MS200X-24S, or MS200X-24P 10/100 Ethernet

Access Switch

•Power Cord

•Rackmount Kit and Rubber Feet

•Console Cable

•Quick Start Guide

•Product Warranty

•Pointer Card with China RoHS

14 Cisco MS200X Series 10/100 24-Port Ethernet Access Switches

Welcome

Thank you for choosing the Cisco MS200X Series 24-Port 10/100 Ethernet

Access Switch. This guide describes how to physically install your

MS200X switch and how to use the web-based interface and the console

port to access and manage the switch. For additional information, see

www.cisco.com/go/cn/ms200x.

Before You Begin

Before you begin the installation, make sure that you have the following:

•RJ-45 Ethernet cables (Category 5E or higher) for connecting network

devices and console cable for using the console port to manage your

switch.

•Mounting hardware and related tools. The mounting kit included with

the switch contains four rubber feet for desktop placement, and two

brackets and eight M5 screws for rack mounting.

•A PC for using the web-based interface or the console port to manage

your switch. Verify that your PC meets the following requirements:

– Internet Explorer 6.0 (or higher), Firefox 3.0 (or higher), Chrome 5.0

(or higher), or Safari 3.0 (or higher)

– Windows XP, Vista (32-bit and 64-bit), Windows 7 (32-bit and

64-bit), Mac OS X 10.5 (or 10.6), or Linux 2.5 (or 2.6)

MS200X Switch Features

This section lists the available product models, and describes the exterior

of the switch to help you familiarize with your switch.

Product Models

Model Configuration

MS200X-24 24 10/100M RJ-45 Ethernet ports, 2 dual-purpose ports

(2 10/100/1000M RJ-45 ports and 2 SFP module slots),

and 1 RJ-45 console port

Cisco MS200X Series 10/100 24-Port Ethernet Access Switches 15

Front Panel

MS200X-24S 24 10/100M RJ-45 Ethernet ports, 2 dual-purpose ports

(2 10/100/1000M RJ-45 ports and 2 SFP module slots),

and 1 RJ-45 console port

MS200X-24P 24 10/100M RJ-45 Ethernet ports with PoE support,

2 dual-purpose ports (2 10/100/1000M RJ-45 ports and

2 SFP module slots), and 1 RJ-45 console port

RJ-45

Ethernet

Ports

The RJ-45 Ethernet ports are used to connect network

devices (such as computers, printers, and access points)

to the switch.

MiniGBIC

Ports

The miniGBIC (Gigabit Interface Converter) ports are

connection points for miniGBIC modules, so the switch

can uplink to other switches by using fiber-optic cable.

•The miniGBIC ports are compatible with Cisco

miniGBIC modules MFEBX1, MFEFX1, MFELX1,

MGBBX1, MGBLH1, MGBLX1, and MGBSX1.

•The miniGBIC port is a combination port, shared with

one other RJ-45 port. When the miniGBIC port is

active, the adjacent RJ-45 port is disabled.

•The lights of the corresponding RJ-45 ports light to

the respond to the miniGBIC port traffic.

Console Port The Console port is used to connect the supplied

console cable to a computer’s serial port for

configuration using a terminal emulation program.

Link/ACT

Lights

(Green) These lights are located on the left of the

10/100M RJ-45 Ethernet ports. Lights steady when a

10/100 Mbps link between the corresponding port and

other device is detected. Flashes when the port is

passing traffic.

Model Configuration

24 x RJ-45

Ethernet Ports

Link/ACT

Light

Link/ACT

Light

2 x Dual-purpose

Ports

Console

Port

PoE Light

(if present)

16 Cisco MS200X Series 10/100 24-Port Ethernet Access Switches

Back Panel

WARNING The fuse is in the neutral (N).

Default Settings

These are the default settings used when configuring your MS200X switch

for the first time.

PoE Lights

(if present)

(Amber) These lights are located on the right of the

10/100M RJ-45 Ethernet ports (for MS200X-24P switch

only). Lights steady to indicate that power is being

supplied to a device attached to the corresponding port.

Link/ACT

Lights

(Green) These lights are located on the left of the

dual-purpose ports. Lights steady when a

10/100/1000 Mbps link between the corresponding port

and other device is detected. Flashes when the port is

passing traffic.

System Light (Green) Lights steady when the switch is powered on,

and flashes when booting, performing self tests, and

acquiring an IP address. If the light flashes amber, the

switch has detected a hardware failure, a firmware failure,

and/or a configuration file error.

RESET

Button

The RESET button can be used to reboot or reset the

switch. See Returning the MS200X Switch to the

Factory Default Settings for more information.

Power Port The Power port is used to connect the switch to power.

Grounding

Screw

The grounding screw is used to connect a grounding

cable to the chassis if necessary.

Parameter Default Value

Username cisco

Password cisco

Switch IP 192.168.1.254

Cisco MS200X Series 10/100 24-Port Ethernet Access Switches 17

Mounting the MS200X

You can place your MS200X switch on a desktop, mount it on a wall, or

mount it in a rack.

Placement Tips

•AmbientTemperature—To prevent the switch from overheating, do not

operate the MS200X-24 switch in an area that exceeds an ambient

temperature of 104°F (40°C), and do not operate the MS200X-24S or

MS200X-24P switch in an area that exceeds an ambient temperature of

122°F (50°C).

•AirFlow—Be sure that there is adequate air flow around the switch.

• Mechanical Loading—Be sure that the switch is level and stable to

avoid any hazardous conditions.

To place the switch on a desktop, install the four supplied rubber feet at the

bottom of the switch. Place the switch on a flat surface.

Rack Mounting

You can mount the MS200X switch in any standard size, 19-inch (about

48 cm) wide rack. The switch requires 1 rack unit (RU) of space, which is

1.75 inches (44.45 mm) high.

CAUTION Do not overload the power outlet or circuit when installing

multiple devices in a rack. For stability, load the rack from the

bottom to the top, with the heaviest devices on the bottom. A

top-heavy rack is likely to be unstable and might tip over.

To install the switch into a 19-inch standard chassis:

STEP 1Attach one of the supplied brackets on the side of the switch so that

the four holes align to the screw holes, and use the four supplied

M5 screws to secure it.

STEP 2Repeat Step 1 for the other side of the switch.

18 Cisco MS200X Series 10/100 24-Port Ethernet Access Switches

STEP 3After the brackets are securely attached, the switch is now ready to

be installed into a standard 19-inch rack as shown below.

Wall Mounting

The MS200X switch can be wall-mounted by utilizing the supplied rack

mounting brackets.

WARNING Insecure mounting might damage the switch or cause injury.

Cisco is not responsible for damages incurred by insecure

wall-mounting.

To mount the switch to the wall:

STEP 1Determine where you want to mount the switch. Verify that the

surface is smooth, flat, dry, and sturdy.

STEP 2Attach one of the supplied brackets on the side of the switch, and

use two pan head M5 screws to secure it.

STEP 3Follow the same steps to attach the second bracket to the

opposite side.

Cisco MS200X Series 10/100 24-Port Ethernet Access Switches 19

STEP 4For the best support of the switch and cables, make sure that the

switch is attached securely to the wall. Mount the switch with the

front panel facing down as shown below.

Connecting Network Devices

To connect your MS200X switch to the network:

STEP 1Connect an Ethernet cable to the Ethernet port of a computer,

printer, network storage, or other network devices.

STEP 2Connect the other end of the Ethernet cable to one of the

numbered Ethernet ports of the switch.

The light of the port lights if the device connected is active.

STEP 3Repeat Step 1 and Step 2 for each device that you want to

connect to the switch.

NOTE Cisco strongly recommends using CAT-5E or better cable to

connect network devices. When you connect your network devices, do

not exceed the maximum cabling distance of 100 meters (328 feet). It

can take up to one minute for attached devices or the LAN to be

operational after it is connected. This is normal behavior.

Power over Ethernet (PoE) Considerations

If your switch is the PoE model (MS200X-24P), consider the following:

As a Power Sourcing Equipment (PSE) device, the switch can deliver a

maximum of 30 Watts per PoE port to a Powered Device (PD) and a total of

370 Watts per all PoE ports to Powered Devices.

20 Cisco MS200X Series 10/100 24-Port Ethernet Access Switches

Configuring the MS200X Switch

The MS200X switch can be accessed and managed over your IP network

using the web-based interface or by the Switch Command Line Interface

through the console port. Using the console port requires advanced user

skills.

Configuring Your Switch Using the Web-based Interface

In order to access the switch with a web-based interface, you must know

the IP address that the switch is currently using. The default configuration

of the switch is to use its factory default IP address of 192.168.1.254.

NOTE If the IP address of the switch changes, your access to the switch

will be lost and you must enter the new IP address to use the web-based

interface.

To configure the switch using the web-based interface:

STEP 1Power on the computer and your switch.

STEP 2Connect the computer to the switch.

You can connect to the same IP subnet as the switch by

connecting them directly with an Ethernet cable, or by connecting

to the same LAN where the switch is located through other

switches. You can also connect your computer to the switch from

another IP subnet through one or more IP routers.

STEP 3Set up the IP configuration on your computer.

a. If the switch is using the default static IP address of

192.168.1.254, you must choose an IP address in the range of

192.168.1.2 to 192.168.1.253 that is not already in use.

b. If the IP addresses will be assigned by DHCP, make sure that

your DHCP server is running and can be reached from the

switch and the computer. You may need to disconnect and

reconnect the devices for them to discover their new IP

addresses from the DHCP server.

NOTE Details on how to change the IP address on your computer

depend upon the type of architecture and operating system that

you are using. Use your computers local Help and Support

functionality and search for “IP Addressing”.

STEP 4Open a Web browser window. If you are prompted to install an

Active-X plug-in when connecting to the device, follow the

prompts to accept the plug-in.

Cisco MS200X Series 10/100 24-Port Ethernet Access Switches 21

STEP 5Enter the switch IP address in the address bar and press Enter. For

example, http://192.168.1.254.

STEP 6When the login page appears, enter the username and password.

The default username is cisco. The default password is cisco.

Usernames and passwords are both case sensitive.

STEP 7Click Login.

STEP 8If this is the first time that you have logged on with the default

username and password, the Change Password page opens.

Enter a new administrator password and then click Apply.

The Getting Started page displays. You are now ready to

configure the switch. Refer to the

Cisco MS200X Series 24-Port

10/100 Ethernet Access Switches Administration Guide

or see the

help page for further information.

NOTE Make sure that any configuration changes made are saved

before exiting from the web-based interface by clicking on the

Save icon. Exiting before you save your configuration will result in all

changes being lost.

Configuring Your Switch Using the Console Port

To configure the switch using the console port:

STEP 1Connect a computer to the switch console port using the supplied

console cable.

STEP 2Start a console port utility such as HyperTerminal on the computer.

STEP 3Configure the utility with the following parameters:

•9,600 bits per second

•8 data bits

•no parity

•1 stop bit

•no flow control

STEP 4Enter a username and password. The default username is cisco,

and the default password is cisco. Usernames and passwords are

both case sensitive.

STEP 5If this is the first time that you have logged on with the default

username and password, the following message appears:

22 Cisco MS200X Series 10/100 24-Port Ethernet Access Switches

Please change your password from the default

settings. Please change the password for better

protection of your network. Do you want to change

the password (Y/N) [Y]?

STEP 6Select Y, and enter a new administrator password.

You are now ready to configure the switch. Refer to the

Cisco

MS200X Series 24-Port 10/100 Ethernet Access Switches

Command Line Reference

for further information.

NOTE Make sure that any configuration changes made are saved

before exiting.

Troubleshoot Your Connection

If you cannot access your switch from the web-based interface, the switch

may not be reachable from your computer. You can test network

connections by using ping on a computer running Windows:

STEP 1Open a command window by using Start > Run and enter cmd.

STEP 2At the Command window prompt enter ping and the switch IP

address. For example ping 192.168.1.254 (the default static IP

address of the switch).

If you can reach the switch, you should get a reply similar to the

following:

Pinging 192.168.1.254 with 32 bytes of data:

Reply from 192.168.1.254:bytes=32 time<1ms TTL=128

If you can reach the switch, you should get a reply similar to the

following:

Pinging 192.168.1.254 with 32 bytes of data:

Request timed out.

Returning the MS200X Switch to the

Factory Default Settings

To use the RESET button to reboot or reset the switch, do the following:

•To reboot the switch, press the RESET button for less than ten seconds.

•To restore the switch to its factory default settings, press-and-hold the

RESET button for more than ten seconds.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cisco Changer

Cisco

Cisco 8800 Series Manuel utilisateur

Cisco

Cisco 3020 - Cisco Catalyst Blade Switch Manuel utilisateur

Cisco

Cisco Nexus 1110-S Guide de référence rapide

Cisco

Cisco Business 250 Series Manuel utilisateur

Cisco

Cisco Nexus 9372PX Manuel utilisateur

Cisco

Cisco Nexus 7000 Series Mode d’emploi

Cisco

Cisco SD2005 Manuel utilisateur

Cisco

Cisco SRW2024P - Small Business Managed Switch Manuel utilisateur

Cisco

Cisco Catalyst WS-C2924-XL Manuel

Cisco

Cisco Catalist 3850 Series Instructions d'utilisation

Cisco

Cisco 11503 - CSS Content Services Switch Mode d’emploi

Cisco

Cisco 2950 - Catalyst Switch Manuel d'installation

Cisco

Cisco Nexus 9508 Manuel

Cisco

Cisco Meraki MS210 Series Manuel utilisateur

Cisco

Cisco SGE2000 - Cisco - Gigabit Switch Manuel utilisateur

Cisco

Cisco SD205 Manuel utilisateur

Cisco

Cisco SG 100D-08 Manuel utilisateur

Cisco

Cisco Catalyst Express 520 Manuel utilisateur

Cisco

Cisco 9134 - MDS Multilayer Fabric Switch Comment utiliser

Cisco

Cisco SRW2008P Manuel utilisateur

Cisco

Cisco Nexus 93180YC-FX3 Manuel utilisateur

Cisco

Cisco 500 Series Manuel utilisateur

Cisco

Cisco SLM2005 - Small Business Smart Switch Manuel utilisateur

Cisco

Cisco SR2024 - Small Business Unmanaged Switch Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
