Cisco Catalyst IE3400 Heavy Duty Series Hardware Installation Guide

First Published: 2019-09-03

Last Modified: 2019-09-05

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

CONTENTS

Preface vii

Audience vii

Purpose vii

Conventions vii

Related Publications viii

Product Overview 1

CHAPTER 1

Product Overview 1

Switch Models and Power Supply 1

Front Panel of the Switch 3

10/100BASE-T Ports 3

Power Connector 4

Alarm Connector 4

Console Management Port 5

LEDs 6

System LED 6

Express Setup LED 6

Power Status LEDs 7

Alarm LEDs 7

Port Status LEDs 7

IP67 Power Supply 8

Switch Installation 9

CHAPTER 2

Switch Installation 9

Preparing for Installation 9

Warnings 9

Cisco Catalyst IE3400 Heavy Duty Series Hardware Installation Guide

iii

Installation Guidelines 11

Verifying Package Contents 12

Tools and Equipment 12

Installing or Removing the Memory Card (Optional) 13

Connecting a PC or Terminal to the Console Port 14

Connecting to Power 14

Grounding the Switch 15

Running Express Setup 17

Launching WebUI 19

Connecting Alarm Circuits 19

Wiring the External Alarms 20

Connecting Destination Ports 20

Connecting to 10/100 and 10/100/1000 Ports 20

Where to Go Next 21

Switch Mounting 23

CHAPTER 3

Switch Mounting 23

Mounting the Switch 23

Installing the Switch on the Wall 23

Troubleshooting 27

CHAPTER 4

Troubleshooting 27

Diagnosing Problems 27

Switch Connections 27

Switch Performance 28

Resetting the Switch 29

How to Recover Passwords 30

Troubleshooting Express Setup 30

Finding the Switch Serial Number 30

Technical Specifications 31

CHAPTER 5

Technical Specifications 31

Operating Temperature Specifications 31

Technical Specifications 31

Cisco Catalyst IE3400 Heavy Duty Series Hardware Installation Guide

Contents

Connectors and Cabling 33

Torque Specifications 33

Alarm Ratings 34

Configuring the Switch 35

CHAPTER 6

Configuring the Switch 35

Entering the Initial Configuration Information 35

IP Settings 35

Completing the Setup Program 35

Cisco Catalyst IE3400 Heavy Duty Series Hardware Installation Guide

Contents

Cisco Catalyst IE3400 Heavy Duty Series Hardware Installation Guide

Contents

Preface

Audience

This guide is for the networking or computer technician responsible for installing Cisco Catalyst IE3400

Heavy Duty Series switches. We assume that you are familiar with the concepts and terminology of local area

networking (LAN).

Purpose

This guide describes the physical and performance characteristics of each switch, explains how to install a

switch, and provides troubleshooting information.

Additional product information is available at http://www.cisco.com/en/US/products/ps12451/index.html

For additional documentation, see the Cisco Catalyst IE3400 Heavy Duty Series documentation at

http://www.cisco.com/en/US/products/ps12451/tsd_products_support_series_home.html

For information about the Cisco IOS commands, see

http://www.cisco.com/cisco/web/psa/configure.html?mode=prod&level0=268438303

Conventions

This document uses the following conventions and symbols for notes, cautions, and warnings.

Means reader take note. Notes contain helpful suggestions or references to materials not contained in this

manual.

Note

Means reader be careful. In this situation, you might do something that could result in equipment damage or

loss of data.

Caution

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work

on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard

practices for preventing accidents. Use the statement number provided at the end of each warning to locate

its translation in the translated safety warnings that accompanied this device. Statement 1071

Danger

The safety warnings for this product are translated into several languages in the Regulatory Compliance and

Safety Information for the Regulatory Compliance and Safety Information for the Cisco Catalyst IE3400

Heavy Duty Series Switches that ships with the product. The EMC regulatory statements are also included

in that guide.

Cisco Catalyst IE3400 Heavy Duty Series Hardware Installation Guide

vii

Related Publications

Before installing, configuring, or upgrading the switch, see the product release notes on Cisco.com for the

latest information.

See www.cisco.com/en/US/products/ps12451/tsd_products_support_series_home.html.

Cisco Catalyst IE3400 Heavy Duty Series Hardware Installation Guide

viii

Preface

Related Publications

CHAPTER 1

Product Overview

•Product Overview, on page 1

Product Overview

The Cisco®Catalyst®IE3400 Heavy Duty Series is Cisco’s next-generation, IP66 and IP67-rated switching

platform designed to provide enhanced network-based security, segmentation, and visibility in the most

demanding industrial environments. The Cisco®Catalyst®IE3400 Heavy Duty Series switches extend the

power of intent-based networking to the harshest Internet of Things (IoT) edge.

The Cisco Catalyst IE3400 Heavy Duty Series switches deliver the advanced capabilities similar to the Cisco

Catalyst IE3400 Rugged Series in environments that have heavy exposure to dust and water. These switches

are available with 8, 16, or 24 Fast Ethernet (D-coded) or Gigabit Ethernet (X-coded) M12 interfaces. The

switches can be wall mounted and deployed without a housing cabinet.

Installation details are provided in the Switch Installation section.

Note

The IE3400 Heavy Duty Series switches are powered by Cisco IOS®XE, a next-generation operating system

with built-in security and trust, featuring Secure Boot, image signing, and the Cisco Trust Anchor module.

Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The IE3400 Heavy Duty Series can be managed with powerful tools such as Cisco DNA Center and Industrial

Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool

called WebUI. The platform also supports Flexible NetFlow for real-time visibility into traffic patterns and

threat analysis with Cisco Stealthwatch®.

Most of the documentation related to this product can be found at

http://www.cisco.com/en/US/products/ps12451/tsd_products_support_series_home.html

Switch Models and Power Supply

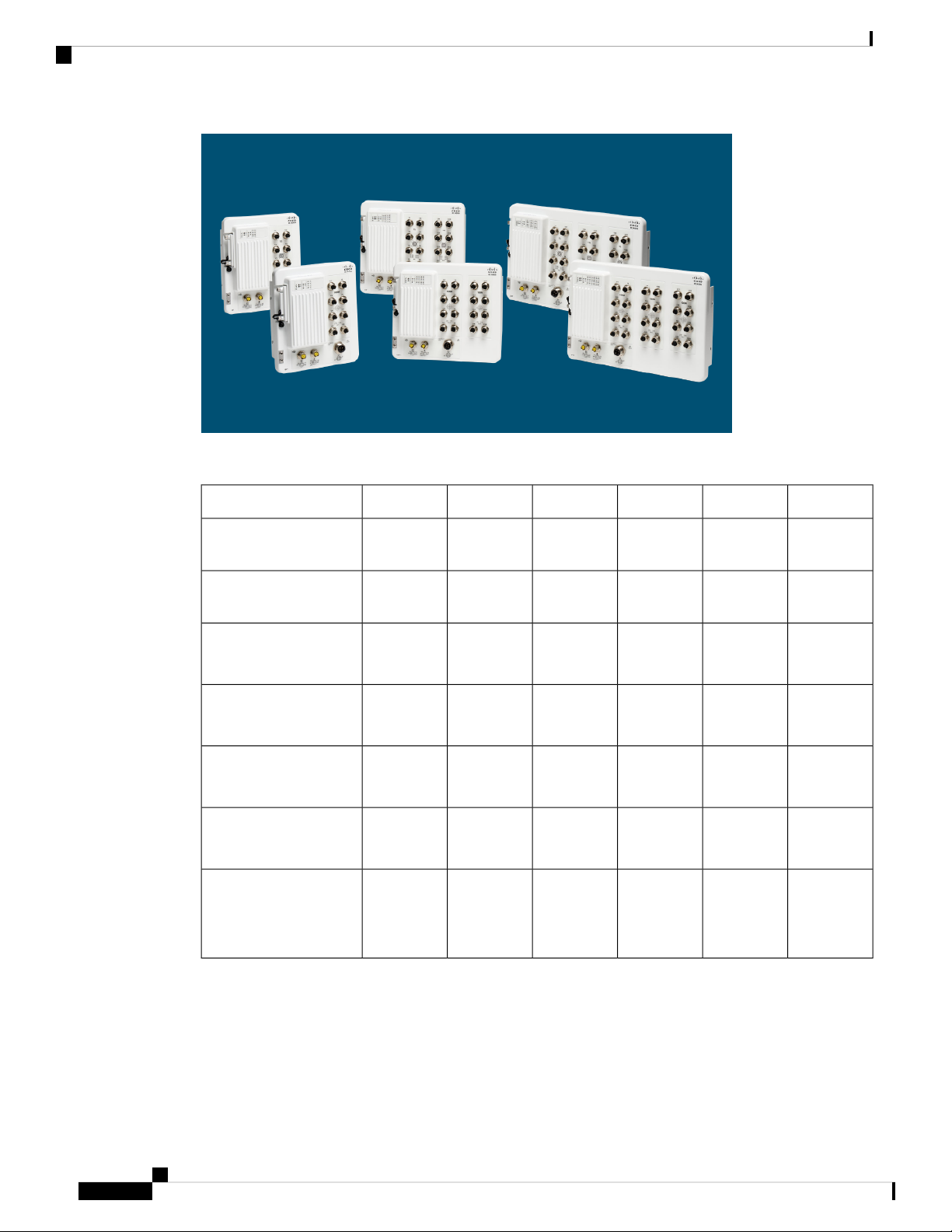

Figure 1: Cisco Catalyst IE3400 Heavy Duty Series

The following table lists and describes the switches and power supply. All IP66 and IP67 switches use the

LAN Base Cisco iOS firmware.

Cisco Catalyst IE3400 Heavy Duty Series Hardware Installation Guide

Table 1: Switch and Power Supply Descriptions

IE-3400H-24TIE-3400H-24FTIE-3400H-16TIE-3400H-16FTIE-3400H-8TIE-3400H-8FTHardware Specifications

N/A24N/A16N/A8Total 100-Mbps

D-coded ports

24N/A16N/A8N/ATotal 1-Gbps X-coded

ports

SD card

See Note 1.

SD card

See Note 1.

SD card

See Note 1.

SD card

See Note 1.

SD card

See Note 1.

SD card

See Note 1.

Removable storage

1 alarm

output relay

1 alarm

output relay

1 alarm

output relay

1 alarm

output relay

1 alarm

output relay

1 alarm

output relay

Alarm outputs

See Note 2 and 3.

1 alarm

input

1 alarm

input

1 alarm

input

1 alarm

input

1 alarm

input

1 alarm

input

Alarm inputs

See Note 2.

111111Console ports

See Note 2.

Mini-change,

(single

power

source)

Mini-change,

(single

power

source)

Mini-change,

(single

power

source)

Mini-change,

(single

power

source)

Mini-change,

(single

power

source)

Mini-change,

(single

power

source)

Power input

Note 1. The SD card is optional and is not shipped by default with the switch.

Note 2. Using an M12 A-coded 5-pin connector.

Note 3. Relay max. rating: 24VDC at 1A, 48VDC at 0.5A.

Cisco Catalyst IE3400 Heavy Duty Series Hardware Installation Guide

Product Overview

Switch Models and Power Supply
