Data Sheet

Cisco Video Surveillance 5010/5011 Indoor Fixed Dome IP

HD Cameras

Product Overview

Cisco®Video Surveillance 5010 and 5011 Indoor Fixed Dome IP HD Cameras are 2.1-megapixel indoor fixed dome

cameras designed with industry-leading image quality and high processing power. Designed to install quickly and

easily, all of the post-back-box installation and setup can be done with one hand.

The 5010 and 5011 cameras deliver high-definition (HD) resolution, advanced low-light capabilities, consistent color

science, and fast processing power. The H.264 compression video files are up to 20 times smaller, making HD video

more affordable. With their open, standards-based design, the cameras provide an ideal platform for integration and

operation as independent devices or as part of a Cisco Video Surveillance network.

Figure 1.

Fixed Dome Camera

The cameras include a 2.8–8-mm varifocal megapixel lens and a ready-to-install indoor enclosure. All models also

include advanced low-light technology and a mechanical IR cut filter for increased sensitivity in low-light installations.

Additional lenses are available, and the cameras accept a wide range of varifocal megapixel CS-mount lenses.

The 5010 and 5011 cameras support two simultaneous video streams that can be compressed in MJPEG and H.264

formats across several resolution configurations. The cameras deliver real-time video (30 images per second [ips])

with full HD resolution using H.264 compression for optimized bandwidth and storage efficiency. The streams can be

configured in a variety of frame rates, bit rates, and group of pictures (GOP) structures for additional bandwidth

administration.

The cameras are simple to install. The automatic back focus control feature makes sharp scene focus setup easy. A

convenient video setup jack eliminates the need to use a laptop for viewing video when installing the camera.

Web Interface

The cameras support the Internet Explorer 8.0 Web browser for powerful remote setup and administration. Up to 16

cameras can be viewed on the same network.

Data Sheet

Window Blanking

Window blanking is used to conceal user-defined privacy areas that cannot be viewed by an operator. Each camera

supports up to four blanked windows. A blanked area will appear on the screen as a solid gray window.

Video Management

The 5010 and 5011 cameras connect to Cisco Video Surveillance Manager Version 6.3 and later.

Product Specifications

Features and Benefits

Features include the following:

●Up to 2.1-megapixel resolution (1920 x 1080)

●Up to 30 ips at full HD 1080p

●Optional CS-mount lenses

●Auto back focus for high precision

●Easy, quick, one-handed installation

●H.264 and MJPEG compression

●Day/night capability

●Sensitivity down to 0.03 lux

●Power over Ethernet (IEEE 802.3af Class 3) or 24 VAC

●Video setup jack and focus button accessible with dome closed

●Up to two simultaneous video streams

●Motion detection

Table 1 lists product specifications for the Cisco Video Surveillance 5010 and 5011 IP Cameras.

Table 1. Product Specifications

General

Imaging Device 1/3-inch (effective)

Imager Type CMOS

Imager Readout Progressive scan

Maximum Resolution 1920 x 1080

Signal-to-Noise Ratio 50 dB

Auto Iris Lens Type DC drive

Electronic Shutter Range 1~1/100,000 sec

Wide Dynamic Range 60 dB

White Balance Range 2,000 to 10,000K

Sensitivity f/1.2; 2850K; SNR >24 dB

●Color (1x/33 ms): 0.5 lux

●Color SENS (15x/500 ms): 0.12 lux

●Mono (1x/33 ms): 0.25 lux

●Mono SENS (15x/500 ms): 0.03 lux

Dome Attenuation Clear: Zero light loss

Smoked: f/1.0 light loss

Data Sheet

Construction Back box: Cast aluminum

Trim ring: Polycarbonate plastic

Bubble: Acrylic plastic

Finish White

Available Languages English

Supported Protocols TCP/IP, UDP/IP (Unicast), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP, QoS, HTTP, SMTP, FTP

Users Up to 20 simultaneous users, depending on resolution settings (2 guaranteed streams)

Security Access Password-protected

Certifications/Ratings/Patents CE, Class B

FCC, Class B

UL/cUL listed

C-Tick

Electrical

Port RJ-45 connector for 100BASE-TX

Auto MDI/MDI-X

Cable Type Cat-5 or better for 100BASE-TX

Power Input 24 VAC or PoE (IEEE 802.3af class 3)

Power Consumption < 6W

Current Consumption PoE: < 200 mA maximum

24 VAC: < 295 mA nominal; < 390 mA maximum

Local Storage Micro SD

Alarm Input 10 VDC maximum, 5 mA maximum

Alarm Output 0 to 15 VDC maximum, 75 mA maximum

Service Port External 3-connector, 2.5-mm provides NTSC/PAL video output

Accessory Port Connects accessories

Mechanical

Lens Mount CS-mount, adjustable

Pan/ Tilt Adjustment Pan: 368



Tilt: 160 (10 to 170)

Rotate: 355

Environmental

Operational Temperature 32 to 122ºF (0 to 50ºC)

Operational Humidity 20% to 80%, noncondensing

Physical

Dimensions (DxWxH) 5.4 x 3.1 x 3.0 in.

(13.7 x 7.9 x 7.6 cm)

Weight (without lens) Unit: 2.0 lb (0.9 kg)

Shipping: 6.0 lb (2.7 kg)

Video

Video Encoding H.264 base profile and MJPEG

Video Streams Up to 2 simultaneous streams; the second stream is variable based on the setup of the primary stream

Supported Frame Rates 30, 15, 10, 5, 1

Video Encoding H.264 base profile and MJPEG

Video Streams Up to 2 simultaneous streams; the second stream is variable based on the setup of the primary stream

Supported Resolutions 1080P (1920 x 1080), 720P (1280 x 720), 4CIF (640 x 352), CIF (480 x 272), and QCIF (320 x 176)

Data Sheet

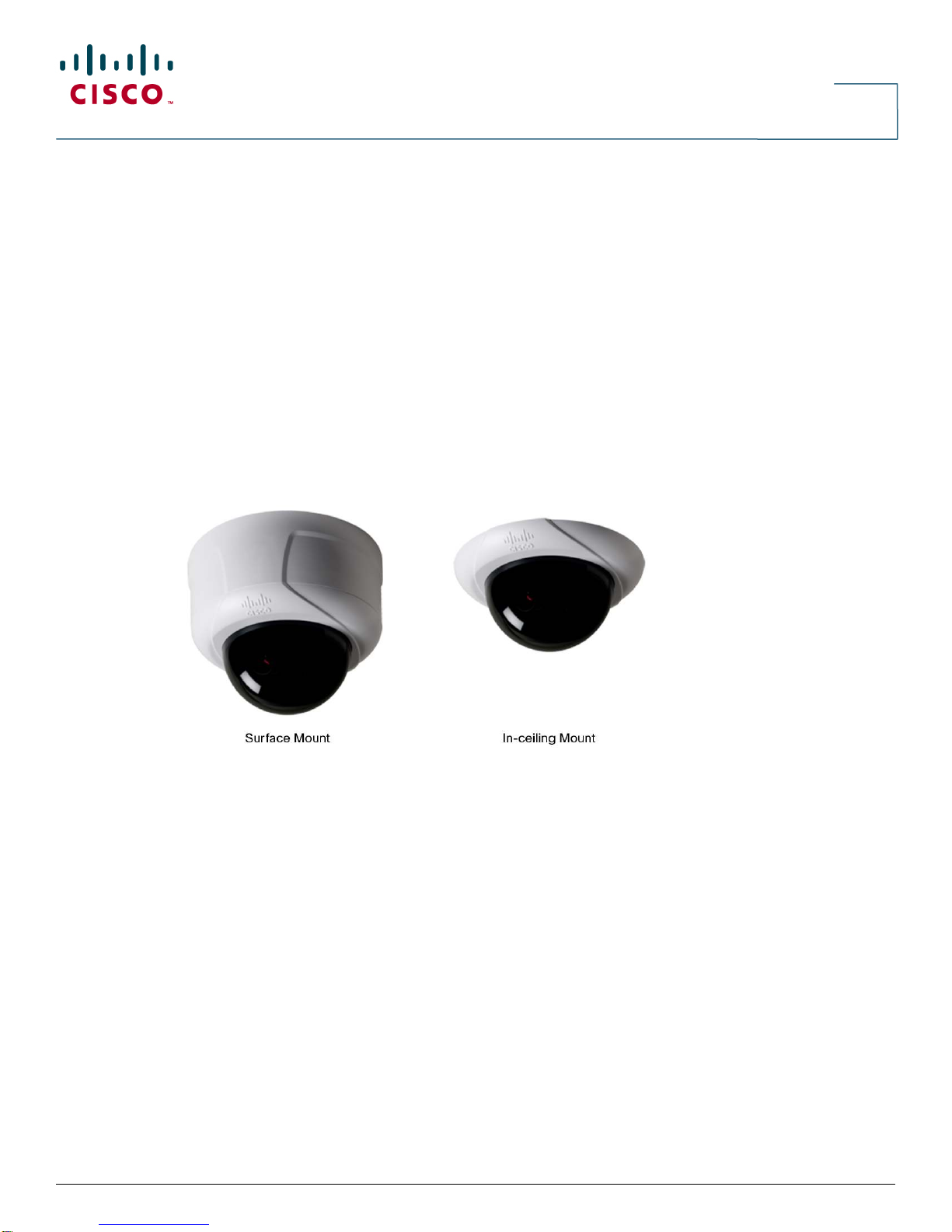

Figure 2. Mounting Options

System Requirements

Table 2 lists system requirements for the Cisco Video Surveillance 5010 and 5011 IP Cameras.

Table 2. System Requirements

Processor Intel Core 2 Duo microprocessor, 2.6 GHz

Operating System Microsoft Windows XP

Memory 2 GB RAM

Network Interface Card 100 megabits (or greater)

Monitor Minimum of 1024 x 768 resolution, 16- or 32-bit pixel color resolution

Web Browser Internet Explorer 8.0

Media Player* QuickTime 7.6.5 for Windows XP

* This product is not compatible with QuickTime Version 7.6.4 for Windows XP. If you have Version 7.6.5 installed on your PC, you

will need to upgrade to Version 7.6.5.

Certifications/Ratings/Patents

●CE, Class B

●FCC, Class B

●UL /cUL listed

●C-Tick

●Patents pending

Optional Lenses

CIVS-IPC-VFM28-12: Megapixel Lens, varifocal, 2.8–12 mm

CIVS-IPC-VFM15-50: Megapixel Lens, varifocal, 15–50 mm

Cisco lenses have been designed and tested to deliver optimal image quality for Cisco Video Surveillance megapixel

cameras. The use of standard-definition lenses will limit the resolution of the camera, creating poor image quality.

Table 3 shows the field of view that can be obtained with different lens and aspect ratio combinations

Data Sheet

Table 3. Field of View in Degrees

Aspect RatioField of View in Degrees

16:9 4:3 5:4

Horizontal 109 109 1092.2 mm

Vertical 63 83 89

Horizontal 89 89 892.8 mm

Vertical 48 66 70

Horizontal 42 42 426.0 mm

Vertical 24 32 34

Horizontal 32 32 328.0 mm

Vertical 18 24 25

Horizontal 21 21 2112.0 mm

Vertical 12 16 17

Horizontal 16 16 1615.0 mm

Vertical 9 12 13

Horizontal 5 5 550.0 mm

Vertical 3 4 4

Note: For 800 x 600 (or lower) resolutions in 4:3 or 5:4 aspect ratios, the field of view is smaller than listed above.

Refer to the Installation/Operation Manual for details.

Warranty Information

Find warranty information on Cisco.com at the Product Warranties page.

Ordering Information

Availability

Cisco Video Surveillance IP Cameras are available through Cisco Advanced Technology Provider (ATP) Partners.

Table 4 lists ordering information.

Table 4. Ordering Information

Product Name Part Number

Cisco Video Surveillance 5010 IP Camera, Indoor HD Dome, Clear Bubble CIVS-IPC-5010

Cisco Video Surveillance 5011 IP Camera, Indoor HD Dome, Smoked Bubble CIVS-IPC-5011

Megapixel Lens, varifocal, 2.8–12 mm CIVS-IPC-VFM28-12

Megapixel Lens, varifocal, 15–50 mm CIVS-IPC-VFM15-50

Cisco Services

Cisco offers a wide range of services programs to accelerate customer success. These innovative programs are

delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of

customer satisfaction. Cisco services help you to protect your network investment, optimize network operations, and

prepare your network for new applications to extend network intelligence and the power of your business. For more

information about Cisco services, see Cisco Technical Support Services or Cisco Advanced Services.

Data Sheet

For More Information

For more information about the Cisco Video Surveillance IP Camera, visit http://www.cisco.com/go/physec or contact

your local account representative.

Printed in USA C78-612990-01 07/11
