Data Sheet

Cisco Video Surveillance 2630V IP Dome

The Cisco®Video Surveillance 2630V IP Dome is a feature-rich digital camera designed to provide superior

performance in a wide variety of video surveillance applications and environments. The camera employs H.264

compression of up to 30 frames per second (fps) at D1 NTSC resolution (720 x 480) or 25 fps at D1 PAL resolution

(720 x 576), offering efficient network utilization while providing high-quality video. This vandal-resistant dome can be

deployed indoors or outdoors. With its open, standards-based design, the camera provides an ideal platform for

operation as an independent device or as part of a Cisco Video Surveillance network.

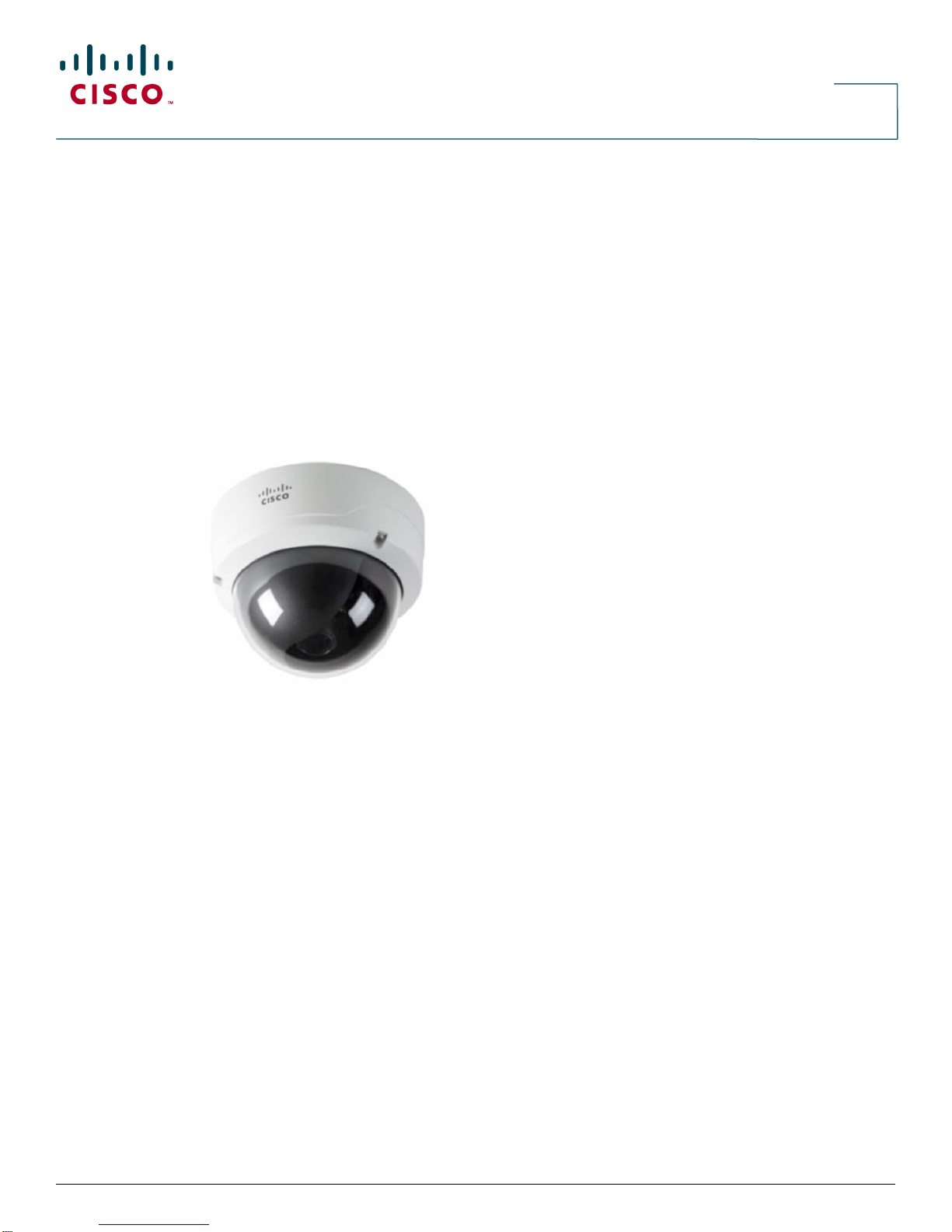

Figure 1 shows the Cisco Video Surveillance 2630V IP Dome.

Figure 1. Cisco Video Surveillance 2630V IP Dome

The Cisco Video Surveillance 2630V IP Dome offers a variety of benefits, including:

●Optimal imaging efficiency. The 2630V IP Dome can stream video using H.264 compression, reducing

network traffic and storage requirements while providing superior image quality.

●Motorized focus and zoom. The lens on the 2630V IP Dome allows the focus and zoom to be controlled

remotely, greatly simplifying installations and field of view adjustments.

●Wide dynamic range. The camera employs powerful digital imaging technology, allowing it to capture high-

quality images in a wide variety of indoor and outdoor lighting conditions. It uses a progressive scan image

sensor with global electronic shuttering to ensure natural color rendition, zero blooming and smear, and

minimal motion blurring.

●Dual streaming. The camera can deliver two simultaneous video streams over the network. A combination of

H.264, MPEG4, and MJPEG can be configured. Each video stream can be configured with individual

resolution, quality, and frame rate settings.

●Outdoor mounting options. When used outdoors, the camera must be mounted using a separate conduit

base accessory (CIVS-IPCA-1006=) or pendant cap accessory (CIVS-IPCA-1010=) for IP66 protection. The

camera is equipped with a motorized varifocal motorized lens mounted to a manual pan and tilt mechanism

that allows the camera to be rotated and placed at the proper angle.

●Dome options. The 2630V IP Dome comes standard with a clear dome. A smoked dome is available as an

optional accessory.

Data Sheet

●Day/night operation. The camera provides true day/night operation and includes an IR filter that switches to

night mode in low-light scenes. This function can be set to manual or automatic control.

●Fan/heater operation. The camera includes a fan and heater unit that automatically maintains a desirable

internal temperature, allowing the camera to operate in outdoor conditions.

●Embedded security and networking. The camera provides 802.1X authentication and supports IP Multicast

for enhanced bandwidth management.

●Event notification. The camera can examine designated areas in the video for motion activity and then notify

users or other applications when it detects activity that exceeds a predefined threshold.

●Bidirectional audio.* The camera supports full-duplex audio, and options for half-duplex operation.

Note: Features with an asterisk are not supported or applicable when the camera is used with Cisco Video

Surveillance Manager.

Features

Table 1 describes the features of the Cisco Video Surveillance 2630V IP Dome.

Table 1. Cisco Video Surveillance 2630V IP Dome Features

Item Specification

Imaging Device 1/3-in. progressive-scanRGB CMOSsensor with wide dynamic range

Image Control Automatic white balance (AWB), automatic gain control (AGC), automatic exposure (AE), auto iris

Dynamic Range 102 dBtypical/120 dB maximum

Minimum Illumination ●Color mode: F1.4 @ 0.65 lux

●Black and white mode: F1.4 @ 0.08 lux

Signal-to-Noise Ratio (SNR) >48 dB

Shutter Electronic shutter

Lens Motorized DC auto-iris lens with day/night filter

3.3mm–12mm

Zoom: 3.6x

Field of view:

●Horizontal: 24°–90°

●Vertical: 18°–64°

Camera Angle Adjustment Pan: 340°

Tilt: 160°

Rotation: 200°

Video Compression H.264, MPEG-4, MJPEG

Audio Compression* G.711 A-Law, G.711 U-Law, G.726

Resolution and Frame Rate NTSC/PAL

●720 x 480/576 @ 30/25 fps (D1)

●704 x 480/576 @ 30/25 fps (4CIF)

●352 x 240/288 @ 30/25 fps (CIF)

Video Streaming Single and dual video streams supported. Refer to Tables 2, 3, and 4 for details.

Protocols Dynamic Host Control Protocol (DHCP), File Transfer Protocol (FTP), Hypertext Transfer Protocol (HTTP), Secure

HTTP (HTTPS), Network Time Protocol (NTP), Real-Time Transport Protocol (RTP), Real-Time Streaming

Protocol (RTSP), Simple Mail Transfer Protocol (SMTP), Secure Sockets Layer/Transport Layer Security

(SSL/TLS), Transmission Control Protocol/Internet Protocol (TCP/IP), 802.1x

Quality of Service (QoS) Differentiated services code point (DSCP) marking

Power Power 24 VAC, isolated external power supply

Power Consumption 15W (maximum)

When heater is on: 35W (maximum)

* Not supported or applicable when the camera is used with Cisco Video Surveillance Manager.

Data Sheet

Table 2 lists supported single stream configurations on the Cisco Video Surveillance 2630V IP Dome.

Table 2. Supported Single Stream Configurations

Single

Streaming Maximum Resolution and

Frames Per Second (FPS) Resolutions Supported (NTSC

& PAL) NTSC FPS Supported PAL FPS Supported

H.264 D1 @ 30 fps D1

4CIF

CIF

30, 25, 20, 15, 10, 8, 6, 5 25, 20, 15, 10, 8, 6, 5

MPEG-4 D1 @ 30 fps D1

4CIF

CIF

30, 25, 20, 15, 10, 8, 6, 5 25, 20, 15, 10, 8, 6, 5

MJPEG D1 @ 30 fps D1

4CIF

CIF

30, 25, 20, 15, 10, 8, 6, 5 25, 20, 15, 10, 8, 6, 5

Table 3 lists the supported primary and secondary video stream combinations on the Cisco Video Surveillance

2630V IP Dome.

Table 3. Supported Primary and Secondary Video Stream Combinations

Primary Secondary

H.264 H.264

H.264 MJPEG

MPEG4 MPEG4

MPEG4 MJPEG

Table 4 lists the supported primary and secondary video streams on the Cisco Video Surveillance 2630V IP Dome.

Table 4. Cisco Video Surveillance 2630V IP Dome Video Stream Support

NTSC Primary Channel

Resolutions NTSC Primary Frame Rate NTSC Secondary Channel

Resolutions NTSC Secondary Frame Rate*

4 CIF, CIF 30, 25, 20, 15, 10, 8, 6, 5 CIF 15, 10, 8, 6, 5

PAL Primary Channel

Resolutions PAL Primary Frame Rate PAL Secondary Channel

Resolutions PAL Secondary Frame Rate*

4 CIF, CIF 25, 20, 15, 10, 8, 6, 5 CIF 15, 10, 8, 6, 5

* If a secondary frame rate is selected in Cisco Video Surveillance Manager that is not listed in the table, the camera will

automatically use the closest frame rate.

Connectors

Table 5 describes the connectors on the Cisco Video Surveillance 2630V IP Dome.

Table 5. Cisco Video Surveillance 2630V IP Dome Connectors

Item Specification

Network Connectivity 10/100 BASE-TX Ethernet with RJ-45 connector

Video 3.5-mm service connector, provides analog video (use with optional mini cable with BNC adapter during installation)

Audio* ●3.5-mm audio jack: audio input for optional external microphone and audio output for optional external speaker

supported through Y-cable adapter

●Two-way(full- or half-duplex), one-way, or audio off

Alarm Input Two logic-level programmable inputs

Alarm Output* Two logic-level programmable outputs

Power Input 3-pin terminal

* Not supported or applicable when the camera is used with Cisco Video Surveillance Manager.

Data Sheet

Software

Table 6 describes the primary features of the Cisco Video Surveillance 2630V IP Dome software.

Table 6. Cisco Video Surveillance 2630V IP Dome Primary Software Features

Item Specification

Video Format NTSC and PAL

Day/night Settings Auto or manual day/night operation with user-definable thresholds

Image Settings Configurable brightness, sharpness, saturation, and white balance

Overlay Capabilities Time, date, and text

Selectable Bit Rate Support for Constant Bit Rate or Variable Bit Rate

IP Filtering Users can enter a list of allowed or blocked IP addresses for viewing video and configuring camera settings

Discovery* Cisco Discovery Protocol, Bonjour zero-configuration discovery

Configuration ●Browser-based using Internet Explorer 8 with SP3

●Multiple user access levels with password protection

Motion Detection 4 user-definable motion detection areas

Event Actions ●Email

●FTP upload of captured video or JPEG snapshot depending on stream configuration

●HTTP alert

●Alarm output

* Not supported or applicable when the camera is used with Cisco Video Surveillance Manager.

Specifications

Table 7 provides specifications of the Cisco Video Surveillance 2630V IP Dome.

Table 7. Cisco Video Surveillance 2630V IP Dome Mechanical Specifications

Item Specification

Housing Metal base and polycarbonate transparent cover with tamper-resistant mounting

LEDs Power and Ethernet

Dimensions

(W x H) 6.10 x 4.64 in.

155 x 118 mm

Weight 3.1 lb

1.4 kg

Standards Compliance Safety:

UL 60950

CAN/CSA-C22.2 No. 60950

EN 60950

IEC 60950

AS/NZS 60950

EMC-Emissions:

47CFR Part 15 (CFR 47) Class B

AS/NZS CISPR22 Class B

CISPR22 Class B

EN55022 Class B

ICES003 Class B

VCCI Class B

EN61000-3-2

EN61000-3-3

KN22 Class B

CNS13438 Class B

EMC-Immunity:

EN55024

CISPR24

EN50130-4

KN24

Operating Temperature –30°to 55°C

–22°to 131°F

Heater and Fan Heater turns ON: Internal temperature falls below 5°C (41°F)

Heater turns OFF: Internal temperature rises above 15°C (59°F)

Fan turns ON: Internal temperature rises above 70°C (158°F)

Fan turns OFF: Internal temperature falls below 60°C (140°F)

Data Sheet

Figure 2 shows the dimensions of the Cisco Video Surveillance 2630V IP Dome without the conduit case.

Figure 2. Cisco Video Surveillance 2630V IP Dome Dimensions Without Included Conduit Case

Package Contents

Table 8 describes the items that ship with the Cisco Video Surveillance 2630V IP Dome.

Table 8. Cisco Video Surveillance 2630V IP Dome Package Contents

Item

Cisco Video Surveillance 2630VIP Dome

Quick start guide

Regulatory compliance and safety information

●Mounting template

●0.9-mm Allen wrench for locking/unlocking the lens focus ring

●Torx security wrench for tamper-resistance screws

●8-32 x 5/16" screws (qty. 4)

●Security wire and screw

Data Sheet

Availability

The Cisco Video Surveillance 2630V IP Dome is available through Cisco Authorized Distributors.

Ordering Information

Table 9 lists the part numbers for the Cisco Video Surveillance 2630V IP Dome and accessories.

Table 9. Cisco Video Surveillance 2630V IP Dome Ordering Information

Part Number Description

CIVS-IPC-2630V Indoor/Outdoor Cisco Standard-Definition IP Clear Dome, D/N, 2.8–10 mm, vandal-resistant

Accessories

CIVS-IPCA-1004= Dome, Clear, 2500 and 2600 Series

CIVS-IPCA-1005= Dome, Smoked, 2500 and 2600 Series

CIVS-IPCA-1006= Conduit base with extra gaskets, 2500 and 26xxV Series

CIVS-IPCA-1007= Ceiling mount support

CIVS-IPCA-1010= Pendant cap, 2500 and 26xxV Series

CIVS-IPCA-1011= Wall mount for use with CIVS-IPCA-1010

CIVS-IPCA-1012= Ceiling mount for use with CIVS-IPCA-1010

CIVS-IPCA-1013= Pendant cap adapter (3/4" to 1.5" male NPT thread)

CIVS-IPCA-1014= Round pole mount adapter for use with wall mount

CIVS-IPCA-1017= Audio/video cables

CIVS-IPCA-1018= Sun shield

Using the Camera with Cisco Video Surveillance Manager

Features that are marked with an asterisk (*) are not supported when using the camera with Cisco Video

Surveillance Manager. Please refer to the latest release notes for Cisco Video Surveillance Manager for more

information.

Service and Support

Cisco offers a wide range of services programs to accelerate customer success. These innovative programs are

delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of

customer satisfaction. Cisco services help you to protect your network investment, optimize network operations, and

prepare your network for new applications to extend network intelligence and the power of your business. For more

information about Cisco services, visit Cisco Technical Support Services or Cisco Advanced Services.

For More Information

For more information about Cisco Video Surveillance solutions, visit

http://www.cisco.com/en/US/products/ps6712/index.html or contact your local account representative.

Printed in USA C78-635608-02 03/11

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cisco Caméra de sécurité

Cisco

Cisco CIVS-IPC-2600 Manuel utilisateur

Cisco

Cisco WVC210 - Small Business Wireless-G PTZ Internet Video... Manuel utilisateur

Cisco

Cisco Wireless Service Module 2 Manuel utilisateur

Cisco

Cisco Small Business VC220 Mode d’emploi

Cisco

Cisco WVC210 - Small Business Wireless-G PTZ Internet Video... Manuel utilisateur

Cisco

Cisco 6020 Manuel utilisateur

Cisco

Cisco CIVS-IPC-2521V Manuel utilisateur

Cisco

Cisco PVC300 - Small Business Pan Tilt Optical Zoom Internet Camera... Mode d’emploi

Cisco

Cisco Nexus 5010 Manuel utilisateur

Cisco

Cisco WVC210 - Small Business Wireless-G PTZ Internet Video... Mode d’emploi

Cisco

Cisco Video Surveillance 3520 Manuel utilisateur

Cisco

Cisco PVC2300 - Small Business Internet Video... Mode d’emploi

Cisco

Cisco 253 Series Manuel utilisateur

Cisco

Cisco Small Business VC220 Manuel utilisateur

Cisco

Cisco WVC80N Manuel utilisateur

Cisco

Cisco Meraki MV12 Manuel utilisateur

Cisco

Cisco PVC2300 - Small Business Internet Video... Manuel utilisateur

Cisco

Cisco 4300E Manuel utilisateur

Cisco

Cisco Meraki MV12 Manuel utilisateur

Cisco

Cisco 6020 Instructions d'utilisation et de sécurité

Cisco

Cisco Small Business VC240 Manuel utilisateur

Cisco

Cisco WVC210 - Small Business Wireless-G PTZ Internet Video... Manuel utilisateur

Cisco

Cisco WVC2300 - Small Business Wireless-G Internet Video... Manuel utilisateur

Cisco

Cisco WVC210 - Small Business Wireless-G PTZ Internet Video... Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
