MV12 Installation Guide
Overview
The Cisco Meraki MV12 is a networked camera that is exceptionally simple to deploy and configure due to its integration
into the Meraki dashboard and the use of cloud augmented edge storage. The MV family eliminates the complex and
costly servers and video recorders required by traditional solutions which removes the limitations typically placed on
video surveillance deployments.

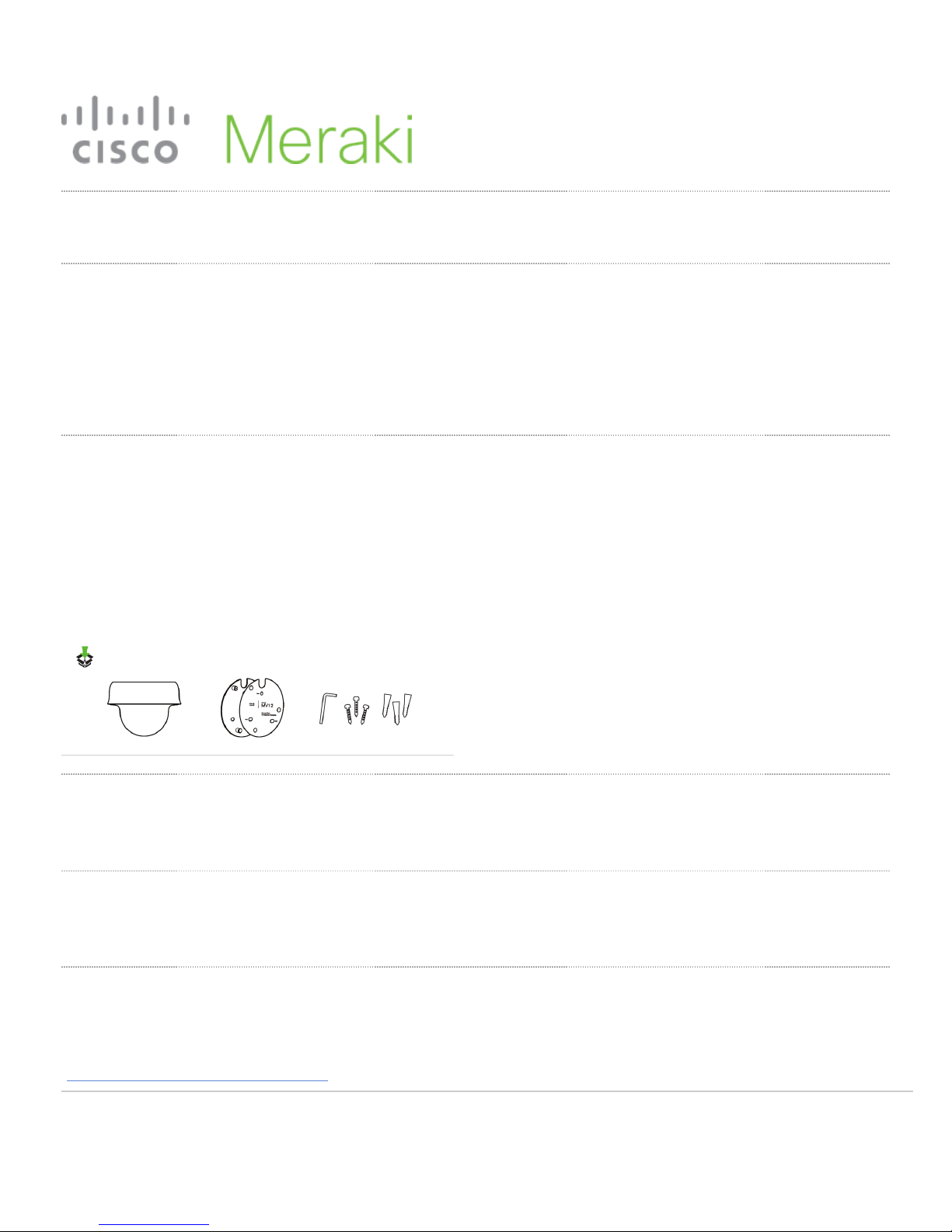

Package Contents
In addition to the MV camera, the following are provided:
• Phillips head wall mounting screws
• Wall screw anchors for masonry (brick, concrete)
• Torx key
• Wall mount plate
Ethernet Port
The MV12 features a 1000BASE-T Ethernet port that supports 802.3af Power-over-Ethernet (PoE).
Pre-Install Preparation
You should complete the following steps before going on-site to perform an installation.
Configure Your Network in Dashboard
The following is a brief overview only of the steps required to add an MV12 to your network. For detailed instructions
about creating, configuring and managing Meraki Camera networks, refer to the online documentation
(https://documentation.meraki.com/MV).
1
1. Login to http://dashboard.meraki.com. If this is your first time, create a new account.
2. Find the network to which you plan to add your cameras or create a new network.
3. Add your cameras to your network. You will need your Meraki order number (found on your invoice) or the serial
number of each camera, which looks like Qxxx-xxxx-xxxx, and is found on the bottom of the unit.
4. Verify that you the camera is now listed under Cameras > Monitor > Cameras.
Check and Configure Firewall Settings
If a firewall is in place, it must allow outgoing connections on particular ports to particular IP addresses. The most
current list of outbound ports and IP addresses for your particular organization can be found here.
DNS Configuration
Each MV12 will generate a unique domain name to allow for secured direct streaming functionality. These domain
names resolve an A record for the private ip address of the camera. Any public recursive DNS server will resolve this
domain.
If utilizing an on site DNS server, please whitelist *.devices.meraki.direct or configure a conditional forwarder so that
local domains are not appended to *.devices.meraki.direct and that these domain requests are forwarded to Google
public DNS.
Assigning IP Addresses
At this time, the MV12 does not support static IP assignment. MV12 units must be added to a subnet that uses DHCP
and has available DHCP addresses to operate correctly.
Installation Instructions
Note: Each MV12 comes with an instruction pamphlet within the box. This pamphlet contains detailed step by step
guides and images to assist in the physical install of the camera.
Note:During first time setup, the MV12 will automatically update to the latest stable firmware. Some features may be
unavailable until this automatic update is completed. This process may take up to 10 minutes due to enabling of whole
disk encryption.
For most mounting scenarios, the MV12 wall mount provides a quick, simple, and flexible means of mounting your device. The
instructions are as follows:
1. Leave protective cap on camera bubble to avoid getting scratches on the bubble during installation.
2
2. Use template to determine mounting hole locations before screwing in the mount plate. Peel backing from mount
template to stick on wall. Screw the mounting plate onto the wall in pre-determined locations. Use template holes
to align the mounting plate.
3. Connect PoE cable to camera.
4. Turn bubble counter clockwise to unlock and remove. While the bubble is removed, aim the lens to the desired
scene.
3
5. Align camera to mounting plate studs. Slide camera onto studs and turn camera clockwise to secure camera to
plate. If cable run is not coming from directly behind the camera, the cable guard will need to be removed. Below
are two mounting examples.
4
6. Further secure camera to mounting plate by tightening the green security screw.
7. Aim the lens. Inspect the camera feed on the Meraki Dashboard to fine tune the picture. The camera sensor and
lens unit can be physically tilted through a range of 65 degrees, rotated through a range of 350 degrees, and
panned through a range of 350 degrees. The image can only be rotated by 180 degrees in software and no other
adjustments can be made. Zoom and focus can not be adjusted on the camera.
5
8. Replace the plastic dome. Turn dome clockwise to lock.
9. Remove protective cap from camera bubble.
6
Powering the MV12
Remove the cable guard and route the Ethernet cable from an active port on a 802.3af PoE switch or PoE injector.
Note: PoE supports a maximum cable length of 300 ft (100 m).
WLAN Capability
MV12 cameras running MV firmware 3.16 and newer can be configured as wireless clients. To learn how to configure
MV12 wireless settings, check out our MV Wireless Configuration Guide.
LED Indicator
Your MV12 is equipped with a LED light on the front of the unit to convey information about system functionality and
performance:
Note: Cameras running 3.23 or higher
• Rainbow - MV is initializing or looking for upstream network connectivity.
• Solid Green - MV is online with an active wired connection.
• Flashing Green - MV is formatting its storage and/or upgrading its firmware.
• Flashing Blue - MV is attempting to connect to a nearby access point.
• Solid Blue - MV is online with an active wireless connection.
• Solid Purple - MV is recording audio.
7
