Cisco SRP520 Manuel utilisateur

Quick Start Guide

Cisco SRP500 Series Services Ready Platforms

(SRP520 Models)

Package Contents

•Cisco SRP500 Series Services Ready Platform

•RJ-45 Ethernet Cable

•RJ-11 Telephone Cable

•Power Clip and Adapter

•Quick Start Guide

•Product CD

2 Cisco SRP500 Services Ready Platforms Quick Start Guide (SRP520 Models)

Welcome

Thank you for choosing Cisco SRP500 Series Services Ready Platforms.

This guide describes how to physically install the SRP and how to use the

Setup Wizard to configure it.

Before You Begin

Before you begin the installation, make sure that you have the following:

For Hardware Installation

•An active Internet connection.

•(Optional) Analog phone line.

•(Optional) Telephone handset, fax machine, or PBX line for connecting

to the voice ports.

•Cables

– RJ-45 Ethernet cables (Category 5 or higher) for connecting

computers, WAN and LAN interfaces, phones, or other devices.

– RJ-11 telephone cable for analog line (FXO) and phone (FXS)

connections.

– ADSL splitter, if required by your Service Provider.

•(Optional) Mobile Broadband USB Modem.

For Software Installation:

•A computer running:

– Microsoft Internet Explorer 7.0 (or later), or Mozilla Firefox 3.6.

– Adobe Flash Player with add-on version 10.0.0 or later (needed to

to configure your SRP).

Cisco SRP500 Services Ready Platforms Quick Start Guide (SRP520 Models) 3

Default Settings

Use these default settings when configuring your SRP with the Setup

Wizard. See Getting Started with the Configuration, page 11.

To configure advanced features (such as wireless, network, and voice

settings), log in by using the Administrator account.

For more information, see the Cisco SRP500 Series Services Ready

Platforms Administration Guide (SRP520 Models) at:

www.cisco.com/go/srp500.

NOTE If you obtained your SRP from your Service Provider, you might not

have access to the Administrator account. Contact your Service

Provider for more information.

Getting to Know the Cisco SRP500 Series

Services Ready Platforms

This section lists the available model numbers to help you become familiar

with your SRP, and shows the front panel, back panel, side view, and top

the unit.

NOTE To get started with the installation right away, see Installing the

SRP500 Services Ready Platforms, page 8.

Parameter Value

Device IP 192.168.15.1

Username cisco

Password cisco

DHCP Range 192.168.15.100 to 149

4 Cisco SRP500 Services Ready Platforms Quick Start Guide (SRP520 Models)

Model Numbers

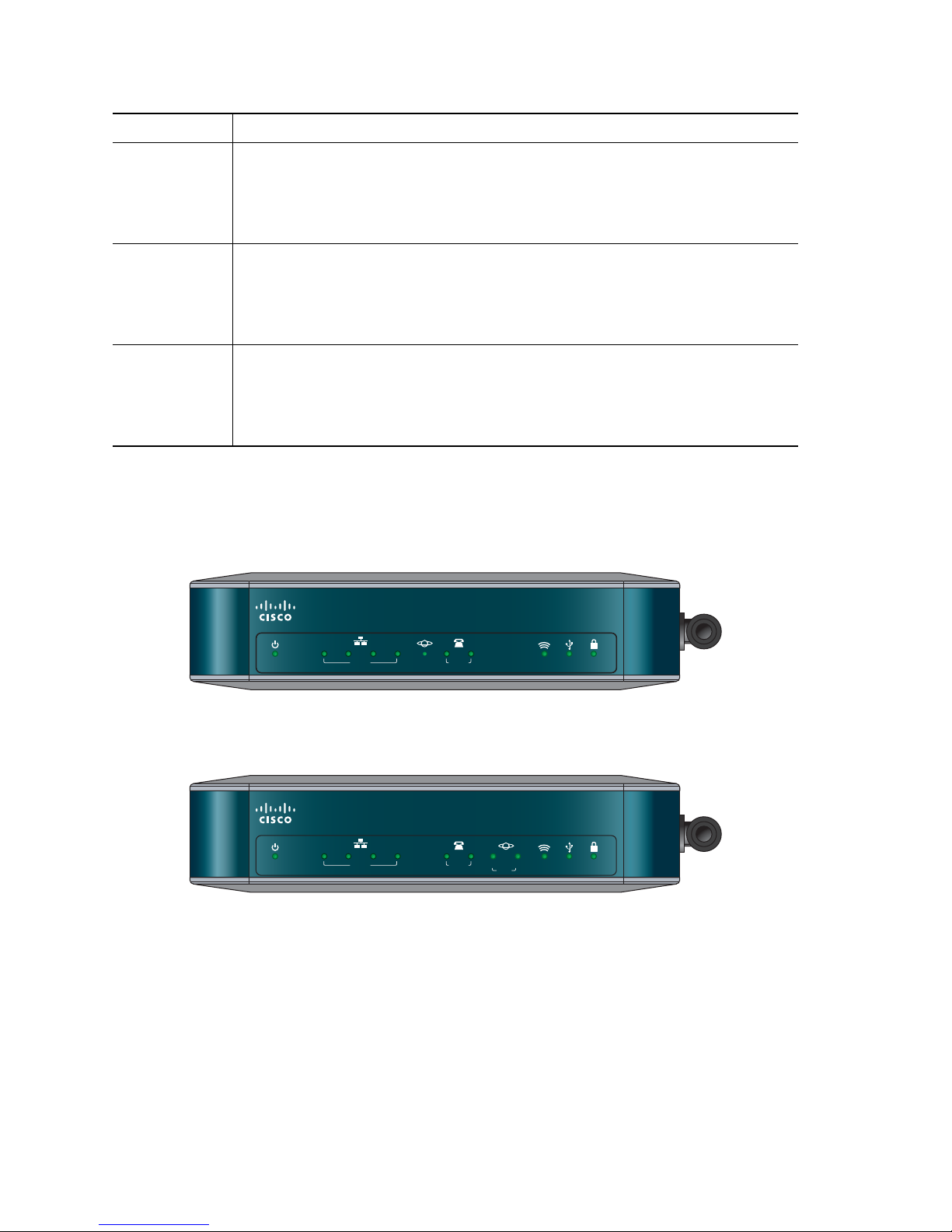

Front Panel

SRP521W Front Panel

SRP526W and SRP527W Front Panel

Model Description

SRP521W Fast Ethernet WAN

2 Phone (FXS) ports, 1 Line (FXO) port, 1 WAN (10/100) port,

4 LAN (10/100) ports, 1 USB 2.0 port, 802.11n, and WiFi Protected

Setup (WPS)

SRP526W ADSL2+ Annex B (ADSL over ISDN)

2 Phone (FXS) ports, 1 Line (FXO) port, 1 DSL port,

4 LAN (10/100) ports, 1 USB 2.0 port, 802.11n, and WiFi Protected

Setup (WPS)

SRP527W ADSL2+ Annex A/M (ADSL over POTS)

2 Phone (FXS) ports, 1 Line (FXO) port, 1 DSL port,

4 LAN (10/100) ports, 1 USB 2.0 port, 802.11n, and WiFi Protected

Setup (WPS)

276377

LANPOWER/SYS

PHONE USB WPSWLANWLAN

Cisco Small Business Pro

SRP 521W

12 2143

195210

LANPOWER/SYS

PHONE

CD Data

DSL

USB WPSWLAN

Cisco Small Business Pro

SRP 526W

12 2143

Cisco SRP500 Services Ready Platforms Quick Start Guide (SRP520 Models) 5

Front Panel Lights

The following table describes the lights on the front panel of the SRP.

These lights are used for monitoring system activity.

Back Panel

The back panel is where you connect the network devices. The ports on

the panel vary depending on the model.

Lights (Green) Description

POWER/SYS Lights when the SRP has successfully booted and is ready

to use. Flashes when the SRP is booting.

LAN ports (1–4) Lights when a link is established. Flashes when there is

activity on the LAN port.

WAN por t

(SRP 521W only)

Lights when a link established. Flashes when there is

activity on the WAN port.

Phone (FXS) ports

(1–2)

Lights when the port is connected to a phone or fax

machine and the SRP is able to make and receive calls.

Flashes when a call is in progress on the port.

DSL CD Flashes when a DSL service is detected. Lights solid green

when synchronized.

DSL Data

(SRP 526W/527W only)

Flashes when there is DSL activity on the line.

WLAN Lights when the radio is powered on and operational.

Flashes when there is wireless activity on the WLAN port.

USB port Lights when the connected USB device is operational.

Flashes if there is a device failure or unsupported device.

WPS button Lights when WiFi Protected Setup (WPS) is operational.

A slow green flash indicates that the setup is in progress. A

fast green flash indicates a setup error.

6 Cisco SRP500 Services Ready Platforms Quick Start Guide (SRP520 Models)

SRP521W Back Panel

SRP526W and SRP527W Back Panel

Back Panel Descriptions

Feature Description

DSL port

SRP526/SRP527W only

Connects the SRP to your DSL connection.

Phone (FXS) ports (1–2) Connect directly to an analog telephone, fax machine,

or similar device.

If your analog phone requires a separate bell line (as

might be the case in the United Kingdom), you might

need to connect a ring adapter between the SRP and

your phone so that the phone rings when calls are

presented.

Line (FXO) port Connects to a PSTN, which is the analog telephone

service network that a traditional telephone service

uses.

276375

12VDC

LAN (10/100)WAN (10/100)

21 1234

LINE (FXO)PHONE (FXS)

WAN

Port

On/Off

Switch

12 V DC

power

Line

(FXO)

Port

Phone

(FXS)

Ports

LAN

Ports

195211

LAN (10/100)LAN/WAN

21 1234

LINE (FXO)DSL PHONE (FXS)

On/Off

Switch

Line

(FXO)

Port

DSL

Port

Phone

(FXS)

Ports

LAN

Ports

12 V DC

power

Cisco SRP500 Services Ready Platforms Quick Start Guide (SRP520 Models) 7

Side View

WAN (10/100) port

SRP521W only

Connects the SRP to your Wide-Area-Network (WAN).

LAN (10/100) ports (1–4) Connects to a wired computer and other network

devices.

On/Off Switch Powers the SRP on or off.

12 V DC power Connects to the provided power adapter.

Feature Description

Reset button Press and hold for 5 seconds to reset the SRP. Press

and hold for 10 seconds to reset the SRP to its factory

defaults.

To press the button, insert a paper clip or similar

object into the opening.

CAUTION Resetting the unit will delete all user

settings.

USB port Connects to a compatible USB Modem.

See Installing a Mobile Broadband USB Modem

(Optional), page 12.

Antenna The WiFi antenna.

276380

RESET

Reset

Button

USB

Connector

276381

Antenna

8 Cisco SRP500 Services Ready Platforms Quick Start Guide (SRP520 Models)

Top View

Installing the SRP500 Services Ready

Platforms

You can install the SRP on a desktop or other flat horizontal surface or

mount it on a wall.

NOTE The SRP has an adjustable WiFi antenna located on the side panel

of the unit.

Placement Tips

Make sure that you install the SRP in a location that meets these

environmental conditions:

•StorageTemperature(sea level) -22° F to 140° F (-30° C to +60° C)

•OperatingTemperature(sea level) 32° F to 104° F (0° C to 40° C)

• Relative Humidity (sea level) 5 to 95% RH (non-condensing)

Feature Description

WPS Button Use to automatically configure wireless security for devices

that support WiFi Protected Setup (WPS).

To configure WPS, press and hold this button until the WPS

light flashes. Make sure that the device is located near the

SRP during setup.

276378

WPS Button

Cisco SRP500 Services Ready Platforms Quick Start Guide (SRP520 Models) 9

CAUTION Do not stack or place anything on top of the SRP, or install it on

a hot surface.

Desk Placement

To mount the SRP on a desktop, place the device horizontally on a flat

surface so it sits on its four rubber feet.

Wall Mounting

NOTE Position the SRP so that the back panel faces upward to reduce

strain on the cable connections.

STEP 1Secure two number-six pan-head tapping screws, 3/4-inch (19 mm)

in length, 150 mm apart into a wall for horizontal orientation or

108 mm for vertical orientation, with the space between the

underside of each screw head and the surface of the wall equal to

5/32 inch (4mm).

CAUTION For drywall installation, secure the screws by using two

hollow-wall anchors (1/8 inch with 5/16-inch drill bit, or M3

with 8-mm drill bit). Without proper anchoring, the strain of

the network cable connections could pull the SRP from

the wall.

STEP 2Locate the mounting screw slots on the bottom of the SRP, and

then hang it on the screws.

Connecting the Equipment

STEP 1For Ethernet WAN connections, connect one end of the Ethernet

cable to your Internet access device (typically a modem), and

connect the other end of the cable to the WAN port.

For ADSL connections, connect your DSL cable directly to the DSL

port on your SRP526W or SRP527W. Make sure that you use an

ADSL splitter, if required by your Service Provider.

10 Cisco SRP500 Services Ready Platforms Quick Start Guide (SRP520 Models)

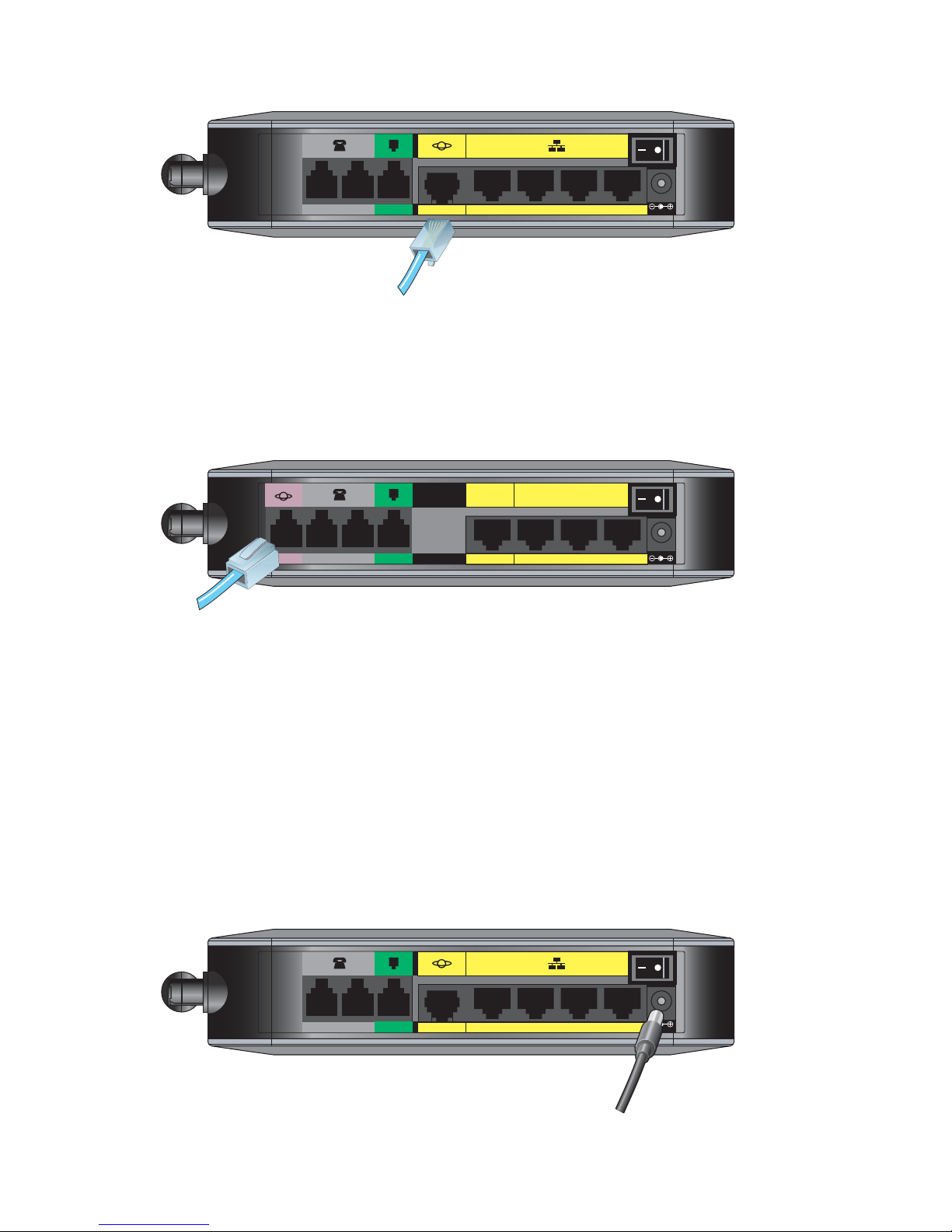

SRP521W WAN Connection

SRP526W / SRP527W ADSL Connection

STEP 2Connect wired computers and other network devices to the LAN

ports (1–4).

STEP 3(Optional) Connect an analog telephone, fax machine, or similar

device to the Phone (FXS) ports. Then connect the Line (FXO) port

to the telephone line on your phone jack.

STEP 4Install the supplied AC power plug or clip (for your area) into the

power adapter.

NOTE Only use the power adapter that was provided with the unit.

STEP 5Connect the power adapter to the 12 VDC port on your SRP.

195790

12VDC

LAN (10/100)WAN (10/100)

21 1234

LINE (FXO)PHONE (FXS)

WAN (10/100) Port

199989

LAN (10/100)LAN/WAN

21 1234

LINE (FXO)DSL PHONE (FXS)

DSL Port

195791

12VDC

LAN (10/100)WAN (10/100)

21 1234

LINE (FXO)PHONE (FXS)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cisco Routeur réseau

Cisco

Cisco 2651 Manuel utilisateur

Cisco

Cisco ASR 900 Series Manuel utilisateur

Cisco

Cisco IR829 Manuel

Cisco

Cisco ASR 9000 Series Manuel utilisateur

Cisco

Cisco CISCO10720 Instructions d'utilisation et d'entretien

Cisco

Cisco 2811 - Voice Security Bundle Router Instructions d'installation

Cisco

Cisco 2524 - Router - EN Manuel utilisateur

Cisco

Cisco RV016 - Small Business - 10/100 VPN Router Manuel utilisateur

Cisco

Cisco NCS 540 Series Manuel d'installation

Cisco

Cisco ASR 1002 Manuel utilisateur

Cisco

Cisco RV180 Manuel d'utilisation et d'entretien

Cisco

Cisco MWR 1941-DC - 1941 Mobile Wireless Router Manuel utilisateur

Cisco

Cisco Network Convergence System 540 Manuel

Cisco

Cisco Linksys WET610N Manuel utilisateur

Cisco

Cisco 1805 Manuel utilisateur

Cisco

Cisco 2811 - Voice Security Bundle Router Manuel utilisateur

Cisco

Cisco ASR 1000 Series Manuel utilisateur

Cisco

Cisco SB 106 Manuel utilisateur

Cisco

Cisco CRM3 Mode d’emploi

Cisco

Cisco Catalyst 2960 Series Manuel utilisateur

Cisco

Cisco Cisco 2900 series Manuel utilisateur

Cisco

Cisco UBR7246VXR Manuel

Cisco

Cisco 3745 Manuel utilisateur

Cisco

Cisco WRT54G2 Linksys Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

EnGenius

EnGenius ESR-9710 Manuel utilisateur

LevelOne

LevelOne FBR-1416 Manuel utilisateur

Dynacord

Dynacord Promatrix 6000 Manuel utilisateur

Lorex

Lorex F5D8230-4 Manuel utilisateur
