Wireless Quick Installation Guide

Wireless

Quick Installation Guide

Model No.

WRT54G3G (EU)

,GHz

802.11g

Router for 3G/UMTS Broadband

Wireless-G

Package Contents

• Wireless-G Router for 3G/UMTS Broadband

• Setup CD-ROM

• Quick Installation Guide

•UserGuideonCD-ROM

• Power Adapter

• 2 x RJ-45 Ethernet Cables

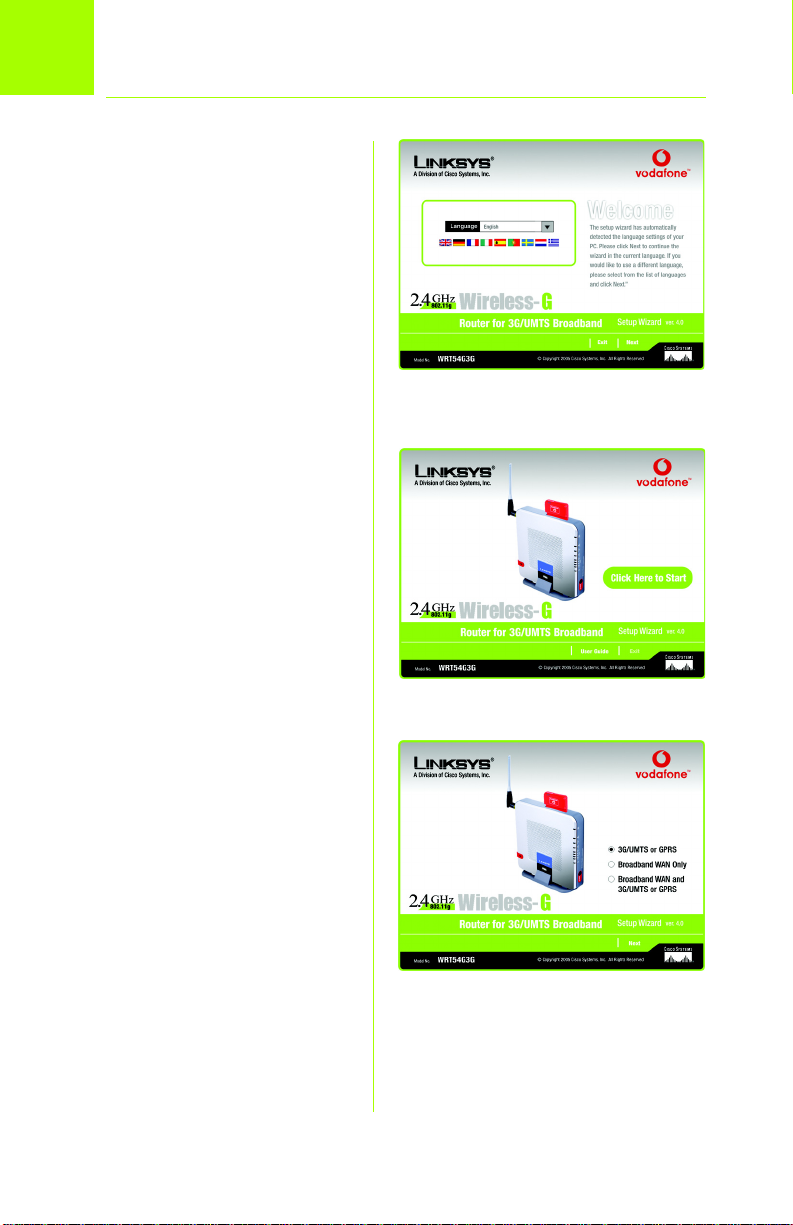

AInsert the Setup CD-ROM into

your CD-ROM drive. The Setup

Wizard should run automatically

and the Welcome screen should

appear. If it does not, click Start

and then Run. In the field

provided, enter

D:\WRT54G3G.exe (if “D” is the

letter of your CD ROM drive).

The Setup Wizard automatically

detects the operating system’s

country setting and selects the

Wizard language according to it.

You can manually select the

desired language via the drop-

down menu.

BClick Next to begin the setup

process.

CPress Click Here to Start to start

the setup process. Click User

Guide to go to the User Guide, or

click Exit to stop the setup

process.

DClick the appropriate radio

button:

a. 3G/UMTS or GPRS Only for

use of the Router with

3G/UMTS or GPRS Service,

proceed to step 2.

b. Broadband WAN Only for

use of the Router with a

broadband cable/DSL

network, proceed to step 3.

c. Broadband WAN and

3G/UMTS or GPRS for use of

the Router with both network

types, proceed to step 4.

Configuring the WRT54G3G via

the Setup Wizard

ABefore you begin, make sure

that you have your Vodafone

Mobile Connect Card Services

information, which was supplied

with your Mobile Connect Card

package at the time of

purchase. If you do not have this

information, call Vodafone

Customer Services. The contact

information is in the Vodafone

Mobile Connect Card package.

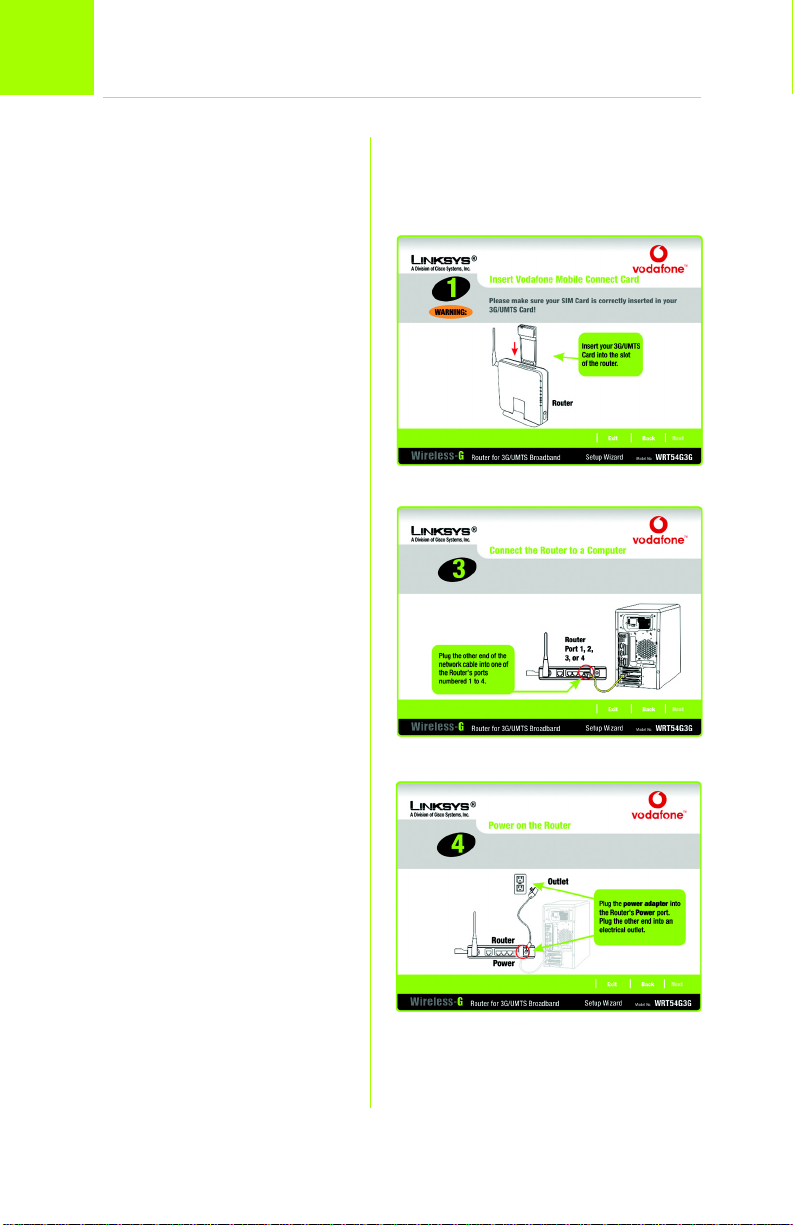

BMake sure that the 3G/UMTS

Router is powered off.

CInsert your Vodafone SIM Card

into your Vodafone Mobile

Connect 3G/UMTS Card,

following your card’s instructions.

DInsert your Vodafone Mobile

Connect 3G/UMTS Card.

EPlug the other end of the network

cable into one of the Router’s

yellow ports numbered 1 to 4.

FConnect the power adapter to

the Router's Power port and the

other end to an electrical outlet.

GMake sure the Power, Internet

and 3G/UMTS LEDs on the front

panel light up green.

HThe Power LED will flash green for

a few seconds when the Router

goes through its self-diagnostics

test. This LED will stay solidly lit

when the self-test is complete. If

it does not stop flashing, refer to

“Appendix A: Troubleshooting” of

the User Guide on the Setup CD.

Proceed to step 5.

2WRT54G3G Setup for 3G/UMTS or

GPRS Network Only

AMake sure that the 3G/UMTS

Router is powered off.

BDisconnect the cable that

connects your cable or DSL

modem to your PC.

CPlug the cable from the modem

into the Router’s blue Internet

port. This is the same cable that

you just disconnected from your

computer.

DThe Router comes with a yellow

network cable. Plug one end of

the network cable into your

computer's network port. Your

computer's network port is the

same port that was previously

connected to the modem.

EPlug the other end of the network

cable into one of the Router’s

yellow ports numbered 1 to 4.

3WRT54G3G Setup for

Broadband WAN Only

FConnect the power adapter to

the Router's Power port and the

other end to an electrical outlet.

GOn the Router's front panel, the

Power, Internet, and at least one

of the numbered (1, 2, 3 or 4)

LEDs should be lit. If not make

sure the cables are securely

connected.

Proceed to step 6.

ABefore you begin, make sure

that you have your Vodafone

Mobile Connect Card Services

information, which was supplied

with your Mobile Connect Card

package at the time of

purchase. If you do not have this

information, call Vodafone

Customer Services. The contact

information is in the Vodafone

Mobile Connect Card package.

BMake sure that the 3G/UMTS

Router is powered off.

CInsert your Vodafone SIM Card

into your Vodafone Mobile

Connect 3G/UMTS Card,

following your card’s instructions.

DInsert your Vodafone Mobile

Connect 3G/UMTS Card.

EDisconnect the cable that

connects your cable or DSL

modem to your PC.

FPlug the cable from the modem

into the Router’s blue Internet

port. This is the same cable that

you just disconnected from your

computer.

GPlug the other end of the network

cable into one of the Router’s

yellow ports numbered 1 to 4.

4WRT54G3G Setup for Broadband

WAN and 3G/UMTS or GPRS

HPlug the other end of the network

cable into one of the Router’s

yellow ports numbered 1 to 4.

IConnect the power adapter to

the Router's Power port and the

other end to an electrical outlet.

JOn the Router's front panel, the

Power, Internet, and at least one

of the numbered (1, 2, 3 or 4)

LEDs should be lit. If not make

sure the cables are securely

connected.

Proceed to step 5.

AIf the Mobile Connect Card is

not inserted or recognized, you

will be prompted to insert a

Vodafone Mobile Connect

3G/UMTS Card. If you wish to

configure the Router without your

Vodafone Mobile Connect

3G/UMTS Card, proceed to step

7; otherwise, insert a Vodafone

Mobile Connect 3G/UMTS Card

with the SIM card already

inserted, and proceed to step B.

BIf a SIM card is not inserted into

the Vodafone Mobile Connect

3G/UMTS Card, the message in

Figure B will be displayed, and

you will be prompted to check

that the SIM card is correctly

inserted. Click the OK button.

If you wish to configure the

Router without a SIM card,

proceed to step 7; otherwise,

insert the SIM card into your

Vodafone Mobile Connect

3G/UMTS Card, and proceed to

step C.

CThe vendor ID and firmware

version settings are checked. If

your Vodafone Mobile Connect

Card needs to be upgraded, the

screen shown in Figure C will be

appear. Follow the on-screen

instructions.

5Configuring the Vodafone

3G/UMTS or GPRS Service

DBased on the SIM country

settings, the following information

will be displayed:

a. Home Network

b. Service

c. 3G/UMTS/GPRS connection

d. APN

e. Username (country

dependent)

f. Password (country

dependent)

g. Pin code (SIM card

dependent)

Choose:

• the required Service option.

• the required Connect

method.

EThe selected settings are

displayed, as shown in Figure E.

Click Confirm and follow the

appropriate instructions:

• Vodafone 3G/UMTS Only -

proceed to step7.

• Broadband WAN Only or

Broadband WAN and

3G/UMTS or GPRS - Proceed

to step 6.

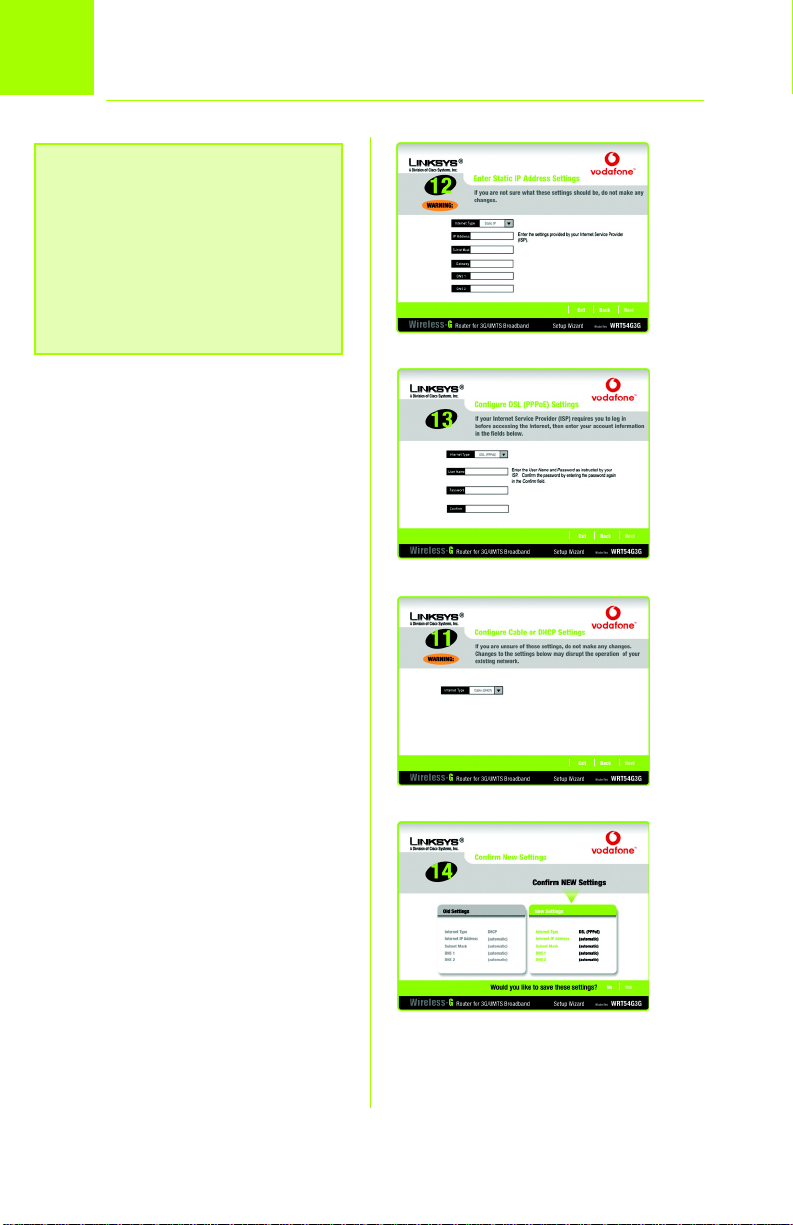

AStatic IP. If your ISP assigns you a

static IP address, select Static IP

from the drop-down menu.

Complete the Internet IP

Address, Subnet Mask, Gateway,

and DNS fields. You need to

enter at least one DNS address.

BPPPoE. If you are connecting

through PPPoE, select PPPoE from

the menu. Complete the User

Name and Password fields. Enter

the password again the Confirm

field.

CCable (DHCP). If you are

connecting through DHCP or a

dynamic IP address from your ISP,

keep this default setting. If you

want to make changes to the

default DHCP setting, select the

appropriate Internet type and

complete the requested fields. If

you are unsure about these

settings, do not change them.

DClick Save to save your settings.

Proceed to step 7.

6Configure the Broadband WAN

Service (Internet Port)

NOTE: If the Internet connection type

you use is not listed here, keep the default,

Cable (DHCP) for now, and click the Next

button. After you have completed the Setup

Wizard, you will use the Router’s Web-

based Utility to configure the Internet

connection type settings. Refer to the User

Guide on the Setup CD-ROM for

instructions. A
