Cisco C1109-2PX Guide de démarrage rapide

Install and Upgrade Internal Modules and Field

Replaceable Units

The Cisco 1000 Series Integrated Services Routers have internal modules and field-replaceable units (FRUs)

that can be quickly and easily removed and replaced without having to send the entire router for repair.

This section describes how to install the internal modules and FRUs in the Cisco 1000 Series Integrated

Services Routers. The information is contained in the following sections:

•Replace the Chassis Covers for C111X and C1111x, on page 1

•External Modules, on page 4

•Install and Remove Small Form Pluggable Modules, on page 5

•Install a Pluggable Interface Module, on page 6

•Installing a SIM Card on C111X, C1109-2PX, C1109-4P, on page 26

Replace the Chassis Covers for C111X and C1111x

To access the internal modules on the router, you must first remove the chassis cover. See the instructions

below on how to remove and later replace the chassis cover on the routers.

Only trained and qualified personnel should be allowed to install, replace or service this equipment. Statement

1030

Warning

Cisco 1000 Series Integrated Services Routers have removable covers. Do not run the routers with the cover

off. Doing so can cause the router to overheat very quickly.

Use a number-2 Phillips screw driver to perform the following tasks.

Install and Upgrade Internal Modules and Field Replaceable Units

Remove the Cover

To remove the cover, do these

steps:

Remove the 14 screws from either side of the cover.1 and 2

Step 1 Read the Safety Warnings and disconnect the power supply before you perform any module replacement.

Step 2 Confirm the router is turned off and disconnected from the power supply.

Install and Upgrade Internal Modules and Field Replaceable Units

Remove the Cover

Step 3 Disconnect all port cables connected to the router. Ensure that you do not work on the router with cables still attached to

the router in the event of lightning or surges.

Step 4 Place the chassis on a flat surface.

Step 5 Remove the 14 cover screws on the two sides of the router cover. See figure.

Step 6 Slide the cover from bezel side to I/O side until it stops.

Step 7 Pull the cover vertically to disengage from the chassis.

Replace the Cover

To replace the cover, do these steps:

The covers are an integral part of the safety design of the product. Do not operate the unit without the covers

installed. Statement 1077.

Warning

Replace the 14 screws on either side of the cover.1 and 2

Install and Upgrade Internal Modules and Field Replaceable Units

Replace the Cover

Step 1 Read the Safety Warnings and disconnect the power supply before you perform any module replacement.

Step 2 Confirm the router is turned off and disconnected from the power supply.

Step 3 Disconnect all port cables connected to the router. Ensure that you do not work on the router with cables still attached to

the router in the event of lightning or surges.

Step 4 Place the chassis on a flat surface.

Step 5 Align hooks on the cover to slots on the chassis base and lower the cover onto chassis base.

Step 6 Slide the cover from the I/O side to the bezel side

Step 7 Install the fourteen screws on both sides of the chassis. Torque to 6-8 in-lbs.

External Modules

This section describes how to install external modules and FRUs in the Cisco 1000 Series Integrated Services

Routers. The information is contained in the following sections:

Only trained and qualified personnel should be allowed to install, replace or service this equipment. Statement

1030.

Warning

Locate External Slots for Modules

This section describes the locations of external modules on the router motherboard.

Install and Upgrade Internal Modules and Field Replaceable Units

External Modules

Install and Remove Small Form Pluggable Modules

This section describes how to install and remove Small Form Pluggable (SFP) modules in the Cisco 1000

Series Integrated Services Routers. The information is contained in the following sections:

Install Small Form Pluggable Module

This section describes how to install optional small-form-factor pluggable (SFP) modules in the Cisco 1000

Series Integrated Services Routers to provide optical Gigabit Ethernet connectivity.

Only SFP modules certified by Cisco and complies with IEC 60825-1:2014 are supported on these routers.

For more information, refer to SFPs Supported on Cisco 1100 ISRs.

The SFP module-GLC-GE-100FX V01 is not supported on the Cisco111x Series.

Note

The DSL SFP module-SFP-VADSL2+-I is supported on the Cisco 1131 Series Integrated Services Routers.

Note

Class 1 laser product. Statement 1008.

Warning

Pluggable optical modules comply with IEC 60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 with or without

exception for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice No. 56, dated May 8, 2019.

Warning

Remove Small Factor Pluggable Module

To remove a small factor pluggable (SFP) module from the chassis:

Step 1 Disconnect all cables from the SFP.

Step 2 Disconnect the SFP latch.

SFP modules use various latch designs to secure the module in the SFP port. For information on the SFP

technology type and model, see the label on the side of the SFP module.

Note

Use a pen, screwdriver, or other small straight tool to gently release a bale-clasp handle if you cannot reach

it with your fingers.

Tip

Step 3 Grasp the SFP on both sides and remove it from the chassis.

Install and Upgrade Internal Modules and Field Replaceable Units

Install and Remove Small Form Pluggable Modules

Install a Pluggable Interface Module

Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages

and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other

equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all

cards, faceplates, front covers, and rear covers are in place. Statement 1029.

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement

1030.

Warning

Pluggable optical modules comply with IEC 60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 with or without

exception for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice No. 56, dated May 8, 2019.

Statement 1255.

Warning

Install a Pluggable Interface Module on a C1101-4P

To insert the pluggable interface module into the router, follow these steps:

Step 1 Insert and then gently push the LTE pluggable into the pluggable slot of C1101-4P until firmly fixed.

Step 2 Tighten the screw, the recommended torque is 10-12 in-lb.

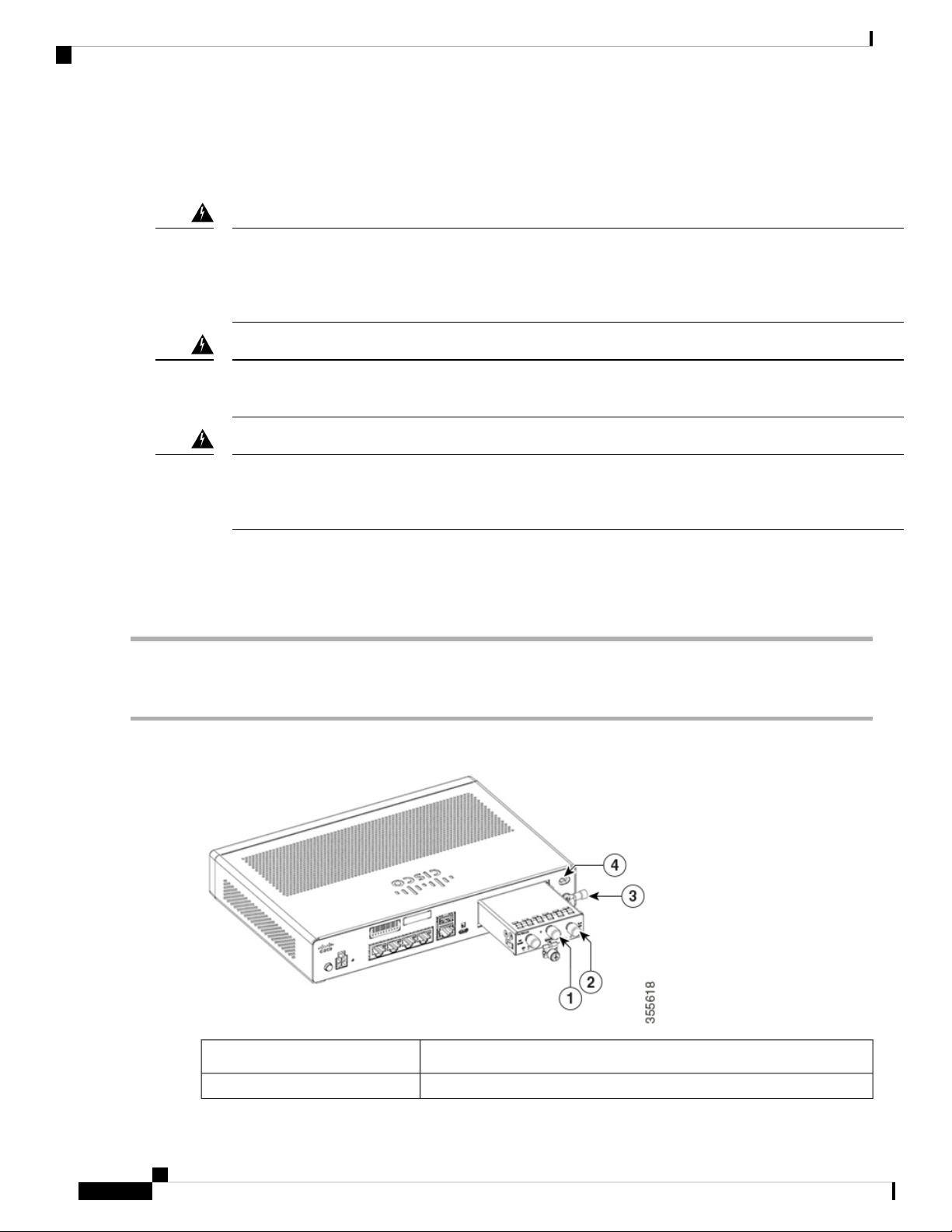

Figure 1: LTE Pluggable Interface Module - C1101-4P

GPS antenna (SMA)1

LTE antenna (SMA)2

Install and Upgrade Internal Modules and Field Replaceable Units

Install a Pluggable Interface Module

Ground lug3

Kensingston lock slot4

Figure 2: LTE Pluggable Interface Module - C1127X-8PLTEP

GPS antenna (SMA)1

LTE antenna (SMA)2

Ground lug3

Kensingston lock slot4

Install and Upgrade Internal Modules and Field Replaceable Units

Install a Pluggable Interface Module on a C1101-4P

Figure 3: LTE Pluggable Interface Module - P-LTEAP18-GL

PID1

Main 0 antenna (SMA)2

Diversity 1 antenna

(SMA)

Micro USB4

Diversity 0 antenna

(SMA)

Main 1 antenna (SMA)6

Enable LED7

SIM 0 LED8

SIM 1 LED9

M3.5 thumb-screw10

R011

R112

R213

R314

Install and Upgrade Internal Modules and Field Replaceable Units

Install a Pluggable Interface Module on a C1101-4P

Figure 4: 5G Pluggable Interface Module - P-5GS6-GL

PID1

antenna 1 (SMA)2

GPS (SMA)3

Antenna 3 (SMA, reception only)4

Antenna 0 (SMA)5

Antenna 2 (SMA)6

Enable LED7

SIM 0 LED8

SIM 1 LED9

GPS LED10

M3.5 thumb-screw11

Service LED12

Install and Upgrade Internal Modules and Field Replaceable Units

Install a Pluggable Interface Module on a C1101-4P

Figure 5: PLTEA-LA with Micro SIM Slots

PID1

Main antenna (SMA)2

GPS (SMA)3

Diversity antenna

(SMA)

Enable LED5

SIM 0 LED6

SIM 1 LED7

GPS LED8

M3.5 thumb-screw9

Micro USB 2.010

R011

R112

R213

R314

This section describes how to insert a Micro-SIM card into an LTE pluggable module.

To insert the Micro-SIM cards into an LTE Pluggable module:

Install and Upgrade Internal Modules and Field Replaceable Units

Install a Pluggable Interface Module on a C1101-4P
