Install and Upgrade Internal Modules and Field

Replaceable Units

The Cisco 1100 Series Integrated Services Routers have internal modules and field-replaceable units (FRUs)

that can be quickly and easily removed and replaced without having to send the entire router for repair.

This section describes how to install the internal modules and FRUs in the Cisco 1100 Series ISRs. The

information is contained in the following sections:

•Replace the Chassis Covers for C111X and C1111x, on page 1

•External Modules, on page 4

•Install and Remove Small Form Pluggable Modules, on page 5

•Install an LTE Pluggable Module, on page 6

Replace the Chassis Covers for C111X and C1111x

To access the internal modules on the router, you must first remove the chassis cover. See the instructions

below on how to remove and later replace the chassis cover on the routers.

Only trained and qualified personnel should be allowed to install, replace or service this equipment. Statement

1030

Warning

Cisco 1100 Series ISRs have removable covers. Do not run the routers with the cover off. Doing so can cause

the router to overheat very quickly.

Use a number-2 Phillips screwdriver to perform the following tasks.

Install and Upgrade Internal Modules and Field Replaceable Units

Remove the Cover

To remove the cover, do these

steps:

Remove the 14 screws from either side of the cover.1 and 2

Step 1 Read the Safety Warnings and disconnect the power supply before you perform any module replacement.

Step 2 Confirm the router is turned off and disconnected from the power supply.

Install and Upgrade Internal Modules and Field Replaceable Units

Remove the Cover

Step 3 Disconnect all port cables connected to the router. Ensure that you do not work on the router with cables still attached to

the router in the event of lightning or surges.

Step 4 Installer to disconnect all cables connected to the system.

Step 5 Place the chassis on a flat surface.

Step 6 Remove the 14x cover screws on the two sides of the router cover. See figure.

Step 7 Slide the cover from bezel side to I/O side until it stops.

Step 8 Pull the cover vertically to disengage from the chassis.

Replace the Cover

To replace the cover, do these steps:

The covers are an integral part of the safety design of the product. Do not operate the unit without the covers

installed. Statement 1077.

Warning

Replace the 14 screws on either side of the cover.1 and 2

Install and Upgrade Internal Modules and Field Replaceable Units

Replace the Cover

Step 1 Read the Safety Warnings and disconnect the power supply before you perform any module replacement.

Step 2 Confirm the router is turned off and disconnected from the power supply.

Step 3 Disconnect all port cables connected to the router. Ensure that you do not work on the router with cables still attached to

the router in the event of lightning or surges.

Step 4 Place the chassis on a flat surface.

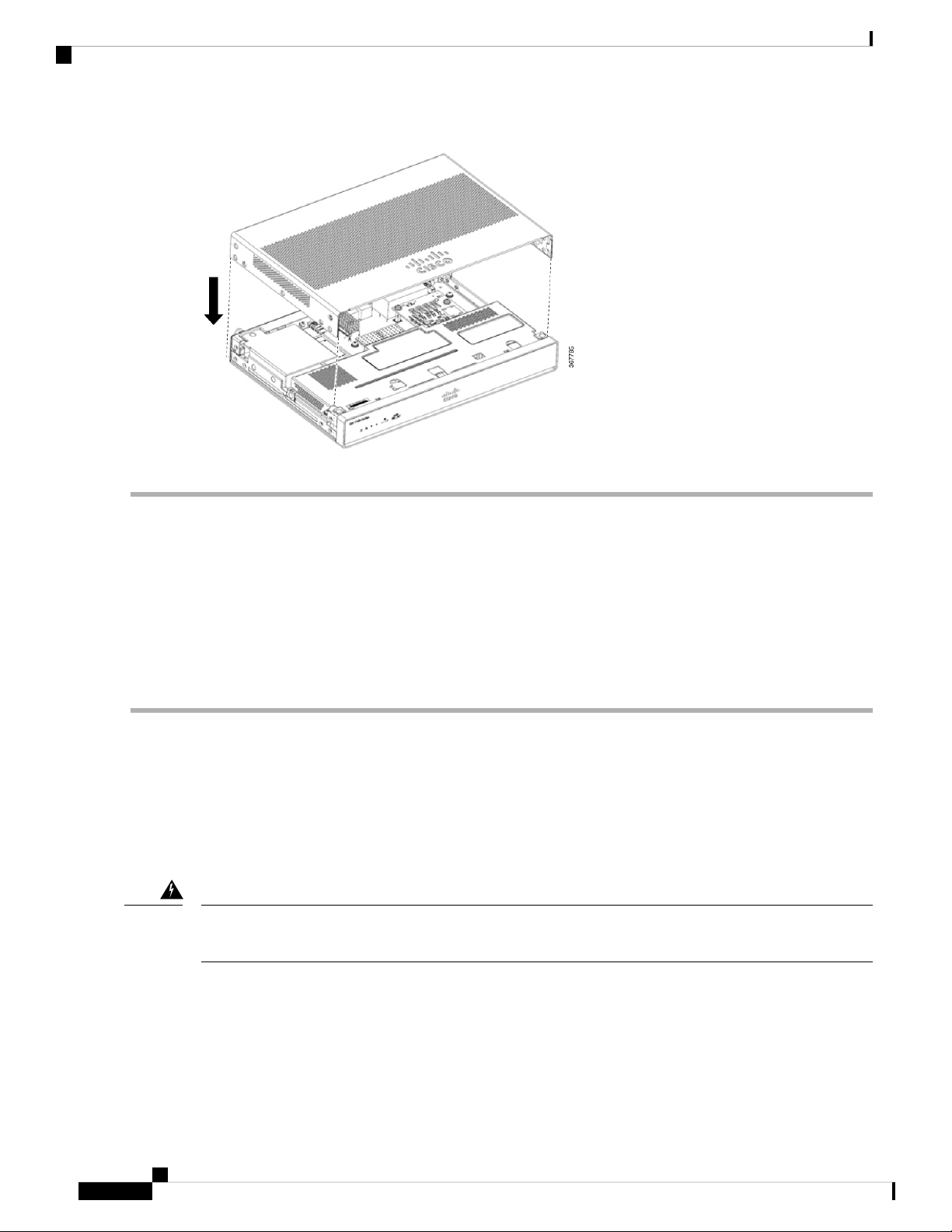

Step 5 Align hooks on the cover to slots on the chassis base and lower the cover onto chassis base.

Step 6 Slide the cover from the I/O side to the bezel side

Step 7 Install the fourteen screws on both sides of the chassis. Torque to 6-8 in-lbs.

External Modules

The Cisco 1100 Series Integrated Services Routers have external modules and field-replaceable units (FRUs)

that can be quickly and easily removed and replaced without having to send the entire router for repair.

This section describes how to install external modules and FRUs in the Cisco 1100 Series ISRs. The information

is contained in the following sections:

Only trained and qualified personnel should be allowed to install, replace or service this equipment. Statement

1030.

Warning

Locate External Slots for Modules

This section describes the locations of external modules on the router motherboard.

Install and Upgrade Internal Modules and Field Replaceable Units

External Modules

Install and Remove Small Form Pluggable Modules

This section describes how to install and remove Small Form Pluggable (SFP) modules in the Cisco 1100

Series ISRs. The information is contained in the following sections:

Pluggable optical modules comply with IEC 60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 with or without

exception for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice No. 56, dated May 8, 2019.

Warning

Install Small Form Pluggable Module

This section describes how to install optional small-form-factor pluggable (SFP) modules in the Cisco ISR1000

series Integrated Services routers to provide optical Gigabit Ethernet connectivity.

Only SFP modules certified by Cisco and complies with IEC 60825-1:2014 are supported on these routers.

For more information, refer to SFPs Supported on Cisco 1100 ISRs.

The SFP module-GLC-GE-100FX V01 is not supported on the Cisco111x Series.

Note

Class 1 laser product. Statement 1008.

Warning

Pluggable optical modules comply with IEC 60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 with or without

exception for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice No. 56, dated May 8, 2019.

Warning

Remove Small Factor Pluggable Module

To remove a small factor pluggable (SFP) module from the chassis:

Step 1 Disconnect all cables from the SFP.

Step 2 Disconnect the SFP latch.

SFP modules use various latch designs to secure the module in the SFP port. For information on the SFP

technology type and model, see the label on the side of the SFP module.

Note

Use a pen, screwdriver, or other small straight tool to gently release a bale-clasp handle if you cannot reach it

with your fingers.

Tip

Step 3 Grasp the SFP on both sides and remove it from the chassis.

Install and Upgrade Internal Modules and Field Replaceable Units

Install and Remove Small Form Pluggable Modules

Install an LTE Pluggable Module

To reduce the risk of electric shock, the chassis of this equipment needs to be connected to permanent earth

ground during normal use Statement 445

Warning

Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages

and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other

equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all

cards, faceplates, front covers, and rear covers are in place. Statement 1029.

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement

1030.

Warning

Pluggable optical modules comply with IEC 60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 with or without

exception for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice No. 56, dated May 8, 2019.

Statement 1255.

Warning

LTE Pluggable TechnologyLTE Pluggables

3.0 LTEEA (CAT6)P-LTEA-EA

3.0 LTELA (CAT6)P-LTEA-LA

Pro (CAT18)P-LTEAP18-G

System and spare CAT4 LTE PluggableP-LTE-VZ

System and spare CAT4 LTE PluggableP-LTE-US

System and spare CAT4 LTE PluggableP-LTE-GB

WP7605-GP-LTE-JN

LTE CAT4

WP7608-GP-LTE-IN

LTE CAT4

WP7610-GP-LTE-MNA

Install and Upgrade Internal Modules and Field Replaceable Units

Install an LTE Pluggable Module

LTE Pluggable TechnologyLTE Pluggables

LTE CAT4

Install an LTE Pluggable Module on a C1101-4P

To insert the LTE pluggable module into the router, do these steps:

Step 1 Insert and then gently push the LTE pluggable into the pluggable slot of C1101-4P until firmly fixed.

Step 2 Tighten the screw, the recommended torque is 10-12 in-lb.

Figure 1: LTE Pluggable - C1101-4P

DescriptionItem

GPS Antenna1

LTE Antenna2

Ground Lug3

Kensingston Lock Slot4

Install and Upgrade Internal Modules and Field Replaceable Units

Install an LTE Pluggable Module on a C1101-4P

Figure 2: LTE Pluggable - C1127X-8PLTEP

DescriptionItem

GPS Antenna1

LTE Antenna2

Ground Lug3

Kensingston Lock Slot4

Install and Upgrade Internal Modules and Field Replaceable Units

Install an LTE Pluggable Module on a C1101-4P

Figure 3: LTE Pluggable - C1118-8PLTEAP

DescriptionItem

Mini-PCIE1

Common heat spreader + thermal interface2

I/O3

Enclosure base to support 4-antenna4

4-1 SMA-MHF4 cable assembly5

SMA Diversity Antenna for usability and Micro-USB port access6

Figure 4: LTE Pluggable - C1118-8PLTEAP Back Panel

Install and Upgrade Internal Modules and Field Replaceable Units

Install an LTE Pluggable Module on a C1101-4P

Figure 5: C1118-8PLTEAP with Micro SIM Slots

This section describes how to insert a Micro-SIM card into an LTE pluggable module.

To insert the Micro-SIM cards into an LTE Pluggable module:

Ensure to use the correct tool for removing the Micro-SIM door.

Note

1. Place the pluggable module on its bottom side, remove the SIM door screw, use a #1 Philips screw driver

for removing the screws, and then carefully remove the Micro-SIM cover from the pluggable module.

Do not touch any part of the exposed PCB circuit area when the Micro-SIM cover is removed.

Caution

2. In the figure, step 2 below shows the Micro-SIM slot 1 (label 1) and Micro-SIM slot 0 (label 2).

3. Push in each Micro-SIM card (label 3) into the slot until it clicks. Secure the Micro-SIM cover with a

screw, use a number 1 Philips screw driver to secure the screw on the Micro-SIM cover. The recommended

torque is 2.8 - 3.8 inch LBF.

4. You have now successfully inserted the Micro-SIM cards into the LTE pluggable module. The marking

on the Mirco-SIM door should align with Micro-SIM0 on the pluggable module with the arrow pointing

upward.

Install and Upgrade Internal Modules and Field Replaceable Units

Install an LTE Pluggable Module on a C1101-4P
