Cisco 809 Guide de démarrage rapide

Connecting the Router

This chapter describes how to connect the Cisco 809 Integrated Services Router to Ethernet devices and a

network.

•Preventing Damage to the Router, on page 1

•Connecting a Terminal or PC to the Console Port, on page 2

•Connecting to DC Power, on page 2

•Connecting the Router to the AC-Input Power Supply, on page 5

•Connecting the Router to the DC Source., on page 6

•Connecting the Power Converter to an AC Power Source, on page 8

•Verifying Connections, on page 10

Preventing Damage to the Router

Before installation, observe these general guidelines:

• Proper ESD protection should be observed.

• Ensure the router is properly grounded.

• Ensure there is proper airflow around the router.

If you must supply your own cable, see the Technical Specifications for cabling specifications. If this appendix

does not provide specifications for a particular cable, we strongly recommend ordering the cable from Cisco.

The intra-building ports of the equipment or subassembly is suitable for connection to intra-building or

unexposed wiring or cabling only. The intra-building port(s) of the equipment or subassembly MUST NOT

be metallically connected to interfaces that connect to the OSP or its wiring.These interfaces are designed for

use as intra-building interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE) and require

isolation from the exposed OSP cabling. The addition of Primary Protectors is not sufficient protection in

order to connect these interfaces metallically to OSP wiring.

Warning

The intra-building ports of the equipment or subassembly must use shielded intra-building cabling/wiring that

is grounded at both ends.

Warning

Connecting the Router

Connecting a Terminal or PC to the Console Port

The Cisco 809 ISR does not provide the standard Cisco RJ45 RS232 serial port for Console. Instead, a USB

Console port with a mini-Type B connector is provided. Connect a terminal or PC to the Console port either

to configure the software by using the CLI or to troubleshoot problems with the router.

To connect a terminal or PC to the Console port on the router and access the CLI, follow these steps:

Before you begin

Before you connect the router to the devices, install the router according to the instructions in Installing the

Router.

Step 1 Connect the mini-USB side of a cable to the USB Console port on the router. The following figure shows the mini-USB

location (1) for the Console port on the router.

Step 2 Connect the opposite end of the mini type B USB cable to the USB port on your laptop or PC.

Step 3 To communicate with the router, wait for your laptop or PC to discover the new device.

Step 4 If your laptop or PC warns you that you do not have the proper drivers to communicate with the router, you can obtain

them from your computers manufacturer, or go here: https://www.silabs.com/products/mcu/Pages/

USBtoUARTBridgeVCPDrivers.aspx

Step 5 Run a Terminal Emulation App (such as Tera Term) from the PC. Select the “standard” serial Com Port (from the standard

or enhanced options), and configure it for 9600 Baud rate with no flow control

Connecting to DC Power

This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the

protective device is rated not greater than 10A Statement 1005

Warning

Connecting the Router

Connecting a Terminal or PC to the Console Port

This product requires short-circuit (overcurrent) protection, to be provided as part of the building installation.

Install only in accordance with national and local wiring regulations. Statement 1045

Warning

Connect the unit only to DC power source that complies with the safety extra-low voltage (SELV) requirements

in IEC 60950 based safety standards. Statement 1033

Warning

The Battery Return (BR) input terminal shall be an isolated DC return (DC-I). The DC return terminal or

conductor shall not be connected to the equipment frame, or the grounding means of the equipment.

Caution

Plugs and Pin-Outs

The IR809 ships with a DC power accessory kit.

The power entry receptacle is on the IR809. The pin-outs are shown in the following figure.

Figure 1: Power Connector Pin-Outs

ColorDescriptionNamePin Number

RedDC Power Positive InputDC In +1

BlackDC Power ReturnDC In -2

N/AAlarm CommonAC3

N/AAlarm InputAI4

Wiring the DC Power and Alarm Connections

To connect the DC power and alarm connections on your Cisco 809 ISR, follow these steps:

Step 1 Locate the power and alarm connector on the router front panel.

Connecting the Router

Plugs and Pin-Outs

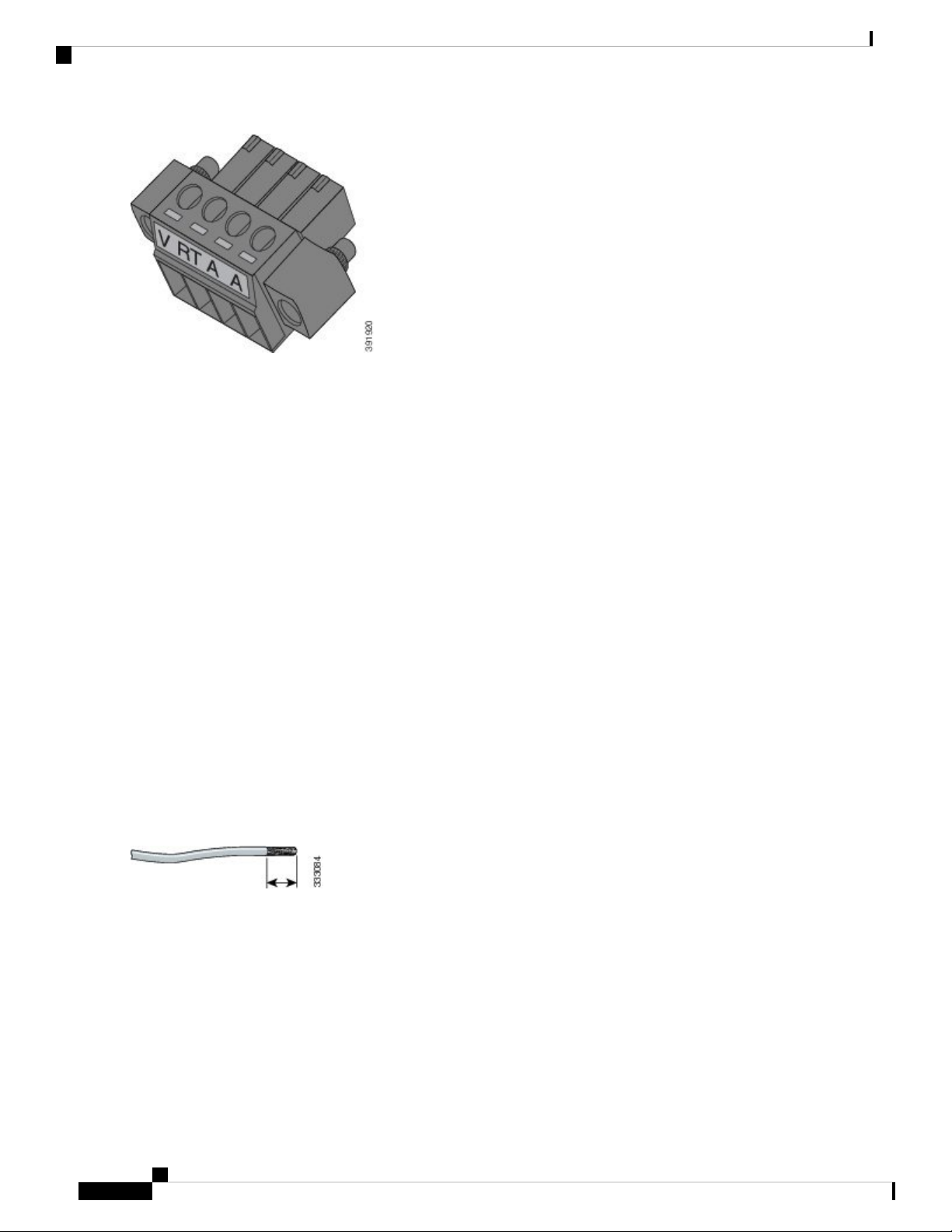

Your connector may not have the labels V RT A A.

Note

In the labeled connector, the pins are:

• V—Positive DC power connection

• RT— Return DC power connection

• A— Alarm Common

• A— Alarm Input

Step 2 Identify the connector positive and return DC power connections.

The connections left to right are:

• 1—Positive DC power connection

• 2—Return DC power connection

• 3—Alarm Common

• 4—Alarm Input

Step 3 Measure two strands of twisted-pair copper wire (18-to-20 AWG) long enough to connect to the DC power source.

Step 4 Using an 18-gauge wire-stripping tool, strip each of the two twisted pair wires coming from each DC-input power source

to 0.25 inch (6.3 mm) ± 0.02 inch (0.5 mm). Do not strip more than 0.27 inch (6.8 mm) of insulation from the wire.

Stripping more than the recommended amount of wire can leave exposed wire from the power connector after installation.

Step 5 Remove the two captive screws that attach the power and alarm connector to the router, and remove the connector.

Step 6 On the power and alarm connector, insert the exposed part of the positive wire into the connection labeled "V" and the

exposed part of the return wire into the connection labeled "RT". Make sure that you cannot see any wire lead. Only wire

with insulation should extend from the connector.

Connecting the Router

Wiring the DC Power and Alarm Connections

1—Power connector captive screws

Use the same method for wiring the alarm connections.

Note

Step 7 Use a ratcheting torque flathead screwdriver to torque the power connector captive screws (above the installed wire leads)

to 2 in-lb (0.23 N-m).

Step 8 Connect the other end of the positive wire to the positive terminal on the DC power source, and connect the other end of

the return wire to the return terminal on the DC power source. Connect the other end of the Alarm wires to your alarm

source.

Connecting the Router to the AC-Input Power Supply

A 50 W AC-input power supply is available as an option for the router. The power supply comes in two styles:

• PWR-IE50W-AC—An AC-input power supply with a terminal block connector for the source AC cable.

•PWR-IE50W-AC-IEC— An AC-input power supply with an IEC C14 appliance connector for adetachable

AC power cord.

The figure below shows the AC-input power supply.

Connecting the Router

Connecting the Router to the AC-Input Power Supply

Figure 2: AC-Input Power Supply (PWR-IE50W-AC= Shown)

DC out connector1

STATUS LED2

Source AC terminal block (Cover shown installed)

The source AC terminal block shown in

the illustration is replaced by an IEC C14

appliance connector on the

PWR-50W-AC-IEC= power supply.

Note

Connecting the Router to the DC Source.

To connect the IR809 to the DC output, you will need to use a length of twisted pair along with connectors

on both ends. The twisted pair should be sized to handle at least 1 Amp at 24VDC. Details on the connector

and pin-outs for the IR809 side are found earlier in this guide at Wiring the DC Power and Alarm Connections.

The PWR-IE50W-AC power source comes with a DC clip that can be reused to connect to the IR809.

Disassemble the DC clip to expose the 2 pin and 4 pin connectors, as shown in the following diagram.

Connecting the Router

Connecting the Router to the DC Source.

Dispose of the cover and the wire in the pre-assembled cable clip, but keep the 2-pin connector for the power

supply side, and the 4-pin connector for the IR809 side.

The IR809 should already have this 4-pin connector included, but if not, the one in the clip can be used.

Note

Measure an appropriate length of wire for your installation and wire the 2 pin connector back onto the

PWR-IE50W-AC power source DC output as it was. Wire the opposite end of the wire to the IR809 4 pin

connector as instructed previously in the Wiring the DC Power and Alarm Connections section. Your finished

cabling will look like the connectors and wiring in the bottom of the following figure:

The connections should match up as in the following table:

Table 1: DC Source to IR809

IR809 Signal NameIR809 Pin NumberTwisted Pair

WireDC Power

Connectivity

PWR-IE50W-AC

Signal Name

PWR-IE50W-AC Pin

Number

DC Power Positive

Input

1 (DC In +)—> (Red in Figure)Power Out +1 (Bottom)

DC Power Return2 (DC In -)—> (Black in

Figure)

Return Out -2 (Top)

Connecting the Router

Connecting the Router to the DC Source.

Connecting the Power Converter to an AC Power Source

The following instructions are provided for a qualified electrician to attach the AC power cord to the power

supply.

AC power sources must be dedicated AC branch circuits. Each branch circuit must be protected by a dedicated

two-pole circuit breaker.

Caution

Do not insert the power cord into the AC outlet until the process of wiring the line, neutral, and ground

connections has been completed.

Caution

To connect the AC power cord to the power converter, follow these steps:

Before you begin

To connect the power converter to an AC power source, you need an AC power cord. Power cord connector

types and standards vary by country. Power-cord wiring color codes also vary by country. You must to have

a qualified electrician select, prepare, and install the appropriate power cord to the power supply.

Use copper conductors only, rated at a minimum temperature of 167°F (75°C).

Note

Step 1 Remove the plastic cover from the input power terminals and set it aside.

Figure 3: AC/DC Power Input Terminal Block

Connecting the Router

Connecting the Power Converter to an AC Power Source

1. Ground Wire

Step 2 Insert the exposed ground wire lead into the power converter ground wire connection. Ensure that only wire with insulation

extends from the connector.

Figure 4: Connecting AC Power to the Power Converter

Ground1

AC neutral2

AC line3

Step 3 Tighten the ground wire terminal block screw.

The torque should not exceed 2.2 in-lb (0.25 Nm).

Step 4 Insert the line and neutral wire leads into the terminal block line and neutral connections. Make sure that you cannot see

any wire lead. Ensure that only wire with insulation extends from the connectors.

Step 5 Tighten the line and neutral terminal block screws.

The torque should not exceed 2.2 in-lb (0.25 Nm).

Step 6 Replace the plastic cover over the terminal block.

Step 7 Connect the other end of the AC power cord to the AC outlet.

Step 8 To apply power to the power converter, move the circuit breaker for the AC outlet or the DC control circuit to the on

position.The LED on the power converter front panel is green when the unit is operating normally. The LED is off when

the unit is not powered or is not operating normally.

Connecting the Router

Connecting the Power Converter to an AC Power Source

Verifying Connections

To verify that all devices are properly connected to the router, first turn on all the connected devices, then

check the LEDs. To verify router operation, refer to the following table.

For full LED description, see LEDs.

Table 2: Verifying the Router Operation

Normal PatternsLEDs to CheckPower and Link

Normal operationGreen steady OnSYS

Boot up phase or in ROM Monitor

mode

Green (blinking)

Power is OK but possible internal

FPGA program failure

Amber

Link is up

Green Steady OnGE0 (10/100/1000) WAN 0

GE0 (10/100/1000) WAN 1 Transmitting and Receiving dataFlashing

No link.Off

Off—No USIM

Green—USIM installed and active

SIM0/SIM1SIM cards

Off—Module not powered on

On—Module is powered on and

connected but not transmitting or

receiving

Slow Blink—Module is powered

on and searching for connection

Fast Blink—Module is transmitting

or receiving.

CELLULAR0Cellular Modem

Connecting the Router

Verifying Connections

Autres manuels pour 809

Table des matières

Autres manuels Cisco Routeur réseau

Cisco

Cisco 1000 ISR Series Mode d’emploi

Cisco

Cisco Aironet 1000 Series Manuel utilisateur

Cisco

Cisco Blower Module 10000 ESR Manuel utilisateur

Cisco

Cisco ASR 900 Series Manuel utilisateur

Cisco

Cisco WS-SUP720-3B - Supervisor Engine 720 Manuel utilisateur

Cisco

Cisco ASR 903 Manuel utilisateur

Cisco

Cisco 3251 Manuel utilisateur

Cisco

Cisco RV042 - Small Business Dual WAN VPN Router Manuel utilisateur

Cisco

Cisco 1805 Manuel utilisateur

Cisco

Cisco Linksys WRK54G Manuel utilisateur

Cisco

Cisco ASR-920-12SZ-IM Manuel utilisateur

Cisco

Cisco 3600 Series Guide de démarrage rapide

Cisco

Cisco 675E Manuel

Cisco

Cisco 2851 - Integrated Services Router Manuel utilisateur

Cisco

Cisco 880 Series Manuel utilisateur

Cisco

Cisco Small Business Pro SRP527W Manuel utilisateur

Cisco

Cisco RV160 Manuel utilisateur

Cisco

Cisco ASR 9000 Series Manuel utilisateur

Cisco

Cisco 815 Manuel utilisateur

Cisco

Cisco ASR-920-8S4Z-PD Manuel

Cisco

Cisco 7000 and 7507 LED Board MAS-7KLED Mode d’emploi

Cisco

Cisco Linksys WET11 Manuel utilisateur

Cisco

Cisco ASR 1001-X Manuel utilisateur

Cisco

Cisco Small Business RV315W Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

EnGenius

EnGenius ESR-9710 Manuel utilisateur

LevelOne

LevelOne FBR-1416 Manuel utilisateur

Dynacord

Dynacord Promatrix 6000 Manuel utilisateur

Lorex

Lorex F5D8230-4 Manuel utilisateur
