Installation

This chapter provides procedures for installing the Cisco 1711 and Cisco 1712

Security Access routers and includes the following sections:

•Before Installing the Router

•Connecting the Router to Your Local Network

•Connecting the Router to Your Service Provider’s Equipment

•Connecting Networked Devices to the Router’s Switch Ports

•Connecting Power to the Router

•Verifying Your Installation

•Optional Installation Steps

Before Installing the Router

The Cisco 1711 and Cisco 1712 Security Access routers are shipped ready for

desktop mounting. Before making the power and network connections, simply set

the router on a desktop, shelf, or other flat surface.

Note For instructions on wall-mounting the router, see the “Wall-Mounting” section on

page 2-14.

Be sure to read the safety information in the Regulatory Compliance and Safety

Information for Cisco 1700 Routers document that came with your router.

Chapter 2 Installation

Connecting the Router to Your Local Network

2-2

Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide

OL-4050-02

Warning

Read the installation instructions before you connect the system to its power

source.

Warning

Do not work on the system or connect or disconnect cables during periods of

lightning activity.

Caution Do not place anything on top of the router that weighs more than 10 pounds

(4.5 kg). Excessive weight on top of the router could damage the chassis.

Connecting the Router to Your Local Network

The Cisco 1711 and Cisco 1712 Security Access routers are connected to your

local Ethernet network through the yellow 10/100 Ethernet port. You must

provide the following items for this connection:

•A straight-through, RJ-45-to-RJ-45, Ethernet cable

•A 10/100-Mbps Ethernet hub or switch

Warning

The ports labeled 10/100 ETHERNET and CONSOLE are safety extra-low voltage

(SELV) circuits. SELV circuits should only be connected to other SELV circuits.

Because BRI circuits are treated like telephone-network voltage, avoid

connecting the SELV circuits to the telephone network voltage (TNV) circuits.

(To see translated versions of this warning, refer to the Regulatory Compliance

and Safety Information for Cisco 1700 Routers document that came with the

router.)

Caution Always connect the Ethernet cable to the yellow ports on the router. Do not

connect the cable to an ISDN S/T or U port (on a WIC) or to an NT-1 that is

connected to a WIC. Accidentally connecting the cable to the wrong port can

damage your router.

2-3

Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide

OL-4050-02

Chapter 2 Installation

Connecting the Router to Your Local Network

The Cisco 1711 Security Access router is a fixed configuration router that

includes a 1-port analog modem card (WIC-1-AM) that is installed in the WAN

interface card (WIC) slot 1.

The Cisco 1712 Security Access router is a fixed configuration router that

includes a 1-port Integrated Services Digital Network Basic Rate Interface

(ISDN-BRI) S/T interface card (WIC-1B-S/T) that is installed in WIC slot 1.

Both the Cisco 1711 and Cisco 1712 Security Access routers also include an

integrated 4-port 10/100-Mbps Ethernet switch in WIC slot 0, which is supported

only on secure Cisco IOS images.

Note For additional information and technical specifications about the 1-port analog

modem interface, WIC-1-AM card, refer to the V.90 Modem WAN Interface Cards

on the Cisco 1700 Series Routers.

For additional information and technical specifications about the 1-port ISDN

BRI (S/T interface), WIC-1B-S/T card, refer to the Cisco 3600/2600 Series ISDN

BRI Connectivity Options.

Note The WIC-1-AM, WIC-1B-S/T and the Ethernet switch WIC are not field

replaceable.

To connect the Cisco 1711 Security Access router or the Cisco 1712 Security

Access router to the local network, follow these steps:

Step 1 Connect one end of the cable to the yellow Ethernet port (labeled

10/100 ETHERNET), as shown in Figure 2-1 on page 2-4.

Chapter 2 Installation

Connecting the Router to Your Local Network

2-4

Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide

OL-4050-02

Figure 2-1 Connecting the Router to the Local Network

Step 2 Connect the other end of the cable to a network port on the hub or switch.

91650

SEEMANUALBEFOREINSTALLATION

BRI

S/T

AUX

FDX

WIC0OK LINK100 WIC1OK

MODOK

10/100 ETHERNET

Cisco 1712

+5, +12, -12 VDC

10/100

Ethernet port

Straight-through

Ethernet cable Ethernet hub or switch

(10, 100, or 10/100 Mbps)

AUI

87654321

CONSOLE

ACT LNKACT LNK ACT LNK

4x 3x 2x 1x

WIC

4ESW

ACT LNK

SEE MANUAL BEFORE INSTALLATION

BRI

S/T

SEE

MANUAL

BEFORE

INSTALLATION

LINE 0PHONE

WIC-1AM

Modem

WIC-1-AM

WIC-1B-S/T

2-5

Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide

OL-4050-02

Chapter 2 Installation

Connecting the Router to Your Service Provider’s Equipment

Connecting the Router to Your Service Provider’s

Equipment

You can also connect the Cisco 1711 or Cisco 1712 Security Access router to

your service provider’s broadband (xDSL or cable) modem equipment by

following these steps:

Step 1 Connect one end of the cable to the yellow Ethernet port (labeled

10/100 ETHERNET). See Figure 2-2 for an illustration of this connection.

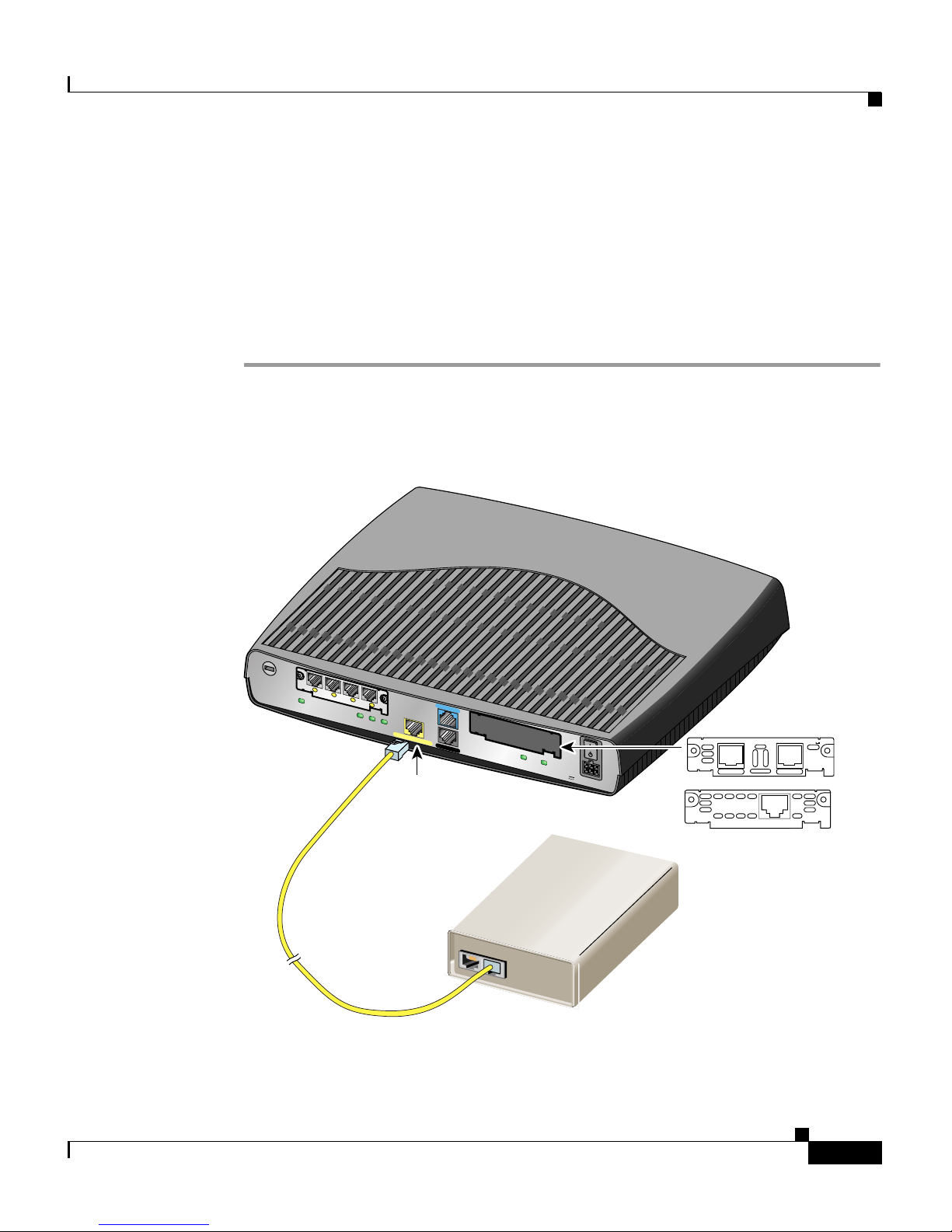

Figure 2-2 Connecting the Router to Your Service Provider’s Equipment

SEEMANUALBEFOREINSTALLATION

BRI

S/T

AUX

FDX

WIC0OKLINK

100 WIC1OK

MODOK

10/100 ETHERNET

Cisco 1712

+5, +12, -12 VDC

CONSOLE

ACTLNK

ACTLNKACTLNK

4x 3x2x 1x

WIC

4ESW

ACTLNK

91718

10/100

Ethernet port

Straight-through

Ethernet cable

Cable modem/DSL hub

SEE MANUAL BEFORE INSTALLATION

BRI

S/T

SEE

MANUAL

BEFORE

INSTALLATION

LINE 0PHONE

WIC-1AM

Modem

WIC-1-AM

WIC-1B-S/T

Chapter 2 Installation

Connecting Networked Devices to the Router’s Switch Ports

2-6

Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide

OL-4050-02

Step 2 Connect the other end of the cable to a network port on your service provider’s

broadband (xDSL or cable) modem equipment.

Connecting Networked Devices to the Router’s

Switch Ports

The Cisco 1711 and Cisco 1712 Security Access routers support connections from

a computer with a NIC or other networked device (such as hubs or switches) to

the router’s integrated 4-port 10/100 Mbps Ethernet switch.

Follow these steps to connect other networked devices to the router’s switch ports:

Step 1 Connect one end of an Ethernet cable to the Ethernet Port (RJ-45) as shown in

Figure 2-3.

Figure 2-3 Connecting Networked Devices to the Router’s Switch Ports

91622

SEE MANUAL BEFORE INSTALLATION

BRI

S/T

AUX

FDX

WIC0OKLINK

100WIC1OK

MODOK

Cisco 1712

+5, +12, -12 VDC

Straight-through

Ethernet cable Ethernet hub

123456

CONSOLE

ACTLNK

ACTLNKACTLNK

4x 3x 2x 1x

WIC

4ESW

ACTLNK

SEEMANUAL BEFOREINSTALLATION

BRI

S/T

SEE

MANUAL

BEFORE

INSTALLATION

LINE 0PHONE

WIC-1AM

Modem

Ethernet port

(RJ-45)

WIC-1-AM

WIC-1B-S/T

2-7

Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide

OL-4050-02

Chapter 2 Installation

Connecting Power to the Router

Step 2 Connect the other end of the cable to a port on the hub, switch, or the Ethernet

port on your computer.

Note The example provided in Figure 2-3 on page 2-6 shows connectivity to

a hub. The router’s Ethernet switch port can be connected to other

networked devices, such as a switch or computer with a NIC. If you are

connecting the router’s switch port to another switch, use a crossover

cable.

Note If you are connecting a computer to the router’s switch port, it will take about

30 seconds for connectivity to be established due to the Spanning-Tree Protocol

(STP) disabling the ports until a loop-free topology is determined. When you use

this type of connection, you must configure the spanning-tree portfast command

on the router’s switch port. The spanning-tree portfast command causes a

spanning tree port to enter the forwarding state immediately, bypassing the

listening and learning states.

Caution You can use the portfast feature on switch ports that are connected to a single

workstation or PC only to allow those devices to connect to the network

immediately, rather than waiting for spanning tree to converge. Do not use the

portfast feature on ports that are connected to networking devices such as hubs,

routers, switches, bridges, or concentrators.

Connecting Power to the Router

Read the following warnings before connecting the router to power.

Warning

The power supply is designed to work with TN power systems.

Chapter 2 Installation

Connecting Power to the Router

2-8

Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide

OL-4050-02

Warning

This product relies on the building’s installation for short-circuit (overcurrent)

protection. Ensure that a fuse or circuit breaker no larger than 120VAC, 15AU.S.

(240VAC, 16A international) is used on the phase conductors (all

current-carrying conductors).

Warning

This equipment is intended to be grounded. Ensure that the host is connected to

earth ground during normal use.

Follow these steps to connect power to the router and to turn the router on:

Step 1 Connect the attached power-supply cord to the power socket (labeled +5, +12,

-12 VDC) on the router rear panel, as shown in Figure 2-4 on page 2-9.

2-9

Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide

OL-4050-02

Chapter 2 Installation

Connecting Power to the Router

Figure 2-4 Connecting the Power Supply

Step 2 Connect one end of the separate power cord to the socket on the power supply.

Step 3 Connect the other end of the separate power cord to a power outlet.

Step 4 Press the router power switch to ON ( | ).

Step 5 Confirm that the router has power by checking that the PWR LED on the front

panel is on.

Cisco 1701

CONSOLE

AUX

FDX LINK

100

WIC0OK WIC 1OK

SEE MANUAL BEFORE INSTALLATION

BRI

S/T

ACT LNK

ACT LNK ACT LNK

4x 3x 2x 1x

WIC

4ESW

ACT LNK

MODOK

Power socket

WIC-1-AM

WIC-1B-S/T

91651

Power supply

Separate

power cord

Attached

power supply cord

10/100 ETHERNET

+5, +12, -12 VDC

SEE MANUAL BEFORE INSTALLATION

BRI

S/T

SEE

MANUAL

BEFORE

INSTALLATION

LINE 0PHONE

WIC-1AM

Modem

Chapter 2 Installation

Verifying Your Installation

2-10

Cisco 1711 and Cisco 1712 Security Access Routers Hardware Installation Guide

OL-4050-02

Verifying Your Installation

You can verify that you have correctly installed the router by checking the

following LEDs:

•PWR (front panel)—On when power is being supplied to the router.

•OK (front panel)—On when the router software is loaded and functional.

Blinking means that the router is performing a power-on self-test (POST).

•WIC0/WIC1 OK (back panel)—On when a WIC is correctly installed in the

corresponding WIC slot.

•ETH ACT (front panel)—Blinking when there is network traffic on the local

10/100 Ethernet LAN.

•WIC0ACT or WIC1 ACT (front panel)—See Table 1-3.

•LINK (back panel)—On when the router is correctly connected to the local

Ethernet LAN through the 10/100 ETHERNET port.

•MOD OK (back panel)—On when the VPN hardware encryption module is

installed and recognized by IOS.

Optional Installation Steps

This section describes some installation steps that you might or might not use,

depending on your site and on how you are configuring the router. This section

describes the following procedures:

•Connecting a PC to the Router’s Console Port

•Connecting a Modem on the AUX Port

•Wall-Mounting

•Stacking the Router

•Unstacking the Router

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cisco Routeur réseau

Cisco

Cisco GSR12/60 - 12012 Router -AnyLAN Manuel de l'opérateur

Cisco

Cisco Cisco 760 Series Manuel utilisateur

Cisco

Cisco 2950 - Catalyst Switch Manuel utilisateur

Cisco

Cisco CRS Manuel utilisateur

Cisco

Cisco UBR924 - uBR 924 Router Instructions de montage

Cisco

Cisco N540-FH-CSR-SYS Manuel

Cisco

Cisco ONS 15454 Series Manuel utilisateur

Cisco

Cisco SN 5428-2 Manuel

Cisco

Cisco ASR 1006 Manuel utilisateur

Cisco

Cisco WRT310N Manuel utilisateur

Cisco

Cisco 3640 Series Manuel utilisateur

Cisco

Cisco ASR-1000-SIP10 Manuel

Cisco

Cisco 3640 Series Manuel utilisateur

Cisco

Cisco ASR-920-12SZ-IM Manuel utilisateur

Cisco

Cisco CRS-1 - Carrier Routing System Router Manuel utilisateur

Cisco

Cisco Linksys E1200 Instructions d'utilisation

Cisco

Cisco 7600-SIP-400 - SPA Interface Processor 400 Manuel utilisateur

Cisco

Cisco 7513 Series Manuel utilisateur

Cisco

Cisco Linksys RV0041 Instructions d'utilisation

Cisco

Cisco Small Business Pro SRP527W Manuel utilisateur

Cisco

Cisco WRT55AG Manuel utilisateur

Cisco

Cisco Linksys SFE2000 Manuel utilisateur

Cisco

Cisco Linksys WET610N Manuel utilisateur

Cisco

Cisco CSR 1000v Series Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

EnGenius

EnGenius ESR-9710 Manuel utilisateur

LevelOne

LevelOne FBR-1416 Manuel utilisateur

Dynacord

Dynacord Promatrix 6000 Manuel utilisateur

Lorex

Lorex F5D8230-4 Manuel utilisateur
