ciscoBus Token Ring Card and Applique

Installation and Upgrade Instructions

78-0875-04

Product Numbers:

CSC-C2CTR=

APP-LTR2=

MC-C2CTR-V10.2=

This document contains instructions for installing the multiport ciscoBus Token Ring interface card

(CSC-C2CTR) and Token Ring applique (APP-LTR2) in your AGS+ chassis. This document also

provides instructions for upgrading the C2CTR microcode by replacing a single erasable

programmable read-only memory (EPROM) component on the CSC-C2CTR card. The

CSC-C2CTR provides two or four high-speed Token Ring interfaces for connection to IEEE 802.5

and IBM-compatible Token Ring media at speeds of 4 or 16 Mbps. The APP-LTR2 provides the

interface between the CSC-C2CTR and your Token Ring network. Both the card and applique must

be installed in an AGS+ with a CSC/3 or CSC/4 processor card and a ciscoBus II controller card

(CSC-CCTL2).

The sections in this document include the following:

•Product Descriptions, page 2

—CSC-C2CTR Interface Card, page 4

—APP-LTR2 Applique, page 5

•Installation Prerequisites, page 6

—System Compatibility Requirements, page 6

—Ring Speed, page 16

—List of Parts, page 16

—Required Tools, page 17

—Safety, page 17

•Preventing Electrostatic Discharge Damage, page 18

•Installation, page 18

—Installing the CSC-C2CTR Interface Card, page 19

—Installing the APP-LTR2 Applique, page 20

2ciscoBus Token Ring Card and Applique Installation and Upgrade Instructions

Product Descriptions

—Finishing the Installation, page 25

—Checking the Installation, page 25

—Closing the Chassis, page 28

•Conﬁguring the Interfaces, page 29

—Privileged Access to the EXEC Command Interpreter, page 29

—Using the Conﬁgure Command, page 30

—Checking the Conﬁguration, page 32

•Upgrading Microcode, page 34

•Cisco Information Online, page 35

Product Descriptions

The following sections contain physical descriptions and brief functional overviews of the

CSC-C2CTR card and the APP-LTR2 applique.

The CSC-C2CTR resides in the AGS+ system card cage. Each port on the CSC-C2CTR provides

one Token Ring interface and connects to an APP-LTR2 applique with an internally routed ribbon

cable. The APP-LTR2, which resides in an applique card cage, are installed in the two far right large

plate areas in the rear of the AGS+. The appliques provide the external interface to the Token Ring

network.

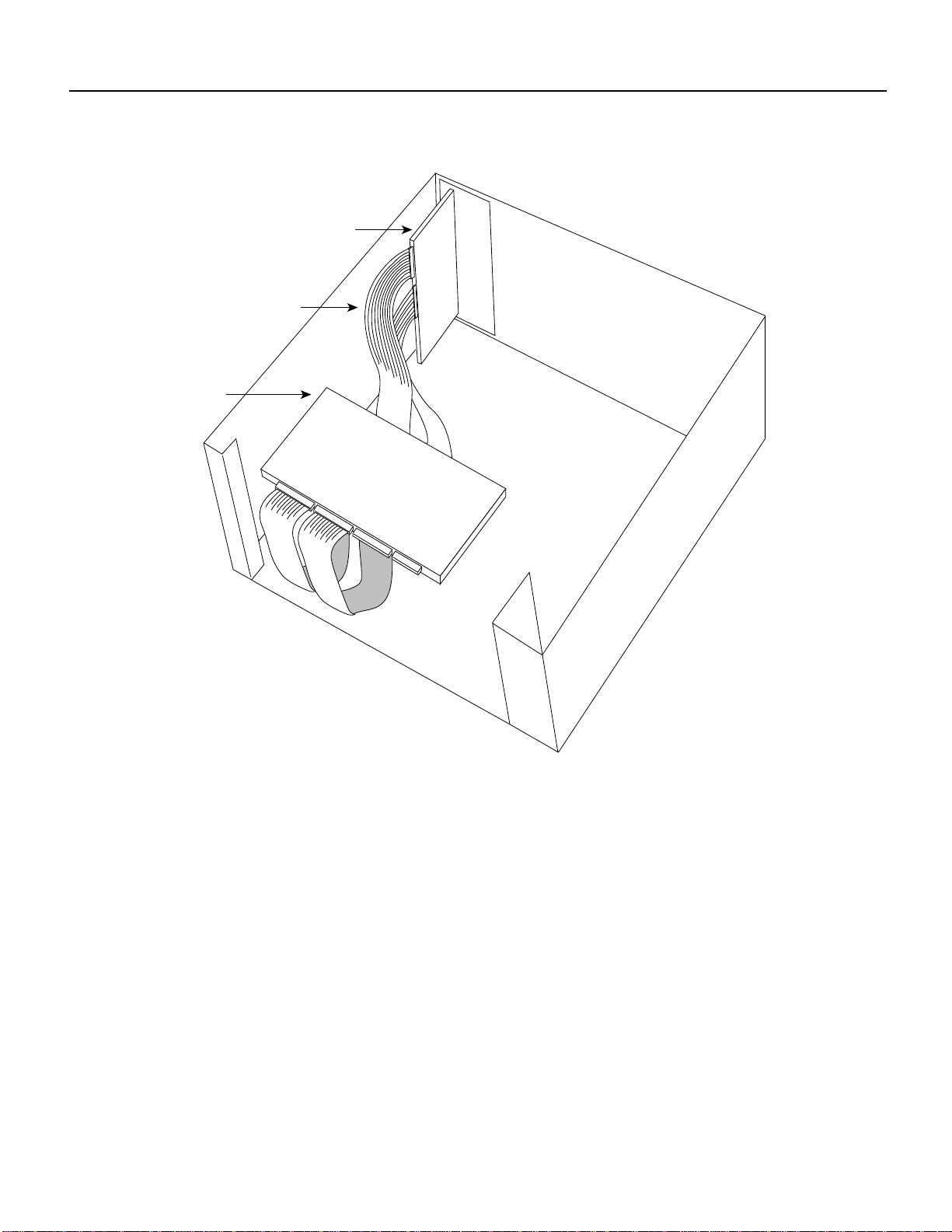

A typical installation, showing the interface card, the (internal) interface cable, and the interface

applique, is shown in Figure 1. The system card cage and applique card cages are not included in the

drawing in order to more clearly show the cable routing.

ciscoBus Token Ring Card and Applique Installation and Upgrade Instructions 3

Product Descriptions

Figure 1 Typical Installation, Shown Without Card Cages

H1467a

Interface

applique

Front of chassis

Interface

cable

Interface

card

4ciscoBus Token Ring Card and Applique Installation and Upgrade Instructions

Product Descriptions

CSC-C2CTR Interface Card

The CSC-C2CTR, shown in Figure 2, contains four ports. The card supports two interfaces when

used with one APP-LTR2 and four interfaces when used with two APP-LTR2s. Each port (interface)

is individually conﬁgured to operate at 4 or 16 Mbps. The C2CTR-speciﬁc microcode (ﬁrmware)

resides on an EPROM in socket position U98, which may need to be replaced when the system

software is upgraded or when operating enhancements are implemented. Instructions for the

microcode upgrade can be found in the section “Upgrading Microcode” on page 34.

Figure 2 CSC-C2CTR ciscoBus Token Ring Card—Component-Side View

The four interface ports are numbered from left to right TR 0 through TR 3 when viewing the card

as installed in the system card cage. (See Figure 3.) Each port is connected to an APP-LTR2 with an

internal ribbon cable. Four green LEDs indicate the status of each port (interface). When an interface

is up, or active in the ring, the corresponding LED is on. The LED is off when the interface is

inactive, administratively down, not internally connected to the applique, or the applique is not

externally connected to the ring.

Figure 3 CSC-C2CTR ciscoBus Token Ring Card—Front-Edge View

The C2 designator in the product number indicates that the CSC-C2CTR card must be installed in

an AGS+ with a ciscoBus II controller card (CSC-CCTL2). The CSC-C2CTR can be installed in any

available ciscoBus slot except the center slot, which contains the CSC-CCTL2. However, for

optimum performance, the CSC-C2CTR should be installed in the highest-priority slot available in

accordance with the slot priority scheme described on page 9. Instructions for determining your

current system software version and the type of ciscoBus controller installed are provided in the

section “System Compatibility Requirements” on page 6.

U98

H1537a

TR 0

Microcode

EPROM

TR 1 TR 2 TR 3LEDs

(4)

Port 0

LED

H1206a

Port 0

Port 1

LED Port 2

LED Port 3

LED

Port 1 Port 2 Port 3

Interface ports

ciscoBus Token Ring Card and Applique Installation and Upgrade Instructions 5

Product Descriptions

APP-LTR2 Applique

The APP-LTR2, shown in Figure 4, provides the required high-speed interfaces between the

CSC-C2CTR and your Token Ring network. Each applique contains two female DB-9 Token Ring

connectors and the Media Access Control (MAC) circuitry for each interface. The green power LED

goes on to indicate the applique is receiving power from the CSC-C2CTR. Two ribbon cables

provide the internal connection between the applique and two ports on the CSC-C2CTR.

Figure 4 APP-LTR2 Applique

The APP-LTR2 is installed in an applique card cage mounted on the rear panel of an AGS+. One or

two appliques can be installed in each card cage. Because of internal space limitations, no more than

two applique card cages can be installed in the AGS+ chassis; therefore, a maximum of four

APP-LTR2s can be installed. A grounding strap, which is included with the applique, must also be

installed to prevent noise on the interface. Detailed instructions for installing the applique and card

cage are provided in the section “Installing the APP-LTR2 Applique” on page 20.

POWER

H1213a

MAC circuitry

Internal connectors

(to CSC-C2CTR)

6ciscoBus Token Ring Card and Applique Installation and Upgrade Instructions

Installation Prerequisites

This section describes the minimum compatibility requirements that your system hardware and

software must meet before you install a new CSC-C2CTR. It describes the various commands you

can use to verify the compatibility requirements.

System Compatibility Requirements

Before installing a new CSC-C2CTR, ensure that your existing system components meet the

following minimum conﬁguration requirements for compatibility with the card:

•An AGS+ with a CSC/3 or CSC/4 processor card.

•The system is running Software Release 9.1 or later.

•A CSC-CCTL2 ciscoBus 2 controller card (Controller Type 6.0 or later) is installed.

•All ciscoBus interface cards are compatible with the CSC-CCTL2. (All must be running

Microcode Version 10.0 or later.) If you are replacing a CSC-CCTL with a CSC-CCTL2, you

must also upgrade all existing ciscoBus interfaces to Microcode Version 10.0 (or later) at the

same time you replace the ciscoBus controller card.

•All Multibus Token Ring interface cards meet the following requirements:

—CSC-1R and CSC-2R microcode is Version 1.2 or later.

—CSC-R16M microcode is Version 3.2 or later.

Refer to the section “Compatibility with Other Cards” on page 15 for compatibility requirements

for all ciscoBus and Multibus cards when running Software Release 9.1 (required for

CSC-C2CTR and CSC-CCTL2 operation).

•An applique card cage (product number MAS-CCG) is installed in the chassis, and there is at

least one empty slot available.

You received a new card cage in which the APP-LTR2 is already installed.

•There is a ciscoBus slot available (empty) for each CSC-C2CTR you will install.

You can display the current software version and the type of processor card installed with the show

version command. The current system software version is displayed in the ﬁrst line of the output,

and the processor card information is displayed on the eighth line, followed by a list of the installed

interface cards. A sample of the display follows:

router# show version

GS Software (GS3-BFX), Version 9.1

Compiled Wed 03-Jun-92 01:24

System Bootstrap, Version 4.5(0.8)

router uptime is 11 days, 8 hours, 41 minutes

System restarted by power-on

System image file is "router-system", booted via tftp from 131.108.1.111

CSC3 (68020) processor with 4096K bytes of memory.

X.25 software.

Bridging software.

1 MCI controller (2 Ethernet, 2 Serial).

1 cBus controller.

1 MEC controller (6 Ethernet).

ciscoBus Token Ring Card and Applique Installation and Upgrade Instructions 7

Installation Prerequisites

1 CTR controller (4 Token Ring).

Environmental Controller.

8 Ethernet/IEEE 802.3 interface.

4 Token Ring/IEEE 802.5 interface.

2 Serial network interface.

1 HSSI network interface.

1 FDDI network interface.

You can display a description of the current ciscoBus controller card with the show controller cbus

EXEC command. The ciscoBus controller type is displayed, followed by a description of each

ciscoBus interface card, the ciscoBus slot in which it is installed, and the microcode version of each.

A sample of the display follows. For complete descriptions of all of the displayed ﬁelds, refer to the

Router Products Conﬁguration Guide and Router Products Command Reference publications. In the

following display, note that the microcode version on all ciscoBus interface cards is Version 10.0 or

later, indicating that the ciscoBus controller is a CSC-CCTL2.

router# show cont cbus

ciscoBus 1, controller type 6.0, microcode version 10.0

512 Kbytes of main memory, 128 Kbytes cache memory

(display text omitted)

FDDI-T 0, controller type 7.1, microcode version 10.1

Interface 0 - Fddi0, station address 0000.0c02.6aa3

(display text omitted)

CTR 1, controller type 9.0, microcode version 10.1

Interface 8 - TokenRing0, station address 0000.3040.e004

13 buffer RX queue threshold, 31 buffer TX queue limit,

(display text omitted)

Interface 9 - TokenRing1, station address 0000.3040.e084

(display text omitted)

Interface 10 - TokenRing2, station address 0000.3040.e044

(display text omitted)

Interface 11 - TokenRing3, station address 0000.3040.e0c4

(display text omitted)

HSCI 2, controller type 10.0, microcode version 10.0

Interface 16 - Hssi0, electrical interface is Hssi DTE

(display text omitted)

You can display a description of the current Multibus Token Ring interfaces with the show

controller token command. There is no card name or controller type displayed with this command.

Although it is not apparent, the card type is distinguishable in the ﬁrst line of the show controller

token display (CSC-1R/2Rs are displayed as TR Unit non the ﬁrst line of the display; CSC-R16Ms

are labeled TRnin the ﬁrst line.) The microcode version (labeled f/w ver) is displayed on about the

twelfth line of the display.

The following example shows a CSC-1R with Microcode Version 1.2 installed:

router# show cont token

TR Unit 0 is board 0 - ring 0

(11 lines of text omitted)

f/w ver: 1.2 expr 0, chip f/w:00000.ME31100,[bridge capable]

SMT versions: 1.01 kernel, 4.02 fastmac

(text omitted)

The following example shows a CSC-R16M with Microcode Version 3.2:

router# show cont token

TR0: state 3, dev blk: 0x1C98A4, mailbox: 0x21000B0, sca: 0x2010000

(11 lines of text omitted)

f/w ver: 3.2, chip f/w: '000000.ME31100', [bridge capable]

8ciscoBus Token Ring Card and Applique Installation and Upgrade Instructions

Installation Prerequisites

For ﬁeld descriptions and additional commands, refer to the Router Products Conﬁguration Guide

and Router Products Command Reference publications.

Note If your system software, ciscoBus controller, or other interface cards in your system do not

meet the preceding compatibility requirements, contact a customer service representative.

ciscoBus Conﬁguration

Before installing a new CSC-C2CTR, ensure that all ciscoBus interface cards are the C2 type (all

have Microcode Version 10.0 or later installed), that any new ciscoBus cards you are installing will

not exceed the maximum port limits for ciscoBus interfaces, and that the ciscoBus cards will be

placed in the correct order of priority in the ciscoBus slots. The following sections describe how to

determine all of these requirements.

ciscoBus Controller Compatibility

All ciscoBus interface cards, which are listed in Table 1, contain card-speciﬁc microcode that

determines whether the card is compatible with the ﬁrst- or second-generation ciscoBus controller

card. Following are compatibility guidelines:

•ciscoBus cards with microcode versions earlier than Version 10.0 are compatible only with the

ﬁrst-generation ciscoBus controller card (CSC-CCTL).

•ciscoBus cards with Microcode Version 10.0 or later are compatible only with the

second-generation ciscoBus controller card (CSC-CCTL2).

•The CSC-C2CTR and CSC-C2FCIT are compatible only with the CSC-CCTL2. The initial

release of both cards contained Microcode Version 10.0.

Table 1 CSC-CCTL2 Interface Card Compatibility Requirements

The C2 designator added to the name of a ciscoBus interface card indicates that the card is running

Microcode Version 10.0 or later and is, therefore, compatible with the second-generation ciscoBus

controller card, the CSC-CCTL2. With the exception of a Revision 5.0 CSC-MEC (see Note

following), the ﬁrst- and second-generation ciscoBus interface cards are otherwise the same. For

example, you can upgrade a revision 5.1 CSC-MEC to a CSC-C2MEC by replacing the microcode

with Version 10.0 or later. When you upgrade the microcode on the revision 5.1 CSC-MEC to

Version 10.0, the name of the card also changes from CSC-MEC to CSC-C2MEC to indicate that it

1. Only CSC-C2MEC Revision 5.1 or later is compatible with the CSC-CCTL2.

CCTL Controller

Card CCTL2 Controller

Card Description

CSC-CCTL CSC-CCTL2 ciscoBus controller

CSC-FCI CSC-C2FCI Fiber Distributed Data Interface (FDDI)

CSC-C2FCIT FDDI with translational bridging

CSC-HSCI CSC-C2HSCI High-Speed Serial Interface (HSSI)

CSC-C2CTR ciscoBus Token Ring interface, 4/16Mbps

CSC-MEC CSC-C2MEC1Multiport Ethernet Controller interface

ciscoBus Token Ring Card and Applique Installation and Upgrade Instructions 9

Installation Prerequisites

is CCTL2-compatible. When you replace a CSC-CCTL ciscoBus controller card with a

CSC-CCTL2 ciscoBus controller card, you must upgrade the microcode on all ciscoBus interface

cards to Microcode Version 10.0 or later.

Note Only a Revision 5.1 or later CSC-MEC can be upgraded to a CSC-C2MEC. If you have a

Revision 5.0 CSC-MEC, contact a customer service representative for upgrade information.

You can display a description of the current ciscoBus controller and ciscoBus interface cards with

the EXEC show controller cbus command, an example of which is shown on page 7. The name and

controller type of each ciscoBus card, the ciscoBus slot in which it is installed, and the microcode

version of each is displayed. (Additional statistical information is also displayed for each interface

card, but is omitted from the example.)

Slot Priority The system card cage, shown in Figure 5, has nine slots, ﬁve of which are designated ciscoBus slots.

The center ciscoBus slot is reserved for the ciscoBus controller card, leaving four ciscoBus slots

available for ciscoBus interface cards.

The system uses a slot priority scheme that assigns a priority to each ciscoBus card according to the

ciscoBus slot in which the card resides. The card in ciscoBus slot 0 receives the highest ciscoBus

priority, while the card in ciscoBus slot 3 receives the lowest ciscoBus priority.

Slot priorities are set to accommodate the amount of trafﬁc generated by each interface card and the

amount of card buffering required. Each ciscoBus interface card is placed in a speciﬁc slot with

regard to other ciscoBus interface cards, if any. The order of priority is the same for both ﬁrst- and

second-generation ciscoBus controllers, except that the cards with the C2 designation can only be

used with the CSC-CCTL2.

Following is a list of ciscoBus interface cards in order of priority, from highest to lowest:

1CSC-MEC and C2MEC (10 Mbps)

2CSC-C2CTR (16 Mbps)

3CSC-HSCI and C2HSCI with an APP-LHS applique (HSSI interface) (45 through 52 Mbps)

4CSC-FCI and C2FCI (100 Mbps)

5CSC-C2FCIT (100 Mbps)

6CSC-HSCI and C2HSCI with an APP-ULA applique (UltraNet interface) (125 Mbps)

Install CSC-MEC or C2MEC cards in the lowest-numbered slots, beginning with slot 0 (which has

the highest priority), followed by CSC-C2CTR cards. After all CSC-MEC and CSC-C2CTR cards

are installed, install CSC-HSCI and C2HSCI cards with the APP-LHS applique in the

lowest-numbered available slots. Follow with the CSC-FCI and C2FCI cards. Next, install

CSC-C2FCIT cards. Last, install the CSC-HSCI and C2HSCI cards with the APP-ULA (UltraNet)

applique. Always install cards in the lowest-numbered available slot. For example, if using only

CSC-C2HSCI cards (with APP-ULA), place the ﬁrst in slot 0, the second in slot 1, and so forth.

10 ciscoBus Token Ring Card and Applique Installation and Upgrade Instructions

Installation Prerequisites

Figure 5 AGS+ System Card Cage

ciscoBus Port Limitations

The CSC-C2CTR will interoperate with any of the C2-designated ciscoBus interface cards. The

maximum number of CSC-C2CTR ports that can be used when other ciscoBus interfaces are

installed are shown in Table 2.

Table 2 Maximum Port and Card Conﬁgurations for ciscoBus Interface Cards

C2CTR

Ports (Cards) C2FCIT/(C2)FCI 1

Ports (Cards) (C2)MEC

Ports (Cards) (C2)HSSI

Ports (Cards)

0 (0) 0 (0) 24 (4) 0 (0)

0 (0) 1 (1) 18 (3) 0 (0)

0 (0) 0 (0) 18 (3) 1 (1)

4 (1) 0 (0) 18 (3) 0 (0)

0 (0) 2 (2) 12 (2) 0 (0)

0 (0) 1 (1) 12 (2) 1 (1)

4 (1) 1 (1) 12 (2) 0 (0)

0 (0) 0 (0) 12 (2) 2 (2)

4 (1) 0 (0) 12 (2) 1 (1)

8 (2) 0 (0) 12 (2) 0 (0)

6 (2) 1 (1) 6 (1) 0 (0)

6 (2) 0 (0) 6 (1) 1 (1)

0 (0) 3 (3) 6 (1) 0 (0)

0 (0) 0 (0) 6 (1) 3 (3)

0 (0) 2 (2) 6 (1) 1 (1)

4 (1) 2 (2) 6 (1) 0 (0)

4 (1) 0 (0) 6 (1) 2 (2)

4 (1) 1 (1) 6 (1) 1 (1)

0 (0) 1 (1) 6 (1) 2 (2)

Environmental monitor card

Processor card

Multibus interface card

Multibus or ciscoBus interface card

Multibus interface or ciscoBus controller card

Multibus or ciscoBus interface card

ciscoBus

slots

Multibus

slots

H2675

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cisco Matériel informatique

Cisco

Cisco AS5800 Manuel utilisateur

Cisco

Cisco CX-FSIP8 Instructions d'utilisation et d'entretien

Cisco

Cisco WIC36-1B-S Guide de démarrage rapide

Cisco

Cisco SCE8000 GBE Manuel d'utilisation et d'entretien

Cisco

Cisco Wide Area Virtualization Engine 594 and 694 Manuel utilisateur

Cisco

Cisco ASA 5512-X Manuel utilisateur

Cisco

Cisco 3005 - VPN Concentrator - Gateway Manuel utilisateur

Cisco

Cisco Prisma II Mode d'emploi

Cisco

Cisco CX-AIP-TM Instructions d'utilisation et d'entretien

Cisco

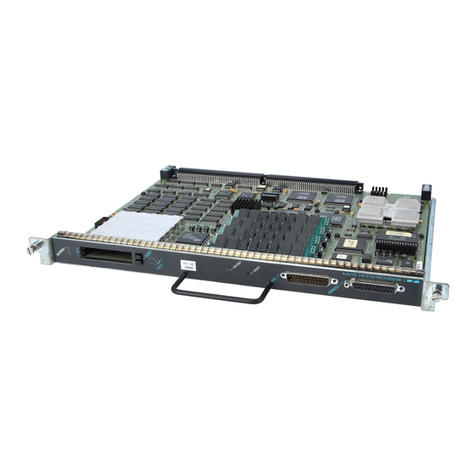

Cisco RSP1 Instructions d'utilisation et d'entretien

Cisco

Cisco SSP Series Instructions d'utilisation et d'entretien

Cisco

Cisco NPE-G2 - Network Processing Engine G2 Guide rapide

Cisco

Cisco HWIC-3G-GSM Manuel utilisateur

Cisco

Cisco Aironet 350 Series Manuel utilisateur

Cisco

Cisco AVS 3120 Manuel

Cisco

Cisco ONS 15454 EC1-12 Manuel utilisateur

Cisco

Cisco WS-C1511 Mode d’emploi

Cisco

Cisco 7541 Manuel

Cisco

Cisco IEC6400 Manuel de l'opérateur

Cisco

Cisco CATALYST MEM-C6K-ATA-1-64M( Manuel d'installation et d'exploitation

Cisco

Cisco Nexus 2000 Series Manuel utilisateur

Cisco

Cisco PRP-2= Manuel de l'opérateur

Cisco

Cisco 8800 Series Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Cisco ciscoBus CSC-C2CTR Guide de démarrage rapide

Manuels Matériel informatique populaires d'autres marques
