Cinegy Route 11 Manuel utilisateur

Cinegy Route 11

Document version: e23d164

Table of Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê1

User Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê2

1. Introduction And Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê3

1.1. Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê3

1.2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê4

2. Stream Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê8

2.1. Cinegy Route Directory Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê8

2.2. Cinegy Route Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê8

Objects Copying and Moving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê9

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê10

Refreshing Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê10

Physical Sources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê10

Virtual Destinations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê13

Processing Nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê14

2.3. Visibility Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê15

Source Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê15

2.4. Server Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê17

Administrators 17

Routing Administrators 18

Routing Users 18

Server Security Management 18

2.5. Server Backup and Restoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê18

3. Route Directory Relay Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê21

3.1. Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê21

3.2. Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê22

4. Cinegy Route Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê25

4.1. Browsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê25

4.2. RTP/UDP URL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê26

5. Cinegy Route Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê28

5.1. Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê28

Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê29

Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê30

5.2. Virtual Destinations Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê31

5.3. Processing Nodes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê33

Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê34

Audio Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê35

Processing Nodes Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê36

6. Cinegy Route Support Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê38

6.1. Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê38

6.2. NetCaptureGUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê38

6.3. NetPlayGUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê39

6.4. NetSendGUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê40

7. Amino Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê43

7.1. Overview and Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê43

7.2. Getting Started With a Single A140 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê43

Amino DHCP on Windows Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê44

7.3. Customizing the A140 HTML Control Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ê50

Preface

Managing the growing complexity of playout, automation and file delivery is an increasing challenge to broadcasters. As the

number of channels and platforms a broadcaster delivers rises, controlling that infrastructure is critical.

Software-based solutions, with technologies such as high-density virtualization and IP stream I/O, offer the possibility to

consolidate complexity into bite-sized elements - particularly as more features can be added to collapse the length of the

traditional broadcast chain.

Delivering a channel is complex – with many interconnected elements costing money, requiring management and needing

maintenance. Cinegy Air simplifies these challenges by supporting multiple channels with multiple features in a single box.

Deploying Cinegy Air on a server brings Dolby® Digital encoding, Nielsen watermarking and Cinegy CG channel branding to

one integrated software solution.

Page 1 | Document version: e23d164

User Manual

Page 2 | Document version: e23d164

Chapter 1. Introduction And Setup

1.1. Overview

Modern broadcasters are now able to use the Ethernet networks instead of SDI to transport video signals. Tempted by greater

capacity, enhanced flexibility, higher quality and lower cost compared to the expensive SDI infrastructure, broadcasters

making the change get great benefits. However, it does not take long before the management of these IP video signals

becomes challenging, and it only becomes harder once volumes increase.

Cinegy Route provides the ability to register and secure the details of all of these incoming signals inside the Cinegy Route

Directory Service. Once registered, it becomes easy to deal with a huge number of incoming SD, HD and 4K network streams

and satellite feeds simultaneously from client stations around the network – users can just browse through an organised tree

of sources, preview them, and map these sources to ‘virtual’ destinations, in a manner familiar to anyone that ever worked

with SDI routers.

Various pieces of Cinegy software make up components in a typical IP infrastructure environment, allowing users to control,

transmit and receive transport stream data over an Ethernet network.

The core elements of software handling typical operations are: Cinegy Live, Cinegy Route, Cinegy Encode, and Cinegy

Multiviewer.

A complete, complex solution implementing a Cinegy IP infrastructure contains the following components and operations:

•Registration and management of the incoming IP streams for various purposes;

•Browsing through the registered streams and choosing services (e.g. inserting them as live items to the Cinegy Air

playlists);

•Organizing the incoming IP streams by routing them into the virtual RTP/UDP stream sources via Cinegy Route Control

(e.g. to change the input to a Cinegy Encode decoder);

•Monitoring multiple IP streams state in real time (e.g. via Cinegy Multiviewer);

•Using RTP/UDP streams as the live video input;

•Converting the incoming SDI signals to the RTP/UDP streams and vice versa in real time via Cinegy Encode;

•Ingest of IP streams into Cinegy Archive (e.g. by recording into Cinegy Capture PRO).

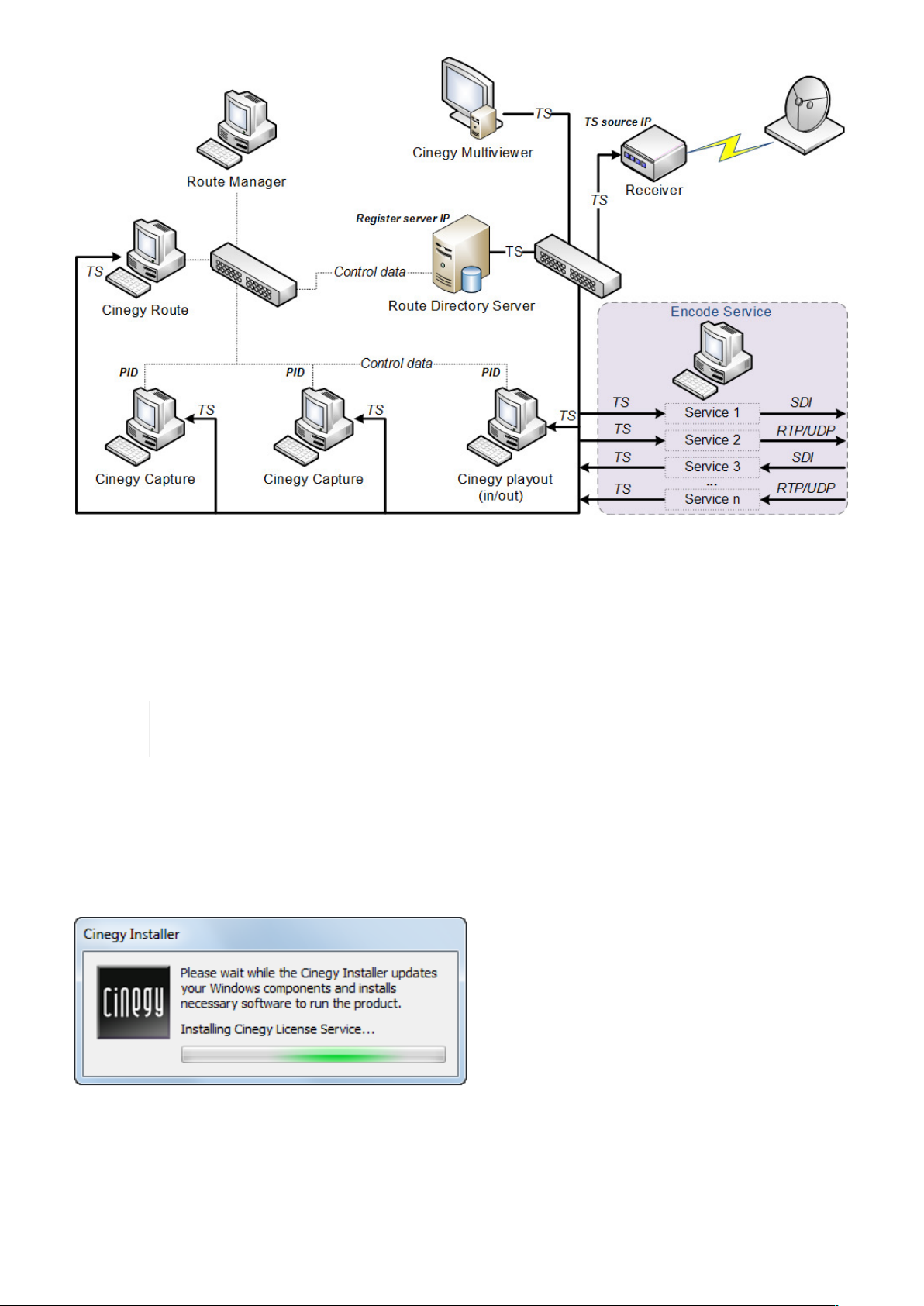

The following diagram shows a typical common configuration of the Cinegy IP infrastructure solution:

Page 3 | Document version: e23d164

As shown in the diagram above, it is recommended to split the network into two independent subnets: one for IP streaming

(marked as "TS" – Transport Stream) and the other for the data transfer ("control data"). It is not absolutely necessary but can

generally make the system more stable.

Care must always be taken when designing a video network architecture to reduce the risk of packet loss, and in critical

cases where packet loss cannot be tolerated, we recommend using a primary and secondary network for video stream

transmission failover.

See the description of the common Cinegy IP infrastructure components later in this manual and the

description of the Cinegy Multiviewer and Cinegy Encode products in the corresponding documentation.

1.2. Installation

In order to start the installation of the Cinegy Route components, run the Cinegy Route Setup.exe file from your installation

folder. Your system will be checked if Cinegy License Service is installed on your PC; if it is not, its installation will start

automatically:

Once Cinegy License Service is installed to your system, the Cinegy Route setup wizard will be started:

Page 4 | Document version: e23d164

Press "Next" to proceed with the installation or "Cancel" to abort and exit the setup wizard.

Read and accept the license agreement.

Press "Next" to proceed.

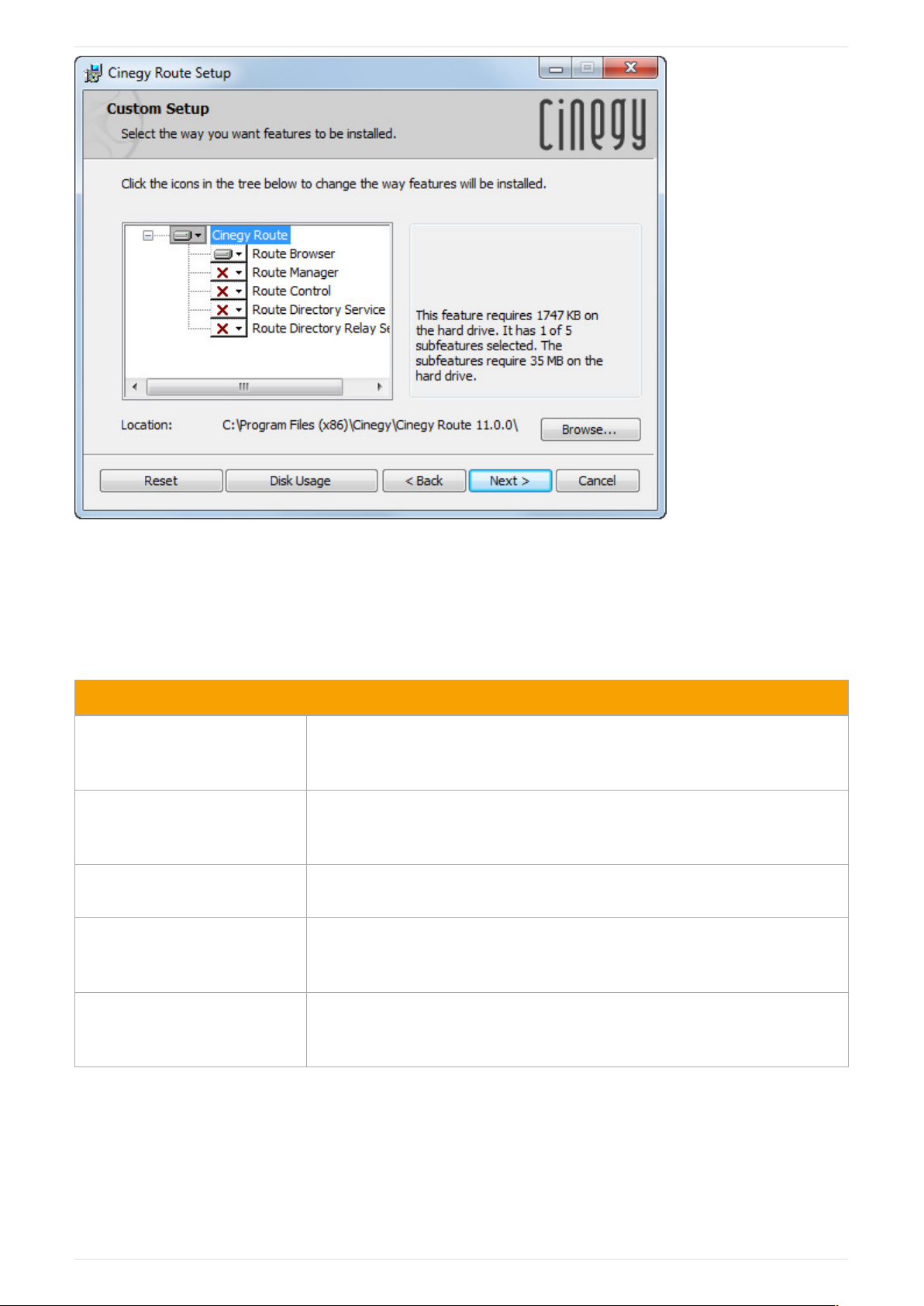

The following dialog box appears:

Page 5 | Document version: e23d164

Press the "Browse" button to change the installation folder, if needed.

Select the components you want to be installed by clicking on the corresponding icon in the components tree and choosing

the status for the tool.

Refer to the following table to get quick information about the tools:

Component Description

Route Browser

Automatically resolves the video streams names registered by Route Directory Service

to the RTP/UDP URLs. Installation also enables browsing registered video streams and

choosing them from Cinegy Air control panel.

Route Manager

Allows user to organize and set up physical sources and virtual destination groups

used for managing and securing IP streams and channels registered by Route

Directory Service.

Route Control Used for switching sources of the virtual destinations with the ability to preview the

incoming video for each virtual destination in real-time.

Route Directory Service

Registers and maintains records of video streams and virtual destination mappings.

The server running this service is used by all Route-aware client applications to

exchange data.

Route Directory Relay Service

Tracks changes in Route Directory Service and sends them to the broadcast clients via

multicast transmission. Not required to be installed, and needed for larger-scale

deployments only.

Having selected the tools for installation, press the "Next" button to begin the installation. A progress bar will show the

progress of the installation process.

Together with the selected Cinegy Route components, the following utilities are installed by default: NetCaptureGUI,

NetPlayGUI, and NetSendGUI.

Page 6 | Document version: e23d164

Refer to the Cinegy Route Support Tools section for detailed information on these utilities.

Page 7 | Document version: e23d164
