Color Span 2TM QSG V2.0 QSG P/N: 633-0501

Quick Start Guide

Chroma-Q®

Color Span 2™

For a full product manual please visit www.chroma-q.com

Part Number: CHSP2[XXXXX]

Model: 633-XXXX

Color Span 2TM QSG V2.0 QSG P/N: 633-0501

1. Overview

The Chroma-Q Color Span 2TM is a configurable low profile, ultra bright LED indoor cove lighting

and wall wash system for wide ranging applications.

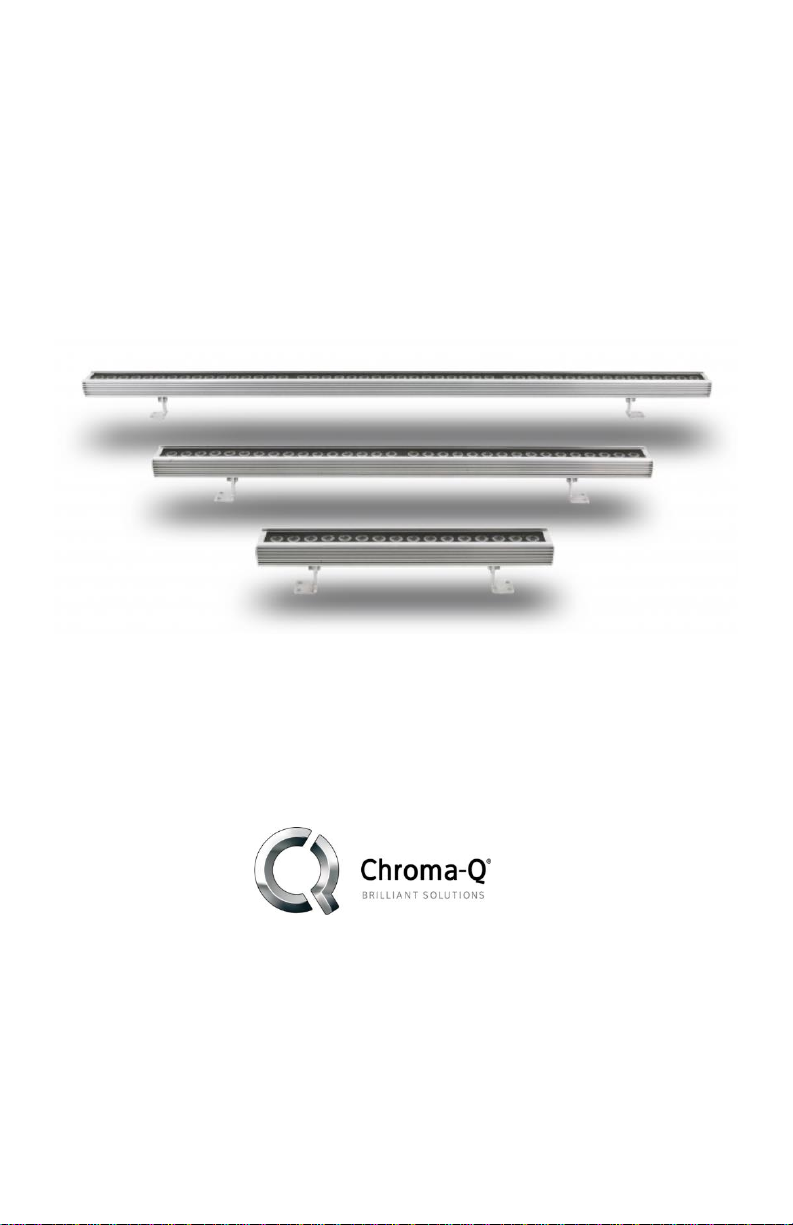

The Color Span 2TM fixture comes in lengths of 400mm / 16” with 16 LEDs, 800mm / 32” with 32

LEDs, and 1200mm / 48” with 48 LEDs. The Color Span 2TM fixtures of various lengths can be

combined and connected via the RJ45 in/out connectors for power and data. The total lengths of

the combined fixtures must match the corresponding power supply output.

2. Safety

Caution

1. This product is for professional use only. It is NOT intended for domestic or

outdoor use.

2. The bright flash of light during power-up and continuous strobe effect may

cause epileptic seizure.

3. Chroma-Q® Color Span 2TM Power Supply Units

The Color Span 2TM PS02, PS06 and PS18 are power supply units which can be remotely

controlled via ANSI E1.11 USITT DMX 512-A (XLR 5-pin) and available with outputs via RJ45

connection.

Color Span 2TM PS02 is a power supply with 2 outputs which can be configured for up to 2 full-

size (1200mm/48”) 48 LEDs Color Span 2TM fixture units, or 2 (800mm/32”) 32 LEDs Color Span

2TM fixtures, or 2 (400mm/16”) 16 LEDs Color Span 2TM fixtures, or combined (daisy-chained) to

match each output.

Color Span 2TM PS06 is a power supply with 6 outputs which can be configured for up to 6 full-

size (1200mm/48”) 48 LEDs Color Span 2TM fixture units, or 6 (800mm/32”) 32 LEDs Color Span

2TM fixtures, or 6 (400mm/16”) 16 LEDs Color Span 2TM fixtures, or combined (daisy-chained) to

match each output.

Color Span 2 TM PS18 is a power supply with 18 outputs which can be configured for up to 18

full-size (1200mm/48”) 48 LEDs Color Span 2TM fixtures, or 18 (800mm/32”) 32 LEDs Color Span

2TM fixtures, or 18 (400mm/16”) 16 LEDs Color Span 2TM fixtures, or combined (daisy-chained)

to match each output.

Caution: The total lengths of combined Color Span 2 TM fixtures must not be less or more than

the power output of the power supply unit. The power supply unit will be damaged if the total

length of combined fixtures is not matched to the corresponding output used.

A POWER TERMINATOR must be connected to the last fixture in the combined (daisy-

chained) configuration series.

Output and cabling Configuration

The PS02, PS06 and PS18 have 3 output configurations for up to 6 fixture configurations. Each

RJ45 output connector of the Color Span2TM PS02, PS06 and PS18 are color coded to indicate

the appropriate number and/or combination of Color Span 2TM fixture units.

Output Connector Color

Code

Number of LEDs in the

fixture

Fixture Length

BROWN

400mm / 16”

ORANGE

800mm / 32”

YELLOW

1200mm / 48”

Output Configuration:

PSU

Color Code

Fixture Configuration/Combination

PS02/

PS06/

PS18

Yellow

2/6/18 outputs x (48 LEDs fixture) or

2/6/18 outputs x (32 LEDs + 16 LEDs fixture) or

2/6/18 outputs x (16 LEDs + 16 LEDs + 16 LEDs fixture)

Orange

2/6/18 outputs x (32 LEDs fixture) or

2/6/18 outputs x (16 LEDs + 16 LEDs fixture)

Brown

2/6/18 outputs x (16 LEDs fixture)

Note: Damage may occur to the fixture if the size is not matched to the coded outputs.

Color Span 2TM QSG V2.0 QSG P/N: 633-0501

4. Control

The Color Span 2TM system can operate as a stand-alone unit or controlled remotely via ANSI

E1.11 USITT DMX512-A through the power supply. Refer to the user manual for full details.

Control Menu is accessed via the LCD display and the following controls:

Right hand button (Arrow) - Enter (hold for 2 seconds to save)

Left hand button (Exit) - Exit without saving

Centre pressure slide pad - Adjusts or scrolls through the menu items

To access Control Menu items,

1. Use the slide pad to scroll through the menu items

2. Press Enter to select the menu item

3. Use the slide pad to scroll through the options

4. Press Enter for 2 seconds to save the settings

Control Menu

Function

Home

Shows the Name, Software Version, current DMX address, control mode and time.

Control Mode

PS02/PS06/PS18 Power Supply Units –Software Version 1.6

Mode

Name

Grouping

Description

fxHSI

13/25/61

Variable

7 x effects + 2/6/18 x Hue, Saturation, Intensity

HSI

6/18/54

Single

2/6/18 x Hue, Saturation, Intensity

RGB

6/18/54

Single

2/6/18 x Red, Green, Blue (w/ *Magic Amber)

fxHSI

All

6 x effects + Hue, Saturation, Intensity

HSI

All

1 x Hue, Saturation, Intensity

RGB

All

1 x Red, Green, Blue (w/ *Magic Amber)

RGBA

8/24/72

Single

2/6/18 x Red, Green, Blue, Amber

RGBI

8/24/72

Single

2/6/18 x Red, Green, Blue, Intensity

RGBA

All

1 x Red, Green, Blue, Amber

RGBI

All

1 x Red, Green, Blue, Intensity

LkSel

Variable

Selection of pre-programmed looks

DEMO

Stand-alone effects sequence

*Magic Amber is the term used for the unit’s ability to bring in Amber when mixing colors that require it.

When DMX is Lost

In this mode, various options can be selected when DMX is not detected.

Look Store

In this mode, 42 internal FX Looks are available for stand-alone operation, 1-9 are

preset. Looks can be recorded to the internal flash memory and will be reserved on

power down. Looks will be returned to default upon reset. To record a Look with a

DMX console –set the PSU to Control Mode 1, use the DMX console to create the

desired effect, scroll to Look Store number and save the Look to that number. Refer

to the Color Span 2TM User Manual to record a Look in Standalone mode.

Time Triggers

Select Time Triggers from the menu, then toggle between Day, Hour (24), Minutes

and the Look to be triggered.

Set Day and Time

Select SetDay and Time fromthe menu then toggle between Day, Hour(24),Minutes

Display Backlight

Select Displ. Backlight from the menu then toggle between On (permanently) or Off

(after 5 seconds)

Reset to Default

Press Enter for 2 seconds to reset all menu items to factory defaults: DMX

address=001, Control Mode=1, DMX Lost=Hold, Look Store=default, Time

Triggers=deleted, Display=On, Frequency=600

Frequency

In this mode, four frequency settings are available - 360, 600, 1200, 2400, which

allows for the LED scan rate to be synchronized with the video camera and avoid a

flickering effect.

5. Further Information

Please refer to the Chroma-Q®Color Span 2TM manual for more detailed information.

A copy of the manual can be found at the Chroma-Q®website –www.chroma-

q.com/support/downloads

Color Span 2TM QSG V2.0 QSG P/N: 633-0501

Approvals & Disclaimer

The information contained herein is offered in good faith andisbelieved tobe accurate.

However, because conditions and methods of use of our products are beyond our

control,this informationshouldnot be usedin substitutionfor customer's tests to ensure

that Chroma-Q®products are safe, effective, and fully satisfactory for the intended end

use. Suggestions of use shall not be taken as inducements to infringe any patent.

Chroma-Q® sole warranty is that the product will meet the Chroma-Q®sales

specifications in effect at the time of shipment. Your exclusive remedy for breach of

such warranty is limited to refund of purchase price or replacement of any product

shown to be other than as warranted.

Chroma-Q®reserves the right to change or make alteration to devices and their

functionality without notice due to on-going research and development.

The Chroma-Q®Color Span 2TM hasbeen designed specifically forthelightingindustry.

Regular maintenance should be performed to ensure that the products perform well in

the entertainment environment.

If you experience any difficulties with any Chroma-Q®products please contact your

selling dealer. If your selling dealer is unable to help, please contact

support@chroma-q.com. If the selling dealer is unable to satisfy your servicing needs,

please contact the following for full factory service:

Outside North America:

Tel: +44 (0)1494 446000

Fax: +44 (0)1494 461024

suppo[email protected]m

North America:

Tel: +1 416-255-9494

Fax: +1 416-255-3514

suppo[email protected]m

For further information please visit the Chroma-Q®website at www.chroma-q.com.

Chroma-Q®is a trademark, for more information on this visit

www.chroma-q.com/trademarks.

The rights and ownership of all trademarks are recognized
