Chroma Space Force Manuel utilisateur

Manual Yoke Space ForceTM Quick Start Guide V1.5 P/N: 650-0903

Quick Start Guide

Chroma-Q®

Space ForceTM

Manual Yoke Installation

For a full product manual please visit www.chroma-q.com

Part Number: CHSFPV

Model: 650-9010

Manual Yoke Space ForceTM Quick Start Guide V1.5 P/N: 650-0903

Knob Black

M10X1.5-20 mm

1. Items in the Kit: Space Force Offset Yoke (650-9010)

Items

Part Number

Qty.

Space Force Yoke Bracket M12 Blk

650-0035

Yoke Offset

650-0055

Knob M10x1.5 - 20mm Black

648-0113

Spigot for Yoke

900-0621

Adjustable Handle Offset Yoke

900-0672

Friction Disc 12mm ID, 63mm OD

900-0613

Friction Disc 16mm ID, 63mm OD

900-0595

Thrust Bearing 12mm ID, 26mm OD, 9mm thick (set of 3)

900-0614

Bushing Flanged 12mm ID, 25mm Blk

412-5012-0

Washer Spring 12mm ID

412-2822-0

Screw M12X40 SHSC Blk

412-1440-0

Bolt M12x30 Hex Head Blk

412-1930-0

Screw M4x8 FH Phillips Blk

440-1108-0

Washer Flat 1/2"

350-2114-4

Bag 4 x 6 Zip lock

900-0638

2. Tools Required

➢Screwdriver PZ1 x 80mm for the Side Bracket screws (Minimum torque: 5.5 in-lb.)

➢19 mm (or adjustable) wrench/spanner

➢10 mm Allen key

3. Installation Procedure

Manual Yoke Space ForceTM Quick Start Guide V1.5 P/N: 650-0903

1. Install the Yoke Brackets (650-0035) on both sides of space force unit using PZ1 x

80mm screw driver. Tighten the screws (440-1108-0) to make a solid connection.

2. On the yoke arm with the 12mm hole, place the Friction Disc (900-0613) in between the

Yoke (650-0055) and the Yoke Bracket (650-0035). Place the Friction Disc in parallel to

the Yoke Bracket and then place the Yoke opposite and in line with it.

3. Place the Thrust Bearing set (900-0614) on outer side of the Yoke, and then install the

Adjustable Handle (900-0672).

4. Press and spin clockwise the Adjustable Handle to allow the threaded screw to go into

the threaded hole of the Yoke Bracket. Rotate until the joint is tightened.

6. On the yoke arm with the16 mm diameter hole, place the Friction Disc (900-0595) in

between Yoke Bracket and the Yoke, then slide the Bushing Flanged 12MM BLK (412-

5012-0) in slot, insert the M12X30 Bolt (412-1930-0) with the 2nd Thrust Bearing (900-

0614) between Bushing and Bolt using a wrench. Tighten the Bolt completely to make a

solid connection.

Space Force Yoke

Bracket M12 BLK

(650-0035)

Friction Disc 12mm ID,

63mm OD (900-0613)

Thrust Bearing

12mm ID, 26mm

OD (900-0614)

9mm Thick

Adjustable Handle

Offset Yoke

(900-0672)

Offset Yoke

(650-0055)

Manual Yoke Space ForceTM Quick Start Guide V1.5 P/N: 650-0903

Screw M12X40

SHSC Blk

(412-1440-0)

Washer Spring

12mm ID

(412-5012-0)

Washer

Flat 1/2"

(350-2114-4)

Offset Yoke

(650-0055)

Offset Yoke

(650-0055)

Spigot for Yoke

(900-0621)

Knob M10x1.5 -

20mm Black

(648-0113)

7. Attach the Spigot to the Yoke using the M12X40 SHSC Screw, placing the ½” washer

and 12 mm spring washer in between. Use appropriate Allen key to tighten the M12X40

Screw to make a solid connection. Attach the Knob to the spigot.

Screw M4X8 FH

Philips BLK

(440-1108-0)

Friction Disc 16mm

ID, 63mm OD

(900-0595)

Bushing Flanged 12mm

ID, 25mm OD BLK

(412-5012-0)

Offset Yoke

(650-0055)

Bolt M12X30

Hex Head Blk

(412-1930-0)

Thrust

Bearing

12mm ID,

26mm OD,

9mm Thick

(900-00614)

Manual Yoke Space ForceTM Quick Start Guide V1.5 P/N: 650-0903

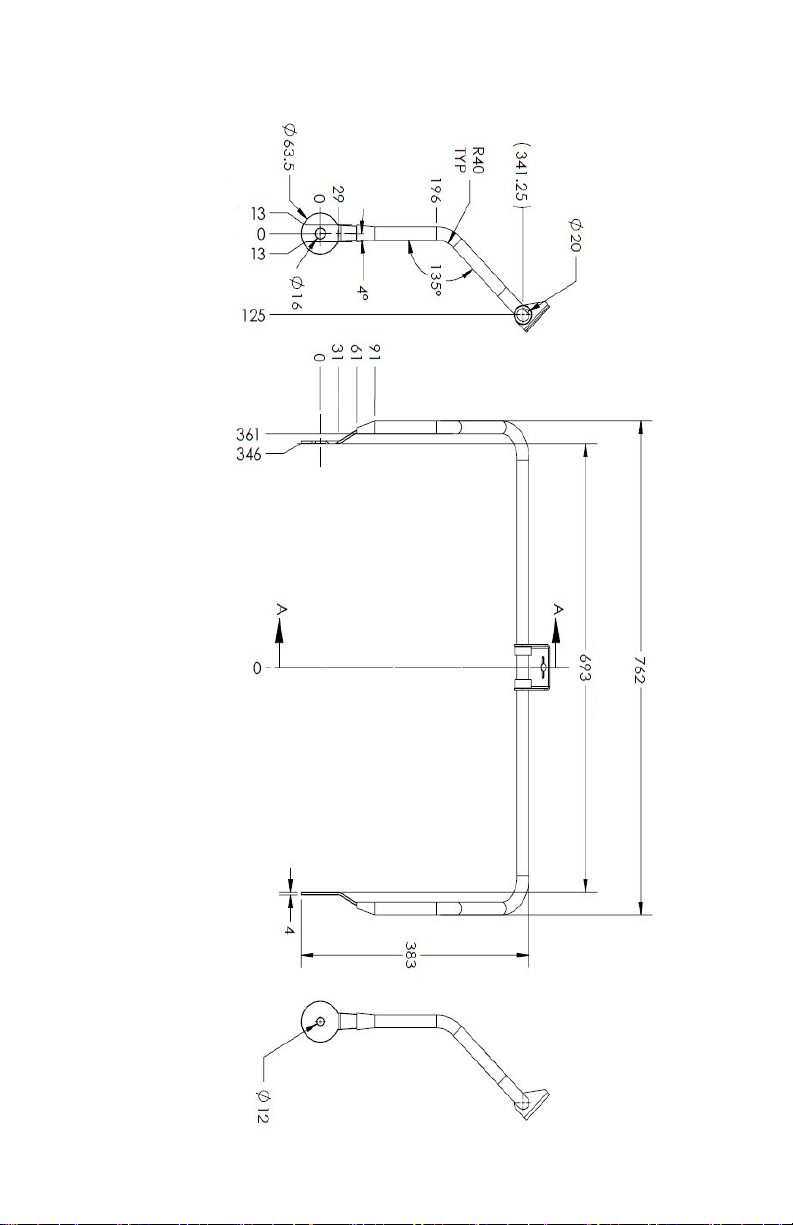

Offset Yoke (650-0055)

Manual Yoke Space ForceTM Quick Start Guide V1.5 P/N: 650-0903

Chroma-Q Space force with Offset Yoke Accessory

Manual Yoke Space ForceTM Quick Start Guide V1.5 P/N: 650-0903

Disclaimer

Dimensions and illustrative drawings contained herein are accurate to the company’s

knowledge at the time of printing, however specifications are subject to change without

notice.

Further Information

Please refer to the Chroma-Q Space ForceTM manual for more detailed information. A copy

of the manual can be found at the Chroma-Q website –

http://www.chroma-q.com/support/downloads.asp

Manual Yoke Space ForceTM Quick Start Guide V1.5 P/N: 650-0903

Approvals & Disclaimer

The information contained herein is offered in good faith and is believed to be

accurate. However, because conditions and methods of use of our products are

beyond our control, this information should not be used in substitution for

customer's tests to ensure that Chroma-Q products are safe, effective, and fully

satisfactory for the intended end use. Suggestions of use shall not be taken as

inducements to infringe any patent. Chroma-Q sole warranty is that the product

will meet the Chroma-Q sales specifications in effect at the time of shipment. Your

exclusive remedy for breach of such warranty is limited to refund of purchase price

or replacement of any product shown to be other than as warranted.

Chroma-Q reserves the right to change or make alteration to devices and their

functionality without notice due to on-going research and development.

The Chroma-Q Space Force has been designed specifically for the lighting

industry. Regular maintenance should be performed to ensure that the products

perform well in the entertainment environment.

If you experience any difficulties with any Chroma-Q products please contact your

selling dealer. If your selling dealer is unable to help please contact

[email protected]. If the selling dealer is unable to satisfy your servicing

needs, please contact the following for full factory service:

Outside North America: North America:

Tel: +44 (0)1494 446000 Tel: +1 416-255-9494

Fax: +44 (0)1494 461024 Fax: +1 416-255-3514

support@chroma-q.comsupport@chroma-q.com

For further information please visit the Chroma-Q website at www.chroma-com.

Chroma-Q is a trademark, for more information on this visit

www.chroma-q.com/trademarks.

The rights and ownership of all trademarks are recognized.
