Christopher Ward C65 Cranwell 2 Series Guide de l'utilisateur

C65 Cranwell Series 2

Owner’s Handbook

Time on your side

Your Christopher Ward watch has been designed in Britain

and engineered in Switzerland by highly talented craftspeople.

This ensures not only accurate and precise timekeeping, but also

brings a real pride of ownership that only watches of the highest

quality standards can hope to deliver.

You have made an investment, a good one, and the aim of this

manual is to help you make the most of that investment in what

we hope will be a lifetime of ownership.

Mike France

CEO & co-founder

2222

C65 Cranwell Series 2

Built in 1916 and used by the Royal Air Force (RAF) for training

purposes ever since, RAF College Cranwell is known as the world’s

rst air academy. So when we were looking for a name for a vintage-

inspired aviation watch, it was the obvious choice.

Modelled on the classic Jaeger-LeCoultre/IWC Mark XI 6B/346,

an aviator timepiece aimed at bomber navigators, your second-

generation Cranwell is a tribute to the pilots of the past that also

happens to be a modern precision timing instrument.

The dial, which hosts our twin-ags logo, has been completely

redesigned for clarity and authenticity. Its Arabic numerals are

printed in Super-LumiNova®lume for visibility after dark, while the

Super-LumiNova®Old Radium-coated quarter-hour batons and

inverted triangle add warmth as well as legibility.

As betting a eld watch, power comes courtesy of a COSC-

certied Sellita SW200-1, which is in the top six percent of Swiss-

made movements for accuracy. As with the regular SW200-1, this

chronometer version has a ‘hacking seconds’ function: a throwback

to the time when being able to ‘synchronise watches’ was vital in

operations.

Add in water-resistance to 150m and the heraldic badge of the RAF

deep-stamped into the backplate, and you’re witnessing a watch

that’s at home in the air, on land and at sea.

Features

• Swiss made

• 26 jewel self-winding mechanical

chronometer

• 38-hour power reserve

• Christopher Ward ‘Colimaçoné’ nish on

rotor

• Central hacking seconds

• Anti-shock system

• Brushed and polished marine-grade

stainless steel case

• Screw-down crown with red aluminium

ring and deep-stamped twin-ags motif

• High-denition RAF Heraldic badge on

screw-down backplate

• Glass box sapphire crystal

• Matte black dial with Super-LumiNova®

Grade X1

• Twin-ags logo at 12 o’clock

• Matte white hour, minute and seconds

hands

• Printed minute track

• Unique engraved individual serial

number

Technical Information

Calibre Sellita SW200 COSC

Case 316L stainless steel

Diameter 38mm

Height 11.9mm

Lug to lug 43.7mm

Weight 60g

Water resistance 15 ATM (150 metres)

Vibrations 28,800 per hour (4 Hz)

Timing tolerance -4/+6 seconds per day

Strap width: 20mm

1 32

How to operate your C65 Cranwell Series 2

The crown should sit ush to the case (position 1) in order to

maintain water resistance.

• First unscrew the crown anti-clockwise from the case to position

2for winding in power. Wind in a clockwise direction to re-power

the watch. Your C65 Cranwell Series 2 has a maximum power

reserve of 38 hours when fully wound. Normal wearing will allow

the rotor to start re-powering the watch over time after putting

on your wrist.

• Pull gently into position 3. This position is used for handsetting

and stopping of the seconds hand. For precise time setting

it is recommended to pass beyond the desired minute and to

set the hand backwards.

Setting the time

1. Crown screw-down position

2. Manual winding

3.Time setting

How to operate your C65 Cranwell Series 2

Straps and bracelets

As you would expect, we place as much

emphasis on the quality of our straps and

bracelets as we do our watches. We only

use the nest materials in our straps,

with quick-release pins also included for

your convenience.

The following guidelines explain how easy

it is to use, adjust and replace your

Christopher Ward strap or bracelet.

1. Locate the quick-release pin (or pins)

on your strap (A) or bracelet (B).

Pull the pin(s) inwards to detach.

2. To reattach your strap (C) or bracelet (D),

pull the pin(s) inwards, and align the

spring bars so that they click securely into

the lug holes on each side.

Using the quick-release pins on your strap/bracelet

A B C D

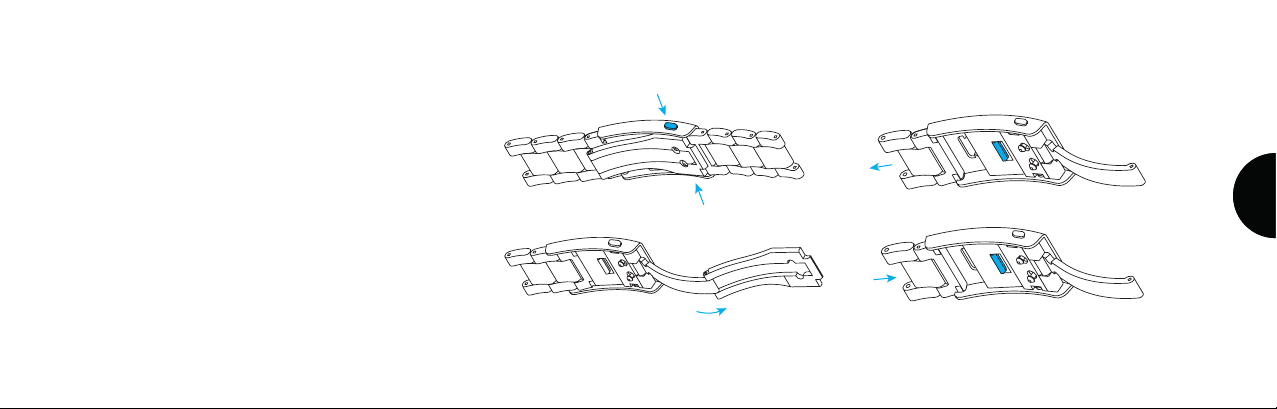

1. Press buttons to release.

2. Pull open the clasp.

3.There are ve micro adjustment positions,

which allows for a maximum extension of

10mm. To extend, pull the lever to unlock

and simultaneously pull on the bracelet

into the desired position.

4.To shorten, simply pull the lever to unlock

and push the bracelet back into the clasp.

How to use the micro adjustment on your bracelet

Water resistance

Although your watch has been through vigorous static pressure

testing, it is worth remembering that there are many variables that

can aect the water resistance of your watch. For instance, arm

movements during swimming and the sudden impact of diving

and water sports will drastically increase the pressure the watch

is under.

Wearing your watch in the bath, shower, or sauna can also have

an eect as a rapid increase in temperature can cause seals to

expand and in extreme cases, malfunction or create condensation.

For these reasons, the water resistance rating of your watch

(as shown) should only ever be considered a guideline and we

strongly recommend they are always adhered to.

How to operate your C65 Cranwell Series 2

1 ATM (10 metres)

Safe to wear your watch while

washing your hands with tap water

3 ATM (30 metres)

Washing your car and/or general

hose pipe usage

5 ATM (50 metres)

Water resistant to most household

shower units

15 ATM (150 metres)

Safe to use while snorkelling in

open water

30 ATM (300 metres)

Ideal for experienced divers and

those practising scuba-diving

60 ATM (600 metres)

Professional divers, experiencing

prolonged exposure underwater

100 ATM (1000 metres)

Professional deep sea diving
