Page 8
•
Place the bike on a stand and make sure that the front wheel is
not touching the ground.
•
Shift the bike into gear.
•
Turn the AWD switch to the on position and check to make sure
the AWD is engaged.
•
Grab the front wheel with two hands and try to spin it backwards.
The front wheel should spin backwards but require a large amount
of effort to do so. If the wheel will not break free, the clutch is set
too high. If the wheel turns backwards very easily, the clutch is set
too low.
•
If the clutch needs to be adjusted, pull the gas tank off the bike.
Loosen the set screw on the clutch locknut and turn the locknut in
or out a 1/2 turn at a time until the front wheel moves backward
with the correct amount of force. Make sure the set screw is posi-
tioned over a flat in the clutch hub and tighten the set screw down

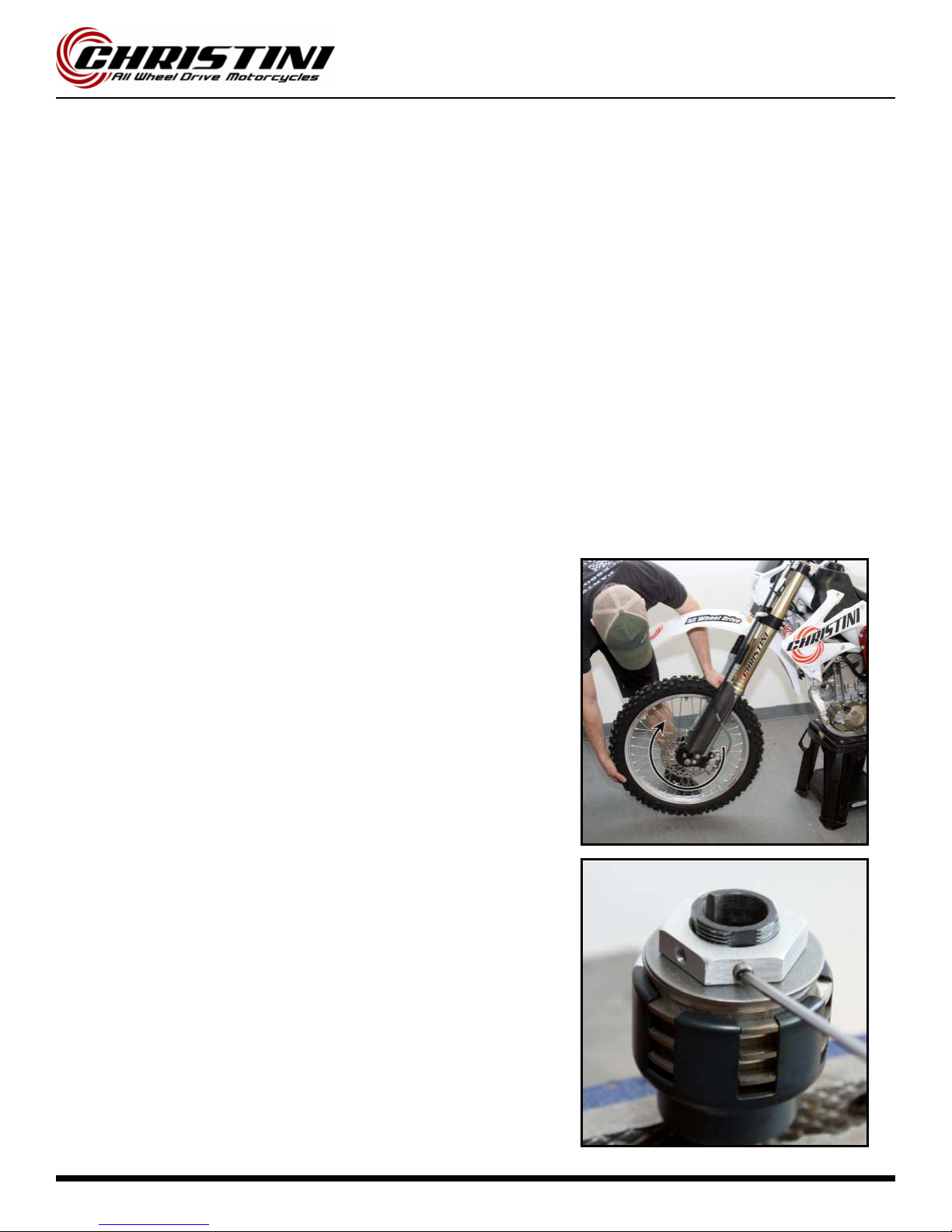

and reinstall the tank. (note: picture shows clutch off the bike for
clarity).
AWD Clutch Test
There are two ways to check that the clutch is set to the right torque. The first method is to take the clutch off the
bike and use the Christini AWD clutch tools and a torque wrench (see page 74). This is only recommended when the
clutch assembly is being rebuilt with new pads. The following test should be sufficient under most circumstances:
