Christie GraphXMASTER RPMS-D100U Manuel utilisateur

RPMS-D100U/UF,

CS50-D100U & CS70-D100U/UF

User’s Manual

Table of Contents

NOTE: Due to constant research, the information in this manual is subject to change without notice

54-017188-05P RPMS, CS50 & CS70 User’s Manual

Contents Page

1.1 Product Overview.......................................................................................1-1

1.2 Components................................................................................................1-2

1.3 Purchase Record and Servicing..................................................................1-2

2.1 Introduction ................................................................................................2-1

2.2 Source Connections....................................................................................2-1

2.3 Serial Port Connections..............................................................................2-8

2.4 Power Connection.....................................................................................2-10

2.5 Keypad Protocol.......................................................................................2-10

3.1 Introduction ................................................................................................3-1

3.2 Projector Basics..........................................................................................3-1

3.3 Using the Keypad .......................................................................................3-3

3.4 Navigating the Menus.................................................................................3-8

3.5 Using Inputs and Channels.......................................................................3-12

3.6 Adjusting an Image...................................................................................3-18

3.7 System Configuration...............................................................................3-35

3.8 System Communications ..........................................................................3-40

3.9 System Status ...........................................................................................3-43

3.10 Auto Setup..............................................................................................3-43

3.11 The Lamp Menu ....................................................................................3-44

3.12 Using Multiple Projectors.......................................................................3-48

3.13 Error Conditions.....................................................................................3-54

4.1 Warning and Guidelines.............................................................................4-1

4.2 Cleaning and Maintenance .........................................................................4-3

4.3 Replacing Keypad Batteries ....................................................................... 4-5

4.4 Lamp Replacement.....................................................................................4-5

4.5 Troubleshooting........................................................................................4-10

5.1 Specifications .............................................................................................5-1

Appendix A: Glossary..................................................................................... A-1

Appendix B: Auxiliary Fan Connector.............................................................B-1

Appendix C: Keypad Reference.......................................................................C-1

Appendix D: Serial Communication Cables ...................................................D-1

Appendix E: Optional Input Modules ..............................................................E-1

Appendix F: The Menu Tree............................................................................F-1

1INTRODUCTION

2SOURCE SETUPS

3OPERATION

4MAINTENANCE &

TROUBLESHOOTING

5SPECIFICATIONS

APPENDICES

Section 1

Introduction

RPMS, CS50 & CS70-D100U/UF User’s Manual 1-1

GraphXMASTER



RPMS-D100U/UF, CS50-D100U and CS70-D100U/UF products

are based on single chip DLP(Digital Light Processing) technology by Texas

Instruments with SXGA resolution.

The RPMS-D100U/UF (Rear Projection

Module) is a dual lamp projector that has

been specifically designed for rear screen

projection applications. This purpose-

built projector is designed with a flexible

mounting base so that it can be fitted

with various mounting systems. It can

also be configured for 0 degree or 90

degree projection. This flexibility makes the RPMS suitable for nearly any

application. Another feature of the RPMS is the built in 6-axis adjustment

mechanism, which allows for precise geometric alignment with the screen – an

important detail for rear screen tiling applications.

The CS50-D100U & CS70-D100U/UF display cubes are designed to suit many

different applications and are an ideal choice for rear projection tiled display walls in

control rooms and 24/7 monitoring applications. They provide uniform brightness

and ultimate color matching between screens to create impressive clear, sharp,

seamless images.

Key features (Refer to Section 5 for a complete list of Specifications)

◊SXGA (1280 x 1024) native resolution with other resolutions fully scaleable in

D100U models only.

◊Variable Brightness (dependant on lamp power and white boost setting)

◊User selectable dual lamp or single lamp operation modes

◊Automatic lamp switching for continuous operation

◊Intuitive user menu system

◊Input selection with keypad

◊Built-in RS-232 and RS-422 ports for computer and network projectors

◊6-Axis adjustment mechanism to fine tune image geometry

◊Low distortion lens (0.76:1 or 1.25:1)

◊Lens horizontal or lens vertical configurations (CS50/CS70, lens vertical)

◊50” – 120” diagonal image size (5:4 aspect ratio)

◊24-bit RGB display

◊Control with IR or wired keypad

◊Built in RS-232 for control via external computer, etc.

◊Modular, industrial design for ease of servicing and installation

1.1 Product

Overview

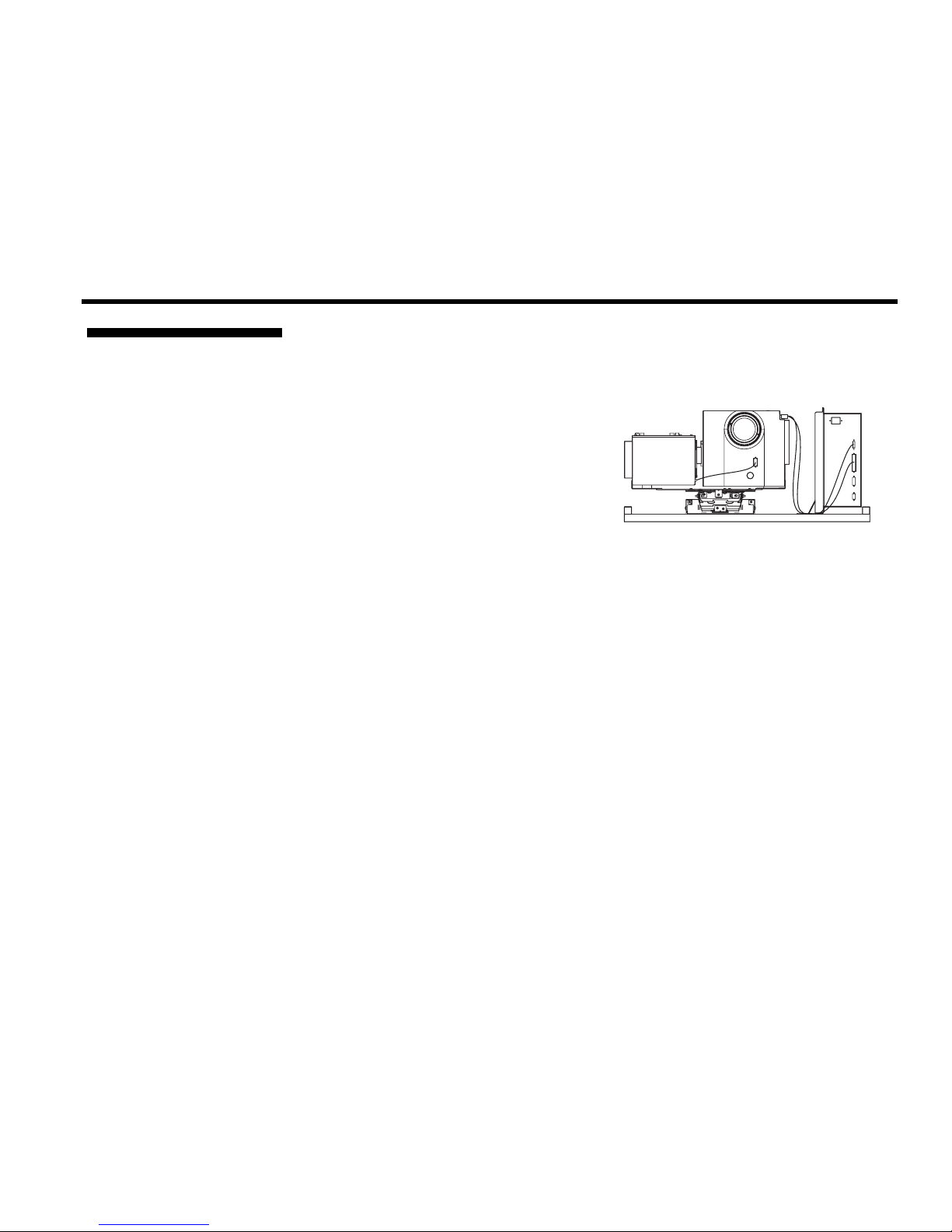

ure1.1 RPMS-D100U

INTRODUCTION

1-2 RPMS, CS50 & CS70-D100U/UF User’s Manual

The projector accepts an SXGA input signal from an external source. When in Dual

Lamp operation mode, the output from both lamps is directed to a 90°prism. Due to

the placement of the prism, in relation to the lamps, only half of the lamps output is

reflected and the light that doesn’t fall incident on the prism is passed on to the

parabolic reflectors inside each of the lamp modules. After one pass around the

system, the light joins the rest of the light that has been reflected off of the prism and

into the focusing lenses. The combined light is then passed through the integrator and

presented to a spinning color wheel where it is sequentially filtered into its RGB

color primaries and presented to the single DMD(in sequence). Reflected light

from the DMDchip then passes through the projection lens and is displayed on a

screen for viewing.

In Single Lamp operation mode, light is passed through the system in the same

manner, but only one lamp is on and light output is reduced by half.

NOTE: The RPMS and CS70 include a four-segment color wheel (red, green, blue

and white). The CS50 includes a six-segment color wheel without a white segment

(red, green, blue, red, green, blue).

Each projection system is provided with a User’s Kit, which includes items required

in the setup and maintenance of the projector. Check the User’s Kit to ensure you

have received the following items:

♦ User’s Manual

♦ Installation Guide

♦ IR remote keypad with batteries

♦ Assorted ball nose drivers

NOTE: Additional User’s Kits can be purchased separately. Reference CHRISTIE

#38-804867-01 for RPMS-D100U/UF and #38-804827-01 for CS50-D100U, CS70-

D100U/UF when ordering.

Whether the projector is under warranty or the warranty has expired, Christie’s

highly trained and extensive factory and dealer service network is always available to

quickly diagnose and correct projector malfunctions. Service manuals and updates

are available to service technicians for all projectors.

If you encounter any problems with the projector and require assistance, contact your

dealer or Christie Digital Systems. Fill out the information in the table below and

keep with your records for future reference.

Purchase Record

Dealer:

Dealer Phone Number:

Projector Serial Number:

Purchase Date:

Installation Date, if applicable:

NOTE: The projector serial number can be found below the adjustment mechanism on the mounting plate.

You can also register your product on-line by visiting www.christiedigital.com ⇒

Service and Support ⇒Product Registration. This will keep you in touch with all

the latest product information, such as updates, technical bulletins, downloads and

Christie newsletters.

How the projector works '

in Single or Dual Lamp

Modes

1.2 Components

1.3 Purchase

Record and

Servicing

Section 2

Source Setup

RPMS, CS50 & CS70-D100U/UF User’s Manual 2-1

This section provides instructions on how to connect various sources to the projector.

A variety of external sources can be connected to the input ports on the Electronics

Module (EM) main input panel. Figure 2.1. illustrates the differences between EM

models D100U (left) and D100UF (fixed frequency shown on right).

NOTE: The EM is vertically mounted to the projector’s mounting rails (orientation

illustrated in Figure 2.1.). For the purpose of illustrating source connections, it will

be shown in a horizontal position.

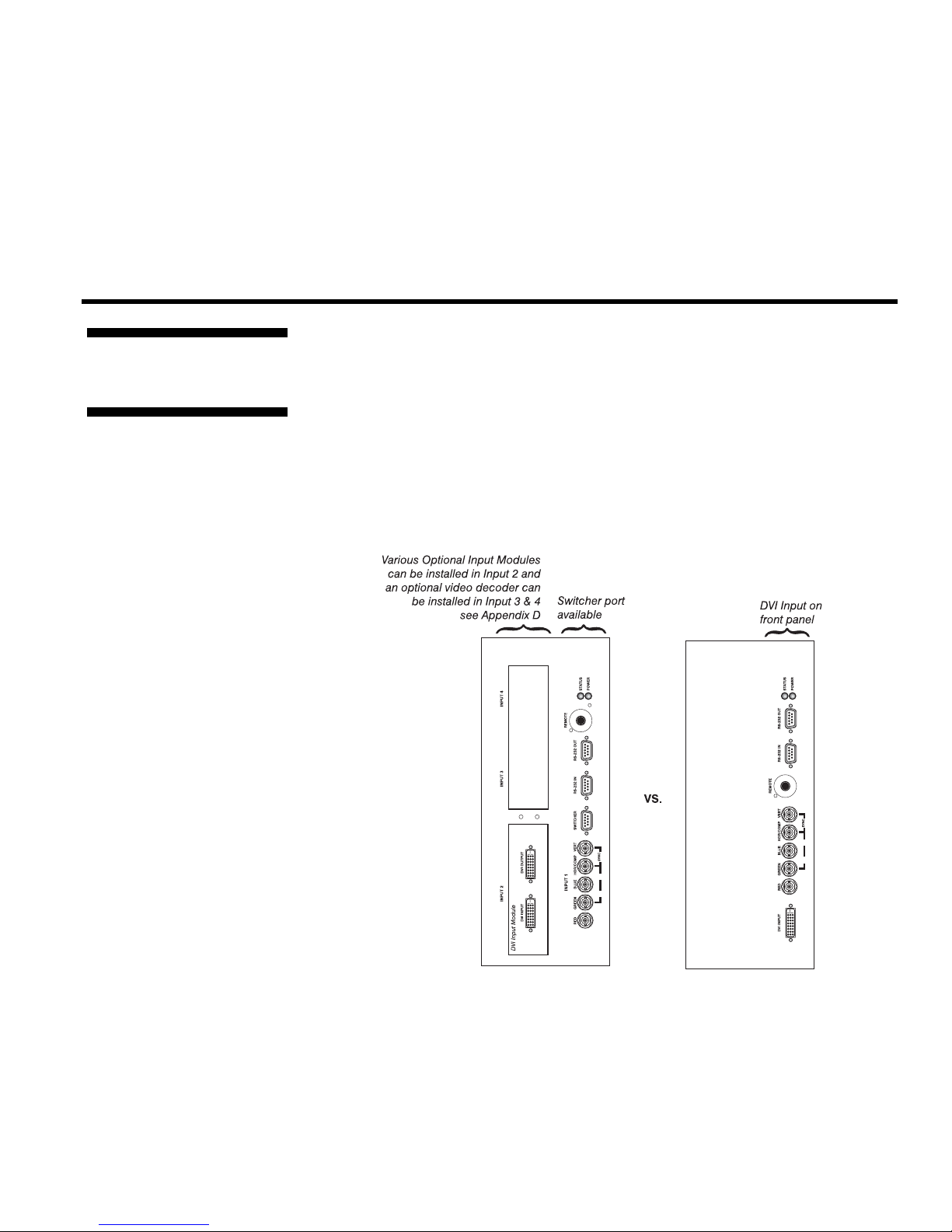

Figure 2.1. Comparing connector availability between model models

2.1. Introduction

2.2. Source

Connections

SOURCE SETUP

2-2 RPMS, CS50 & CS70-D100U/UF User’s Manual

Input 1 provides 5 BNC connectors for connecting to a variety of sources such as

VGA, SVGA, XGA, SXGA, Mac, PowerMac, DEC, Sun, SGI and others. This

projector supports multiple sync types with RGB signals: sync-on-green, composite

sync, and separate H & V syncs.

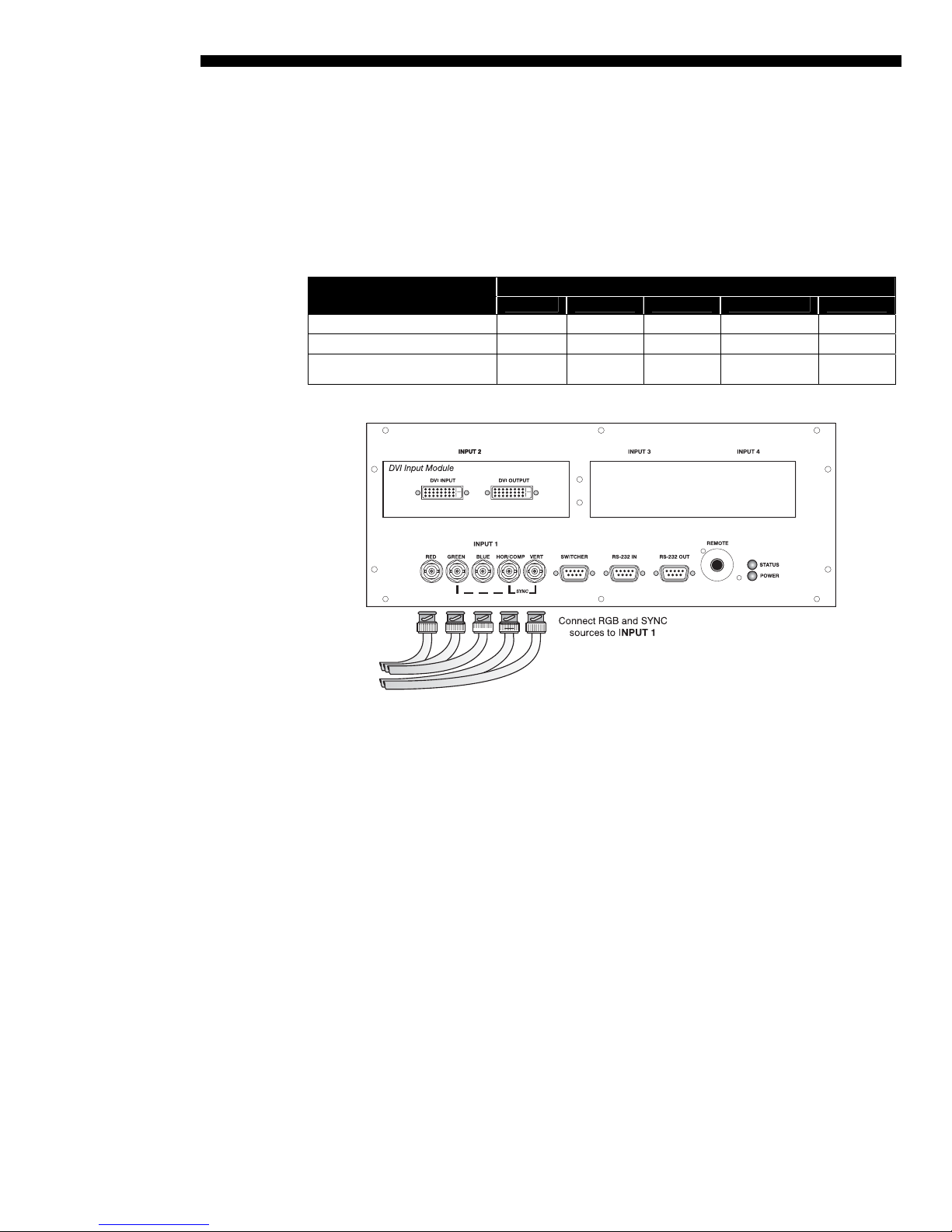

To properly connect RGB sources to INPUT 1 use the table and illustration below

(Figure 2.2.). NOTE: Front panel shown for the D100U model – connection is the

same for D100UF.

Connectors at INPUT 1 (5 BNCs)

RGB Source Outputs Red Green Blue Hor/Comp Vert

sync-on-green

√

composite sync

√

separate horizontal and

vertical sync

√

NOTE: Connect the Sync BNC inputs first.

Figure 2.2. Connecting RGBHV sources

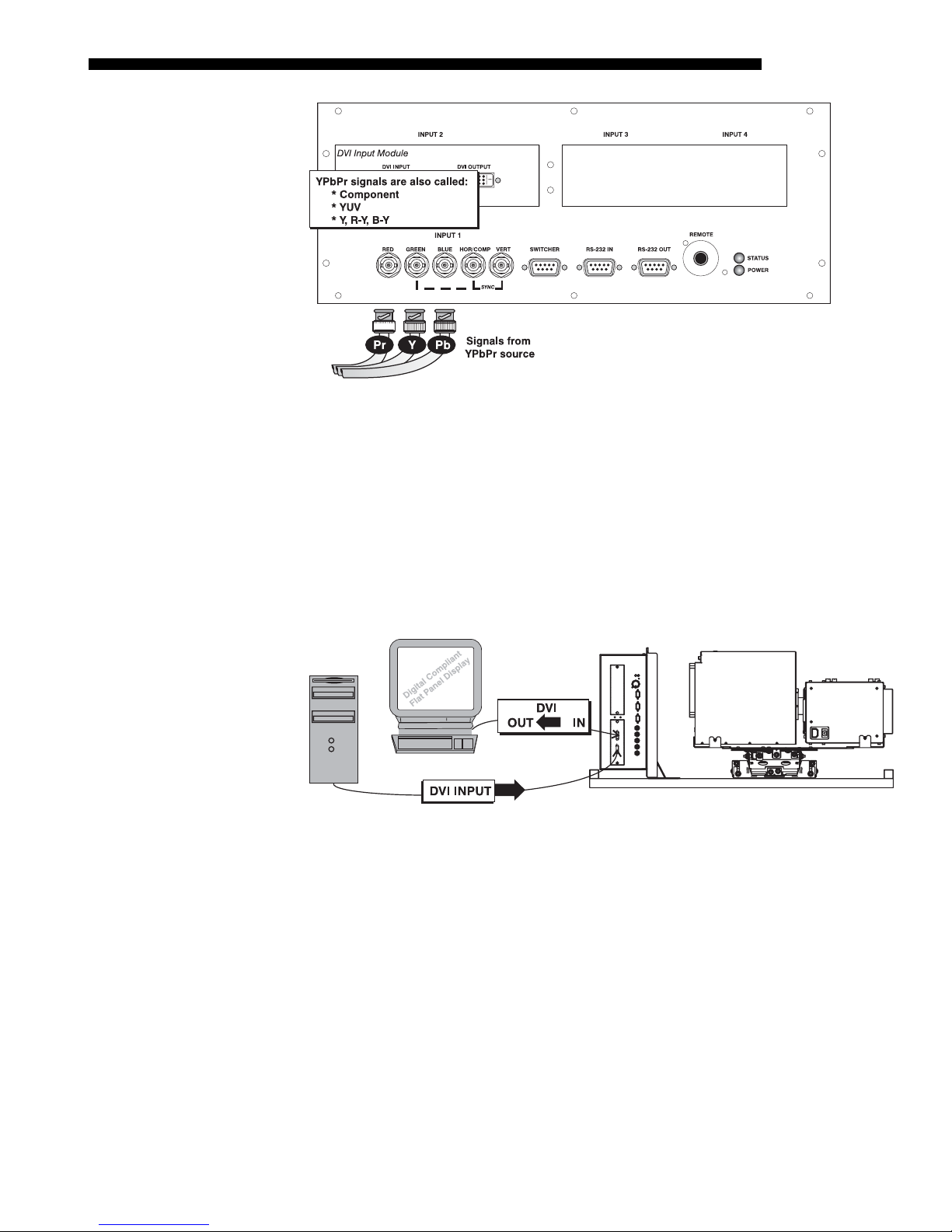

Connect a YPbPr signal (component video) to INPUT 1. See Figure 2.3.

NOTES: 1) Not applicable to D100UF models. 2) If, for some reason, the projector

fails to recognize a YPbPr signal, specify this Color Space option within the Image

Settings menu. 2) Do not connect digital component signals to INPUT 1. Use the

appropriate digital interface installed at INPUT 2.

RGBH

(5 BNCs) '

Com

onent Video (YPbPr) '

SOURCE SETUP

RPMS, CS50 & CS70-D100U/UF User’s Manual 2-3

Figure 2.3. Connecting Component Video Sources

The DVI Input module installed in INPUT 2 displays digital video input signals

conforming to the DVI (Digital Visual Interface) standard. This is a standard module

in D100U projector models only.

DVI Connection for D100U models

To connect an incoming digital video signal to the projector, connect the cable

running from the source to the DVI input connector at Input 2 - the DVI output

adjacent to the DVI input connector remains empty. If you want to loop the source

through to another display device, connect a cable from the DVI output connector

(that was empty) to a DVI input connector on the digital display.

Figure 2.4. Connecting a Digital Video Input Signal

DVI Digital Video Signals '

SOURCE SETUP

2-4 RPMS, CS50 & CS70-D100U/UF User’s Manual

NOTE: The DVI output connector (J94) on the output panel is used to connect the

Projection Head Module (PHM) and Electronics Module (EM).

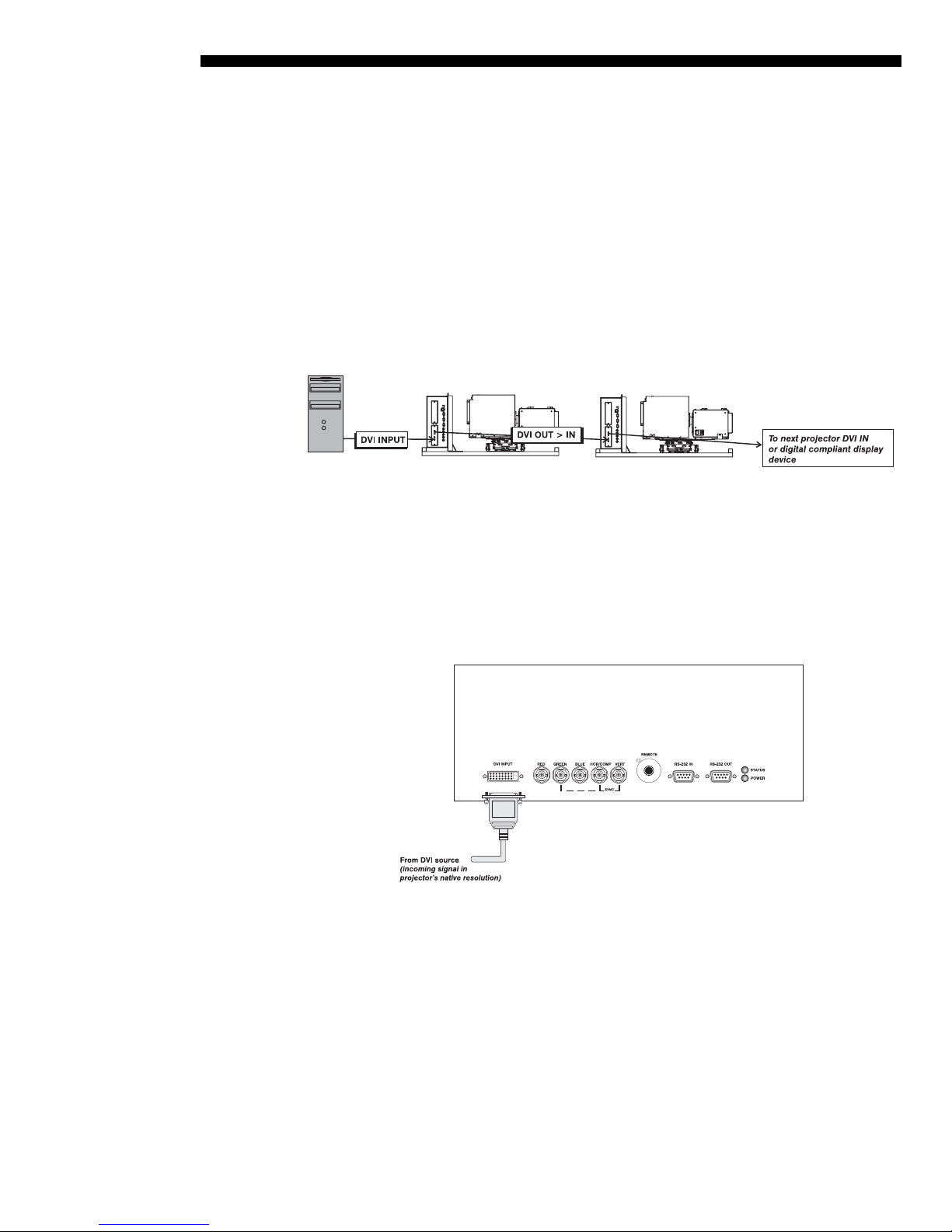

DVI Loop Through for D100U models

To loop a single incoming digital video input signal (connected to the DVI input)

through to another projector connect a cable from the source to the DVI input

connector on the main input panel. Take another cable and connect it to the DVI

output connector (adjacent to DVI input) and connect it to the DVI input connector of

the next projector. Continue looping connection to all projectors – your last projector

will have an empty DVI output connector.

NOTES: 1) When looping a DVI input signal, all projectors will display the same

data from that one source.

Figure 2.5. Loop Digital Video Input Signals

DVI Connection for D100UF models

The DVI input connector available in D100UF models accepts DVI standard input

signals in the projector’s native resolution only. No loop-through or resizing ability

available on these projectors.

Typical connection to this port is shown in Figure 2.6.

Figure 2.6. Connecting a Digital Video Input Signal to RPMS-500Xef

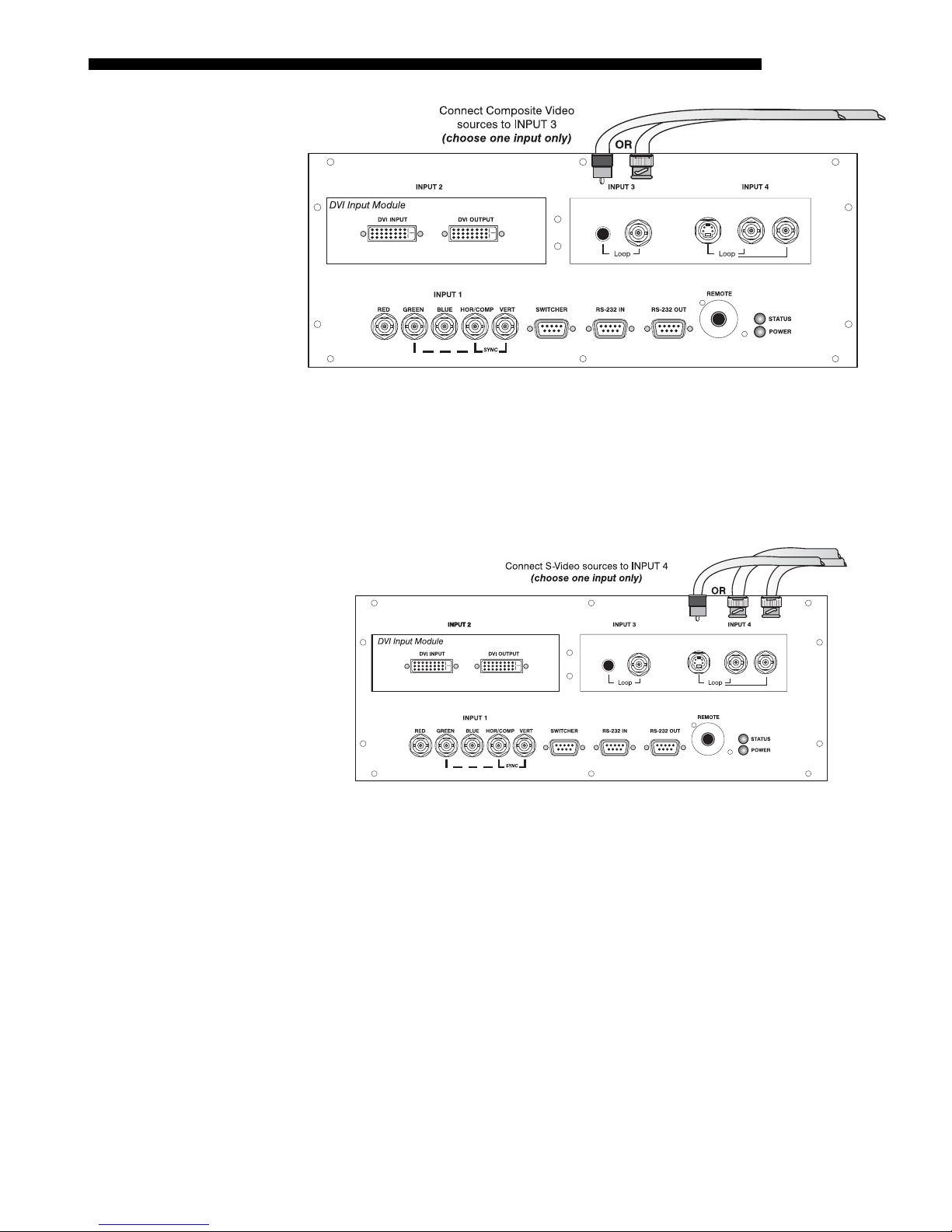

Connect a composite video input to either the BNC connector or the RCA jack

provided on the video decoder module (INPUT 3).

NOTE: 1) Requires Optional Video Decoder (38-804600-01). 2) If you want to loop a

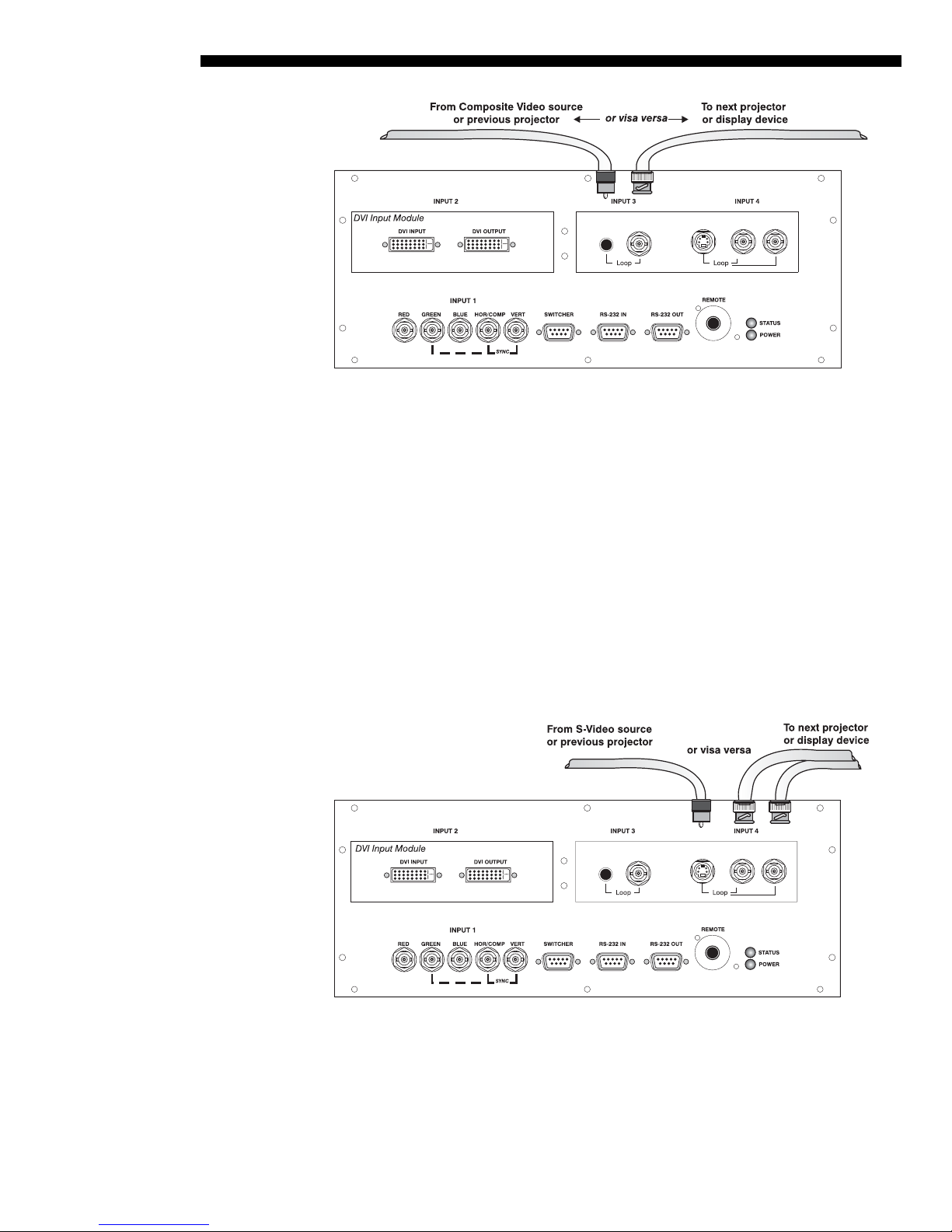

composite signal through to another projector or display device, see Video Loop

Through later in this section. 2) Not applicable to D100UF.

Com

osite Video '

SOURCE SETUP

RPMS, CS50 & CS70-D100U/UF User’s Manual 2-5

Figure 2.7. Connecting Composite Video Sources

Connect an S-Video input to either the 4-pin mini DIN connector or the Y and C

BNC connectors provided on the video decoder module (INPUT 4).

NOTE: 1) Requires Optional Video Decoder module (38-804600-01). 2) Not

applicable to D100UF.

Figure 2.8. Connecting S-Video Sources

To loop a single incoming video input signal (connected at the video decoder)

through to another projector or display device, use the empty connector(s) adjacent to

this same input as described below.

Composite Video Loop Through

CONNECTIONS: From your source, connect a composite video signal to INPUT 3 using

either the small RCA plug or the adjacent BNC. Connect a second cable from

whichever INPUT 3 connector is free to one of the composite video inputs of the next

display device or projector. Continue this looping method for each projector, using

either the phono-plug or the adjacent BNC as input into INPUT 3, then using the other

connector as an output (i.e., loop through). Whether you use the BNC or the phono

plug as input or output depends on the type of cable you have on hand and what type

of connectors are on each end.

S-Video

Video Loo

Throu

h '

SOURCE SETUP

2-6 RPMS, CS50 & CS70-D100U/UF User’s Manual

Figure 2.9. Composite Video Loop Through

VIDEO TERMINATION: In the Video Options menu (Image Settings), make sure Video

Termination is checked for the final projector only. All other projectors must have

this option unchecked in order for the signal to continue. For other types of display

devices in the chain, typically a “Hi-Z” switch position is needed.

S-Video Loop Through

CONNECTIONS: From your source, connect an S-video source signal to INPUT 4 using

either the 4-pin mini DIN or the 2 adjacent BNCs labeled Y and C. Connect a second

cable from whichever INPUT 4 connector is free to one of the S-video inputs of the

next display device or projector. Continue this looping method for each projector,

using either 4-pin mini DIN or the 2 adjacent BNCs as input into INPUT 4, then using

the other connector(s) as an output (i.e., loop through). Whether you use 4-pin mini

DIN or the 2 adjacent BNCs as input or output depends on the type of cable you have

on hand and what type of connectors are on each end.

Figure 2.10. S-Video Loop Through

VIDEO TERMINATION: In the Video Options menu (Image Settings), make sure Video

Termination is checked for only the final projector. All other projectors must have

this option unchecked in order for the signal to continue. For other types of display

devices in the chain, typically a “Hi-Z” switch position is needed.

SOURCE SETUP

RPMS, CS50 & CS70-D100U/UF User’s Manual 2-7

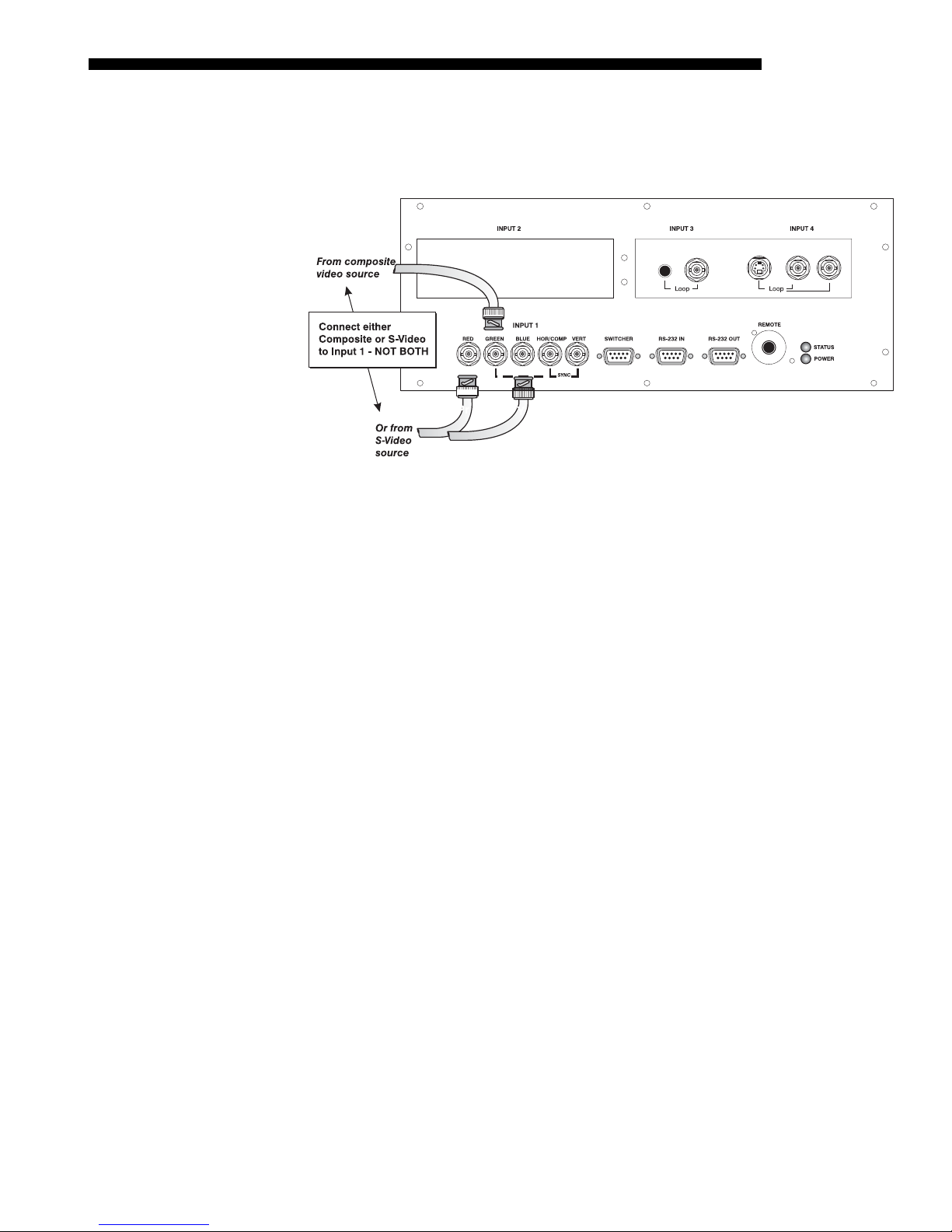

If you want to use an extra video source in addition to the video source(s) connected at

INPUT 3 or INPUT 4 connect either a Composite or S-Video source to INPUT 1as shown in.

Do not connect both types here simultaneously. NOTE: For additional video inputs remove

the DVI Input module and install an optional Composite/S-Video Input Module at INPUT 2.

Figure 2.11. Connecting Extra Video

Christie offers optional modules that allow you accommodate different signal types,

whether analog or digital. Any one of these modules can be installed in D100U

models, in the area labeled INPUT 2. They include:

• RGB 500 Input Module (38-804606-xx)

• RGB 400 Active Loop Thru Input Module (38-804607-xx)

• RGB 400 Buffered Amplifier Input Module (38-804610-xx)

• Composite/S-Video Input Module (38-804608-xx)

• PC250 Analog Input Module (38-804609-xx)

• Serial Digital Input Module (38-804602-xx)

• Digital HDTV Input Module (38-804611-xx)

• Video Decoder Module (38-804600-01)

NOTES: 1) Connect analog HDTV signals directly to INPUT 1 or to any “RGB” input

module installed at INPUT 2—the optional HDTV Input Module used in earlier

Christie projector models is not needed or recommended. 2) See Appendix E,

Optional Input Modules for a brief description of each interface.

You can use one or more external Marquee



Signal Switchers or a third party

switcher in order to significantly increase the number of sources you can select. If

you are using a Marquee



Signal Switcher, connect the switcher’s RGB output to

INPUT 1 and connect an RS-232 serial communication cable between the switcher and

the projector serial port labeled SWITCHER (see Figure 2.12). The switcher

communication link (permanently set at 9600 baud) enables you to access inputs

connected to the switcher in the same manner as those connected directly to the

projector. For most other third-party switchers, connect and access sources according

to the documentation provided with that switcher. Use high quality shielded cables.

NOTE: Make sure any Marquee



Signal Switcher connected directly to the

projector is set as “Switcher #1”. If it is not, unplug the switcher and turn the

thumbwheel to “1” before plugging back in and connecting to the projector and/or

network.

Extra Video

– COMPOSITE OR S-VIDEO

tional In

uts '

Connectin

a switcher '

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Christie Projecteur

Christie

Christie Solaria CP2210 Manuel utilisateur

Christie

Christie Mirage 2000 Manuel utilisateur

Christie

Christie D Series Manuel utilisateur

Christie

Christie Roadster S+ Manuel utilisateur

Christie

Christie LW650 Manuel utilisateur

Christie

Christie CP2420-Xe Manuel utilisateur

Christie

Christie LX1750 Instructions d'installation et d'entretien

Christie

Christie D4K35 Manuel utilisateur

Christie

Christie CP2320-RGB Instructions de montage

Christie

Christie LX400 Manuel utilisateur

Christie

Christie Solaria CP2210 Manuel utilisateur

Christie

Christie LX750 Manuel utilisateur

Christie

Christie Vivid LX35 Manuel utilisateur

Christie

Christie LW600 Manuel utilisateur

Christie

Christie Crimson Series Instructions de montage

Christie

Christie GS Series Manuel d'utilisation et d'entretien

Christie

Christie IMB-S2 Manuel de la liste des pièces

Christie

Christie DS+ Series Manuel utilisateur

Christie

Christie CineLife+ CP4415-RGB Manuel utilisateur

Christie

Christie Mirage S+3K Manuel utilisateur

Christie

Christie CP2215 Manuel utilisateur

Christie

Christie LW720 Manuel utilisateur

Christie

Christie LX1750 Manuel utilisateur

Christie

Christie SXGA+ Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
