Q Series

DWU1052/DHD1052

Instant Stack User Manual

020-000856-01

DWU1052/DHD1052

User's Manual - Instant Stack Guide 020-000856-01 Rev.1 (12-2015)

LIT MAN USR DWU/DHD1052 ISG

Projector

DWU1052/DHD1052

User's Manual (detailed)

Instant Stack Guide

Thank you for purchasing this product.

WARNING ►Before using this product, be sure to read all manuals for this

product. After reading them, store them in a safe place for future reference.

►Follow all the instructions in the manuals or on the product. The manufacturer

assumes no responsibility for any damage caused by mishandling that is beyond

normal usage dened in the manuals.

NOTE • The information in this manual is subject to change without notice.

•The illustrations in this manual are for illustrative purposes. They may differ

slightly from your projector.

• The manufacturer assumes no responsibility for any errors that may appear in

this manual.

• The reproduction, transfer or copy of all or any part of this document is not

permitted without express written consent.

Trademark acknowledgment

All the trademarks in this manual are the properties of their respective owners.

Various symbols are used in this manual. The meanings of these symbols are

described below.

About this manual

WARNING

CAUTION

NOTICE

This symbol indicates information that, if ignored, could possibly

result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly result

in personal injury or physical damage due to incorrect handling.

This entry notices of fear of causing trouble.

Refer to the pages written following this symbol.



Features

This projector can be used with another projector of the same model to project an

image on the same screen using the Instant Stack feature.

The two projectors can be operated simultaneously to make the image brighter.

Moreover, if you connect two projectors with RS-232C cross-over cable, it turns to

an intellectual stacking system. These features, generically called Instant Stack,

provide you with the broad use.

DWU1052/DHD1052

User's Manual - Instant Stack Guide 020-000856-01 Rev.1 (12-2015)

LIT MAN USR DWU/DHD1052 ISG

  

1. Introduction ........................3

1.1 Basic information

and preparations .............................3

Instant Stack ........................................3

Intellectual Stack and Simple Stack.....3

Remote control for Intellectual Stack

and Simple Stack .............................3

2. Installation ..........................5

2.1 Preparing for Intellectual Stack.....5

2.2 Installing

the rst projector (Set A) ................6

Deciding installation position ...............6

Setting up Set A...................................6

2.3 Installing

the second projector (Set B) ..........8

Deciding on the installation position ....8

Connecting projectors..........................8

Setting up Set B...................................8

2.4 Conrming Main

and Sub settings............................10

2.5 Fine adjusting

image position ............................... 11

For Intellectual Stack users ............... 11

For Simple Stack users......................12

3. STACK menu settings......13

3.1 Displaying STACK menu ............13

3.2 Selecting Main, Sub or off ..........14

3.3 Selecting input source for Sub....17

3.4 Exiting Intellectual

Stack menu ...................................18

STACK menu .....................................18

Dialog from STACK menu..................18

3.5 Important information

for Intellectual Stack ......................19

4. Connecting cables ...........22

4.1 Connecting an RS-232C cable...22

4.2 Connecting signal cables............23

Inputting an image from Main to Sub.23

Inputting an image

to Sub and Main individually...........23

5. Setting input ports

using menu.........................24

5.1 Preparing for menu operations...24

5.2 Checking Main projector's

operating status.............................24

5.3 Setting the menu ........................25

Inputting an image from Main to Sub

- Computer signal ...........................25

Inputting an image from Main to Sub

- Video signal

(either component or video) ...........26

Inputting an image to

Sub and Main individually...............26

6. Restrictions

on Schedule function ........28

7. Troubleshooting ...............30

Contents

DWU1052/DHD1052

User's Manual - Instant Stack Guide 020-000856-01 Rev.1 (12-2015)

LIT MAN USR DWU/DHD1052 ISG

(continued on next page)

1. Introduction

1.1 Basic information and preparations

Instant Stack

Instant Stack is a feature that allows you to superimpose images projected from

two projectors easily.

Intellectual Stack and Simple Stack

Instant Stack includes the following two features.

When two projectors are connected using an RS-232C cable with necessary

settings performed on the projectors, these two projectors will automatically

operate in synchronization with each other according to the settings.

This is known

as Intellectual Stack in this manual.

The two projectors operate individually without the RS-232C connection. This is

known as Simple Stack in this manual.

Remote control for Intellectual Stack and Simple Stack

For Intellectual Stack, one projector is set as Main and the other is set as Sub.

Only the Main projector is capable of receiving the remote control signals.

Operate

the projectors from the control panel of the Main projector or with the remote control

pointing at the Main projector. For details on operating by remote control and from the

control panel, refer to 3.5 Important Information for Intellectual Stack.

For Simple Stack, both projectors can receive the remote control signals. To avoid

incorrect operations with the remote control, it is recommended to operate with

the control panel or a wired remote control. KEYLOCK or REMOTE ID function is

also available. (Operating Guide → OPTION menu)

If you require more information on Instant Stack, consult your dealer.

CAUTION ► Place the projector in a cool place with sufcient ventilation.

Keep a space of 50 cm or more between a side of the projector and other

objects such as a wall. Keep a space of 50 cm or more between the two

projectors, especially if you are installing the projectors side by side. Take care

not to let the hot exhaust air from other projectors enter the intake vents of the

projector.

WARNING ► Do not place projectors directly on top of other projectors.

Introduction

DWU1052/DHD1052

User's Manual - Instant Stack Guide 020-000856-01 Rev.1 (12-2015)

LIT MAN USR DWU/DHD1052 ISG

1.1 Basic information and preparations (continued)

NOTICE ► Intellectual Stack can be operated only in pairs of the same model

projectors.

► A maximum of two projectors can be used as Intellectual Stack.

► Use the same type of lens for both projectors.

► Set the same Color Wheel settings for both projectors.

► Depending on the installation and surrounding environment, images

projected from the two projectors may not superimpose well enough. The

images cannot superimpose well enough especially when the screen is slanted,

deformed or the surface is uneven.

• Images projected immediately after turning on the projectors are unstable due

to rising internal temperature. Wait for more than 20 minutes before starting to

adjust the superimposed images.

• The image positions may shift due to temperature change, vibration, or shock

caused by hitting the projector. Install the projectors in a stable environment

when using Instant Stack. If the image positions are shifted, readjust the

images. (

6, 8, 11

)

• The image positions may shift over time due to the tension and the weight of

the connecting cables. Make sure not to impose any load on the projectors

when arranging the cables.

• When two projectors are connected using the RS-232C cable, the Main

projector can control the Sub projector. This feature is known as Intellectual

Stack. (

) When Intellectual Stack by means of RS-232C feature is used,

RS-232C communication cannot be used to control the projector. If you want

to control the projectors from a computer, use the LAN connection that is

connected to any of the projectors.

• When Intellectual Stack is used, the operations or settings of some functions

are restricted. Refer to this manual for details. (

)

DWU1052/DHD1052

User's Manual - Instant Stack Guide 020-000856-01 Rev.1 (12-2015)

LIT MAN USR DWU/DHD1052 ISG

For safety reasons, read 1.1 Basic information and preparations (

3, 4

) carefully

before installation. In addition, take note of the following for proper use of Instant

Stack.

●Use the same model projectors.

●Arrange the projectors side by side.

●Make sure the projection screen is

perpendicular to the projectors.

●Project images larger than the recommended

screen size shown in the table. The greater

the distance between the projectors, the

larger the screen size needs to be.

● To avoid incorrect operations with the remote control, it is recommended to

operate with the control panel or a wired remote control if you control one

projector with the remote control during installation. KEYLOCK or REMOTE ID

function is also available. (Operating Guide → OPTION menu)

●Images from Set A and Set B may superimpose well but the image positions

can shift over time. Readjust to superimpose the images.

2.1 Preparing for Intellectual Stack

When using Intellectual Stack via RS-232C connection, ensure the following set-

tings are set on the two projectors. Otherwise, the Intellectual Stack menu cannot

be operated.

●STANDBY MODE in SETUP menu: NORMAL

(Operating Guide → SETUP menu)

●COMMUNICATION TYPE under COMMUNICATION in SERVICE menu: OFF

(Operating Guide → OPTION menu)

●STACK LOCK in SECURITY menu: OFF

When STACK LOCK is set to on, menus related to Instant Stack cannot be operated.

You must set it to off during installation and menu setting.

(1) Use the ▲/▼/◄/► buttons to go into the following menu.

ADVANCED MENU > SECURITY (> ENTER PASSWORD) > STACK LOCK

STACK LOCK dialog will appear on screen. (Operating

Guide → SECURITY menu)

(2) Use the ▲/▼ buttons to highlight OFF, and press the ►

button to complete the setting.

2. Installation

L (50cm or more)

Projector

Screen

size

0 ± 10cm

L: distance [cm] Recommended screen size [inch]

50 270

75 330

100 390

Installation

DWU1052/DHD1052

User's Manual - Instant Stack Guide 020-000856-01 Rev.1 (12-2015)

LIT MAN USR DWU/DHD1052 ISG

NOTE • Set the tilt angle of Set A to within 5 degrees from the level line.

(continued on next page)

Deciding on the installation position

Decide on the position of Set A and its projection angle. (User’s Manual

(concise) →Arrangement and Adjusting the projector’s elevator)

2.2 Installing the rst projector (Set A)

Setting up Set A

2. Run the INSTALLATION setting if necessary as it may change the

image position. (Operating Guide →SETUP menu )

3. Adjust the image of Set A to t the screen with the ZOOM, FOCUS and LENS

SHIFT features. (Operating Guide →Adjusting the lens)

Adjust the image position using KEYSTONE and 3D KEYSTONE if necessary.

(Operating Guide →EASY MENU or SETUP menu)

NOTE • KEYSTONE, 3D KEYSTONE, and WARPING functions cannot be

used at the same time. Use an appropriate function.

• If using Simple Stack, go to 2.3 Installing the second projector (Set B). (

)

1. Turn on Set A.

WARNING ►You can

install the projector for any direction with specied

mounting accessories. Consult with your dealer about this installation.

Installation

DWU1052/DHD1052

User's Manual - Instant Stack Guide 020-000856-01 Rev.1 (12-2015)

LIT MAN USR DWU/DHD1052 ISG

4. Display the menu with the MENU button. (Operating Guide →Using the

menu function)

5. Use the ▲/▼/◄/► buttons to go into the following menu.

ADVANCED MENU > OPTION

> SERVICE > COMMUNICATION

> STACK

STACK menu will appear on screen.

(Operating Guide →OPTION menu)

NOTE • To avoid incorrect operations with the remote control, it is

recommended to operate with the control panel or a wired remote control.

KEYLOCK or REMOTE ID function is also available.

7. After pressing the ► button, a dialog to

conrm whether or not to save the setting is

displayed.

Press the ► button to complete the setting. (

)

6. Use the ▲/▼ buttons to highlight STACK

MODE, and press the ► button to display

the STACK MODE dialog.

Highlight SUB pressing the ▲/▼ buttons,

and press the ► button.

2.2 Installing the rst projector (Set A) - Setting up Set A (continued)

Installation

DWU1052/DHD1052

User's Manual - Instant Stack Guide 020-000856-01 Rev.1 (12-2015)

LIT MAN USR DWU/DHD1052 ISG

2.3 Installing the second projector (Set B)

Connecting projectors

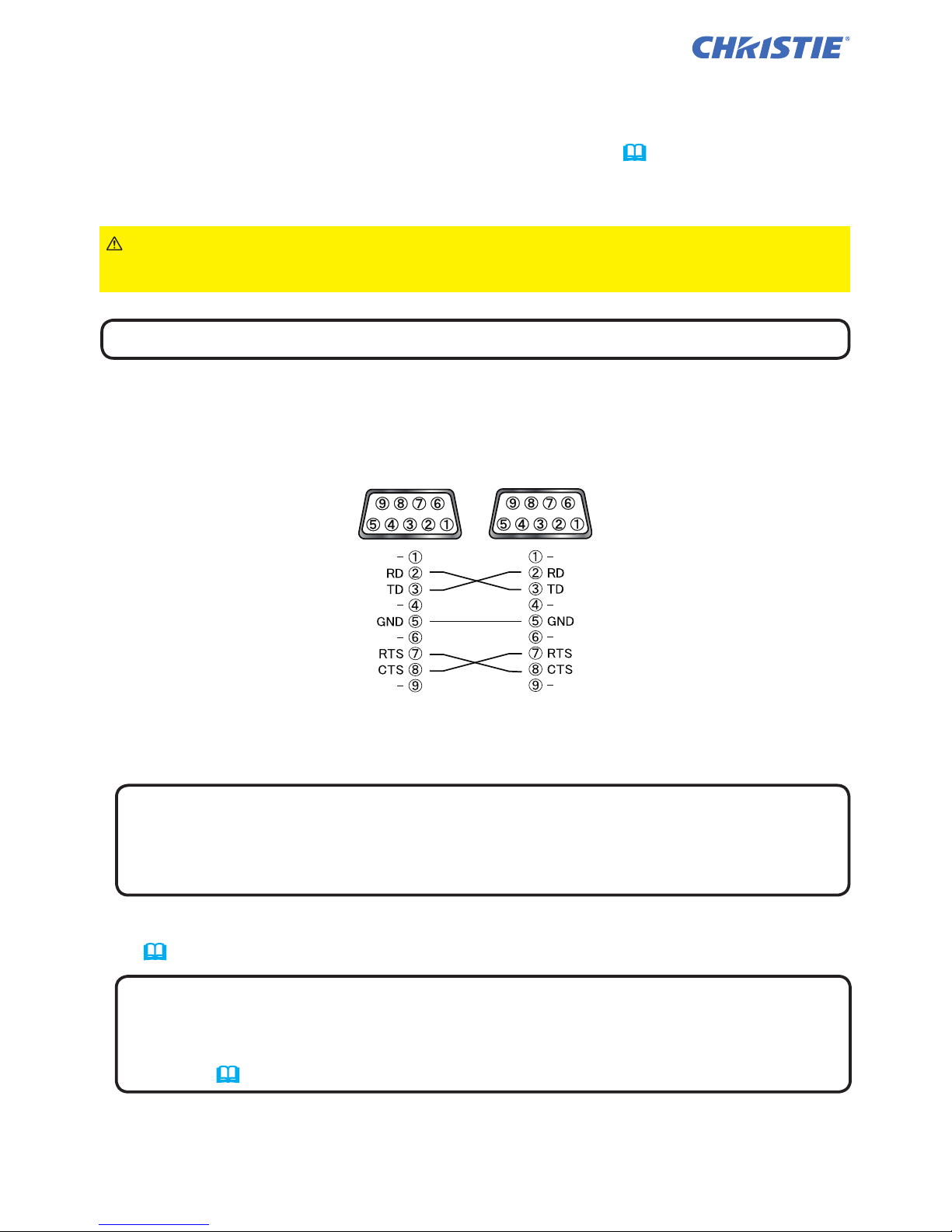

To use Intellectual Stack, connect an RS-232C cross cable between the CONTROL

port of Set A and Set B.

(continued on next page)

NOTE • KEYSTONE, 3D KEYSTONE, and WARPING functions cannot be

used at the same time. Use an appropriate function.

•Run the INSTALLATION setting rst if necessary as it may change the image

position. (Operating Guide →SETUP menu)

2. Reset the adjustment of KEYSTONE and 3D KEYSTONE on Set B.

(Operating Guide →EASY MENU or SETUP menu)

1. Turn on Set B.

NOTE • After turning on Set B, make sure the image of Set Bis not

signicantly tilted compared to the image of Set A. If the image is overly tilted,

rotate the elevator feet of Set B to adjust the angle such that the tilt is just

about right.

Setting up Set B

NOTE • Set the tilt angle of Set B to within 5 degrees from the level line.

Deciding on the installation position

Decide on the position of Set B and its projection angle. (User’s Manual

(concise) →Arrangement and Adjusting the projector’s elevator)

WARNING ►You can

install the projector for any direction with specied

mounting accessories. Consult with your dealer about this installation.

Installation

DWU1052/DHD1052

User's Manual - Instant Stack Guide 020-000856-01 Rev.1 (12-2015)

LIT MAN USR DWU/DHD1052 ISG

7. After pressing the ► button, a dialog to

conrm whether or not to save the setting is

displayed.

Press the ► button to complete the setting.

(

)

6. Use the ▲/▼ buttons to highlight STACK

MODE, and press the ► button to display the

STACK MODE dialog.

Highlight MAIN with the ▲/▼ buttons, and

press the ► button.

2.3 Installing the second projector (Set B) - Setting up Set B (continued)

4. Display the menu with the MENU button. (Operating Guide →Using the

menu function)

5. Use the ▲/▼/◄/► buttons to go into the following menu.

ADVANCED MENU > OPTION

> SERVICE > COMMUNICATION

> STACK

STACK menu will appear on screen.

(Operating Guide →OPTION menu)

3. Adjust the image size and position of Set B with the ZOOM, FOCUS and

LENS SHIFT features such that the image can be superimposed to the image

of Set A. (Operating Guide →Adjusting the lens)

NOTE • Fine adjustment of the image size and position afterwards with

functions such as KEYSTONE and 3D KEYSTONE does not increase the

image size. You must have the image of Set B completely overlapping the

image of Set A.

• When controlling Set B with the remote control, Set A may also respond to

the remote control. To avoid incorrect operations with the remote control, it

is recommended to operate with the control panel or a wired remote control.

KEYLOCK or REMOTE ID function is also available.

• If using Simple Stack, go to For Simple Stack users. (

)

Autres manuels pour DWU1052

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Christie Projecteur

Christie

Christie Roadster X4 Manuel utilisateur

Christie

Christie LX1750 Manuel utilisateur

Christie

Christie LX1500 Manuel utilisateur

Christie

Christie Mirage SST Manuel d'utilisation et d'entretien

Christie

Christie Captiva Series Manuel utilisateur

Christie

Christie Mirage 4000 Manuel utilisateur

Christie

Christie TPC-60 Manuel utilisateur

Christie

Christie Solaria CP2210 Manuel utilisateur

Christie

Christie DHD700-GS Manuel utilisateur

Christie

Christie 103-011100-01 Manuel utilisateur

Christie

Christie LX750 Manuel utilisateur

Christie

Christie Solaria CP2210 Manuel utilisateur

Christie

Christie H Series Manuel utilisateur

Christie

Christie CAPTIVA DUW350S Manuel utilisateur

Christie

Christie CP2309-RGB Instructions de montage

Christie

Christie CineLife+ RGB PLF Instructions de montage

Christie

Christie Mirage S+/HD/WU Manuel utilisateur

Christie

Christie CineLife+ CP4415-RGB Manuel utilisateur

Christie

Christie IMB-S2 Manuel de la liste des pièces

Christie

Christie P35GPSZ-MT Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Christie

Christie Christie LW25U Manuel utilisateur

Christie

Christie Mirage 10000 Manuel utilisateur

Christie

Christie Roadster S9 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
