Introduction

This manual is intended for professionally trained operators of Christie high-brightness projection

systems.

The illustrations in this document are for representation only and may not depict your projector model

exactly.

Only Christie qualified technicians who are knowledgeable about the hazards associated with laser use,

high-voltage, and the high temperatures generated by the projector lasers are authorized to

assemble, install, and service the projector.

For complete D4K40-RGB product documentation and technical support, go to

www.christiedigital.com.

Safety and warning guidelines

Read all safety and warning guidelines before installing or operating the projector.

This projector is intended for use in a non-cinema environment.

This projector must be operated in an environment that meets the operating range specification. Use

only the attachments and/or accessories recommended by Christie. Use of others may result in the

risk of fire, shock, or personal injury.

Warning! If not avoided, the following could result in death or serious injury.

• This product must be operated in an environment that meets the operating range as specified in

this document.

• Do not look directly into the lens when the light source is on. The extremely high brightness can

cause permanent eye damage.

• EXTREME BRIGHTNESS! When accessing a restricted access location for product service or

maintenance, avoid exposure to the product beam path by turning the product power off and

disconnecting the product from AC power, or by shuttering the light source to avoid emissions

from the front aperture.

• FIRE HAZARD! Keep hands, clothes, and all combustible material away from the concentrated

light beam of the projector.

• Keep fingers and other body parts away from the moving parts in the product. Tie back long

hair, and remove jewelry and loose clothing before manually adjusting the product.

• FIRE AND SHOCK HAZARD! Use only the attachments, accessories, tools, and replacement parts

specified by Christie.

• Do not operate the product without a lens installed.

• Always use a lens plug when installing or moving the product. This prevents contaminants from

entering the product.

• RADIATION HAZARD! Use of controls or adjustments, or performing procedures other than those

specified may result in hazardous radiation exposure.

D4K40-RGB Installation and Setup Guide 6

020-102961-06 Rev. 1 (09-2022)

If printed, please recycle this document after use.

Caution! If not avoided, the following could result in minor or moderate injury.

• TRIP OR FIRE HAZARD! Position all cables where they cannot contact hot surfaces, be pulled, be

tripped over, or damaged by persons walking on or objects rolling over the cables.

Installation safety and warning guidelines

Read all safety and warning guidelines before installing the projector.

Warning! If not avoided, the following could result in death or serious injury.

• Possible hazardous optical radiation emitted from this product. (Risk group 3)

• High leakage current present when connected to IT power systems.

• Christie products must be installed and serviced by Christie qualified technicians.

• Do not operate the product without all of its covers in place.

• A minimum of four people or appropriately rated lift equipment is required to safely lift, install,

or move the product.

• Always install safety straps when the frame and projector are installed overhead.

• Observe load ratings and applicable local safety codes.

• When installing the projector in portrait mode, the rigging device must have a sufficient load

rating, as identified in this manual.

•

• This product must be installed within a restricted access location not accessible by the general

public.

• Install the product so users and the audience cannot enter the restricted area at eye level.

• Only personnel who are trained on the precautions for the restricted access location can be

granted entry to the area.

• Only Christie qualified technicians are permitted to open product enclosures.

Caution! If not avoided, the following could result in minor or moderate injury.

• ELECTRICAL and BURN HAZARD! Use caution when accessing internal components.

• Only Christie qualified technicians are authorized to use the tools provided in the toolbox.

AC power precautions

Read all safety and warning guidelines before connecting to AC power.

Warning! If not avoided, the following could result in death or serious injury.

• SHOCK HAZARD! Only use the AC power cord provided with the product or recommended by

Christie.

• FIRE AND SHOCK HAZARD! Do not attempt operation unless the power cord, power socket, and

power plug meet the appropriate local rating standards.

• SHOCK HAZARD! Do not attempt operation if the AC supply is not within the specified voltage

and current, as specified on the license label.

• SHOCK HAZARD! The AC power cord must be inserted into an outlet with grounding.

• SHOCK HAZARD! Disconnect the product from AC before installing, moving, servicing, cleaning,

removing components, or opening any enclosure.

• Install the product near an easily accessible AC receptacle.

Introduction

D4K40-RGB Installation and Setup Guide 7

020-102961-06 Rev. 1 (09-2022)

If printed, please recycle this document after use.

Caution! If not avoided, the following could result in minor or moderate injury.

• FIRE HAZARD! Do not use a power cord, harness, or cable that appears damaged.

• FIRE OR SHOCK HAZARD! Do not overload power outlets and extension cords.

• SHOCK HAZARD! Power supply uses double pole/neutral fusing.

Laser safety precautions

Read all safety and warning guidelines before operating the projector laser.

Warning! If not avoided, the following could result in death or serious injury.

• PERMANENT/TEMPORARY BLINDNESS HAZARD! No direct exposure to the beam must be

permitted. Class 1 Laser Product - Risk Group 3 according to IEC 60825-1:2014 and IEC

62471-5:2015.

• LASER RADIATION HAZARD! This projector has a built-in Class 4 laser module. Never attempt to

disassemble or modify the laser module.

• Possible hazardous optical radiation emitted from this product. (Risk group 3)

• Only Christie qualified technicians who are knowledgeable about the hazards associated with

laser use, high-voltage, and high temperatures generated by the product are authorized to

assemble, install, and service the Christie Laser Projection System.

• Do not look directly into the lens when the light source is on. The extremely high brightness can

cause permanent eye damage.

• Do not operate the product without all of its covers in place.

Light intensity hazard distance

This projector has been classified as Risk Group 3 as per the IEC 62471-5:2015 standard due to

possible hazardous optical and thermal radiation being emitted.

Warning! If not avoided, the following could result in serious injury.

• PERMANENT/TEMPORARY BLINDNESS HAZARD! No direct exposure to the beam must be

permitted. Class 1 Laser Product - Risk Group 3 according to IEC 60825-1:2014 and IEC

62471-5:2015.

• PERMANENT/TEMPORARY BLINDNESS HAZARD! Operators must control access to the beam

within the hazard distance or install the product at the height that prevents exposure of

spectators' eyes within the hazard distance. The hazard zone must be no lower than 3.0 meters

above the floor and the horizontal clearance to the hazard zone must be a minimum 2.5 meters.

• EXTREME BRIGHTNESS! Do not place reflective objects in the product light path.

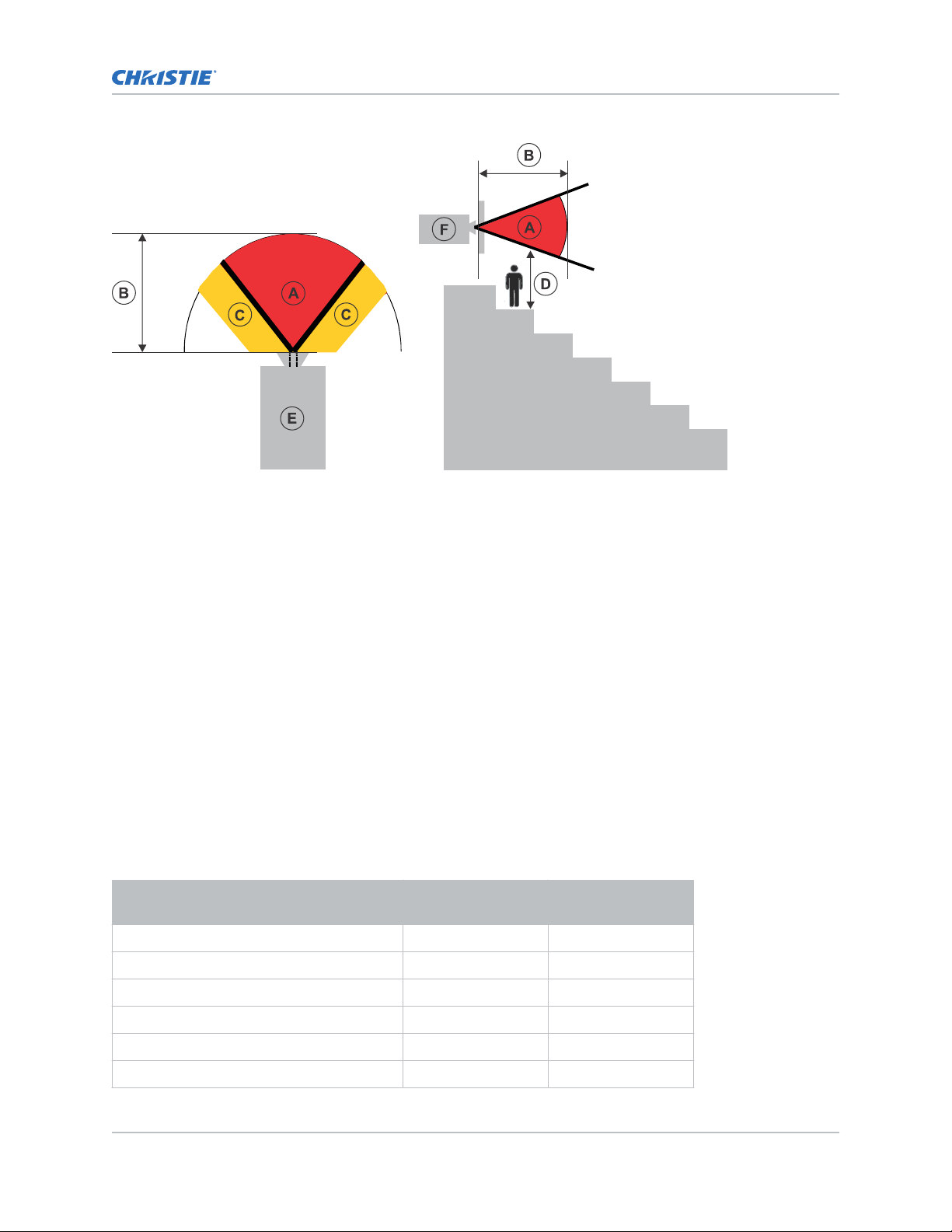

The following show the zones for ocular and skin hazard distances.

Introduction

D4K40-RGB Installation and Setup Guide 8

020-102961-06 Rev. 1 (09-2022)

If printed, please recycle this document after use.

• A—Hazard zone. The region of space where the projection light from the laser-illuminated

projector is above emission limits for Risk Group 2. The light intensity may cause eye damage

after a momentary or brief exposure (before a person can avert his or her eyes away from the

light source). The light may cause skin burns to occur.

• B—Hazard distance. Operators must control access to the beam within the hazard distance or

install the product preventing potential exposure of the spectators' eyes from being in the

hazard distance.

• C—No access zone. Horizontal clearance of the no access zone must be a minimum of 2.5

meters.

• D—Vertical distance to hazard zone. The hazard zone must be no lower than 3.0 meters above

the floor.

If the vertical distance to hazard zone requirement (Zone D) is satisfied, the horizontal

clearance distance (Zone C) is not needed.

• E—Represents the top view of the projector.

• F—Represents the side view of the projector.

The following table lists the hazard distance for the Christie projector lens with the zoom adjusted to

its most hazardous position.

For US and international hazard distances based upon IEC 62471-5:2015, Photobiological Safety of

Lamps and Lamp Systems – Part 5: Image Projectors.

Projection lens Part number Hazard distance

(m)

0.38:1 HB fixed 144-136101-XX 1.0

0.72:1 HB fixed 144-110103-XX 1.0

0.9:1 HB fixed 144-111014-XX 1.0

1.13-1.31:1 HB zoom (Discontinued) 144-103105-XX 1.0

1.13-1.66:1 HB zoom 144-129103-XX 2.0

1.31-1.63:1 HB zoom 144-104106-XX 2.0

Introduction

D4K40-RGB Installation and Setup Guide 9

020-102961-06 Rev. 1 (09-2022)

If printed, please recycle this document after use.

Projection lens Part number Hazard distance

(m)

1.45-2.17:1 HB zoom 144-130105-XX 2.5

1.63-2.17:1 HB zoom (Discontinued) 144-105107-XX 2.5

1.95-3.26:1 HB zoom 144-131106-XX 4.0

1.99-2.71:1 HB zoom 144-106108-XX 3.0

2.71-3.89:1 HB zoom 144-107109-XX 4.5

3.89-5.43:1 HB zoom 144-108100-XX 6.5

0.72:1 UHC fixed 163-116109-XX 1.0

0.9:1 UHC fixed 163-117100-XX 1.0

1.13-1.66:1 UHC zoom 163-118101-XX 2.0

1.45-2.17:1 UHC zoom 163-119102-XX 2.5

1.95-3.26:1 UHC zoom 163-120103-XX 3.5

2.71-3.89:1 UHC zoom 163-121105-XX 4.6

3.89-5.43:1 UHC zoom 163-122106-XX 6.6

For Installations in the United States

The following must be in place for laser-illuminated projector installations in the United States:

• Any human access to the hazard zone, if applicable, must be restricted by barriers to enforce

the no access zone.

• Permanent show installations containing Risk Group 3 laser-illuminated projectors must meet

the following conditions:

• Installed by Christie or by Christie-authorized and trained installers.

Refer to the EXTERNAL - Laser safety awareness training (Course code: CS-ELSA-01) on

the http://www.christieuniversity.com site.

• Performed according to instructions provided by Christie.

• Make sure the projection system is securely mounted or immobilized to prevent

unintended movement or misalignment of the projections.

• A copy of the FDA variance approval letter must be with the operator or other responsible

individual.

• Temporary show installations containing Risk Group 3 laser-illuminated projectors may be

installed by Christie or sold or leased only to valid laser light show variance holders (laser light

show manufacturers) for image projection applications. Such manufacturers may currently

hold a valid variance for production of Class IIIb and IV laser light shows and/or for

incorporation of the Risk Group 3 laser-illuminated projectors into their shows. This

requirement applies also to dealers and distributors of these laser-illuminated projectors.

• For temporary installations, the FDA variance holder must maintain complete records of all

show itineraries with dates, locations, operator name, and contact information clearly and

completely identified.

Introduction

D4K40-RGB Installation and Setup Guide 10

020-102961-06 Rev. 1 (09-2022)

If printed, please recycle this document after use.

Autres manuels pour D4K40-RGB

Table des matières

Autres manuels Christie Projecteur

Christie

Christie Boxer 4K Manuel d'utilisation et d'entretien

Christie

Christie H Series Manuel utilisateur

Christie

Christie DWU1612-HS Manuel d'utilisation et d'entretien

Christie

Christie Mirage M Series Manuel utilisateur

Christie

Christie DHD675-E Manuel utilisateur

Christie

Christie LX400 Manuel utilisateur

Christie

Christie Christie LX120 Manuel utilisateur

Christie

Christie Solaria CP2210 Manuel utilisateur

Christie

Christie 38-VIV210-01 Manuel utilisateur

Christie

Christie LW400 Manuel utilisateur

Christie

Christie DS4K Manuel utilisateur

Christie

Christie LX450 103-010100-01 Manuel utilisateur

Christie

Christie 3308-VIV303-01 Manuel utilisateur

Christie

Christie CP2000-M Manuel utilisateur

Christie

Christie D4KLH60 Mirage 4KLH Manuel utilisateur

Christie

Christie Q Series Manuel d'installation et d'exploitation

Christie

Christie Solaria CP2210 Manuel utilisateur

Christie

Christie Christie LW25U Manuel utilisateur

Christie

Christie E Series Manuel utilisateur

Christie

Christie Q Series Manuel utilisateur

Christie

Christie CP4220 Manuel utilisateur

Christie

Christie D13HD2-HS Manuel utilisateur

Christie

Christie Vivid LX41 Manuel utilisateur

Christie

Christie DS Series Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur
