INSTALLATION INSTRUCTIONS

Flat Panel

Tilt Wall Mount

MSP-DCCGPM-210

BEFORE YOU BEGIN

• CAUTION: To prevent damage to your display, which could affect or void the Factory warranty,

thoroughly study all instructions and illustrations before you begin to install the mount brackets. Pay

particular attention to the “Important Warnings and Cautions” on Page 2.

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480 or 952-582-6480.

• If a defect is discovered after Dell’s initial 21-day Customer Satisfaction period, Chief Mfg. will, at its option, repair

or repair the product at not charge provided it is returned during the warranty period. Please note contact

information for Chief Mfg. listed below.

The tilt wall mount fits most 23” to 30” displays.

The mount is designed to adapt to VESA® 200mm/100mm

compliant displays. This mount will also adapt to standard

VESA® 75mm/100mm compliant displays.

The mount allows the user to adjust the viewing angle of the

mount + 15 degrees hand. The maximum load capacity of the

mount is 45 lbs. (20.4kg).

After adjusting the display to the desired angle, the user can lock

the mount into a fixed position. The user can easily remove the

display from the wall bracket when the mount is unlocked. MSP-DCCGPM-210

Installation Instructions MSP-DCCGPM-210

IMPORTANT WARNINGS and CAUTIONS!

WARNING A WARNING alerts you to the possibility of serious injury or death if you do not follow

the instructions.

CAUTION ACAUTION alerts you to the possibility of damage or destruction of equipment if you do not

follow the corresponding instructions.

WARNING Improper installation can result in serious personal injury! Make sure that the

mounting surface can support a redundant weight factor five times the total weight of

the equipment: if not, reinforce the mounting surface structural members before

installing the mount.

WARNING Be aware of the potential for personal injury or damage to the unit if it is not

adequately mounted.

WARNING The installer is responsible for verifying that the mounting surface to which the

mount is anchored will safely support the combined load of all attached components

or other equipment.

WARNING The combined weight of the display placed on the mount must not exceed 45 lbs.

(20.4kg), the maximum load capacity of the mount.

WARNING Watch for pinch points. Do not put your fingers between movable parts.

WARNING Make sure the mount is correctly oriented.

CAUTION Check the unit for shipping damage before you begin the installation.

CAUTION If your monitor uses a longer screw size other than those included in the kit, DO NOT use

the screws provided with the mount. Use the screws provided with your monitor or contact

the manufacturer. Using the wrong screws could result in damage to your monitor.

CONTENTS

TILT MOUNT KIT ...........................................................3

Installing the Wall Bracket (Step 1) ............................4

OPTION A (Drywall Installation Procedures)..........4

OPTION B (Wall Stud Installation Procedures) ......5

Attaching the VESA Bracket to the Display (Step 2) ..6

Flushed Mount ........................................................6

Recessed Mount .....................................................7

Mounting the Display on the Wall Bracket (Step 3)....8

Locking the Display on the Wall Bracket (Step 4) ......8

TOOLS REQUIRED FOR

INSTALLATION

• Phillips screwdriver

• Drill and drill bits

NOTE: Other tools may be required depending

on your method of installation.

Installation Instructions MSP-DCCGPM-210

TILT MOUNT KIT

Unpack the carton. Verify the kit contents shown in Table 1. Read installation instructions completely. If you are

missing any of the listed components, please contact Customer Service at 1-800/582-6480.

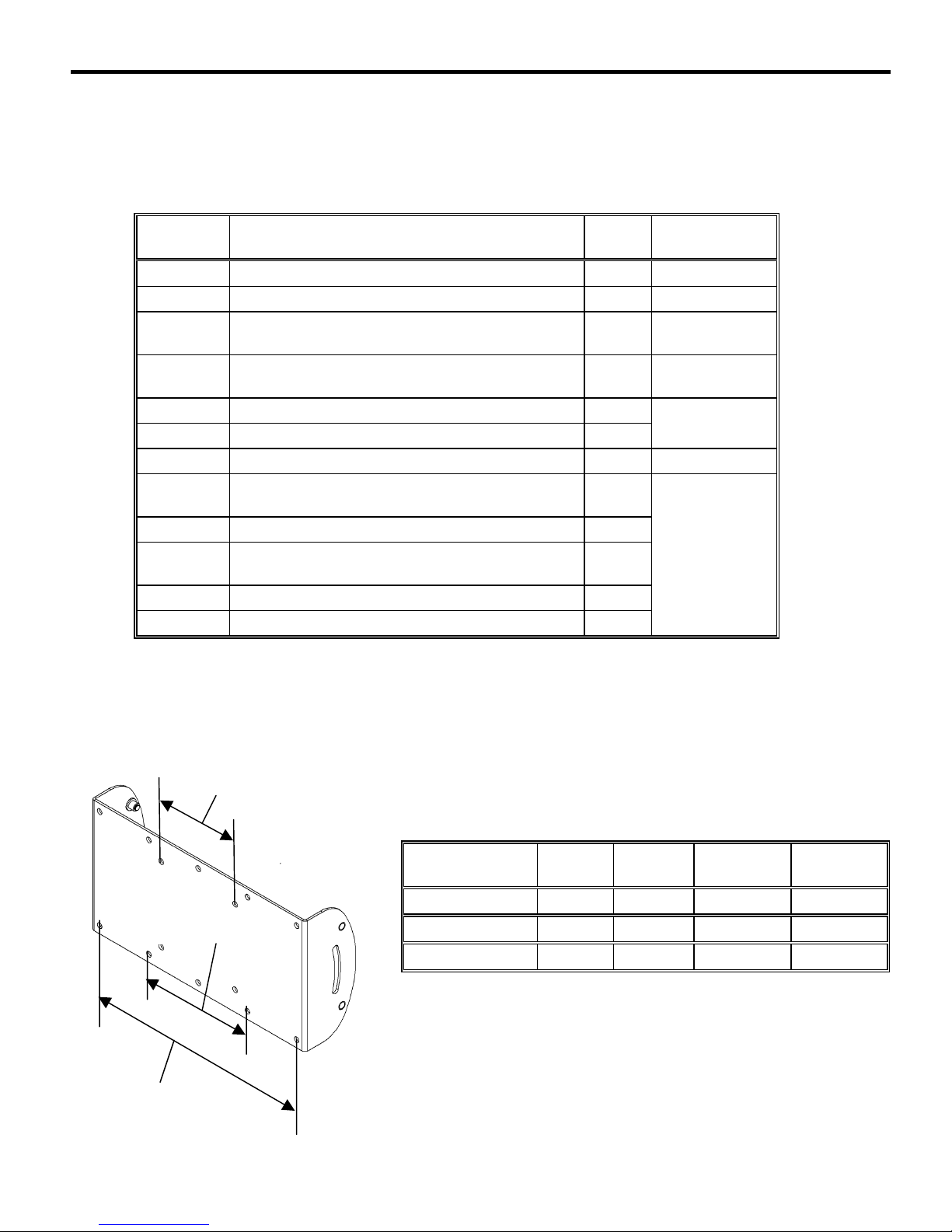

Table 1. GPM-210 Tilt Mount Kit

ITEM

NUMBER DESCRIPTION QTY NOTES

10 BRKT, VESA TILT INTERFACE 1

20 BRKT, WALL TILT MOUNT 1

30 ANCHOR, HOLLOW WALL 6

DRYWALL

MOUNTED

40 PHILLIPS HEAD WOOD SCREW, 2-1/2” 2 SINGLE STUD

MOUNTED

50 NYLON WASHER 2

60 PHILLIPS PAN HEAD MACHINE SCREW, M5 X 10MM 2

TILT

ADJUSTMENT

70 PHILLIPS PAN HEAD MACHINE SCREW, M4 X 12MM 6 FLUSH MOUNT

80 PHILLIPS PAN HEAD MACHINE SCREW, M4 X 20MM

(USE WITH 90 OR 120) *

90 3/8” NYLON SPACER 6

100 PHILLIPS PAN HEAD MACHINE SCREW, M4 X 30MM

(USE WITH 110) **

110 3/4” NYLON SPACER 6

120 1/8” NYLON SPACER (USE WITH 90) *** 6

RECESSED

MOUNT

• *Use M4 x 20mm screws (80) with spacers (90) for recessed mount applications.

• **Use M4 x 30mm screws (100) with spacers (110) for recessed mount applications.

• ***Use M4 x 20mm screws (80) with spacers (120) for recessed mount applications.

100mm x 100mm

200mm x 100mm

75mm x 75mm

VESA CHART

VESA HOLE

PATTERN 4-HOLE 6-HOLE

FLUSH

MOUNT

RECESSED

MOUNT

75MM X 75MM X X X

100MM X 100MM X X X

200MM X 100MM X X X

Installation Instructions MSP-DCCGPM-210

Figure 1. Installing Wall Bracket — Drywall

%%c0.375 (PREDRILL HOLE)

INSERT ANCHOR INTOPPREDRILLED HOLE

ANCHOR BARBP(STOPS ANCHOR ROTATION)

Figure 2. Anchor Installation

NOTE: Read the “Warnings and Cautions” on Page 2.

Installing the Wall Bracket (Step 1)

To install the wall bracket, perform Option A or Option B as

applicable.

OPTION A (Drywall Installation Procedures)

A. Determine the exact mounting location prior to

installation, considering screen size as well as the mount

tilt radius.

B. Position the wall bracket (20) as desired.

C. Using the wall bracket (20) as a template at the desired

mounting location, mark the location of the four corner

mounting holes and two center holes (see Figure 1).

NOTE: This procedure applies to a minimum drywall thickness

of ½ inch (12.7 mm).

NOTE: Mark the pilot holes as accurately as possible before

drilling the holes. The holes must be centered for the

wall bracket to fit correctly on the wall.

D. Using a 3/8-inch drill, drill six pilot holes at the locations

marked in Step 1, Option A.

E. Install an anchor (30) in one of the pilot holes and tighten

anchor bolt until it is fully seated (see Figure 2).

F. Remove and retain bolt from anchor (30) and repeat

Step E and F for five remaining anchors (30).

G. Using six bolts, with washers installed, secure wall

bracket (20) to wall.

Step 1, Option A

Center

Mounting

Holes

Corner

Mounting

Holes

Corner

Mounting

Holes

Mounting

Hole

Insert anchor into

redrilled hole.

Turn 10-24 screw

clockwise until

anchor fully seats

against back side

of wall.

#10-24

Scre

0.375

(pre-drill

hole)

nchor

(

)

nchor Barb

(Stops anchor

rotation)

Installation Instructions MSP-DCCGPM-210

Figure 3. Installing Wall Bracket — Wall Stud

NOTE: Read the “Warnings and Cautions” on Page 2.

OPTION B (Wall Stud Installation Procedures)

A. Determine the exact mounting location prior to

installation, considering screen size as well as the mount

swing and extension radius.

B. Position the wall bracket (20) as desired (see Figure 3).

NOTE: Mark the mounting holes as accurately as possible

before drilling the holes. The holes must be centered for

the wall bracket to fit correctly on the wall.

C. Locate stud and, using wall bracket (20) as a template at

the desired height, mark the location of the two center

mounting holes.

D. Using the two wood screws (40), secure wall bracket

(20) to wall.

Step 1, Option B

Center

Mounting

Holes

Mounting

Hole

Installation Instructions MSP-DCCGPM-210

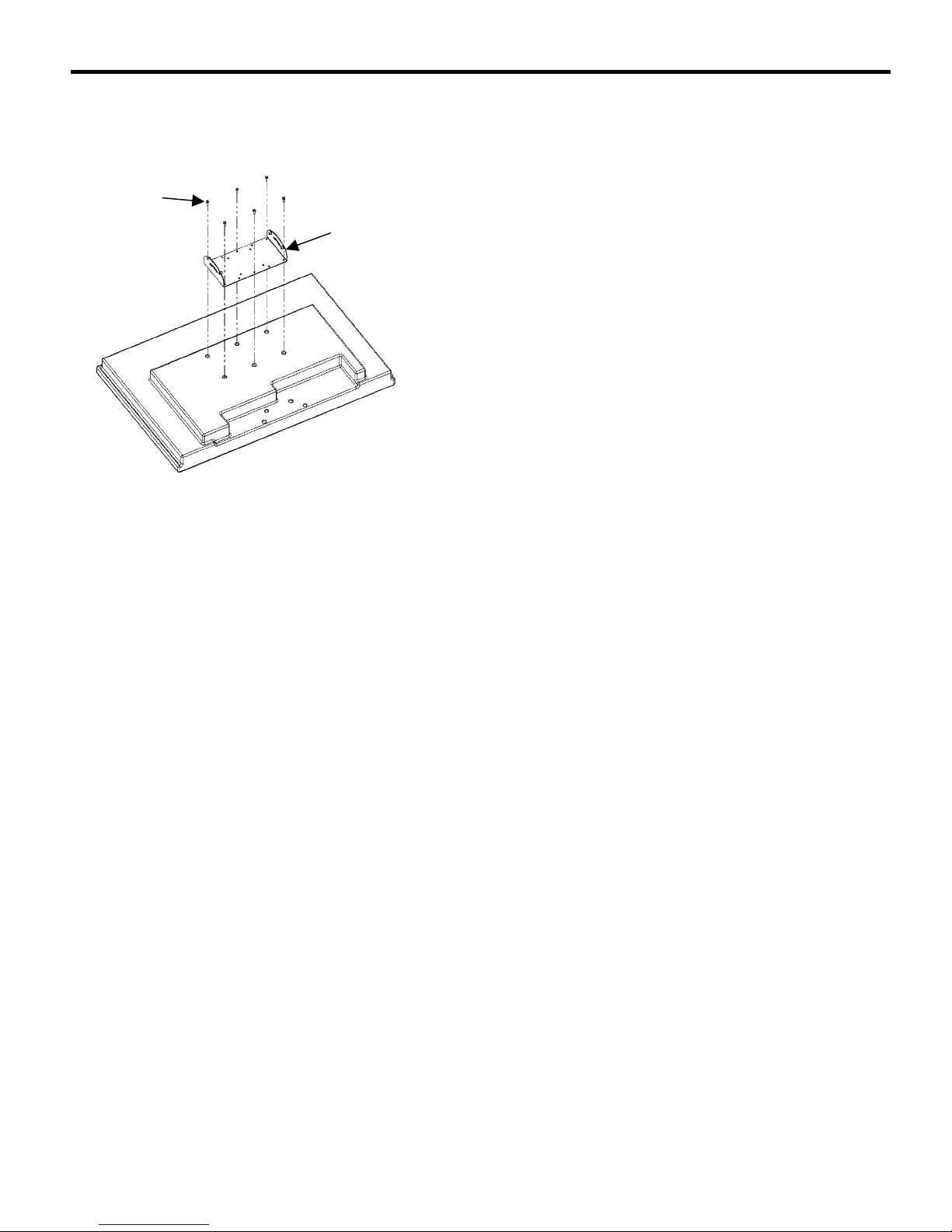

Figure 4. Flush Mount

Attaching the VESA Bracket to the Display

(Step 2)

NOTE: Choose the instructions, listed below, that apply to the

type of installation you want.

• Flush Mount Applications do not use spacers. The

display is attached to the mount with six screws.

• Recessed Mount Applications use spacers. The

display is attached to the mount with six screws and

four spacers. For the procedure, refer to page 7.

CAUTION: If monitor uses a screw size other than those

included in the kit, DO NOT use the screws

provided. Using the wrong screws could result in

damage to your monitor.

Flushed Mount

A. Place the VESA bracket (10) on the display

(see Figure 4).

B. Align the hole-pattern of your display with the hole-

pattern on the VESA bracket (10).

C. Attach VESA bracket (10) to the display using six

M4 X 10mm screws (70) provided.

Step 2

Installation Instructions MSP-DCCGPM-210

Figure 5. Recessed Mount

Recessed Mount

NOTE: Select option 1, 2, or 3 to pick the applicable screw and

spacer combination.

• Refer to Table 2 for 200mm/100mm compliant

displays.

• Refer to Table 3 for 75mm/100mm compliant

displays.

A. Select six screws and six spacers.

B. Set six spacers over the four mounting holes on your

monitor (see Figure 5).

C. Set VESA interface bracket (10) on top of spacers and

install six screws into the mounting holes of your display.

Table 2. 200mm/100mm Compliant Displays

OPTION SCREW QTY SPACER QTY

1 80 6 90 6

2 100 6 110 6

3 80 6 120 6

Table 3. 75mm/100mm Compliant Displays

OPTION SCREW QTY SPACER QTY

1 80 4 90 4

2 100 4 110 4

3 80 4 120 4

Screws

Spacers

NOTE:

For additional

information,

see VESA

Chart, page 3

Installation Instructions MSP-DCCGPM-210

Figure 6. Assemble the Brackets

Figure 7. Install the M5 Screw

Mounting the Display on the Wall Bracket

(Step 3)

A. With an assistant (if necessary), lift the display up to the

wall bracket (20) over the four mounting pins

(see Figure 6.

B. Align the mounting pins on the display with the slots in

the wall bracket (20), and set the display into place.

C. Verify that the display tilts on the wall bracket (20).

Locking the Display on the Wall Bracket

(Step 4)

A. Assemble a washer (50) over each M5 screw (60).

Install the two M5 (60) screw assemblies into the tapped

holes located on the side of the wall bracket (20).

See Figure 7.

B. Set the display into the desired position. Tighten the M5

screw (60) until friction holds the display stationary.

Step 3 20

Tapped

Hole

Step 4

Table des matières

Autres manuels CHIEF Support et étagère

CHIEF

CHIEF Internal Dual Stud Wall Plate CTA-2536 Manuel utilisateur

CHIEF

CHIEF KWT110 Manuel utilisateur

CHIEF

CHIEF CMS390 Manuel utilisateur

CHIEF

CHIEF K0W100 Manuel utilisateur

CHIEF

CHIEF WM210S Manuel utilisateur

CHIEF

CHIEF Wall Mount PDWP MB 46 L Manuel utilisateur

CHIEF

CHIEF XTM Series Manuel utilisateur

CHIEF

CHIEF MSP-WRTS1 Manuel utilisateur

CHIEF

CHIEF MF2 Series Manuel utilisateur

CHIEF

CHIEF FMSITL Manuel utilisateur

CHIEF

CHIEF raxxess series Manuel utilisateur

CHIEF

CHIEF KTA-1000 Manuel utilisateur

CHIEF

CHIEF Small Flat Panel In-Wall Swing Arm Mount FWDIW-I... Manuel utilisateur

CHIEF

CHIEF K1C1KRA204 Manuel utilisateur

CHIEF

CHIEF Kontour K4W120 Manuel utilisateur

CHIEF

CHIEF Fusion FCA115 Manuel utilisateur

CHIEF

CHIEF FHP110 Manuel utilisateur

CHIEF

CHIEF FTRV4100 Manuel utilisateur

CHIEF

CHIEF Truss Pitch-Adjustable Mount TPP Manuel utilisateur

CHIEF

CHIEF Fusion FCA800VE Manuel utilisateur

CHIEF

CHIEF MSP-BBSP Manuel utilisateur

CHIEF

CHIEF PSMH2485 Manuel utilisateur

CHIEF

CHIEF PDC Series Manuel utilisateur

CHIEF

CHIEF PAC716 Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
