CHIEF KFCD-110 Manuel utilisateur

Small Flat Panel

Dual Swing Arm Desk Mount (KFCD-110)

The KFCD is a sleek design providing a broad range of viewing

for Small Flat Panel Displays.

At only 2.15” deep in the closed position, the mount allows

side-to-side pivot adjustment up to 180 degrees in the closed

and the fully extended position. Displays up to 30” (max. 40

pounds) can be extended to 14.2” from the wall and can pivot

360 degrees.

The KFCD accommodates all VESA® 75mm/100mm compliant

displays.

BEFORE YOU BEGIN

•Caution: To prevent damage to the KFCD, which could affect or void the Factory warranty, and to the

equipment that will be attached to it, thoroughly study all instructions and illustrations before you begin

the installation. Pay particular attention to the “Important Warnings and Precautions” on Page 1.

• The maximum weight to be installed on the KFCD wall mount is 40 pounds (18.1 Kg)

• The KFCD wall mount is designed to be installed using horizontal table tops and work surfaces. The surface to

which the KFCD wall mount is anchored must be capable of supporting five times the total weight of the mount

and all attached equipment.

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

12800 HIGHWAY 13 SOUTH, SUITE 500

SAVAGE, MINNESOTA 55378 USA

PART NO. 8832-000017 (Rev. A)

2003 Chief Manufacturing

www.chiefmfg.com

Printed in USA 12-03

INSTALLATION INSTRUCTIONS

Installation Instructions KFCD

IMPORTANT WARNINGS AND PRECAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: ACAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corre-

sponding instructions.

•WARNING: Improper installation can result in serious personal injury! Make sure that the structural members can

support a redundant weight factor five times the total weight of the equipment: if not, reinforce the struc-

ture before installing the KFCD.

•WARNING: Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted.

•WARNING: The installer is responsible for verifying that the wall to which the KFCD is anchored will safely support

the combined load of all attached components or other equipment.

•WARNING: The weight of the display placed on the KFCD must not exceed 40 lbs. (18.1 kg), the maximum load capac-

ity of the KFCD.

•WARNING: Watch for pinch points. Do not put your fingers between movable parts.

•WARNING: Make sure the mount and brackets are correctly oriented.

•CAUTION: Check the unit for shipping damage before you begin the installation.

TOOLS REQUIRED FOR INSTALLATION

• Phillips Screwdriver

NOTE: Other tools may be required depending on the

mounting surface and method of installation.

CONTENTS

DRAWINGS ............................................................... 2

INSPECT THE UNIT BEFORE INSTALLING ............ 3

KFCD INSTALLATION ............................................... 3

Edge Clamp (Default) .......................................... 3

Grommet Clamp (2” or 3” Diameter Hole) ........... 3

Grommet Thru-Bolt (.375” - 3” Diameter Hole) ... 5

VESA Compliant Mounts ........................................... 6

Non-VESA Compliant Mounts .................................... 6

CABLE MANAGEMENT ............................................ 7

ADJUSTMENTS ........................................................ 7

Rotational Tilt, Pitch, and Roll Adjustment ........... 7

Lateral Tension Adjustment ................................. 7

Arm Tension Adjustment ..................................... 7

Installation Instructions KFCD

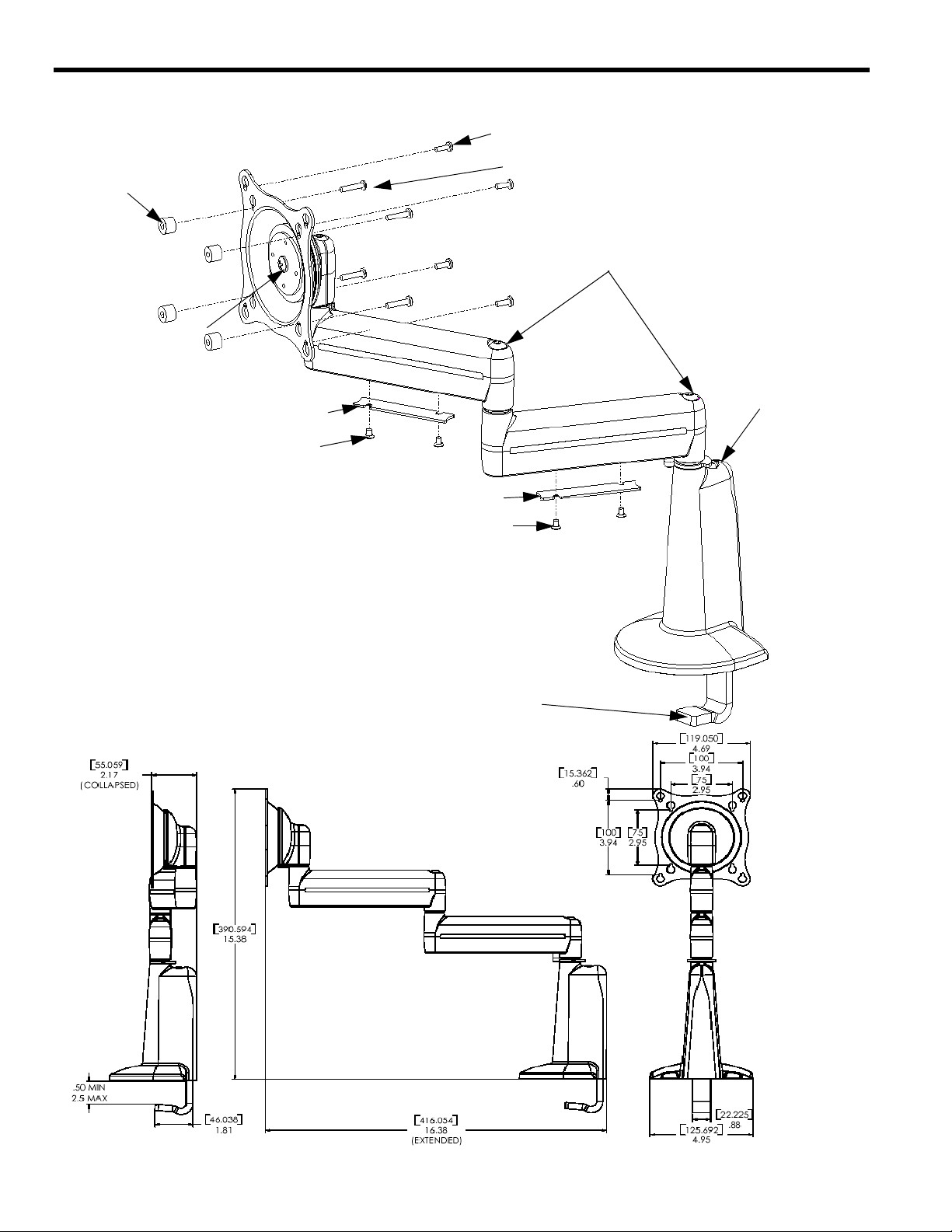

DRAWINGS

M4 X .7 X 12mm Phillips pan head screws

Spacers

(optional)

Phillips Panhead Screw

(Adjustment Screw)

Cover plate

Cover plate screws

Arm Tension

Adj. Bolt

Cover plate screws

Clamp Bolt

Clamp

M4 X .7 X 20mm Phillips pan head screws

(optional)

Installation Instructions KFCD

INSPECT THE UNIT BEFORE INSTALLING

WARNING: Watch for pinch points. Do not put your fingers

between movable parts.

1. Carefully inspect the KFCD for shipping damage. If any dam-

age is apparent, call your carrier claims agent and do not con-

tinue with the installation until the carrier has reviewed the

damage.

NOTE: Read all instructions before starting installation.

2. Lay out components to ensure you have all the required parts

before proceeding (see KFCD drawing on page 2).

KFCD INSTALLATION

WARNING: It is the responsibility of the installer to verify that

the surface to which the KFCD is anchored will

safety support the combined load of all attached

components and equipment.

Install the KFCD as follows:

1. Determine the exact mounting location prior to installation,

considering the unit’s swing and extension radius.

WARNING: Improper installation can result in serious per-

sonal injury! Make sure that the structural mem-

bers can support a redundant weight factor five

times the total weight of the equipment: if not,

reinforce the structure before installing the

KFCD.

Edge Clamp (Default)

1. Using the 3/16” hex wrench (provided), loosen the clamp wide

enough to fit over the edge of your table top or work surface

(see Figure 1).

WARNING: Watch for pinch points. Do not put your fingers

between movable parts.

2. Slide the base over the edge of your table top or work surface

(see Figure 2).

3. Using the 3/16” hex wrench (provided), secure the KFCD by

tightening the clamp bolt.

Grommet Clamp (2” - 3” Diameter Hole)

WARNING: Watch for pinch points. Do not put your fingers

between movable parts.

1. Remove three screws and the base bracket from the bottom of

the desk clamp (see Figure 3).

amp Bo

Clamp

Figure 1. Loosen Clamp

Screws

Base Bracket

Figure 3. Remove Base Bracket

Figure 2. Slide Over Work Surface

Installation Instructions KFCD

2. Using the 3/16” hex wrench (provided), loosen the clamp bolt

and turn the clamp 180 degrees (see Figure 4).

3. Using three screws, secure the base bracket to the bottom of

the desk clamp (see Figure 5).

4. Using the 3/16” hex wrench (provided), loosen the clamp wide

enough to fit through the hole in your table top or work surface

(see Figure 6).

5. Install the unit, fitting the clamp through the 2” to 3” diameter

hole, and secure by tightening the clamp bolt (see Figure 1).

Rotate 180 degrees

Figure 4. Rotate Base Clamp

Figure 5. Secure Base Clamp

Figure 6. Install in 2” or 3” Diameter Hole

Figure 7. Secure in 2” to 3” Diameter Hole

Installation Instructions KFCD

Grommet Thru-Bolt (.375” - 3” Diameter Hole)

WARNING: Watch for pinch points. Do not put your fingers

between movable parts.

1. Remove three screws and the base bracket from the bottom of

the desk clamp (see Figure 3).

2. Using the 3/16” hex wrench (provided), loosen the clamp bolt

and remove the clamp.

3. Rotate the base bracket 180 degrees and install the base bracket

on the clamp.

4. Slide the 5/16-18 x 4” button head cap screw through the hole

in the bar.

5. Secure the bar, with the 5/16-18 x 4” button head cap screw

under the work surface, to the tapped center hole of the base

bracket in the desk clamp (see Figure 8).

Tapped Hole

Base Plate

Bar

5/16-18 x 4”

Button Head

Cap Screw

Figure 8. Secure using Bar

Installation Instructions KFCD

VESA Compliant Mounts

CAUTION: If your display uses a screw size other than M4 X

12mm or M4 X 20mm, DO NOT use the M4 X 12mm

or M4 X 20mm screws provided. Using the wrong

screws could result in damage to your display.

A. Start two M4 X .7 X 12mm Phillips pan head screws or

M4 X .7 X 20mm Phillips pan head screws and spacers

(provided) for recessed applications into the top two

mounting holes of your display.

B. Match the hole pattern on your display (75mm or 100mm)

with the hole pattern on the mount and hang the mount

from the two screws started in Step 2.

C. Install the remaining two M4 X .7 X 12mm Phillips pan

head screws or M4 X .7 X 20mm Phillips pan head screws

and spacers (provided) for recessed applications as neces-

sary.

D. Secure your display to the mount by tightening the four

M4 X .7 X 12mm Phillips pan head screws or M4 X .7 X

20mm Phillips pan head screws.

WARNING: Make sure your cables do not run through a pinch

point.

E. Connect and secure power/audio/video cables, making

sure to leave sufficient slack to allow for movement of the

display.

Non-VESA Compliant

Mounts

A. Contact Chief Manufacturing for custom interface brack-

ets.

Installation Instructions KFCD

CABLE MANAGEMENT

WARNING: Make sure your cables do not run through a pinch

point.

1. Route power/audio/video cables under each arm, allowing suf-

ficient slack in cables for extension and avoiding pinch points

2. Secure cables using cover plates and four screws (see “DRAW-

INGS” on page 2).

ADJUSTMENTS

CAUTION: Overtightening adjustment will cause excessive

wear.

Rotational Tilt, Pitch, and Roll Adjustment

1. If necessary, use a Phillips screwdriver to tighten or loosen the

Phillips pan head screw (see “DRAWINGS” on page 2).

2. Check for desired tension.

3. Repeat Steps 1 and 2 until desired tension is obtained.

Lateral Tension Adjustment

1. Using a 3/16” hex wrench (provided), slightly tighten or loosen

lateral tension adjustment bolt (see “DRAWINGS” on page 2).

2. Check for desired tension.

3. Repeat Steps 1 and 2 until desired tension is obtained.

Arm Tension Adjustment

1. Using a 3/16” hex wrench (provided), slightly tighten or loosen

arm tension adjustment bolt (see “DRAWINGS” on page 2).

2. Check for desired tension.

3. Repeat Steps 1 and 2 until desired tension is obtained.
