ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at: http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts, please call 1-800-444-3353.

3 IN 1 MINI POWER TOOL SET

Model 91618

SKU 91618 For technical questions, please call 1-800-444-3353. Page 2

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures, parts list and as-

sembly diagram. Keep your invoice with this manual. Write the invoice number

on the inside of the front cover. Keep this manual and invoice in a safe and dry

place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result in

electric shock,fire,and/or serious injury.

SAVE THESE INSTRUCTIONS

WORK AREA

1. Keep your work area clean and well lit. Cluttered benches and dark areas

invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases, or dust. Power tools create sparks

which may ignite the dust or fumes.

3. Keep bystanders, children, and visitors away while operating a power tool.

Distractions can cause you to lose control. Protect others in the work area from

debris such as chips and sparks. Provide barriers or shields as needed.

Voltage (all tools) 110 VAC / 15 VDC

Power (each tool) 30-45 Watts

Drill Speed 12,000 RPM

Collet Sizes 1/32”, 3/32”, 1/8”

Drill Dimensions 5” L x 1-1/4” Dia.

Sander Pad Dimensions 2-3/4” L x 2” W

Sander Speed 4,500 RPM

Sander Dimensions 5-1/2” L x 2” Dia.

Jig Saw Speed 4,500 SPM

Jig Saw Plate Dimensions 2-3/4” L x 3-1/4”W

Jig Saw Dimensions 5” L x 1-3/4” W

PRODUCT SPECIFICATIONS

Accessories: 3 Collets (1/32”, 3/32”, 1/8”), Jigsaw Clamp, AC/DC Transformer, 2 Sheets Hook & Loop

Sandpaper, 2 Jigsaw Blades, 1 Hex Wrench, 2 Drill Bits, 2 Diamond Bits, 2 Grinding Stones

SKU 91618 For technical questions, please call 1-800-444-3353. Page 3

ELECTRICAL SAFETY

4. Grounded tools must be plugged into an outlet properly installed and

grounded in accordance with all codes and ordinances. Never remove the

grounding prong or modify the plug in any way. Do not use any adapter

plugs. Check with a qualified electrician if you are in doubt as to whether

the outlet is properly grounded. If the tools should electrically malfunction or

break down, grounding provides a low resistance path to carry electricity away

from the user.

5. Double insulated tools are equipped with a polarized plug (one blade is

wider than the other). This plug will fit in a polarized outlet only one way. If

the plug does not fit fully in the outlet, reverse the plug. If it still does not

fit, contact a qualified electrician to install a polarized outlet. Do not

change the plug in any way. Double insulation eliminates the need for the

three wire grounded power cord and grounded power supply system.

6. Avoid body contact with grounded surfaces such as pipes, radiators,

ranges, and refrigerators. There is an increased risk of electric shock if your

body is grounded.

7. Do not expose power tools to rain or wet conditions. Water entering a power

tool will increase the risk of electric shock.

8. Do not abuse the Power Cord. Never use the Power Cord to carry the tools

or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,

sharp edges, or moving parts. Replace damaged Power Cords immedi-

ately. Damaged Power Cords increase the risk of electric shock.

9. When operating a power tool outside, use an outdoor extension cord

marked “W-A” or “W”. These extension cords are rated for outdoor use, and

reduce the risk of electric shock.

PERSONAL SAFETY

10. Stay alert. Watch what you are doing, and use common sense when oper-

ating a power tool. Do not use a power tool while tired or under the influ-

ence of drugs, alcohol, or medication. A moment of inattention while operat-

ing power tools may result in serious personal injury.

11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.

Keep your hair, clothing, and gloves away from moving parts. Loose

clothes, jewelry, or long hair can be caught in moving parts.

SKU 91618 For technical questions, please call 1-800-444-3353. Page 4

12. Avoid accidental starting. Be sure the Power Switch is off before plugging

in. Carrying power tools with your finger on the Power Switch, or plugging in

power tools with the Power Switch on, invites accidents.

13. Remove adjusting keys or wrenches before turning the power tool on. A

wrench or a key that is left attached to a rotating part of the power tool may result

in personal injury.

14. Do not overreach. Keep proper footing and balance at all times. Proper

footing and balance enables better control of the power tool in unexpected

situations.

15. Use safety equipment. Always wear ANSI approved eye protection. Dust

mask, non-skid safety shoes, work gloves, hard hat, or hearing protection must

be used for appropriate conditions.

TOOL USE AND CARE

16. Use clamps (not included) or other practical ways to secure and support

the workpiece to a stable platform. Holding the work by hand or against your

body is unstable and may lead to loss of control.

17. Do not force the tool. Use the correct tool for your application. The correct

tool will do the job better and safer at the rate for which it is designed.

18. Do not use the power tool if the Power Switch does not turn it on or off.

Any tool that cannot be controlled with the Power Switch is dangerous and must

be replaced.

19. Disconnect the Power Cord Plug from the power source before making any

adjustments, changing accessories, or storing the tool. Such preventive

safety measures reduce the risk of starting the tool accidentally.

20. Store idle tools out of reach of children and other untrained persons. Tools

are dangerous in the hands of untrained users.

21. Maintain tools with care. Keep cutting tools sharp and clean. Properly

maintained tools with a sharp cutting edge are less likely to bind and are easier

to control. Do not use a damaged tool. Tag damaged tools“Do not use” until

repaired.

22. Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect the tool’s operation. If damaged, have

the tool serviced before using. Many accidents are caused by poorly main-

tained tools.

SKU 91618 For technical questions, please call 1-800-444-3353. Page 5

23. Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one tool may become hazardous

when used on another tool. SERVICE

24. Tool service must be performed only by qualified repair personnel. Service

or maintenance performed by unqualified personnel could result in a risk of injury.

25. When servicing a tool, use only identical replacement parts. Follow

instructions in the

“Inspection, Maintenance, And Cleaning”

section of this

manual. Use of unauthorized parts or failure to follow maintenance instructions

may create a risk of electric shock or injury.

GROUNDING

WARNING!

Improperly connecting the grounding wire can result in the risk of electric

shock. Check with a qualified electrician if you are in doubt as to whether the

outlet is properly grounded. Do not modify the power cord plug provided with

the tool. Never remove the grounding prong from the plug. Do not use the

tool if the power cord or plug is damaged. If damaged, have it repaired by

a service facility before use. If the plug will not fit the outlet, have a proper

outlet installed by a qualified electrician.

GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS

1. Tools marked with “Grounding Required” have a three wire cord and three prong

grounding plug. The plug must be connected to a properly grounded outlet. If

the tool should electrically malfunction or break down, grounding provides a low

resistance path to carry electricity away from the user, reducing the risk of elec-

tric shock. (See Figure A, next page.)

2. The grounding prong in the plug is connected through the green wire inside the

cord to the grounding system in the tool. The green wire in the cord must be the

only wire connected to the tool’s grounding system and must never be attached

to an electrically “live” terminal. (See Figure A.)

3. Your tool must be plugged into an appropriate outlet, properly installed and

grounded in accordance with all codes and ordinances. The plug and outlet

should look like those in the following illustration. (See Figure A, next page.)

SKU 91618 For technical questions, please call 1-800-444-3353. Page 6

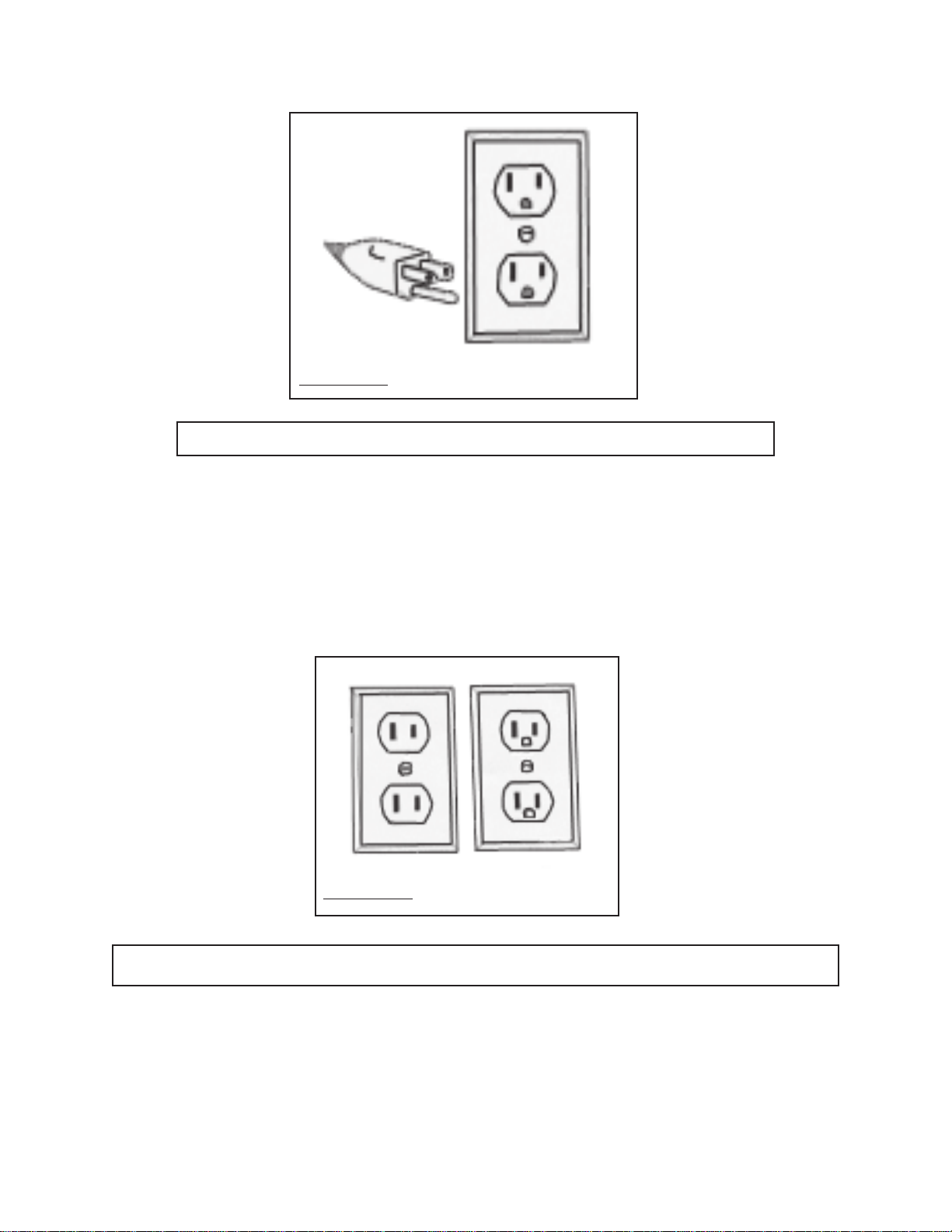

FIGURE A

FIGURE B

DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS

4. Tools marked “Double Insulated” do not require grounding. They have a special

double insulation system which satisfies OSHA requirements and complies with

the applicable standards of Underwriters Laboratories, Inc., the Canadian

Standard Association, and the National Electrical Code. (See Figure B.)

5. Double insulated tools may be used in either of the 120 volt outlets shown in the

following illustration. (See Figure B.)

EXTENSION CORDS

Grounded

tools require a three wire extension cord.

Double Insulated

tools

can use either a two or three wire extension cord.

2. As the distance from the supply outlet increases, you must use a heavier gauge

extension cord. Using extension cords with inadequately sized wire causes a

SKU 91618 For technical questions, please call 1-800-444-3353. Page 7

serious drop in voltage, resulting in loss of power and possible tool damage.

(See Figure C, next page.)

3. The smaller the gauge number of the wire, the greater the capacity of the cord.

For example, a 14 gauge cord can carry a higher current than a 16 gauge cord.

(See Figure C.)

4. When using more than one extension cord to make up the total length, make

sure each cord contains at least the minimum wire size required.

(See Figure C.)

5. If you are using one extension cord for more than one tool, add the nameplate

amperes and use the sum to determine the required minimum cord size.

(See Figure C.)

6. If you are using an extension cord outdoors, make sure it is marked with the suffix

“W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.

7. Make sure your extension cord is properly wired and in good electrical condition.

Always replace a damaged extension cord or have it repaired by a qualified

electrician before using it.

8. Protect your extension cords from sharp objects, excessive heat, and damp or

wet areas.

RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*

(120 VOLT)

NAMEPLATE

AMPERES

(At Full Load) EXTENSION CORD LENGTH

25 FEET 50 FEET 75 FEET 100 FEET 150 FEET

0 - 2.0 18 18 16 16 16

2.1 - 3.4 18 18 16 14 14

3.5 - 5.0 18 18 16 14 12

5.1 - 7.0 18 16 14 12 12

7.1 - 12.0 16 14 12 10 -

12.1 - 16.0 14 12 10 - -

16.1 - 20.0 12 10 - - -

FIGURE C *Based on limiting the line voltage drop

to five volts at 150% of the rated amperes.

SKU 91618 For technical questions, please call 1-800-444-3353. Page 8

SYMBOLOGY

SPECIFIC SAFETY RULES

1. Maintain labels and nameplates on the Tools. These carry important informa-

tion. If unreadable or missing, contact Harbor Freight Tools for a replacement.

2. Maintain a safe working environment. Make sure there is adequate surrounding

workspace. Always keep the work area free of obstructions, grease, oil, trash, and

other debris.

3. Never leave theTools unattended when plugged into an electrical outlet. Turn

off the tools, and unplug them from the electrical outlet before leaving. Make sure

you are prepared to begin work before turning on a PowerTool.

4. Always unplug the Tools from the electrical outlet before performing any in-

spection, maintenance, or cleaning procedures.

5. WARNING! The brass components of this product contain lead, a chemical

known to the State of California to cause birth defects (or other reproductive harm).

(California Health & Safety code 25249.5, et seq.)

6. WARNING! Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities, contain chemicals known (to the State of Califor-

nia) to cause cancer, birth defects or other reproductive harm. Some examples

of these chemicals are: lead from lead-based paints, crystalline silica from bricks

and cement or other masonry products, arsenic and chromium from chemically

treated lumber. Your risk from these exposures varies, depending on how often

you do this type of work. To reduce your exposure to these chemicals:work in a

well ventilated area, and work with approved safety equipment, such as those

dust masks that are specially designed to filter out microscopic particles.

(California Health & Safety Code 25249.5, et seq.)

7. WARNING! People with pacemakers should consult their physician(s) before

using this product. Electromagnetic fields in close proximity to a heart pace-

maker could cause interference to or failure of the pacemaker.

Double Insulated

Canadian Standards

Association

Underwriters

Laboratories, Inc.

Volts Alternating Current

Amperes

No Load Revolutions

per Minute (RPM)

noxxxx/min.

V ~

SKU 91618 For technical questions, please call 1-800-444-3353. Page 9

UNPACKING

When unpacking, check to make sure all the parts shown on the Parts Lists on pages 14,

16, and 18 are included. If any parts are missing or broken, please call Harbor Freight

Tools at the number shown on the cover of this manual as soon as possible.

DRILL ASSEMBLY INSTRUCTIONS

NOTE: For additional information regarding the parts listed in the following pages, refer

to the Assembly Diagram on page 15.

CAUTION: Always make sure the Power Cord of the Drill is unplugged from its

electrical outlet

prior

to making any adjustments to the tool.

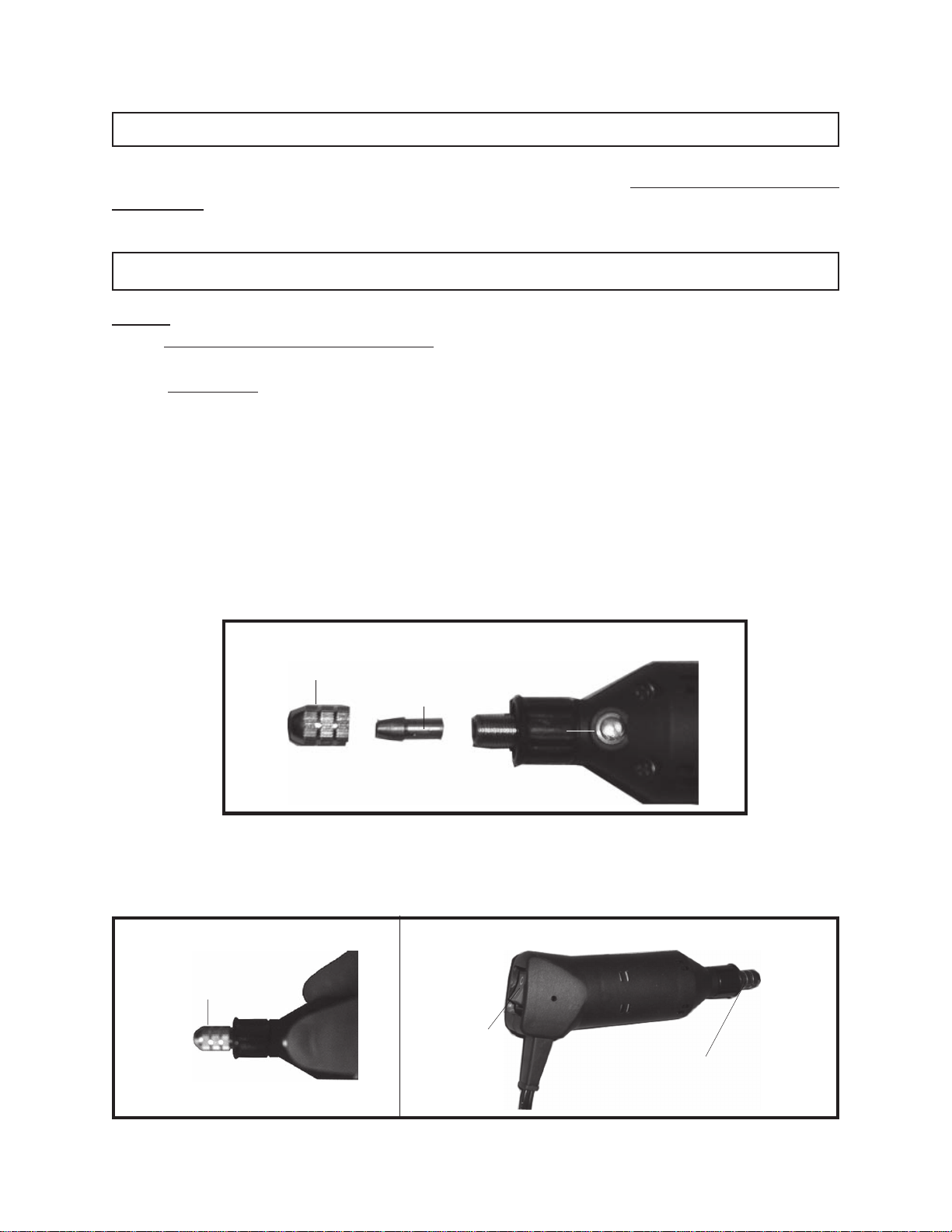

Changing a Drill Collet

Press the Lock Button (14) and fully unscrew the Collet Nut (1d). Remove the

current Collet (2d) and replace with another Collet (2d). Depress the Lock Button

(14) again, replace the Collet Nut (1d), and tighten slightly. See FIGURE 1.

FIGURE 1

Lock

Button (14)

Collet (2d)

Collet Nut (1d)

FIGURE 2 FIGURE 3

Switch(11d)

Attaching a Drill Bit

Press the Lock Button (14) and loosen the Collet Nut (1d). Insert the bit (not

included) all the way into the Collet. Depress the Lock Button (14) again and

tighten the Collet Nut (1d). See FIGURE 2.

Warning!! Never use cracked, bent, or chipped bits.They may break, causing the

operator injury.

SKU 91618 For technical questions, please call 1-800-444-3353. Page 10

Note: TheTransformer is not shown on any of the parts lists or assembly draw-

ings.

DRILL OPERATING INSTRUCTIONS

Operating the Drill

Note: First, determine which application you will be using the Drill for, and then attach

the appropriate accessory by following the instructions on page 9.

Warning! Always make sure the Switch (11d) is OFF before plugging in the unit.

1. Plug the Drill into the Transformer and the Transformer into a power outlet as

shown in FIGURES 4 and 5, below.

2. Make sure your workpiece is secured in a vise or clamp.

3. Turn on the Switch (11d). See FIGURE 3 on page 9.

4. After completing your task, turn off the Drill and unplug the unit from the Trans-

former. Unplug the Transformer from the wall outlet.

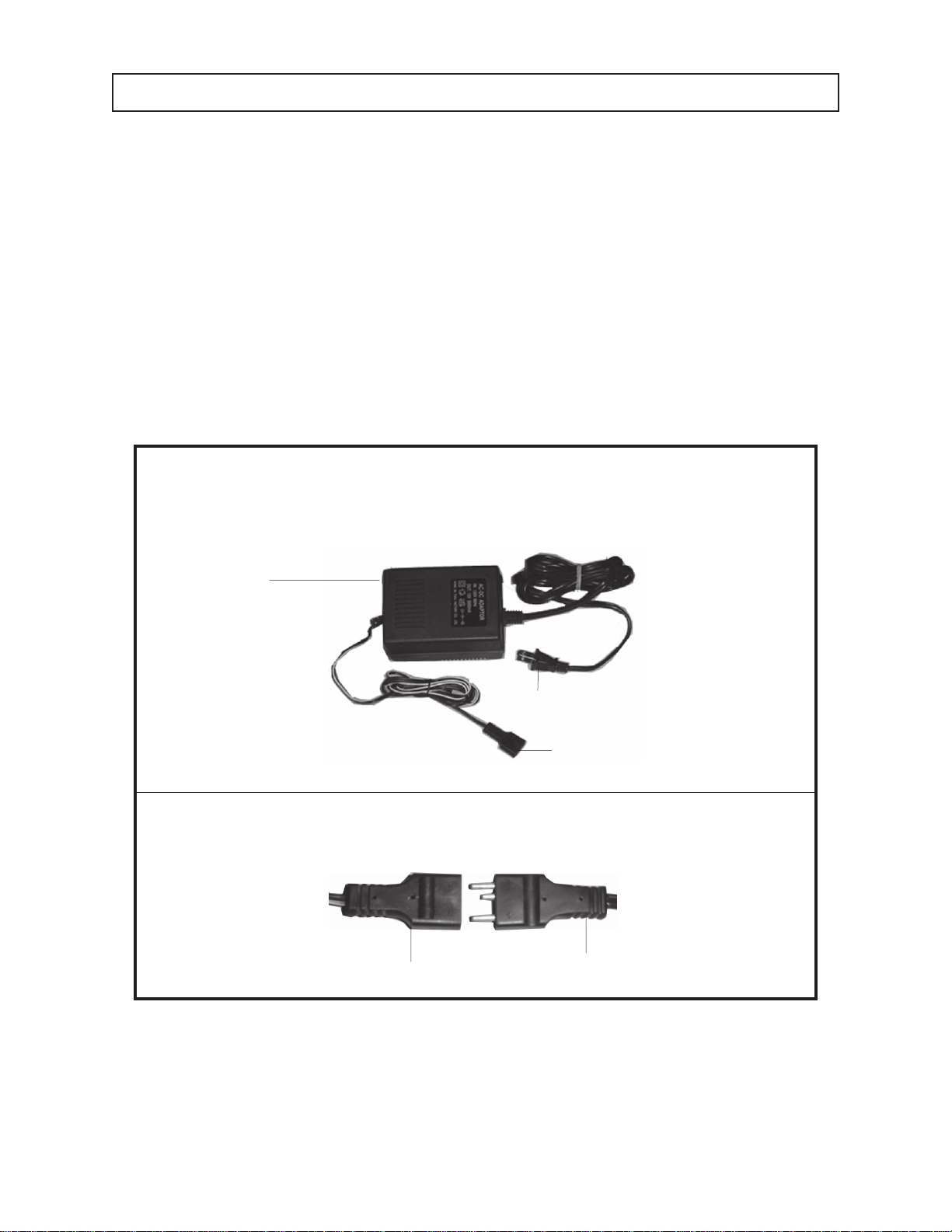

FIGURE 4

FIGURE 5

Transformer

From Tool

To Transformer

To Power Outlet

Connect Tool Here

Power Connection For All Three Tools

Close-up of Connection

Transformer
