Chevrolet BeaT LPG Manuel utilisateur

Part No.:95225501

Revision No. 00

Revision Date

11/2010/2,000

All information, illustrations and specifications contained in this Owner's Manual are based on

the latest production information available at the time of publication. The right is reserved to

make changes at any time without notice.

General Motors India Pvt. Ltd.

Regd. Office : Chandrapura Industrial Estate, Halol - 389 351.

Dist. Panchmahals, Gujarat, India. Phone : 91 2676 221000

Customer Assistance Center : Plot No. 15, Echelon Institutional Area,

Sector 32, Gurgaon - 122 001, Haryana, India. Tel. : 91 124 3080000

Works : A-16, MIDC Talegaon Industrial Area (Phase-II),

Near Floriculture Park, Talegaon Navlakh Umbhre Village Road, Tehsi-Maval,

Pune - 410 507, Maharashtra, India. Tel: 91 2114 663939

24 Hr. Helpline at 30308080

Operation, Safety and Maintenance

LPG

~ 1 ~

Table of contents

Layout of LPG System (Side View)....................................................................................................................................................2

Layout of LPG System (Top View).....................................................................................................................................................3

Specification.......................................................................................................................................................................................4

Introduction of LPG / Safety Precautions...........................................................................................................................................5

Safety.................................................................................................................................................................................................6

Brief Description of LPG System .......................................................................................................................................................7

Fuel Selection switch .........................................................................................................................................................................8

Indications of LED and Beeper..........................................................................................................................................................9

LPG Electrical Fuse .........................................................................................................................................................................10

LPG Filler Valve / LPG Cylinder / LPG Multivalve ...........................................................................................................................11

Spare Wheel Assembly....................................................................................................................................................................12

Compliance to Motor Vehicle rules..................................................................................................................................................13

Periodic Inspection & maintenance schedule..................................................................................................................................14

Warranty Card..................................................................................................................................................................................15

Rohan Automotive Service Network................................................................................................................................................18

Notes................................................................................................................................................................................................21

~ 2 ~

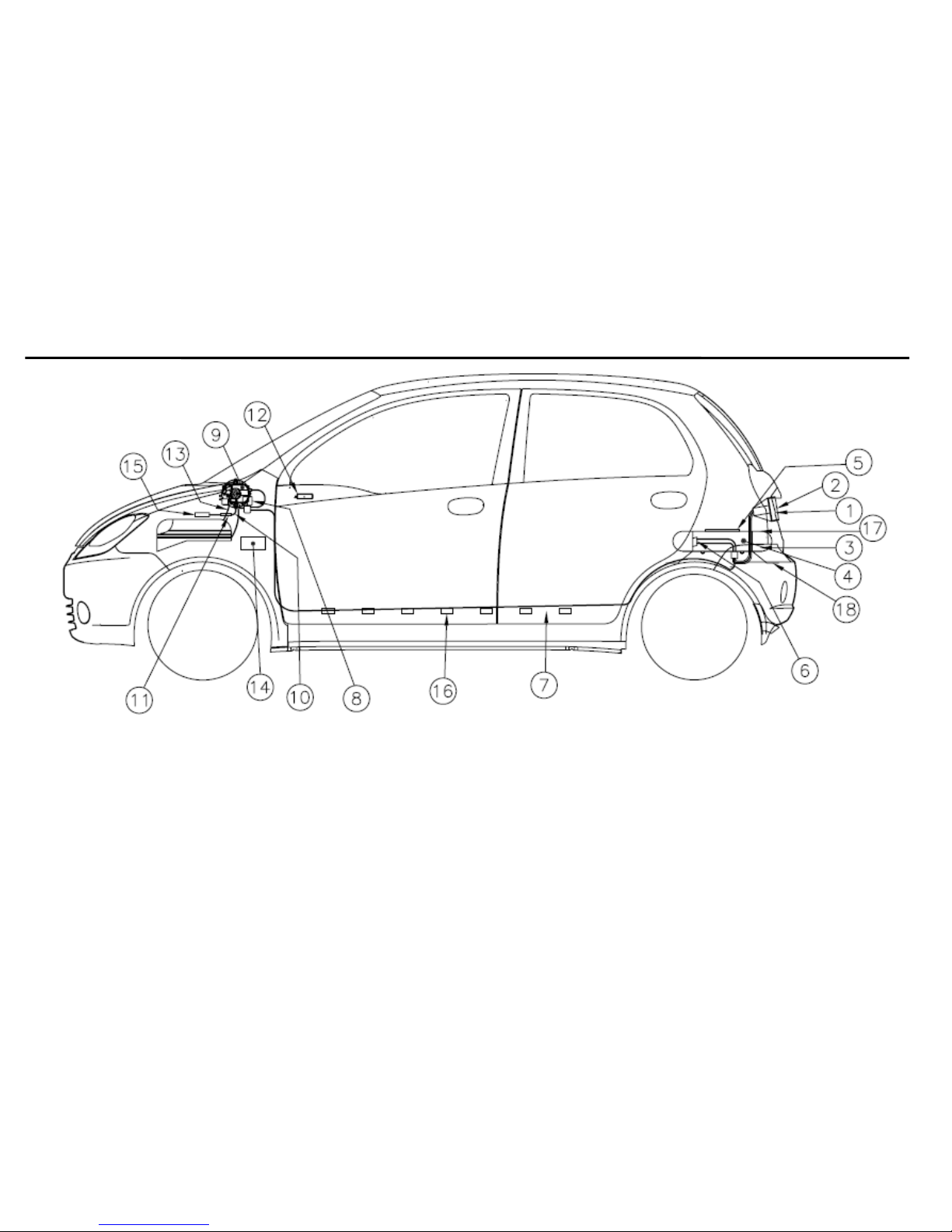

Layout of LPG System (Side View)

1. LPG Proof Case

2. LPG Filler Valve

3. HIGH Pressure Pipe PVC

coated (8 mm)

4. LPG Tank

5. Tank Cover

6. Multivalve

7. High Pressure Pipe PVC coated

(6 mm)

8. Gas Solenoid

9. Reducer

10. Low Pressure Hose

11. Gaseous Phase Filter

12. Change Over Switch

13. Coolant Hose

14. ECU

15. Injector & Injector Rail

16. Line Clamp-Screw

17. Ducting Hose

18. Earthing.

~ 3 ~

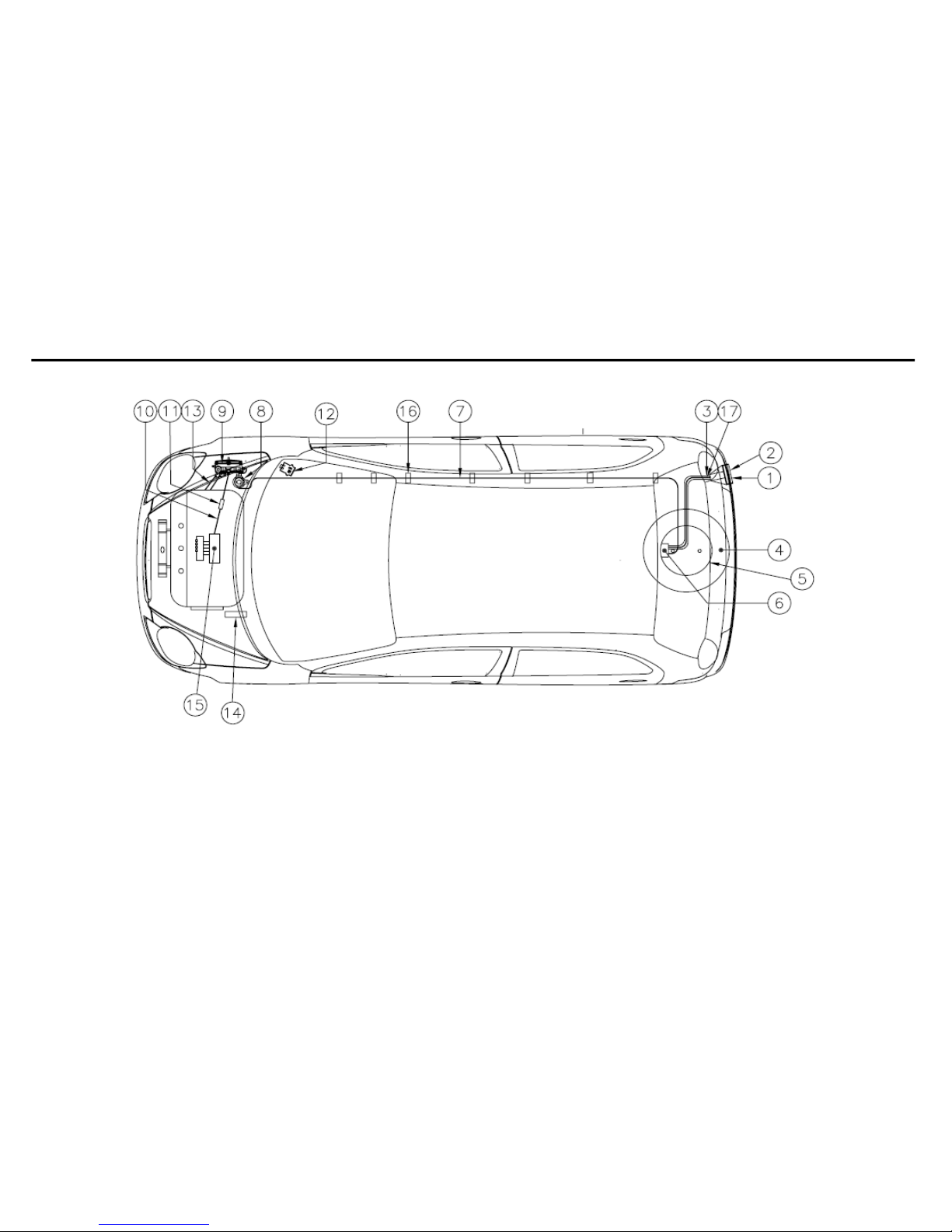

Layout of LPG System (Top View)

1. LPG Proof Case

2. LPG Filler Valve

3. HIGH Pressure Pipe PVC

coated (8 mm)

4. LPG Tank

5. Tank Cover

6. Multivalve

7. High Pressure Pipe PVC coated

(6 mm)

8. Gas Solenoid

9. Reducer

10. Low Pressure Hose

11. Gaseous Phase Filter

12. Change Over Switch

13. Coolant Hose

14. ECU

15. Injector & Injector Rail

16. Line Clamp-Screw

17. Ducting Hose

~ 4 ~

Specification

SPARK

Kerb Weight

885 Kg

Gross Weight

1270 Kg

Seating Capacity

5 Person

LPG Capacity (liters)

(Tank Capacity)

32.8 Liters

(Filling Capacity )

80%

26.20 Liters

LPG Kit Identification

Reducer No.

Cylinder No.

Retest Date.

Multivalve No.

ECU ID Number.

Vehicle Details

Engine No.

Chassis No.

Date of Sale.

Note: Specifications are subject to change without

notice

Note: To be filled in by the selling dealer

~ 5 ~

Introduction of LPG / Safety Precautions

Introduction to LPG:

Auto LPG is a clean, high octane and

Eco-friendly fuel. It is basically a mixture

of Butane and Propane and is obtained

from Natural Gas by fractionation and

Crude Oil Refining. LPG is in gaseous

state at atmospheric pressure, but can be

liquidated when moderate pressure is

applied or when the temperature is

sufficiently reduced. LPG produces less

harmful exhaust gases as compared to

petrol & diesel.

Safety Precautions

Do‟s:

If any minor work or body repairs are

to be carried out, turn the Multivalve

knob to close position prior to

commencement of the repair work.

Get the LPG cylinder checked

periodically as per the maintenance

chart.

If the engine does not start in LPG

mode, switch over to petrol mode

and take your vehicle to a Chevrolet

authorized service outlet for

inspection.

It is always recommended to start the

vehicle in Petrol mode.

Ensure that conduit pipes are always

in good condition and secured firmly.

Replace in case damage is noticed

Don'ts:

Never fiddle with any of the

components in the LPG system.

The cylinder should not be repaired

under any circumstances. In case of

any problem, consult with a

Chevrolet authorized service outlet.

Do not adjust setting of LPG system.

Do not install domestic LPG or any

other gas cylinder in place of OE

fitted cylinder.

Do not carry inflammable material

near the LPG cylinder.

Do not try to fill more than 26.20 liters

of auto LPG.

Do not use domestic LPG or any

other gas in your vehicle.

CAUTION

Always keep approx. 10-15 liters petrol

in your petrol tank, as your vehicle will

always start in PETROL mode. This will

prevent gumming problem in your

vehicle fuel system (fuel line, fuel pump,

fuel injector etc.). It will also prevent rust

from forming inside the petrol tank.

CAUTION

After washing/cleaning please ensure that

the LPG tank compartment is completely dry,

before starting your vehicle.

~ 6 ~

Safety

In Case of Gas Leakage:

Do not panic.

The ECU automatically switches-off the LPG supply from

the tank.

As a safety precaution, close the manual shut - off valve

provided on the „Multifunction valve‟ located on the LPG

tank. Ensure that the tank cover is properly fitted.

Roll down all the windows and keep the doors fully open.

The ECU will automatically switch the fuel mode to Petrol.

The ECU will not allow you to switch to LPG mode until the

leakage is rectified.

Contact the nearest Chevrolet Authorized service station

and get car repaired.

Maintenance

Check pressure on the gauge every week. The needle should

remain in green zone. If it comes to red zone, please send the

unit for recharging. The Fire Extinguisher is to be refilled

every three years even if it is not used.

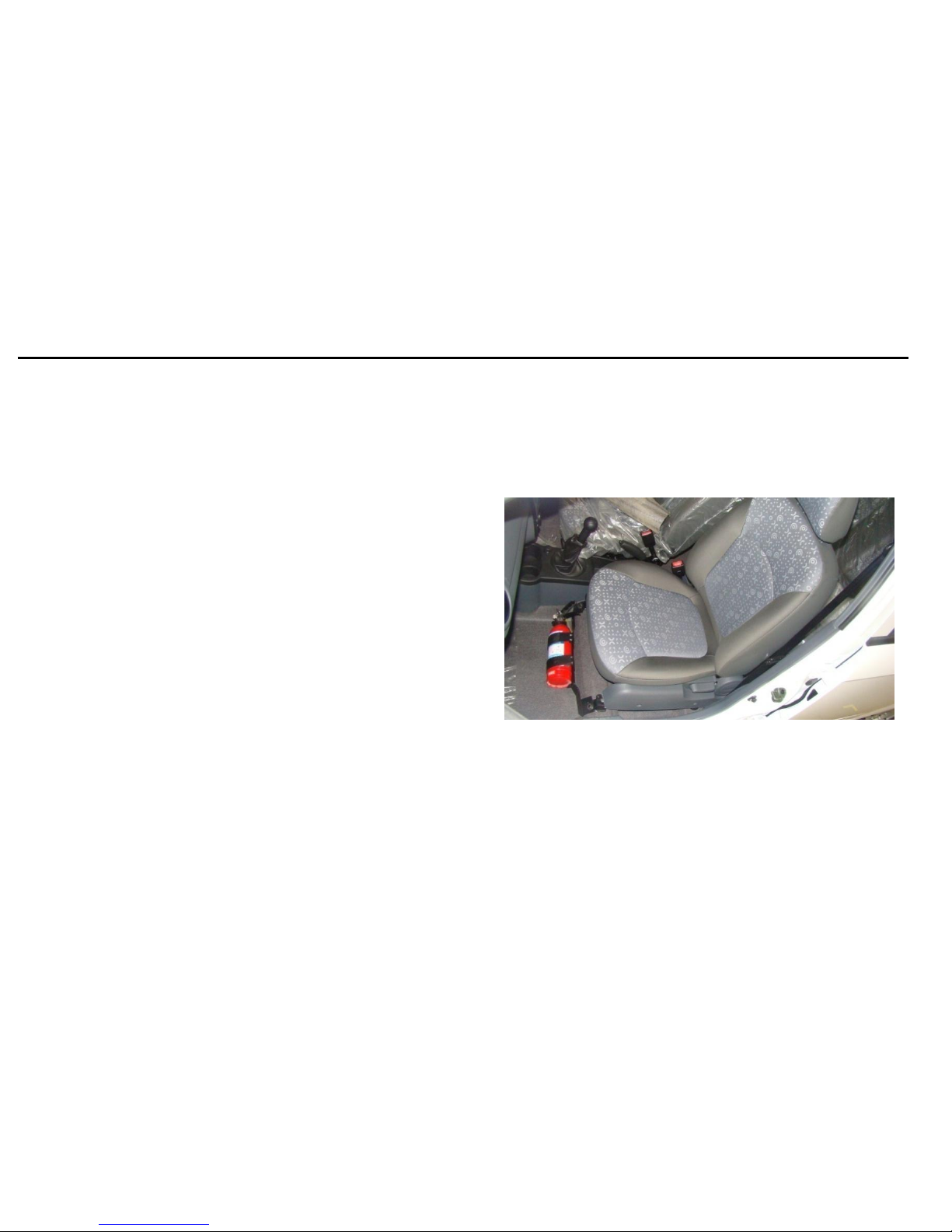

Fire Extinguisher:

One fire extinguisher is located below the front passenger seat.

Method of operation:

1. Check that the pressure gauge needle is in green zone.

2. Hold upright and pull the pin.

3. Press the lever.

4. Direct discharge at base of flame with rapid sweeping motion.

5. Recharge the fire extinguisher after use.

~ 7 ~

Brief Description of LPG System

The brief description of sequential

injection system is as under:

Sequential Injection System can assure

higher performances without

compromising the simplicity of the

installation.

From the functional & performance point

of view Sequent Injection System has the

following advantages:

Reduced power loss

No gas air mixer

Very small reducer

No backfire risk

Reduced pollution levels

Sequential Injection is obtained by using

an electronic injector in each cylinder. A

high precision of gas dosage is obtained

using this system.

Auto-Diagnosis on ECU inlet/outlet is

protected against short circuit.

Spark LPG Vehicle comes fitted with bi-

fuel option and can be driven on auto

LPG or Petrol. An auto LPG storage tank

has been installed in the trunk

compartment and can store up to a

maximum of 26.20 Liters of auto LPG.

An auto LPG manual shut off valve is

available on the multivalve in the LPG

cylinder, in case gas supply to the engine

needs to be cut off.

A selection switch is provided on the HLD

Switch. This switch helps in selecting the

fuel mode for the vehicle.

Fuel selection switch also indicates the

amount of LPG in the storage tank. A

separate indicator is also provided on the

tank itself. In case, the gas is completely

exhausted, the vehicle will switch over to

petrol mode automatically without

stopping. Fuel mode can be changed

without stopping the vehicle.

~ 8 ~

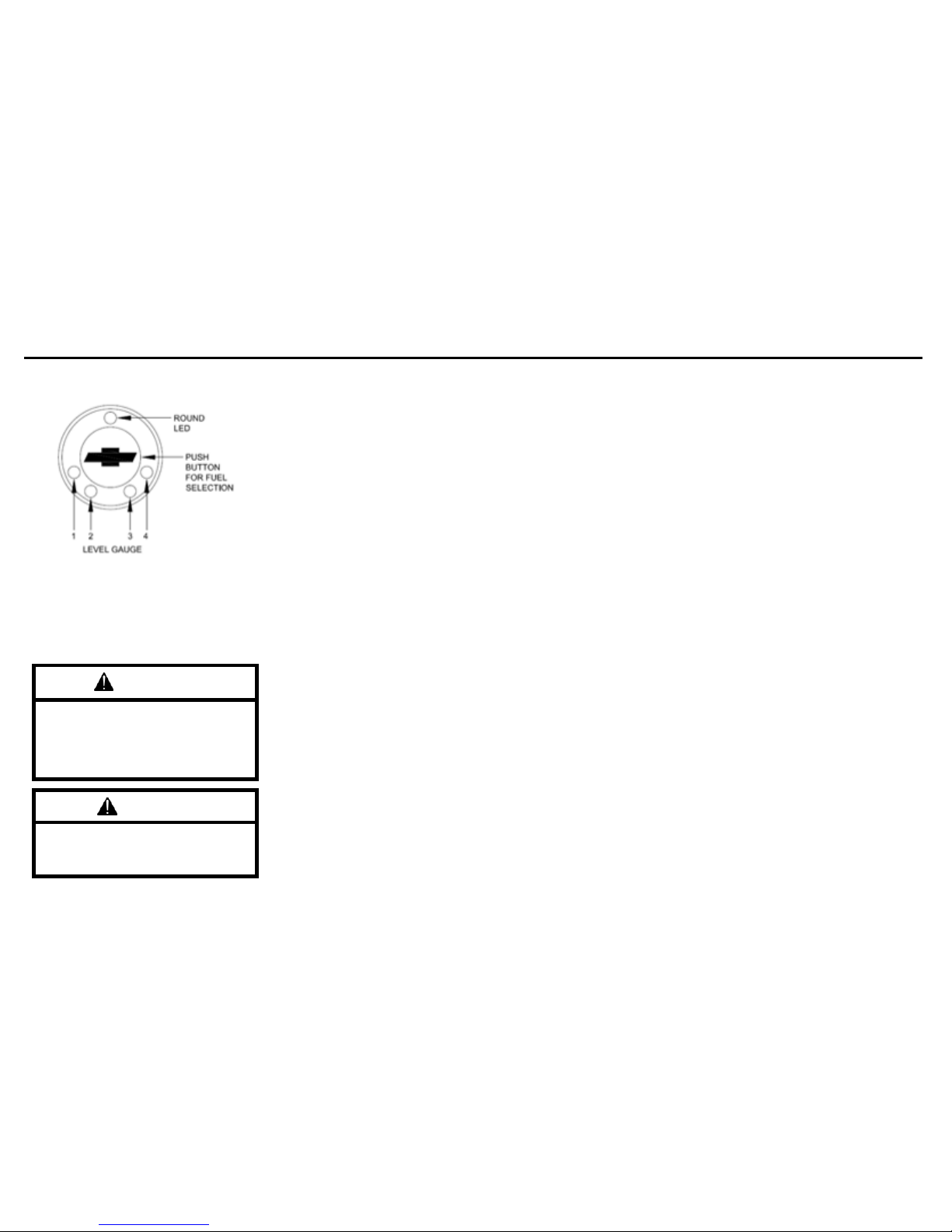

Fuel Selection switch

Changeover switch

Selection of Fuel is done through the

change over switch. You can select

either LPG as fuel or petrol.

Forced Petrol Mode

When the push button is pressed on

the switch, vehicle runs on petrol and

the round LED on top glows RED” and

all four levels LED turn off.

Forced start in LPG MODE

(Not recommended)

If there is no petrol available in your

petrol tank while starting, you may start

your vehicle in LPG mode. To start

your vehicle in LPG mode, please

follow these directions:

Turn on your Ignition Key.

Your fuel mode indicator on your

fuel selection switch glows red

indicating petrol mode.

Press and hold fuel selection switch

for 5 seconds until fuel mode LED

changes to green.

Now crank your engine by turning

your ignition key and your vehicle

will start in LPG mode.

LPG Mode

When the switch is in LPG mode the

top LED is RED and the level gauge

LED‟s glow indicating the level of LPG

in the tank. If this condition is not

present then press the switch.

As your vehicle always starts in petrol

mode the LED on top glows red. The

vehicle automatically changes over to

LPG from petrol after reaching the

following conditions:

1) In cold start, it waits for coolant

temperature reach 55˚C.

2) If coolant temperature is between

55˚C to 75˚C then it waits for

60secs.

3) If coolant temp is more then

75˚C it waits for 10sec.

Upon changing to LPG the LED on top

changes to GREEN indicating that your

vehicle is now running on LPG. Also

the solenoid fitted on the LPG tank

gets energized making a “TAK” sound.

This is a normal and acceptable

behavior.

CAUTION

Forced Starting in LPG mode can be

used for only 5 times. After that user

take his vehicle to a Chevrolet

authorized service outlet to extend

this mode for another 5 times.

CAUTION

Please ensure that the gear shift is in

Neutral position before starting the

engine in either mode.

Autres manuels pour BeaT LPG

Table des matières

Autres manuels Chevrolet Automobile

Chevrolet

Chevrolet Optra Magnum Manuel utilisateur

Chevrolet

Chevrolet 2010 Cobalt Manuel utilisateur

Chevrolet

Chevrolet Beat Manuel utilisateur

Chevrolet

Chevrolet 2007 HHR Instructions de montage

Chevrolet

Chevrolet COLORADO 2011 Manuel utilisateur

Chevrolet

Chevrolet Tahoe 2015 Manuel utilisateur

Chevrolet

Chevrolet 1994 Blazer Manuel utilisateur

Chevrolet

Chevrolet Equinox 2019 Manuel utilisateur

Chevrolet

Chevrolet 2011 HHR Manuel utilisateur

Chevrolet

Chevrolet 2002 Silverado 1500 Pickup Manuel utilisateur

Chevrolet

Chevrolet 1965 Corvair Manuel utilisateur

Chevrolet

Chevrolet TAHOE POLICE - 2011 Manuel utilisateur

Chevrolet

Chevrolet truck 1960 Manuel utilisateur

Chevrolet

Chevrolet 2013 Cruze Manuel utilisateur

Chevrolet

Chevrolet Tahoe Suburban 2008 Instructions de montage

Chevrolet

Chevrolet Cobalt 2005 Manuel utilisateur

Chevrolet

Chevrolet 2008 Optra Manuel utilisateur

Chevrolet

Chevrolet Impala 2010 Manuel utilisateur

Chevrolet

Chevrolet 2001 3500HD Manuel utilisateur

Chevrolet

Chevrolet Cruse 2014 Instructions de montage

Chevrolet

Chevrolet 2004 Colorado Manuel utilisateur

Chevrolet

Chevrolet 1998 Prizm Manuel utilisateur

Chevrolet

Chevrolet Optra 2004 Manuel utilisateur

Chevrolet

Chevrolet 1997 Tahoe Manuel utilisateur

Manuels Automobile populaires d'autres marques

Toyota

Toyota 2000 Tundra Manuel utilisateur

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur

Skoda

Skoda FABIA RS - ANNEXE 118 Manuel utilisateur
