Chevrolet 2016 Impala Limited Manuel utilisateur

Chevrolet Impala Limited Owner Manual (GMNA-Localizing-U.S.- 9085358) -

2016 - crc - 8/20/15

Contents Introduction . . . . . . . . . . . . . . . . . . . . . . 2

In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Keys, Doors, and Windows . . . . . 23

Seats and Restraints . . . . . . . . . . . 40

Storage . . . . . . . . . . . . . . . . . . . . . . . . . 83

Instruments and Controls . . . . . . . 85

Lighting . . . . . . . . . . . . . . . . . . . . . . . 125

Infotainment System . . . . . . . . . . 132

Climate Controls . . . . . . . . . . . . . . 156

Driving and Operating . . . . . . . . . 161

Vehicle Care . . . . . . . . . . . . . . . . . . 199

Service and Maintenance . . . . . 269

Technical Data . . . . . . . . . . . . . . . . 282

Customer Information . . . . . . . . . 285

Reporting Safety Defects . . . . . . 295

OnStar ........................ 299

Index .................... 309

Chevrolet Impala Limited Owner Manual (GMNA-Localizing-U.S.- 9085358) -

2016 - crc - 8/20/15

2 Introduction

Introduction

The names, logos, emblems,

slogans, vehicle model names, and

vehicle body designs appearing in

this manual including, but not limited

to, GM, the GM logo, CHEVROLET,

the CHEVROLET Emblem, IMPALA,

and the IMPALA Emblem are

trademarks and/or service marks of

General Motors LLC, its

subsidiaries, affiliates, or licensors.

This manual describes features that

may or may not be on the vehicle

because of optional equipment that

was not purchased on the vehicle,

model variants, country

specifications, features/applications

that may not be available in your

region, or changes subsequent to

the printing of this owner manual.

Refer to the purchase

documentation relating to your

specific vehicle to confirm the

features.

Keep this manual in the vehicle for

quick reference.

Using this Manual

To quickly locate information about

the vehicle, use the Index in the

back of the manual. It is an

alphabetical list of what is in the

manual and the page number where

it can be found.

Danger, Warning, and

Caution

Warning messages found on vehicle

labels and in this manual describe

hazards and what to do to avoid or

reduce them.

{Danger

Danger indicates a hazard with a

high level of risk which will result

in serious injury or death.

{Warning

Warning indicates a hazard that

could result in injury or death.

Caution

Caution indicates a hazard that

could result in property or vehicle

damage.

Litho in U.S.A.

Chevrolet Impala Limited Owner Manual (GMNA-Localizing-U.S.- 9085358) -

2016 - crc - 8/20/15

Introduction 3

A circle with a slash through it is a

safety symbol which means “Do

Not,” “Do not do this,”or “Do not let

this happen.”

Symbols

The vehicle has components and

labels that use symbols instead of

text. Symbols are shown along with

the text describing the operation or

information relating to a specific

component, control, message,

gauge, or indicator.

M:Shown when the owner

manual has additional instructions

or information.

*:Shown when the service

manual has additional instructions

or information.

0:Shown when there is more

information on another page —

“see page.”

Vehicle Symbol Chart

Here are some additional symbols

that may be found on the vehicle

and what they mean. For more

information on the symbol, refer to

the Index.

9:Airbag Readiness Light

#:Air Conditioning

!:Antilock Brake System (ABS)

%:Audio Steering Wheel Controls

or OnStar

(if equipped)

$:Brake System Warning Light

":Charging System

I:Cruise Control

`:Do Not Puncture

^:Do Not Service

B:Engine Coolant Temperature

O:Exterior Lamps

_:Flame/Fire Prohibited

#:Fog Lamps

.:Fuel Gauge

+:Fuses

3:Headlamp High/Low-Beam

Changer

j:LATCH System Child Restraints

*:Malfunction Indicator Lamp

::Oil Pressure

}:Power

/:Remote Vehicle Start

>:Safety Belt Reminders

7:Tire Pressure Monitor

d:Traction Control/StabiliTrak

a:Under Pressure

M:Windshield Washer Fluid

Chevrolet Impala Limited Owner Manual (GMNA-Localizing-U.S.- 9085358) -

2016 - crc - 8/20/15

4 Introduction

2NOTES

Chevrolet Impala Limited Owner Manual (GMNA-Localizing-U.S.- 9085358) -

2016 - crc - 8/20/15

In Brief 5

In Brief

Instrument Panel

Instrument Panel . . . . . . . . . . . . . . . . 6

Initial Drive Information

Initial Drive Information . . . . . . . . . . 7

Remote Keyless Entry (RKE)

System . . . . . . . . . . . . . . . . . . . . . . . . 7

Remote Vehicle Start . . . . . . . . . . . 8

Door Locks . . . . . . . . . . . . . . . . . . . . . 8

Trunk Release . . . . . . . . . . . . . . . . . . 9

Windows . . . . . . . . . . . . . . . . . . . . . . . . 9

Seat Adjustment . . . . . . . . . . . . . . . . 9

Second Row Seats . . . . . . . . . . . . 10

Head Restraint Adjustment . . . . 11

Safety Belts . . . . . . . . . . . . . . . . . . . . 11

Passenger Sensing System . . . . 11

Mirror Adjustment . . . . . . . . . . . . . . 12

Steering Wheel Adjustment . . . . 12

Interior Lighting . . . . . . . . . . . . . . . . 13

Exterior Lighting . . . . . . . . . . . . . . . 13

Windshield Wiper/Washer . . . . . . 14

Climate Controls . . . . . . . . . . . . . . . 15

Vehicle Features

Radio(s) ....................... 17

Satellite Radio . . . . . . . . . . . . . . . . . 18

Portable Audio Devices . . . . . . . . 18

Bluetooth

..................... 18

Steering Wheel Controls . . . . . . . 19

Cruise Control . . . . . . . . . . . . . . . . . 19

Power Outlets . . . . . . . . . . . . . . . . . 20

Universal Remote System . . . . . 20

Performance and Maintenance

Traction Control/Electronic

Stability Control . . . . . . . . . . . . . . 21

Tire Pressure Monitor . . . . . . . . . . 21

Engine Oil Life System . . . . . . . . 22

E85 or FlexFuel . . . . . . . . . . . . . . . . 22

Driving for Better Fuel

Economy . . . . . . . . . . . . . . . . . . . . . 22

Roadside Assistance

Program ...................... 22

Chevrolet Impala Limited Owner Manual (GMNA-Localizing-U.S.- 9085358) -

2016 - crc - 8/20/15

6 In Brief

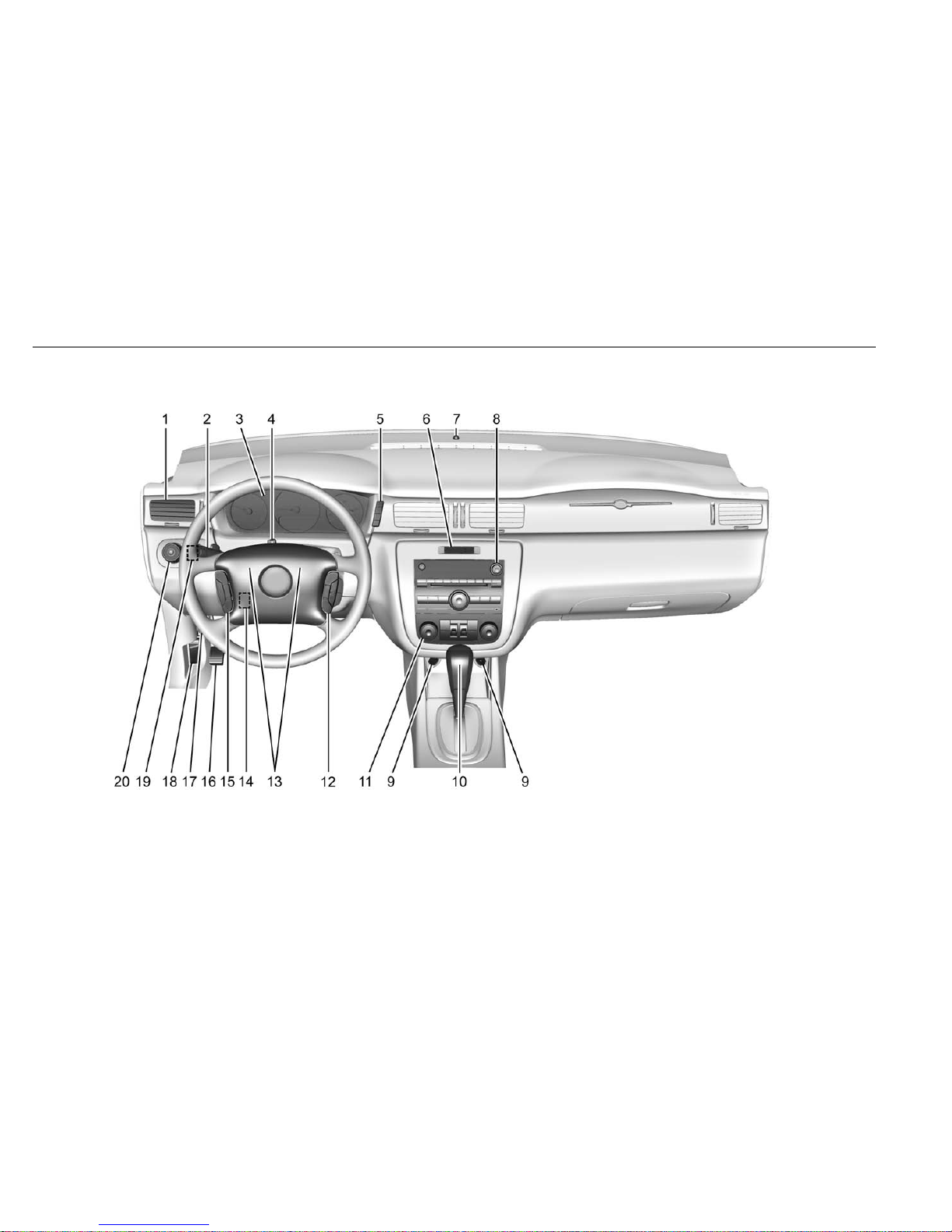

Instrument Panel

Chevrolet Impala Limited Owner Manual (GMNA-Localizing-U.S.- 9085358) -

2016 - crc - 8/20/15

In Brief 7

1. Air Vents 0159ii .

2. Turn Signal Lever. See Turn

and Lane-Change Signals

0127ii .

3. Instrument Cluster 093ii .

4. Hazard Warning Flashers

0127ii .

5. Driver Information Center (DIC)

0104ii .

6. Passenger Airbag Status

Indicator 096ii .

7. Light Sensor. See Daytime

Running Lamps (DRL)/

Automatic Headlamp System

0126ii .

8. Infotainment 0132ii .

9. Power Outlets 090ii .

10. Center Console Shift Lever (If

Equipped). See Automatic

Transmission 0179ii .

11. Climate Control Systems

0156ii .

12. Steering Wheel Controls 086ii

(If Equipped).

13. Horn 087ii .

14. Steering Wheel Adjustment

086ii (Out of View).

15. Cruise Control 0186ii .

16. Parking Brake 0183ii .

17. Data Link Connector (DLC)

(Out of View). See Malfunction

Indicator Lamp (Check Engine

Light) 098ii .

18. Hood Release. See Hood

0202ii .

19. Instrument Panel Illumination

Control 0128ii (Out of View).

Remote Trunk Release Button.

See Trunk 031ii (Out of View).

Dome Lamp Control. See

Dome Lamps 0129ii (Out

of View).

Traction Control/Electronic

Stability Control 0184ii (Out

of View).

20. Exterior Lamp Controls 0125ii .

Initial Drive

Information

This section provides a brief

overview about some of the

important features that may or may

not be on your specific vehicle.

For more detailed information, refer

to each of the features which can be

found later in this owner manual.

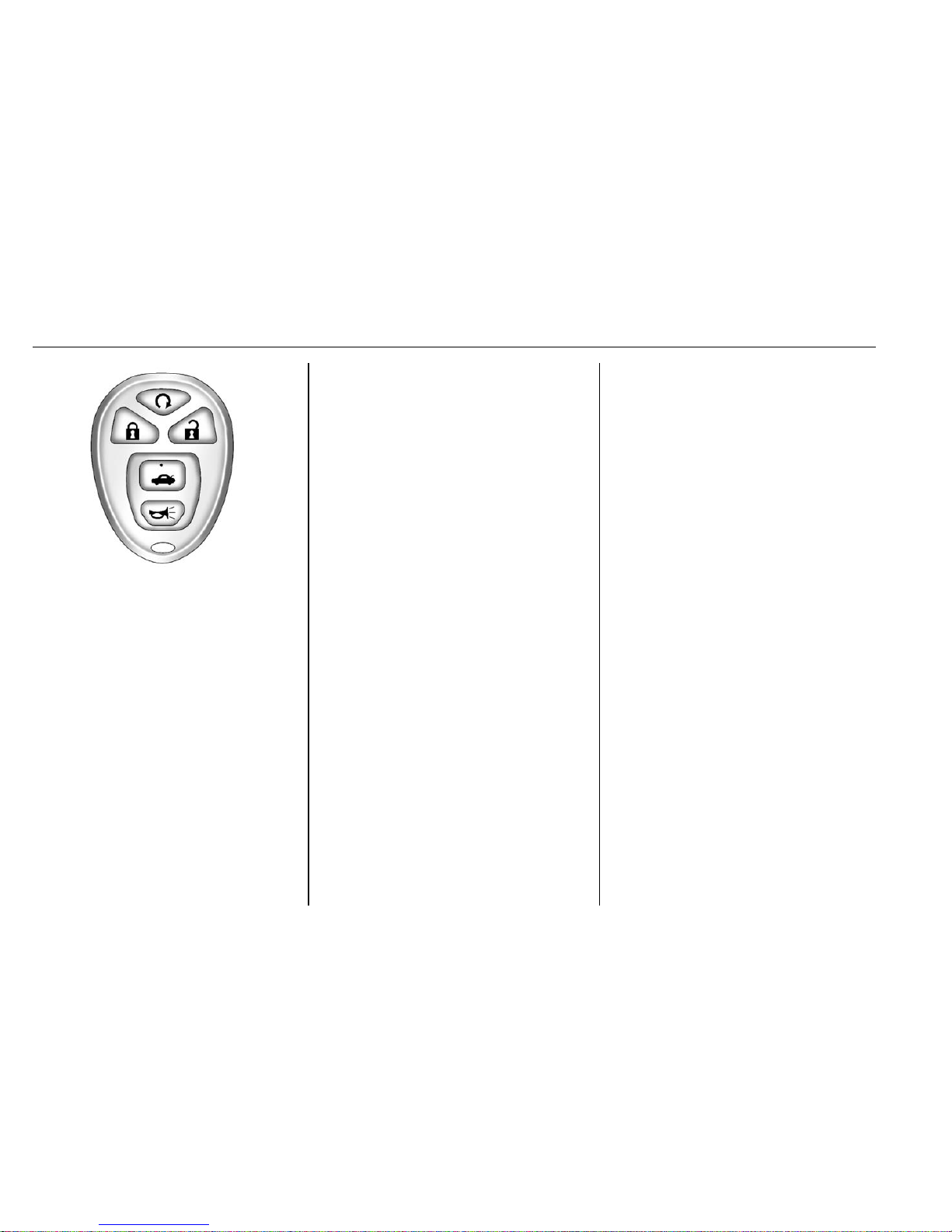

Remote Keyless Entry

(RKE) System

The RKE transmitter is used to

remotely lock and unlock the doors

from up to 60 m (195 ft) away from

the vehicle.

Chevrolet Impala Limited Owner Manual (GMNA-Localizing-U.S.- 9085358) -

2016 - crc - 8/20/15

8 In Brief

Press Kto unlock the driver door.

Press again within five seconds to

unlock all remaining doors.

Press Qto lock all doors.

Lock and unlock feedback can be

personalized. See Vehicle

Personalization 0114ii for additional

information.

Press and hold Vfor

approximately one second to open

the trunk.

Press Land release to locate the

vehicle.

Press Land hold for more than

two seconds to sound the panic

alarm.

Press Lagain to cancel the panic

alarm.

See Keys 023ii and Remote Keyless

Entry (RKE) System Operation

025ii .

Remote Vehicle Start

If equipped, the engine can be

started from outside of the vehicle.

Starting the Vehicle

1. Press and release Qon the

RKE transmitter.

2. Immediately press and hold /

for at least four seconds or until

the turn signal lamps flash.

3. Start the vehicle normally after

entering.

When the vehicle starts, the parking

lamps will turn on.

Remote start can be extended.

Canceling a Remote Start

To cancel a remote start, do one of

the following:

.Press and hold /until the

parking lamps turn off.

.Turn on the hazard warning

flashers.

.Turn the vehicle on and then off.

See Remote Vehicle Start 027ii .

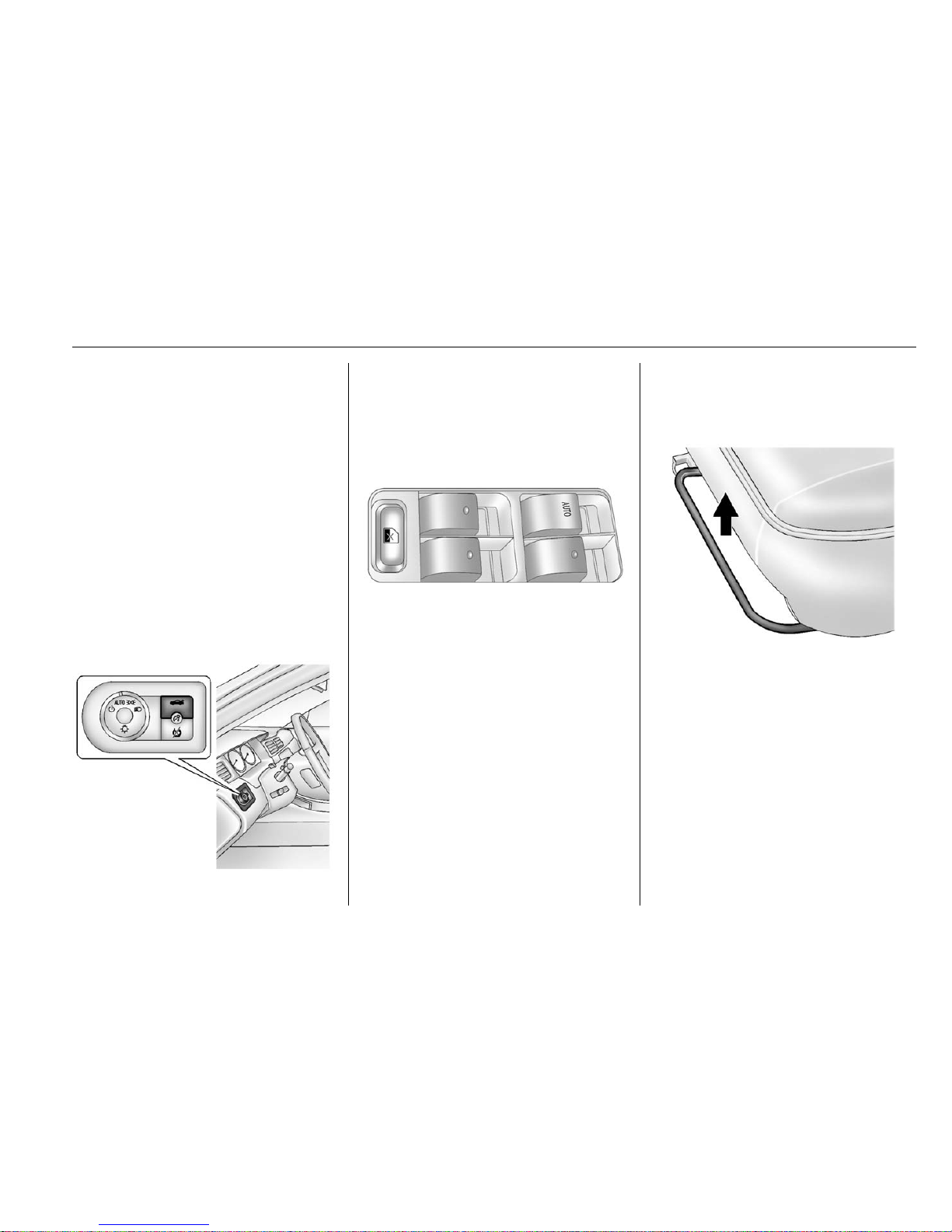

Door Locks

Manual Locks

From outside the vehicle, use the

key in the driver door or the Remote

Keyless Entry (RKE) transmitter to

lock or unlock the vehicle. From the

inside, pull up or push down on the

manual door lock knobs.

See Door Locks 029ii .

Power Door Locks

Power door lock switches are

located on the front doors near the

handle.

Q:Press the bottom of the switch

to lock all doors.

Chevrolet Impala Limited Owner Manual (GMNA-Localizing-U.S.- 9085358) -

2016 - crc - 8/20/15

In Brief 9

K:Press the top of the switch to

unlock all doors.

For more information, see:

.Power Door Locks 029ii .

.Delayed Locking 030ii .

Trunk Release

To open the trunk from the outside,

press Von the RKE transmitter.

See Remote Keyless Entry (RKE)

System Operation 025ii .

Or, use the key in the lock cylinder,

if equipped.

To open the trunk from the inside,

press V. See Trunk 031ii .

Windows

The power window switches are on

the driver door armrest. Each

passenger door has a switch that

controls only that window.

To lower the window, press and hold

the front of the switch to the first

position until the window is at the

desired level. To raise the window,

pull up and hold the front of the

switch.

For more information, see Power

Windows 037ii .

Seat Adjustment

Manual Seats

To adjust a manual seat:

1. Lift the bar under the front

edge of the seat cushion to

unlock the seat.

2. Slide the seat to the desired

position and release the bar.

3. Try to move the seat back and

forth to be sure the seat is

locked in place.

See Seat Adjustment 042ii .

Table des matières

Autres manuels Chevrolet Automobile

Chevrolet

Chevrolet MATIZ Manuel utilisateur

Chevrolet

Chevrolet Tahoe 2015 Manuel utilisateur

Chevrolet

Chevrolet 2003 S10 Pickup Manuel utilisateur

Chevrolet

Chevrolet 2015 Silverado Instructions de montage

Chevrolet

Chevrolet 1999 Cavalier Manuel utilisateur

Chevrolet

Chevrolet 2002 Express Van Manuel utilisateur

Chevrolet

Chevrolet Beat Manuel utilisateur

Chevrolet

Chevrolet 2004 Colorado Manuel utilisateur

Chevrolet

Chevrolet Captiva CN202SR Manuel utilisateur

Chevrolet

Chevrolet EXPRESS - 2011 Manuel utilisateur

Chevrolet

Chevrolet 2003 Avalanche Manuel utilisateur

Chevrolet

Chevrolet Blazer 2019 Instructions de montage

Chevrolet

Chevrolet BOLT EV 2018 Manuel utilisateur

Chevrolet

Chevrolet 2005 Impala Manuel utilisateur

Chevrolet

Chevrolet 1967 Chevelle Manuel utilisateur

Chevrolet

Chevrolet Impala 2007 Instructions de montage

Chevrolet

Chevrolet CHEVY-2001 Guide de l'utilisateur

Chevrolet

Chevrolet 2016 Suburban Manuel utilisateur

Chevrolet

Chevrolet 2000 Impala Manuel utilisateur

Chevrolet

Chevrolet C6H042 Manuel utilisateur

Chevrolet

Chevrolet Traverse 2012 Manuel utilisateur

Chevrolet

Chevrolet Impala 2014 Manuel utilisateur

Chevrolet

Chevrolet Cruse 2014 Instructions de montage

Chevrolet

Chevrolet 2012 Corvette Manuel utilisateur

Manuels Automobile populaires d'autres marques

Toyota

Toyota 2000 Tundra Manuel utilisateur

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur

Skoda

Skoda FABIA RS - ANNEXE 118 Manuel utilisateur
