Chevrolet 2001 Corvette Manuel utilisateur
GMP/01-Y-ELV
Corvette
VEHICLE DISMANTLING MANUAL
Cautions
Provide additional support when a vehicle is on a hoist in the following ways:
- Before removing parts, support the opposite end. This helps prevent the
vehicle from slipping off.
- Before removing major components, chain the vehicle frame to the hoist pads
at the same end as the removal. This helps avoid a tip-off.
Disconnect the battery prior to fluid removal and dismantling in order to reduce risk of
fire and personal injury.
Always wear safety goggles when working with fuel in order to protect the eyes from
splash.
Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition
source is present. Never drain or store gasoline or diesel fuel in an open container, due
to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher
nearby.
Relieve the fuel system pressure before dismantling fuel system components in order
to reduce the risk of fire and personal injury.
Drain the fuel from the complete system, including injector nozzle(s), the fuel pump, all
fuel pipes, and the fuel tank. Draining the fuel will reduce the risk of fire and personal
injury.
Provide proper ventilation when working with fuel in enclosed areas where fuel vapors
can collect. The lack of adequate ventilation may result in personal injury.
This vehicle has a Supplemental Inflatable Restraint (SIR), “airbag” system. When
performing disassembly on or near the SIR components or the SIR wiring, refer to
cautions below. Failure to follow the cautions could cause airbag deployment or
personal injury.
- Be careful when handling a SIR sensor. Do not strike or jolt a SIR sensor.
- Do not carry the inflator module by the wires or connector on the inflator
module.
- Make sure the airbag opening points away from you.
- When storing an undeployed inflator module, make sure the airbag opening
points away from the surface on which the inflator module rests.
- Provide free space for the airbag to expand in case of an accidental
deployment.
Follow all applicable local laws and ordinances while performing procedures and
processes related to these activities.
The specifications and designs described herein are believed to be correct as of
the time this book was approved for printing.
Table of Contents
Section Page No.
Introduction.........................................................................................1
Activity Area 0.....................................................................................3
Activity Area 1.....................................................................................4
Activity Area 2.....................................................................................6
Activity Area 3.....................................................................................8
Activity Area 4...................................................................................10
Activity Area 5...................................................................................12
Activity Area 6...................................................................................14
Activity Area 7...................................................................................16
i
ii
This Page Intentionally Left Blank
1
INTRODUCTION
This manual contains dismantling data for the following vehicles:
MODEL YEAR MAKE MODEL VARIANT ENGINE TRANSMSSION
2001 Chevrolet Corvette Coupe 5.7L V8 6M/4L60E
2001 Chevrolet Corvette Convertible 5.7L V8 6M/4L60E
This Page Intentionally Left Blank
2
3
Dismantling Manual
2001 Chevrolet Corvette
Activity Area 0 -- Pretreatment
Area:Pretreatment Model:Corvette
Activity Ref Area # Part Name Material Qty Total Volume or
Weight
0.1 Engine oil Oil 5.20 L
0.1 Engine oil filter Multiple 10.42 kg
0.2 Transmission oil Oil 7.80 L
0.3 Refrigerant 134A Refrigerant 134 0.31 kg
0.4 Fuel tank PE 210.86 kg
0.4 Fuel tank isolator PUR 10.34 kg
0.4 Fuel filler neck insert PA-66 10.24 kg
0.4 Fuel tank tube PA-6 10.20 kg
0.5 Coolant Coolant 6.80 L
0.6 Steering oil Oil 0.42 L
0.7 Brake fluid Oil 0.50 L
0.8 Battery Multiple, including lead 116.52 kg
0.9 Wheel weights Lead 80.14 kg
0.10 Driver side air bag Multiple 11.53 kg
0.10 Passenger air bag Multiple 13.95 kg
0.11 Rear tire EPDM 230.57 kg
0.11 Front tire EPDM 227.12 kg
0.12 Instrument Cluster Light Tube Mercury 120-40 mg
Information & Comments:
Total Volume or Weight = single part material multiplied bythe quantity.
1.8
GLASS
1.2
GLASS
1.2
GLASS
1.3
SMC
1.3
SMC
1.4
EPDM
1.4
EPDM
1.5
EPDM
1.5
EPDM 1.5
EPDM
1.6
PMMA
1.7
EPDM
1.1
GLASS

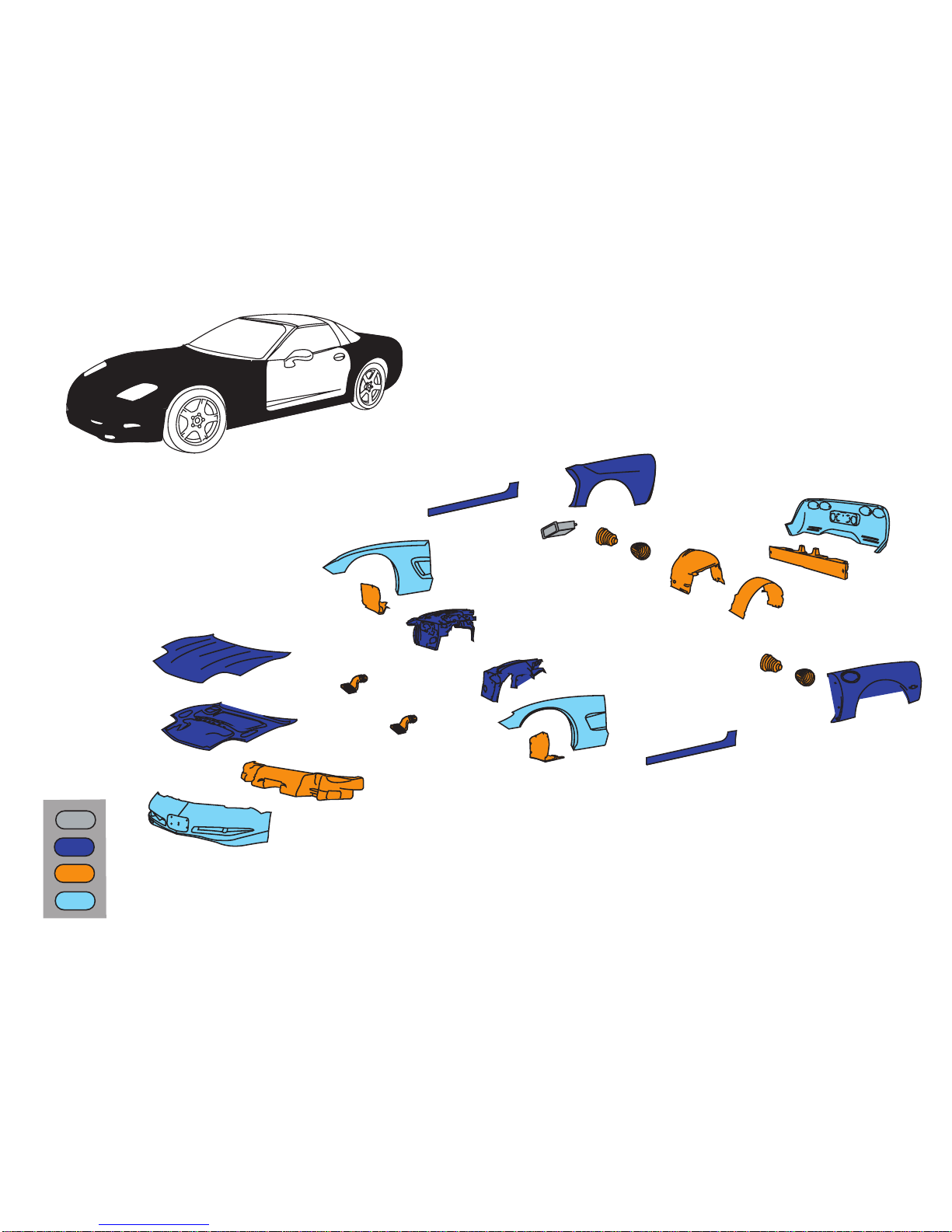

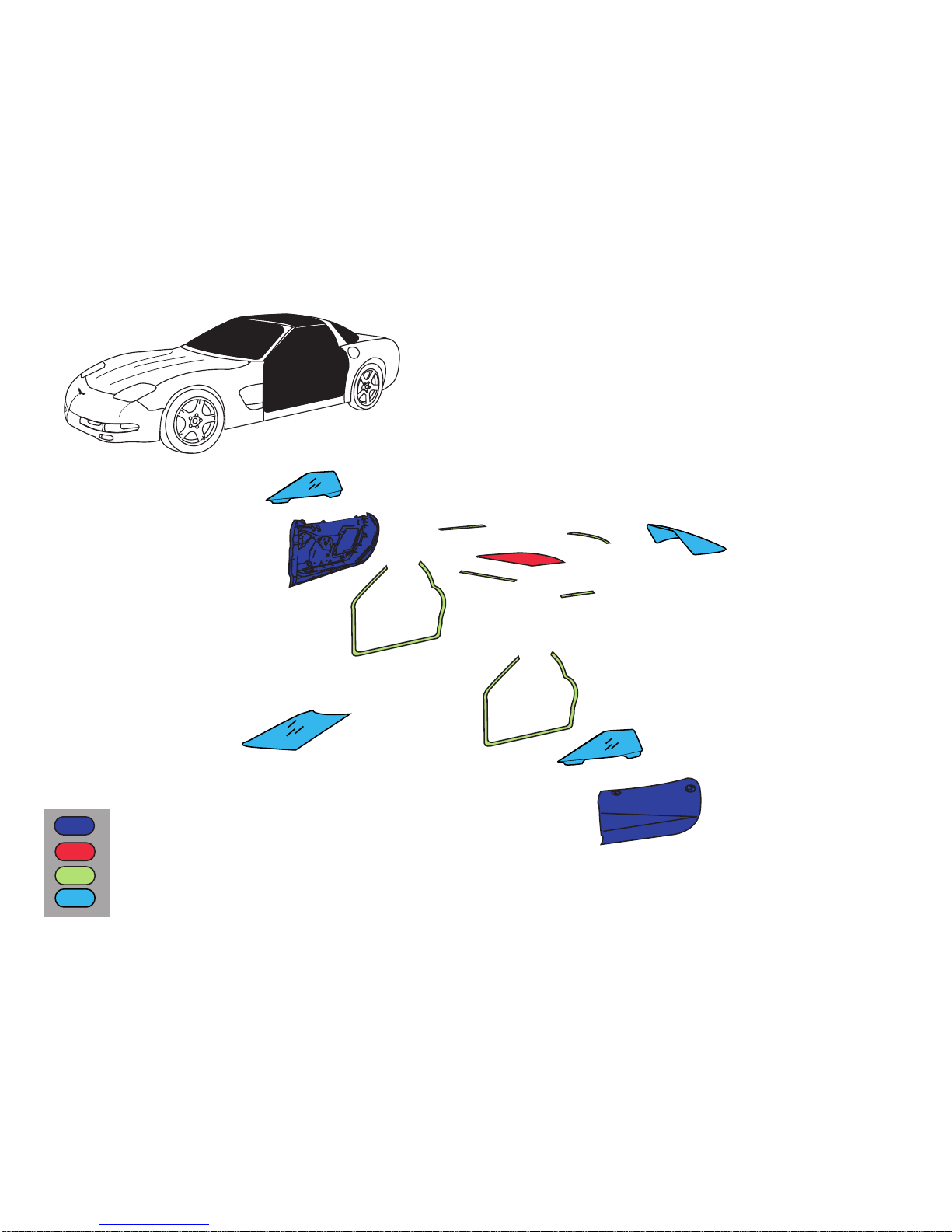

2001
CORVETTE
ACTIVITY AREA 1
DOORS AND GLAZING
EPDM
GLASS
PMMA
OTHER
4
5
Dismantling Manual
2001 Chevrolet Corvette
Activity Area 1 -- Doors and Glazing
Area:Doors and Glazing Model:Corvette
Activity Ref Area # Part Name Material Qty Total Material
Weight(kg)
1.1 Windshield Glass 116.37
1.2 Front door window, lh, rh Glass 28.48
1.3 Front door, lh, rh SMC 212.42
1.4 Front door weatherstrip EPDM 20.56
1.5 Sun roof panel weatherstrip EPDM 30.79
1.6 Sun roof panel PMMA 13.50
1.7 Sun roof panel rear weatherstrip EPDM 11.15
1.8 Back window Glass 111.40
Information & Comments:
Total Material Weight = weight of single material multiplied by the quantity.
PUR
2001
CORVETTE
ACTIVITY AREA 2
EXTERIOR TRIM
2.8
SMC
2.1
SMC
2.2
SMC 2.10
PUR
2.9
SMC
2.3
RRIM/PUR
PP
2.7
PP
2.7
PP
2.4
PP
2.5
PP
2.6
PUR
2.12
SMC
2.14
SMC
2.13
PA-66
2.11
SMC
2.15
PP
2.15
PP
2.16
PP
2.18
SMC
2.20
RRIM/PUR
2.19
PP
2.17
PP
2.5
PP
PA
OTHER
6
