Chevrolet/GMC Express 2017 Manuel utilisateur

17EN_OM_03 (EXPRESS/SAVANA - MID EAST - English)

2017 Express/Savana

Express/Savana

Owner’s Manual

CMY

2k17_misc_Express_Savana_17US_OM_03.ai 1 6/22/2016 1:47:49 PM2k17_misc_Express_Savana_17US_OM_03.ai 1 6/22/2016 1:47:49 PM

Chevrolet/GMC Express/Savana Owner Manual (GMNA-Localizing-MidEast-
10293090) - 2017 - crc - 6/21/16
Contents Introduction . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . 22
Seats and Restraints . . . . . . . . . . . 39
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 82
Instruments and Controls . . . . . . . 85
Lighting . . . . . . . . . . . . . . . . . . . . . . . 122
Infotainment System . . . . . . . . . . 128
Climate Controls . . . . . . . . . . . . . . 146
Driving and Operating . . . . . . . . . 152
Vehicle Care . . . . . . . . . . . . . . . . . . 195
Service and Maintenance . . . . . 267
Technical Data . . . . . . . . . . . . . . . . 278
Customer Information . . . . . . . . . 282
Index .................... 284

Chevrolet/GMC Express/Savana Owner Manual (GMNA-Localizing-MidEast-

10293090) - 2017 - crc - 6/21/16

2 Introduction

Introduction

The names, logos, emblems,

slogans, vehicle model names, and

vehicle body designs appearing in

this manual including, but not limited

to, GM, the GM logo, CHEVROLET,

the CHEVROLET Emblem, GMC,

the GMC Truck Emblem, SAVANA,

and EXPRESS are trademarks and/

or service marks of General Motors

LLC, its subsidiaries, affiliates,

or licensors.

This manual describes features that

may or may not be on the vehicle

because of optional equipment that

was not purchased on the vehicle,

model variants, country

specifications, features/applications

that may not be available in your

region, or changes subsequent to

the printing of this owner manual.

Refer to the purchase

documentation relating to your

specific vehicle to confirm the

features.

Keep this manual in the vehicle for

quick reference.

Danger, Warning, and

Caution

Warning messages found on vehicle

labels and in this manual describe

hazards and what to do to avoid or

reduce them.

{Danger

Danger indicates a hazard with a

high level of risk which will result

in serious injury or death.

{Warning

Warning indicates a hazard that

could result in injury or death.

Caution

Caution indicates a hazard that

could result in property or vehicle

damage.

Litho in U.S.A.

Chevrolet/GMC Express/Savana Owner Manual (GMNA-Localizing-MidEast-

10293090) - 2017 - crc - 6/21/16

Introduction 3

A circle with a slash through it is a

safety symbol which means “Do

Not,” “Do not do this,”or “Do not let

this happen.”

Symbols

The vehicle has components and

labels that use symbols instead of

text. Symbols are shown along with

the text describing the operation or

information relating to a specific

component, control, message,

gauge, or indicator.

M:Shown when the owner

manual has additional instructions

or information.

*:Shown when the service

manual has additional instructions

or information.

0:Shown when there is more

information on another page —

“see page.”

Vehicle Symbol Chart

Here are some additional symbols

that may be found on the vehicle

and what they mean. For more

information on the symbol, refer to

the Index.

9:Airbag Readiness Light

#:Air Conditioning

!:Antilock Brake System (ABS)

%:Audio Steering Wheel Controls

J:Brake System Warning Light

":Charging System

I:Cruise Control

`:Do Not Puncture

^:Do Not Service

B:Engine Coolant Temperature

O:Exterior Lamps

_:Flame/Fire Prohibited

.:Fuel Gauge

+:Fuses

3:Headlamp High/Low-Beam

Changer

i:Top Tether Anchors for Child

Restraints

*:Malfunction Indicator Lamp

::Oil Pressure

}:Power

/:Remote Vehicle Start

>:Safety Belt Reminders

7:Tire Pressure Monitor

_:Tow/Haul Mode

d:Traction Control/StabiliTrak

a:Under Pressure

M:Windshield Washer Fluid

Chevrolet/GMC Express/Savana Owner Manual (GMNA-Localizing-MidEast-

10293090) - 2017 - crc - 6/21/16

4 Introduction

2NOTES

Chevrolet/GMC Express/Savana Owner Manual (GMNA-Localizing-MidEast-
10293090) - 2017 - crc - 6/21/16
In Brief 5
In Brief
Instrument Panel
Instrument Panel . . . . . . . . . . . . . . . . 6
Initial Drive Information
Initial Drive Information . . . . . . . . . . 8
Remote Keyless Entry (RKE)
System . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Vehicle Start . . . . . . . . . . . 8
Door Locks . . . . . . . . . . . . . . . . . . . . . 9
Windows . . . . . . . . . . . . . . . . . . . . . . . . 9
Seat Adjustment . . . . . . . . . . . . . . . 10
Safety Belts . . . . . . . . . . . . . . . . . . . . 11
Airbag On-Off Switch . . . . . . . . . . 11
Mirror Adjustment . . . . . . . . . . . . . . 12
Steering Wheel Adjustment . . . . 12
Interior Lighting . . . . . . . . . . . . . . . . 13
Exterior Lighting . . . . . . . . . . . . . . . 13
Windshield Wiper/Washer . . . . . . 14
Climate Controls . . . . . . . . . . . . . . . 15
Transmission . . . . . . . . . . . . . . . . . . 16
Vehicle Features
Radio(s) ....................... 17
Portable Audio Devices . . . . . . . . 18
Steering Wheel Controls . . . . . . . 18
Cruise Control . . . . . . . . . . . . . . . . . 19
Parking Assist . . . . . . . . . . . . . . . . . 19
Power Outlets . . . . . . . . . . . . . . . . . 19
Performance and Maintenance
Traction Control/Electronic
Stability Control . . . . . . . . . . . . . . 20
Tire Pressure Monitor . . . . . . . . . . 20
Fuel ........................... 21
Engine Oil Life System . . . . . . . . 21
Driving for Better Fuel
Economy . . . . . . . . . . . . . . . . . . . . . 21

Chevrolet/GMC Express/Savana Owner Manual (GMNA-Localizing-MidEast-

10293090) - 2017 - crc - 6/21/16

6 In Brief

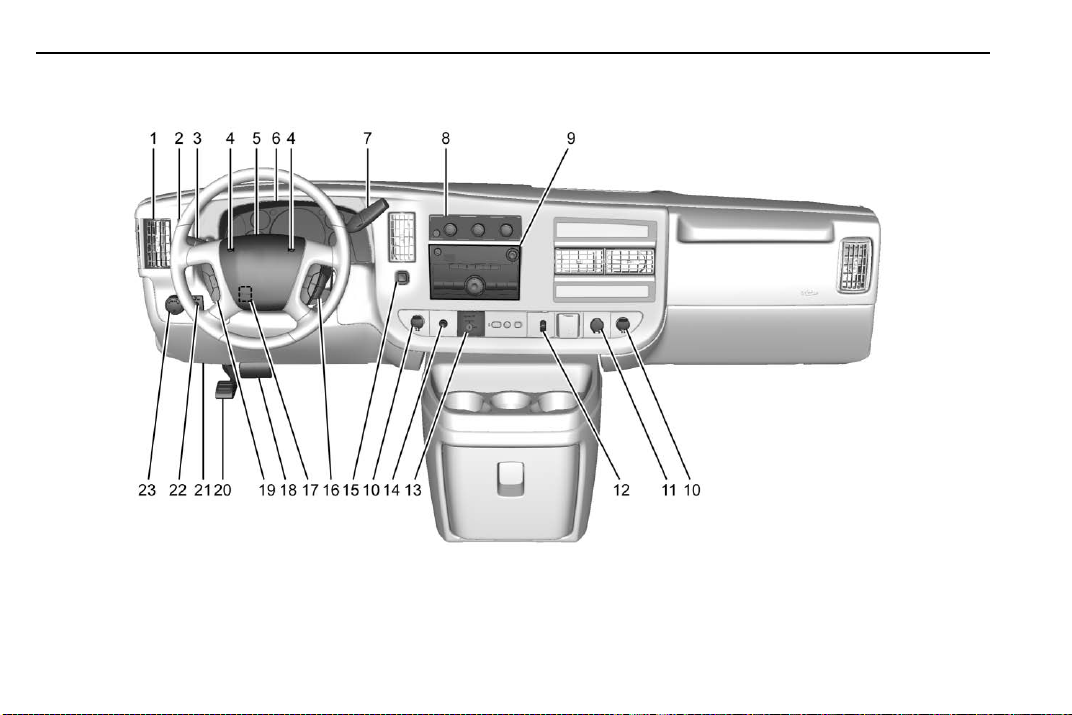

Instrument Panel

Chevrolet/GMC Express/Savana Owner Manual (GMNA-Localizing-MidEast-

10293090) - 2017 - crc - 6/21/16

In Brief 7

1. Air Vents 0151.

2. Driver Information Center (DIC)

Buttons. See Driver Information

Center (DIC) 0104.

3. Turn Signal Lever. See Turn

and Lane-Change

Signals 0125.

Windshield Wiper/Washer 087.

4. Horn 087.

5. Hazard Warning

Flashers 0124.

6. Instrument Cluster 093.

7. Shift Lever. See Automatic

Transmission 0169.

Manual Mode 0172 (If

Equipped).

8. Climate Control

Systems 0146.

9. Infotainment 0128.

10. Power Outlets 090.

11. USB Port (If Equipped). See

Auxiliary Devices 0141.

12. Rear Heating System 0148 (If

Equipped).

13. Passenger Airbag On-Off

Switch (If Equipped). See

Airbag On-Off Switch 060.

14. Traction Control/Electronic

Stability Control 0176 (If

Equipped).

15. Tow/Haul Mode 0173.

16. Steering Wheel Controls 086

(If Equipped).

17. Steering Wheel Adjustment

086 (If Equipped).

18. Hood Release. See

Hood 0197.

19. Cruise Control 0178 (If

Equipped).

Fast Idle System 0166 (If

Equipped).

20. Parking Brake 0175.

21. Data Link Connector (DLC)

(Out of View). See Malfunction

Indicator Lamp (Check Engine

Light) 099.

22. Instrument Panel Illumination

Control 0125.

Dome Lamp Override. See

Dome Lamps 0126.

23. Exterior Lamp Controls 0122.

Chevrolet/GMC Express/Savana Owner Manual (GMNA-Localizing-MidEast-

10293090) - 2017 - crc - 6/21/16

8 In Brief

Initial Drive

Information

This section provides a brief

overview about some of the

important features that may or may

not be on your specific vehicle.

For more detailed information, refer

to each of the features which can be

found later in this owner manual.

Remote Keyless Entry

(RKE) System

If equipped, the Remote Keyless

Entry (RKE) transmitter is used to

remotely lock and unlock the doors

from up to 60 m (197 ft) away from

the vehicle.

RKE Transmitter with Remote

Start Shown

Q:Press to lock all doors.

Lock and unlock feedback can be

personalized. See Vehicle

Personalization 0116.

K:Press to unlock the driver door.

Press Kagain within five seconds

to unlock all remaining doors.

j:Press to unlock only the cargo

doors.

L:Press and release to locate

the vehicle. Press Land hold for

more than two seconds to sound the

panic alarm. Press Lagain to

cancel the panic alarm or move the

ignition to ON/RUN.

See Keys 022 and Remote Keyless

Entry (RKE) System Operation 024.

Remote Vehicle Start

If equipped, the engine can be

started from outside of the vehicle.

Starting the Vehicle

1. Press and release Qon the

RKE transmitter.

2. Immediately press and hold /

for at least four seconds or until

the turn signal lamps flash.

Start the vehicle normally after

entering.

When the vehicle starts, the parking

lamps will turn on.

Remote start can be extended.

Chevrolet/GMC Express/Savana Owner Manual (GMNA-Localizing-MidEast-

10293090) - 2017 - crc - 6/21/16

In Brief 9

Canceling a Remote Start

To cancel a remote start, do one of

the following:

.Press and hold /until the

parking lamps turn off.

.Turn on the hazard warning

flashers.

.Turn the vehicle on and then off.

See Remote Vehicle Start 026.

Door Locks

Manual Door Locks

Lock and unlock the door from the

outside using the key or the Remote

Keyless Entry (RKE) transmitter,

if equipped. From the inside, slide

the manual lever on the door up

or down.

See Door Locks 027.

Power Door Locks

If equipped, press Tto lock or

unlock the doors.

See Power Door Locks 028.

Windows

Manual Windows

Turn the hand crank on each door

to raise or lower the side door

windows.

See Manual Windows 036.

Power Windows

If equipped with power windows,

press or pull up on the switch to

lower or raise the window. The

driver door also has a control to

operate the front passenger window.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Chevrolet/GMC Automobile

Chevrolet/GMC

Chevrolet/GMC silverado 2012 Manuel utilisateur

Chevrolet/GMC

Chevrolet/GMC 2013 DURAMAX Diesel Manuel utilisateur

Chevrolet/GMC

Chevrolet/GMC 2013 DURAMAX Diesel Manuel utilisateur

Chevrolet/GMC

Chevrolet/GMC 2013 DURAMAX Diesel Manuel utilisateur

Chevrolet/GMC

Chevrolet/GMC Suburban Manuel utilisateur

Chevrolet/GMC

Chevrolet/GMC Tahoe 2010 Manuel utilisateur

Chevrolet/GMC

Chevrolet/GMC 2013 DURAMAX Diesel Manuel utilisateur

Chevrolet/GMC

Chevrolet/GMC Silverado 2500 HD 2024 Manuel utilisateur

Chevrolet/GMC

Chevrolet/GMC Silverado 1500 2022 Manuel utilisateur

Chevrolet/GMC

Chevrolet/GMC Tahoe 2017 Manuel utilisateur

Chevrolet/GMC

Chevrolet/GMC Silverado 2017 Manuel utilisateur

Chevrolet/GMC

Chevrolet/GMC Express 2016 Manuel utilisateur

Manuels Automobile populaires d'autres marques

Toyota

Toyota 2000 Tundra Manuel utilisateur

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Chevrolet

Chevrolet 2012 Malibu Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur
