Chesney's SALISBURY Mode d’emploi

CHESNEYS

GAS EFFECT STOVES

STANDARD, LARGE

& LOG BURNER OPTION

INSTALLATION & USER MANUAL

www.chesneys.co.uk

Version 023 April 2023

IMPORTANT:

PLEASE ENSUREYOU REGISTER FOR YOUR EXTENDED

WARRANTY. PLEASE SEE PAGE 80 & 81 FOR DETAILS

Technical Manual

Technical PIN: 0359CS1578

User and Installation Instructions

Model No.

Standard Gas Stoves:

Salisbury

Beaumont

Shoreditch (Available at a later date)

Shoreditch LS (Available at a later date)

Shoreditch XLS (Available at a later date)

Large Gas Stoves:

Salisbury

Beaumont

Shoreditch (Available at a later date)

Belgravia (Available at a later date)

Shipton (Available at a later date)

Large Gas Log Stoves:

Salisbury

Beaumont

Shoreditch (Available at a later date)

Belgravia (Available at a later date)

Shipton (Available at a later date)

IMPORTANT:

Please read these instructions

carefully before installation or use.

These instructions are only valid if the

following country code is on the appliance.

This appliance must be installed and serviced by a qualiﬁed

person in accordance with local and national regulations.

The ﬂue system must be installed and inspected by a qualiﬁed

person in accordance with local and national regulations.

Contents

Section Pages

1 Unpacking 5-6

2 Technical Data 7-10

3 Installation Parameters 11-13

4 Burner and Control Information 14-17

5 Construction Information 18-30

6 Appliance Details 31

7 Preparing the Appliance for Installation 32

8 Installation 33-36

9 Placement of Fibre Logs, Chippings and Embers 37-47

10 Commissioning the Fire Unit 48-50

11 Brieﬁng and Handover to the Customer 51

12 Servicing and Maintenance 52-53

13 Fault Finding 54-55

14 User Instructions 57-60

15 Control System Information 61-71

16 Annex A: Balanced Flue Conversion 72-74

17 Installer Commissioning Checklist 75

18 Dealer and Installer Information 77

19 Annual Service Record 78-79

20 Chesneys Warranty Information and Registration 80-81

1. Unpacking

Remove the appliance from its packaging, check that it is complete and

undamaged.

If satisﬁed by the condition and the contents is as speciﬁed, proceed with the

installation.

The installation should only be carried out by a competent person and all gas

work must be carried out by a Gas Safe registered person in accordance with

national and local regulations for both gas and electricity (If required).

The installation must comply with local and national building regulations.

For the Republic of Ireland, reference should be made to IS813 and ICP3 and any

guidance notes from Board Gais.

Failure to comply with the regulations nulliﬁes ALL guarantees.

Parts:

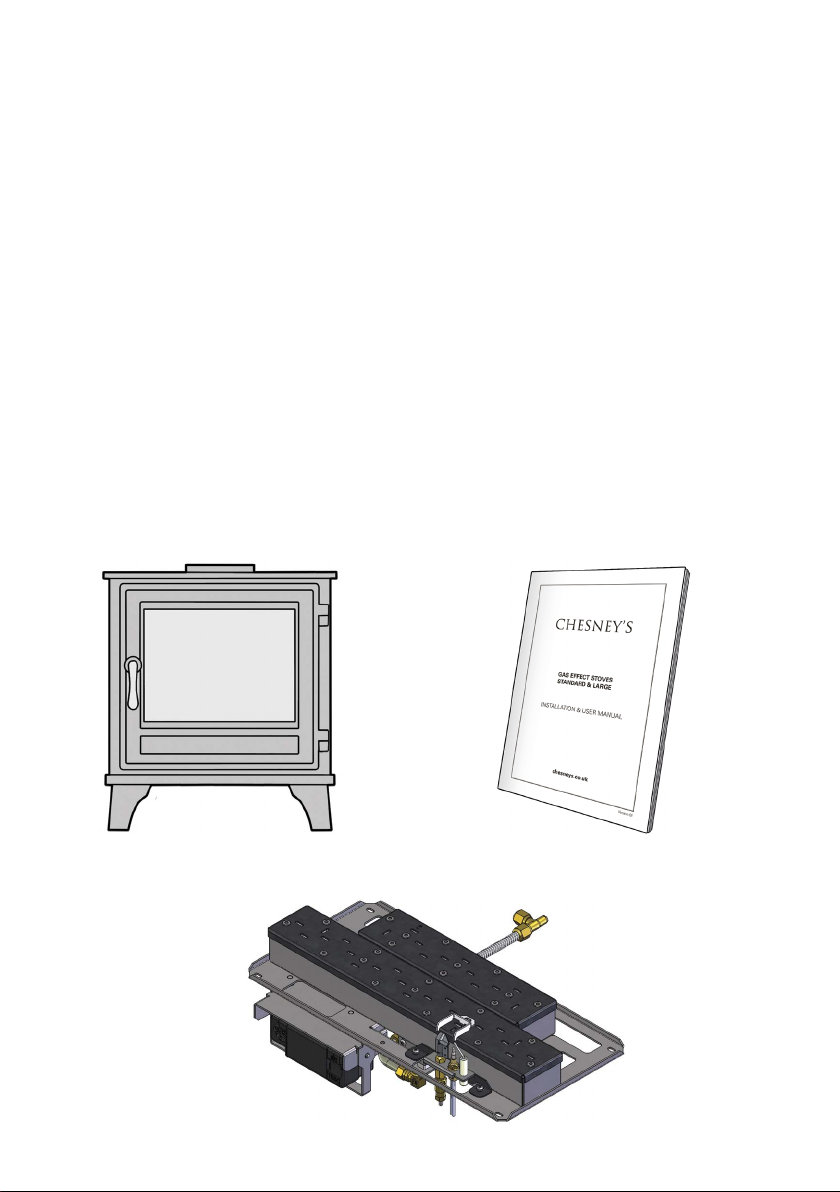

Fig.1 Gas Stove Appliance Fig.2 Installation Manual / Warning Label

Fig.3 Burner Assembly

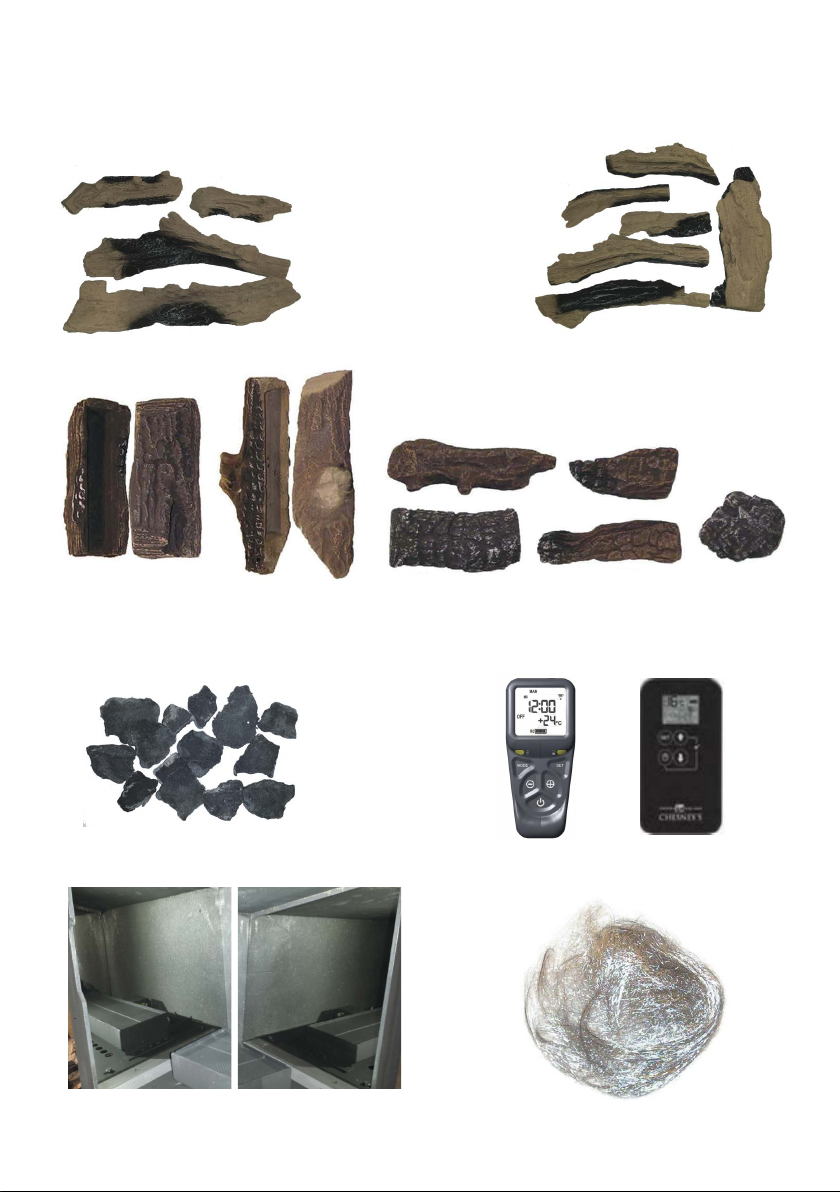

Fig.6 Remote Control Handset

Fig.4 Logs

Fig.5 Bag of embers

Fig.8 Glow strands

Standard Stove Large Stove

Fig.7 Stainless steel panels

Large Stove - Log Burner

2E/2 (43.46-45.3 MJ / m3 (0°C))

2.Technical Data

Gas Connection Size 8.0mm O.D. tubing

Control System TESC (Thermo Electric Safety Control)

Appliance Mass Range (kilograms) 79kg – 155kg

Gas

Type

Gas Category,Type and

Supply Pressure

Countries of Destination

I2H - G20 at 20mbar           

I2E - G20 at 20mbar 

I2E+ - G20 G25 at 20/25mbar  

I2ELL - G25 at 20mbar 

LPG

I3B/P(30) - G30/G31 at 30mbar           

I3+ - G30/G31 at 30/37mbar        

I3P(50) - G31 at 50mbar   

I3P(37) - G31 at 37mbar        

I3P(30) - G31 at 30mbar 

Gas

Type

Gas Category,Type and

Supply Pressure

Countries of Destination

I2H - G20 at 20mbar          

I2E - G20 at 20mbar   

I2L - G20 G25 at 25mbar 

I2EK - G25.3 at 25mbar 

LPG

I3B/P(30) - G30/G31 at 30mbar   

I3+ - G30/G31 at 30/37mbar       

I3P(50) - G31 at 50mbar  

I3P(37) - G31 at 37mbar         

I3P(30) - G31 at 30mbar  

STANDARD GAS STOVE CONVENTIONAL FLUE

GasType

Gas Category,Type

and Supply Pressure

Heat Input Gross kW

Heat Input Nett kW

Gas Rate m3/h

Burner Pressure

Injector marking

Pilot Assembly

Efﬁciency Class

NOx Class

I2H - G20 at 20mbar 5.3 4.8 0.49 18.5

320

SIT 9043

ERTA

PG-82-330

1 4

I2E - G20 at 20mbar 5.3 4.8 0.49 18.5

I2E+ - G20/G25 at 20/25mbar 5.3/5 4.8/4.5 0.49/0.53 18.5/23.6

I2ELL - G25 at 20mbar 4.4 4 0.47 18.5

I2L - G25 at 25mbar 5 4.5 0.53 23.6

I2EK - G25.3 at 25mbar 5 4.5 0.53 23.6

LPG

I3B/P(30) - G30/G31 at 30mbar 5 4.6 0.14 28

140

SIT 9228

ERTA

PG-82-350

1 4

I3+ - G30/G31 at 30/37mbar 4.5/5 4.2/4.6 0.17/0.185 28/36

I3P(50) - G31 at 50mbar 5 4.6 0.185 36

I3P(37) - G31 at 37mbar 5 4.6 0.185 36

I3P(30) - G31 at 30mbar 4.5 4.2 0.17 28

STANDARD GAS STOVE BALANCED FLUE

GasType

Gas Category,Type

and Supply Pressure

Heat Input Gross kW

Heat Input Nett kW

Gas Rate m3/h

Burner Pressure

Injector marking

Pilot Assembly

Efﬁciency Class

NOx Class

I2H - G20 at 20mbar 5.3 4.8 0.49 18.5

320

G30-ZP

312

(31.2 INJ)

1 4

I2E - G20 at 20mbar 5.3 4.8 0.49 18.5

I2E+ - G20/G25 at 20/25mbar 5.3/5 4.8/4.5 0.49/0.53 18.5/23.6

I2ELL - G25 at 20mbar 4.4 4 0.47 18.5

I2L - G25 at 25mbar 5 4.5 0.53 23.6

I2EK - G25.3 at 25mbar 5 4.5 0.53 23.6

LPG

I3B/P(30) - G30/G31 at 30mbar 5 4.6 0.14 28

140

G30-ZP

2-271

(27.1 INJ)

1 4

I3+ - G30/G31 at 30/37mbar 4.5/5 4.2/4.6 0.17/0.185 28/36

I3P(50) - G31 at 50mbar 5 4.6 0.185 36

I3P(37) - G31 at 37mbar 5 4.6 0.185 36

I3P(30) - G31 at 30mbar 4.5 4.2 0.17 28

LARGE GAS STOVE BALANCED FLUE

GasType

Gas Category,Type

and Supply Pressure

Heat Input Gross kW

Heat Input Nett kW

Gas Rate m3/h

Burner Pressure

Injector marking

Pilot Assembly

Efﬁciency Class

NOx Class

I2H - G20 at 20mbar 6.9 6.2 0.64 13.2

Front

280

Rear

220

SIT 9043

ERTA

PG-82-330

1 4

I2E - G20 at 20mbar 6.9 6.2 0.64 13.2

I2E+ - G20/G25 at 20/25mbar 6.9/6.5 6.2/5.9 0.64/0.675 13.2/16.6

I2ELL - G25 at 20mbar 5.7 5.1 0.6 13.4

I2L - G25 at 25mbar 6.5 5.9 0.675 16.6

I2EK - G25.3 at 25mbar 6.5 5.9 0.675 16.6

LPG

I3B/P(30) - G30/G31 at 30mbar 6.9 6.4 0.195 27

Front

120

Rear

SIT 9228

ERTA

PG-82-350

1 4

I3+ - G30/G31 at 30/37mbar 6.2/6.9 5.7/6.4 0.229/0.254 28/35

I3P(50) - G31 at 50mbar 6.9 6.4 0.254 35

I3P(37) - G31 at 37mbar 6.9 6.4 0.254 35

I3P(30) - G31 at 30mbar 6.2 5.7 0.229 28

LARGE GAS STOVE CONVENTIONAL FLUE

GasType

Gas Category,Type

and Supply Pressure

Heat Input Gross kW

Heat Input Nett kW

Gas Rate m3/h

Burner Pressure

Injector marking

Pilot Assembly

Efﬁciency Class

NOx Class

I2H - G20 at 20mbar 6.9 6.2 0.64 13.2

Front

280

Rear

220

SIT 9043

ERTA

PG-82-330

1 4

I2E - G20 at 20mbar 6.9 6.2 0.64 13.2

I2E+ - G20/G25 at 20/25mbar 6.9/6.5 6.2/5.9 0.64/0.675 13.2/16.6

I2ELL - G25 at 20mbar 5.7 5.1 0.6 13.4

I2L - G25 at 25mbar 6.5 5.9 0.675 16.6

I2EK - G25.3 at 25mbar 6.5 5.9 0.675 16.6

LPG

I3B/P(30) - G30/G31 at 30mbar 6.9 6.4 0.195 27

Front

120

Rear

SIT 9228

ERTA

PG-82-350

1 4

I3+ - G30/G31 at 30/37mbar 6.2/6.9 5.7/6.4 0.229/0.254 28/35

I3P(50) - G31 at 50mbar 6.9 6.4 0.254 35

I3P(37) - G31 at 37mbar 6.9 6.4 0.254 35

I3P(30) - G31 at 30mbar 6.2 5.7 0.229 28

V2 LARGE GAS LOG STOVE CONVENTIONAL FLUE

GasType

Gas Category,Type

and Supply Pressure

Heat Input Gross kW

Heat Input Nett kW

Gas Rate m3/h

Burner Pressure

Injector marking

Pilot Assembly

Efﬁciency Class

NOx Class

I2H - G20 at 20mbar 6.9 6.2 0.64 16.5 Centre

Burner

100

Log L/H

160

Log R/H

160

SIT

9043

ERTA

PG-

82-330

1 4

I2E - G20 at 20mbar 6.9 6.2 0.64 16.5

I2E+ - G20/G25 at 20/25mbar 6.9/6.5 6.2/5.9 0.64/0.675 16.5/16.8

I2ELL - G25 at 20mbar 5.7 5.1 0.6 16.5

I2L - G25 at 25mbar 6.5 5.9 0.675 19.8

I2EK - G25.3 at 25mbar 6.5 5.9 0.675 19.8

LPG

I3B/P(30) - G30/G31 at 30mbar 6.9 6.4 0.2 23 Centre

Burner

Log L/H

100

Log R/H

100

SIT

9228

ERTA

PG-

82-350

1 4

I3+ - G30/G31 at 30/37mbar 6.2/6.9 5.7/6.4 0.229/0.254 23/33

I3P(50) - G31 at 50mbar 6.9 6.4 0.254 33

I3P(37) - G31 at 37mbar 6.9 6.4 0.254 33

I3P(30) - G31 at 30mbar 6.2 5.7 0.229 23

V2 LARGE GAS LOG STOVE BALANCED FLUE

GasType

Gas Category,Type

and Supply Pressure

Heat Input Gross kW

Heat Input Nett kW

Gas Rate m3/h

Burner Pressure

Injector marking

Pilot Assembly

Efﬁciency Class

NOx Class

I2H - G20 at 20mbar 6.9 6.2 0.64 16.5 Centre

Burner

100

Log L/H

160

Log R/H

160

Polidoro

446.1385.24 1 4

I2E - G20 at 20mbar 6.9 6.2 0.64 16.5

I2E+ - G20/G25 at 20/25mbar 6.9/6.5 6.2/5.9 0.64/0.675 16.5/16.8

I2ELL - G25 at 20mbar 5.7 5.1 0.6 16.5

I2L - G25 at 25mbar 6.5 5.9 0.675 19.8

I2EK - G25.3 at 25mbar 6.5 5.9 0.675 19.8

LPG

I3B/P(30) - G30/G31 at 30mbar 6.9 6.4 0.2 23 Centre

Burner

Log L/H

100

Log R/H

100

Polidoro

446.1385.44 1 4

I3+ - G30/G31 at 30/37mbar 6.2/6.9 5.7/6.4 0.229/0.254 23/33

I3P(50) - G31 at 50mbar 6.9 6.4 0.254 33

I3P(37) - G31 at 37mbar 6.9 6.4 0.254 33

I3P(30) - G31 at 30mbar 6.2 5.7 0.229 23
