Central Pneumatic CentralPneumatic 17 GAL Instructions de montage

Page 2 For technical questions, please call 1-800-444-3353. Item 69666

69669

Table of Contents

Safety ......................................................... 2

Setup .......................................................... 6

Specifications ............................................. 6

Operation................................................... 10

Maintenance.............................................. 11

Parts List and Diagram.............................. 14

Warranty .................................................... 16

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

SAFETY OPERATION MAINTENANCESETUP

Page 3For technical questions, please call 1-800-444-3353.Item 69666

69669

IMPORTANT SAFETY INFORMATION

General Safety Warnings

WARNING Read all safety warnings and instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible

conditions and situations that may occur. It must be understood by the operator that common sense

and caution are factors which cannot be built into this product, but must be supplied by the operator.

1. Work area safety

a. Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b. Do not operate the Compressor in explosive

atmospheres, such as in the presence

of flammable liquids, gases or dust.

Compressor motors produce sparks

which may ignite the dust or fumes.

c. Keep children and bystanders away

from an operating compressor.

2. Electrical safety

a. Compressor plugs must match the outlet.

Never modify the plug in any way.

Do not use any adapter plugs with grounded

compressors. Standard plugs and matching

outlets will reduce risk of electric shock.

b. Do not expose compressor to rain or wet

conditions. Water entering a compressor

will increase the risk of electric shock.

c. Do not abuse the cord. Never use the

cord for unplugging the compressor.

Keep cord away from heat, oil, sharp edges

or moving parts. Damaged or entangled

cords increase the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and

use common sense when operating this

compressor. Do not use this compressor

while you are tired or under the influence

of drugs, alcohol or medication. A moment

of inattention while operating a compressor

may result in serious personal injury.

b. Use personal protective equipment.

Always wear ANSI-approved eye

protection during setup and use.

c. Prevent unintentional starting. Ensure the

switch is in the off-position before connecting

to power source or moving the compressor.

4. Compressor use and care

a. Do not use the compressor if the switch

does not turn it on and off. Any compressor

that cannot be controlled with the switch

is dangerous and must be repaired.

b. Disconnect the plug from the power source

before making any adjustments, changing

accessories, or storing the compressor.

Such preventive safety measures reduce the

risk of starting the compressor accidentally.

c. Store an idle compressor out of the reach

of children and do not allow persons

unfamiliar with the compressor or these

instructions to operate it. A compressor is

dangerous in the hands of untrained users.

d. Maintain the compressor. Keep the

compressor clean for better and safer

performance. Follow instructions for

lubricating and changing accessories.

Keep dry, clean and free from oil and grease.

Check for misalignment or binding of moving

parts, breakage of parts and any other

condition that may affect the compressor’s

operation. If damaged, have the compressor

repaired before use. Many accidents are

caused by a poorly maintained compressor.

e. Use the compressor in accordance with

these instructions, taking into account

the working conditions and the work to

be performed. Use of the compressor for

operations different from those intended

could result in a hazardous situation.

5. Service

a. Have your compressor serviced by a

qualified repair person using only identical

replacement parts. This will ensure that the

safety of the compressor is maintained.

SAFETYOPERATIONMAINTENANCE SETUP

Page 4 For technical questions, please call 1-800-444-3353. Item 69666

69669

Air Compressor Safety Warnings

1. Risk of fire or explosion - do not spray flammable

liquid in a confined area or towards a hot surface.

Spray area must be well-ventilated. Do not

smoke while spraying or spray where spark or

flame is present. Arcing parts - keep compressor

at least 20 feet away from explosive vapors,

such as when spraying with a spray gun.

2. Risk of bursting - do not adjust regulator higher

than marked maximum pressure of attachment.

3. Risk of injury - do not direct air

stream at people or animals.

4. Do not use to supply breathing air.

5. Do not leave compressor unattended

for an extended period while plugged in.

Unplug compressor after working.

6. Keep compressor well-ventilated.

Do not cover compressor during use.

7. Drain Tank daily and after use. Internal rust causes

tank failure and explosion.

8. Do not remove the valve cover or

adjust internal components.

9. Compressor head gets hot during operation.

Do not touch it or allow children nearby during

or immediately following operation.

10. Do not use the air hose to move the compressor.

11. Release the pressure in the

storage tank before moving.

12. The use of accessories or attachments not

recommended by the manufacturer may

result in a risk of injury to persons.

13. All air line components, including hoses, pipe,

connectors, filters, etc., must be rated for a minimum

working pressure of 150 PSI, or 150% of the

maximum system pressure, whichever is greater.

14. USE OF AN EXTENSION CORD IS NOT

RECOMMENDED. If you choose to use an

extension cord, use the following guidelines:

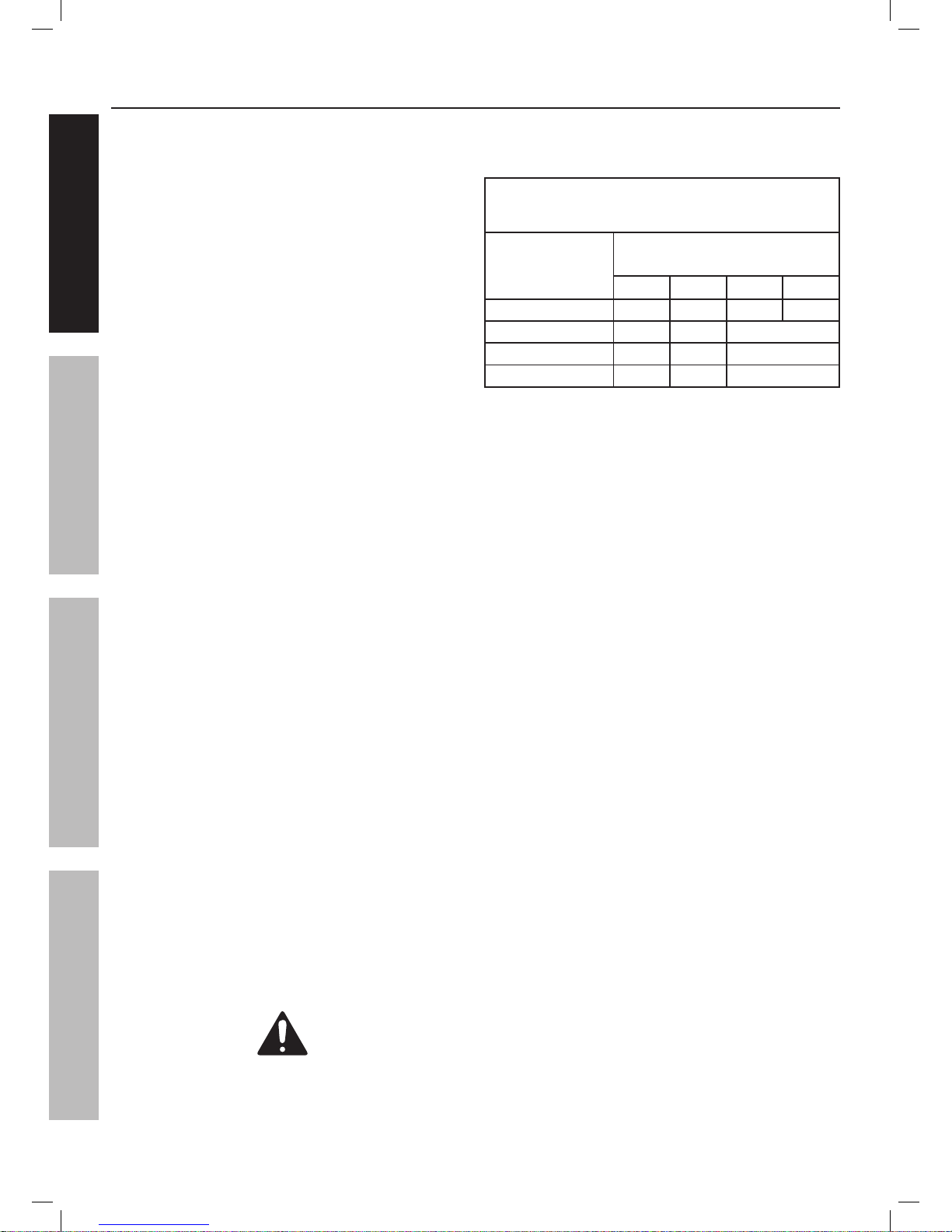

TABLE A: RECOMMENDED MINIMUM WIRE

GAUGE FOR EXTENSION CORDS

(120 VOLT)

NAMEPLATE

AMPERES

(at full load)

EXTENSION CORD

LENGTH

25′ 50′ 100′ 150′

0 – 6 18 16 16 14

6.1 – 10 18 16 Do not use.

10.1 – 12 16 16 Do not use.

12.1 – 16 14 12 Do not use.

a. Make sure your extension cord

is in good condition.

b. Be sure to use an extension cord which is heavy

enough to carry the current your product will draw.

An undersized cord will cause a drop in line

voltage resulting in loss of power and overheating.

Table A shows the correct size to use depending

on cord length and nameplate ampere rating.

If in doubt, use the next heavier gauge. The

smaller the gauge number, the heavier the cord.

15. Industrial applications must follow OSHA guidelines.

16. Maintain labels and nameplates on the

compressor. These carry important safety

information. If unreadable or missing, contact

Harbor Freight Tools for a replacement.

17. This product is not a toy.

Keep it out of reach of children.

18. People with pacemakers should consult their

physician(s) before use. Electromagnetic fields in

close proximity to heart pacemaker could cause

pacemaker interference or pacemaker failure.

19. WARNING: The brass components of

this product contain lead, a chemical

known to the State of California to cause

birth defects (or other reproductive harm).

(California Health & Safety code § 25249.5, et seq.)

20. WARNING: Handling the cord on this product will

expose you to lead, a chemical known to the State

of California to cause cancer, and birth defects or

other reproductive harm. Wash hands after handling.

(California Health & Safety Code § 25249.5, et seq.)

SAVE THESE INSTRUCTIONS.

SAFETY OPERATION MAINTENANCESETUP

Page 5For technical questions, please call 1-800-444-3353.Item 69666

69669

Grounding

TO PREVENT ELECTRIC SHOCK AND DEATH

FROM INCORRECT GROUNDING WIRE CONNECTION:

Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded.

Do not modify the power cord plug provided with the compressor.

Never remove the grounding prong from the plug. Do not use the compressor if the power cord or plug is

damaged. If damaged, have it repaired by a service facility before use. If the plug will not fit the outlet, have a

proper outlet installed by a qualified electrician.

110-120 V~ Grounded Compressors: Compressors with Three Prong Plugs

1. In the event of a malfunction or breakdown,

grounding provides a path of least resistance for

electric current to reduce the risk of electric shock.

This compressor is equipped with an electric

cord having an equipment-grounding conductor

and a grounding plug. The plug must be

plugged into a matching outlet that is properly

installed and grounded in accordance

with all local codes and ordinances.

2. Do not modify the plug provided –

if it will not fit the outlet, have the proper

outlet installed by a qualified electrician.

3. Improper connection of the equipment-grounding

conductor can result in a risk of electric shock.

The conductor with insulation having an outer

surface that is green with or without yellow

stripes is the equipment-grounding conductor.

If repair or replacement of the electric cord or

plug is necessary, do not connect the equipment-

grounding conductor to a live terminal.

4. Check with a qualified electrician or service

personnel if the grounding instructions are

not completely understood, or if in doubt as to

whether the compressor is properly grounded.

5. Use only 3-wire extension cords that have

3-prong grounding plugs and 3-pole receptacles

that accept the compressor’s plug.

6. Repair or replace damaged or worn cord immediately.

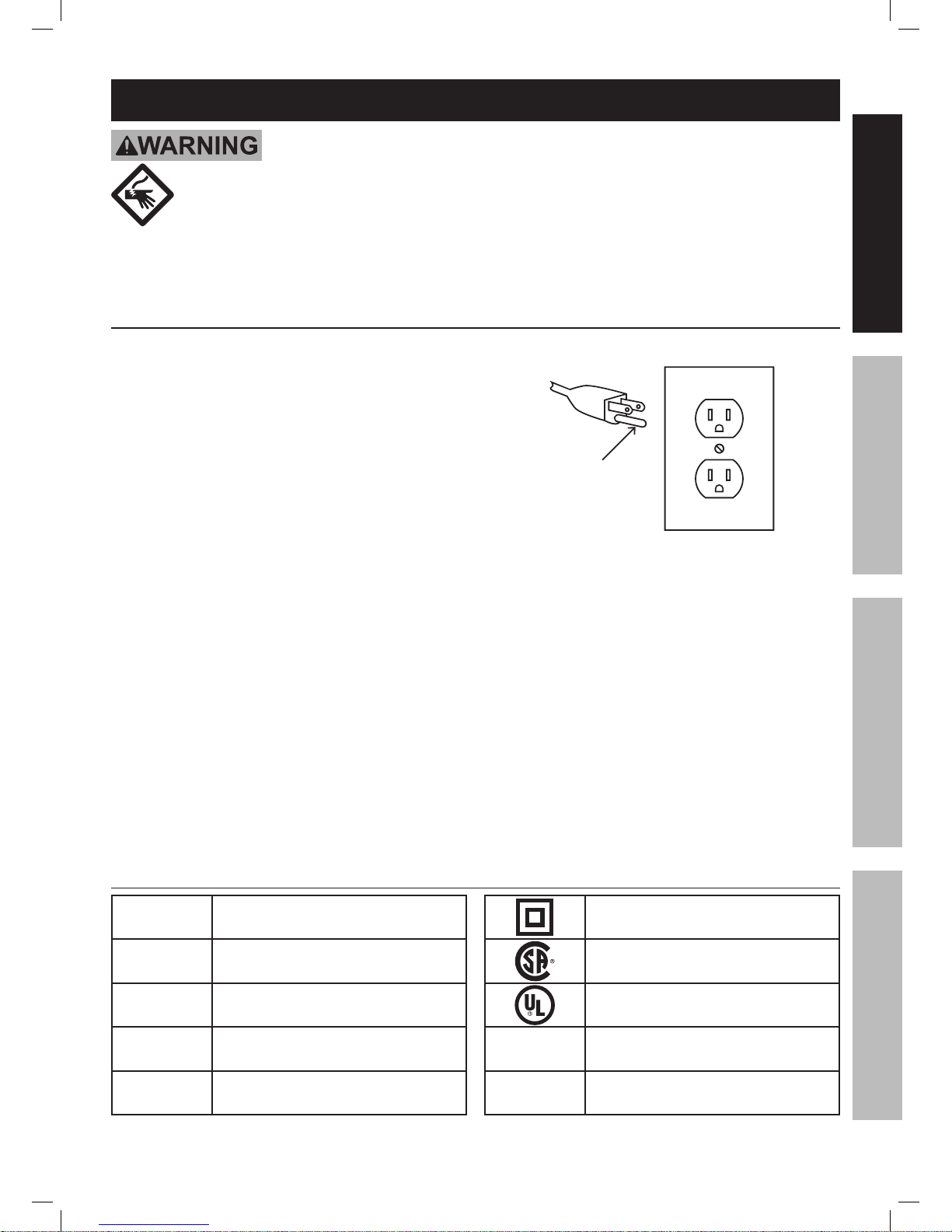

125 V~ 3-Prong Plug and Outlet

(for up to 125 V~ and up to 15 A)

Grounding

7. This compressor is intended for use on a

circuit that has an outlet that looks like the

one illustrated above in 125 V~ 3-Prong Plug

and Outlet. The compressor has a grounding

plug that looks like the plug illustrated above

in 125 V~ 3-Prong Plug and Outlet.

8. The outlet must be properly installed and grounded

in accordance with all codes and ordinances.

9. Do not use an adapter to connect this

compressor to a different outlet.

Symbology

PSI Pounds per square inch of pressure

CFM Cubic Feet per Minute flow

SCFM Cubic Feet per Minute flow

at standard conditions

NPT National pipe thread, tapered

NPS National pipe thread, straight

Double Insulated

Canadian Standards Association

Underwriters Laboratories, Inc.

V~ Volts Alternating Current

AAmperes

SAFETYOPERATIONMAINTENANCE SETUP

Page 6 For technical questions, please call 1-800-444-3353. Item 69666

69669

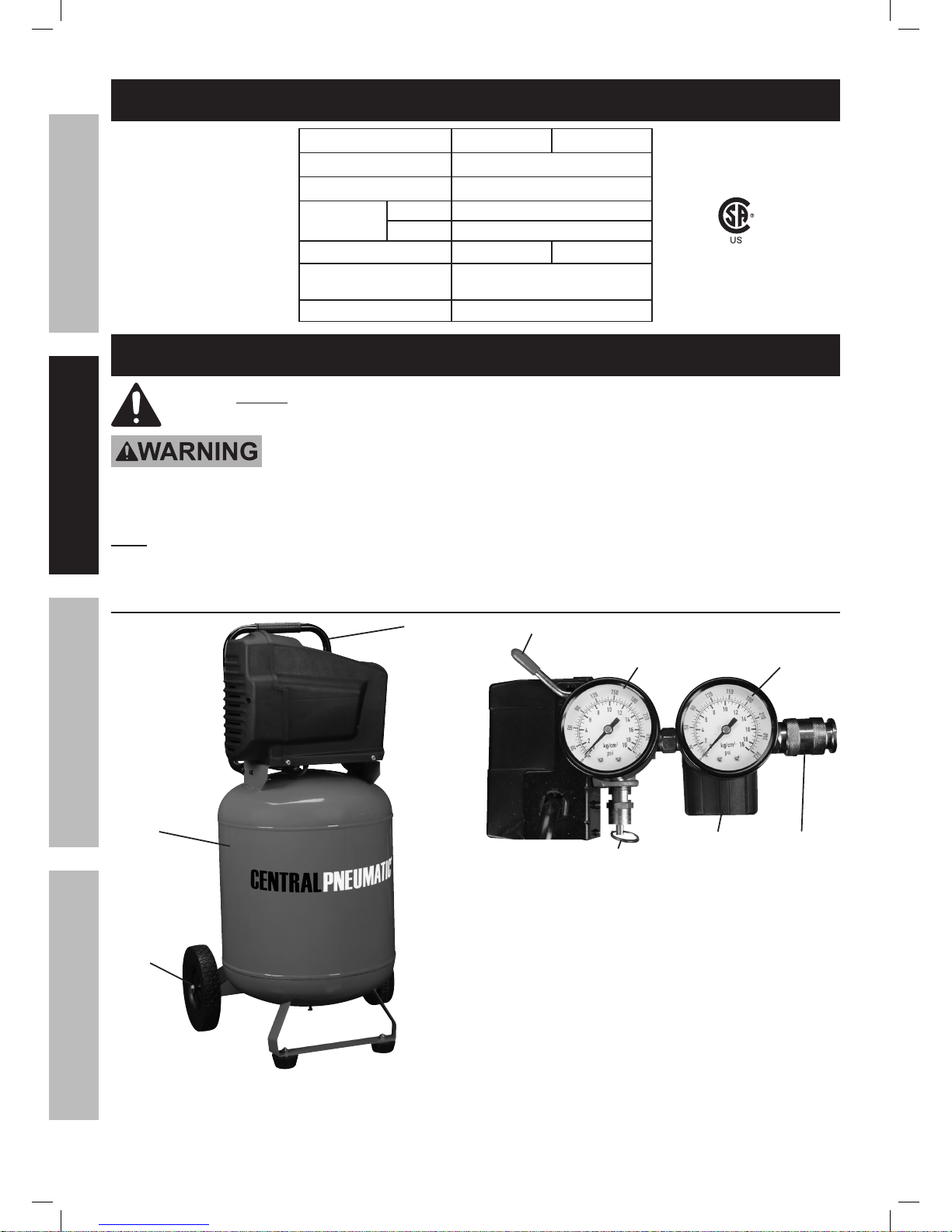

Specifications

Model 69669 69666

Electrical Rating 120V~ / 60Hz / 13.5A

Air Outlet Size 1/4″ -18 NPT

Air Pressure Shut-off 150 PSI

Restart 125 PSI

Air Tank Capacity 26 Gallons 17 Gallons

Air Flow Capacity 4 SCFM @ 90 PSI

5 SCFM @ 40 PSI

Sound Level 91 dB @ 3′

Instructions for putting into use

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this

manual including all text under subheadings therein before set up or use of this product.

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:

Turn the Power Switch “OFF” and unplug the Air Compressor from its electrical

outlet before assembling or making any adjustments to the compressor.

Note: For additional information regarding the parts listed in the following pages,

refer to the Assembly Diagram near the end of this manual.

Functions

Wheel

Tank

Handle Power Switch

Air

Output

Regulator

KnobSafety Valve

Tank Air

Pressure

Gauge

Output Air

Pressure

Gauge

226892

SAFETY OPERATION MAINTENANCESETUP

Page 7For technical questions, please call 1-800-444-3353.Item 69666

69669

Setup

1. Break in the new Air Compressor as follows:

a. Turn the Power Switch off and unplug the unit.

Insert a male coupler (sold separately)

into the female Quick Coupler and

fully open all regulators and valves.

b. Plug in the Power Cord.

c. Turn the Power Switch ON.

d. Let the unit run for 30 minutes.

Air will expel freely through the Coupler.

e. Turn the Power Switch OFF.

f. Unplug the Power Cord and

remove the male coupler.

2. Connect a regulator valve, an inline shut off valve

and a 1/4″ NPT air hose to the Quick Coupler

(all sold separately). The air hose must be long

enough to reach the work area with enough extra

length to allow free movement while working.

Note: An in-line shutoff ball valve is an important

safety device because it controls the air supply even

if the air hose is ruptured. The shutoff valve should

be a ball valve because it can be closed quickly.

3. Depending on the tool which you will be

using with this compressor, you may need to

incorporate additional components, such as an

in-line oiler, a filter, or a dryer (all sold separately),

as shown on Figure B on page 8 and

Figure C on page 9. Consult your air

tool’s manual for needed accessories.

SAFETYOPERATIONMAINTENANCE SETUP

Page 8 For technical questions, please call 1-800-444-3353. Item 69666

69669

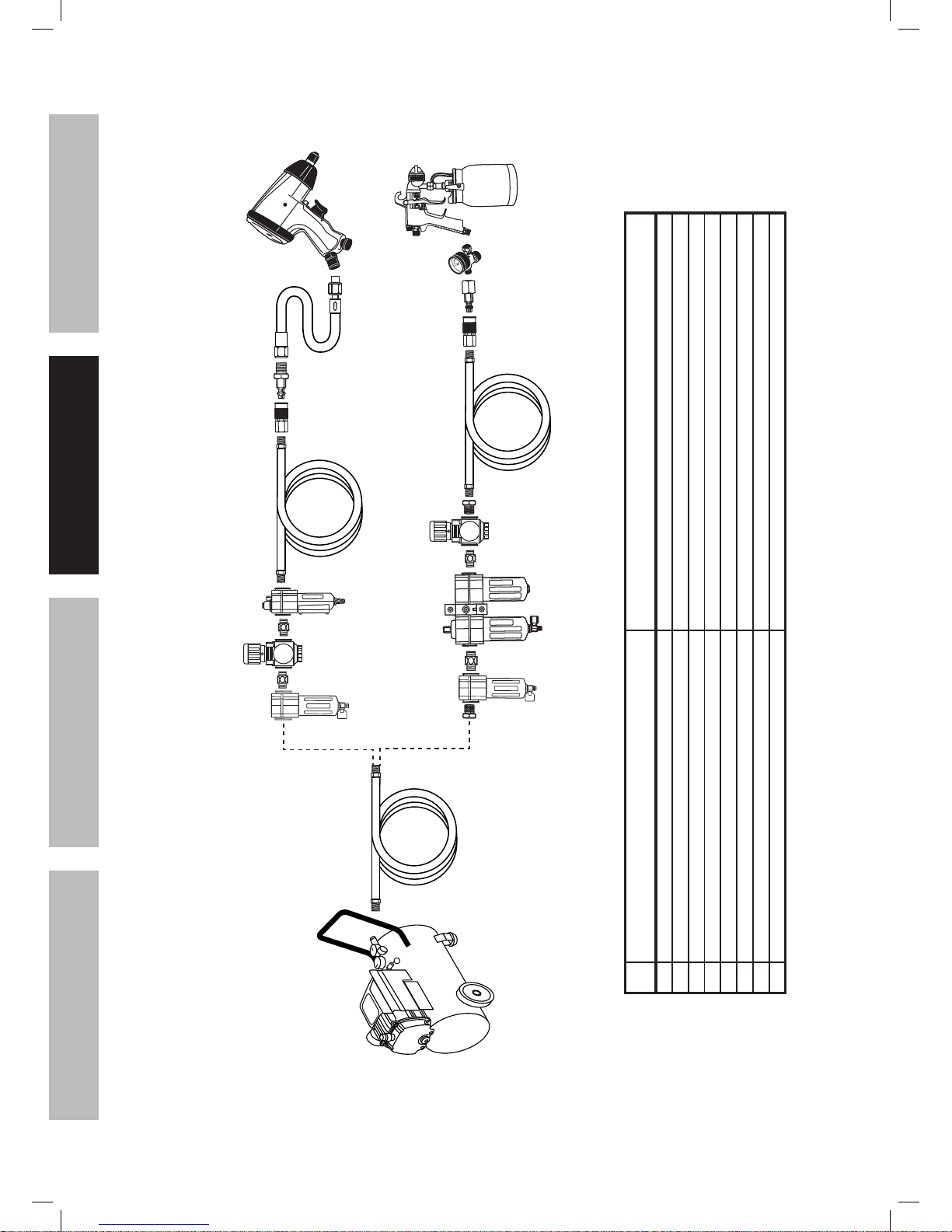

Figure B: Portable Air Supply Setup

E H

Non-lubricated

Tools

Lubricated

Tools

Description Function

A Air Hose Connects air to tool

B Filter Prevents dirt and condensation from damaging tool or workpiece

C Regulator Adjusts air pressure to tool

D Lubricator (optional) For air tool lubrication

E Coupler and Plug Provides quick connection and release

F Leader Hose (optional) Increases coupler life

G Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece

H Air Adjusting Valve (optional) For fine tuning airflow at tool

SAFETY OPERATION MAINTENANCESETUP

Page 9For technical questions, please call 1-800-444-3353.Item 69666

69669

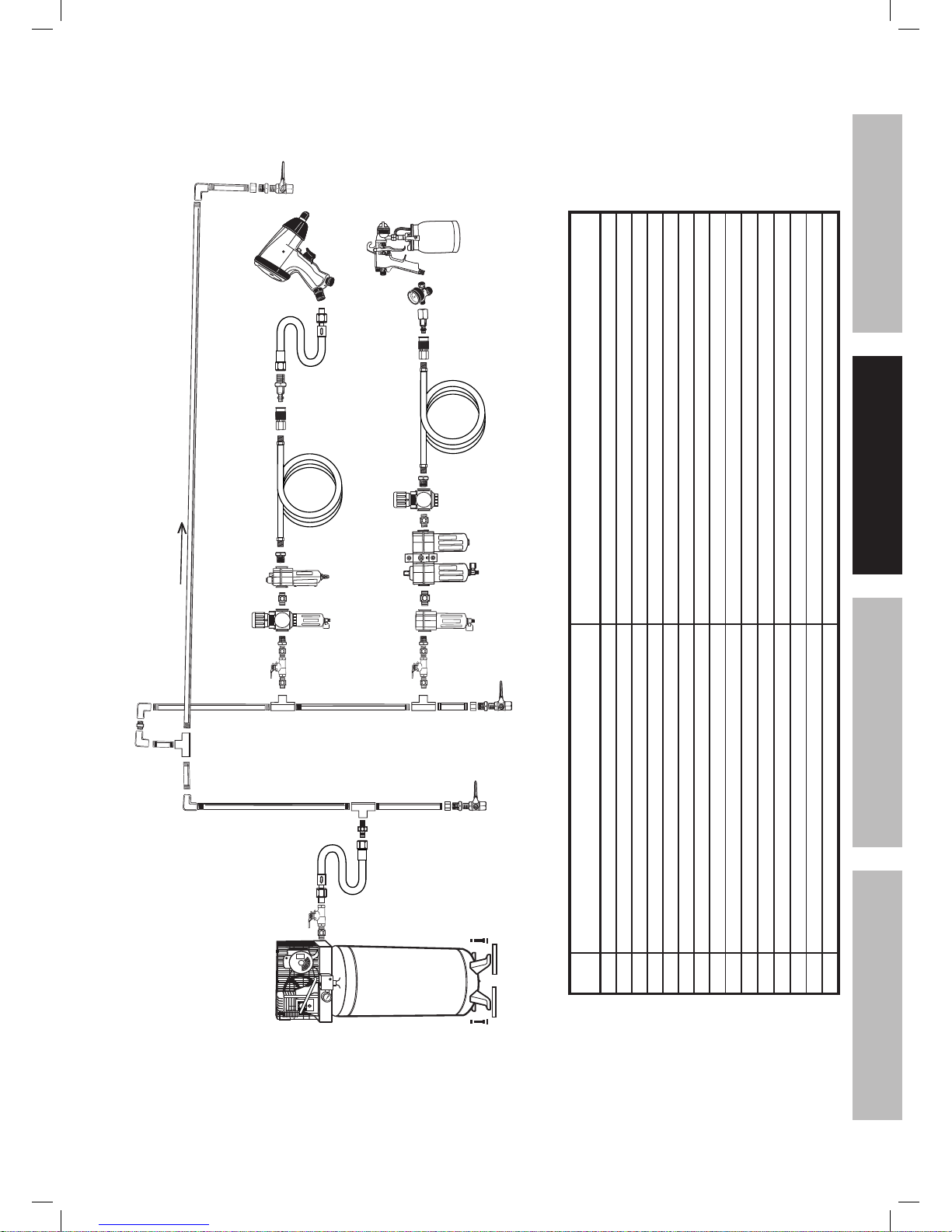

Figure C: Stationary Air Supply Setup

L O

Non-lubricated

Tools

Lubricated

Tools

JKH

Slope

B B

A A

Description Function

A Vibration Pads For noise and vibration reduction

B Anchor Bolts Secures air compressor in place

C Ball Valve Isolates sections of system for maintenance

D Isolation Hose For vibration reduction

EMain Air Line - 3/4″ minimum recommended Distributes air to branch lines

F Ball Valve To drain moisture from system

GBranch Air Line -1/2″ minimum recommended Brings air to point of use

H Air Hose Connects air to tool

I Filter Prevents dirt and condensation from damaging tool or workpiece

J Regulator Adjusts air pressure to tool

K Lubricator (optional) For air tool lubrication

L Coupler and Plug Provides quick connection and release

M Leader Hose (optional) Increases coupler life

N Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece

O Air Adjusting Valve (optional) For fine tuning airflow at tool

SAFETYOPERATIONMAINTENANCE SETUP

Page 10 For technical questions, please call 1-800-444-3353. Item 69666

69669

Operating Instructions

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this

manual including all text under subheadings therein before set up or use of this product.

Compressor Area Set Up

1. Designate a work area that is clean and well-lit.

The work area must not allow access by

children or pets to prevent injury.

2. Locate the Compressor on a flat level surface to

ensure proper pump lubrication and to prevent

damage to the unit. Keep at least 12″ of space

around the unit to allow air circulation.

3. Route the power cord from the compressor

to the grounded wall outlet, along a safe path

without creating a tripping hazard or exposing

the power cord to possible damage.

General Operation

1. Close the Drain Valve.

2. Close the in-line Shutoff Valve between

the compressor and the air hose.

3. Plug the Air Compressor Power Cord into

a grounded 120 V~ electrical outlet.

4. Turn the Power Switch ON.

5. Allow the Air Compressor to build

up pressure until it cycles off.

Note: At the beginning of the day’s first use of the

Air Compressor, check for air leaks by applying soapy

water to connections while the Air Compressor is

pumping and after pressure cut-out. Look for air bubbles.

If air bubbles are present at connections, tighten

connections. Do not use the Air Compressor

unless all connections are air tight, the extra air

leaking out will cause the compressor to operate

too often, increasing wear on the compressor.

Note: As long as the Power Switch is ON, the operation

of the Air Compressor is automatic, controlled by an

internal pressure switch. The Compressor will turn on

automatically when the air pressure drops to 125 PSI,

and will turn off automatically when the

air pressure reaches 150 PSI.

WARNING! TO PREVENT SERIOUS

INJURY AND DEATH FROM EXPLOSION:

Do not adjust the internal

pressure switch. Any change to the

automatic pressure levels may cause

excess pressure to accumulate,

causing a hazardous situation.

6. Adjust the Regulator Knob so that the air output is

enough to properly power the tool, but the output

will not exceed the tool’s maximum air pressure

at any time. Turn the knob clockwise to increase

the pressure and counter-clockwise to decrease

pressure. Adjust the pressure gradually, while

checking the air output gauge to set the pressure.

7. Make sure the air tool’s throttle or switch is in the

off position. Connect the air tool to the air hose.

8. Open the in-line Shutoff Valve.

9. Use the air tool as needed.

10. After the job is complete, turn the Power Switch OFF.

11. Unplug the Air Compressor.

12. Close the in-line Shutoff Valve.

13. Bleed air from the tool then disconnect the tool.

14. Turn the Drain Valve, at the bottom of the Tank,

two turns to release any built-up moisture and the

internal tank pressure. Close the valve after moisture

has drained out. Do not remove the Drain Valve.

15. Clean, then store the Air Compressor indoors.

Emergency Depressurization

If it is necessary to quickly depressurize the Compressor, turn the Power Switch OFF.

Then, pull on the ring on the Safety Valve to quickly release stored air pressure.

SAFETY OPERATION MAINTENANCESETUP

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Central Pneumatic Compresseur d'air

Central Pneumatic

Central Pneumatic CENTRAL PNEUMATIC 47407 Manuel de la liste des pièces

Central Pneumatic

Central Pneumatic CENTRAL PNEUMATIC 95499 Manuel de la liste des pièces

Central Pneumatic

Central Pneumatic 61454 Manuel utilisateur

Central Pneumatic

Central Pneumatic 67708 Manuel d'installation

Central Pneumatic

Central Pneumatic 97080 Manuel utilisateur

Central Pneumatic

Central Pneumatic 67696 Manuel d'installation

Central Pneumatic

Central Pneumatic 90749 Manuel utilisateur

Central Pneumatic

Central Pneumatic 68149 Manuel d'installation

Central Pneumatic

Central Pneumatic 67708 Manuel d'installation

Central Pneumatic

Central Pneumatic 90385 Manuel utilisateur

Central Pneumatic

Central Pneumatic 95630 Manuel d'installation

Central Pneumatic

Central Pneumatic 67847 Guide de l'utilisateur

Central Pneumatic

Central Pneumatic 60637 Guide de l'utilisateur

Central Pneumatic

Central Pneumatic 40131 Instructions de montage

Central Pneumatic

Central Pneumatic PROFESSIONAL 99901 Manuel utilisateur

Central Pneumatic

Central Pneumatic 95275 Instructions de montage

Central Pneumatic

Central Pneumatic 92403 Manuel de la liste des pièces

Central Pneumatic

Central Pneumatic 43520 Manuel utilisateur

Central Pneumatic

Central Pneumatic FP202800 Manuel de service

Central Pneumatic

Central Pneumatic 47915 Manuel utilisateur

Central Pneumatic

Central Pneumatic 67847 Manuel d'instructions d'origine

Central Pneumatic

Central Pneumatic 65903 Manuel d'installation

Central Pneumatic

Central Pneumatic 61615 Instructions de montage

Central Pneumatic

Central Pneumatic 96068 Manuel d'installation

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
