Cecilware CS113 Manuel utilisateur
SPECIAL FEATURES:
¦PORTABLE, EASILY MOVED TO ANY
CONVENIENT LOCATION.
¦PRECISION THERMOSTAT FOR
ACCURATE TEMPERATURE CONTROL.
¦SIGHT GLASS INDICATES WATER LEVEL.
Operation Manual
Ni46A May 2006
CAUTION: Do not run the unit dry (without water)
Turn thermostat knob all the way counterclockwise to OFF position.
Fill with fresh water, plug into electric outlet, then turn thermostat knob clockwise to the
desired temperature (between 5 and 8).
Hot Water Boilers:
Fill with fresh water, plug into electric outlet, then turn thermostat knob clockwise to the desired
temperature (between 5 and 8).
Cleaning Instructions:
1. Wipe exterior with a soft, damp cloth.
2. Clean urn inside with mild soap and water. Rinse thoroughly.
Size Specifications :
MODEL NO CAPACITY DIAMETER HEIGHT WEIGHT
CS113 3 Gals 11 in. 21 ½ in. 15 lbs.
18 lbs.
27 ½ in.
11 in.
5 Gals
CS115
Line Cord is included
Electrical Specifications:
1.6KW 120Volts or 2.4KW 220V (export)
Page -1-
HI-LIMIT
THERMOSTAT
L005A L573A
PILOT LIGHT
BLACK WHITE
HEATER
G193A 1.6 KW 120V
G359A 2.4 KW 220V (EXPORT)
5-15P (120V)
ELECTRICAL DIAGRAM
CS113, CS115
NE92A
PARTS LIST
CS113 CS115
PARTS LIST
819
21
BOTTOM COVER
9
15
17
18
16
13
14
URN COVER KNOB
1
2
6
7
5
4
3
Q186A
M027A
COVER, URN Q004A
SCREW, PAN HD PHIL S.S. 10-24x1/2 P264A
GAUGE GLASS SHIELD 8" (CS113) D023A
GAUGE GLASS SHIELD 10 3/4" (CS115) D020A
GAUGE SHANK D021A
FAUCET D064A
SCREW, THERMOSTAT P018A
THERMOSTAT KNOB M008A
11 22
24
12
10 THERMOSTAT L005A
SCREW, 8-32 x 3/8 SELF TAP P140A
HOLE PLUG (1.250 DIA) P300A
20
23
HI-LIMIT L573A
STRAIN RELIEF B012A
LINE CORD C032A
BOTTOM, WATER COMPARTMENT Q187A
URN BODY (CS113) R045A
URN BODY (CS115) R046A
HANDLE M007A
PLUG IN COLLAR Q012A
HEATER ELEMENT 120 V G193A
HEATER ELEMENT 220 V G359A
PILOT LIGHT C002A
Page -2-
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Cecilware Chaudière
Cecilware
Cecilware CS113 Manuel utilisateur
Cecilware
Cecilware ME-10E Manuel utilisateur
Cecilware
Cecilware ME10E-N Manuel utilisateur
Cecilware

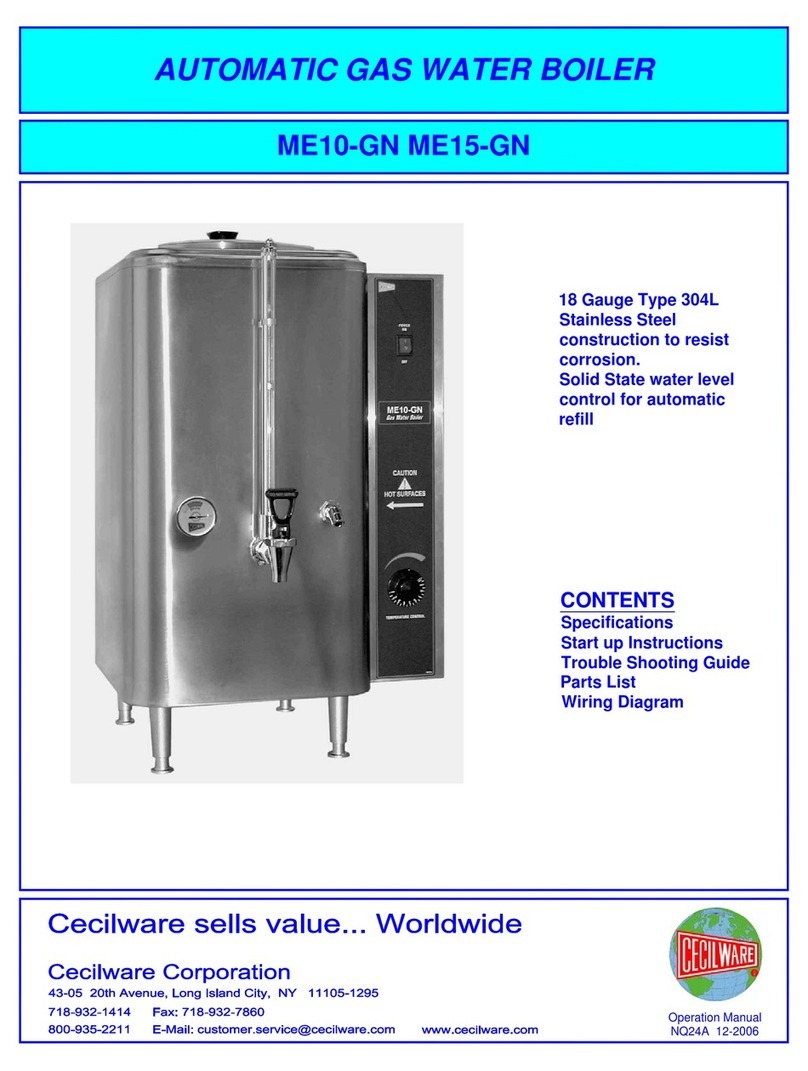

Cecilware ME10-GN Manuel utilisateur
