SW Series

Simple Weighing Scale

OWNER’S MANUAL

CONTENTS

PRECAUTIONS 4

PREFACE 6

NAMES AND FUNCTIONS 6

OPERATIONS 7

1. General Weighing 8

2. Weighing with Tare 8

3. How to Convert the Unit of Weight 9

4. Hold Function 9

5. How to Set Auto Power Off 10

ERROR MESSAGE 11

SPECIFICATIONS 11

PRECAUTIONS

Do not subject the scale to sudden

temperature changes.

Place the scale on a flat and stable

surface.

Do not subject the platter to sudden

shocks. This scale must be installed in a dry

and liquid free environment.

Make sure that you plug your scale into the proper power outlet.

Plug into a power outlet 10 minutes before operations.

Keep the scale away from strong EMI noises may cause incorrect weight

readings.

If the scale is not properly

level, please adjust the 4 legs

at the bottom of the scale

(turn legs clockwise or

counterclockwise) so as to

center the bubble of the

leveling gauge inside the

indicated circle.

Leveling gauge

PREFACE

NAMES AND FUNCTIONS

Thank you for purchasing our CAS SW Series.

These series have been designed with CAS reliability, under rigid quality control

and with outstanding performance. Your specialty departments can enjoy these

high quality reliable CAS products.

We believe that your needs will be satisfied and you will have proper reliability.

This manual will help you with proper operation and care of the SW Series.

Please keep it handy for future reference.

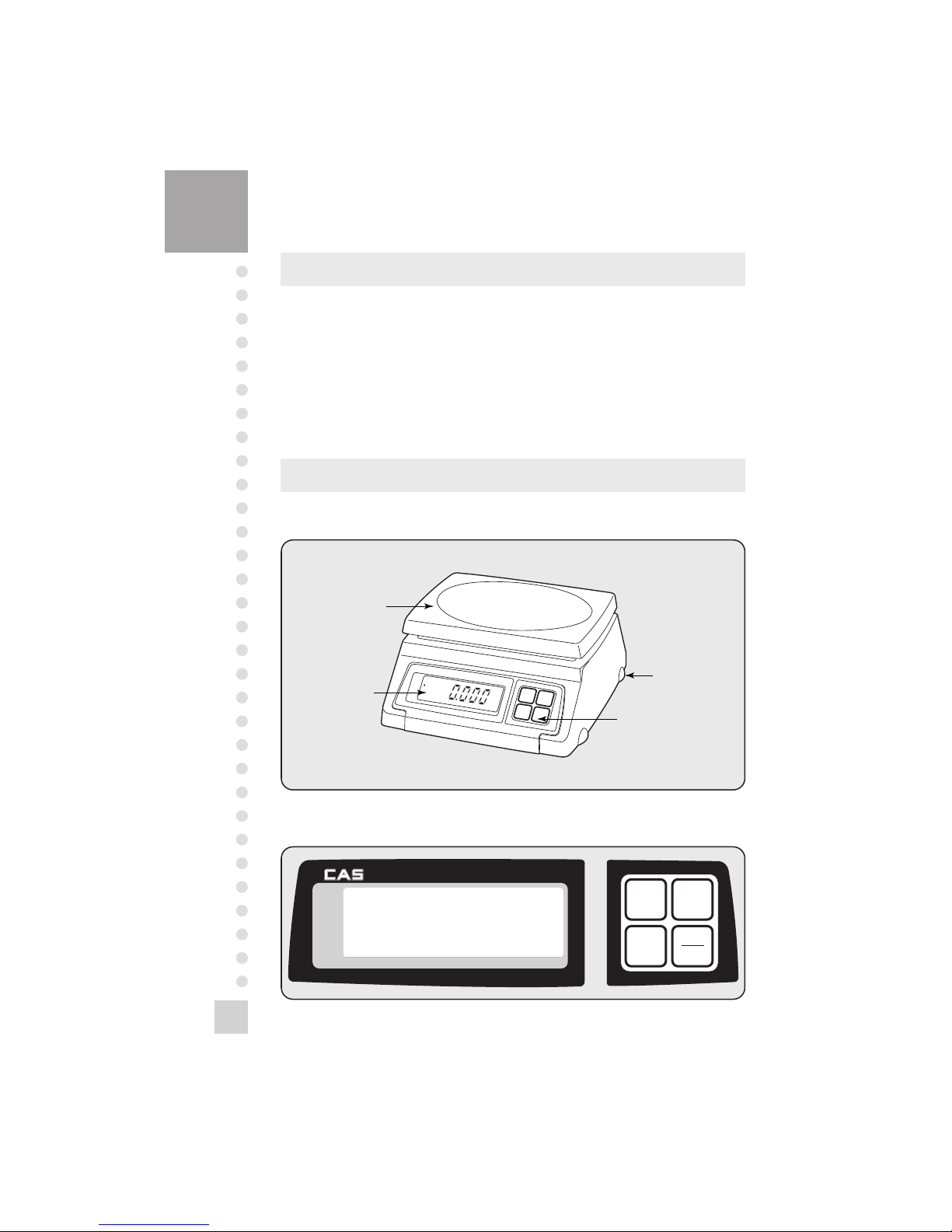

OVERALL VIEW

PLATTER

DISPLAY ADJUSTING

BOLT

KEYBOARD

DISPLAY & KEYBOARD

MODEL: SW-1

ZERO

NET

CAPACITY: 2 X0.001kg

ZERO

HOLD ON

OFF

TARE

FUNCTION

OFF

TARE

UNIT

HOLD

ZERO

Used to set the zero point.

Used to enter a tare weight and used to cancel a tare weight.

Used to convert the unit of weight.

When the weight is not stable, display will show the average weight

for 4 seconds.

Turn on and off the display.

KEYS FUNCTIONS

OPERATIONS

Turn on the display by pressing ON/OFF key.

Then the display will show all the segments and count up "0" to "9".

(If you want to stop it, press the ZERO key.)

When you turn on the display, make sure that platter is empty.

Otherwise, display will show the "Err 1". (Refer to ERROR MESSAGE)

The display indicates if the scale is at ZERO or if there is a TARE Entered

into the scale by way of a ZERO and NET lamps.

When the weight of commodity is stable, display will show the (STABLE)

lamp.

When the display is not zero though there is nothing on the platter, press

the ZERO key.

MODEL: SW-1

ZERO

NET

CAPACITY: 2 X0.001kg

ZERO

UNIT ON

OFF

TARE

1. General Weighing

Place a commodity on

the platter.

Remove the commodity

from the platter.

2. Weighing with Tare

Tare is the weight of container being used for a commodity.

The TARE key subtracts the weight of the container.

kg kg

ZERO TARE

Place a container on

the platter.

Press the TARE key. Place a commodity in the

container, then the display will

show only the weight of

the commodity.

ZERO

HOLD ON

OFF

TARE

kg kg

Remove the container and

commodity, then the display

will show the weight of

the container with "-" sign.

Press the TARE key, then

display will show the "0.000".

ZERO

HOLD ON

OFF

TARE

3. How to Convert the Unit of Weight

Press the UNIT key, then the display will show the "UnIt" for a second.

Press the UNIT key until the display shows the unit that you wish to take.

4. Hold Function

NOTE: Unit of measure is g, kg, lb, and oz selectable by pressing UNIT key.

When the weight is not

stable, press the HOLD key.

Display will show the

"HOLD" for four seconds.

And then the display will

show the average weight five

times.

ZERO

HOLD ON

OFF

TARE

kg kg

Remove the commodity

from the platter.

5. How to Set Auto Power Off

Auto-Power off makes the battery's life longer.

When you don't operate the scale, this function makes the power OFF

automatically.

Before setting the Auto Power Off, make sure that the power is OFF.

While you press the ZERO

key, press the ON/OFF key,

then you will see the AP-10.

(If you have set this before,

display will show previous

value.)

Press the TARE key, until

the display shows the "AP-x0"

that you wish to take.

(Refer to TABLE 1.)

Press the ZERO key, then

the scale saves what you

programmed and shows all the

segments and count up "0" to "9".

ZERO

HOLD ON

OFF

TARE ZERO

HOLD ON

OFF

TARE

DISPLAY FUNCTION

AP-00 This function does not make the power off automatically.

AP-10 If you don't operate the scale for 10 minutes, this function makes the power OFF.

AP-20 If you don't operate the scale for 20 minutes, this function makes the power OFF.

AP-30 If you don't operate the scale for 30 minutes, this function makes the power OFF.

TABLE 1.

BATTERY

LOW BATTERY

When the battery is low, display will show the "BAT".

Please, replace the battery by a new one. Battery is located on the bottom of the

scale.

If you use the scale without replacing the battery, display will show "LObAt" and

then scale makes the power OFF.

It means that you can't operate the scale any more. So you must replace the

battery by a new one.
