Now that you own Carrier’s Thermidistat

Control, it’s time to customize your

indoor weather. Carrier’s intelligent, easy-to-use

indoor weather command center combines comput-

er-like intelligence with extremely simple operation

in an elegant package. It maximizes the performance

of your Carrier indoor weather system so you can

enjoy custom made indoor weather that fits your

lifestyle. By precisely controlling indoor tempera-

tures and humidity levels, our Thermidistat Control

keeps you comfortable while conserving energy. Just

follow the simple instructions outlined in this

manual and let Carrier’s Thermidistat Control deliver

the customized comfort and energy savings that

you deserve.

Custom made indoor weather.

Carrier Corporation Indianapolis, IN 46231

Homeowner’s Guide

comfort

THERMIDISTAT™ CONTROL

Manufacturer reserves the right to discontinue, or change at any time,

specifications or designs without notice or without incurring obligations.

NP TMstat Homeowner's Guide 8/24/01 11:21 AM Page 1

Carrier’s Thermidistat Control is

the command center of your indoor

weather system. By providing both

temperature and humidity control, this sim-

ple yet powerful device lets you take the

steam out of summer, the static out of win-

ter and helps eliminate that annoying mois-

ture build-up on your windows when it’s

cold outside. It’s never been quite this easy.

Comfort command center.

control

Carrier puts your family’s comfort

at your fingertips with simple

instructions, responsive push but-

tons and an easy-to-read backlit

LCD display. Once set, the

Thermidistat Control reliably monitors

indoor conditions and responsively meets

your comfort demands for consistent,

energy-efficient indoor weather.

Making life easier.

features

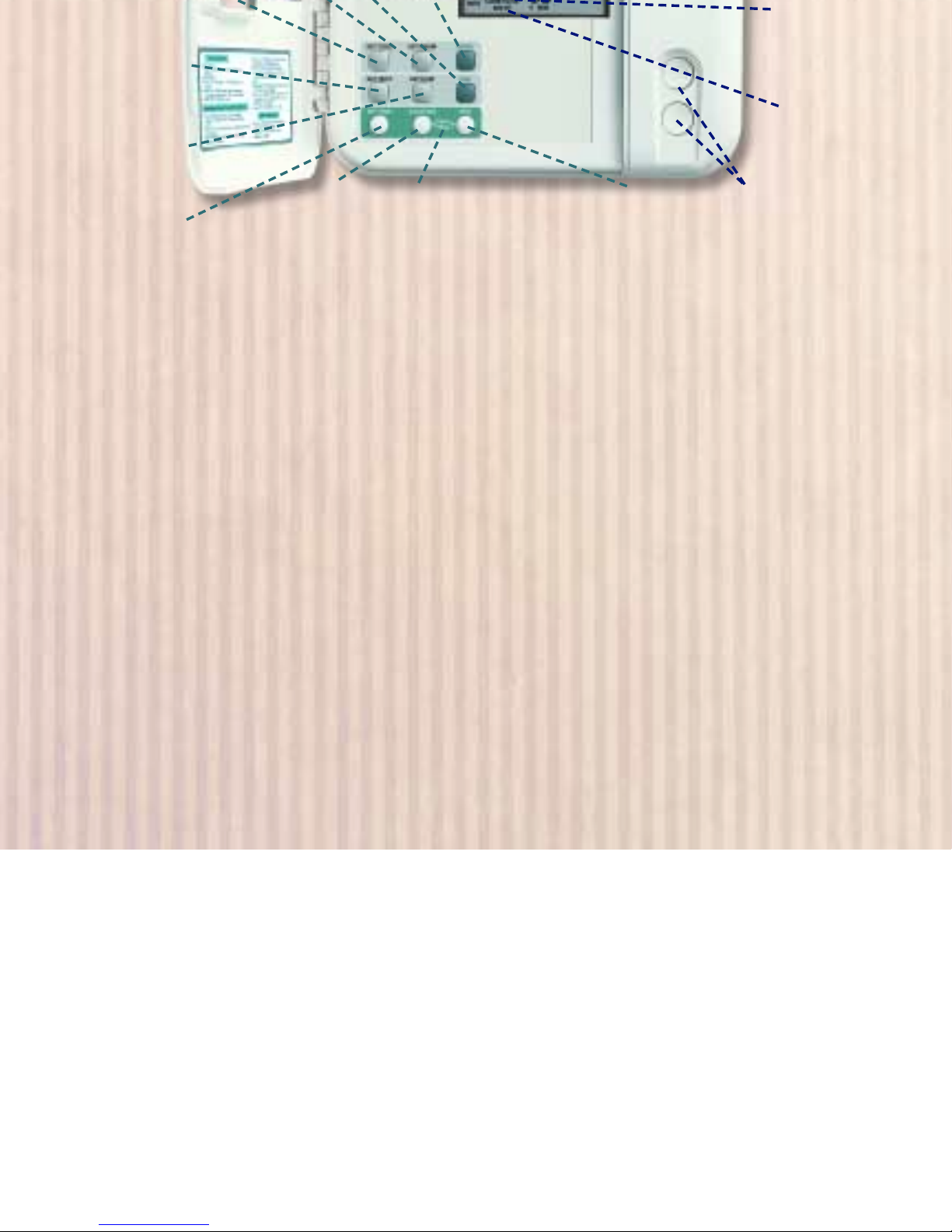

NOTE: Not all messages displayed in the above illustration will appear at once in any situation. •Available on selected models.

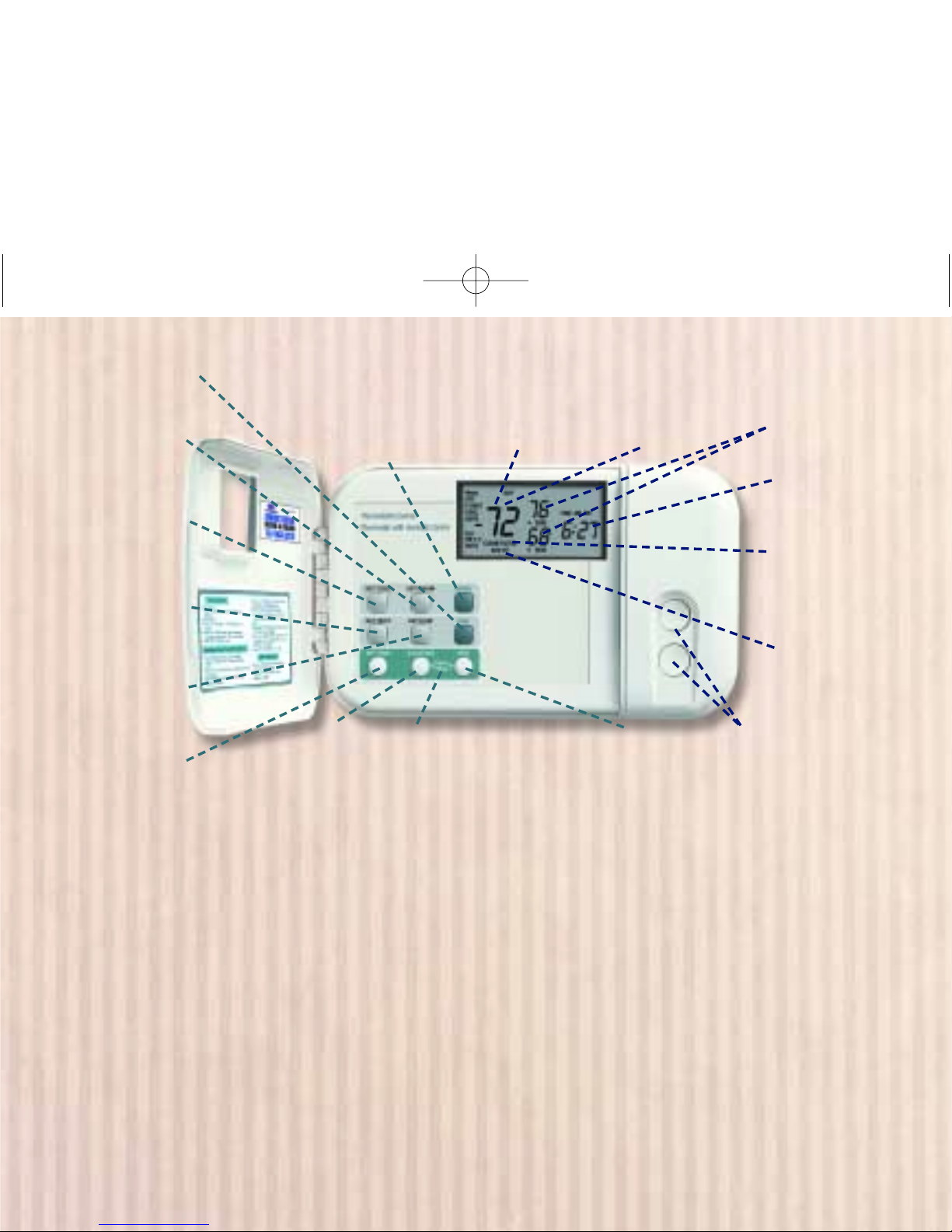

MODE Button selects OFF, HEAT,

COOL, or AUTO operation. EMER-

GENCY HEAT (EHEAT) mode is also

included when the Thermidistat

Control is installed with a heat pump.

FAN Button choos-

es ON or AUTO fan

operation.

▲

Room Tempera-

ture Display

shows current

room temperature.

▲

SET HUM Button

allows you to

change humidifi-

cation set point.

SET TIME Button

allows you to enter

the time of day.

SET HEAT Button

allows you to enter

your desired heat-

ing set point.

VACATION Button changes

temperature and humidity set

points to lower levels for opti-

mum energy efficiency while

you’re away.

▲RESET FILTER Function restarts

the timer that determines the next

air filter change or cleaning.

Activated by pressing VACATION

and END buttons simultaneously.

▲END Button com-

pletes the tempera-

ture and humidity

set-up sequence.

▲▲

▲

SET COOL Button

allows you to enter

your desired cool-

ing set point.

▲

SET DHUM Button

allows you to

change dehumidifi-

cation set point.

▲

Up and Down Buttons change

the temperature and humidity set

points. They are also used to

access outdoor temperature and

indoor humidity levels.

▲

*Outdoor

Temperature

Display shows the

outdoor temperature.

▲

*Auxiliary Heat

Indicator is dis-

played when a heat

pump system’s aux-

iliary heat is on.

▲

Time of Day

Display exhibits

the time of day.

▲▲

Clean Filter

Indicator lets you

know it is time to

clean or replace your

system’s air filter.

Temperature

Settings Display

shows the temper-

ature settings for

current time period.

▲

NP TMstat Homeowner's Guide 8/24/01 11:21 AM Page 2

Carrier’s Thermidistat Control is

the command center of your indoor

weather system. By providing both

temperature and humidity control, this sim-

ple yet powerful device lets you take the

steam out of summer, the static out of win-

ter and helps eliminate that annoying mois-

ture build-up on your windows when it’s

cold outside. It’s never been quite this easy.

Comfort command center.

control

Carrier puts your family’s comfort

at your fingertips with simple

instructions, responsive push but-

tons and an easy-to-read backlit

LCD display. Once set, the

Thermidistat Control reliably monitors

indoor conditions and responsively meets

your comfort demands for consistent,

energy-efficient indoor weather.

Making life easier.

features

NOTE: Not all messages displayed in the above illustration will appear at once in any situation. •Available on selected models.

MODE Button selects OFF, HEAT,

COOL, or AUTO operation. EMER-

GENCY HEAT (EHEAT) mode is also

included when the Thermidistat

Control is installed with a heat pump.

FAN Button choos-

es ON or AUTO fan

operation.

▲

Room Tempera-

ture Display

shows current

room temperature.

▲

SET HUM Button

allows you to

change humidifi-

cation set point.

SET TIME Button

allows you to enter

the time of day.

SET HEAT Button

allows you to enter

your desired heat-

ing set point.

VACATION Button changes

temperature and humidity set

points to lower levels for opti-

mum energy efficiency while

you’re away.

▲RESET FILTER Function restarts

the timer that determines the next

air filter change or cleaning.

Activated by pressing VACATION

and END buttons simultaneously.

▲END Button com-

pletes the tempera-

ture and humidity

set-up sequence.

▲▲

▲

SET COOL Button

allows you to enter

your desired cool-

ing set point.

▲

SET DHUM Button

allows you to

change dehumidifi-

cation set point.

▲

Up and Down Buttons change

the temperature and humidity set

points. They are also used to

access outdoor temperature and

indoor humidity levels.

▲

*Outdoor

Temperature

Display shows the

outdoor temperature.

▲

*Auxiliary Heat

Indicator is dis-

played when a heat

pump system’s aux-

iliary heat is on.

▲

Time of Day

Display exhibits

the time of day.

▲▲

Clean Filter

Indicator lets you

know it is time to

clean or replace your

system’s air filter.

Temperature

Settings Display

shows the temper-

ature settings for

current time period.

▲

NP TMstat Homeowner's Guide 8/24/01 11:21 AM Page 2

TABLE OF CONTENTS

SETTING UP THE THERMIDISTAT CONTROL

Setting your indoor temperature set points ...1

Setting the current time ................................2

Setting the mode operation ..........................3

Setting the fan operation ..............................5

Setting the humidification set point ..............6

Setting the dehumidification set point ..........9

Setting the “cool to dehumidify” function ..10

OPERATING THE THERMIDISTAT CONTROL

Checking current temperature ....................12

Checking the outdoor temperature

and indoor humidity ...............................12

Checking current humidification

and dehumidification set points ..............13

Clean filter feature .....................................14

Vacation feature setup ................................15

Vacation feature operation .........................19

AUTO CHANGEOVER ..................................20

WHAT IF…

The auxiliary heat indicator is displayed ....21

The clean filter indicator is displayed .........21

You have a power outage ...........................22

You have a system error message ...............22

Warranty .......................................................24

Common Terms and Where to Find Them .....25

SETTING UP THE THERMIDISTAT CONTROL

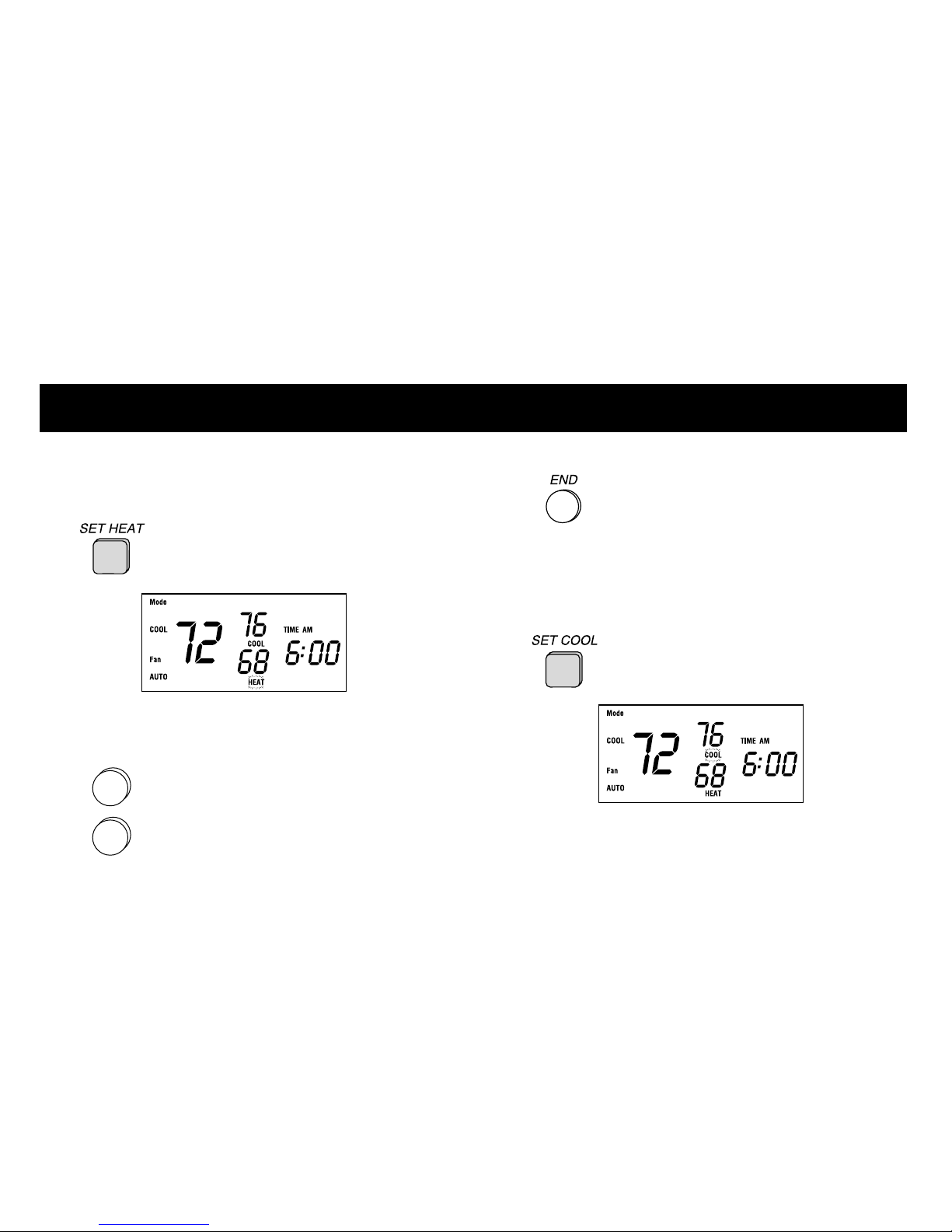

Setting your temperature set points

Setting the desired heating set point

1Press the SET HEAT button.

The word HEAT flashes on the display.

2Press the UP or DOWN

button until the correct

heating set point is displayed.

3Press the END button to exit.

Setting the desired cooling set point

1Press the SET COOL button.

The word COOL flashes on the display.

SETTING UP THE THERMIDISTAT CONTROL

2Press the UP or DOWN

button until the correct

cooling set point is displayed.

3Press the END button to exit.

NOTE: Your COOL setting must be at least

2° higher than your HEAT setting.Your

Thermidistat Control will automatically

change your previously set temperature to

maintain that 2° difference.

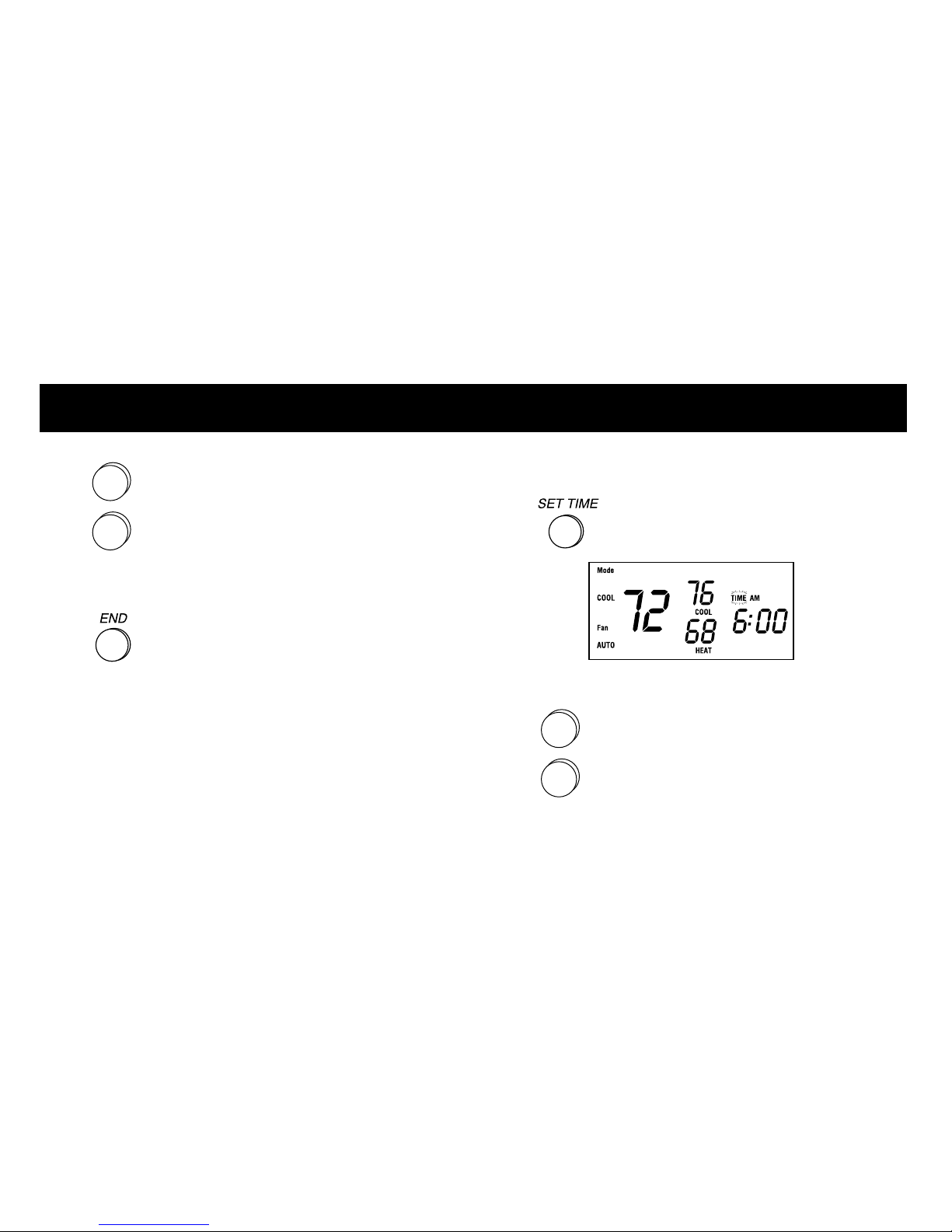

Setting the current time

1Press the SET TIME button.

The word TIME flashes on the display.

2Press the UP or DOWN

button until the correct

time is displayed. To quickly advance to

SETTING UP THE THERMIDISTAT CONTROL

the proper time, press and hold the UP

or DOWN button. Be sure that AM or

PM is properly selected.

3When the correct time

appears on the display, press the END

button.

NOTE: If you choose not to press the END

button, the wordTIME will stop flashing

after 15 seconds.

NOTE: If you live in a Daylight Savings

Time area, you may advance the time 1

hour in the spring by simultaneously

pressing the SET TIME button and the UP

button. In the fall, you may set the time

back 1 hour by simultaneously pressing the

SET TIME button and the DOWN button.

Setting the mode operation

1Press the MODE button.

SETTING UP THE THERMIDISTAT CONTROL

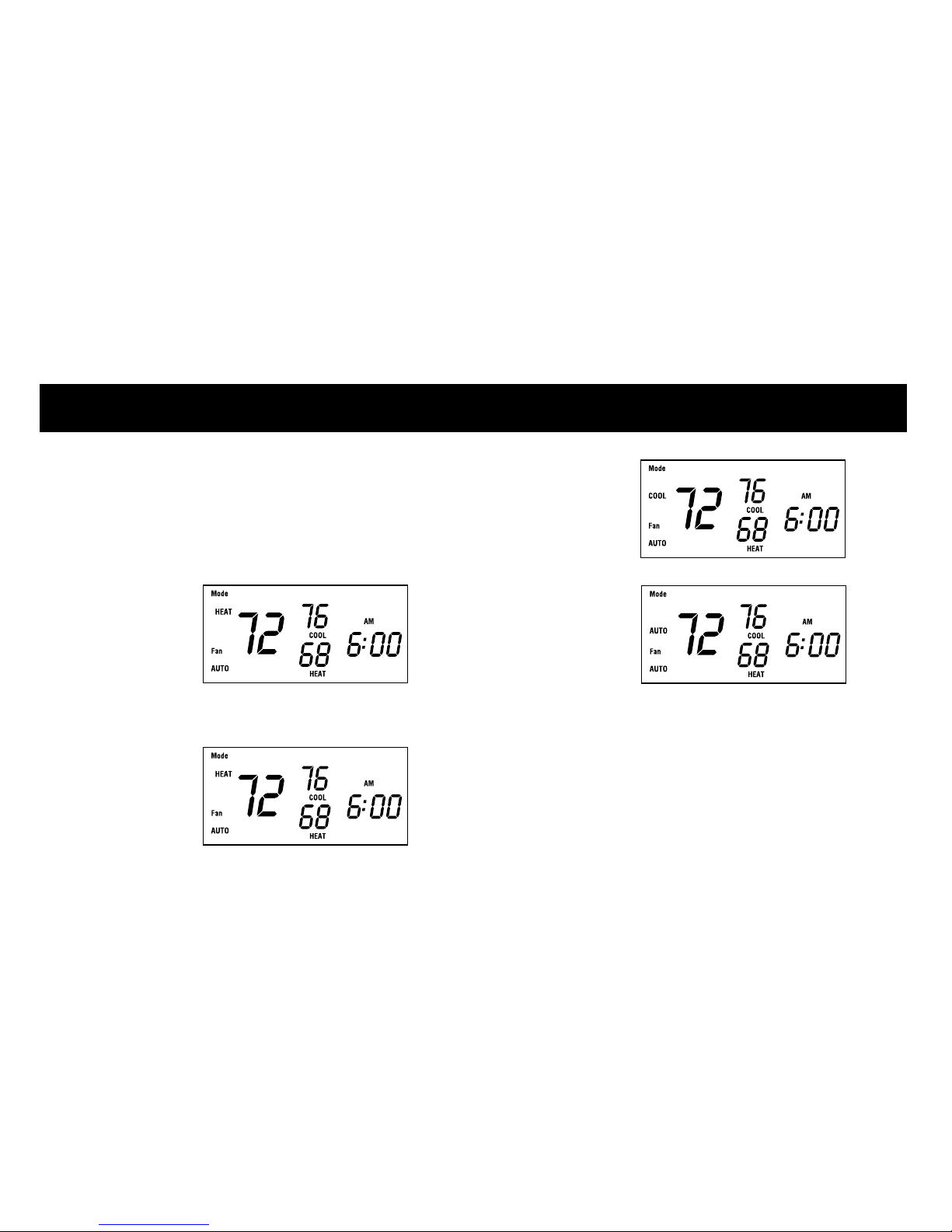

2When the MODE button is pressed,

the words

OFF,

HEAT,

COOL,

and AUTO

will rotate on the display.

If you have a heat pump, the display

will show OFF, HEAT, COOL, AUTO,

and EHEAT.

SETTING UP THE THERMIDISTAT CONTROL

NOTE: In AUTO mode, your system will

heat OR cool as needed to reach your

temperature settings. AUTO mode may be

disabled.

3Continue to press the

MODE button until you reach the

desired setting.

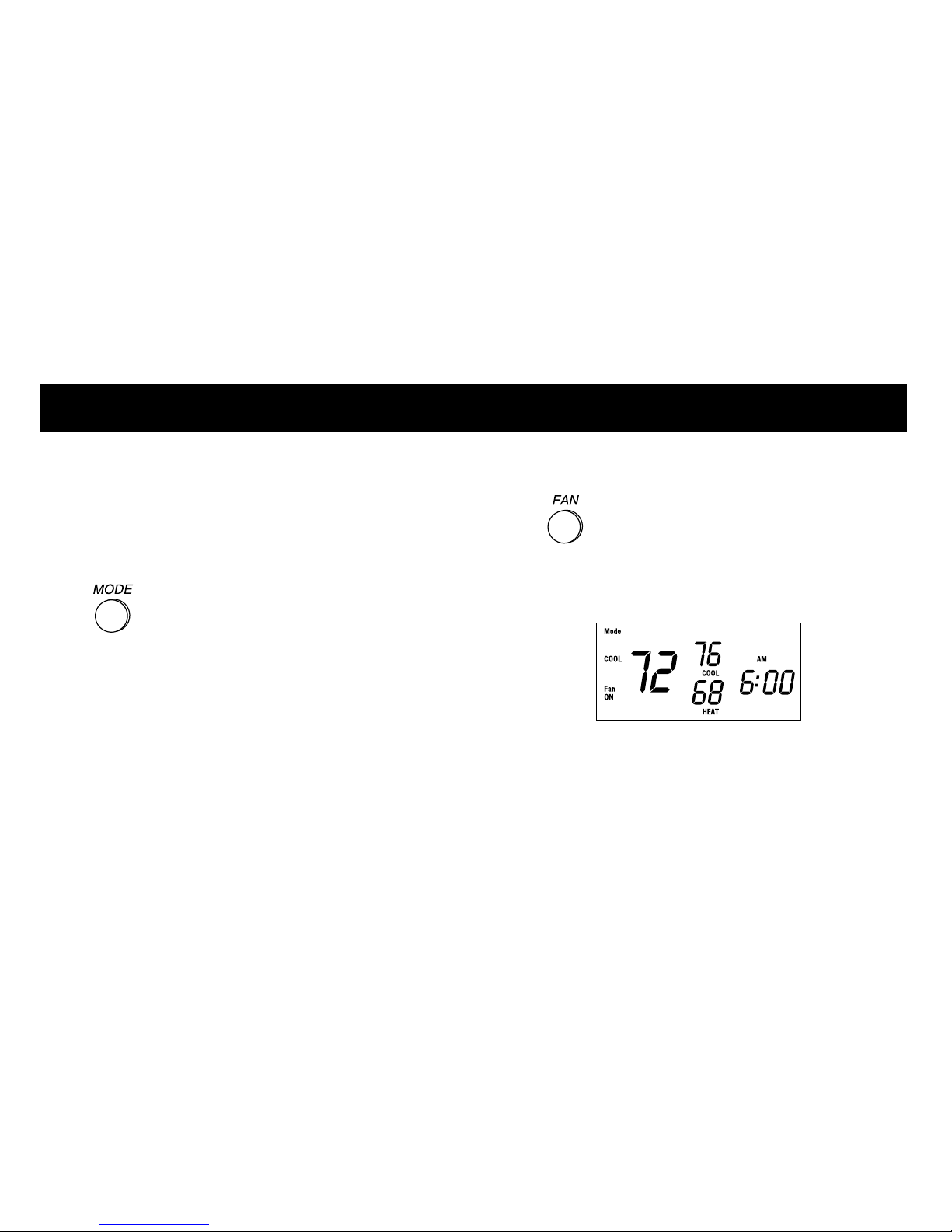

Setting the fan operation

1Press the FAN button to

switch between ON and AUTO fan

settings.

When the ON mode is selected, the

fan runs continuously for improved

air circulation.

Autres manuels pour Thermidistat

Table des matières

Autres manuels Carrier Thermostat

Carrier

Carrier Comfort Touch-n-Go Manuel utilisateur

Carrier

Carrier CONNECT 33CONNECTSTAT Manuel utilisateur

Carrier

Carrier TP-WEM01 Manuel utilisateur

Carrier

Carrier TC-NAC Manuel utilisateur

Carrier

Carrier TC-WHS01 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Carrier

Carrier Performance TP-PRH-A Manuel utilisateur

Carrier

Carrier Aquazone 50QE900-NPWS Manuel utilisateur

Carrier

Carrier CRC2 - NTC Manuel utilisateur

Carrier

Carrier CRC2 - NTC Manuel utilisateur

Carrier

Carrier 33CS Manuel utilisateur

Carrier

Carrier 33CS Instructions et recettes

Carrier

Carrier Programmable Dual Fuel Thermostats Instructions et recettes

Carrier

Carrier 50QE900-511WS Manuel utilisateur

Carrier

Carrier Debonair 33CS250-01 Manuel utilisateur

Carrier

Carrier ComfortVu TB-24 Mode d'emploi

Carrier

Carrier Comfort series Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Carrier

Carrier TSTATBBPB501 Manuel utilisateur

Carrier

Carrier Non-Programmable Thermostats Instructions et recettes

Carrier

Carrier Infinity Control Home Instructions de montage

Carrier

Carrier 5+2 DAY PROGRAMMABLEDIGITAL THERMOSTAT Manuel utilisateur

Carrier

Carrier Debonair 2 Manuel utilisateur

Carrier

Carrier PTACSTAT-NP-HP Instructions d'installation

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur

Honeywell

Honeywell T6811 Manuel utilisateur
