Carrier TST-EEPC06111SCS00 Manuel utilisateur

Carrier

Room Thermostats

TST-EEPC06111SCS00

TST-EEPD06111SCS01

TST-EEPC06121SCS00

TST-EEPD06121SCS01

Owner’s Guide

Turn to the Experts.

Series 6 Classic and Deluxe Designs

Control at Your Fingertips

CONGRATULATIONS

INTELLIGENT

EASY TO USE

Congratulations on your purchase of a new Carrier

thermostat. Your new thermostat combines computer-

intelligence with extremely simple operation in an elegant

package. Designed to maximize perf

ormance, your Carrier

thermostat provides reliable, accurate temperature control

wile blending in with the surrounding

decor

. As you read on

you will quickly find how easy it is to set up and operate your

new thermostat and enjoy your climate controlled

environment

COMFORT AT YOUR COMMAND

Carrier has met the needs worldwide with their

programmable thermostats. Controlling your heating and

cooling system at the touch of a button, this

powerful device

delivers comfort year round.

MAKING LIFE EASIER

Take a few minutes to review the f

eatures and functions

listed in this manual. Carrier gives you control over your

comfort with simple instructions, responsive push buttons

and an easy to read backlit display (on electronic models).

Once set, this thermostat reliably monitors indoor

temperature and responsively meets your comfort demands.

01: Remote

Sensor

MODEL NOMENCLATURE

TST - E S N C 06 2 1 1 S C S 01

TST

: Thermostat

C: Classic series

D: Deluxe series

N: Non-programmable

P: Programmable

M:Mechanical

E:Electronic

E:Embedded

S:Surface mount

1: AC85V~260V

2: AC24V

1: Cooling water 2 pipe

2: Cooling water 4 pipe

3: Direct Expansion

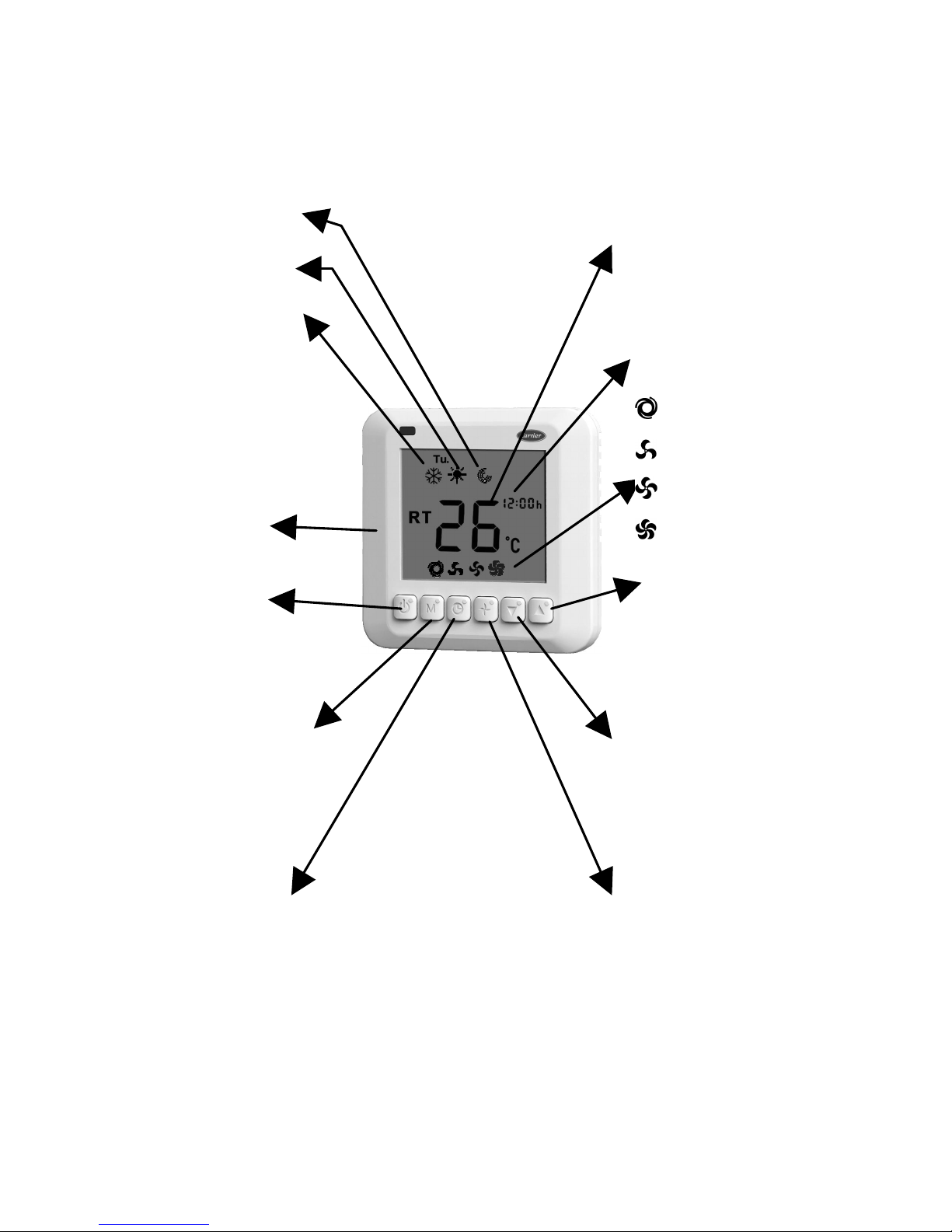

SET

Shows room temperature,

desired temperature, and

other feature information

as required.

FAN Button chooses

between AUTO

LOW

MED

fan operation.

Power Button

Turn on/off

thermostat

MODE Button

selects

between HEAT,COOL and

Ventilation operation

Up Button

Increase the desired

temperature setting.

Down Button

Decrease the desired

temperature setting.

SET is

displayed

while setting your

desired temperatures

or flashed while

setting mode.

Cool mode

Heat mode

Ventilation mode

: AUTO

: LOW-speed

: MED-speed

: HI-speed

Clock button

Current Time.

SETTING AND OPERATING

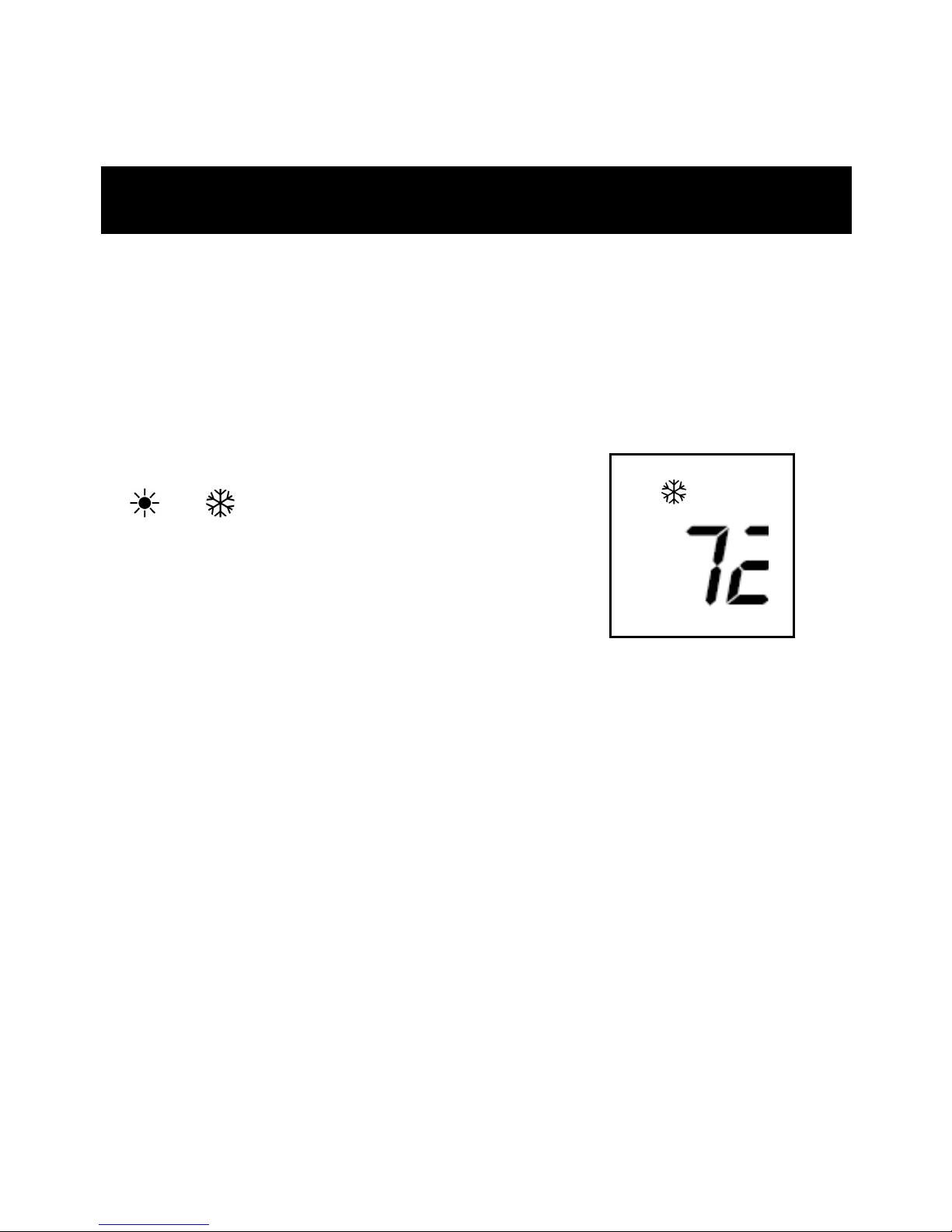

Setting your temperature set points

1.Press the UP or DOWN button.

The LCD readout will be illuminated and the heating or

cooling temperature set point will be displayed, but will not

change. Next to the temperature display,

or indicateswhich temperature

set point is being displayed.

Continue to press the UP or DOWN

buttons until your desired heating or cooling temperature set

point is displayed.

3.(Only for Deluxe series)Press the MODE button to select

the second temperature setting (either HEAT or COOL).

4.(Only for Deluxe series)Press the UP or DOWN buttons

until your second desired temperature set point is displayed.

-1-

SET

SETTING AND OPERATING

NOTE: Your COOL setting must be at least 2℃

℃℃

℃(4℉

℉℉

℉)

higher than your HEAT setting. Your thermostat will

automatically change your

previously set temperature to

maintain that 2℃

℃℃

℃(4℉

℉℉

℉) difference.

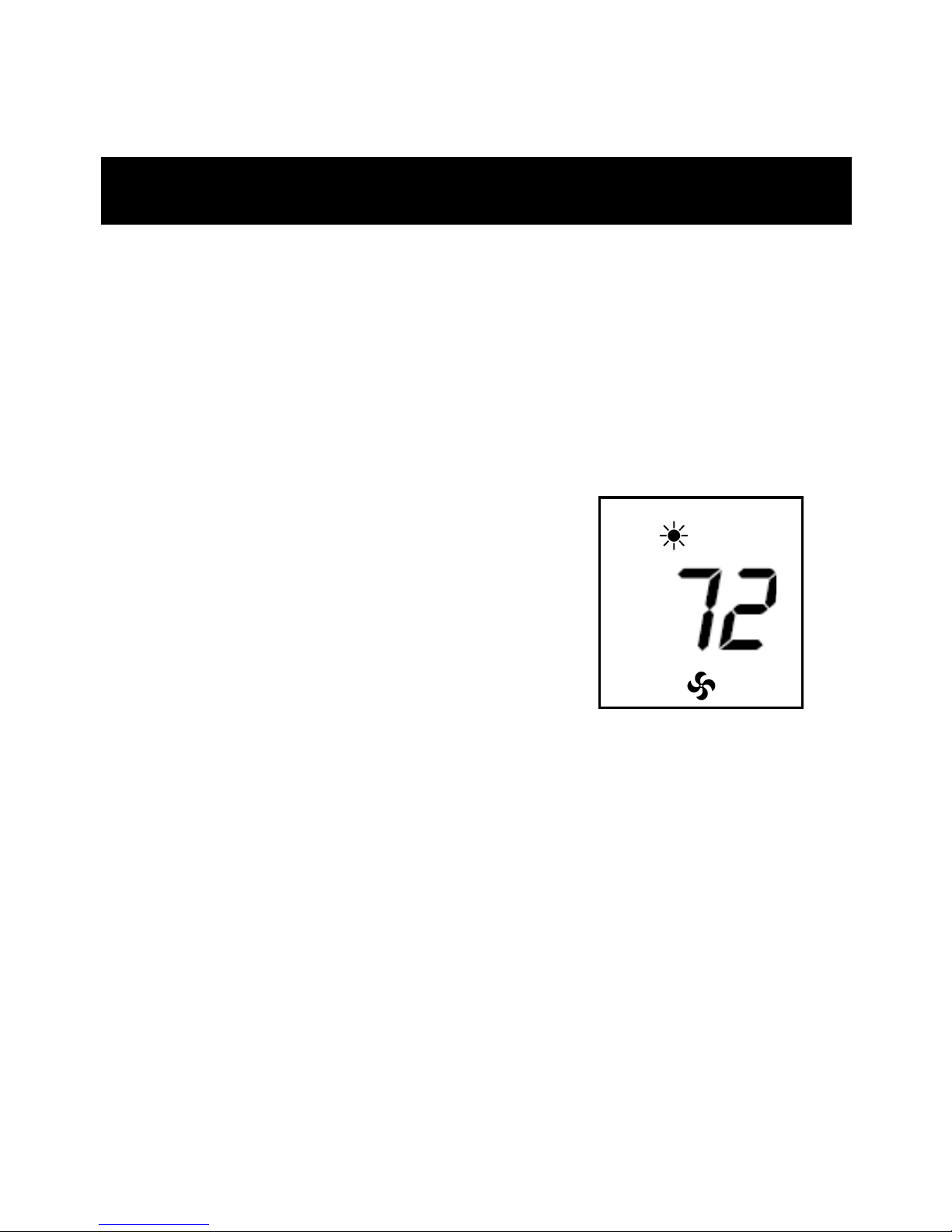

Setting fan operation

Press the FAN button to chooses

between AUTO, LOW, MED or HI

fan-speed,When the AUTO mode is

selected, Auto LOW-speed When the

difference between room-temperature

and setting-temperature exceed 1℃(2℉), Auto MED-speed

When exceed 2℃(4℉), Auto HI-speed When exceed 3℃(6

℉).

-2-

SETTING AND OPERATING

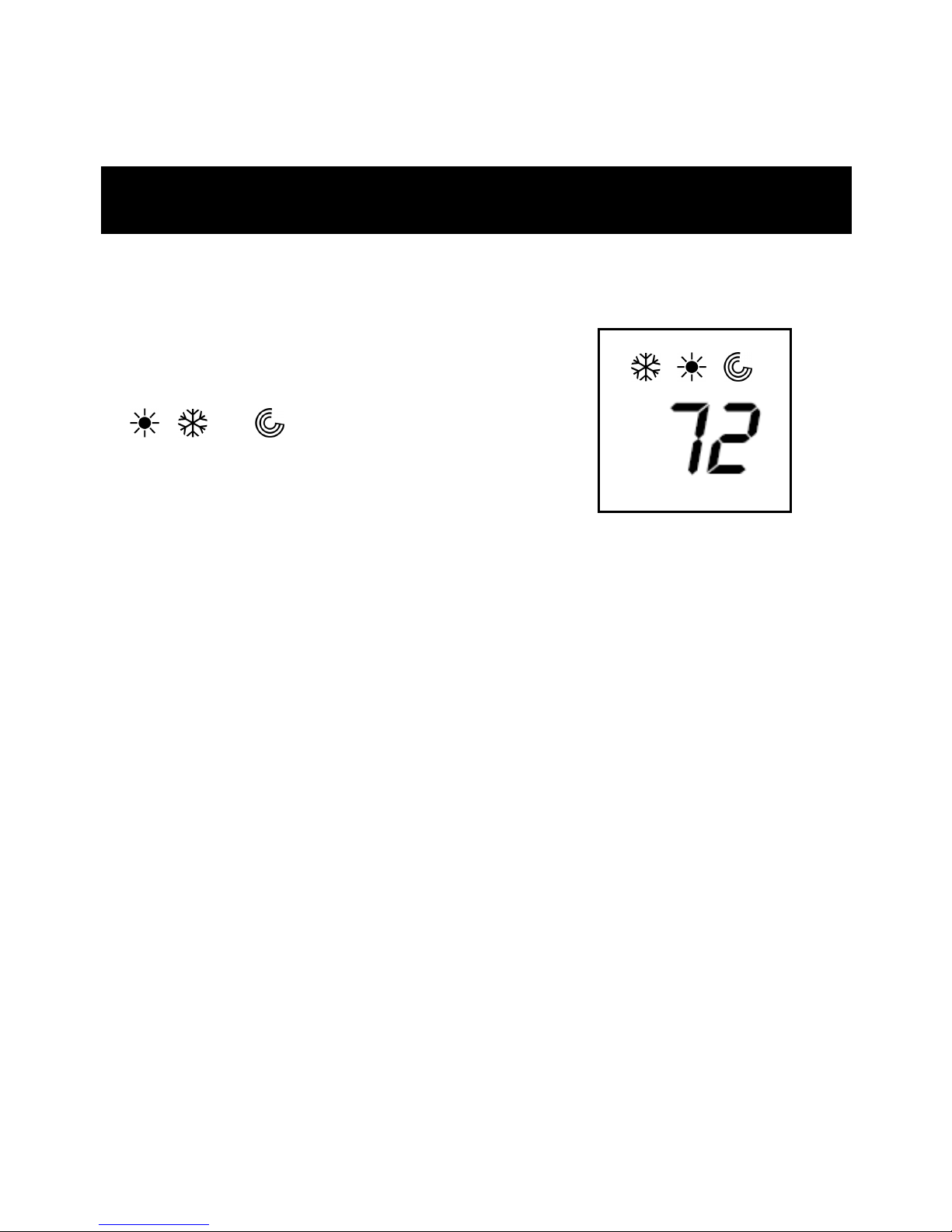

Setting mode operation

1. Press the MODE button.

2. On the LCD readout, the symbols

, , or will flash as the MODE

Button is pressed.

Set Current Time

Press clock button once, hours flash – set the hours using

the Up/Down key .

Press clock button again, minute flash –

set the minute using

the Up/Down key.

Press clock button again, day flashes – set day using the

Up/Down key.

-3-

SET

SETTING AND OPERATING

Programming Thermostat Schedules

Before programming the thermostat, plan the thermostat

daily schedule. The schedule is divided into 7 days

(Monday

through Sunday). Each day has 4 time periods (1,2, 3, 4

Each time period has a start time, heating

set point, and

cooling set point. Fill in Table 1 as an aid to programming

the

daily schedules.

To program the daily schedules,perform the following

procedure:

1. Enter programming mode by hold the clock button

down

for 5 seconds. “Wen” and ”--:--” will be displayed. Use

up and

down buttons to select the day of the schedule. Press

The

clock button TIME annunciator will flash.

NOTE: If a programming button is not pushed for

seconds, the thermostat will exit programming mode.

2. Press the Up and Down buttons to set the start time for

the schedule day and period shown.

-4-

SETTING AND OPERATING

3. Press the clock button once, The heating set

point and the

heat annunciator will be displayed. Press the Up

and

Down buttons to set heating set point.

4. Press the clock button once, The cooling set

point and the

cool annunciator will be displayed.

Press the Up and Down

buttons to set

5. Press the clock button to advance to the next time period.

Perform Steps 2 through 5 until the times and temperature

set points have been entered for the entire day.

Press the

clock

button and display”copy”

,use up and down button to

select the day for copy, p

ress the clock button to confirm.

7. Repeat Steps 2 through 6 to program the remaining

schedule days.

-5-

SETTING AND OPERATING

SCHEDULE

1 2 3 4

DAY OF

WEEK Tim/Heat/Cool Tim/Heat/Cool Tim/Heat/Cool Tim/Heat/Cool

Monday / / / / / / / / / / / /

Tuesday / / / / / / / / / / / /

Wednesday / / / / / / / / / / / /

Thursday / / / / / / / / / / / /

Friday / / / / / / / / / / / /

Saturday / / / / / / / / / / / /

Sunday / / / / / / / / / / / /

-6-

Table 1 Daily Schedule Planner
