Carrier PROGRAMMABLE THERMOSTAT Instructions de montage

Homeowner’s Guide

PROGRAMMABLE THERMOSTAT

Congratulations on your purchase

of a new Carrier thermostat. Your

new thermostat combines computer-like

intelligence with extremely simple

operation in an elegant package.

Designed to maximize the performance

of your Carrier total indoor weather

system, our thermostats provide reliable,

accurate temperature control while

blending into any home’s decor. As you

read on, you’ll quickly see how easy it is

to set up and operate your new

thermostat and enjoy the comfort of your

home.

Intelligent, easy to use.

comfort

Carrier Corporation Indianapolis, IN 46231

Prog. Tstat HO Guide -3 8/24/01 11:33 AM Page 1

Homeowner’s Guide

PROGRAMMABLE THERMOSTAT

Congratulations on your purchase

of a new Carrier thermostat. Your

new thermostat combines computer-like

intelligence with extremely simple

operation in an elegant package.

Designed to maximize the performance

of your Carrier total indoor weather

system, our thermostats provide reliable,

accurate temperature control while

blending into any home’s decor. As you

read on, you’ll quickly see how easy it is

to set up and operate your new

thermostat and enjoy the comfort of your

home.

Intelligent, easy to use.

comfort

Carrier Corporation Indianapolis, IN 46231

Prog. Tstat HO Guide -3 8/24/01 11:33 AM Page 1

MODE Button selects

OFF, HEAT, COOL, or

AUTO operation.

Heat pump thermostats

include EMERGENCY

HEAT mode.

FAN Button

chooses ON

or AUTO fan

operation.

PROGRAM Button starts

the programming process

and moves you from one

step to the next.

Room Temperature

Display shows current

room temperature.

Clean Filter Indicator lets

you know it is time to clean

or replace your system’s air

filter.

Outdoor Temperature

Display shows the

outdoor temperature.

Temperature Settings Display

shows the temperature settings for

current time period.

* Auxiliary Heat Indicator

is displayed when a heat

pump system’s auxiliary

heat is on.

UP AND DOWN Buttons

change the temperature

settings.They are used for

programming and to access

outdoor temperature.

RESET FILTER Button

restarts the timer that

determines the next air

filter change or cleaning.

HOLD Button maintains

the current temperature

and overrides programmed

temperature changes

until reset.

CHANGE DAY Button

advances you to the next

day to be programmed

and advances the day of

the week display.

COPY PREVIOUS DAY

Button “memorizes”

the current day’s

comfort schedule and

copies it into the next

day’s schedule.

END Button

“locks in” the most

recently entered

temperatures and

schedule.

SET TIME/TEMP

Button

Time of Day Display

▲

▲ ▲

▲

*Available on selected models.

▲

▲▲▲▲

NOTE: Not all messages displayed in the above illustration will appear at once in any situation.

This is no ordinary thermostat.

Carrier listened to the needs of

homeowners nationwide and delivered

a product to meet those needs. The

result is a thermostat that interacts

with people as effectively as it does

with your heating and cooling system.

It’s a simple, yet powerful control that

puts comfort at your command.

Comfort at your command.

control

Take a few minutes to review

the features and functions listed

above. Carrier gives you control over

your comfort with simple instructions,

responsive push buttons and an easy-

to-read backlit display. Once set, this

thermostat reliably monitors indoor

temperatures and responsively meets

your comfort demands.

Making life easier.

features

Prog. Tstat HO Guide -3 8/24/01 11:33 AM Page 2

TABLE OF CONTENTS

PROGRAMMING THE THERMOSTAT

Setting the current day........................................1

Setting the current time......................................1

Setting the mode operation ................................2

Setting the fan operation ....................................3

Personalize your comfort....................................4

Setting your comfort schedule............................5

Copying a daily schedule...................................8

OPERATING THE THERMOSTAT

Changing your comfort schedule......................10

Overriding your comfort schedule....................10

Checking the outdoor temperature ..................11

Checking current programmed time

and temperature settings...............................12

Clean filter feature............................................13

AUTO CHANGEOVER.........................................14

SMART RECOVERY .............................................15

What if…

The auxiliary heat indicator is displayed...........16

The clean filter indicator is displayed...............16

The hold indicator is displayed.........................16

You have a power outage.................................17

You have a system error message .....................17

Warranty.............................................................18

Common Terms and Where to Find Them ...........19

PROGRAMMING THE THERMOSTAT

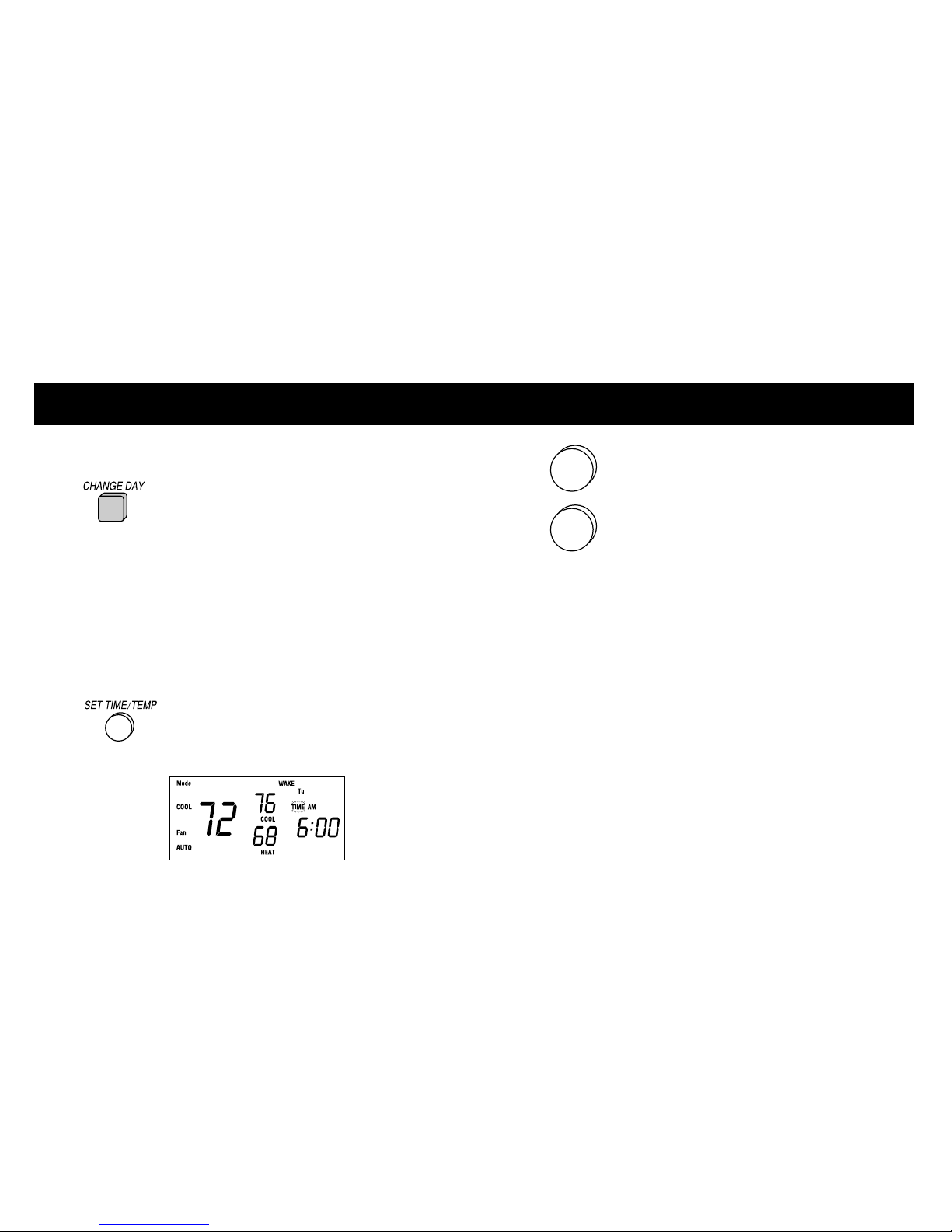

Setting the current day

1Press the CHANGE DAY button.

The day of the week will change.

2Stop on the desired day. The thermostat

then follows the program schedule

for that day.

Setting the current time

1Press the SET TIME/TEMP button.

The word TIME flashes on the display.

2Press the UP or DOWN buttons

until the correct time is displayed. To quickly

advance to the proper time, press and hold

the UP or DOWN button. To ensure accurate

programming, be sure that AM or PM is

properly selected.

PROGRAMMING THE THERMOSTAT

3When the correct time appears on the display,

press the END button.

NOTE: If you choose not to press the END button,

the word TIME will stop flashing after 15 seconds.

Setting mode operation

1Press MODE button.

2When the MODE button is pressed, the words

OFF,

HEAT,

COOL,

PROGRAMMING THE THERMOSTAT

and AUTO

will rotate on the display.

If you have a heat pump, the display

will show OFF, HEAT, COOL, AUTO,

and EHEAT.

NOTE: In AUTO mode, your system will heat OR

cool as needed to reach your temperature settings.

AUTO mode may be turned off. Contact your

indoor weather expert for details.

3Continue to press the MODE

button until you reach the desired setting.

Setting the fan operation

1Press the FAN button to switch

between ON and AUTO fan settings.

When the ON mode is selected, the fan runs

continuously for improved air circulation.

When the AUTO mode is selected, the fan

runs only as needed to maintain your indoor

temperature settings.

PROGRAMMING THE THERMOSTAT

Personalize Your Comfort

Before you program your thermostat, take

a moment to plan your temperature

schedule. Each day of the week is divided

into 4 time periods: WAKE, DAY,

EVENING, and SLEEP.

For each time period, enter a start time,

heating temperature, and cooling

temperature in the appropriate blank.

Once completed, this chart will be your

guide during programming.

NOTE: Your thermostat requires your cooling

temperature to be at least 2° higher than your

heating temperature.

PROGRAMMING THE THERMOSTAT

Setting your comfort schedule

Before you begin programming, refer to

page 4 of this manual to plan your

personal comfort schedule.

1Press the PROGRAM button.

The word PROGRAMMING appears on the

display and the word TIME flashes on

the display.

Above the clock, the word WAKE, DAY, EVE,

or SLEEP will appear. The day to be programmed

is displayed with a 2-letter abbreviation:

MO, TU, WE, TH, FR, SA, or SU.

NOTE: Your thermostat will always start the

programming process in the current time

period and current day.You may wish to begin

programming on a different day or time period.

To change the time period, press the PROGRAM

button as needed until the correct time period,

WAKE, DAY, EVE, or SLEEP appears. Press the

CHANGE DAY button to display the desired day.

PROGRAMMING THE THERMOSTAT

2Using your personalized comfort

schedule as a guide, press the UP and

DOWN buttons to set the time for the

indicated time period.

3Press the SET TIME/TEMP button.

The word HEAT flashes on the display.

NOTE: Pressing the SET TIME/TEMP button

allows you to select between HEAT, COOL and

TIME settings.

4Press the UP and DOWN buttons

to adjust the heating temperature setting to

match your personalized comfort schedule.

5Press the SET TIME/TEMP button to

select the cooling temperature setting for this

time period.
