Caraudio-Systems V.LOGiC Intelligent Solution V5-CCC Manuel utilisateur

Version 01.12.2015 V5-CCC

v.LOGiC Intelligent Solution

Interface

V5-CCC

compatible with the E-series BMW and Mini with

navigation system or radio and 6.5” or 8.8”

monitor with 10pin BMW LVDS connector

Version 01.12.2015 V5-CCC

Page1

Product features

Own on-screen display and setup

Rear-view camera input

Automatic switching to rear-view camera input on engagement of reverse gear from

all operation modes

Front camera input

Manual switching to rear-view camera (only for vehicles with PDC button)

Manual return from rear-view and front camera (cancellation of automatic switching)

2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC,

camera, reverse gear)

Picture-in-picture mode combining after-market rear-view and front camera

picture(s) with factory parking sensor graphics

Compatible with all factory video accessories (e.g. rear-view camera, Top-View,

nightvison, DVD-changer, TV-tuner)

USB update-port for software-updates by consumer

Version 01.12.2015 V5-CCC

Page2

Contents

1. Prior to Installation

1.1. Delivery contents

1.2. Check compatibility of vehicle and accessories

1.3. Setting the dip switches of the interface-box V5C-M631

1.4. LED’s of the interface-box V5C-M631

2. Connection schema

3. Installation

3.1. Connecting interface-box and harnesses

3.2. LVDS connection

3.2.1. After-market front camera

3.2.1.1. Connection to the after-market front camera

3.2.1.2. Settings for connecting an after-market front camera

3.2.2. After-market rear-view camera

3.2.2.1. Connection to the after-market rear-view camera

3.2.2.2. Settings for connecting an after-market rear-view camera

3.2.3. After-market navigation

3.2.4. Configurable trigger outputs

3.3. Picture settings

4. Operation

4.1. OSD –On-screen display

4.1.1. OSD –Operation

4.1.1.1. 1- and 2-button iDrive

4.1.1.2. 2-button iDrive in Mini

4.1.2. OSD –Additional setting options

4.2. Video-in-motion function

4.3. Selecting the interface as current video source

5. Specifications

6. Connections (interface-box)

7. Technical support

Version 01.12.2015 V5-CCC

Page3

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. This product should only

be used while standing or to display fixed menus or rear-view-camera video when the

vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. We

offer free software-updates for our interfaces for one year after purchase. To receive a free

update, the interface must be sent in at own cost. Labor cost for and other expenses

involved with the software-updates will not be refunded.

Version 01.12.2015 V5-CCC

Page4

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

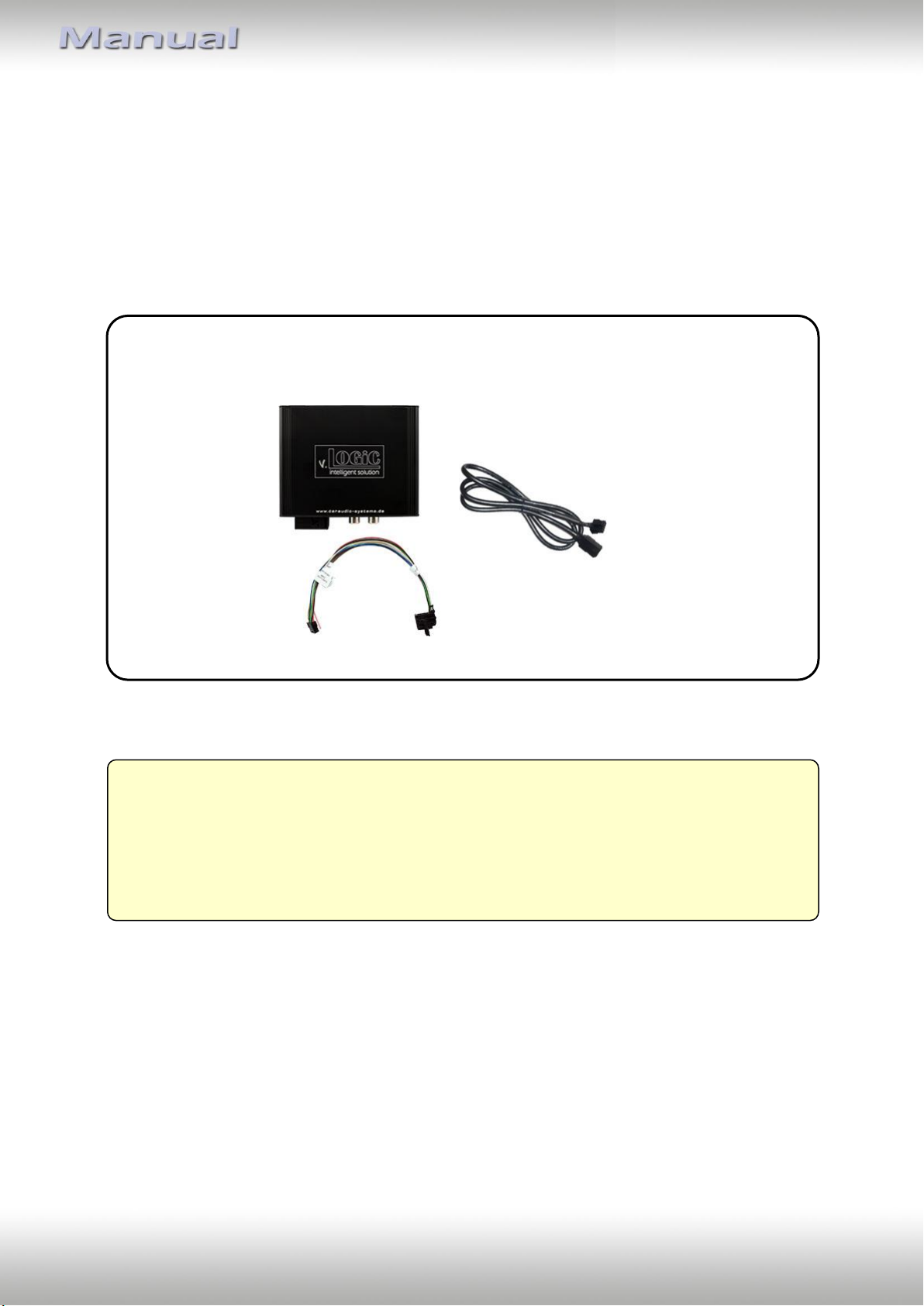

1.1. Delivery contents

1.1. Check compatibility of vehicle and accessories

Interface-box

V5C-M631

HW_____ SW_____

Take down the SW-version and HW-version of the interface boxes, and store this

manual for support purposes.

Requirements

Navigation E-series and Mini with navigation system or radio with 6.5” or

8.8”monitor with 10pin BMW LVDS connector

V5C-UNI01

harness

LVDS cable

V4C-LVDS10

Version 01.12.2015 V5-CCC

Page5

1.2. Setting the dip switches of the interface-box V5C-M631

Dip 1 and 2 on the back of the interface-box V5C-M631 are used to set the monitor type. The

default setting is:

Vehicle/ navigation

Dip 1

Dip 2

Dip 3

M-ASK

OFF

No function

CCC

No function

After each change of the dip switch settings you have to execute a power reset of the

interface-box!

1.3. LED‘s of the interface-box V5C-M631

Validinput source

CAN ok

Power

Version 01.12.2015 V5-CCC

Page6

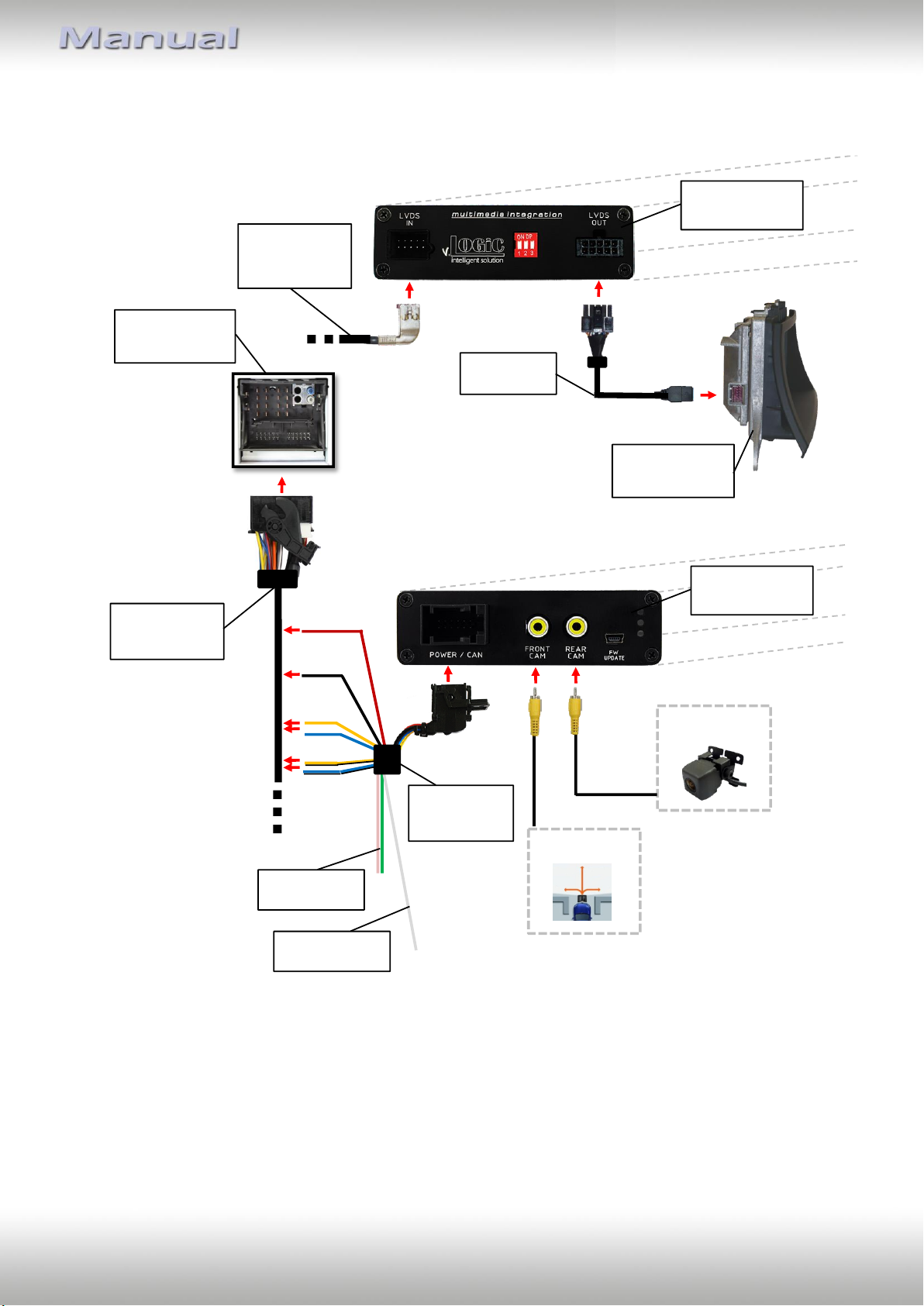

2. Connection schema

Rear-view

camera

Interface-box

V5C-M631

REAR

Quadlock maleon

rear side of the

HeadUnit

Interface-box

V5C-M631

FRONT

Frontcamera

10pinBMW

LVDSfemale

vehicle harness

Sideview of the

factory monitor

LVDScable

V4C-LVDS10

Quadlock female

vehicle harness

Ground

+12V

+12Vswitching

outputs

Rear gear signal

input (+12V)

V5C-UNI01

harness

CAN(2)

CAN(1)

Version 01.12.2015 V5-CCC

Page7

3. Installation

Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent

12V source. If according to factory rules disconnecting the battery is to be avoided, it is

usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not show

success, disconnect the battery with a resistor lead.

If power source is not taken directly from the battery, the connection has to be checked

for being start-up proven and permanent.

Prior to wire and device installation we suggest to connect and test correct function of all

after-market and factory infotainment equipment!

The interface is installed on the backside of the head unit.

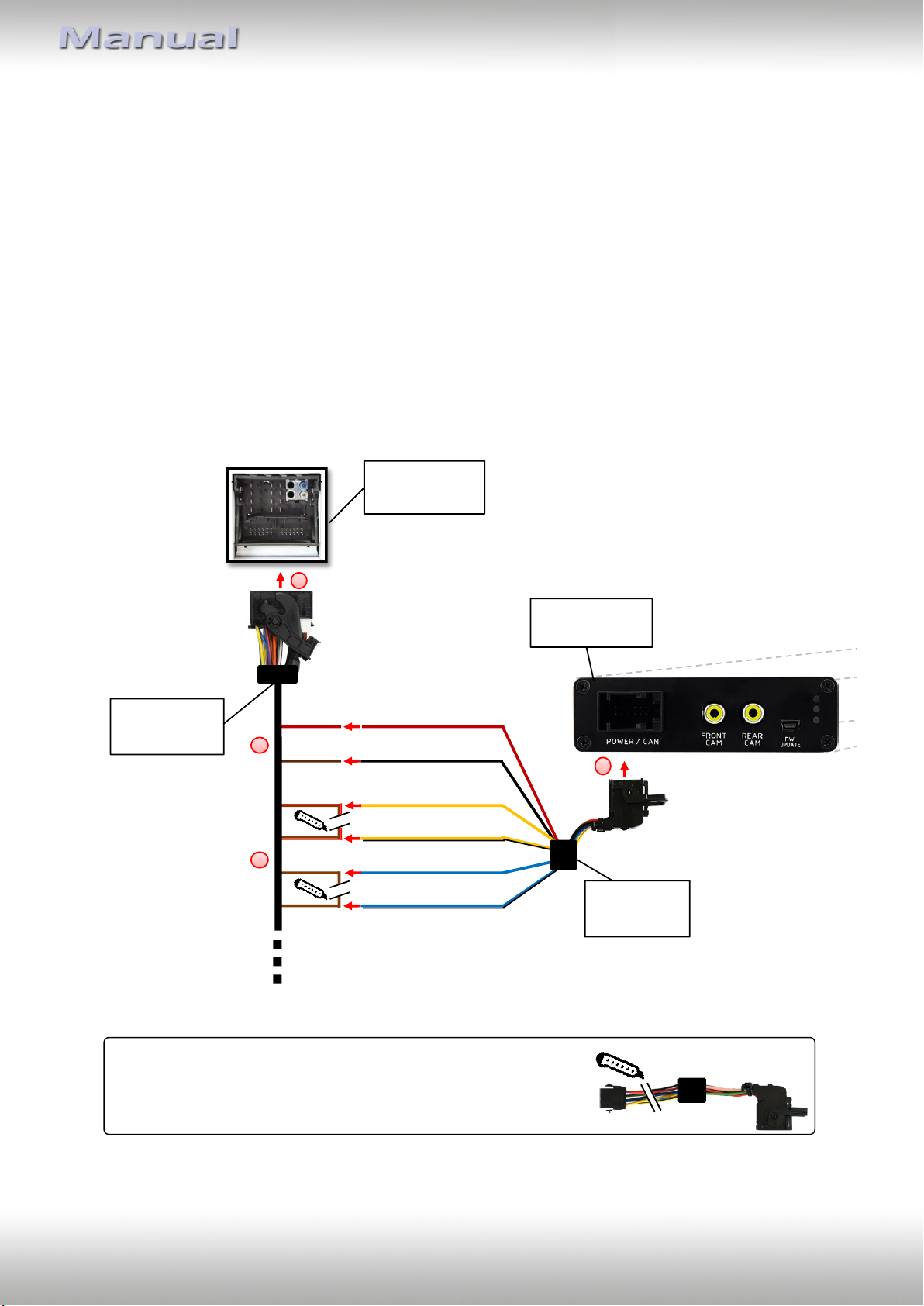

3.1. Connecting interface-box and harnesses

CAN-LOW(2)

Interface-box

V5C-M631

FRONT

Quadlock female

vehicle harness

Ground

+12V

CAN-HI(2)

V5C-UNI01

harness

CAN-HI(1)

CAN-LOW(1)

Quadlock maleon

rear side of the

HeadUnit

Cut off the 8 pin Molex connector from V5C-UNI01

harness (is not needed).

Version 01.12.2015 V5-CCC

Page8

Cut the CAN bus wires of the vehicle harness and connect them in series according to

the pin assignment (see below) with the CAN bus wires from the V5C-UNI01 harness.

Connect red wire with +12V (pin 15) and black wire with ground (pin 12).

Connect female 12pin AMP connector of the harness V5C-UNI01 to the

front site of the V5C-M631 interface box.

Connect the female Quadlock connector of the vehicle harness on the rear side of the

head unit.

Pin assignment:

Cable colour

Assignment

●Red

+12V permanent input - Pin15

●Black

Ground - Pin 12

●●Yellow/Black

CAN HIGH Pin 11 - to the vehicle side

●●Blue/Black

CAN LOW Pin 9 - to the vehicle side

● Yellow

CAN HIGH Pin 11 - to the head-unit side

●Blue

CAN LOW Pin 9 - to the head-unit side

●Green

+12V power output

●Pink

+12V power output

●White

Rear gear signal input (+12V)

Quadlock

Version 01.12.2015 V5-CCC

Page9

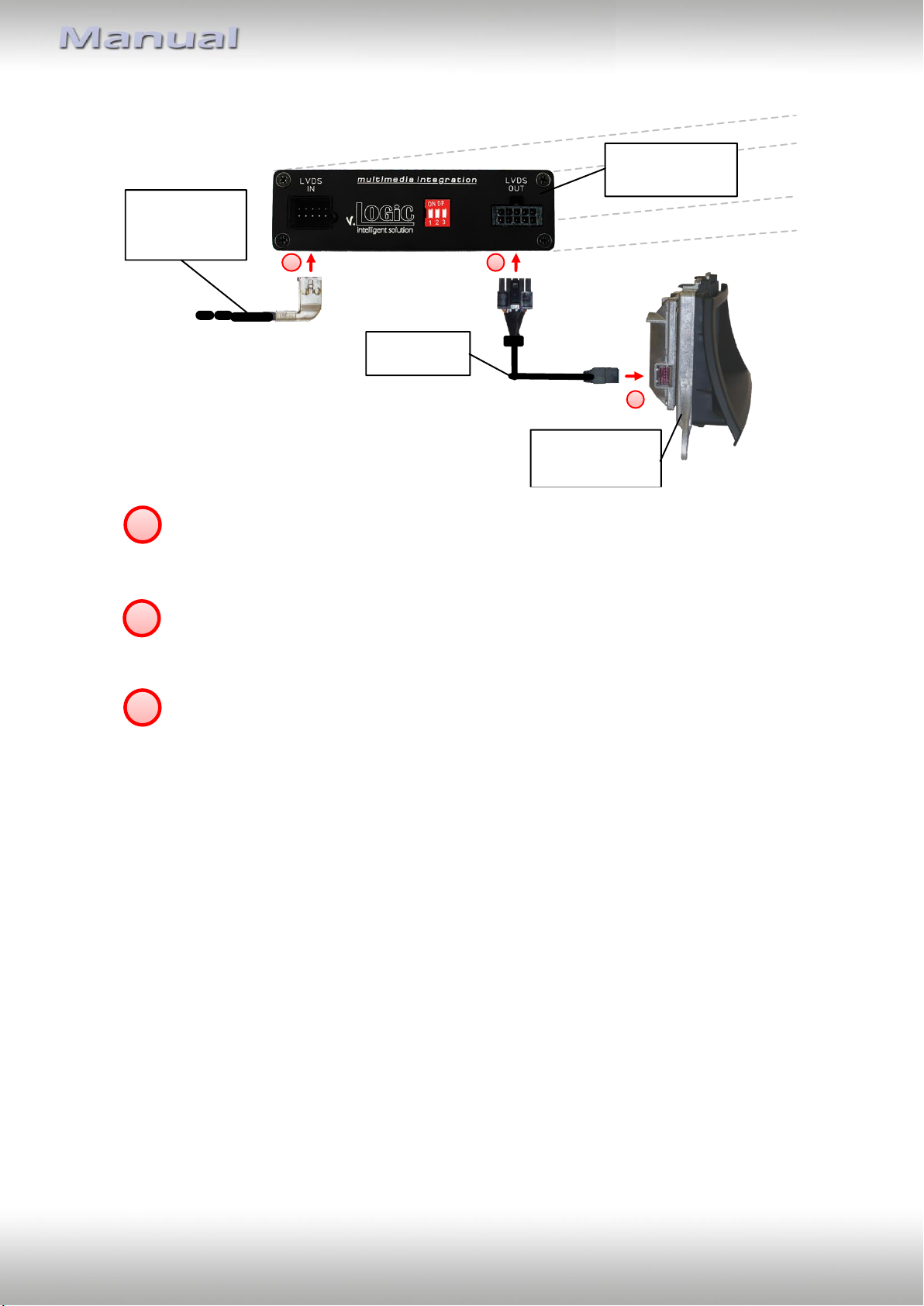

3.2. LVDS connection

Connect the female 10pin Micro-Fit connector of the LVDS cable V4C-LVDS10 to the

male 10pin Micro-Fit connector (LVDS-OUT) on the rear of the interface-box

V5C-M631.

Remove the female 10pin BMW LVDS connector of the vehicle harness at the side of

the factory monitor and connect it to the male 10pin BMW LVDS connector (LVDS-IN)

on the front of the interface-box V5C-M631.

Connect the female 10pin BMW LVDS connector of the LVDS cable V4C-LVDS10 to

the male 10pin BMW LVDS connector of the factory monitor.

Interface-box

V5C-M631

REAR

10pinBMW

LVDSfemale

vehicle harness

Sideview of the

factory monitor

LVDScable

V4C-LVDS10
