Caraudio-Systems R.LiNK-Interface Manuel utilisateur

Version 08.05.2018 RL-CCC-PNP

r.LiNK-Interface

RL-CCC-PNP

Interface for activation of

factory rear-view camera input

compatible with BMW vehicles with

Professional CCC navigation systems

and factory PDC behind

Full version with Quadlock plug and play harness.

Version 08.05.2018RL-CCC-PNP

Page1"

Contents

1. Prior to installation

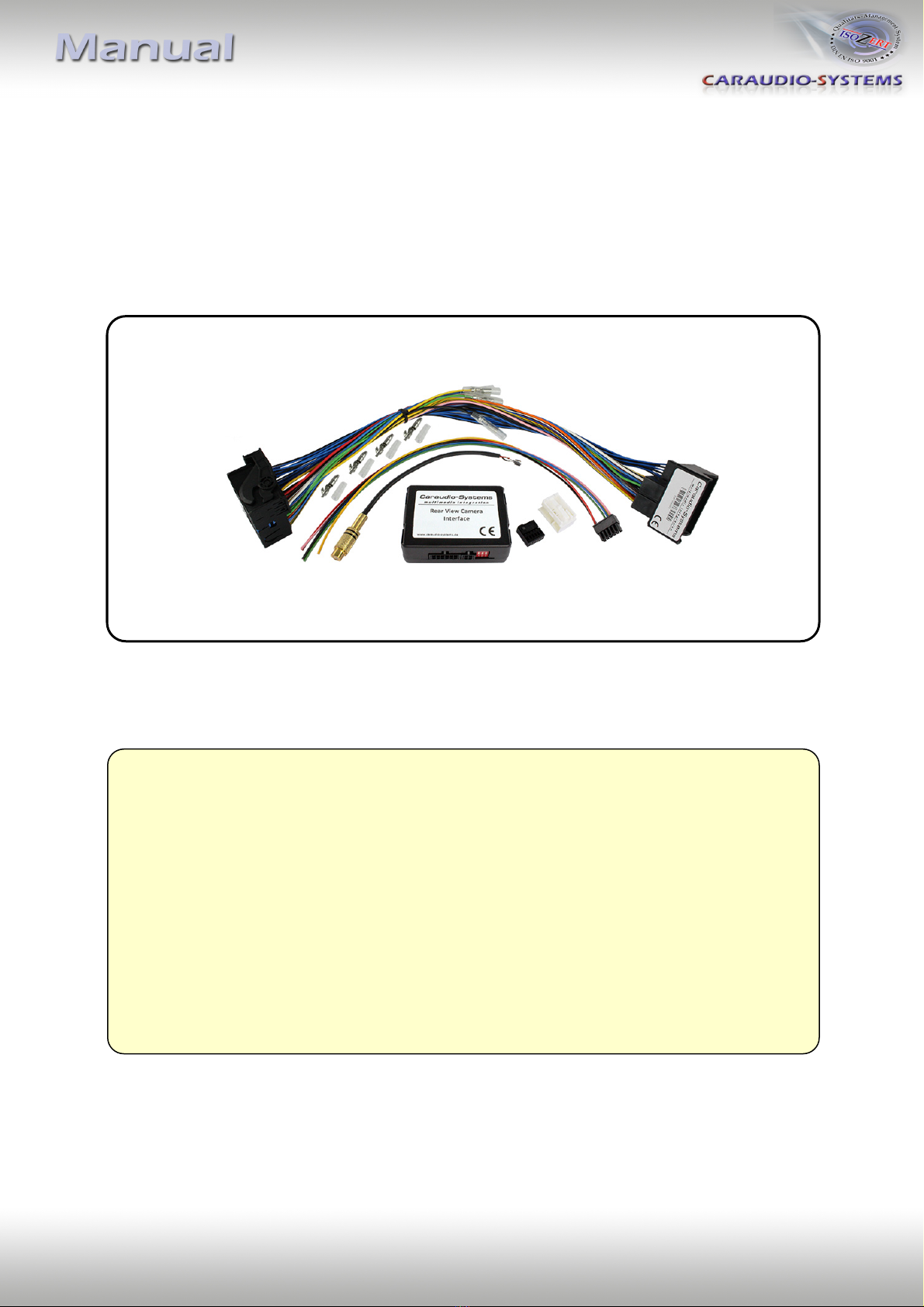

1.1. Delivery contents

1.2. Check compatibility of vehicle and accessories

2. Installation

2.1. Assignment of the female 12pin connector of harness RLC-CX011

2.2. Assignment of the harness PNP-QUAD01

2.3. Connection of the RLC-CX011 and PNP-QUAD01 harness

2.4. Camera video connection

2.5. Coding of rear-view camera

2.5.1. Reversing the coding of rear-view camera

2.6. Picture settings

3. Mode of operation

4. Specification

5. Technical Support

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. This product should only

be used while standing or to display fixed menus or rear-view-camera video when the

vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. We

offer free software-updates for our interfaces for one year after purchase. To receive a free

update, the interface must be sent in at own cost. Labor cost for and other expenses

involved with the software-updates will not be refunded.

Version 08.05.2018RL-CCC-PNP

Page2"

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

1.1. Delivery contents

1.2. Check compatibility of vehicle and accessories

Take down the SW-version and HW-version of the interface boxes, and store this

manual for support purposes.

Requirements

Vehicle ONLY! BMW X5 (E70), X6 (E71)

Navigation Professional CCC with factory PDC behind

Installed interface xxxLOGiC interface

Limitations

Factory-TV-tuner Optionally available Video switch-box SW-V2X1-MQS is necessary

to connect.

Factory-PDC The picture of the after-market rear-view camera can only be

displayed in full-screen mode. The optical PDC will not be

displayed, the acoustical PDC is still available .

Harness

RLC-CX011

Interface-box

RLC-CX431

HW_____ SW_____

Harness

PNP-QUAD01

Adapter

CAB-TVAS40

Version 08.05.2018RL-CCC-PNP

Page3"

2. Installation

Switch off ignition and disconnect the vehicle’s battery! If according to factory rules

disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in

sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a

resistor lead.

2.1. Assignment of the female12-pin connector of harness RLC-CX011

Cable colour

Assignment

Pin 1 ● pink

+12V ACC (output) max.1.5A

Pin 2 ● blue

CAN-LOW (input)

Pin 6 ● red

+12V Permanent (input)

Pin 8 ● yellow

CAN-HIGH (input)

Pin 9 ● green

Reverse gear (output) max. 1.5A

Pin 12 ● black

Ground

2.2. Assignment of the harness PNP-QUAD01

Cable colour

Assignment

● blue

CAN-LOW (output)

● yellow

CAN-HIGH (output)

● red

+12V Permanent (output)

● black

Ground

● green

No function

2.3. Connection of the RLC-CX011 and PNP-QUAD01 harness

Connect together the following loose wires of the RLC-CX011 and PNP-QUAD01 harnesses:

yellow with yellow, blue with blue, black with black and red with red.

Connect the loose green wire on the RLC-CX011 harness to the power supply wire of the rear

view camera.

Version 08.05.2018RL-CCC-PNP

Page4"

2.4. Camera video connection

Pin-assignment quadlock connector / CAB-TVAS40

No liability for vehicle wire colors and pin definition! Possible changes by the vehicle

manufacturer. The given information must be verified by the installer.

2.5. Coding of rear-view camera

Press button “menu” while in main menu of the CCC for 5 seconds to code the navigation to

rear-view camera.

2.5.1. Reversing the coding of rear-view camera

The above described coding of rear-view camera can be reversed by pressing the button

“menu” for 5 seconds while in main menu of the CCC.

2.6. Picture settings

For an acceptable display of the rear-view camera video the PDC function (optical) must be

set to OFF and camera function set to ON in the submenu of the CCC.

(Menu: Settings > Vehicle tires > Shunting Help > Image combinations)

3. Mode of operation

After engaging the reverse gear the rear-view camera will be displayed on the monitor

automatically. It remains on display until the vehicle reaches a speed of 20km / h. The rear

view camera can also be switched on or off manually by the PDC button. Even if the video of

the rear-view camera is visible, the acoustic warning signals of the factory parking sensors

are active.

Assignment

Pin number

● Red (Video signal)

Pin 4 (Chamber A)

● Black (Video ground)

Pin 2 (Chamber A)

Version 08.05.2018RL-CCC-PNP

Page5"

4. Specifications

Operation voltage 10.5 – 14.8V

Stand-by power drain <1mA

Operation power drain ~50mA

Power consumption 0.07-40W

Temperature range -30°C till +80°C

Weight 38g

Measurements (box only) W x H x D 71 x 22 x 50 mm

5. Technical Support

Caraudio-Systems Vertriebs GmbH

manufacturer/distribution

In den Fuchslöchern 3

D-67240 Bobenheim-Roxheim

email support@caraudio-systems.de

Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered

trademarks ® of their corresponding legal owners.
