Caraudio-Systems C2-MK-CD Manuel utilisateur

Version 10.05.2012 C2-MK-CD

c.LOGiC Interface

C2-MK-CD

for BMW Professional navigation systems

without iDrive (MK2-MK4)

Product features

• Full plug and play multimedia interface

• 2 AV-inputs with separate IR-control channels

• control of after-market devices, e.g. DVB-T tuner, DVD-player, DVD-changer, …

• after-market rear-view camera input (optional adapter is necessary)

• automatic switching to after-market rear-view camera input

•rear-view camera power (+12V max. 1A)

• rear-seat-entertainment video output

• power-on remote-out trigger-signal (+12V max. 1A) to switch on connected devices

• video-in-motion

Version 10.05.2012 C2-MK-CD

Page1

Contents

1. Prior to Installation

1.1. Delivery contents

1.2. Check compatibility of vehicle and accessories

2. Connection schema

3. Installation

3.1. Interconnecting interface-box and harnesses

3.2. Connections to navigation computer

3.3. Connections to radio module

3.3.1. Exceptional Case –Vehicles with factory DSP amplifier

3.3.2. Radio module with Quadlock connector WITH factory CD-changer

3.3.3. Radio module with Quadlock connector WITHOUT factory CD-changer

3.3.4. Radio module with round-pin connector WITH factory CD-changer

3.3.5. Radio module with round-pin connector WITHOUT factory CD-changer

3.4. Connecting peripheral devices

3.4.1. AV-source(s)

3.4.2. Installing AV-source’s IR-sensor additionally

3.4.3. After-market rear-view camera

3.4.4. After-market rear-seat-entertainment

3.5. System settings/VI SETTINGS

3.5.1. Audio settings

3.5.2. Assigning device control for connected AV-source

3.5.3. Rear-view camera function

4. Operation

4.1. Activation of the video-in-motion function

4.2. Selecting the c.LOGiC as current AV-source

4.3. Switching to c.LOGiC and factory CD-changer

4.4. Switching to AV1 and AV2

4.5. Picture settings

4.6. Button assignment table

5. Specifications

6. Technical support

Appendix A –Device control table

Version 10.05.2012 C2-MK-CD

Page2

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. This product should only

be used while standing or to display fixed menus or rear-view-camera video when the

vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. We

offer free software-updates for our interfaces for one year after purchase. To receive a free

update, the interface must be sent in at own cost. Labor cost for and other expenses

involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

1.1. Delivery contents

If remote function for a peripheral device shall be used, additional an IR-

Remote cable and Y-adapter are needed, see chapter AV-source(s) .

Take down the SW-version and HW-version of the interface boxes, and store this

manual for support purposes.

Interface-box

C2C-M700

HW_____ SW_____

Harness

C3C-BMW701

Version 10.05.2012 C2-MK-CD

Page3

1.2. Check compatibility of vehicle and accessories

Requirements

Vehicle 3series (E46), 5series (E39), 7series (E38), X5 (E53), X3 (E83), Z4

(E85/86)

without AUX-input at the radio module (till approx 09/2002),

Land Rover Range Rover (Vogue) L322 model years 2002-2005

Navigation Navigation system Professional without iDrive (MK2-MK4)

Navigation system Professional MK3 in Land Rover

Limitations

Factory DSP amplifier With an existing factory DSP amplifier see chapter 3.3.1. before

beginning the installation!

After-market rear-view BMW vehicles compatible with NTSC-cameras only.

camera

Version 10.05.2012 C2-MK-CD

Page4

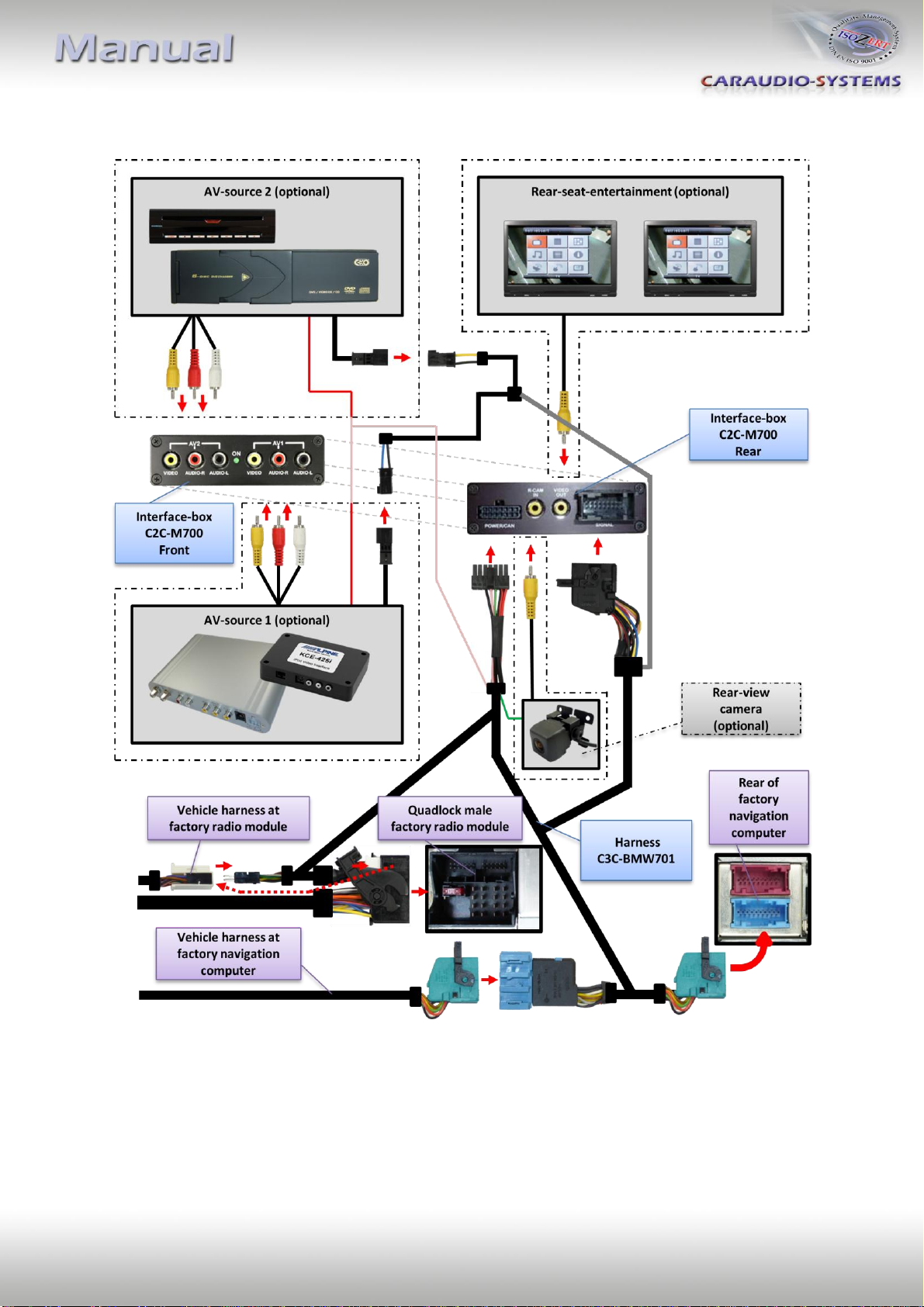

2. Connection schema

Version 10.05.2012 C2-MK-CD

Page5

3. Installation

Switch off ignition and disconnect the vehicle’s battery! If according to factory rules

disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in

sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a

resistor lead.

Place of installation is at the navigation computer and at the radio module.

The radio module and navigation computer are located at the rear end for the 3series (E46),

5series (E39) and 7series (E38) on the left hand side the radio module of the 7series is

located behind lining in the car wing).

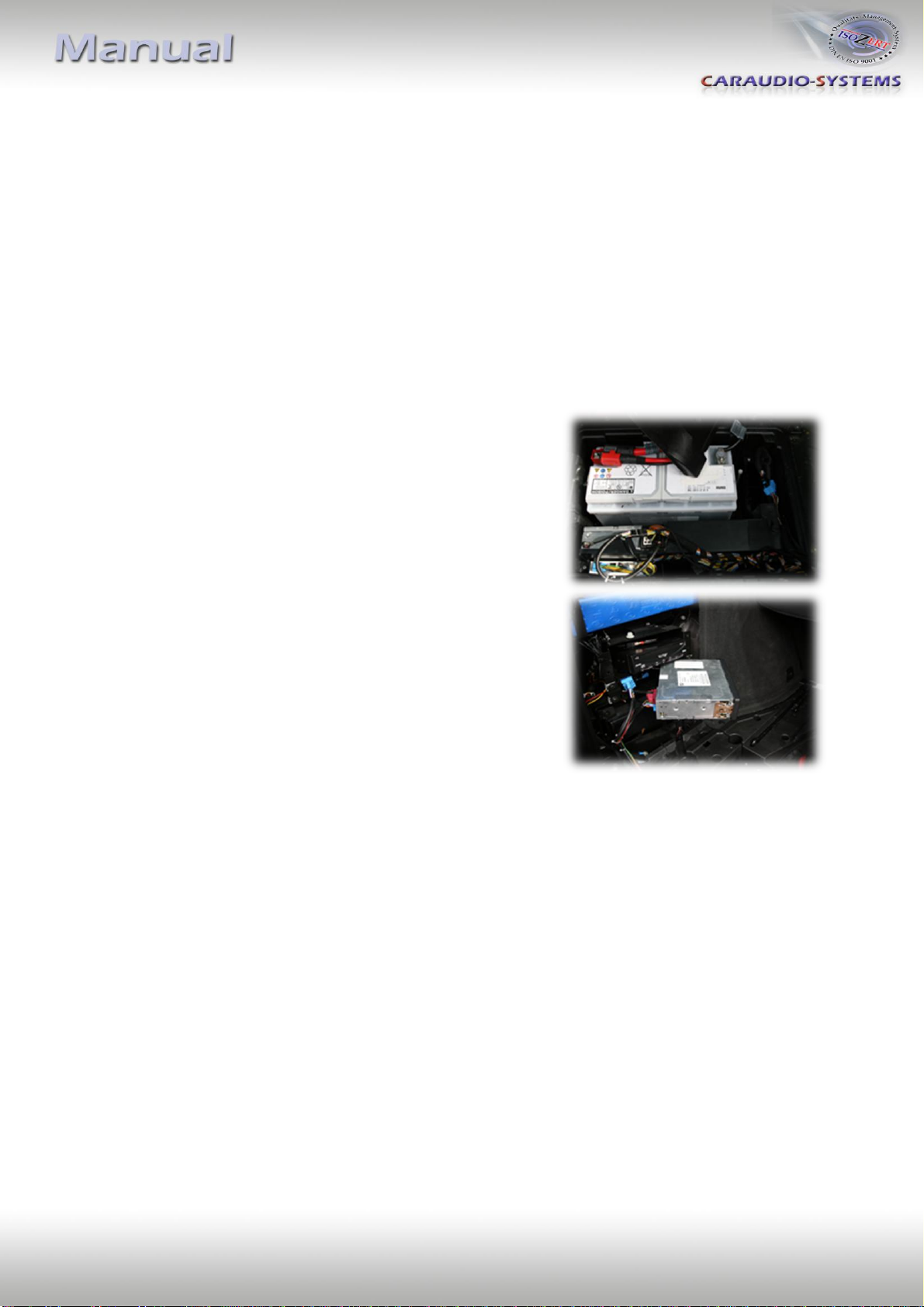

The X5 (E53) radio module is located underneath the

boot lining, next to the battery.

The navigation computer is located on the left hand side

behind the boot lining.

Version 10.05.2012 C2-MK-CD

Page6

3.1. Interconnecting interface-box and harnesses

Plug harness C3C-BMW701 into 14pin of interface-box C2C-M700.

Plug female 18pin AMP connector of C3C-BMW701 into male 18pin AMP connector

of interface-box C2C-M700.

3.2. Connections to navigation computer

Disconnect blue female 18pin connector of vehicle harness from the back of the

navigation computer.

Plug blue male 18pin AMP connector of harness C3C-BMW701 into blue female 18pin

AMP connector of vehicle harness.

Plug blue female 18pin AMP connector of harness C3C-BMW701 into blue male 18pin

AMP connector of navigation computer.

Note: If there is a factory TV-tuner inside the car, you have to connect the harness

C3C-BMW701 to the TV-tuner and not to the navigation computer!

Version 10.05.2012 C2-MK-CD

Page7

3.3. Connections to radio module

Picture exemplary for vehicles with Quadlock connector at factory radio module.

3.3.1. Exceptional case –Vehicles with factory DSP amplifier

If the vehicle is with factory DSP amplifier, it is possible, that the CD-changer sound is not

connected to the analogue input of the radio module, but to the digital input (44.1khz) of

the factory DSP amplifier. In this case an analogue-digital converter or a digital output

(44.1khz) of the source(s) is required and this part of the manual (connection at the radio

module) can be skipped.

If the factory CD-changer is installed, it is possible to check prior to installation of the

interface whether it is connected to the factory DSP amplifier with a digital coax cable. If no

factory CD-changer is installed, it is possible to check whether the factory DSP amplifier has a

digital connector (SMB). If so, it is only possible to check whether the system is coded to

analogue or digital by try-and-error.

Version 10.05.2012 C2-MK-CD

Page8

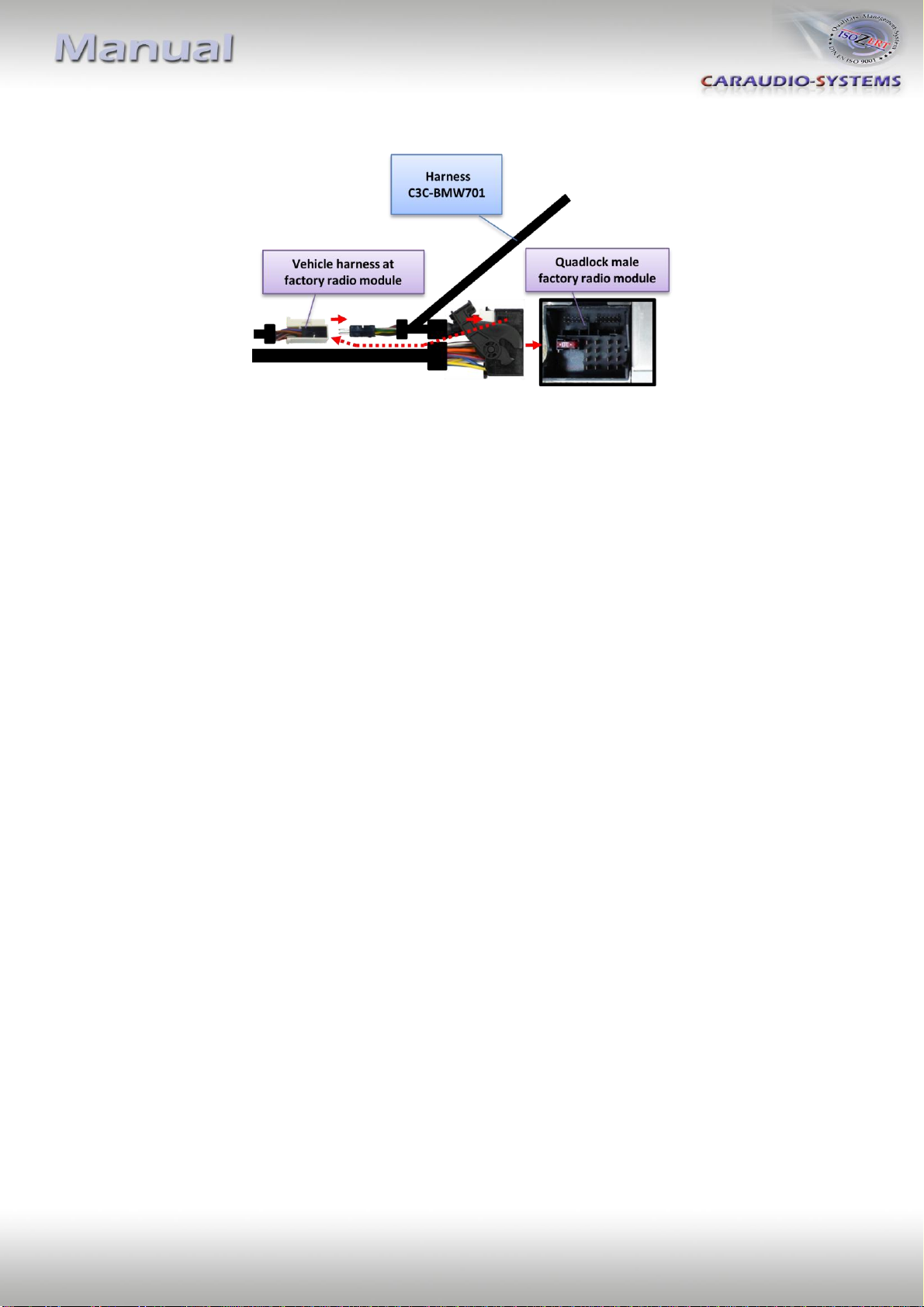

3.3.2. Radio module with Quadlock connector WITH factory CD-changer

Loosen the female Quadlock connector to the radio module.

Loosen the white female 12pin connector from chamber A of the

female Quadlock connector.

Push the insert from female 12pin connector’s plastic cap

from the side.

Connect the female 12pin connector of the vehicle harness to the

male 12pin connector of harness C3C-BMW701. Make sure that the

arrows on both black plastics are on the same side and pointing in

opposite directions.

Insert the female 12pin connector of harnessC3C-BMW701 into the

white cap and connect it back into the female Quadlock connector.

Connect the female Quadlock connector back into the radio

module.

3.3.3. Radio module with Quadlock connector WITHOUT factory CD-changer

Installation is analogue to system with factory CD-changer. Only there is no female 12pin

connector on the vehicle harness. The male 12pin connector of harness C3C-BMW701 is not

used and should be isolated.

Vehicle female

12pin connector

C3C-BMW701

12pin connector

Vehicle

female 12pin

connector

Vehicle

female 12pin

connector

Buchse

C3C-BMW701

female 12pin

connector

Version 10.05.2012 C2-MK-CD

Page9

3.3.4. Radio module with round-pin connector WITH factory CD-changer

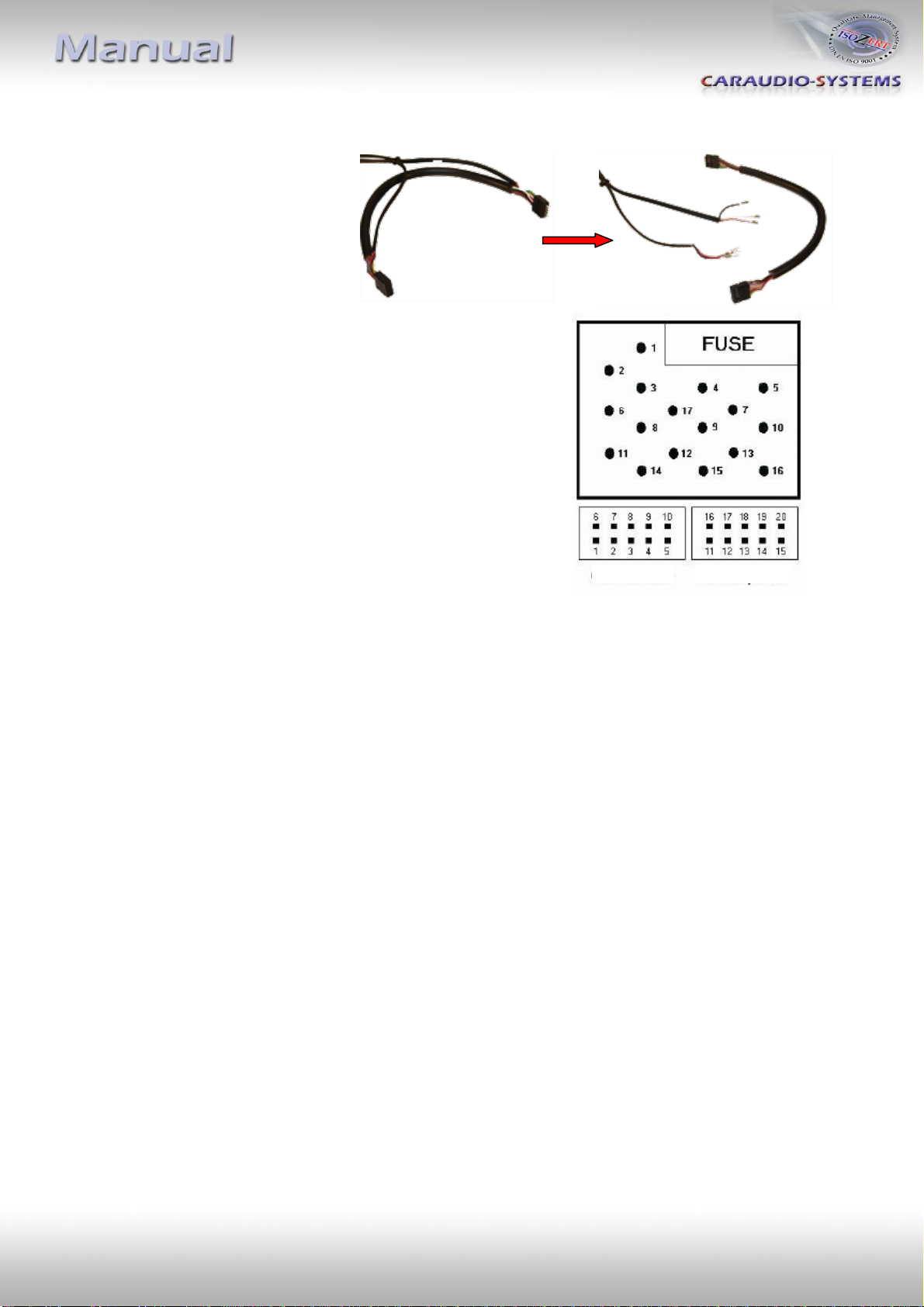

Disconnect the audio cable

from harness C3C-BMW701

and remove pins from female

and male 12pin connector.

Loosen the female round-pin connector from the radio

module. Loosen the female 10pin CD-changer connector

of vehicle harness of the female round-pin connector.

Pin the female pins of the audio cable of harness

C3C-BMW701into the female 10pin CD-changer connector

and connect the corresponding female pins of the vehicle

harness to the male pins of the audio cable of harness

C3C-BMW701. Make sure to isolate all connections.

Use following assignments:

Interface Audio-cable Pin to female

10pinconnector

Red Pin 2

White Pin 1

Black Pin 6

Connect female 10pin CD-changer connector into female round-pin connector and female

round-pin connector back to the radio module.

3.3.5. Radio module with round-pin connector WITHOUT factory CD-changer

Installation is analogue to system with factory CD-changer installed. Only there is no female

10pin connector on the vehicles harness. Shorten the female 12pin connector for two

chambers (after expelling all the pins). Obeying the above pin-configuration, pin the female

pins of the audio cable of harness C3C-BMW701 into the 10pin shortened female connector.

The male pins of the audio cable of harness C3C-BMW701 are not used and should be

isolated. Connect female round-pin connector to radio module. Connect the shortened

female10pin connector of harness C3C-BMW701 to the CD-changer port of the radio module

while making sure that the correct pins are used. Fasten the female 10pin connector in the

round-pin connector to avoid later disengagement.

CD-changer

Soundsystem
