Caple CM118 Manuel

CM118

Caple BI Combi M.wave & Grill

Technical information

Features

25 easitronic built-in microwave, grill and convection oven

Auto cook menu

Auto defrost

Child lock

95 minute timer

Stainless steel front / cavity

Mark resistant finish

ED display

Stainless steel frame (W 595mm x H 460mm)

Push door, metal knob

Trim kit and unit installed in packaging

Cooking output

900W microwave power

1000W grill power

2500W convection power

Dimensions

Height 460mm, Width 595mm, Depth 486mm

CM118

Microwave, grill and convection oven with frame

Installation Instruction

Please Read the Manual Carefully Before Installation

Please Note

Electrical connection

The oven is fitted with a plug and must be only connected to a properly installed earthed

socket. In accordance with the appropriate regulations, the socket must only be installed and

the connecting cable must only be replaced by a qualified electrician.

If the plug is no longer accessible following installation and all-pole isolating switch must

be present on the installation side with a contact gap at least 3mm.

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance.

Minimum installation height is 85cm.

Do not cover ventilation slots and air intake points.

B. Prepare the Cabinet.

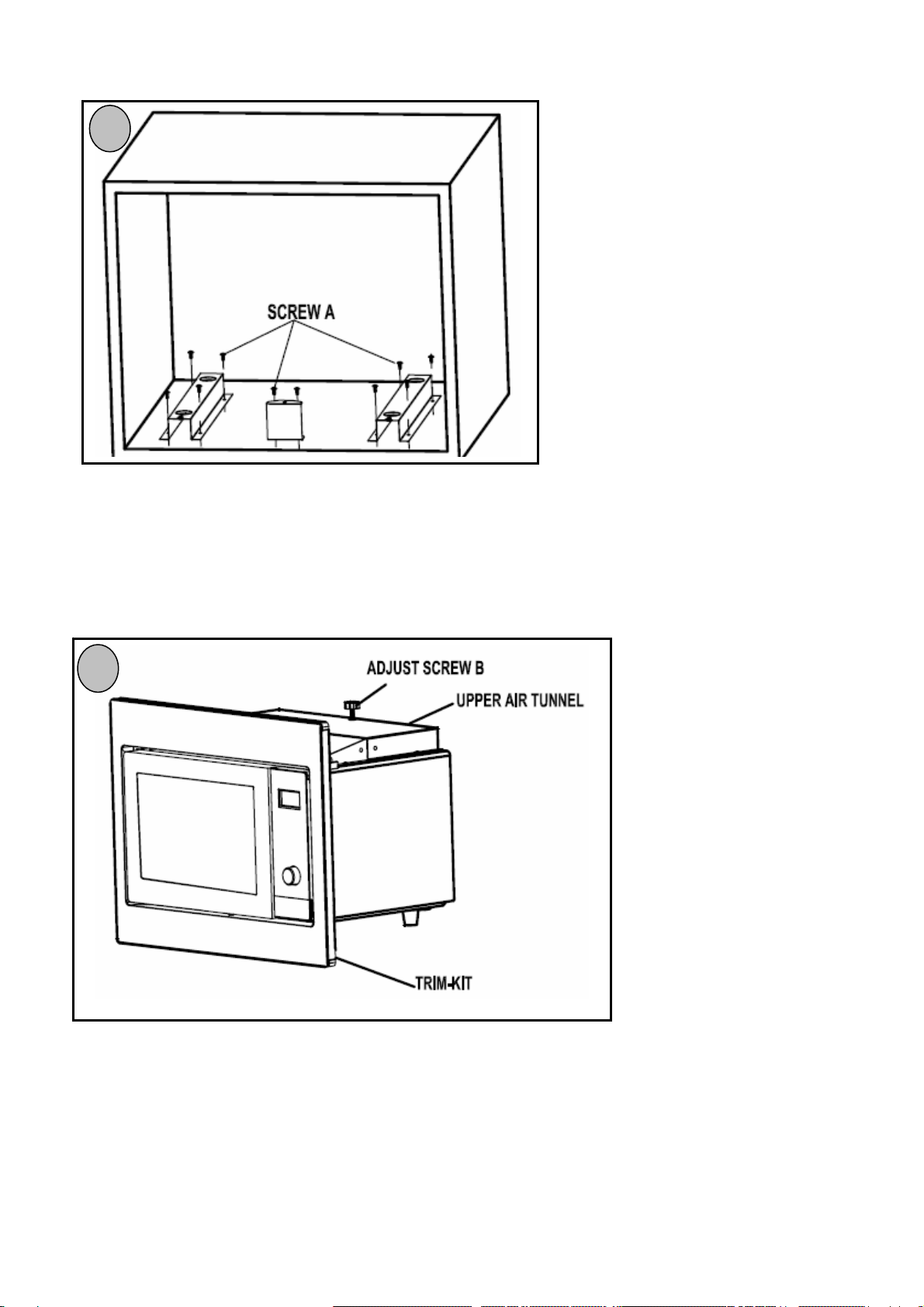

1. Read the instruction on the BOTTOM CABINET TEMPLATE, put the

template on the bottom plane of cabinet.

2. Make marks on the bottom plane of cabinet according to marks “a” of the

template.

3. Remove the BOTTOM CABINET TEMPLATE, and fix the BOTTOM

BRACKETS with SCREW A.

C. Prepare the oven.

4. Fix SCREW B on the UPPER AIR TUNNEL of the oven.

D. Install the oven.

5. Install the oven into the cabinet.

zAdjust the height of SCREW B to keep 1mm gap between the SCREW B

and the top plane of cabinet.

zMake sure that the OVEN FEET are aligned with the grooves of brackets

when install the oven into the cabinet.

zDo not trap or kink the power cord.

6. Open the door; fix the oven to the cabinet with SCREW C at the

INSTALLATION HOLE of TRIM KIT.

Part Number Description Qty

251500100594 ASS'Y CAVITY set 1

252100100016 COVER WAVE GUIDE pc 1

261501409903 BASE PLATE pc 1

251302000013 LEG pc 4

251502501540 ASS'Y BRKT HINGE *U Ea 1

251300201809 PANEL CONTROL C01 Ea 1

261506911320 DECO. C/PANEL C02 Ea 1

251306003205 BUTTON DOOR OPEN C07 Ea 1

252010100001 SPRING BUTTON C08 Ea 1

251301600141 KNOB DIAL C10 Ea 1

251306103544 LEVER DOOR OPEN C13 Ea 1

251304900055 WINDOW DISPLAY C14 Ea 1

261400117411 PCB ASS'Y C18 pc 1

251301900386 BUTTON ROW C20 Ea 1

261516900406 DECO. DOOR OPEN BUTTON C28 Ea 1

261400600003 SUB PCB C35 pc 1

-253602100315 D01+D05 set 1

251500200124 ASS'Y DOOR FRAME D01 set 1

252101300535 BARRIER SCREEN *I D05 pc 1

256300500035 LATCH D02 Ea 1

252010000012 SPRING LATCH D03 Ea 1

251502401799 ASS'Y BRKT HINGE *T D04 Ea 1

252100400788 BARRIER SCREEN *O D06 pc 1

251300101225 PANEL DOOR D07 Ea 1

256300600076 GASKET DOOR D08 Ea 1

261506805860 DECO. D/PANEL D09 Ea 1

251200100068 MAGNETRON pc 1

261200200730 H.V.TRANSFORMER pc 1

251200701304 H.V.CAPACITOR pc 1

251200900861 H.V.DIODE pc 1

256400301372 FILTER NOISE pc 1

261201200170 FUSE pc 1

263600500006 LAMP pc 1

261201003790 POWER CORD ASS'Y pc 1

263004100013 SENSOR TEMPERATURE pc 1

251203301548 ASS'Y H.V FUSE pc 1

251201301334 THERMOSTAT 100/90 *H pc 1

251201300325 THERMOSTAT 180/145 *H pc 1

251201300964 THERMOSTAT 160/95 *V pc 1

261518910005 TRIM COVER pc 1

Position

CM118 - Caple BI Combi M.wave & Grill

E35

F01

E26

E28

E31

E34

E10

E11

E13

E16

E01

E05

E06

E07

C00

D00

A00

A01

B01

B02

B03

Part Number Description Qty

Position

CM118 - Caple BI Combi M.wave & Grill

-253602110803 set 1

261314202300 TRIM PANEL pc 1

261314300300 TRIM DECO pc 1

251514101581 KNIGHTHEAD pc 2

251201700033 HEATER *T pc 1

261502700100 INSULATOR HEAT *T pc 1

261301301500 BRKT INTERLOCK pc 1

261301101000 LEVER SWITCH pc 1

261201600180 MICROSWITCH INTERLOCK pc 2

261201600160 MICROSWITCH MONITOR pc 1

251202800573 HARNESS MAIN set 1

-258602107991 ASS'Y CONVECTION set 1

251200600111 MOTOR CONVECTION pc 1

251510801151 BRKT CONVECTION MOTOR Ea 1

251508201152 FAN COOLING Ea 1

251502800636 INSULATOR HEAT *B Ea 1

251500900940 COVER HEATER *B Ea 1

251201700073 HEATER *B pc 1

251516800737 SUPPORTER HEATER *B Ea 3

251508200638 FAN CONVECTION Ea 1

262100600017 FIBER GLASS pc 1

251511000742 SLEEVE MOTOR AXLE Ea 1

251505701425 COVER *B Ea 1

251202800622 HARNESS CONVECTION set 1

251200300019 MOTOR TRAY pc 1

252200100008 COUPLER Ea 1

262200200007 RING ROTATING ASS'Y pc 1

252100500013 TRAY Ea 1

-253600400033 set 1

261300800100 GUIDE FAN

251300900015 FAN

251200600161 MOTOR FAN

261503202100 GUIDE WIND Ea 1

251502801585 GUIDE AIR OUTLET Ea 1

251503201750 GUIDE AIR *T set 1

261501500300 HOLDER H.V.C pc 1

261502606813 CASE OUT pc 1

258601000103 ASS'Y SCREW set 1

W05

W08

Z01

Z24

W01

W02

W03

W04

T02

T03

T04

W01+W02+W03

R10

R12

T01

R07

R08

R11

R19

R03

R04

R05

R06

L05

R01+R02+R03+R04+R05+R06+R

07+R08+R11+R19

R01

R02

L01

L02

L03

L04

F03

F04

G03

G09

F02+F03

F02
