Canyon Black Salt Manuel utilisateur
QUICK GUIDE v1
Smartwatch
«Black Salt», «Pink Salt»
SW-78
EN
OVERVIEW.
1. Touch Screen
2. Function button
3. Heart rate sensor
4. Charging pins
Complete set
• Smartwatch
• Charging cable
• User manual
INTRODUCTION
Dear customer, thank you for choosing sw78 Salt!
In the model range of all wearable smart devices by
Canyon, sw78 Salt takes a very special place, be-
cause this is our rst model powered with 2 Blue-
tooth chips on board. Thanks to this enhancement,
we now have 2 types of music player options where
you are free to choose how to listen to your favorite
songs – by controlling the smartphone’s music player
or play the music directly from the watch! And now
you can do your favourite sports activities, listen to
music and no need to worry where to put your smart-
phone - with sw78 Salt you don’t need a smartphone
to playback music at all! We have achieved a perfect
balance of software and hardware to guarantee that
the battery will be enough to use the music player,
monitor your daily activities, play sports and get no-
tications from your smartphone for a very long time
on one charge of the battery!
1
2
4
3
EN EN
GENERAL USAGE INSTRUCTIONS
Make sure that your smartwatch is fully charged
before using. If you use a power adaptor (not
included), power adaptor voltage limit is: 5V, 1A. It
takes up to 2 hours to be fully charged.

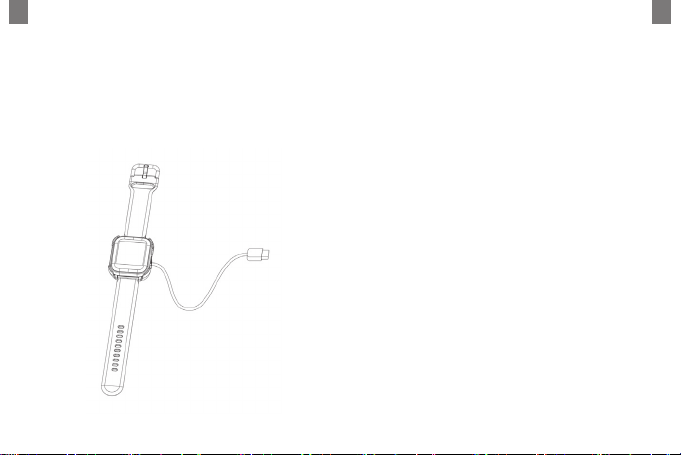

1. Make sure the charging pins on the charging
cable t correctly onto the charging terminals on the
back of the smartwatch, as shown in gure 1:
2. Plug the USB-cable to a power source. For better
charging compatibility, it is advisable to use a Power
Bank or wall charger produced by Canyon. Do not
use a fast charging device as it could result in a
short circuit and risk of re.
Connecting to a smartphone: charge the
smartwatch, turn it on, activate Bluetooth on your
smartphone, download and install the Canyon
smartwatch application Canyon Life by scanning the
QR code below. Open Canyon Life app-> “Bluetooth
Devices”->”Start”-> choose on your watch from the
Pair Device list >(SW78) -> press ”ADD DEVICE”
and you will see Device successfully connected.
Use the app to apply the settings you need, for ex-
ample you can: turn on sedentary reminder, select
apps that you want to receive notications from, etc.
Unpair smartwatch from mobile phone:
1. Open “Canyon Life” on your smartphone
2. Open “Setup” and click “OK” to unpair.
3. Click “OK” to unpair
HOW TO USE
• Turn on: press and hold the function button for 3
seconds
• Turn off: press and hold the function button for 3
seconds, then press Conrm icon
• Go to the main menu: swipe up on watch face
interface
• Switch main menu interface: swipe up/down
Figure 1.
EN EN
• Select item: tap the icon
• Return to the watch face interface: briey press
the function button on any interface
• Check activity results: swipe left from main
menu interface
• Open music player: swipe right on watch face
interface
• Open shortcut: swipe down on watch face
interface

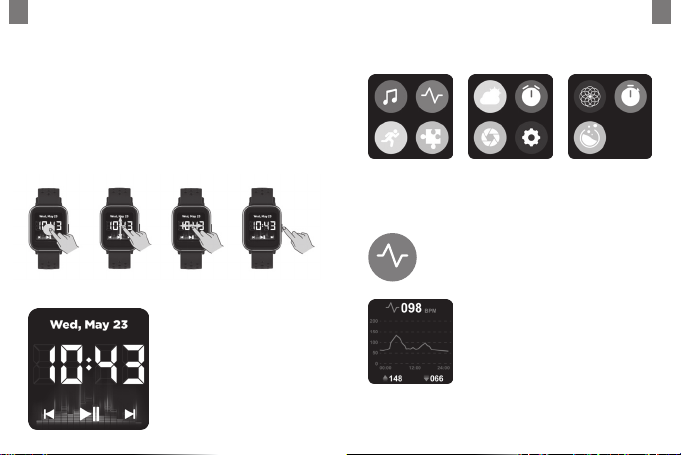

MAIN MENU
After switching on the
smartwatch, you will see
the watch face interface.
From watch face:
Swipe up to enter the main menu pages.
Click the icon to select the corresponding menu
function. Slide from left to right to return to the
previous menu.
Heart rate
Tap to the icon to measure your heart
rate. Press start to start measurement.
Check the result and statistics on
the HR screen. After sync with
Canyon Life app, you can check
your heart rate data on your
smartphone.
EN EN

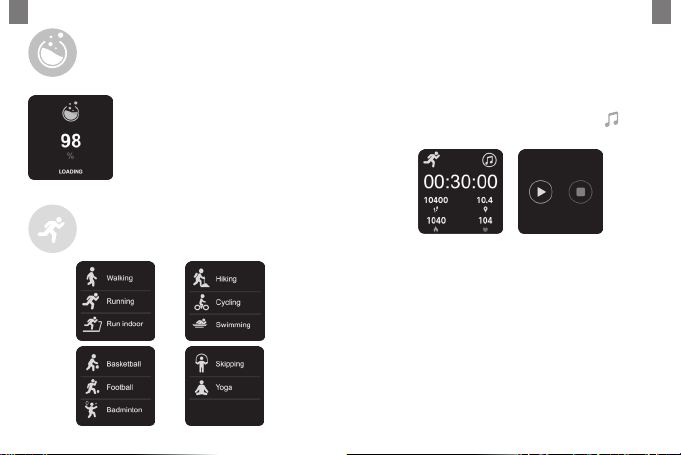

Oxygenation
Tap the icon to measure your oxyge-
nation.
Press start to begin measurement.
Check the result on the SPO2
screen.
Sport
Click on the sports icon to enter the
training interface.
There are 11 sport modes: walking, run indoor,
running, hiking, cycling, swimming, basketball,
football, badminton, skipping and yoga. You can
select the desired mode, and then start the selected
exercise; the smartwatch will record the exercise
data. At the same time, you can use the Bluetooth
music function to connect to the Bluetooth headset
to play music during exercise. Tap this icon to go
to music player screen.
When you want to end the sport, swipe the screen
from left to right, then click the Stop icon to stop
your sport and save it. After synchronizing with
Canyon Life app, you can view your sport data.
PS: If the sport time is less than 2 minutes, the
distance is less than 0.1 kilometer, and the calorie
value is less than 1, the data will not be saved.

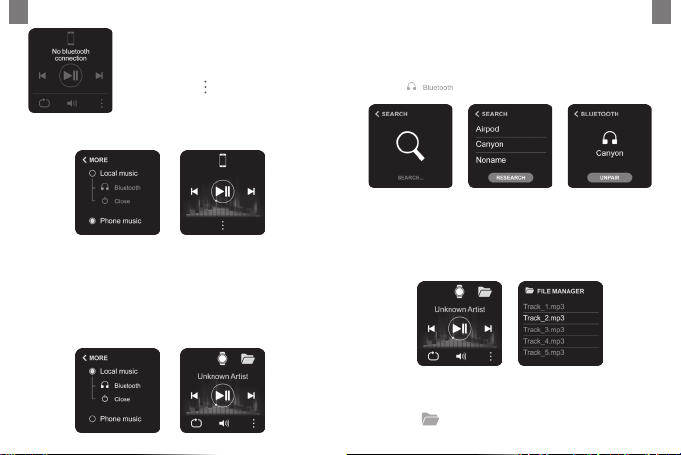

Music player
SW-78 has 2 types of music player:
1) Phone music player. This function allows you to
control your smartphone’s music player
EN EN
2) Local music player. Play music
from internal memory to any
external Bluetooth devices (TWS,
speaker, etc)
Click the icon to select the
music player type.
Phone music player
“Phone music” type allows you to control your
smartphone’s music player. You can start/stop the
music, switch tracks and control the volume.
Notes: Your smartwatch should be paired to the
smartphone; music player should be activated on
the smartphone before use.
Local music player
Local music” type allows you to playback audio
les from internal watch memory to any BT audio
device. For proper use of this function, please follow
these steps:
1) Tap to open BT connecting menu
2) After searching choose and select the BT device
that you want to pair . To choose another BT device,
tap “Unpair” and select a device from the list one
more time. Tap “search” to refresh the list of visible
devices.
3) Go back to the main player screen to select an
audio le. Select the icon below to open the le
manager and select audio les.
EN EN
Put the watch on the charger, connect the USB
to the computer, the computer will recognize your
watch as an external drive, copy the required songs
to the disk. Please note: the built-in les cannot be
and should not be deleted.
Supports MP3, WMA, AAC, M4A, APE, FLAC,
WAV audio format les.
4) Select audio le to start playback
5) Use these buttons to start/stop music and switch
tracks
6) Tap this icon to choose playback tracks mode
(shufe or direct)
7) Tap this icon to control the volume
8) Tap this icon to close the BT connection,
remove pairing or to switch to the “Phone player”

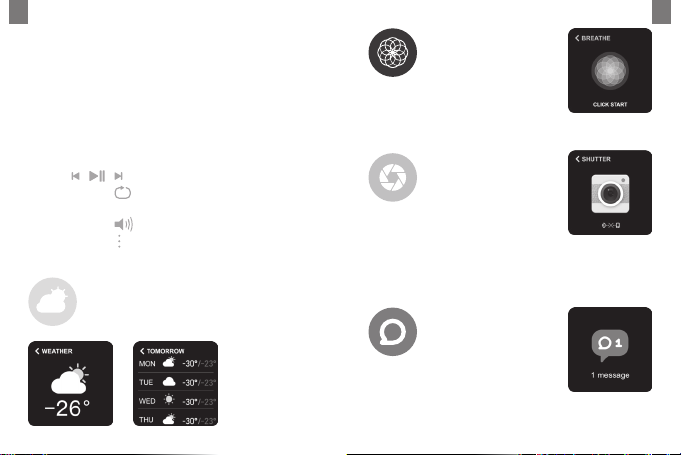

Weather forecast
Click on the weather icon to enter the
weather main screen. Swipe down to see
the forecast for
next few days.
Breathing training
Click on the breath icon
to enter the breathing
training to calm down
and restore your
breathing patterns. Click “Start” to
start training. Inhales and exhale,
follow the command on the screen.
Camera control
(shutter)
Click on the shutter
icon to activate the
camera of your smartphone.
Tap the screen to make a remote
photo. Note: Your smartwatch
should be paired with the smartphone and the take
photo screen in the Canyon Life App should be
opened for using this function.
Notications
(messages)
Click the notications
icon to go to the noti-
cation menu
If there are no messages, it will
show as in the screen below. In
the Canyon life App you may set
up a list of applications that will show notications.
EN EN
Tap the notication to see detailed information.

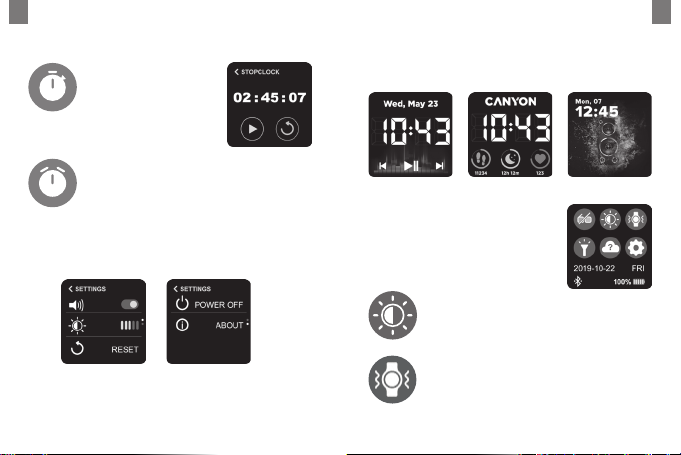

Stopwatch
Click the stopwatch
icon to go to the stop-
watch function.
Timer
Click the timer icon to go to the timer
function. You can set the timer and then
start timer countdown.
Settings
Click the settings icon to go to the settings menu
Here you can switch off vibration alerts, set up the
level of brightness, restart or turn off the device and
check technical information (rmware version, BT
name and mac address).
Brightness
Click the icon to adjust the display
brightness.
Vibrating icon
Click the icon to switch vibration on/off.
WATCH FACE
You can press and hold on the main screen to
change the watch face theme. Swipe left or right to
change theme, click on screen to apply.
SHORTCUT
Swipe down from watch face to
enter the shortcut menu.
EN EN

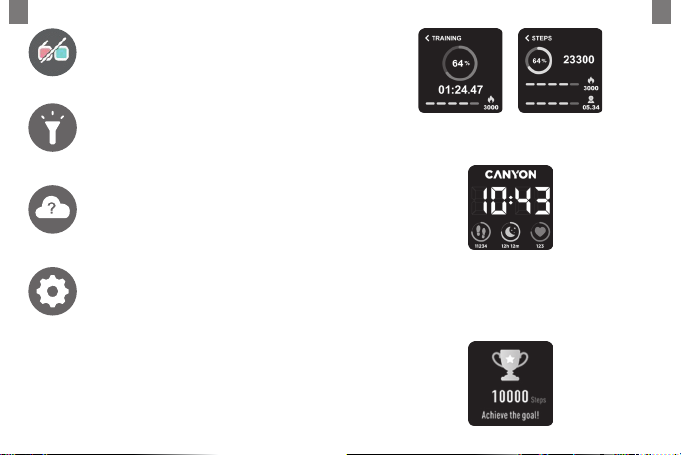

Viewing mode
Click the icon to activate the Theater
mode – switch off vibration and reduce
brightness.
Flashlight
Click the icon to activate ashlight mode –
screen will turn white with maximum bright-
ness level. Swipe left to right to exit.
Weather
Click the icon to go to the weather
interface.
Settings
Click the icon to open the settings
interface.
DAILY ACTIVITIES
Swipe left from watch face to enter the daily activ-
ities menu. First screen shows total sport time and
burned calories for the current day. Swipe left one
more time to check detailed statistics of you steps
for the current day.
Same information you may see using this WF
After sync with Canyon Life app, you can check
your statistics on your smartphone.
Also, you may set up a daily activity target in the
App. After reaching this target, you will get the
following notication
EN EN
SLEEP MONITOR
Swipe left from Daily activities to
enter the sleep monitoring screen.
The smartwatch will monitor your
sleep automatically.
When you wake up the smart-
watch will show the sleep report
with the time of total sleep, light
sleep, deep sleep times and the
target percentage of sleep time.
After sync with Canyon Life app, you can check a
more detailed sleep report in your smartphone.
ADDITIONAL FUNCTIONS
Rejection of incoming call
Tap “Hang up” icon while incoming
call to reject it.
Water balance reminder
Activate this function in Canyon
Life app to get this notication on
the watch. When it’s time to drink
water, watch will remind you.
Sedentary reminder
Activate this function in Canyon
Life app to get this notication on
the watch. When it’s time to move
or warm-up, watch will remind you.
TROUBLESHOOTING
Problem Solution
Your smart-
watch doesn’t
turn on
Connect your watch via a USB
connector to a USB port or a
socket adapter and wait for a
few seconds.
Your smart-
watch isn’t
detected by a
smartphone
Make sure that Bluetooth and
GPS high accuracy are active
on your smartphone. Make
sure the watch is not con-
nected to another smartphone.
Your smart-
watch is
detected by a
smartphone,
but fails to
connect
Turn the smartwatch off and
then turn it back on. Turn Blu-
etooth and off on your phone.
Reboot your phone.
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Canyon Montre
Canyon
Canyon Marzipan CNS-SW75PP Mode d'emploi
Canyon
Canyon Jondy CNE-KW44 Series Manuel utilisateur
Canyon
Canyon Cindy CNE-KW41WP Manuel utilisateur
Canyon
Canyon Sammy CNE-KW21 Manuel utilisateur
Canyon
Canyon SW-79 Manuel utilisateur
Canyon
Canyon My Dino KW-33 Manuel utilisateur
Canyon
Canyon Badian CNS-SW68 Manuel utilisateur
Canyon
Canyon Wildberry SW-74 Manuel utilisateur
Canyon
Canyon SW-78 Manuel utilisateur
Canyon
Canyon CNS-SB41 BG Manuel utilisateur
Canyon
Canyon CNS-SW51BB Manuel utilisateur
Canyon
Canyon Semifreddo CNS-SW61 Manuel utilisateur
Canyon
Canyon Semifreddo SW-61 Manuel utilisateur
Canyon
Canyon CNS-SW9 Manuel utilisateur
Canyon
Canyon SW82 Manuel utilisateur
Canyon
Canyon CNS-SW72BB Manuel utilisateur
Canyon
Canyon Lemongrass Manuel utilisateur
Canyon
Canyon Lollypop SW-63 Manuel utilisateur
Canyon
Canyon Marzipan CNS-SW75 Manuel utilisateur
Canyon
Canyon Badian CNS-SW68 Manuel utilisateur
