Canon Creative Park Elastic-powered Duck Manuel utilisateur

1. Carefully cut out the parts.

2. Fold along the dotted lines, making mountain

or valley folds as indicated.

3. Attach the glue spots on each part together.

4. Glue the parts together, and you’re done!

*Please read the Assembly Instructions

carefully before you begin.

Tools

Scissors

Glue (We recommend quick-drying paper glue)

3 rubber bands (preferably brand new ones)

Actual size illustration:

check the size of your rubber bands here.

How to assemble your model neatly

Scoring along the fold lines in advance with a dried

up pen or a ruler with slightly sharp corners will result

in a neater model.

*Be careful not to press too hard as the paper may tear.

Caution

Keep scissors and glue away from small children.

Be careful not to cut your fingers when using scissors.

Scissors line

Cut in line

Glue spot

Notation Key

Assembly Instructions

About 1.57 inches in diameter

Mountain fold

Valley fold

Elastic-powered Duck : Assembly Instructions

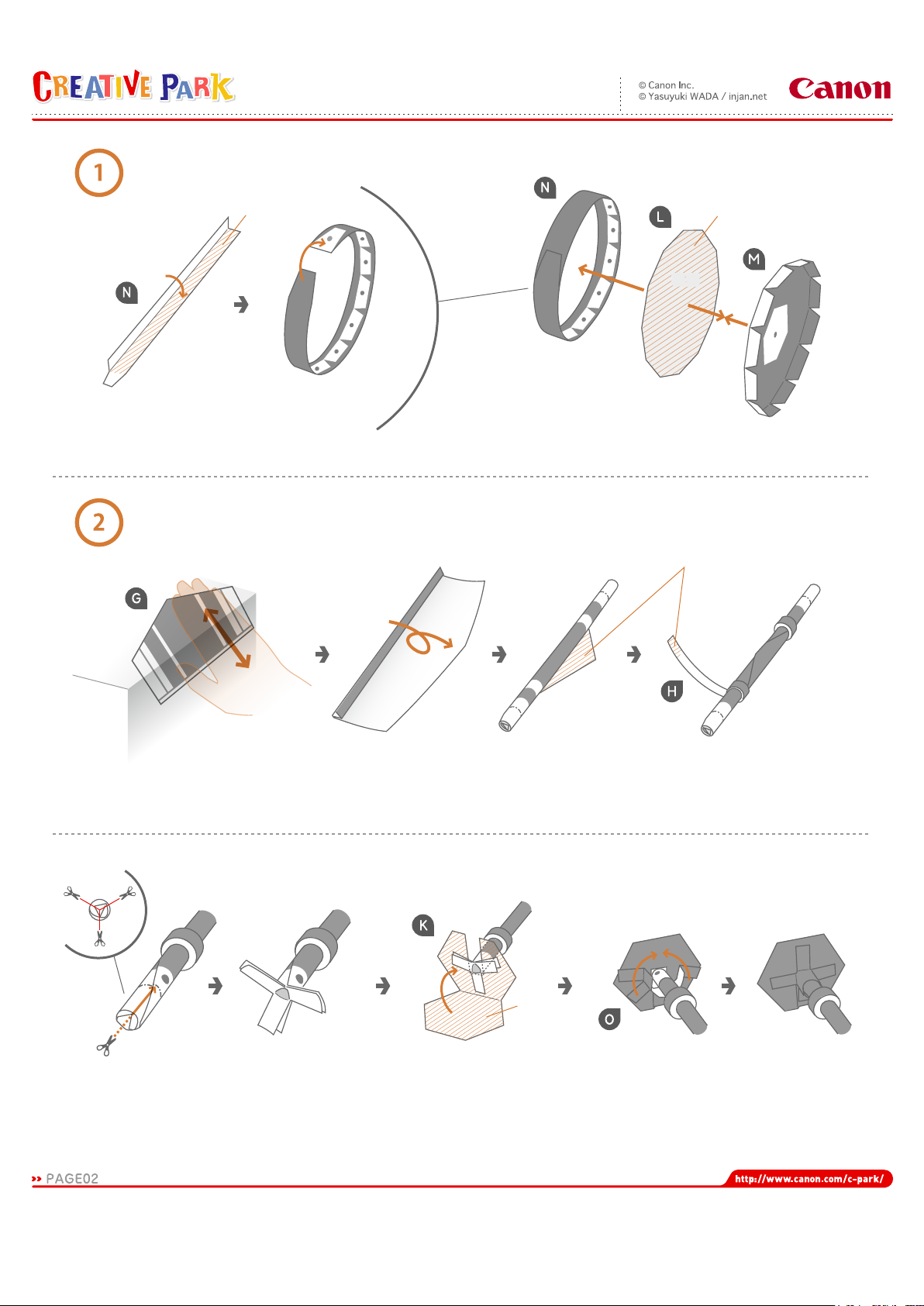

Assemble the tires

Wind part H around and glue it down.

Glue down the end after rolling.

Attach part K, enveloping it

around the parts you cut

and bent back.

Attach the other side too.

View from above

Glue

Fold in half along the fold lines,

glue together at the back and make a ring.

Adding curves to the part first will make it

easier to form a ring.

Glue

Back

After gluing parts L and M together back to back,

attach the ring you have made.

Assemble the front tires using parts C, D and F, in the same way.

Assemble the axle

Add curves by pressing and rolling it

against the corner of a table,

with the printed side face up.

Fold the edge to make a triangular prism,

and roll the piece up to form a stick

(about 4mm wide).

Cut three, equally-spaced slots in both ends

of part G, up to the grey valley fold line,

and bend them back.

*The fine strips of paper are thick and hard

so be careful of paper cuts.

Glue

Attach part O to both ends.

Follow the same process to

assemble the other axle.

Elastic-powered Duck : Assembly Instructions

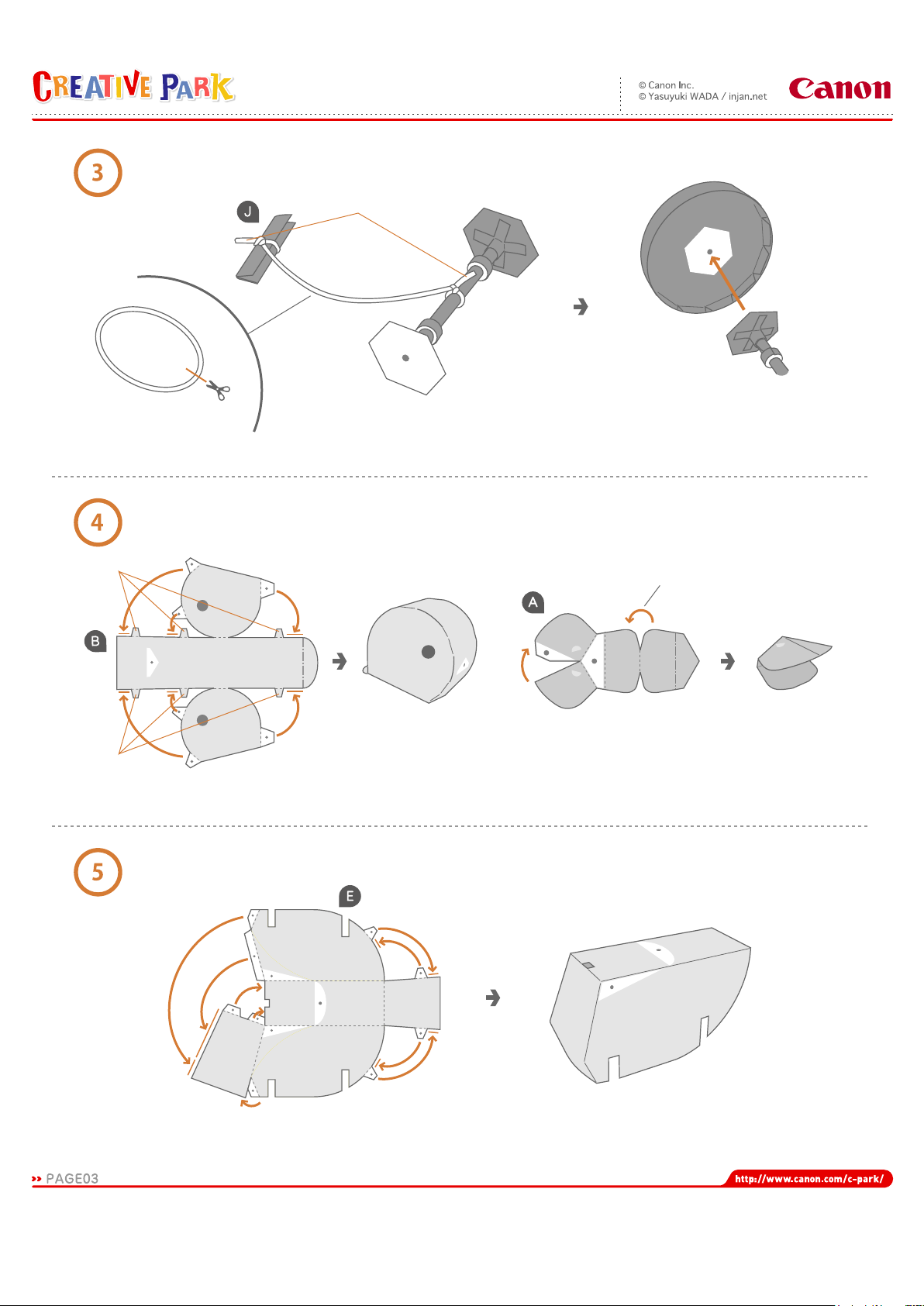

Tie one end of the band to the band stopper,

and the other end to the middle of the axle.

Glue together as shown in the diagram,

and assemble the duck's head.

Glue together as shown in the diagram,

and assemble the duck's body.

Glue together as shown in the diagram,

and assemble the duck's beak.

Assemble the front and back wheels

Cut the rubber band

to make a string.

If necessary, cut off the ends.

Attach the back tires to both ends of the axle.

Follow the same process to assemble

the front wheels.

*Do not attach a rubber band to the front wheels.

Assemble the head and beak

Do not attach.

Fold along the fold line,

and glue together

at the reverse side.

Assemble the body

Elastic-powered Duck : Assembly Instructions

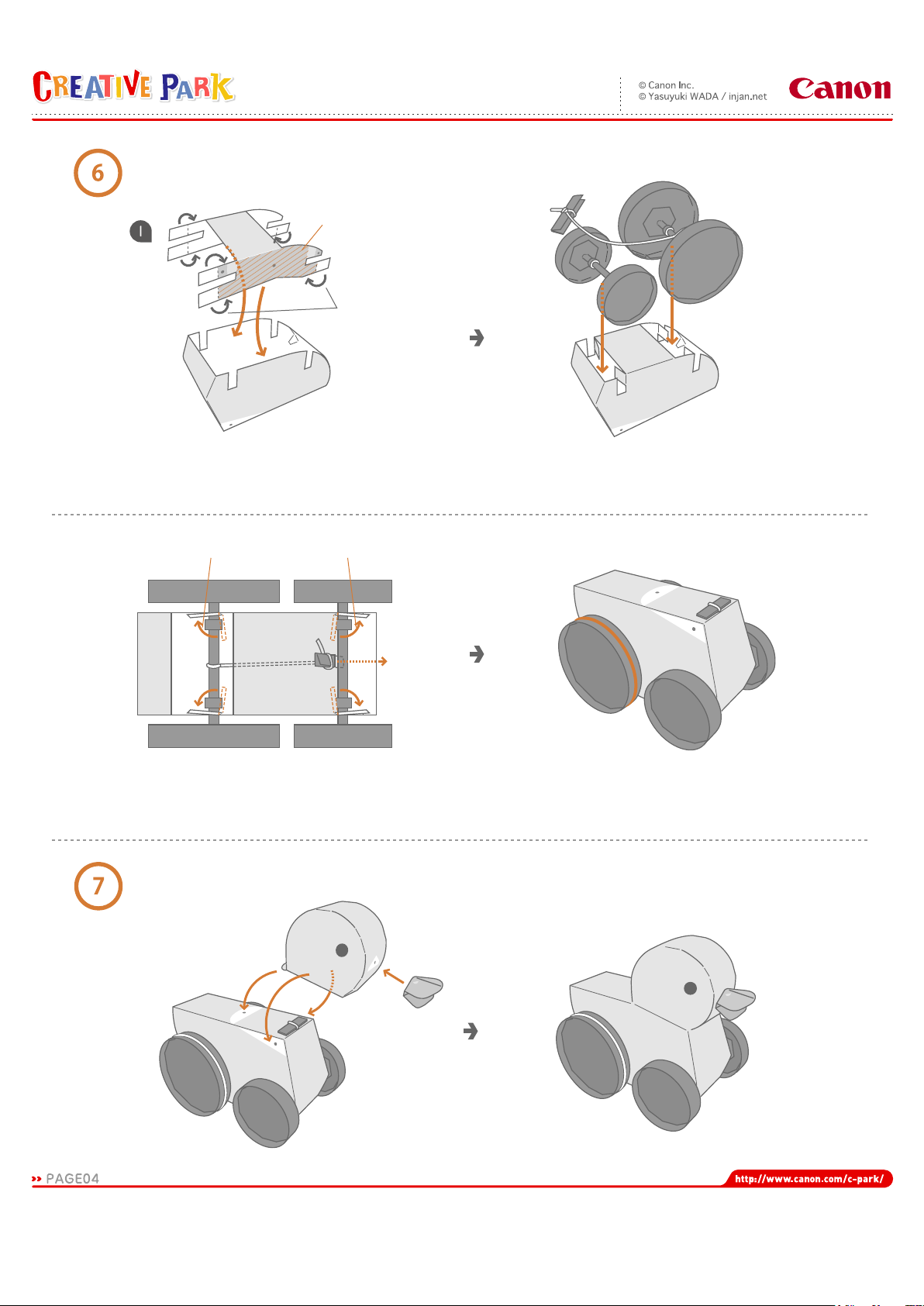

Attach the wheels

Assemble together

Glue

Attach. Attach.

Follow the fold lines,

and glue together

at the back.

After turning the duck's body over,

glue the tummy to it.

Being careful not to mix up the front and back wheels,

put the axles into the grooves on the body.

Check that the wheels spin smoothly.

Feed the band stopper through the hole

at the front of the body to the outside.

Be careful that the band doesn't come undone.

Check that the band stopper doesn't come loose,

and wind the rubber band around the back wheels

(with the larger tires).

Attach the duck's head and beak

to the completed body, and you're done!

Elastic-powered Duck : Assembly Instructions

If your car doesn't run well, check the following points to repair it.

Are the axles or tires stuck against the body? Are the wheels or tires bent?

Has the band lost its elasticity? Is the band wound up too tightly?

Has the band come loose from the tire? Is the band tangled up around the axle?

How to play

Pull the car backwards along the ground, gently

pushing down on the back wheels.

Point the car in the direction you want it to run,

let it go and watch it take off!

Be careful not to wind the band too tightly

as it may snap or come untied.

Play with it on a flat surface such as a table or the floor

(wooden floorboards work better than carpet).

Elastic-powered Duck : Assembly Instructions
