Canon Jaguar E-Type Manuel utilisateur

View of complete model (Side view)

Parts list (Pattern) : Seventeen A4 sheets (No.1 ~ No.17)

No. of Parts: 268

*Bulid the model by carefully reading the Assembly Instructions,

in the parts sheet page order.

view of the engine view of the cockpit

Glue tab notation key

Glue to the rear of

the other part

Apply glue here

Each glue tab has a symbol and

number printed on it. marks

surfaces to put glue on; they should

then be glued to the corresponding .

Attach here

Make a Mountain fold

Mountain fold

Guide rod

How to make the cylinders

This craft involves making cylinders

with diameters of 3 to 7mm, so it may

be helpful to have some rods of sizes

about 0.5mm thinner handy.

Assembly Instructions

Wrap around and

glue to the topof the cylinder.

Glue, scissors and other tools

may be dangerous to young children

so be sure to keep them out of the

reach of young children.

*This model was designed for Papercraft and may differ from the original in some respects.

"Jaguar E-type" is one of the most well-known models produced by British sports car maker Jaguar, founded in

1922. This model was highly regarded at the Geneva International Motor Show in March 1961 for its low-set,

streamlined appearance and state-of-the-art mechanics. Series 1, which first went on the market in 1961, sported

an inline six-cylinder, 3.8 liter DOHC engine. In 1964, this was upgraded to a 4.2 liter. Various minor changes up until

1971 resulted in the twin-six engine of the Series 3. This model, known in the US as the XK-E, enjoyed high levels

of popularity.

Although the E-type disappeared from the market in 1975, its curved lines continued to influence designers, and

it remained well-loved by car enthusiasts around the world.

This Papercraft JAGUAR E-type is about one thirteen the size of the real car.

Make a Valley fold

Valley fold

Cut along the line

Scissors line

Completed parts

become a cylinder

Layer wrapping (roll)

Wrap around and glue to the

cylinder,to use as a glue tab

Cut along the red solid line

Cut in Line

Trace along the folds with

aruler and a used pen (no ink)

to get a sharper, easier fold.

JAGUAR E-TYPE : Assembly Instructions 1 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

2-A

3-A

Apply glue to

the underside

Apply glue to

the underside

Apply glue to

the underside

Apply glue to side 2-A

and attach together

*Removable spray adhesive is

best when gluing large surfaces.

Attach 7-A to the center

of 3-B / 3-C.

2-C

2-B

3-B

2-D

2-H

3-C

2-A

3-A

3-B

3-C

7-A

*Check that the circled part of

2-B / 2-C is parallel to 3-B, and

attach.

Apply glue to

the underside

Attach 3-B and 7-A here.

7-B

4-A / 4-B 

side view

7-C

7-A

4-A

4-B

4-C

4-D

3-B

7-A

Glue spot

JAGUAR E-TYPE : Assembly Instructions 2 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

4-A

4-K

4-J Make a mountain fold

on 5-C, and glue it together.

4-M

4-O

4-N

Make a mountain fold,

and glue it.

underside

3-H

2-I

4-L

When attaching 4-L, align it

with the marked area on 4-A

as shown in the diagram.

When attaching

4-L,be careful

that it does not

protrude out

from 4-A.

4-L

4-A

4-F

4-H

4-G

2-G

5-H

4-I

2-I

4-M

Apply glue to

the underside

Apply glue to

the underside

Apply glue to

the underside

Glue on the rear of 4-L.

Apply glue to

the underside

Apply glue to

the underside

underside

JAGUAR E-TYPE : Assembly Instructions 3 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

6-D

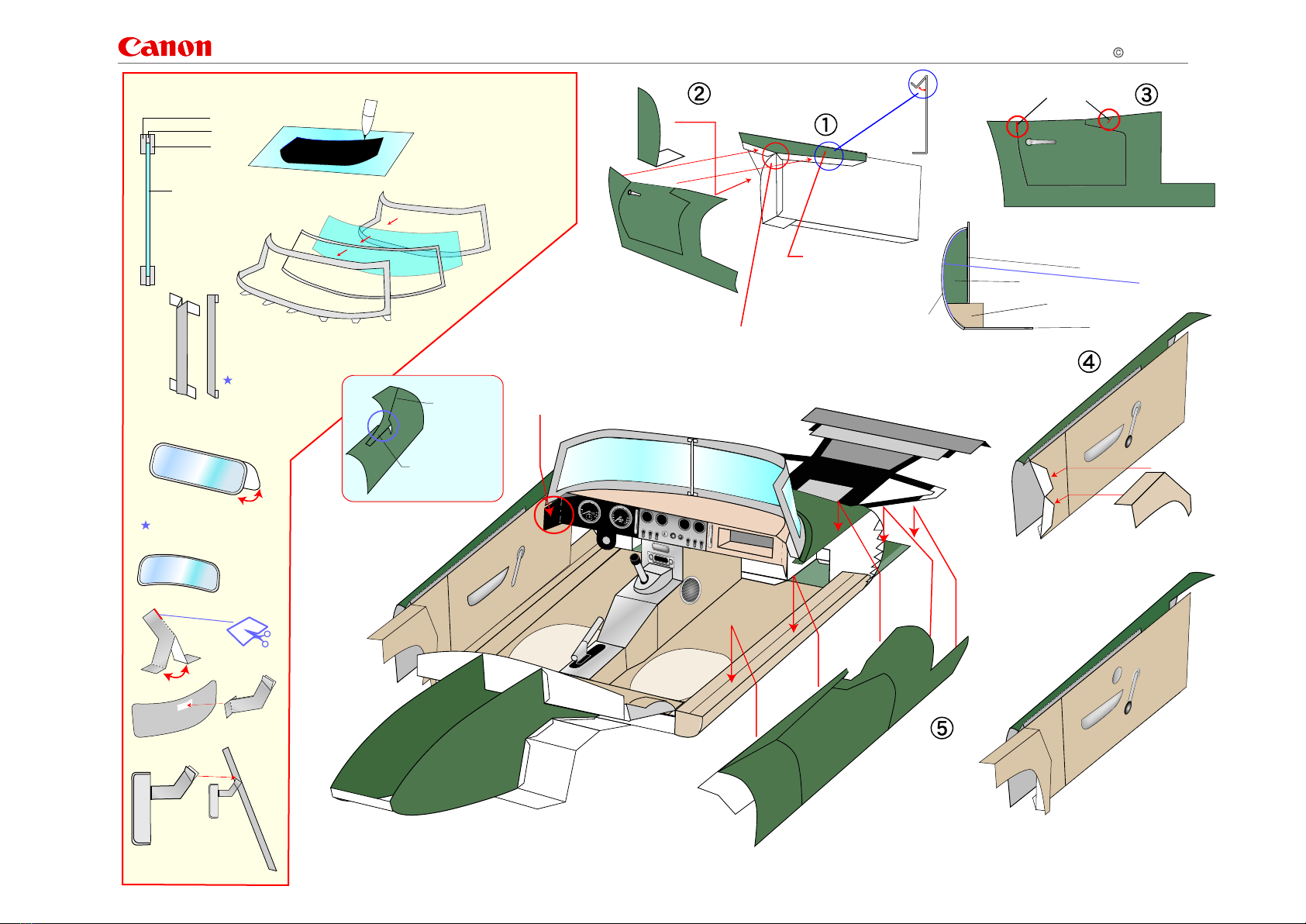

If using overhead projector film for the windscreen

4-P

4-Q

4-P

5-A

3-C

OHP

Overhead projector film template

OHP

4-S

5-N

5-M

5-N 4-M

Make a mountain fold,

and glue it together.

Make a mountain fold,

and glue it together.

Parts 5-M / 5-N should

be attached 5mm below

the tip of 4-S.

Under

Overhead projector film template

6-J

6-E

6-C

Make a mountain fold,

and glue it together

Make a mountain fold,

and glue it together

6-D

6-C

6-F

2-E

Using a marker pen,

trace around the template

you have cut out, and cut

along the line with scissors.

Bend into shape.

Cut in line.

Attach this part

to 4-L.

Take 4-L through the

slot in 6-D / 6-C and

glue it to the outside.

Do not apply glue to

this part of 2-I.

6-D / 6-F are assembled

in the same way.

Align 6-I / 6-J with the apex

of the triangle depicted here

on 6-E / 6-F, and glue

perpendicular to the base.

6-I

2-D

6-F

6-D The base

The base

There will be a small

gap along this line.

4-L

6-C

6-D

6-F

Apply glue to

the underside

Apply glue to

the underside

JAGUAR E-TYPE : Assembly Instructions 4 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

5-K/5-L

6-A/6-B

6-K/6-L

5-F/5-G 5-F/5-G

5-I/5-J

5-D/5-E

5-K/5-L

How to assemble the seats

Beginning from either the left or right side,

proceed to attach 6-K/6-L to 6-A/6-B.

Insert 7-H through 3-D.

*Glue along the curved line,

beginning at the center front

and progressing backwards.

Line up 5-D / 5-E with

the curved shape of 5-K/5-L,

and glue them together.

3-D

7-D

7-E

8-E

8-G

8-H

7-H

3-E

3-G

7-D/7-E can be used on the right

or the left. Attach them to 7-H so

that the part you have cut out

faces outwards.

After attaching 8-G/8-H,

attach 8-E to the specified

part on the body.

Apply glue to this area on the left and right.

3-D does not need to be glued.

Gluing 7-D/7-E will keep it in place.

Attach to the body

7-D

JAGUAR E-TYPE : Assembly Instructions 5 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

8-F

7-A

Attach 8-F to the

glue tabs on 3-C.

Align 8-L / 8-K very carefully

with the area circled, and attach.

8-L/8-K will protrude as shown in the circled area.

This we be attached to 8-F in a later step.

Glue the upper and lower glue tabs of

8-F to the center panel.

Attach 8-F to the glue tabs on 3-C/7-A.

The area along the blue line does not need

to be glued down. 7-A's purpose is to make

the rear body stronger.

It is best if 8-F is slightly separated from 7-A.

7-LGlue spot

The reverse side

7-LGlue spot

8-F

7-F/7-G

7-L/7-K

7-F/7-G

Attach 7-F / 7-G by gluing

the 7-L glue tabs to the underside.

Stick the 7-L glue tabs along

the edges of 7-F / 7-G.

Cut away any protruding

glue tabs.

*Attach the glue tabs so that

they overlap each other.

JAGUAR E-TYPE : Assembly Instructions 6 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

JAGUAR E-TYPE : Assembly Instructions 7 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

7-I

8-F

Attach to the glue tab

used for 7-I.

8-A/8-B

8-A

Attach 8-A / 8-B to 6-G / 6-H / 8-F.

8-B

6-G/6-H

8-C/8-D

Attach the 7-F / 7-G

you assembled in Seat-6

of Assembly Instructions

to the body.

Attach 7-F/7-G, keeping the

third panel(count from the inside)

of 7-F/7-G in linewith the bonnet.

Tightly wrap 7-F /7-G around8-F.

Adjust theposition of 8-F sothat

itscurved linesare 2.5mm from

the trunk lines oneither side, and

glueto8-F.

Insert the gluetabsinside

the mountain-folded paper

andattach.

To attach 7-F / 7-G to 8F,

put glue on the back of the part of

7-F / 7-G that overlaps onto 8-F.

Hold 7-F / 7-G up to

the curveof 8-F, and cut

away any protruding parts.

8-L/ 8-K should beattached to

the bumper on 8-F, keeping in

line with the outside edges of

the glue tabguidelines.

7-I should be attached

so that the upper and

lower partsare in line

with the center panel

of 8-F.

Attach 8-P.

Apply glue to

the underside

Apply glue to

the underside

Apply glue to

the underside

The trunk lines

Align 8-L/8-K with the curve of

8-F, and glue it from underneath.

JAGUAR E-TYPE : Assembly Instructions 8 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

9-P

9-Z

9-S

9-R 10-A

9-E

9-L-1

9-K-1

9-K

6- N6- M

9-L

4-A

9-B

9-H

9-J

10-K

10-L

9-I

9-X 9-X-1

9-D

9-G

9-F

2-I 3-F

9-O

9-V

6-P

6-0

6-P

6-O

6-C/D

Side view

4-E

8-O

Glue 8-O/8-N at the same position

as the decoration on the 8-F side.

Attach 8-A/8-B here.

Insert the 4-E steering axle

in from the 4-A side. Insert into the hole in 4-A,

and feed through the hole in 2-I.

Attach 3-F to the trip of 4-E.

8-N

9-A

9-C

Guide for inserting the bonnet

Apply glue to

the underside

JAGUAR E-TYPE : Assembly Instructions 9 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

9-N

10-D

10-E

10-F

10-H

9-T

9-U

9-Z-2

9-W

9-Z-1

8-M

10-B

10-C

10-C 10- L

8-I 8-J

9-Y

10-G

10-M

Wrap and glue 10-H

around the white area of

10-D/10-E.

Attach to the specified

area on 9-B.

Cross-sectional diagram

of 8-I/8-JMake mountain

and valley folds and apply

glue to the reverse side.

Attach to the center

of 10-B / 10-M.

See Assembly

Instructions 10.

Attach 8-M / 8-I / 8-J,

to 9-Z-1 / 9-Z-2, aligning

the glue tabs with the black line.

Glue on this part.

Glue spot

Side of engine.

9-E

Attach 9-N here.

Insert each pipe into 10-M and attach them

in line with the pattern on the upper surface.

JAGUAR E-TYPE : Assembly Instructions 10 Canon ® is a registered trademark of Canon Inc. M.Kajiwara

Overhead view of the engine (actual size)

Glue

10- N

10-Q 10-R

9-M-1

Attach 9-M-1 / 9-M-2 / 9-Q here.

Face it so that the end to be glued down

is at the bottom.

Make a mountain fold on

10-I / 10-J, and glue it together.

9-M-2

See the diagram below for 9-M-2

Attach to a location of your choosing.

11-A/12-A

11-A

12-A

11-G/12-G

11-E/12-E

11-F/12-F

11-D/12-D

11-B/11-C

12-B/12-C

11-B/11-C

12-B/12-C

9-Q

8-J

9-Q

Use 2 pieces per a tire.

The front tires are assembled

in the same way as the rear tires.

Attach in line with the

solid lines on 11-D / 12-D.

Insert the protruding part of

10-N into 10-Q/R, and attach.

Apply an ample amount of glue

to the 2-A / 10-B side.

Apply glue to

the underside

Apply glue to

the underside

Cross-sectional diagram of tire

9-N Attach to 10-C.

Cut away any

protruding pieces. Attach to a location of

your choosing.

10-F

10-T

10-D

10-T

10-M

Table des matières

Autres manuels Canon Jouet

Canon

Canon Creative Park Budgerigar Manuel utilisateur

Canon

Canon Creative Park Moving Clown in a barrel Manuel utilisateur

Canon

Canon CREATIVE PARK 3D Paper Mosaic (Tropical... Manuel utilisateur

Canon

Canon Creative Park Matryoska doll Manuel utilisateur

Canon

Canon PaperCraft Gift Box E Manuel utilisateur

Canon

Canon Creative Park Halloween Wreath Manuel utilisateur

Canon

Canon PAPER CRAFT Rainbow beetle Manuel utilisateur

Canon

Canon Paper Craft Castel Sant'Angelo Italy Manuel utilisateur

Canon

Canon Racer 539 Hawk Manuel utilisateur

Canon

Canon Creative Park Crocodile Manuel utilisateur

Canon

Canon Creative Park Hippopotamus Manuel utilisateur

Canon

Canon Creative Park Mountain Gorilla Manuel utilisateur

Canon

Canon CREATIVE PARK Shoebill Manuel utilisateur

Canon

Canon Paper Craft Catcher Manuel d'instructions

Canon

Canon Creative Park Articulated Ladder Truck Manuel utilisateur

Canon

Canon Creative Park Teddy Bear Manuel utilisateur

Canon

Canon Nippon Maru Manuel utilisateur

Canon

Canon CREATIVE PARK Pop-up Card (Halloween / Black cat &... Manuel utilisateur

Canon

Canon Creative Park 3D Decoupage St. Patrick's... Guide de démarrage rapide

Canon

Canon CREATIVE PARK Falcon Manuel utilisateur

Canon

Canon CREATIVE PARK Pop-up Card Manuel utilisateur

Canon

Canon CREATIVE PARK Bottlenose Dolphin Manuel utilisateur

Canon

Canon Creative Park Performing white horses Manuel utilisateur

Canon

Canon Creative Park Toy Poodle Manuel utilisateur

Manuels Jouet populaires d'autres marques

marklin

marklin 37321 Manuel utilisateur

GREAT PLANES

GREAT PLANES Pitts M-12S Manuel utilisateur

NOCH

NOCH 14261 Manuel utilisateur

Hausler

Hausler 450 SE V2 Manuel utilisateur

Dynaflite

Dynaflite Daydream Manuel utilisateur

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuel

Kenner

Kenner Batman 63651 Manuel utilisateur

LEGO

LEGO 8527 Manuel utilisateur

iKarus

iKarus ECO 8 Manuel utilisateur

Multiplex

Multiplex EasyStar II Mode d’emploi

Walkera

Walkera 38 Mode d’emploi

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuel utilisateur

MD MXION SWD Manuel utilisateur

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuel utilisateur

marklin

marklin 39671 Manuel utilisateur

Meccano

Meccano 15103 Manuel utilisateur

LEGO

LEGO TECHNIC 8735 Manuel utilisateur

Mattel

Mattel HOTWHEELS DWL04 Manuel utilisateur
