Projector Monitoring Software

Ver. 1.0.0

User’s Manual

Introduction

"Projector Monitoring Software" (hereafter referred to as "this software") is a software that uniformly

manages network-connected compliant Canon Projectors, via network. Operating conditions and

maintenance information of up to 254 projectors can be monitored and managed.

This manual describes the introduction of this software, and its routine operation.

Microsoft, Windows, Windows XP, Windows Vista and .NET Framework are registered trademarks•or trademarks of Microsoft Corporation in the United States and/or other countries.

Table of Contents

CHAPTER 1 • Introduction..................................................................................................3

1.1 Introduction Process.....................................................................................3

1.2 System Requirements...................................................................................4

1.3 Installing the Software ..................................................................................4

1.4 Conguring the Network Settings of the Software.....................................5

1.4.1 Starting the Software.........................................................................5

1.4.2 ConguringtheDiscoverySettings....................................................5

1.4.3 ConguringthePollingIntervalSettings..........................................10

CHAPTER 2 • Routine Operation .....................................................................................11

2.1 Running the Software..................................................................................11

2.2 Exiting the Software....................................................................................11

2.3 Main Screen..................................................................................................12

2.4 Using the Projector Group List ..................................................................13

2.4.1 About Projector Groups...................................................................13

2.4.2 Creating a Projector Group..............................................................13

2.4.3 Changing Projector Group Settings.................................................15

2.4.4 DeletingaProjectorGroup ..............................................................16

2.5 Using the Projector List..............................................................................17

2.5.1 ConrmingtheStatusofaProjector................................................17

2.5.2 Entering Comments.........................................................................18

2.5.3 DisplayingtheProjectorSettingsdialog ..........................................19

2.5.4 Setting the Projector List..................................................................19

2.5.5 DiscoveringProjectors.....................................................................20

2.5.6 RefreshingProjectorInformation .....................................................20

2.5.7 Setting the Protocol of a Projector...................................................21

CHAPTER 3 • Appendix.....................................................................................................22

3.1 Troubleshooting...........................................................................................22

CHAPTER1•Introduction

IntroductionCHAPTER 1

Introduction Process1.1

Prepare for introduction of this software as shown below.

1 Preparing an administrative

computer

Prepare an administrative computer that is

connected to a network. Projectors connected to

the local area network can be managed.

Ifthenetworkismanagedunderasubnet,

network settings on the administrative computer

mustbeconguredtogainaccesstothetarget

projector. Contact the system administrator for

details.

▼

2 Preparing the Projector Connect a projector for management to the

network,andconfigureitsnetworksettings.In

addition,youmustconguretheSNMPsettings

of the projector when using SNMP protocol. For

proceduresonconguringtheprojector,seethe

instruction manual that came with the projector.

▼

3 Installing the Software Installthissoftwareontotheadministrative

computer.

(see p. 4, 1.3 Installing the Software)

▼

4 Conguring Network

Settings of the Software

Configure the protocol settings and the polling

interval settings for discovery.

(see p. 5, 1.4 Conguring the Network Settings

of the Software)

CHAPTER1•Introduction

System Requirements1.2

To install this software on a computer, following requirements must be met.

Category Essential Requirements

OS Microsoft Windows XP Professional SP2 or later,

Microsoft Windows Vista Ultimate

Supported Languages Japanese, English

CPU IntelPentium42.4GHzorbetter

Memory 1 GB or more

Display XGA or more

.NET Framework Windows XP: .NET Framework 2.0 SP1 or more

Windows Vista : .NET Framework 3.0 or more

Installing the Software1.3

Installthissoftwarewiththefollowingprocedures.Youmusthaveauthorizationasa

Computer Administrator to install programs.

Run the installer for this software.

Follow the instructions provided by the installer to proceed with the installation.

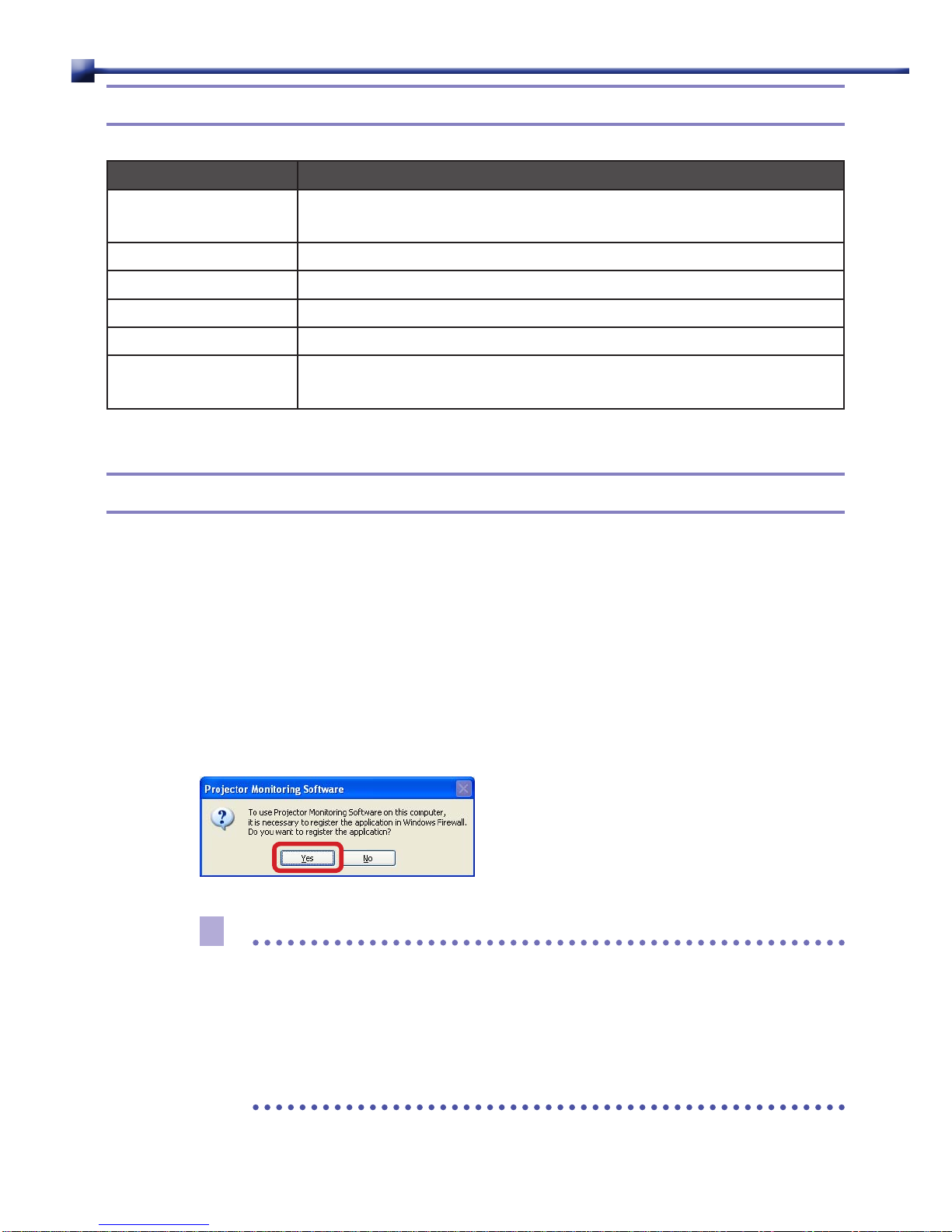

Duringinstallation,besuretoregisterthissoftwareinWindowsFirewalltoallow

communication with the projector. Click [OK] if the following dialog displays.

Note

If.NETFrameworkversionerrordisplays,stoptheinstallation.Install- the latest version of .NET Framework using Windows Update, and then

reinstall this software.

To uninstall this software, click the Windows [Start] menu, select [Control- Panel], and [Add or Remove Programs]. Select the name of this software in

the list, and click [Remove].

CHAPTER1•Introduction

Conguring the Network Settings of the Software1.4

Wheninstallationofthissoftwareiscomplete,runthesoftwareandcongurethediscovery

settings of the network for discovery.

Starting the Software1.4.1

Click the Windows [Start] menu and select [All Programs], followed by

1 [Projector Monitoring Software] and [Projector Monitoring Software].

Main screen of this software will display.

Conguring the Discovery Settings1.4.2

Congurethenetworkrangefordiscoveringprojectors.Methodsvarydependingon"SNMP

V1/V2c/V3"and"LVSeries".Congureeachprotocolsrespectively.

For SNMP V1/V2c/V3■

When using "SNMP V1" / "SNMP V2c" / "SNMP V3", you can specify a broadcast address or

IPaddressrangefordiscovery.Selectaprotocoltypeandconguretherangefordiscovery.

CongureSNMPV1/V2c/V3withthefollowingprocedures.Congurationcanbedonewith

the same procedures. SNMP V3 is used in this example.

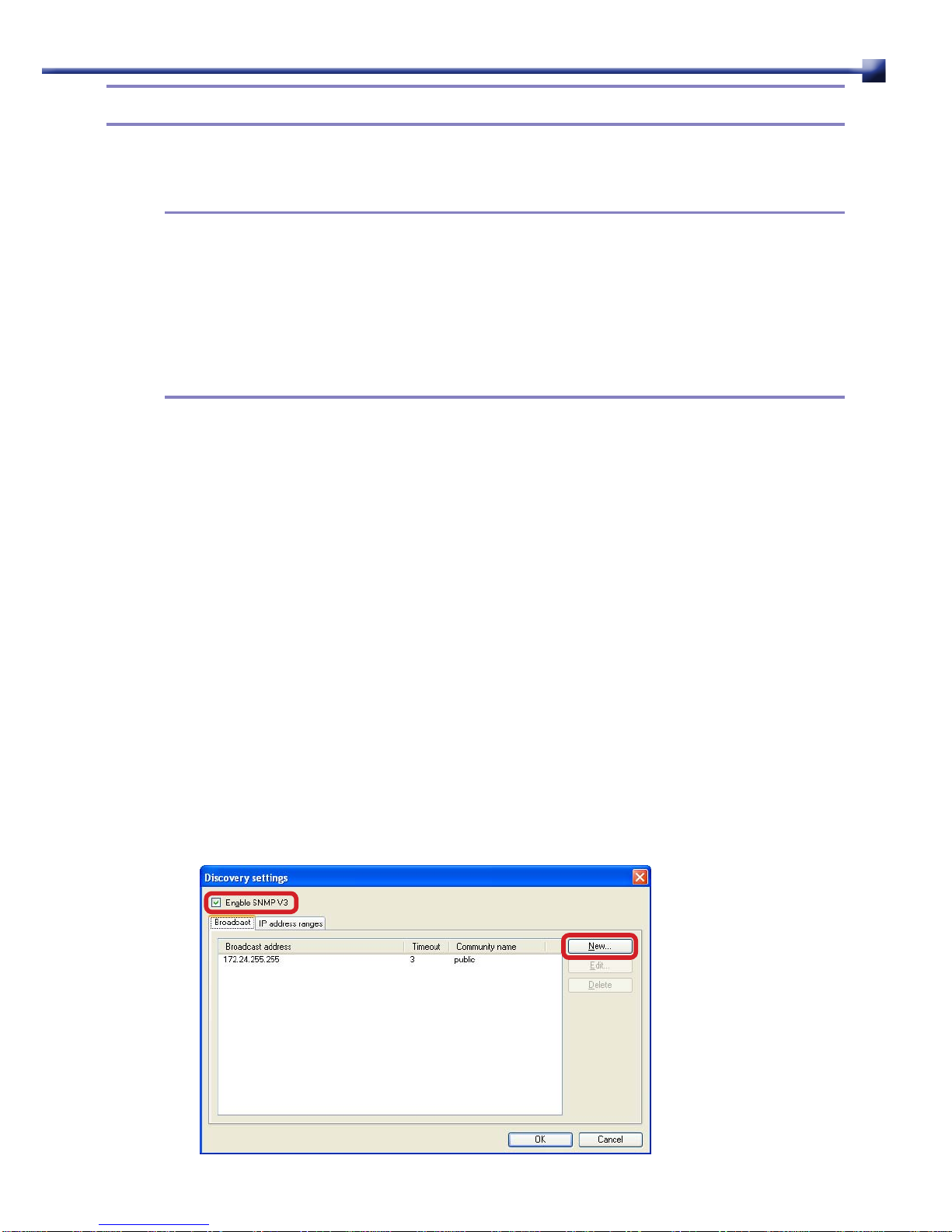

From[Discoverysettings]ofthe[Option]menu,selectanameofprotocol

([SNMPV1]/[SNMPV2c]/[SNMPV3])tocongure.

[Discoverysettings]dialogwilldisplay.

Place a checkmark in [Enable (Protocol Name)].

Remove a checkmark if protocol is not used for discovery.

CHAPTER1•Introduction

Tocongureabroadcastaddress,selectthe[Broadcast]tabandclickthe[New]

3 button.

[Specify broadcast discovery settings] dialog will display.

Note

As default, broadcast settings configured on the network card of the- administrative computer will display in the discovery range list.

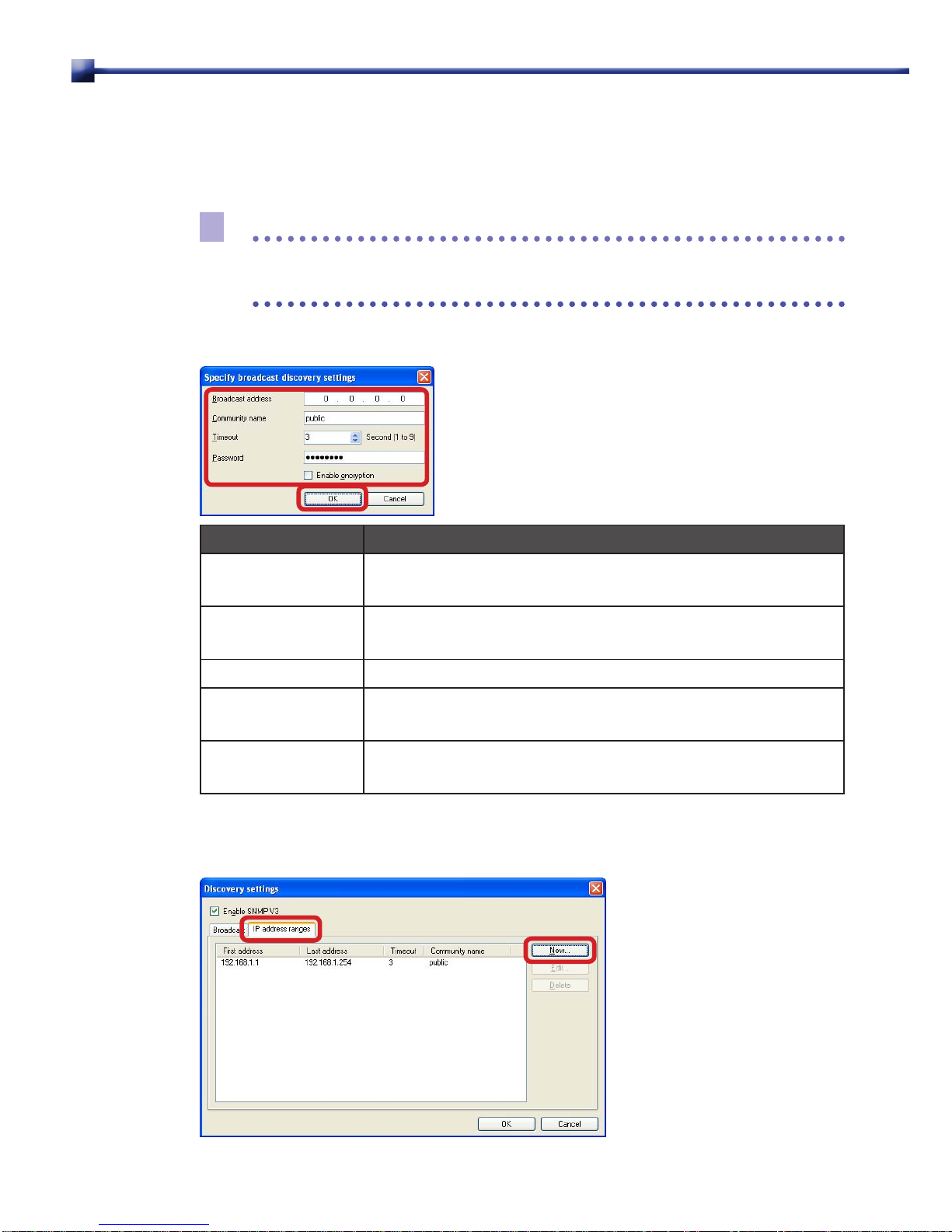

Complete the dialog with necessary information and click the [OK] button.

Category Description

Broadcast address Enter a broadcast address of the network to discover in "XXX.

XXX.XXX.XXX" form.

Community Name Enter a community name within 15 one-byte alphanumeric

characters and symbols.

Timeout Enter a number of seconds to time out, from 1 to 9.

Password

(SNMP V3 only) Enter a password within 8 to 15 one-byte alphanumeric

characters and symbols.

Enable encryption

(SNMP V3 only) Place a checkmark if encrypted. Remove a checkmark if not.

TospecifyanIPaddressrange,selectthe[IPaddressranges]tabandclick

5 the [New] button.

[SpecifyIPaddressrange]dialogwilldisplay.

CHAPTER1•Introduction

Complete the dialog with necessary information and click the [OK] button.

Category Description

First address EnterafirstIPaddressintherangefordiscovery,in"XXX.

XXX.XXX.XXX" form.

Last address EnteralastIPaddressintherangefordiscovery,in"XXX.XXX.

XXX.XXX" form.

Community name Enter a community name within 15 alphanumeric characters

and symbols.

Timeout Enter a number of seconds to time out, from 1 to 9.

Password

(SNMP V3 only) Enter a password within 8 to 15 one-byte alphanumeric

characters and symbols.

Enable encryption

(SNMP V3 only) Place a checkmark if encrypted. Remove a checkmark if not.

Note

An error message will appear and settings will not be registered if a value-

ofanentryisinvalidorinsufcient.Correctitasrequired.

Entries will be cancelled if [X] (Close) or [Cancel] button is clicked before- clicking the [OK] button.

To change a discovery range, select an item from the discovery range list-

andclickthe[Edit]buttontorecongurethesettings.

To delete an unnecessary discovery range, select an item from the-

discoveryrangelistandclick[Delete].

CHAPTER1•Introduction

For LV Series■

WhenusingLVseries,specifyanIPaddressoftheprojectorfordiscovery.

Note

WithLVseries,youcannotdiscoverusingbroadcastaddressesorIP- address ranges.

WithLVseries,itisrecommendedtouseafixedIPaddressforthe-

projector.IfDHCPisconguredtoautomaticallyassignIPaddresses,you

willneedtorecongurethissoftwareeverytimetheprojector'sIPaddress

changes.

CongureLVserieswiththefollowingprocedures.

From[Discoverysetting]ofthe[Option]menu,select[LVseries]tocongure.

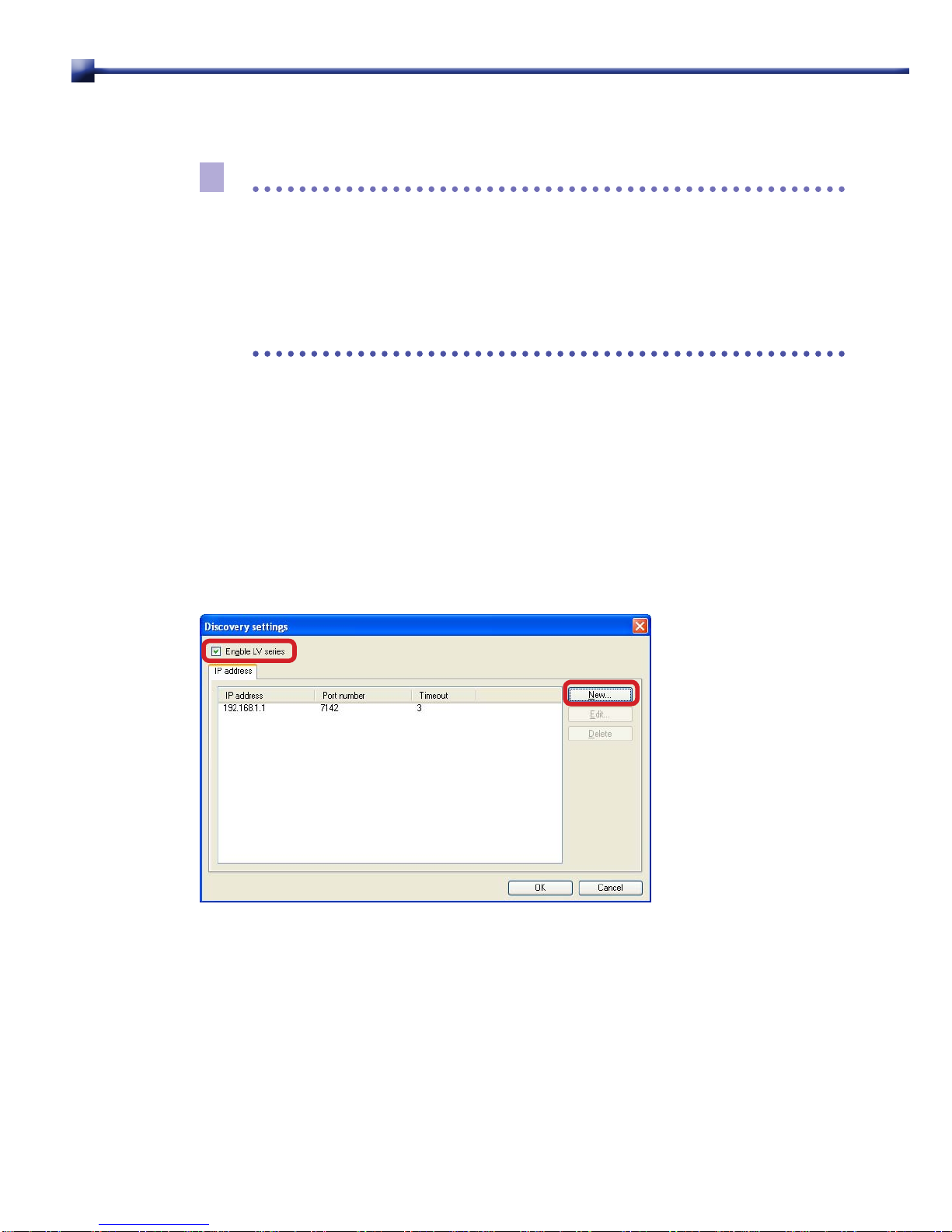

[Discoverysettings]dialogwilldisplay.

Place a checkmark in [Enable LV series].

Remove a checkmark if it is not used for discovery.

Selectthe[IPaddress]tabandclickthe[New]button.

[SpecifyIPaddress]dialogwilldisplay.

CHAPTER1•Introduction

Complete the dialog with necessary information and click the [OK] button.

Category Description

IPaddress EnteranIPaddressoftheprojector,in"XXX.XXX.XXX.XXX"form.

Port number Enteraportnumbertobeused,inone-bytenumbers.Default

value is set to "7142."

Timeout Enter a number of seconds to time out, from 1 to 9.

Note

An error message will appear and settings will not be registered if a value-

ofanentryisinvalidorinsufcient.Correctitasrequired.

Entries will be cancelled if [X] (Close) or [Cancel] button is clicked before- clicking the [OK] button.

TochangeanIPaddress,selectanitemfromthediscoveryrangelistand-

clickthe[Edit]buttontorecongurethesettings.

TodeleteanunnecessaryIPaddress,selectanitemfromthediscovery-

rangelistandclick[Delete].

CHAPTER1•Introduction

Conguring the Polling Interval Settings1.4.3

Defaultpollingintervalforthissoftwareissetto"Notspecied"fordiscoveringprojectors,

and "1 hour" for receiving status of the projector.

Change the polling interval with the following procedures.

Select [Polling interval settings] from the [Option] menu.

[Polling interval settings] dialog will display.

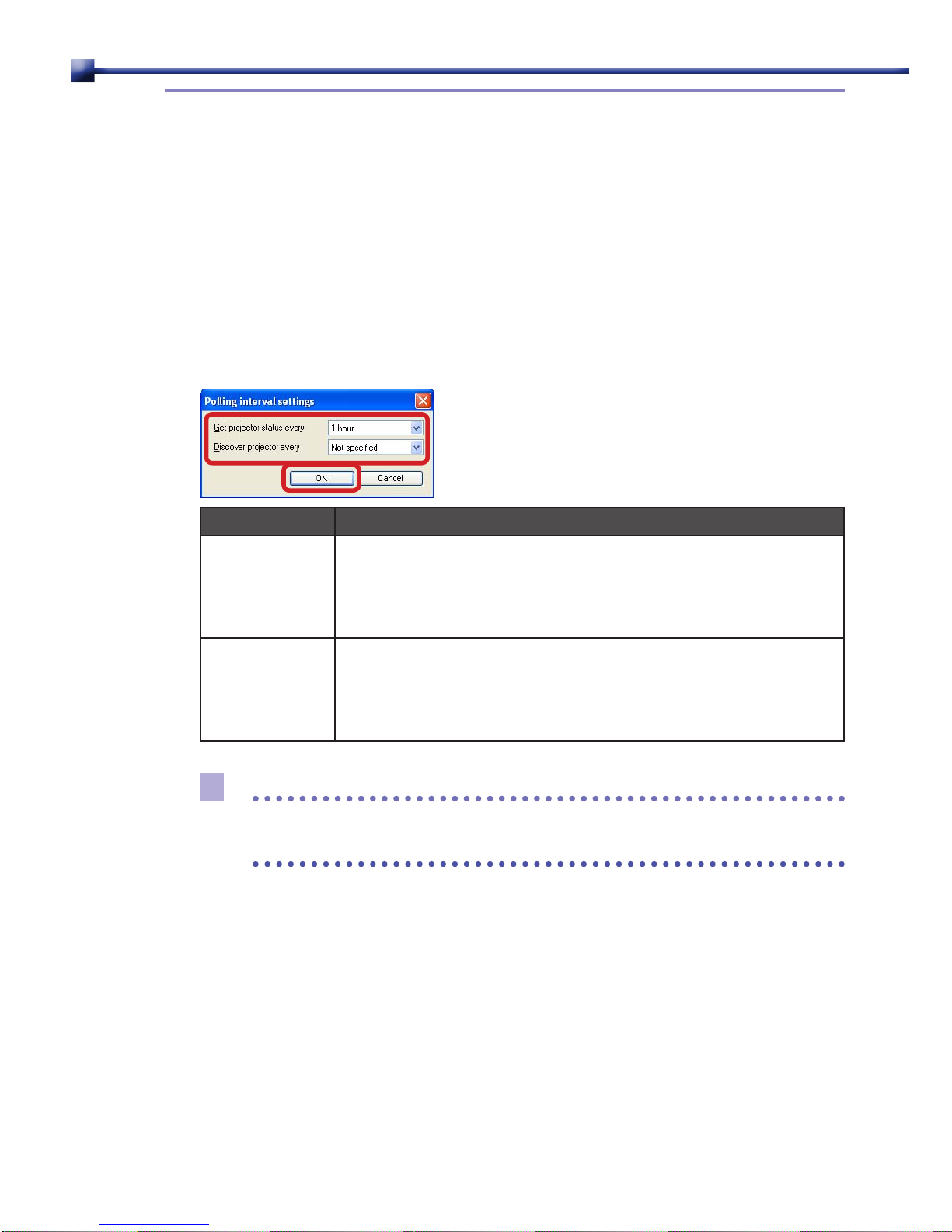

Select a polling interval from the pop-up menu beside [Get projector status

every]and[Discoverprojectorevery],andclick[OK].

Category Description

Get projector

status every Select a polling interval from "10 minutes/15 minutes/30 minutes/1

hour/Notspecified",forreceivingstatusoftheprojector.If"Not

specied"ischosen,pollmanuallywith[Refreshprojectorstatus]

from the [View] menu.

Discover

projector every Select a polling interval from "1 hour/2 hour/3 hour/6 hour/12

hour/24hour/Notspecied",fordiscoveringnewprojectors.If"Not

specied"ischosen,pollmanuallywith[Discoverprojector]fromthe

[View] menu.

Note

Settings will be cancelled if [X] (Close) or [Cancel] button is clicked before- clicking the [OK] button.

Autres manuels pour REALIS WUX10 MARK II D

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Logiciel

Canon

Canon 3211B001 - PowerShot E1 Digital Camera Guide de sécurité

Canon

Canon 40D - EOS 40D DSLR Manuel utilisateur

Canon

Canon CanoScan D1230UF Manuel utilisateur

Canon

Canon LEGRIA FS36 Manuel utilisateur

Canon

Canon EOS-1D Manuel utilisateur

Canon

Canon PowerShot A530 Guide de sécurité

Canon

Canon 08011-41-UD2-003 Manuel de l'opérateur

Canon

Canon BJC-S330 Guide de l'utilisateur

Canon

Canon HV20 - VIXIA Camcorder - 1080i Manuel utilisateur

Canon

Canon EOS Digital Photo Professional Manuel utilisateur

Canon

Canon VIXIA HF S11 Manuel utilisateur

Canon

Canon 9540A003 - Optura 400 Camcorder Manuel utilisateur

Canon

Canon Powershot S2 IS - Powershot S2 IS 5MP Digital... Manuel utilisateur

Canon

Canon 3000F - CanoScan Scanner Manuel utilisateur

Canon

Canon 2689B001 - DC 330 Camcorder Manuel utilisateur

Canon

Canon CANOSCAN D660U Manuel utilisateur

Canon

Canon EOS Rebel XS 18-55IS Kit Manuel utilisateur

Canon

Canon CanoScan D646U Manuel utilisateur

Canon

Canon FS 2710 Manuel utilisateur

Canon

Canon PowerShot A620 - 7.1MP Digital Camera Instructions de montage

Canon

Canon CAPTUREPERFECT 3.1 Manuel utilisateur

Canon

Canon PowerShot A410 Instructions de montage

Canon

Canon PowerShot A520 Instructions de montage

Canon

Canon 3421B001 - FS200 32GB Flash Memory Camcorder Manuel utilisateur

Manuels Logiciel populaires d'autres marques

COMPRO

COMPRO COMPROFM Manuel utilisateur

Muratec

Muratec OFFICEBRIDGE ONLINE Manuel utilisateur

Oracle

Oracle Contact Center Anywhere 8.1 Manuel utilisateur

Adobe

Adobe 65007312 - Photoshop Lightroom Manuel

Avaya

Avaya NULL One-X for RIM Blackberry Manuel utilisateur

HP ProLiant BL420c Manuel utilisateur

PS Audio

PS Audio PowerPlay Manuel du propriétaire

Brady

Brady LOCKOUT PRO 3.0 Manuel de service

Avaya

Avaya Interaction Center Manuel utilisateur

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuel

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuel utilisateur

Oracle

Oracle Application 9i Manuel utilisateur

Acer

Acer RDM Manuel utilisateur

Samsung

Samsung Auto Backup Manuel utilisateur

Polycom

Polycom Vortex EF2201 Instructions d'installation et d'utilisation

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuel utilisateur

Novell

Novell SP2 - S Mode d’emploi

Lexmark

Lexmark Apps Manuel de service
