Canon DR-5060F Manuel utilisateur
Backup
FILME F
A
FeedingOption
NewFile
Space
CountOnly
Manual
Auto
Semi-Auto
Scanner
DOCUMENT SCANNER
INSTRUCTIONS
NOTICE
qCopyright© 2001 by CANON ELECTRONICS INC. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language in any form or by
anymeans,electronic,mechanical,magnetic,optical,chemical,manual,orotherwise,withoutthepriorpermissionofCANON
ELECTRONICS INC.
wThe contents of this manual are subject to change without notice.
eEvery effort has been made to ensure the accuracy of information presented in this manual. However, Canon Electronics Inc.
and the subsidiaries on the back cover assume no responsibility for any errors or their consequences.
rWe do not assume any responsibility for damage resulting from operations regardless of item e.
Trademarks and RegisteredTrademarks
●Microsoft WindowsRand Microsoft Windows NTR are registered trademark of Microsoft Corporation in the U.S. and in
other countries.
●ISISR is a registered trademark of Pixel Translation, a division of ActionPoint Inc.
●Product names mentioned herein are for identification purposes only and may be trademarks and/or registered trademarks of
their respective companies.
1
INTRODUCTION
Thank you for purchasing the Canon Document Scanner DR-5060F. This manual
describes how to use Scanning Utility 5060 for scanning in images to the
computer on Document Scanner DR-5060F. Be sure to read this manual and the
separate DR-5060F Instructions before use to ensure that the functions of this
Scanning Utility are effectively utilized.
Scanner drivers such as an ISIS or TWAIN driver are not required as this
Scanning Utility packaged with the DR-5060F uses an exclusive scanner driver.
Introduction
2Introduction
CONVENTIONS
This manual uses the following symbols and indications.
Before you start reading this manual, read the following and familiarize yourself
with their meanings.
WARNING
Read carefully to avoid death or serious injury.
CAUTION
Read carefully to avoid serious injury or damage to the equipment or loss of
valuable data.
NOTE
Read carefully to avoid damage to the equipment.
MEMO
Memos indicate where you will find useful information in this manual.
3
Contents
Contents
INTRODUCTION.................................................................................................................. 1
CONVENTIONS................................................................................................................... 2
Chapter 1 Installation and Basic Operation of Scanning Utility 5060 ....
5
System Requirements ....................................................................................................... 6
Installing Scanning Utility 5060 ........................................................................................ 7
BeforeYou Begin.......................................................................................................... 7
Installing Scanning Utility 5060 .................................................................................... 7
Uninstalling Scanning Utility 5060.............................................................................. 10
Basic Scanning Utility 5060 Operations ........................................................................ 11
Starting Up Scanning Utility 5060 .............................................................................. 11
Explanation of the Scanning Utility 5060 Screen ....................................................... 12
Exiting Scanning Utility 5060 ..................................................................................... 18
Chapter 2
Scanning a Document..........................................................19
BeforeYou Start Scanning .............................................................................................. 20
Setting Basic Scan Conditions ....................................................................................... 22
Scanner Settings........................................................................................................ 23
Scanning Originals and Saving Scanned Images......................................................... 25
Scan Page.................................................................................................................. 25
Scan Batch to File...................................................................................................... 27
Film Address File Name............................................................................................. 31
Saving Scanned Images .................................................................................................. 35
Restrictions in the Number of Characters in File Names ........................................... 35
About Save Formats .................................................................................................. 35
Saving Scanned Images to File (Scan Page) ............................................................ 36
Saving Multiple Page Originals .................................................................................. 37
Opening Saved Files........................................................................................................ 39
Scanning and Printing Documents ................................................................................ 40
Printing Opened Images ............................................................................................ 40
Scan Batch to Printer ................................................................................................. 42
Other Scan Operations .................................................................................................... 45
Verify Scan................................................................................................................. 45
Using Patch Codes/Function Sheets ......................................................................... 47
4Contents
Chapter 3 Setting Detailed Scan Conditions .......................................51
Setting Scan Conditions.................................................................................................. 52
Setting up the Scanner .............................................................................................. 52
Detailed Settings .............................................................................................................. 54
Image Controls........................................................................................................... 55
Option Devices........................................................................................................... 58
Feeder Option ............................................................................................................ 63
Separation.................................................................................................................. 65
Function Key Settings ................................................................................................ 66
Setting the Gamma Curve ......................................................................................... 68
Imprinter/Addon Settings ........................................................................................... 70
Barcode Settings........................................................................................................ 75
Patch Code Settings .................................................................................................. 78
Chapter 4 Troubleshooting....................................................................81
When An Error Message orWarning is Displayed ........................................................ 82
WhenThe Scanned Image is Not Normal....................................................................... 85
Index.................................................................................................................................. 86
5
Installation and Basic Operation of Scanning Utility 5060
1
Chapter 1
Installation and Basic Operation
of Scanning Utility 5060
This chapter describes how to install
Scanning Utility 5060, and basic operation of
Scanning Utility 5060.
System Requirements................................. 6
Installing Scanning Utility 5060 .................7
BeforeYou Begin..................................... 7
Installing Scanning Utility 5060 .............7
Uninstalling Scanning Utility 5060 ...... 10
Basic Scanning Utility 5060 Operations.. 11
Starting Up Scanning Utility 5060........11
Explanation of the Scanning Utility
5060 Screen ...........................................12
Exiting Scanning Utility 5060 ...............18
6System Requirements
System Requirements
You must have the following hardware and OS for Scanning Utility 5060 to work.
●An IBM PC/AT or compatible computer with a Pentium 133 MHz CPU or
faster and at least 64 MB of memory
• OS: Microsoft Windows®95/98/Me or Microsoft Windows NT®4.0
Workstation, Microsoft Windows®2000 Professional
• At least 100 MB of hard disk space (at least 5 MB at installation)
●An SVGA compatible display
●A MicrosoftWindows compatible keyboard, mouse and printer, CD-ROM
drive (4×speed or faster recommended)
●A SCSI card whose operation has been confirmed
Operation of the following SCSI cards has been confirmed:
Adaptec AHA-2930 series and AHA-2940 series
●SCSI-2 compatible SCSI cable
MEMO
●Scanning Utility 5060 uses a dedicated scanner driver. Scanner drivers such
as the ISIS driver and TWAIN driver are not required.
●When you install Scanning Utility 5060, another folder “\ceiscan” is created
under the Windows folder in addition to the installation destination folder,
and the file “cei*.dll” is copied to \Windows\system.
Scanning Utility 5060 will not function properly if these files are modified.
●Scanning Utility 5060 uses “wnaspi32.dll” for controlling the scanner. The
scanner will not operate if “wnaspi32.dll” is not correctly installed.
NOTE
When Scanning Utility 5060 is used, set the scanner to the Backup mode or
the Scanner Only mode. If Scanning Utility 5060 is used in the Filmer only
mode, an error message is displayed when scanning is started.
7
Installation and Basic Operation of Scanning Utility 5060
1
Installing Scanning Utility 5060
Installing Scanning Utility 5060
This section describes how to install Scanning Utility 5060 and the installation
procedure.
BeforeYou Begin
Check the following items before you begin to install Scanning Utility 5060.
●Make sure that the OS of the computer on which you are going to install
Scanning Utility 5060 is either Microsoft Windows®95/98/Me or Microsoft
Windows NT®4.0 Workstation, Microsoft Windows®2000 Professional.
●Connection with your computer
For details on how to connect the scanner, refer to the separate DR-5060F
Instructions.
Installing Scanning Utility 5060
The following describes the procedure for installing Scanning Utility 5060 on the
computer.
1
Turn the scanner ON.
2
Turn the computer ON, and boot up Windows.
3
Insert the setup disc into the CD-ROM drive.
8Installing Scanning Utility 5060

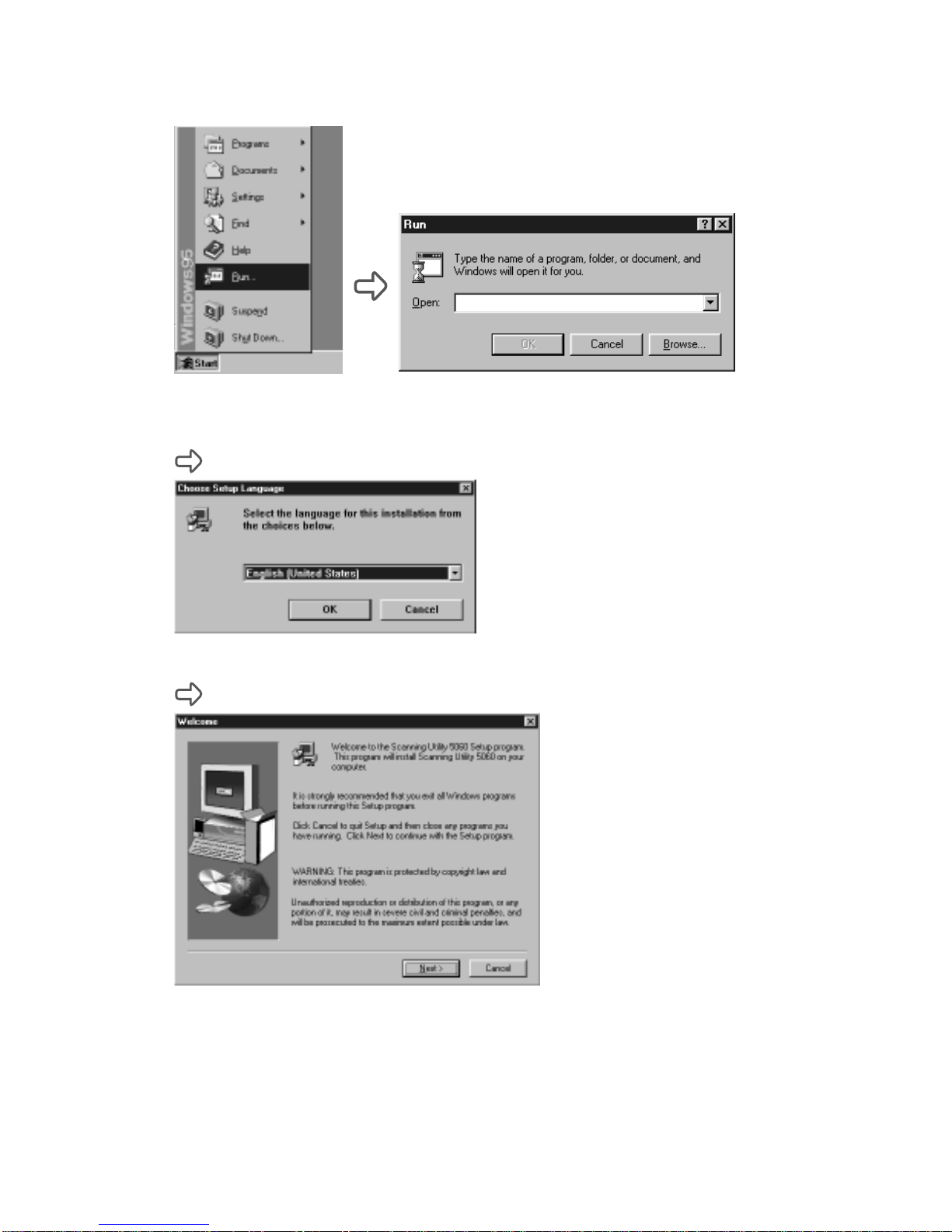

4
Click [Start] and select Run....
5
At Open, type“D:¨\su5060\setup.exe” and click OK.
In these instructions, the CD-ROM drive is specified as D.
The Choose Setup Language dialog box appears.
6
Select English (United States) and click OK.
The Welcome dialog box appears.
