Canon ImageFormula DR-C225W Manuel d'instructions

6T3-0030-01E

Chapter 1 Introduction

Chapter 2 Wi-Fi Connection

Chapter 3 Changing Scanner Settings

Chapter 4 Using Wi-Fi Equipped Scanners

Chapter 5 Appendix

Chapter 1 Introduction

Wi-Fi Connection Guide describes the setup procedure for the Wi-Fi

functions of the Canon imageFORMULA DR-C225W II (afterward called

"this scanner").

About this Product ............................................................................... 2

About Wi-Fi Connections..................................................................... 3

Trademarks............................................................................................ 5

About Open Source Licenses.............................................................. 5

Procedures and Example Screens

Wi-Fi Connection Guide describes operations using Windows 7 and OS X

10.7 (Lion) as examples. For operations that are identical between

Windows and OS X, this manual uses images from Windows as

examples.

About this Product

The Wi-Fi function in this scanner (IEEE 802.11b/g/n compatible,

2.4 GHz) supports scanning operations via wireless connection to a

computer.

By connecting this scanner to an access point in a network

environment, it can be used by any computer in the same network.

The scanner is very simple to connect if the access point supports

WPS (Wi-Fi Protected Setup).

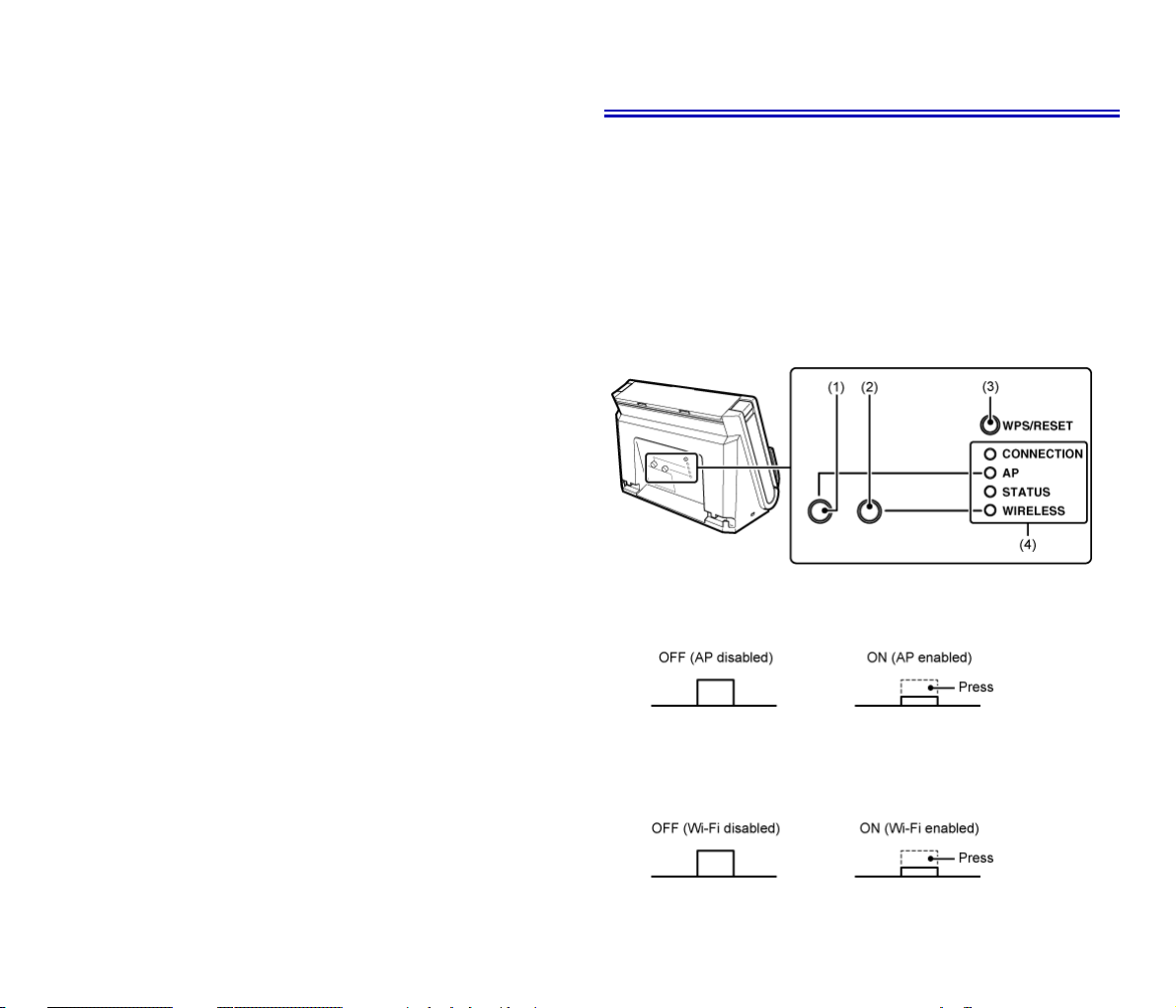

Names of Parts

Only the Wi-Fi-related functions are covered here. See the User's Manual

for other functions.

(1) AP Switch

This switches between AP and Station modes.

The AP lamp is lit when this switch is depressed.

(2) WIRELESS Switch

Enables the Wi-Fi functions of the scanner. When enabled, the USB

functions of the scanner are disabled even with the cable connected.

The WIRELESS lamp is lit when this switch is depressed.

(3) WPS/RESET Button

Press to connect with a WPS-compatible access point, or to initialize

the scanner's Wi-Fi settings.

Holding this button while turning on the scanner resets it to the

factory default settings.

(4) Lamp

The following lamps indicate the scanner state.

* One of two network modes of the scanner. Change the mode depending

on the device that will be connected via Wi-Fi. For details, see "Network

modes" on p.3.

About Wi-Fi Connections

Connect the scanner to an access point or directly to a computer

according to the network environment.

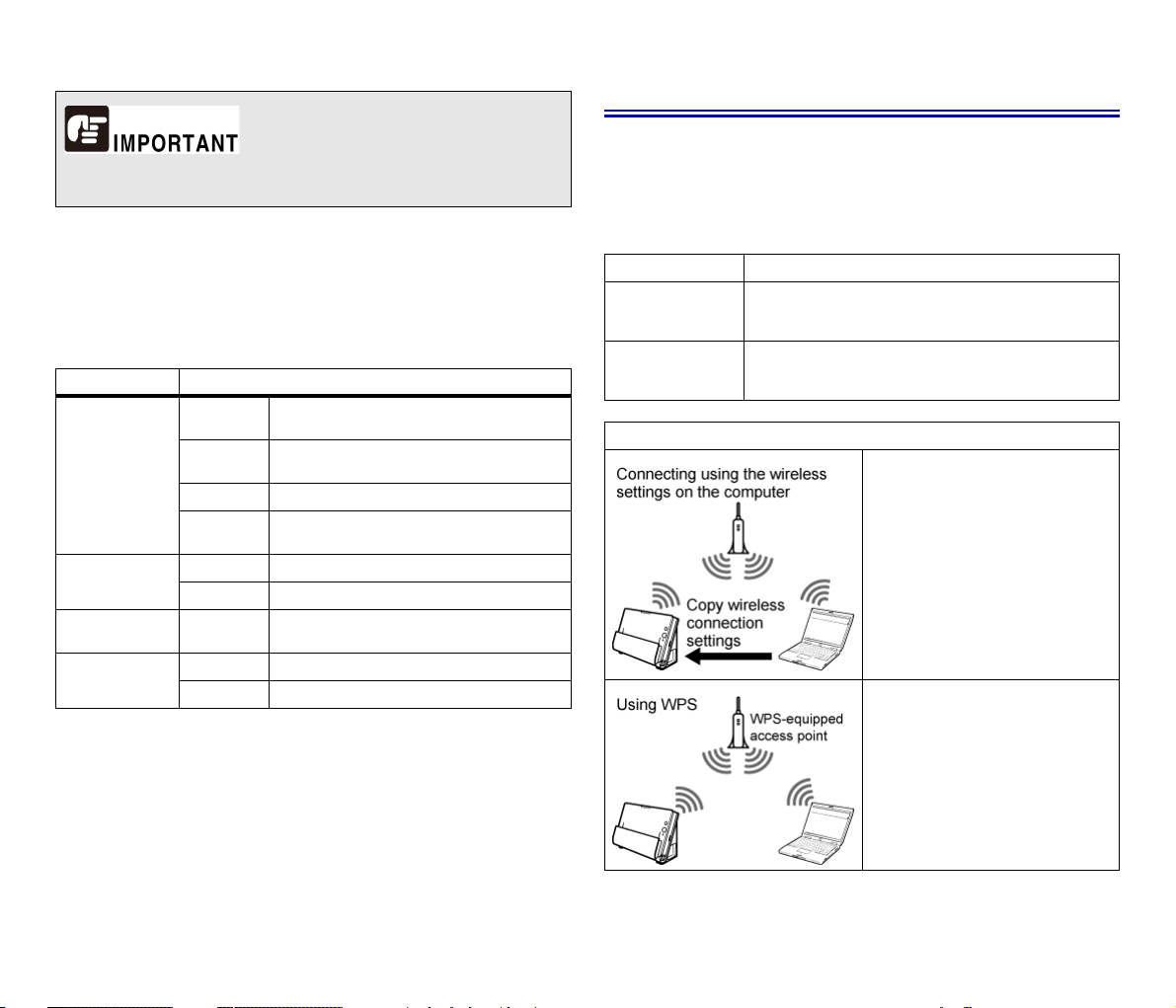

Network modes

Depending on the device that will be connected to the scanner via Wi-Fi,

you can change the network mode of the scanner as follows.

The scanner should always be turned off when pressing the WIRELESS

switch to enable the Wi-Fi function.

Lamp Meaning

CONNECTION Lit (green) AP mode*: Wireless LAN working

Station mode*: connecting to the access point

Blinking

green WPS executing

Blinking red WPS Error

Blinking

orange (Station mode only) Searching for an access

point

AP Lit (green) Operating in AP mode

Unlit Operating in Station mode

STATUS Blinking

green Transferring data

WIRELESS Lit (green) Wi-Fi enabled (USB disabled)

Unlit Wi-Fi disabled (USB enabled)

Network mode Description

Station mode The scanner operates as a wireless device. In this mode, a

separate wireless access point device is necessary for the

scanner to connect to the computer.

AP mode The scanner operates without another wireless access

point. A 1-to-1 connection can be established between the

scanner and the computer.

Connecting via a wireless access point (station mode connection)

Connection to the scanner can be

made using the wireless settings of the

computer connected to the wireless

LAN access point.

See "Connecting Using the Wireless

Settings on the Computer" on p.6

If the wireless access point is WPS-

compatible, connection to the scanne‘r

can be made using the WPS feature.

See "Connecting using the WPS

function" on p.11

If the access point does not supports

the WPS function, make the access

point settings manually to establish

connections.

See "Connecting to a Specified Access

Point" on p.16

1-to-1 connection (AP mode connection)

Search for the scanner and connect to it

using your computer's wireless

connections feature.

See "Connecting using the AP Mode"

on p.23

Search for and connect to the scanner

from a smart device (smart phone or

tablet).

See "How to Connect Smart Devices"

on p.24

The scanner can be shared with multiple computers on the

same network via the access point, although only one can

connect to the scanner at a time.

The scanner's Wi-Fi and USB connections cannot both be

used at the same time. When connecting with Wi-Fi, the

scanner cannot be used by a computer connected via USB

cable.

When using a Wi-Fi connection, scanning is slower than with

the USB connection.

Install NetworkMonitor on the computer from which you are

using the scanner.

Trademarks

Canon and the Canon logo are registered trademarks of Canon Inc.

in the United States and may also be trademarks or registered

trademarks in other countries.

imageFORMULA is a trademark of CANON ELECTRONICS INC.

Microsoft, Windows, and Windows Vista are registered trademarks of

Microsoft Corporation in the United States and other countries.

OS X is a registered trademark of Apple Inc. in the United States and

other countries.

Wi-Fi, Wi-Fi Alliance, the Wi-Fi CERTIFIED logo and the Wi-Fi

Protected Setup logo are registered trademarks of the Wi-Fi Alliance.

Wi-Fi CERTIFIED, WPA, WPA2 and Wi-Fi Protected Setup are

trademarks of the Wi-Fi Alliance.

"WPS" in the settings, onscreen displays and in this manual denotes

Wi-Fi Protected Setup.

Other product and company names herein may be the trademarks of

their respective owners.

RESERVED

About Open Source Licenses

This product includes open source software.

For details on the license conditions for each open source software,

refer to the OpenSource.txt file stored in the LICENSE folder on the

software setup disc.

Chapter 2 Wi-Fi Connection

The procedure for connecting to an access point using the Wireless

Connection Setup Tool in Station Mode is described here.

Connecting Using the Wireless Settings on the Computer.............. 6

Connecting using the WPS function.................................................11

Connecting to a Specified Access Point .......................................... 16

About the Computer's Wireless LAN Function................................ 21

Connecting using the AP Mode......................................................... 23

How to Connect Smart Devices......................................................... 24

Connecting Using the Wireless Settings on

the Computer

Use [Easy Setup] of the Wireless Connection Setup Tool to obtain

the necessary network information from the wireless settings of the

computer connected to the wireless LAN access point, and connect

the scanner to the same network.

If the access point is using security settings (such as MAC address

filtering), change the settings to allow connection to this scanner.

To ensure good Wi-Fi communications, perform this procedure with

the scanner initially located close to the access point.

1If the scanner is on, turn it off.

Press and hold the power button until the indicator goes out.

2Enable the wireless LAN function of the computer.

This step is not necessary if the wireless LAN function is already enabled.

See "About the Computer's Wireless LAN Function" on p.21 for wireless LAN

function setting details.

3Start the Wireless Connection Setup Tool.

This procedure describes the operation by following the on-screen

instructions of the Wireless Connection Setup Tool's Easy Setup.

Custom Setup allows arbitrary network configuration for the

scanner. For details, refer to "Chapter 3 Changing Scanner

Settings".

Click [Start] - [All Programs] - [Canon DR-C225] - [Wireless Connection

Setup Tool].

From the Finder, double click [Application] - [Wireless Connection Setup

Tool].

4Click [Easy Setup].

5Click [Next].

If the Wireless Connection Setup Tool is not yet installed on the

computer, see the Setup Guide to install it.

In Windows 8.1/8, it appears as shown below.

6Perform steps 1 to 3 as shown on the screen.

(1) Turn off the WIRELESS switch on the rear of the scanner.

(2) Connect the scanner to a computer via USB cable.

(3) Turn on the scanner.

7Click [Next].

8Select [Setup by using the computer's wireless settings], and click

[Next].

When the following message appears, click [Yes].

If [User Account Control] appears, click [Yes].

9Click [Yes].

10 Perform steps 1 to 3 as shown on the screen.

(1) Turn off the scanner.

Press and hold the power button until it turns off.

(2) Remove the USB cable.

(3) Turn off the AP switch on the rear of the scanner.

11 Click [Next].

12 Perform steps 4 and 5 as shown on the screen.

(4) Turn on the WIRELESS switch on the rear of the scanner.

(5) Turn on the scanner.

13 Click [Next].

The connection is verified.

"Wireless connection to the scanner is completed." is displayed when the

connection is verified. Setup is completed.

If the connection fails, a retry confirmation screen appears.

Click [Yes] after resetting, and proceed again from step 3.
