IRISPen Air 7

Quick User Guide

(Android)

This Quick User Guide helps you get started with the IRISPen AirTM 7.

Please read this guide before operating this scanner and its software. All information is subject to

change without prior notice.

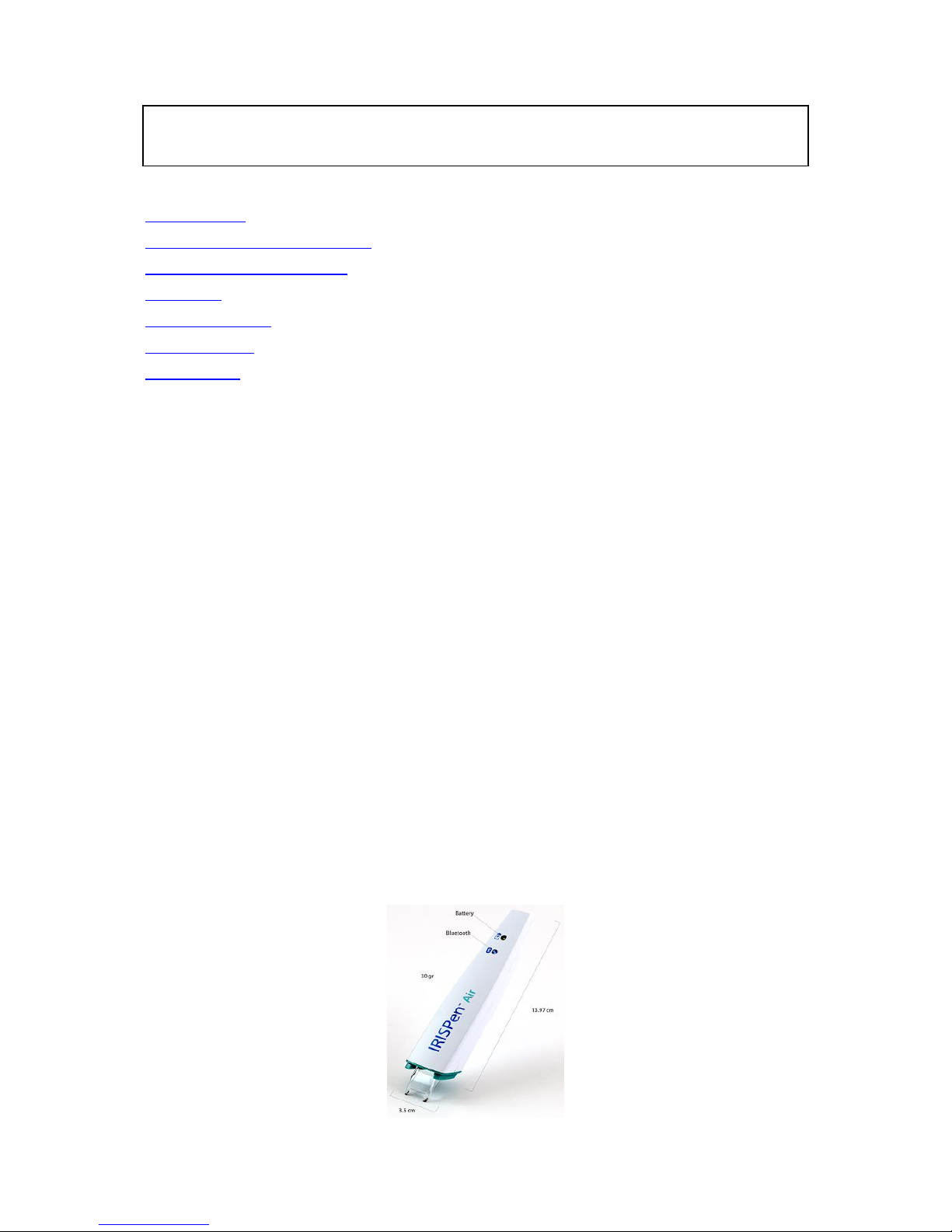

Table of Contents

1. Introduction

2. Installation of the IRISPenTM app

3. Quick Setup of the IRISPenTM

4. Scanning

5. Troubleshooting

6. Specifications

7. Compliance

1. Introduction

IRISPen AirTM 7 is a Smart wireless pen scanner that allows you to scan lines of text to the IRISPenTM

app on your Android device. In the app the scans can be edited, translated, read out loud and shared

through your favorite Cloud accounts.

Thanks to I.R.I.S.' OCR technology (Optical Character Recognition) IRISPen AirTM 7 recognizes 130

languages*, barcodes and CMC7 fonts in Online mode. When using the IRISPenTM in Offline mode,

not all languages are supported. A message is displayed when a language requires Online mode.

You can also have the application automatically translate the scanned text and read it out loud.

Note that with IRISPen AirTM 7 you scan one line at a time.

*130 languages will be supported in the final version of IRISPen AirTM 7, which clients will be able to download through the

Update feature in the current application.

Before you begin:

Charge the IRISPenTM for 5 hours. To do so, plug it into a computer using the provided USB cable and

power on the computer, or plug the IRISPenTM into a power outlet. The green battery led blinks slowly

when the battery is being charged. When the battery led stays on, the battery is fully charged.

Note: charging the IRISPenTM by connecting it to a USB port on your Android device (should it

have one) is not supported.

Note:the battery life in usage is about 4 hours. When the battery is almost dead, the battery

led starts blinking fast. The recharge time is about 2.5 hours. Note that the battery status is

also indicated within the IRISPenTM app.

2. Installation of the IRISPenTM app

Important: to install the IRISPenTM app you need a wireless Internet connection.

Open the Play Store on your Android device.

Search for the IRISPen AirTM 7 app and install it.

To do so follow the on-screen instructions.

Once the app has been installed, tap Open.

Press the scanning tip for 3 seconds to power on the pen, as shown in the IRISPenTM app.

The blue Bluetooth led on the pen starts to blink slowly.

Tap Start.

If Bluetooth is not enabled on your device, a message appears that "An app wants to

turn on Bluetooth". Select Allow.

Tap Select scanner.

When the Bluetooth connection has been established the blue led stays on. A message

appears that the scanner is successfully connected.

Note that connection may take some time.

Should you have trouble connecting the pen, see the Troubleshooting section.

Tap Next to continue with he Quick Setup.

Note: next time you just need to open the app and power on the IRISPenTM.

3. Quick Setup of the IRISPenTM

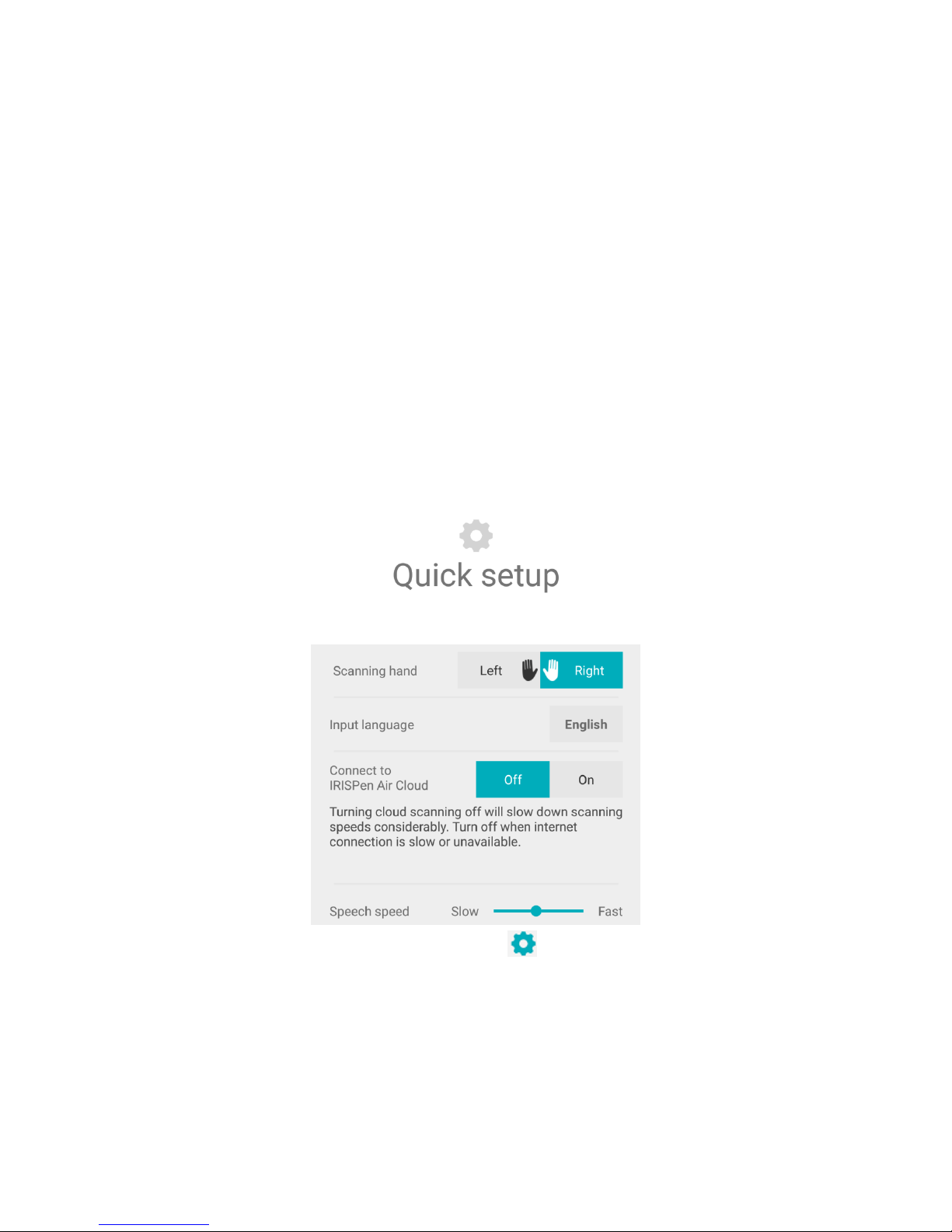

When you start the app for the first time the Quick Setup is displayed.

In the Quick Setup you can select:

The Scanning hand:

Select Right hand to scan lines from left to right.

Select Left hand to scan lines from right to left.

The Input language

IRISPenTM supports 130* languages.

*130 languages will be supported in the final version of IRISPen AirTM 7, which clients will be able to download

through the Update feature in the current application.

Online / Offline mode

Select On to activate Online mode and connect to IRISPen AirTM 7 Cloud. Or select Off

to work in Offline mode.

Speech speed

Move the slider to adjust the Text to Speech reading speed.

To access these Settings later on, tap the Settings icon ( ) in the bottom right corner.

Scanning Tips

Then continue to Scanning tips.

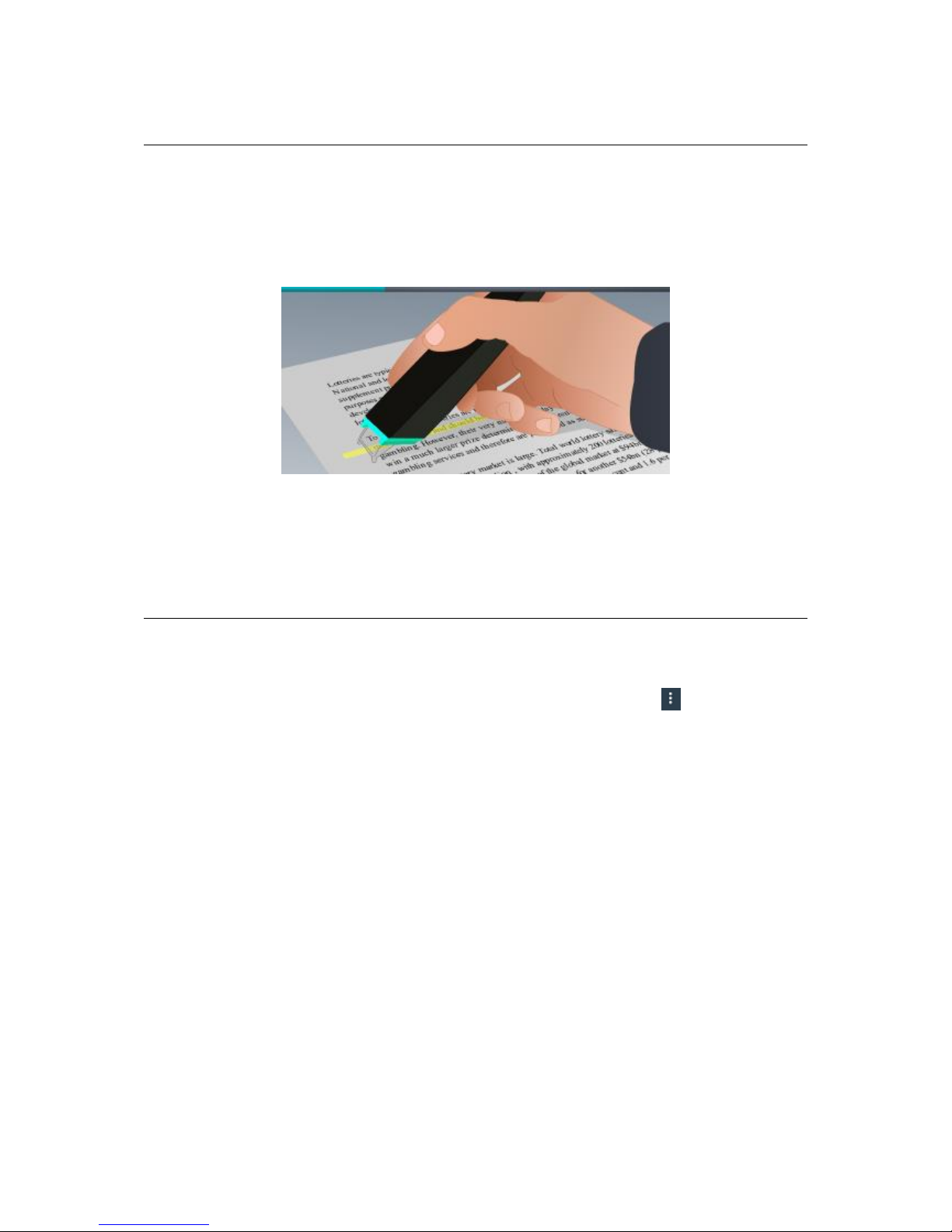

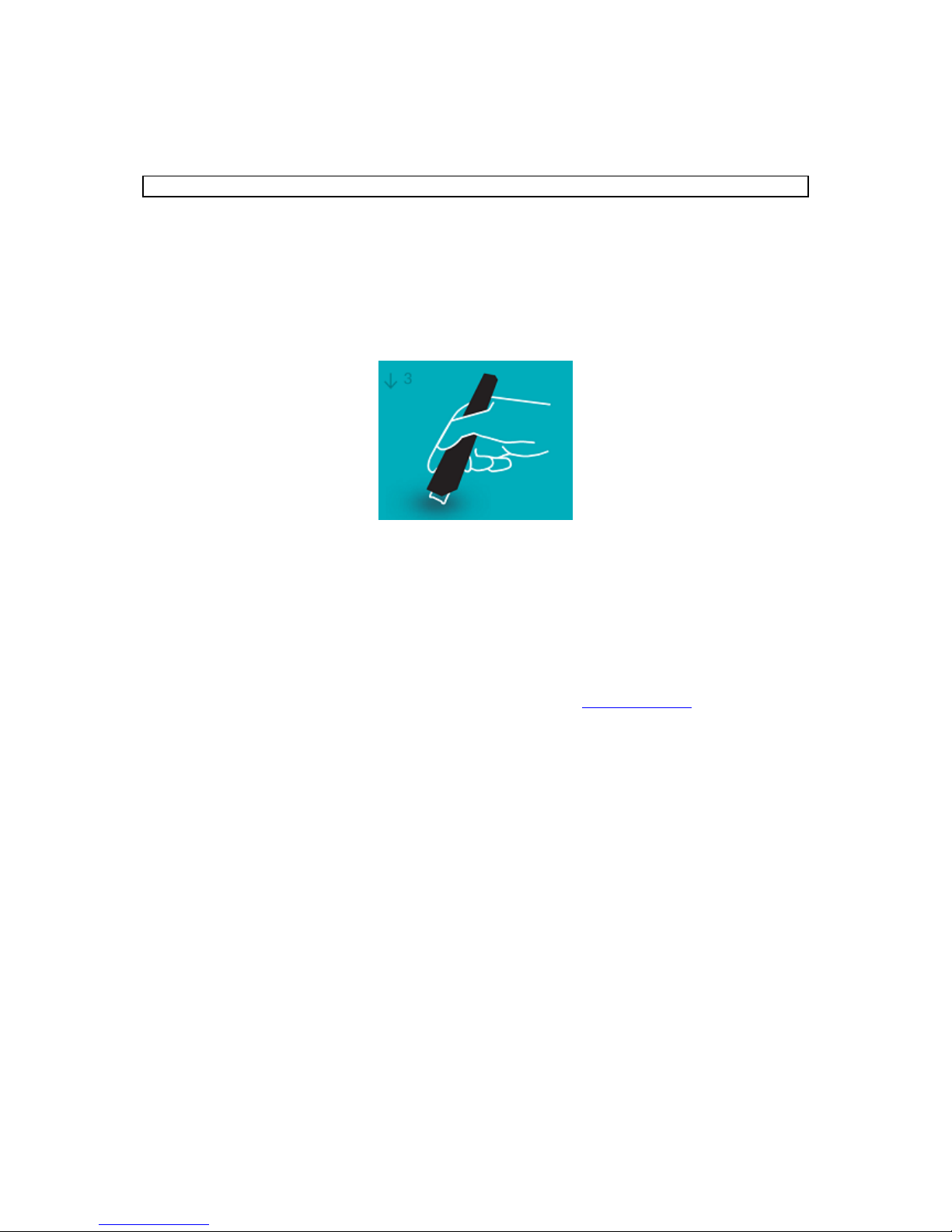

Hold the pen upright to scan text. Do not scan in a 45 degree angle or less.

Make sure both sharp ends of the scanner tip always touch the page during scanning.

Scan one line of text at a time. Make sure the line is approximately in the middle of the two

scanner tips.

Avoid scanning too slowly. Slide the IRISPenTM smoothly, in a fluid motion.

Avoid applying excessive pressure. Otherwise, the scanning may result in jerky, uneven

motions.

Tap the arrow next to Give it a go when you are done.

Practice Scanning

You can now practice your scanning and watch the results.

When you are done, tap Finish.

To access the Scanning Tips or Practice menu again, tap the menu icon ( ) in the top right

corner of the main screen and select Scanning Tips or Practice.

4. Scanning

In this section we explain the different scanning possibilities of the IRISPenTM.

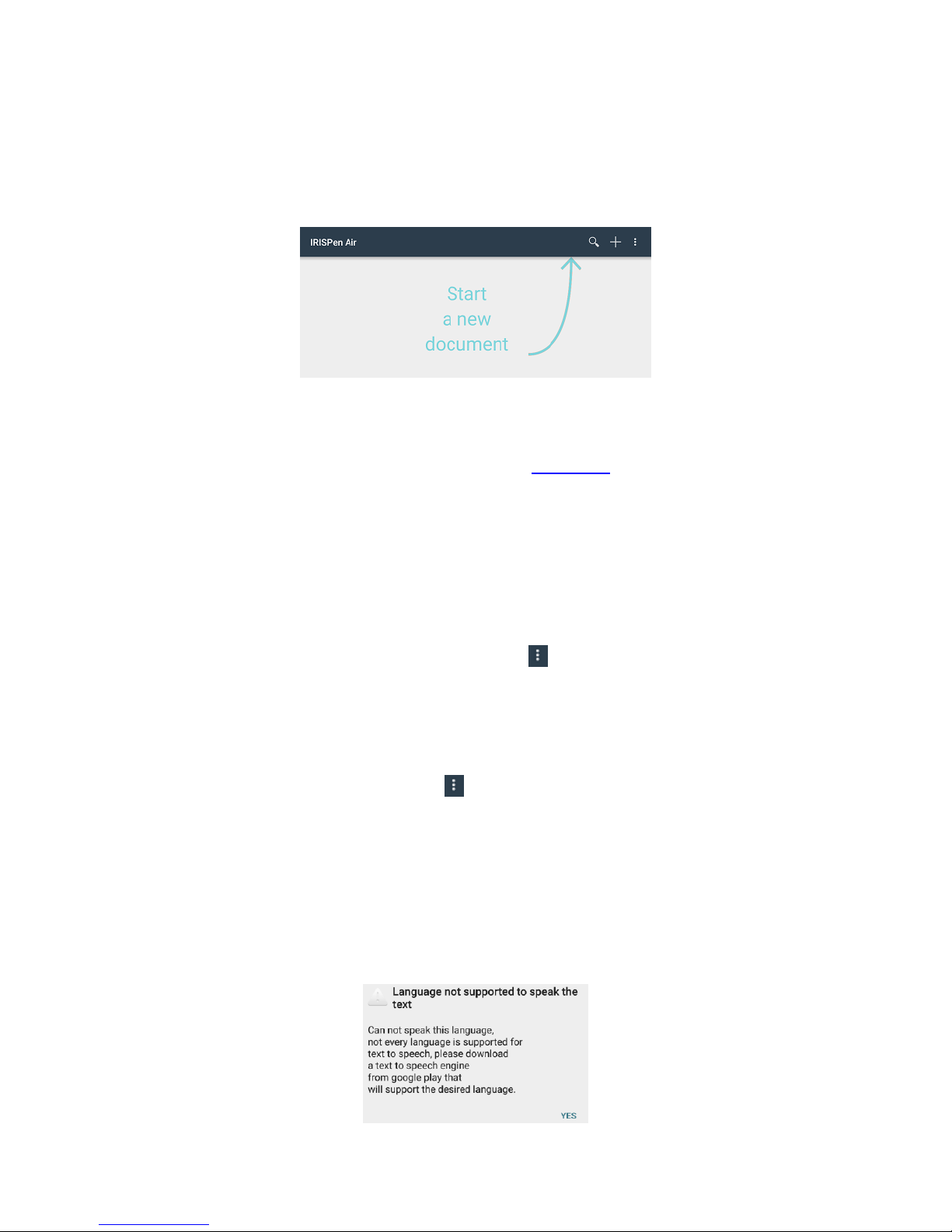

Tap the plus sign to start a new document.

A new document is always named "untitled document". To rename it, tap inside the

title and enter a name of your choice.

"Ready to scan" now appears on the screen.

Slide the pen over a line of text as explained in the Quick Setup.

The scanned text appears in the application. You can add multiple lines to a document

until the document if full.

Note that you still need to scan one line at a time.

Tip: to add a scan on a new line, click with the pen after you have scanned the line.

If necessary, the results of the scan can be modified manually. To do so, tap inside the text

and edit it.

Note that the standard Cut, Copy, Paste options are available as well.

To delete an entire document, tap the menu icon ( ), and select Delete.

Reading text out loud

Note: make sure Online mode is activated to use this feature. An Internet connection (Wifi, 3G or

4G) is required to activate Online mode.

To read the text out loud, tap the menu icon ( ), and select Speak.

By default 17 languages are supported: English, French, Dutch, German, Italian, Polish, Russian,

Spanish, Brazilian, Danish, Finnish, Norwegian, Swedish, Simplified Chinese, Traditional Chinese,

Japanese and Korean.

When you select another language that is not installed by default, a pop-up window appears

prompting you to install a Text to Speech engine that supports the required language from Google

Play Store.

Note: clicking Yes does not automatically open Play Store or download the required engine.

This must be done manually.

Translating text

Note: make sure Online mode is activated to use this feature. An Internet connection (Wifi, 3G or

4G) is required to activate Online mode.

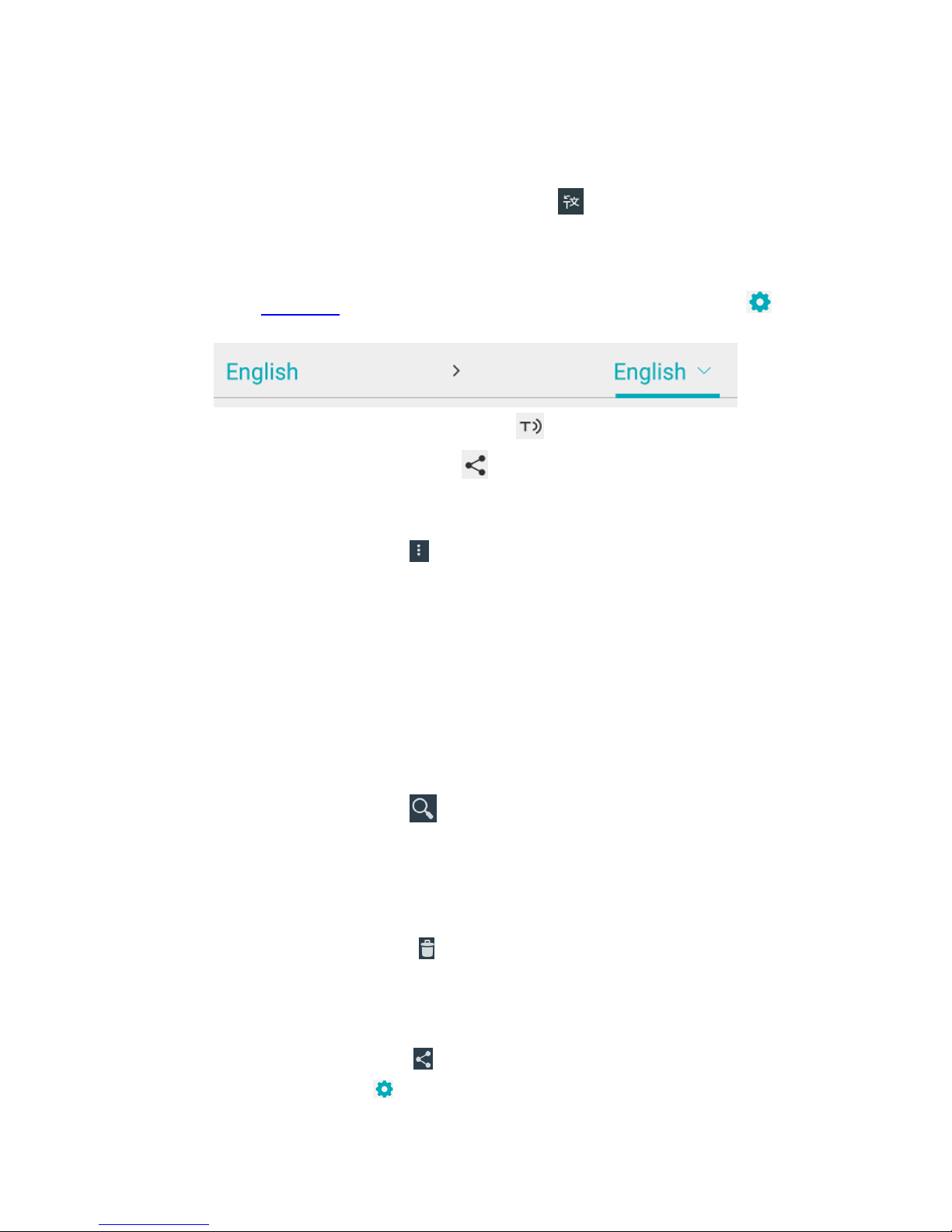

To translate the text you have scanned, tap the Translate icon ( ).

Tap the language on the right-hand side and select the required language from the list. The text is

translated immediately.

Note: the language on the left cannot be changed. This is the input language you selected

during the Quick Setup. To select a different input language go to the Settings menu ( ).

Then start a new document in the app.

To read the translated text out loud, tap the Speak icon ( ).

To share the translated text, tap the Share icon ( ).

Saving and Sharing your Scans

To share your scans, tap the menu icon ( ). Then select Share.

The Cloud accounts that are configured on your device are displayed. Select the destination of your

choice.

To share multiple documents at once, return to the main screen. Tap and hold a document

you want to share, select the others and tap the share icon.

Returning to the main screen

To return to the main screen tap the return button on your device.

In the main screen:

You have an overview of all your documents and how many scans they each contain.

You can use the Search feature ( ) to search for documents.

You can add new documents by tapping the plus sign.

Delete multiple documents:

Tap and hold the document you want to delete.

Select other documents to be deleted.

Then tap the delete icon ( ).

Share multiple documents:

Tap and hold the document you want to share.

Select other documents to be shared.

Then tap the share icon ( ).

Access the Settings menu ( ).

Check the battery status.

Powering off the IRISPenTM

To power off the IRISPenTM, rapidly click the scanning tips three times against a surface.

Note: when the IRISPenTM is inactive for 12 minutes, it auto powers off.

5. Troubleshooting

Should you experience issues when using the IRISPen AirTM 7, tap the menu icon ( ) and select Help

and Support.

Tip: for a list of compatible devices, click the links to go to the IRISPen AirTM 7 section of the

I.R.I.S. Technical Support website and scroll down to Compatibility.

6. Specifications

Product Specifications

Scanner sensor

CMOS

Scanner Size ( H x L x D)

3,5 x 15 x 2,5 cm ( 1.37 x 5.51 x 0.98)

Scanner weight

28gr

Max scanning size

8 mm

Grey Depth

1 bit

DPI resolution

300

Scanning speed

3 sec

USB

2.0

Bluetooth Specifications

Standard

Bluetooth Low Energy Core 4.0 specification compliant

Frequency Range

Used in operation 2402 MHz –2480 MHz

Occupied block 2400 MHz –2483.5 MHz

Number of channels

40 channels, each 2 MHz wide

Data Rate

1 Mbps

Transmit Power (EIRP)

0.35 mW max

Battery Specifications

Type

Single cell lithium-polymer (LiPo)

Model

GSP051050

Rated capacity

200mAh

Rated voltage

3.7 V

Maximum voltage

4.2 V

Max discharge current

200 mA

Dimensions of battery (H x L x D)

5,0 x 10 x 50 mm

Weight

6 g max

All software and drivers are available for download at www.irislink.com/softwaredownload.

7. Compliance

RoHS and WEEE Compliance

This product is compliant with RoHS Regulations of the European Parliament and Council Directive

on the Restrictions of the Use of Certain Hazardous Substances in Electrical and Electronic

Equipment (2002/95/EC), and with the Waste Electrical and Electronic Equipment (WEEE) Directive

(2002/96/EC).

FCC Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for the class B digital device,

pursuant to part 15c of the FCC Rules. These limits are designed to provide reasonable protection

against interference in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and if not installed, and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try and correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

This equipment has been certified to comply with the limits for a class B computing device, pursuant

to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used

with this equipment. Operation with non-approved equipment or unshielded cables is likely to result

in interference to radio and TV reception. The user is cautioned that changes and modifications

made to the equipment without the approval of manufacturer could void the user's authority to

operate this equipment. This device complies with part 15c of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation.

Table des matières

Autres manuels Canon Scanner

Canon

Canon CanoScan N340P Manuel de référence

Canon

Canon DR-4010C - imageFORMULA - Document Scanner Manuel utilisateur

Canon

Canon DR 5010C - imageFORMULA - Document Scanner Manuel utilisateur

Canon

Canon 5600F - CanoScan - Flatbed Scanner Instructions d'utilisation et d'installation

Canon

Canon CanoScan LiDE 20 Manuel utilisateur

Canon

Canon LiDE 300 Guide de configuration

Canon

Canon MF4200 Series Manuel d'installation et d'exploitation

Canon

Canon CanoScan 9950F Manuel utilisateur

Canon

Canon imageFORMULA DR-M260 Manuel utilisateur

Canon

Canon 2099B002 Manuel utilisateur

Canon

Canon CanoScan LiDE210 Manuel utilisateur

Canon

Canon 5600F - CanoScan - Flatbed Scanner Manuel utilisateur

Canon

Canon ScanFront 220 Manuel utilisateur

Canon

Canon ScanFront 300eP Manuel utilisateur

Canon

Canon CanoScan FB 1200S Manuel utilisateur

Canon

Canon ScanFront 220 Manuel technique

Canon

Canon 2923B003 Manuel utilisateur

Canon

Canon Microfilm Scanner 800II Manuel utilisateur

Canon

Canon 8800F - CanoScan - Flatbed Scanner Manuel utilisateur

Canon

Canon 600F - CanoScan LiDE Manuel utilisateur

Canon

Canon DR-9050C - imageFORMULA - Document Scanner Manuel utilisateur

Canon

Canon IMAGE FORMULA DR-6010C Manuel utilisateur

Canon

Canon DR 2010C - imageFORMULA - Document Scanner Instructions d'utilisation

Canon

Canon DR-6050C - imageFORMULA - Document Scanner Manuel

Manuels Scanner populaires d'autres marques

Plustek

Plustek Scanner Manuel utilisateur

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuel utilisateur

Renkforce

Renkforce DS100-5M Manuel utilisateur

Image Access

Image Access WideTEK A2 Manuel utilisateur

Fujitsu

Fujitsu FI-4860C2 Manuel utilisateur

GeoSlam

GeoSlam ZEB Horizon Instructions d'installation

Kodak

Kodak i5800 Scanner Manuel utilisateur

Kodak

Kodak i7300 Manuel utilisateur

Revopoint

Revopoint POP Manuel utilisateur

Fujitsu

Fujitsu fi-4860C Manuel utilisateur

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuel utilisateur

Faselase

Faselase F6 Manuel utilisateur

Fujitsu

Fujitsu CardMinder Manuel utilisateur

Uniden

Uniden BC340CRS Manuel utilisateur

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuel utilisateur

Mustek

Mustek PageExpress 4800 Pro Manuel utilisateur

Optex

Optex 750830 Manuel utilisateur

Innova

Innova 5210 Manuel utilisateur

Canon irispen air 7 Manuel d'instructions

Manuels Scanner populaires d'autres marques
