ENGLISH

Please read this guide before operating this scanner. After you finish reading this guide, store it in a safe

place for future reference.

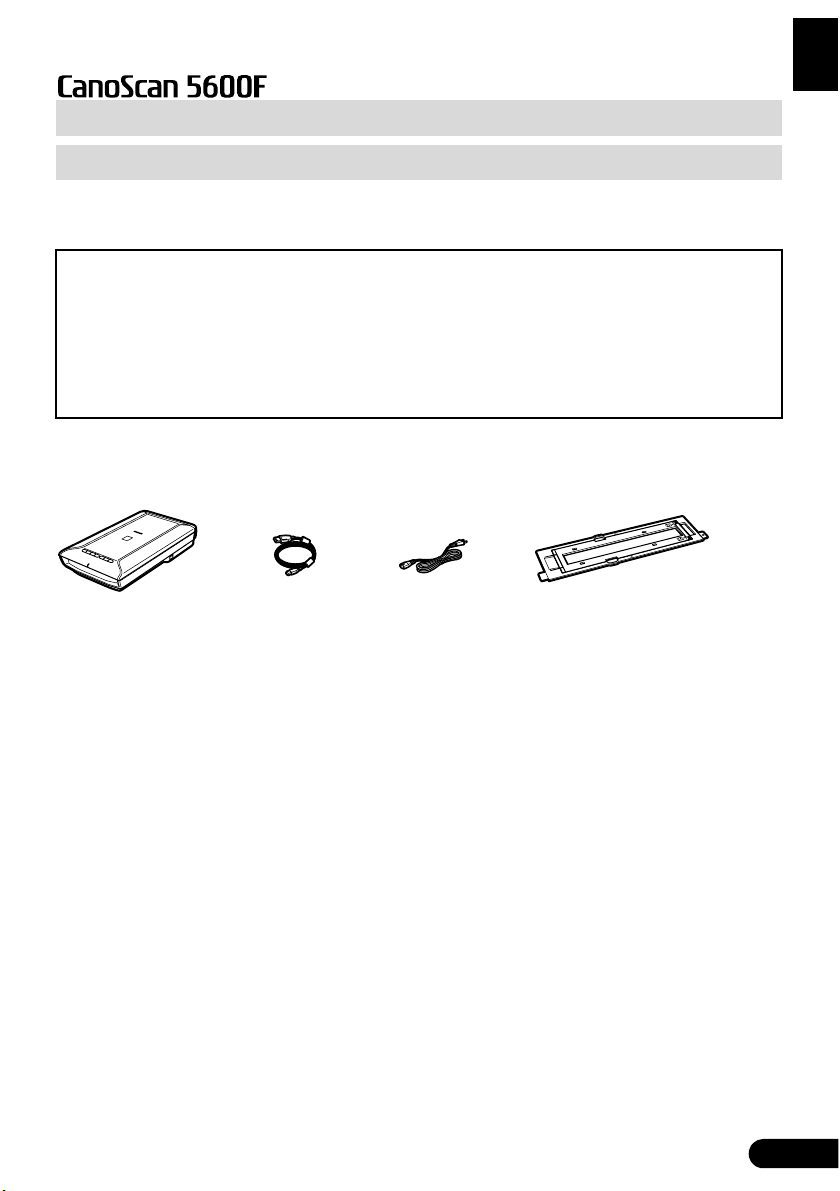

Package Contents

Scanner and Accessories

Documentation

•Quick Start Guide (this document)

•Additional Documents

Setup CD-ROM

•Software Programs

- ScanGear (scanner driver)

- MP Navigator EX (utility software)

- Solution Menu (menu panel software)

- ArcSoft PhotoStudio (image editing software)

•On-screen Manuals

-Scanning Guide (on-screen manual) (for ScanGear, MP Navigator EX, and troubleshooting)

- Manuals for bundled application programs

*In this guide, Windows Vista operating system screenshots are used to illustrate explanations common

to all operating systems.

Table of Contents

Package Contents .......................................... 1 Scanning with MP Navigator EX.....................7

Installing the Software .................................... 2 Scanning Film .................................................8

Preparing the Scanner ................................... 4 Specifications..................................................11

Try Scanning .................................................. 5 Safety Precautions..........................................13

Using the Scanner Buttons............................. 6

Quick Start Guide

Scanner USB Cable Film Guide

(for 35mm film strip/slide)

Power Cord

Installing the Software

ENGLISH

Installing the Software

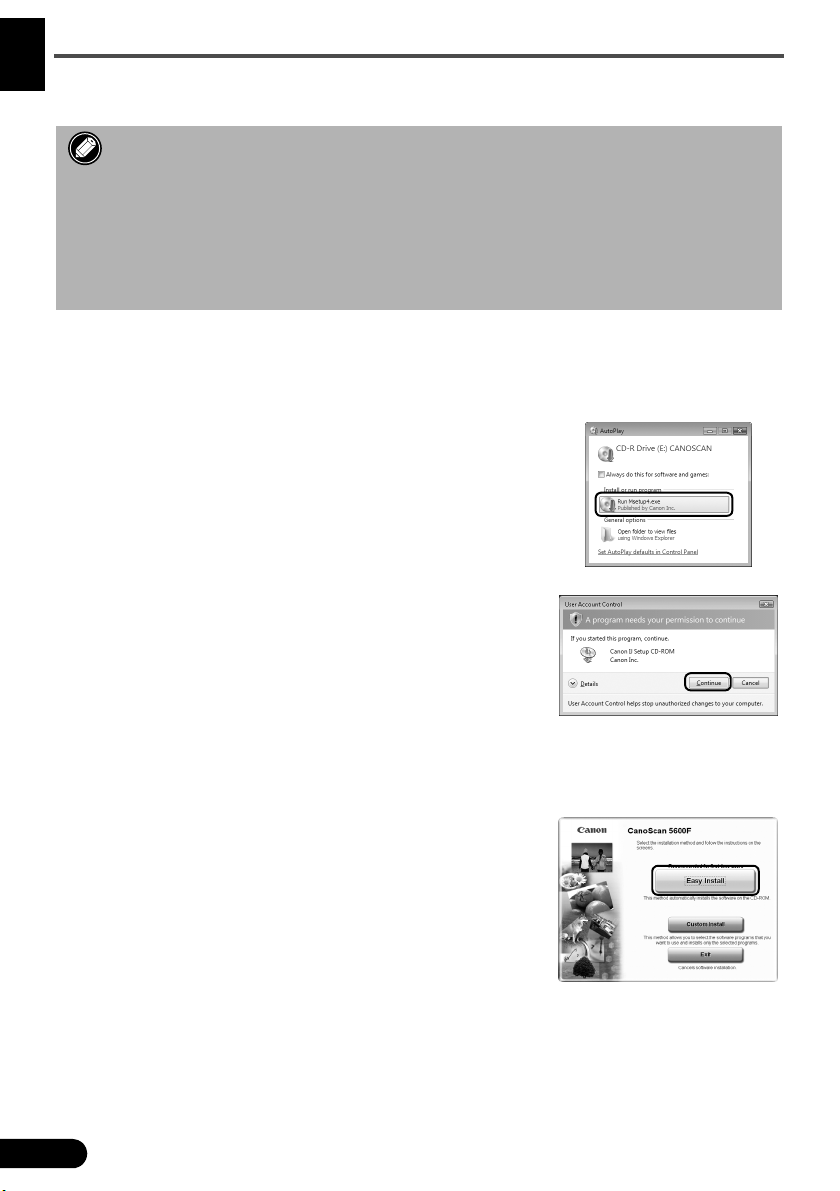

1Place the Setup CD-ROM in the drive.

For Macintosh: Double-click the [Setup] icon. Enter the administrator ID and password on the

authentication dialog box.

For Windows 2000/XP and Macintosh, skip step 2 and go to step 3.

2For Windows Vista, when the AutoPlay dialog box

appears, run the setup program, and then click [Continue]

to proceed when the User Account Control dialog box

appears.

3If prompted, select your language and place of residence.

In some countries, these dialog boxes will not appear.

4Click [Easy Install] on the main menu.

• Do NOT connect the scanner to a computer before installing the software. If you connect the

scanner and the Found New Hardware screen appears, unplug the USB cable from the

computer and click [Cancel]. The screen may close automatically when the USB cable is

unplugged.

• Quit all running applications before installation.

• To upgrade from Windows XP to Windows Vista, first uninstall software bundled with the

Canon scanner.

• Log in as an administrator to install the software.

• Do not switch users during the installation process.

Installing the Software

ENGLISH

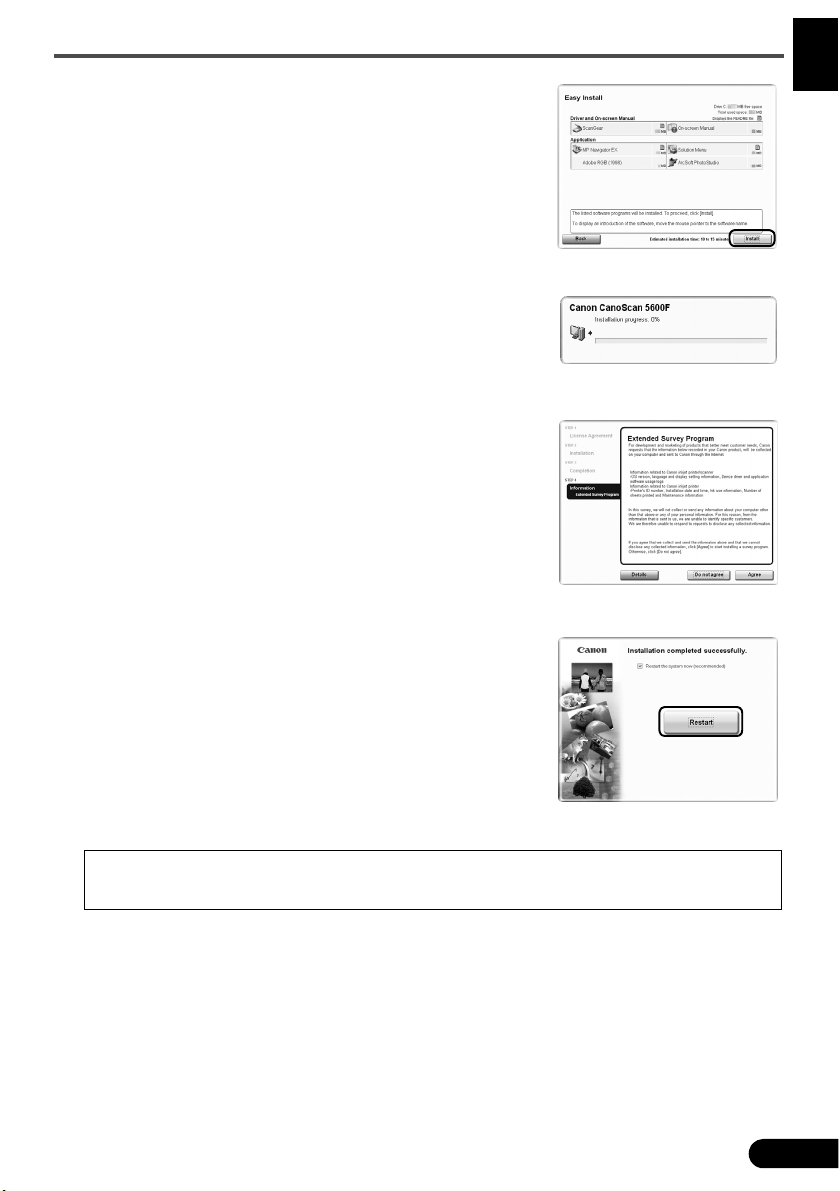

5Click [Install] to start installation.

Carefully read the License Agreement, and then click [Yes] to

proceed.

6Follow the on-screen instructions to perform the

installation.

For Macintosh, skip step 7 and go to step 8.

7For Windows, when the Extended Survey Program

screen appears, confirm it.

If you can agree, click [Agree].

8When the installation is complete, click [Restart] to restart

your computer.

For Windows: After restarting the computer, Solution Menu will

appear.

For Macintosh: After restarting the computer, [Solution Menu]

icon will be registered in the Dock.

You can select either MP Navigator EX or the Scanning Guide

(on-screen manual).

• Make sure to remove the CD-ROM from the drive and store it in a safe place.

• If you encounter a problem during installation, see "Troubleshooting" in the Scanning Guide (on-screen

manual).

Preparing the Scanner

ENGLISH

Preparing the Scanner

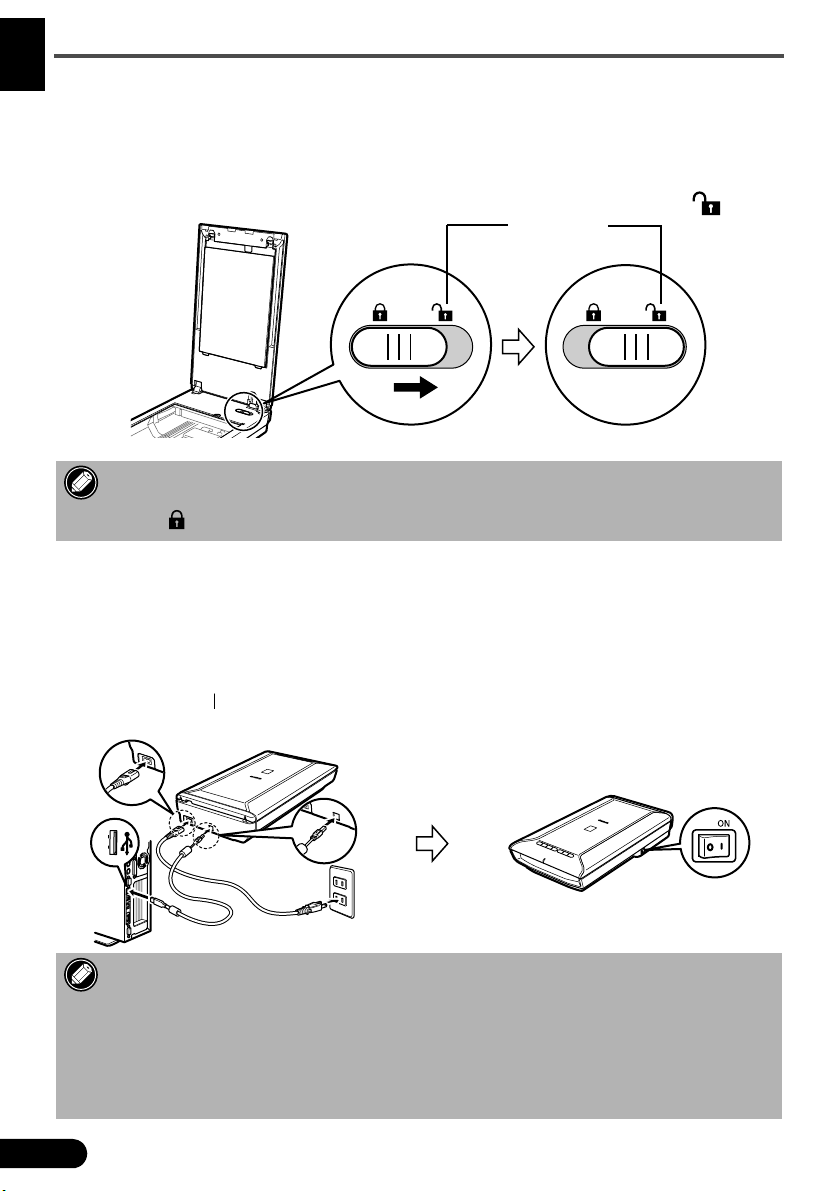

Unlocking the Scanner

1Peel the shipping tapes off the scanner.

2Open the document cover and slide the lock switch toward the unlock mark ( ).

Connecting the Scanner

1Connect the scanner to your computer with the supplied USB cable.

2Connect the supplied power cord to the scanner.

3Plug the power cord into the electrical outlet.

4Press the ON ( ) side of the power switch on the right side of the scanner to turn the

power on.

• Handle the scanner with both hands. Be careful not to drop the scanner.

• When you carry or transport the scanner, make sure to slide the lock switch toward the lock

mark ( ) to fasten the scanning unit.

• Only use the USB cable and the power cord provided with the scanner. Use of other cables

may lead to a malfunction.

• Do not touch the metallic parts of the USB connector.

• Always attach the power cord to the scanner before plugging into the electrical outlet.

Reversing this order may lead to malfunctions.

• When the scanner is connected to the USB 1.1 port and "HI-SPEED USB Device Plugged into

non-HI-SPEED USB Hub" message appears, ignore the message. The scanner operates in

this condition without problems.

Unlock Mark

Try Scanning

ENGLISH

Try Scanning

This section explains the basic scanning procedures using MP Navigator EX.

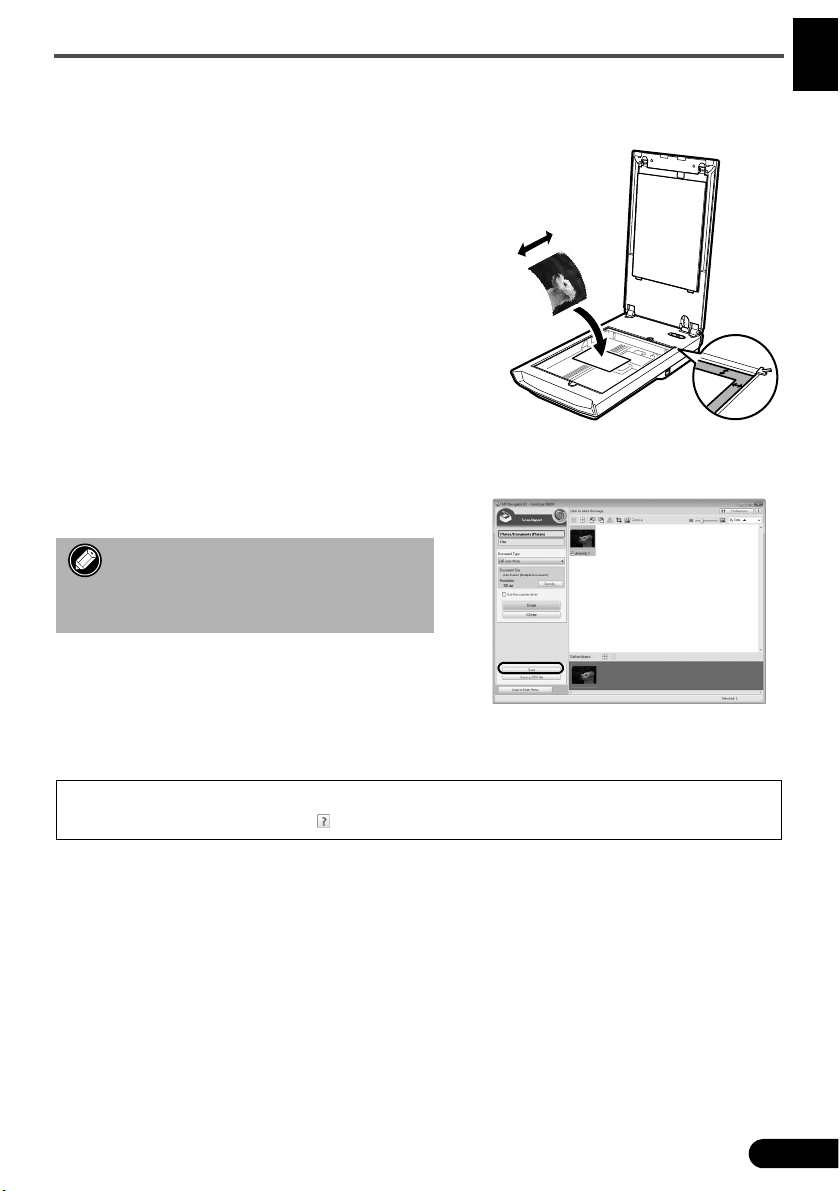

1Place a color photo document with the side to be

scanned facing down on the document glass at

least 1 cm away from the edges of the document

glass, and then close the document cover.

2Start MP Navigator EX.

For Windows: Double-click the [Canon Solution Menu]

icon, then click [Scan/import photos or documents.].

For Macintosh: Click the [Solution Menu] icon in the

Dock, then click [Scan/import photos or documents.].

3Click [Photos/Documents (Platen)].

4Select [Color Photo] in "Document Type".

5Click [Scan] to start scanning.

6When prompted that the scanning completed,

click [Exit].

7Click [Save] to save the images and close MP Navigator EX.

• Do not move the scanner while it is

operating.

• Do not see the light source directly during a

scan job.

• For more information on scanning using MP Navigator EX, bundled applications, and troubleshooting, see the

Scanning Guide (on-screen manual). To open the Scanning Guide (on-screen manual), double-click the on-screen

manual icon on the desktop, or click on in ScanGear or MP Navigator EX.

Bottom

Top

Using the Scanner Buttons

ENGLISH

Using the Scanner Buttons

Scanner buttons allow you to copy, scan, e-mail, and save scanned images in PDF format with a press

of a button. Simply place your document on the scanner, and then press the scanner button for the

required function. For more information, see the Scanning Guide (on-screen manual).

• Before using scanner buttons, make sure that the required software programs for each function are installed on your

computer using the supplied CD-ROM. See "Setup CD-ROM" on page 1.

If the scanner buttons do not work properly, see "Troubleshooting" in the Scanning Guide (on-screen manual).

•For Mac OS X v.10.3.9: Before using the scanner buttons, you need to set Image Capture (in [Applications] folder)

to open MP Navigator EX automatically when a scanner button is pressed.

Start Image Capture, and then click [Options] and select MP Navigator EX in [Application to launch when scanner

button is pressed:].

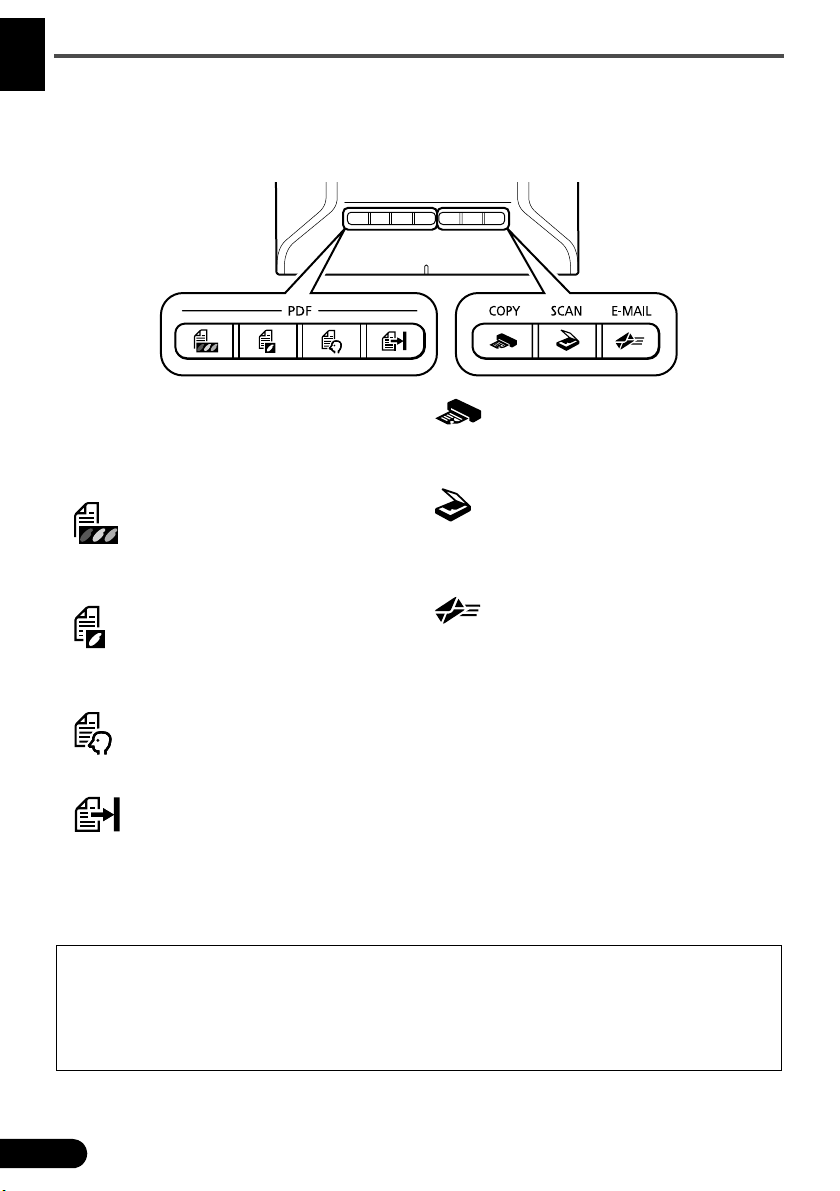

PDF Buttons

PDF buttons allow you to easily create PDF

files according to your needs. Note that

these buttons are not labeled on

the scanner.

COLOR Button

Scans color images in A4 or Letter size*

at 300 dpi by default.

BLACK & WHITE Button

Scans black & white images in A4 or Letter

size*at 300 dpi by default.

CUSTOM Button

Scans images in user-specified settings.

FINISH Button

Ends the operation and saves the scanned

image in a PDF file.

*The size may differ depending on your

system environment.

COPY Button

Prints (copies) the scanned image with a

printer.

SCAN Button

Discriminates the document type

automatically, then scans and saves it with

appropriate settings.

E-MAIL Button

Attaches the scanned image to a new

e-mail message.

Scanning with MP Navigator EX

ENGLISH

Scanning with MP Navigator EX

MP Navigator EX enables you to perform various tasks, such as compositing images, scanning with the

scanner driver (ScanGear), and correcting/editing scanned images, as well as simply scanning.

Starting MP Navigator EX

1Click [Scan/import photos or documents.] in the Solution Menu.

You can also start it by following procedure.

For Windows: Select [Start] – [(All) Programs] – [Canon Utilities] – [MP Navigator EX 2.0], and click

[MP Navigator EX 2.0].

For Macintosh: Open [Applications] – [Canon Utilities] folders, then double-click the [MP Navigator

EX 2.0] icon.

The navigation mode window of MP Navigator EX is displayed.

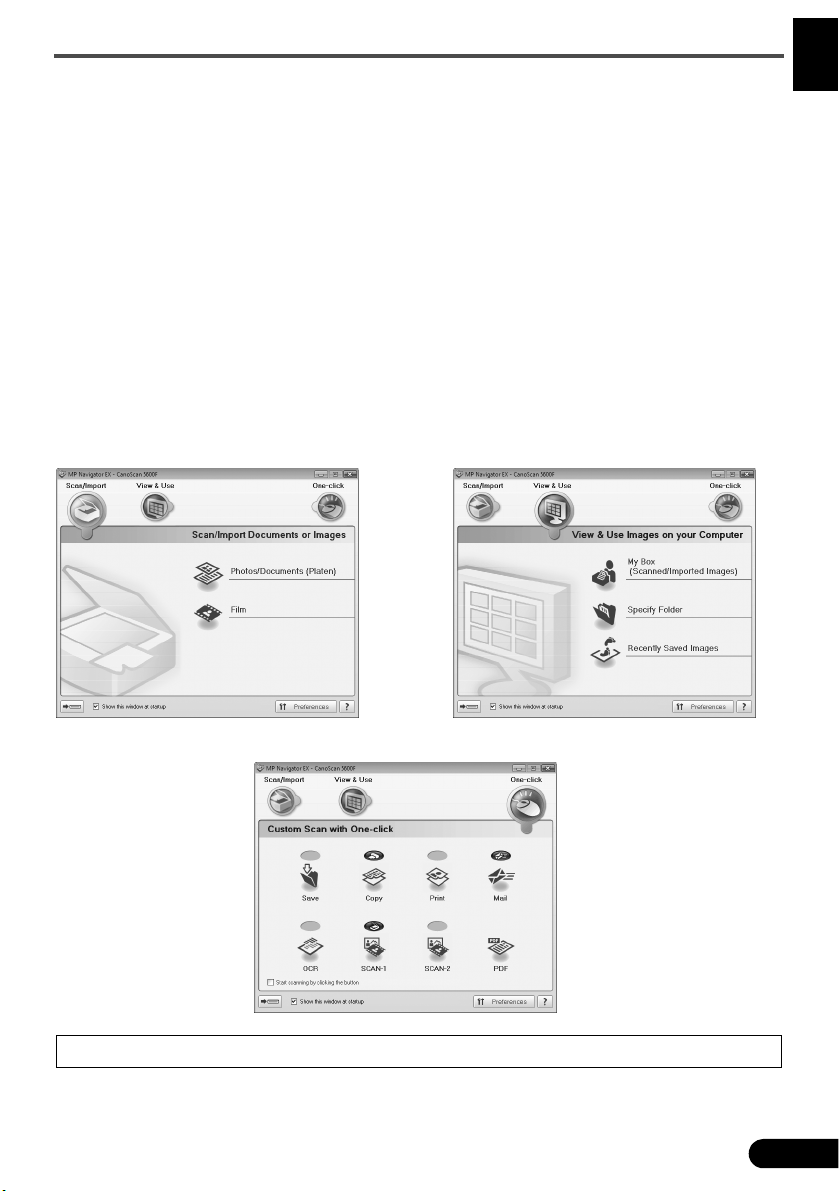

Features of MP Navigator EX

MP Navigator EX is constituted of the following three sheets by the function.

• For more information on MP Navigator EX, see the Scanning Guide (on-screen manual).

Scan/Import Documents or Images sheet View & Use Images on your Computer sheet

Custom Scan with One-click sheet

Scanning Film

ENGLISH

Scanning Film

This scanner can scan 35 mm film (film strip or slide). Follow the procedure below when scanning film.

1Remove the protective sheet from the

document cover.

Press and hold the levers at the top of the

protective sheet cwhile you pull the sheet

outward and detach it d.

2Insert the film into the Film Guide.

35 mm Film Strip

cOpen the Film Holder on the Film Guide, place

the film face down.

dClose the Film Holder.

eAlign the Film Guide's tab with the FILM

symbol on the document glass of the scanner.

• Store the protective sheet in a safe place so

that it will not get bent or broken.

• Always put the protective sheet back when

you are not scanning film to protect the light

source in the document cover.

• Use a blower brush to remove any dust from the film, which will affect the image quality, and

take care to hold the film by its edges to avoid transferring dirt or fingerprints to it.

• Do not block the Calibration Slot on the Film Guide when scanning film. Colors will not be

scanned correctly if the Calibration Slot is obstructed.

• Close the Film Guide securely. Press lightly until it clicks into place.

Ensure that there is no gap between the edge of the film and the Film Guide on the side near

the Calibration Slot.

Film Holder

Calibration Slot

Scanning Film

ENGLISH

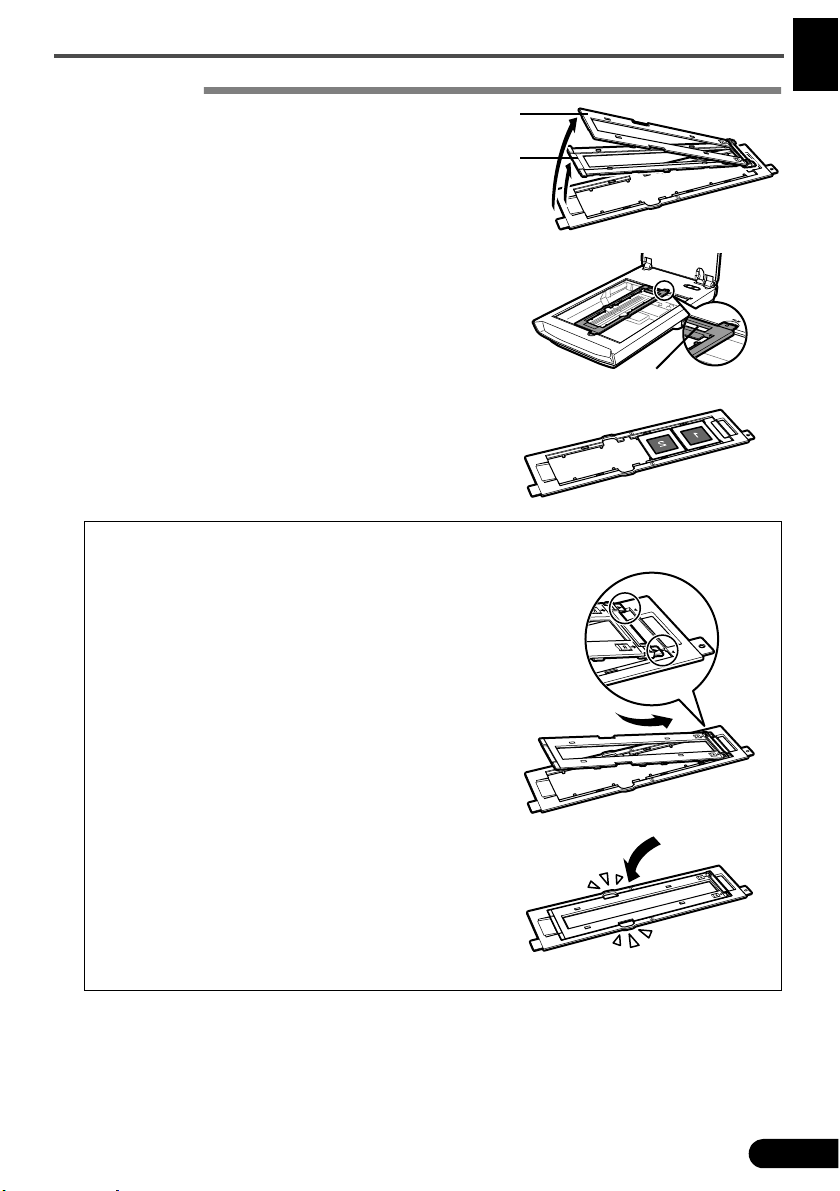

35 mm Slides

cPush the Film Holder on the Film Guide inward to

open it in order (1) and (2) as shown in the figure on

the right. With the Film Holder being opened and

lifted, remove the film strip frame.

dAlign the Film Guide's tab with the FILM symbol on

the document glass of the scanner.

ePlace a slide or slides face down (correctly viewed

from below) in the Film Guide as shown in the figure

on the right.

3Close the document cover.

4Start MP Navigator EX.

Follow the step 2 in "Try Scanning" on page 5.

How to put the film strip frame after slide scanning is done

(A) Align the Smarks on the film strip frame and the

Tmarks on the Film Guide, and then insert each

tab on the top of the film strip frame into the Film

Guide.

(B) Push the edges of the Film Holder inward with your

fingers to close it firmly.

If the Film Holder does not fit into the Film Guide, press down the whole of it.

(1)

(2)

Calibration Slot

(A)

(B)

Autres manuels pour 5600F - CanoScan - Flatbed Scanner

Table des matières

Langues :

Autres manuels Canon Scanner

Canon

Canon LiDE220 Manuel utilisateur

Canon

Canon CanoScan 9950F Manuel utilisateur

Canon

Canon DR 5010C - imageFORMULA - Document Scanner Manuel utilisateur

Canon

Canon MS-300II Manuel utilisateur

Canon

Canon DR-2020U - imageFORMULA - Document Scanner Manuel utilisateur

Canon

Canon CanoScan F910111 Manuel utilisateur

Canon

Canon imageFORMULA P-215 Manuel utilisateur

Canon

Canon 4207B002 Manuel utilisateur

Canon

Canon 2923B003 Manuel utilisateur

Canon

Canon Canoscan CS8000F Manuel utilisateur

Canon

Canon DR 7090C - imageFORMULA - Document Scanner Instructions d'utilisation

Canon

Canon CR-25 - imageFORMULA Desktop Check Scanner Manuel utilisateur

Canon

Canon IRIS IRIScan Desk 5 Pro Manuel utilisateur

Canon

Canon CanoScan LiDE 120 Manuel utilisateur

Canon

Canon I.R.I.S. IRIScan Pro 3 Wifi Manuel d'instructions

Canon

Canon DR-9050C - imageFORMULA - Document Scanner Manuel utilisateur

Canon

Canon CANOSCAN FB330 series Manuel utilisateur

Canon

Canon imageFormula DR-C125 Manuel utilisateur

Canon

Canon CanoScan FB 1200S Manuel utilisateur

Canon

Canon Microfilm Scanner 500 Manuel utilisateur

Canon

Canon DR-9050C - imageFORMULA - Document Scanner Manuel utilisateur

Canon

Canon CanoScan 9900F Manuel utilisateur

Canon

Canon IMAGE FORMULA DR-3010C Manuel utilisateur

Canon

Canon imageFORMULA CR-190i Manuel utilisateur

Manuels Scanner populaires d'autres marques

Plustek

Plustek Scanner Manuel utilisateur

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuel utilisateur

Renkforce

Renkforce DS100-5M Manuel utilisateur

Image Access

Image Access WideTEK A2 Manuel utilisateur

Fujitsu

Fujitsu FI-4860C2 Manuel utilisateur

GeoSlam

GeoSlam ZEB Horizon Instructions d'installation

Kodak

Kodak i5800 Scanner Manuel utilisateur

Kodak

Kodak i7300 Manuel utilisateur

Revopoint

Revopoint POP Manuel utilisateur

Fujitsu

Fujitsu fi-4860C Manuel utilisateur

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuel utilisateur

Faselase

Faselase F6 Manuel utilisateur

Fujitsu

Fujitsu CardMinder Manuel utilisateur

Uniden

Uniden BC340CRS Manuel utilisateur

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuel utilisateur

Mustek

Mustek PageExpress 4800 Pro Manuel utilisateur

Optex

Optex 750830 Manuel utilisateur

Innova

Innova 5210 Manuel utilisateur
